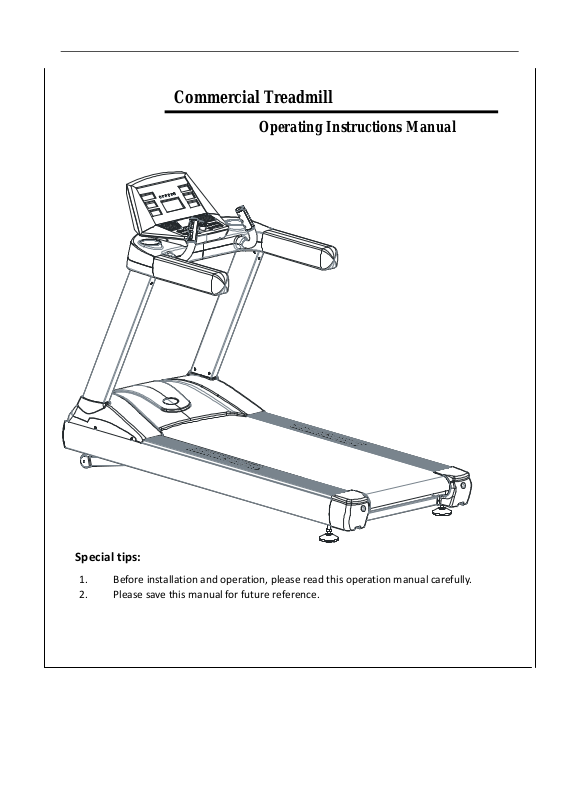

Durafit Beast Operating Instructions Manual

Commercial Treadmill

Operating Instructions Manual

Special tips:

1. Before installation and operation, please read this operation manual carefully.

2. Please save this manual for future reference.

Table of Contents

1 Brief Description…………………………………………………………………1
2 Main Technical Features…………………………………………………………1
3 Tips for safety…………………………………………………………………………2-3
4 Installation………………………………………………………………………………3
5 Use and Operation……………………………………………….………………… 3-7
6 Maintenance…………………………………………………………………………..7-9
7 Guides for malfunction…………………………………………………………… 9-10
8 Warranty…………………………………………………………………………………10-11

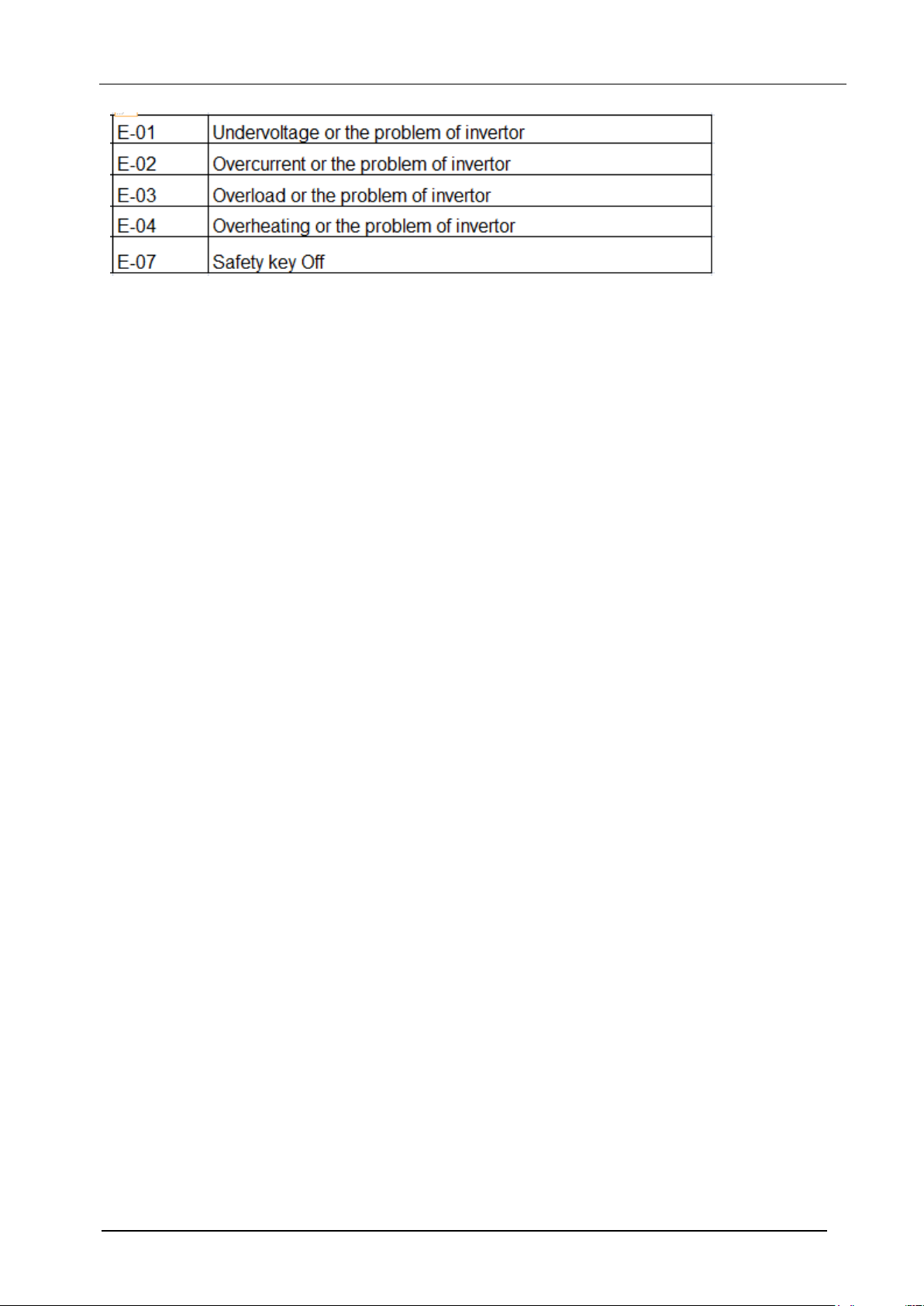

9 Error and self-inspection…………………………………………………………. 11
10 Installation Sketch………………………………………………………………….12-14

1. Brief Description

Meter accessories

Safety key

Heart rate sensor

Pillar accessories

Handle

Footplate

Running belt

Running belt adjustor

Power switch

motorized treadmill (diagram 1) can help complete your goal of keeping fit together with
unique and elegant appearance. Easily read panel parameter. Easily operated folding system
realizes space-saving. Auto speed range 1-22km/h and auto incline range0-18%. All makes it a
hot Commercial use fitness equipment.

2. Main Technical Features

Main use: Body and beauty building
This treadmill is for Commercial use
Panel displays speed, time, distance, heart rate, calorie, MP3, bodyfat, etc.
Display Mode：LED
Motor power: AC 4.0HP
Input voltage: 220V±10%
Frequency: 50HZ
Temperature for working: 0∽40℃
Speed range: 1∽22km/h
Auto incline: 0-18%
Time display range:0:00∽99:59(minute : second);
Distance display range:0.1~99.9kms
Machine size (L*W*H):：2200mm x 890mm x 1520mm

Diagram 1: Commercial Treadmill

- 1 -

3. Tips for Safety

3.1 Insert the power plug into the socket directly. Current load should be less than 15A.

3.2 The constant max weight is less than 180kgs.

3.3 Place your treadmill on the clean floor，not on the thick carpet, otherwise it will not

convenient for ventilation. Also please don’t put the treadmill in the moist place or outdoors;
If there is something wrong with the electrical wire, please replace it with the electrical wire
provided by our company. For the replacement, please contact with the local distributor.

3.4 The treadmill should be placed in the convenient position for electric socket.

3.5 The freshman should grip the handrails when jogging and running until familiarly. Please

don’t stand on the running belt, after the machine is power on (the safe key is at the appointed
position).Please stand on the footplates besides the treadmill, press the “start” button, it runs at

the lowest speed, at this time you can run on the belt.

3.6 While running, you should dress properly. Don’t dress too loosely in case your clothes are

entangled by the machine .And please wear sport shoes with soft sole.

3.7 Before taking down the protecting cover of the treadmill, please keep the machine is power

off.

3.8 Don’t let children and non-sporters get close to the running treadmill to avoid unnecessary

injury.

3.9 Please do remember the position of the safety key, when you are running on the machine. In

this way, you can Press the safe key for the machine’s sudden stop under the dangerous

condition. Then you will not be injured.

3.10 If you are enjoying other entertainment while running such as watching TV, reading. Please
be particularly careful. These activities will distract your attention, which may make you lose
your balance and get hurt.

3.11 Please pull the plug off from socket and keep the safe key, when the treadmill is unused.

3.12 Please don’t put anything under treadmill and don’t let your children play near it after

folding.

3.13 Please consult your doctor at first before running, if you have one of the following diseases.

a) Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other

chronic diseases, complication disease.

b) If you are over 35 years old and heavier than common weight.

c) Women in pregnant or in breasting period.

3.14 Please stop exercising immediately and consult your doctor if you’re feel giddy, surfeit,

thorax ache or other symptoms.

3.15 Please drink adequate water after taking exercises on our treadmill for more than 20

minutes.

- 2 -

3.16 when in running,we have to keep there is enough free space behind the treadmill ,usually
as the rule,it should be length(2m) and the width should be the same as treadmill

3.17 please kindly add 20ml professional oil per time after 3days’ work or 20 hours’ running
time.

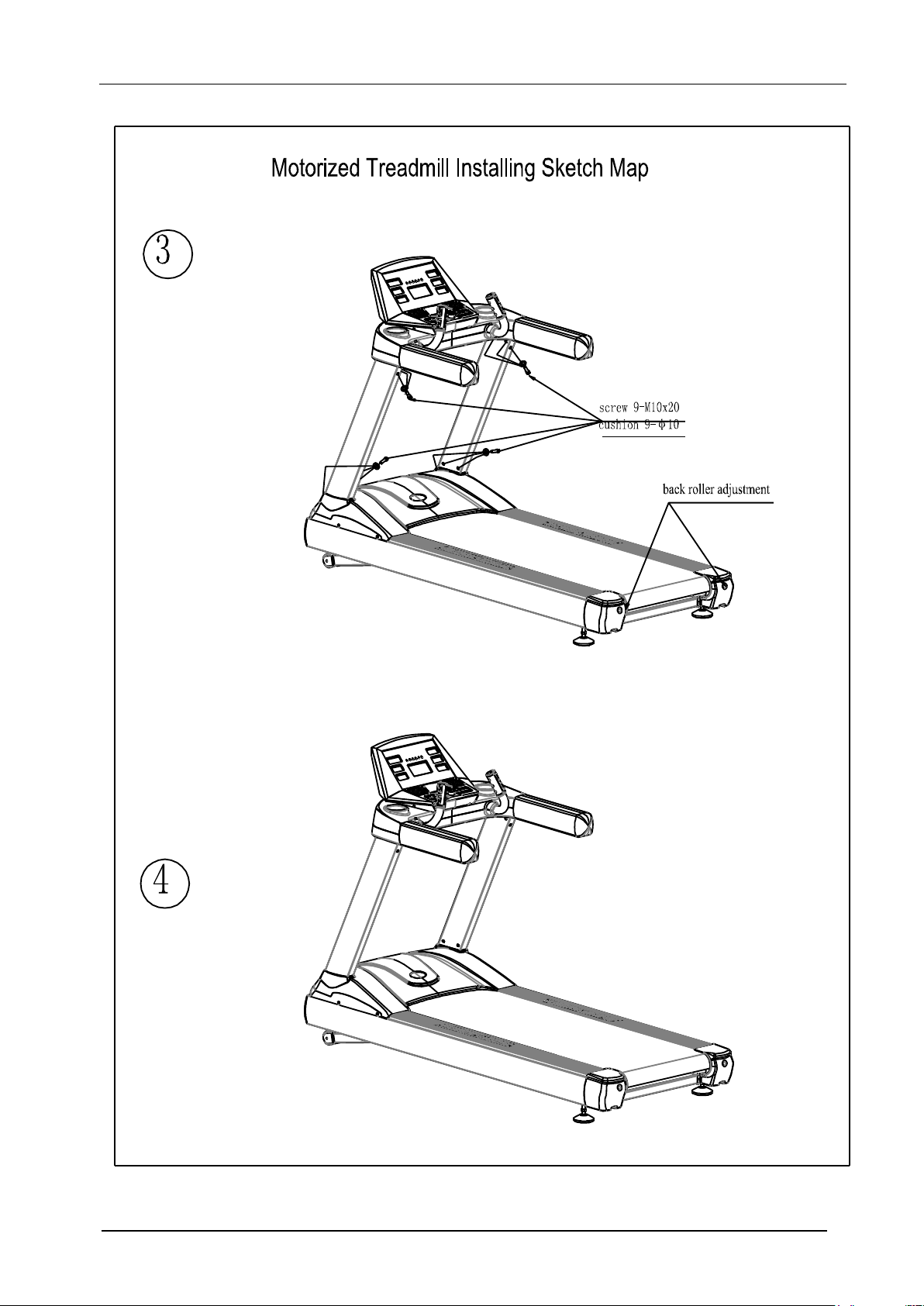

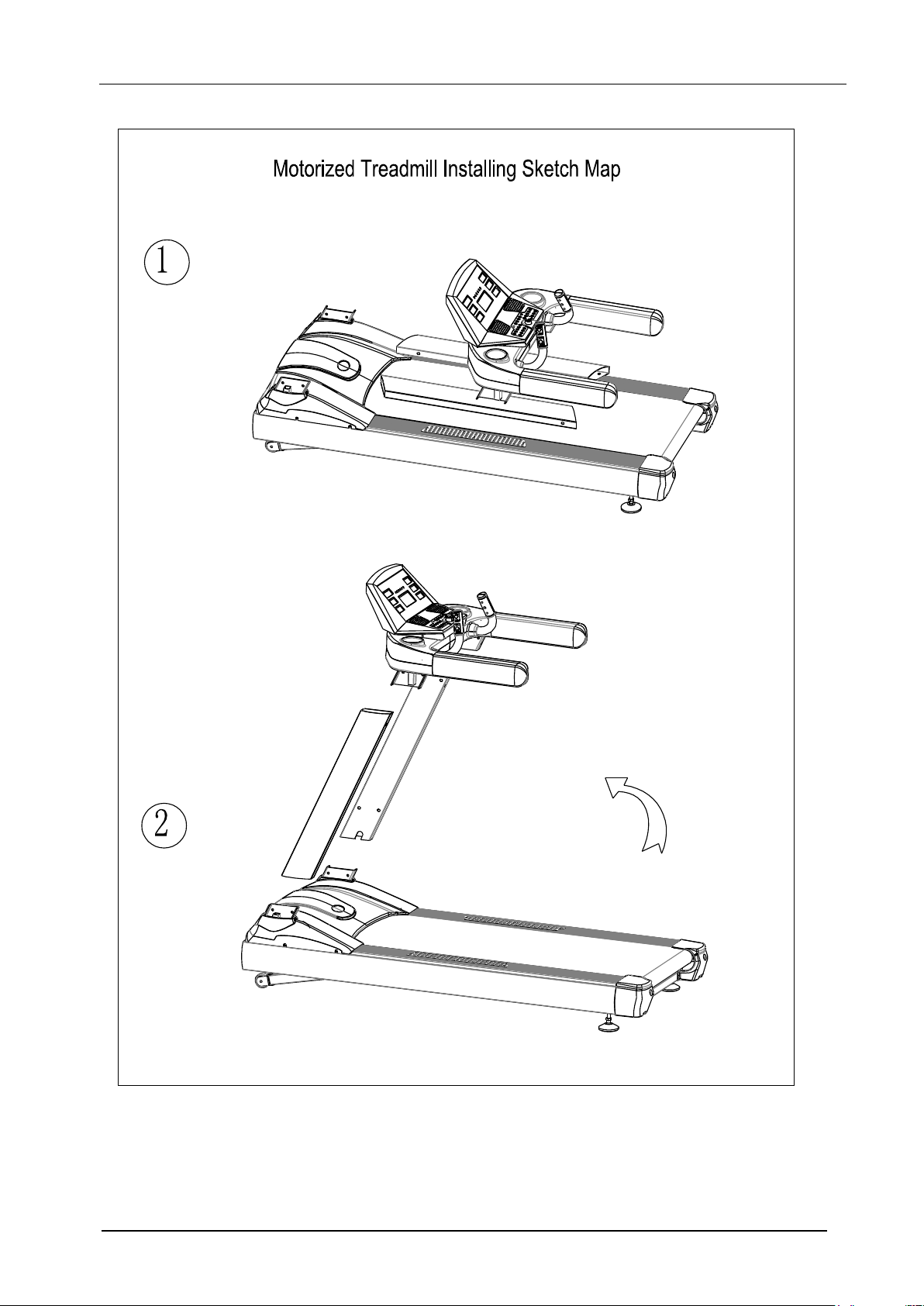

4. Installation: See “Installation sketch”

5. Use and Operation

- 3 -

5.1 Panel Keys and Function

（10）incline-up

（11）incline-down

（18）speed-down

（17）speed-up

（20）speed shortcut key

（14）safety key

（16）prog

（12）Mode

（9）body fat

（19）music

（24）LCD window

（13）stop

（15）start

（7）Speed window

（8）incline shortcut key

（6）Distance window

（5）Time window

（23）Pluse window

（22）Calorle window

（21）Incline window

（4）vol -

（3）vol+

（2）Prev.

（1）Next

（1）“NEXT”

When you use USB function, press this key to choose the next song in your USB.
（2）“Prev”

When you use USB function, press this key to choose the previous song in your USB.

（3）“ Vol+”

When the amplify is open, press this key to increase the voice.

（4）“ Vol-”

When the amplify is open, press this key to down the invoice.

（5）“ Time Window”
It shows time.（range:00:00 -99:59）
（6）“ Distance window”
It shows the distance.(range:0 km-99.9km)
（7）“Speed Window”
It shows speed. (range:1km/h-22km/h）
（8）“Incline shortcut key”

Press this key, the incline goes directly to the chosen height.

- 4 -
