Page 1

Read manual before operating

stop

keep manual for future reference

dm10

Right in there with you.

Page 2

DM10 MACHINE MANUAL

Table of Contents

2 Warranty, Parts and Service

3 Safety Labels

4-7 DM10 Information and Speciﬁcations

8-10 DM10 Machine Schematics and Parts List

11 DM10 Reel Schematics and Parts List

12 DM10 Axle Assembly and PCFR Mounting Instructions

13-16 Power Cable Feed and Return Information, Schematics and Parts List

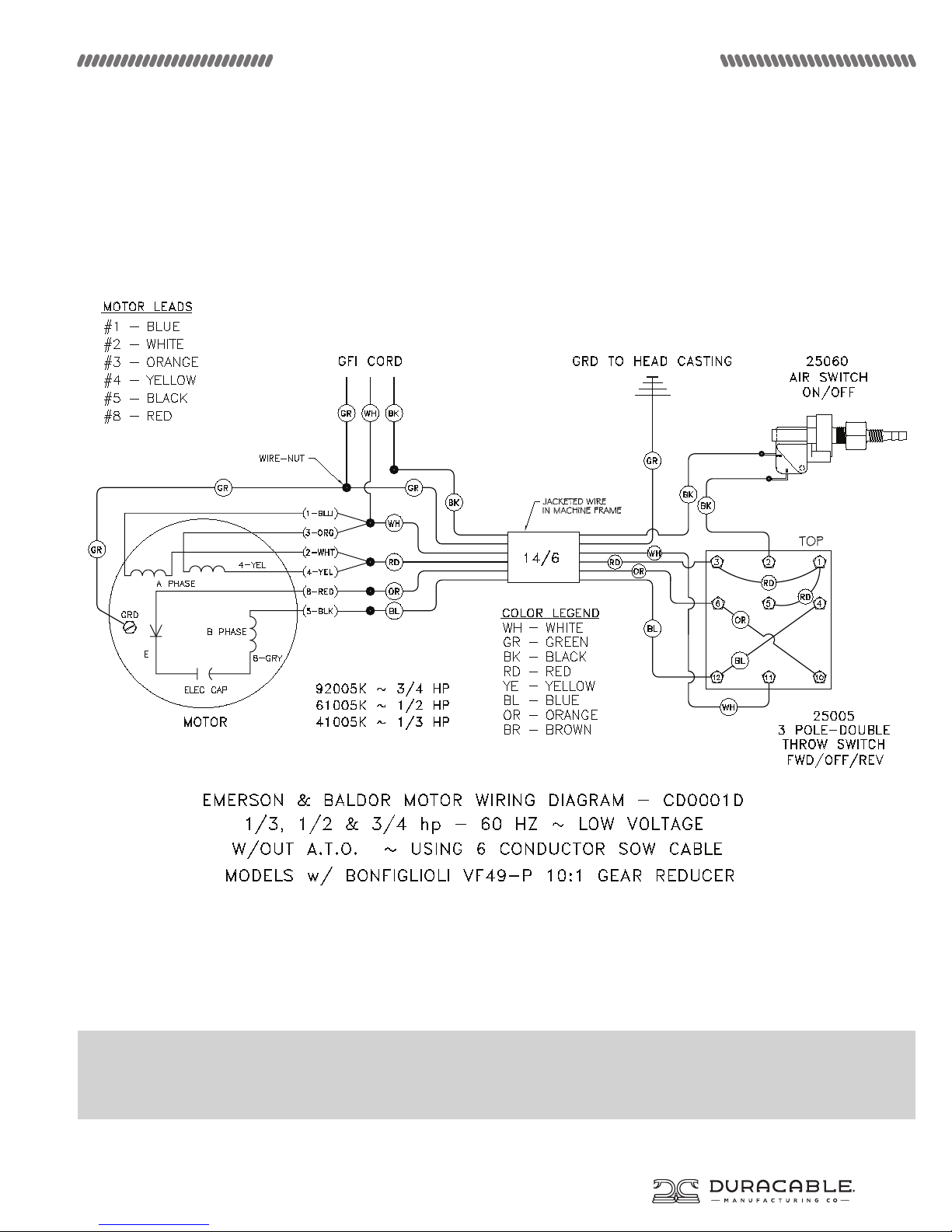

17-18 Model Electrical Schematics and Safety Information

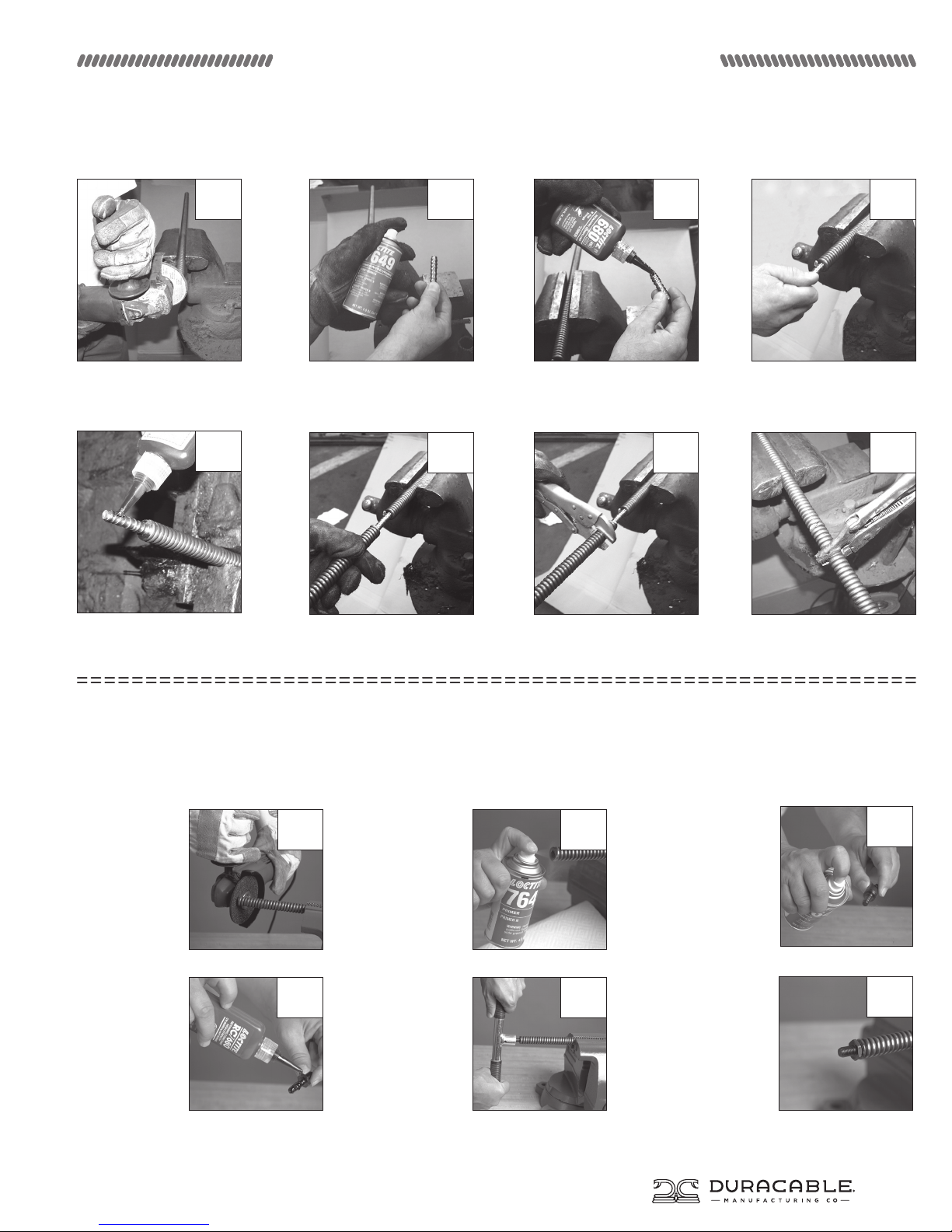

19 How to Splice DuraFlex® Cable and How to Bond End Fittings

WARRANTY

Duracable Manufacturing Company warrants the DM10 machine to be free from defects in material and workmanship for a period of two years from the date of purchase. Warranty service can be obtained by contacting Duracable Manufacturing Company at the address listed below. If a defect is covered by warranty, Duracable Manufacturing Company will repair or replace the defective machine or component without charge for labor or materials (freight is not included).

Warranty of the machine is limited to the original purchaser. Duracable Manufacturing Company assumes no responsibility for damage or injury from accident, neglect, abuse, misuse or from damage due to repair or alterations by others. This warranty does not cover damage to the machine from use of parts other than genuine Duracable brand parts.

Duracable Manufacturing Company’s sole obligation and the original purchaser’s sole remedy under this warranty shall be for repair or replacement as described above. All other warranties, expressed or implied, including but not limited to, implied warranties of merchantability and ﬁtness for a particular purpose, are disclaimed. In no event shall Duracable Manufacturing Company be liable for any incidental or consequential damages.

PARTS AND SERVICE INSTRUCTIONS

Parts can be purchased from Duracable Manufacturing Company. Service work is also available. Service is performed by trained factory personnel. Machines sent to the factory for evaluation and repair can be estimated and quoted prior to service work. When sending a machine, be sure to include the return address and include instructions on how the repair should be handled. Instructions can either be included with the machine, explained to your account manager over the phone (800-247-4081), or faxed (515-223-6109).

IMPORTANT

Keep this manual in a safe, convenient place for future reference. Important information about this machine, its diagrams and warranty information are included in this manual.

Serial Number: Date of Purchase:

Duracable Manufacturing Company

300 Ashworth Road • West Des Moines, IA 50265

Page 3

Safety Labels

DM10 MACHINE MANUAL

Duracable Manufacturing uses three signal words on its safety labels and instructions. These words have the following deﬁnitions:

DANGER

A ‘Danger’ label indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situation, typically for machine components that, for functional purposes, cannot be guarded. The word ‘danger’ will be in white letters on a red background.

WARNING

A ‘Warning’ label indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices. The word ‘warning’ will be in black letters on an orange background.

CAUTION

A ‘Caution’ label indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. The word ‘caution’ will be in black letters on a yellow background.

The safety label format includes the signal word and symbol, a picture (not required), and the message.

Page 4

DM10 MACHINE MANUAL

Information and Specifications

Safe Machine Operation

Read this machine manual thoroughly before assembling or operating the machine. Become familiar with its controls and proper use before operating. Keep this manual in a handy place for reference and parts replacement referral. This machine is designed speciﬁcally for the purpose of opening and cleaning drains. Use it for this purpose - do not use it for other purposes.

Use gloves to protect your hands. Wear them to feed and retrieve cable. Use a material that can not be easily grabbed by the cable. Most leather gloves and certain rubber gloves work well. Duracable Manufacturing Company has each type available through the Duracable Product Catalog. Also, avoid the use of loose-ﬁtting clothes or jewelry when operating this machine. Keep guards in place to protect the operator from the electric motor and electrical wiring. These guards are for safety protection and must be in place when running the machine.

Each machine is equipped with an air foot switch. Use of the air foot switch to operate the machine is required for safe operation. This allows the machine operator to turn the machine on or o with the foot while keeping both hands on the cable. Select a work area free from obstruction with room to work. Keep the machine within three feet of the pipe opening, allowing only enough room to work. This is required to shorten the length of exposed cable, thus providing maximum control in high-torque situations. Take a position that is comfortable to the left or right side of the machine for feeding or retrieving cable. For high work openings, the machine can be placed on its back as conditions require.

When performing a job, use the smallest blade ﬁrst. Rinse the pipe after each blade is run through the line in order to clean out loosened debris. Then follow with the increasing sizes of blades until the size used is one that actually scrapes the side of the pipe or sewer. The cutting blades are ﬂexible and can be compressed to enter most cleanout openings. Centrifugal force created by the spinning cable forces the blades to expand to their natural diameter or to the walls of the pipe. It is advisable to maintain a very keen cutting edge on the blades at all times. Place two hands on the cable between the outlet of your machine and the cleanout, and keep them there at all times during operation. Your hands placed in the proper position will provide a guide for the cable.

As the blade makes contact with an obstruction in the line, it stops the blade from turning and builds torque in the cable. Do not permit the blade to get hung up in an obstruction for more than three seconds. Torque buildup can be both helpful and dangerous. It is helpful when pulled from the obstruction in a timely manner. When the cable is pulled away, the tension is released and the blade turns at a high speed. When the blade is free, feed it back into the obstruction to make use of the built-up power to clean the line. It is dangerous because excess torque can cause looping over of the cable. Serious injury to ﬁngers and hands is possible unless precautions are observed.

When retrieving cable from the line, feed the cable into the machine until the blade is close to the cleanout opening. Shut o the machine and hand-feed the remaining cable into the machine. Use of a Power Cable Feed and Return (PCFR) will reduce stress and strain on both the drain cleaning machine and the service technician. Duracable Manufacturing Company recommends a PCFR unit be used on every Model DM10 machine. This unit mounts in front of the head casting assembly and with movement of a handle will feed or retrieve cable from a sewer line. Mounting time for the unit is minimal.

Unpacking Your Machine

The Model DM10 is shipped to you with the following parts: the base machine, a reel, a revolving arm, a ﬂoating ring, and a ﬂoating ring attachment. When it arrives, remove the parts immediately and inspect for damage. If any of the contents are damaged, contact your motor freight carrier immediately.

Assembling Your Machine

• Attach the D3L Reel Attachment to the male end on one end of the cable. Position the cable end with attachment inside the cable and snap into place. Feed the cable into the reel.

• Set the base machine in a down position on its rails.

• Pick up the reel, loaded with cable, with the cone shape to the front of the machine (toward the switches) and slide it onto the reel shaft. Be sure the orange drive lugs slide into the openings in the back of the reel and engage fully.

• Feed the cable through the revolving arm until it is ﬂush with the end of the arm.

• Position the revolving arm inside the reel.

• Position the extension shaft on the revolving arm into the center of the reel bearing.

• Place the revolving arm with cable extended into the rear side of the head bearing.

• Slide the collar forward using an Allen Wrench to loosen and tighten the collar.

• Slide the cable through the head bearing.

• To diassemble the DM10, reverse the assembly process.

Moving Your Machine

Break the machine down into lighter-weight components to move it to and from the job site. To do this, wrap the GFCI cord and the air foot pedal in a convenient spot on the machine, remove the revolving arm from its assembled position (leave the cable inside it and keep it with the reel), and remove the reel assembly. Various accessories are available from Duracable Manufacturing Company to assist and protect the operator during the moving process.

Page 5

DM10 MACHINE MANUAL

Information and Specifications

Lubrication Maintenance

Caution: Do not over oil these points.

• Head Bearing Assembly - The roller bearing, located in the front assembly, requires monthly lubrication. Use a grease gun to lubricate the zerk ﬁtting with multipurpose grease. A lithium-based grease is recommended.

• Reel Shaft and Reel Bearings - The reel shaft requires monthly lubrication. Use a multipurpose grease or heavy oil. Keeping the shaft lubricated means the reel will slide freely and will not ‘freeze’ to the shaft and need to be repaired. The reel bearings require some light oil monthly.

• Wheels - A light oil on the axle every month keeps the wheels rolling freely instead of ‘freezing’ to the axle.

Reel Attachment

The reel you select is set in place and slipped onto the reel shaft. Drive lugs are mounted on the drive plate and slip through the opening in the back of the reel. The reel is held in place by the revolving arm.

DM10

Cable Care Instructions

Take care of your cable for optimum performance. The recommended care procedure is as follows:

• Break in a new cable. To relieve the stress on new cable that has been coiled since its manufacture, put it in a clean line and run it for 10 minutes.

• Oil the cable once a week.

• Rinse the cable immediately after each use with the hottest water available. This is especially important if the cable was in acid or alkali during use.

• When one end of the cable begins to show wear, rewind and use the opposite end. (Tip: order the same kind of end ﬁttings on both ends of the cable.)

• If the cable kinks, cut out the kink and splice the cable ends together.

1/3 HP Motor

195 RPM

Belt Drive

16” Reel

3/8” x 75’ Cable

Telescoping Handle

PCFR (optional)

2-Year Warranty

Continuous Weld Uni-body Frame

USES:

1-1/4” to 4” lines, Residential, Sinks, Bathtubs, Shower Drains, Roof Vents, Floor Drains, Laundry Drains

DM10 with D1S, 16” open spoke metal reel (standard)

DM10 with 19PRS, 19” enclosed polyethylene reel

Page 6

DM10 MACHINE MANUAL

Information and Specifications

Frame

The DM10 frame is constructed of aluminum alloy. This alloy is structurally as strong as steel. A double tube frame adds stability, yet the total weight of the machine, while still keeping the machine lightweight.

Electrical Wiring

The DM10’s electrical wiring is run through the top of the frame. The Ground Fault Circuit Interrupter (GFCI) is built into the electrical cord for added safety. The GFCI protects the operator against electrical shock or electrocution. The air foot pedal is standard equipment on the DM10. This switch allows operators to turn the machine on and o with their foot while their hands stay on the cable.

RPM/Drive

The DM10 has a 1/3 HP motor which operates at 195 rpm.

Maneuverability

The DM10 comes standard with 6” wheels and a telescoping handle.

Cable and Reel Selections

The DM10 was designed to handle four dierent reel sizes. The reel selected is set in place and slipped onto the reel shaft. Drive lugs, mounted on the reel shaft pulley, slip through the openings in the back of the reel. The reel is held in place by the revolving arm.

The DM10 has a large-diameter front bearing which provides more ﬂexibility since it can be used with cables from 1/4” to 11/16”. (The 11/16” cable requires a special revolving arm.)

Standard Package

The DM10’s standard package (part number DM10 SP) comes with the following items: revolving arm, 1/3 HP motor at 195 rpm, 16” open metal spoke reel, 3/8” x 75’ cable, reel attachment, choice of cable end ﬁttings, wheels, and handle. See the machine packages and accessories chart on the next page for additional options.

DM10 with 16PRS, 16” enclosed polyethylene reel.

(See options on the next page.)

Machine Specifications (Approximate)

Length of Machine with Handle Retracted 34-1/2”

Length of Machine with Handle Extended 41”

Width of Machine without Wheels 15”

Width of Machine with Narrow Wheels 20”

Height of Standard Machine 18”

Weight of Machine 71 lbs

Weight of 6” Solid Wheels 5.5 lbs

Weight of D1S, 16” Open Spoke Metal Reel 9.5 lbs

Weight of 16PRS, 16” Polyethylene Reel 10.9 lbs

Weight of D1S1, 19” Open Spoke Metal Reel 10.5 lbs

Weight of 19PRS, 19” Polyethylene Reel 12.4 lbs

Line Size 1-1/4”-4”

Recommended Use: residential, sinks, bathtubs,

shower drains, roof vents, ﬂoor drains and laundry drains

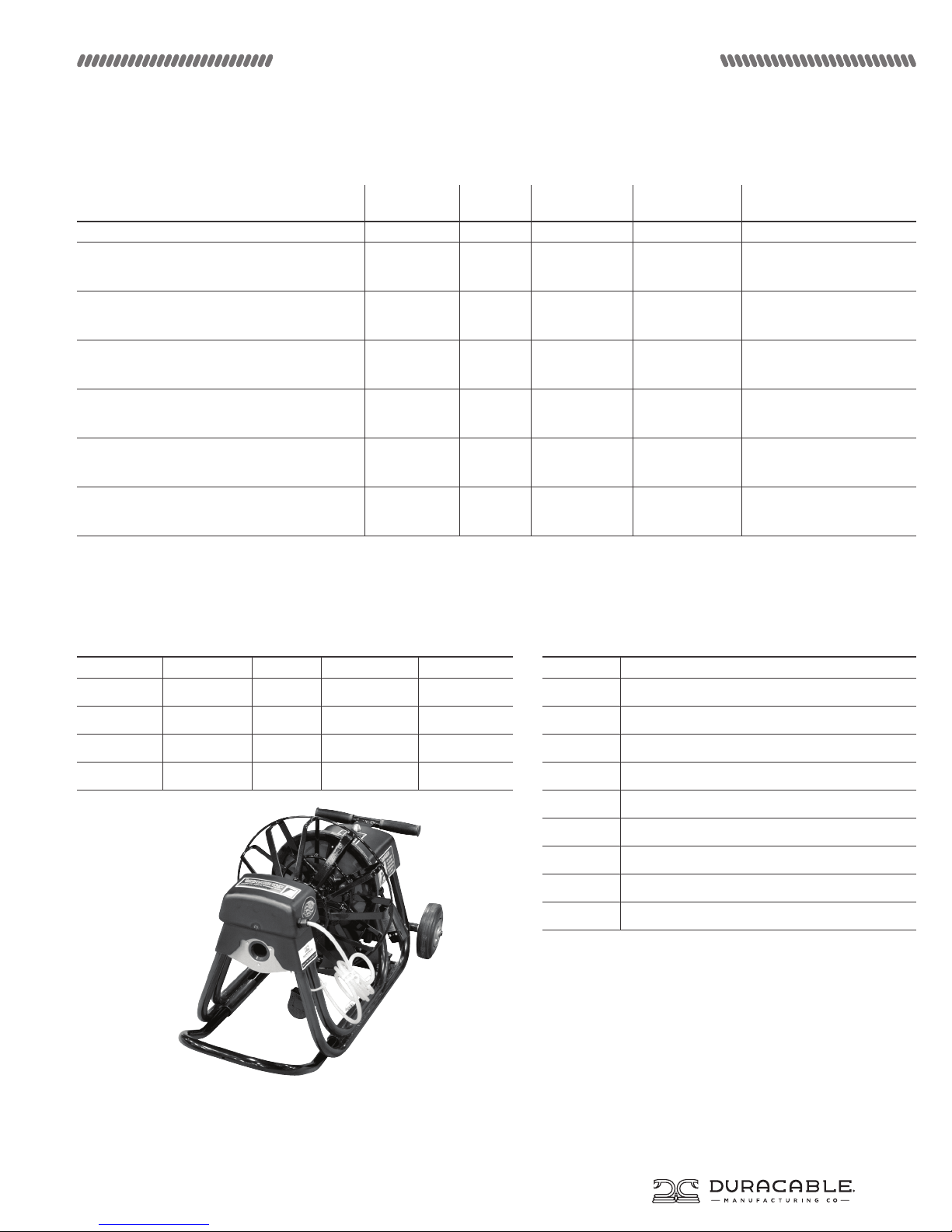

Page 7

DM10 MACHINE MANUAL

Information and Specifications

Reel

Reels

Part # Dimensions Description Part # Part # Part # Part # Part # Dimensions

D1S 16” Diameter Open Spoke Metal Reel D3L D2JS D3E D8SL2 __38-090

D1S1 19” Diameter Open Spoke Metal Reel

(standard)

D1SE 16” Diameter Enclosed Metal Reel D3S D2JS D3E D8SL2 __38-090

D1S1E 19” Diameter Enclosed Metal Reel D3S D2JM

16PRS 16” Diameter Enclosed Poylethylene

Reel

19PRS 19” Diameter Enclosed Poylethylene

Reel

* Add CH in front of cable part # for Hollow Core. * Add CI in front of cable part # for Inner Core. * Maximum length of cable is not always the recommended length. * Custom lengths are available.

Attachments

D3L D2JM

N/A N/A N/A D8SL2 __38-090

N/A N/A N/A D8SL9 __50-090

floating Rings

D2JR

floating ring attachments

D3E D3R (male end) D3RJ (slip joint)

Revolving Arm Cables*

__50-075

D8SL9 __50-090

__62-080

__50-075

D8SL9 __50-090

__62-080

__50-075

__62-080

3/8” up to 90’ 1/2” up to 75’

1/2” up to 90’ 5/8” up to 80’

3/8” up to 90’ 1/2” up to 75’

1/2” up to 90’ 5/8” up to 80’

3/8” up to 90’ 1/2” up to 75’

1/2” up to 90’ 5/8” up to 80’

Machine Packages

Part # Horse Power RPM Reel Cable

DM10 SP 1/3 HP Motor 195 RPM D1S 3/8” x 75’

DM10 SPA 1/3 HP Motor 195 RPM D1S1 1/2” x 75’

DM10 SPB 1/3 HP Motor 195 RPM 16PRS 3/8” x 75’

DM10 SPC 1/3 HP Motor 195 RPM 19PRS 1/2” x 75’

The DM10 SP, with a 16” open spoke metal reel,

is the standard package for this machine.

Machine Accessories / Replacement Parts

Part # Description

41005 1/3 HP Motor

PCFR Power Cable Feed and Return

PCFR80K PCFR Adapter Kit

25074 Air Foot Pedal (rubber) with 10’ Tubing

25061 Air Switch with Strain Relief Nut

DRC16 Cover for 16” Open Spoke Reel (D1S)

DRC19 Cover for 19” Open Spoke Reel (D1S1)

41060 6” Solid Wheels

DKIT1 Blade Kit

Page 8

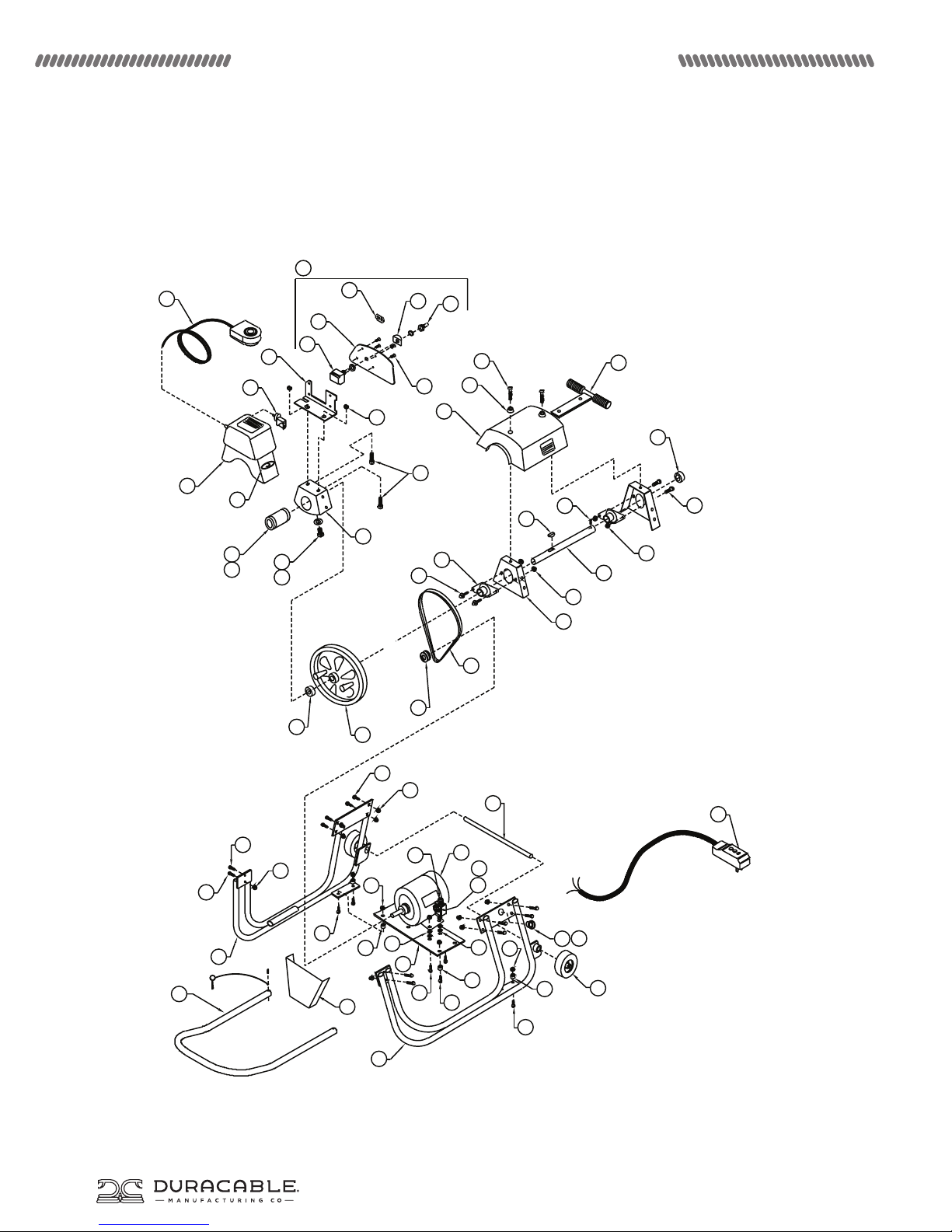

DM10 SchematiC

25010K – SWITCH PLATE ASSY.

DM10 MACHINE MANUAL

Page 9

DM10 MACHINE MANUAL

DM10 SchematiC

The entire line item in bold identiﬁes the name of an entire assembly. The “Z” shaped arrow identiﬁes all the parts that make up that assembly. You can purchase the entire assembly, or just the individual parts.

Item Qty. Part# Description

1 1 25010K Switch Plate Assembly

2 1 ECT26 Rubber Switch Boot

3 1 25015 Switch Guard

4 1 25065 Decal, Forward/O/Reverse

5 1 25010 Switch Plate

6 1 25005 Detent Switch, Wired with Jumpers

7 4 PHSC14 #10-24 x 1/2” Pan Head Machine Screw

8 2 SHCS11 5/16”-18 x 1” Socket Head Cap Screw

9 1 25115 Switch Bracket

10 1 25061 Air Foot On/O Switch

11 1 25073 Foot Pedal Assembly with Clamp

12 1 25020K Switch Housing Assembly with Decals

1 25020 Switch Housing

1 25015 Switch Guard

1 25067 Decal, Foot Switch Danger

13 2 D25000 Decal, Machine Logo

14 1 25100 Head Casting

15 1 25106 Head Bearing, Nylatron Assembly

16 1 SHCS15 3/8”-16 x 3/4” Socket Head Cap Screw

1 WA10 3/8 Split Lock Washer

17 1 25105 Head Bearing, Steel

18 1 25110 Grease Fitting

1 CXA Adapter

1 ZERK2 1/4”-28 Straight Grease Zerk

1 WA12 13/32” x 13/16” x 1/16” Zinc Flat Washer

19 1 25030K Top Cover with Decals

1 25030 Top Cover

1 25063 Decal, Guard Danger

1 25066 Decal, Step Warning

1 25068 Decal, Electrical Danger

20 2 25130 Bushing, Top Cover

21 2 SHCS11A 5/16”-18 x 1-1/4” Socket Cap Head Screw

22 1 25050 Vertical Support with Grips

2 PH-1G Handle Grip, Black

23 1 25125 Collar, Reel Shaft

24 20 FLSC1 5/16”-18 x 3/4” Hex Head Flange Screw

Page 10

DM10 MACHINE MANUAL

DM10 SchematiC

Item Qty. Part# Description

25 24 FLNUT3 5/16”-18 Hex Flange Nut, Locking

26 1 25140 Shaft, Reel

27 1 FILHMS1 #10-24 x 3/8” Fillister Machine Screw

28 1 KEY6 1/4” x 1/37” Square Key

1 KEY2 1/4” x 3/4” Woodru Key (Old Style)

29 2 25095 Mounting Plate, Bearing

30 2 SB5 Bearing, Reel Shaft

31 1 41010C Belt, 4L x 37”

32 1 41010A Sheave, 4L x 1-1/2” outside diameter

33 1 41010B Sheave, 4L x 11-1/4” outside diameter Assembly

2 25090 Drive Lug Assembly

1 25090A Drive Lug

1 MM4 Drive Lug Cap, Red

1 WA10 3/8” Split Lock Washer

34 1 25120 Bushing, Reel Shaft

35 1 41035 Axle Assembly

1 41035A Axle, Finished

2 RRING12 External Retaining Ring

4 MB3 Machine Bushing

36 2 41060 Wheel, 6” Solid

37 1 41030 Mounting Plate, Motor

38 4 FLSC9 5/16” -18 x 1” Hex Head Flange Screw

39 4 41044 Stand-O, Motor Plate

40 12 WA15 1/3” x 3/4” x 0.7” Stainless Steel Flat Washer

41 1 41005 Motor, 1/3 HP

42 1 25165 GFCI Cord

43 1 ECT34 Strain Relief, 90 degree Snap Elbow

1 ELN1 1/2” -14 NPT (National Pipe Thread) Lock Nut

44 1 ECT30 1/2” Strain Relief, Straight

1 ELN1 1/2” -14 NPT (National Pipe Thread) Lock Nut

45 1 ECT34 Strain Relief, 90 degree Snap Elbow

1 ELN1 1/2” - 14 NPT (National Pipe Thread) Lock Nut

46 1 D41015 Frame Set: Right & Left Frame Painted

47 1 41009 Guard, Motor

48 1 41025 Handle Assembly

1 41025-1 Handle, Finished

2 RLPIN12 3/8” diameter x 1-3/8” Roll Pin

1 MM14 Detent Ring Pin with Lanyard Attached

Page 11

DM10 MACHINE MANUAL

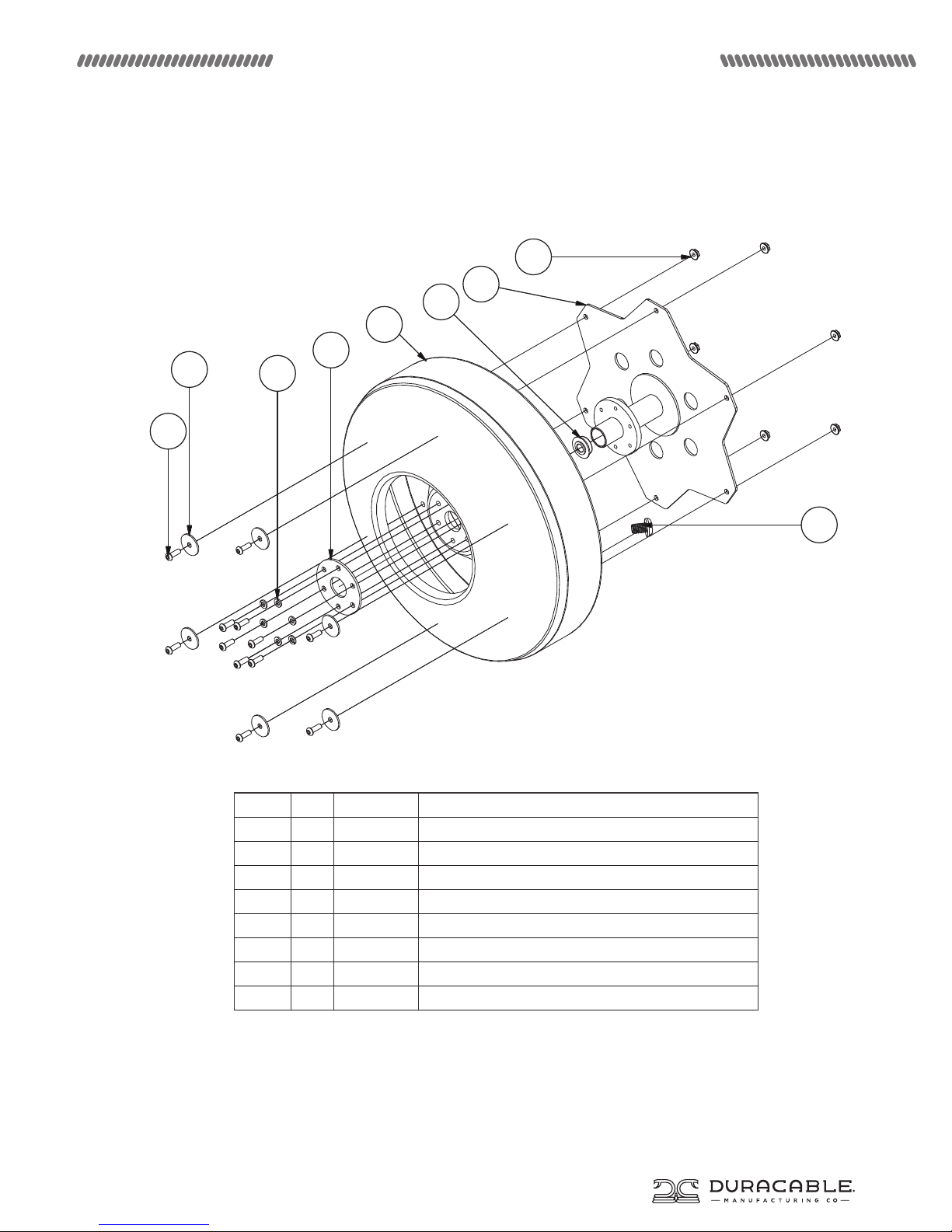

16PRS (16” Polyethylene Reel) Schematic for DM10

Item Qty. Part# Description

1 1 D1HF Inner Clamp Washer

2 1 D6A Reel Bearing

2 6 WA22 .25 Lock Washer

3 6 WA47 .25 Body Washer

4 12 SHCS34 1/4-20 x 7/8 SBHS

5 6 FLNUT5 .25-20 Flange Nut

6 1 771409 Sled Plastic Drums Drive Hub Finished

8 1 MM60 .5-13 x .75 Std. Threaded Plug

9 1 771600 16” Sled Machine Plastic Drum

Page 12

DM10 MACHINE MANUAL

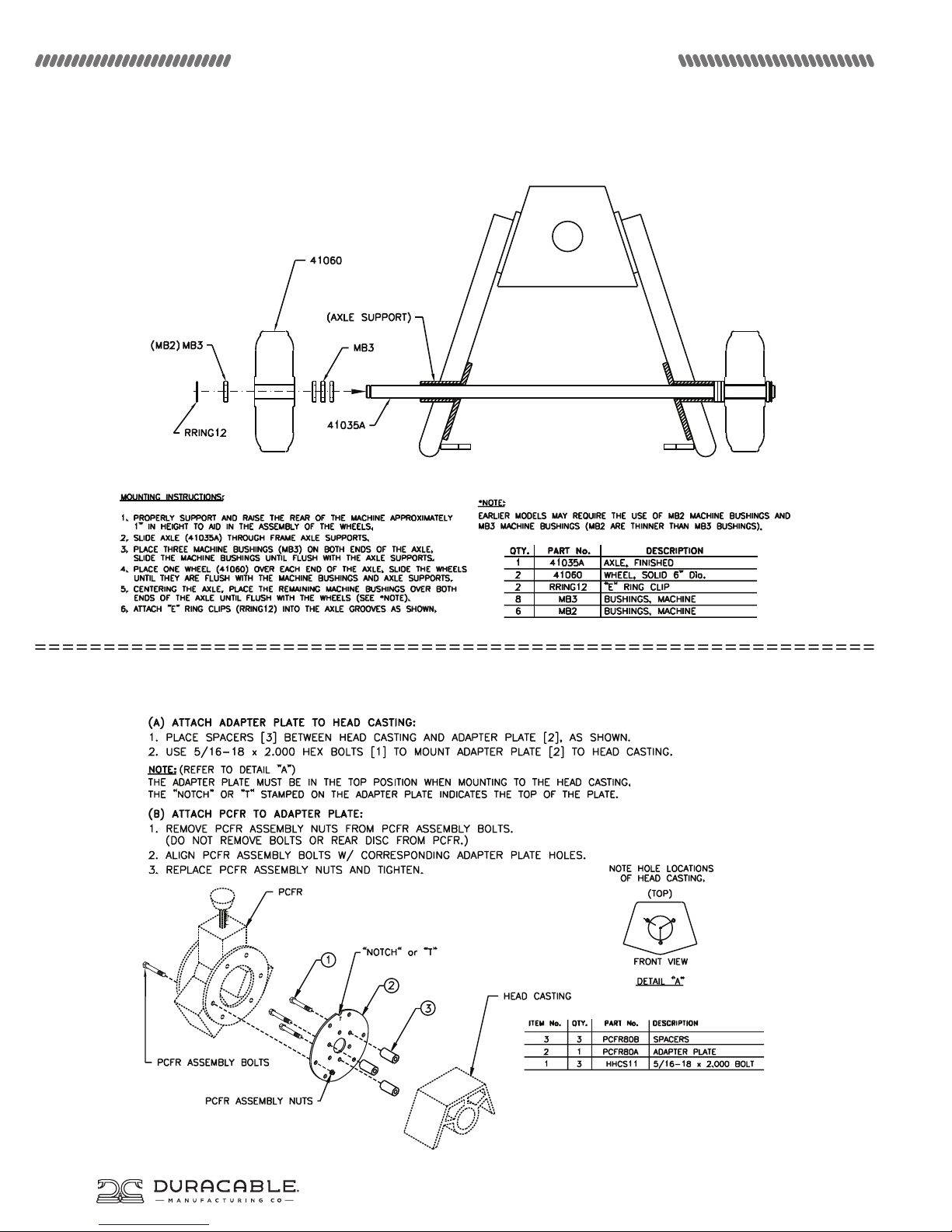

Mounting Instructions for DM10 Axle Assembly

Mounting Instructions for PCFR

Page 13

DM10 MACHINE MANUAL

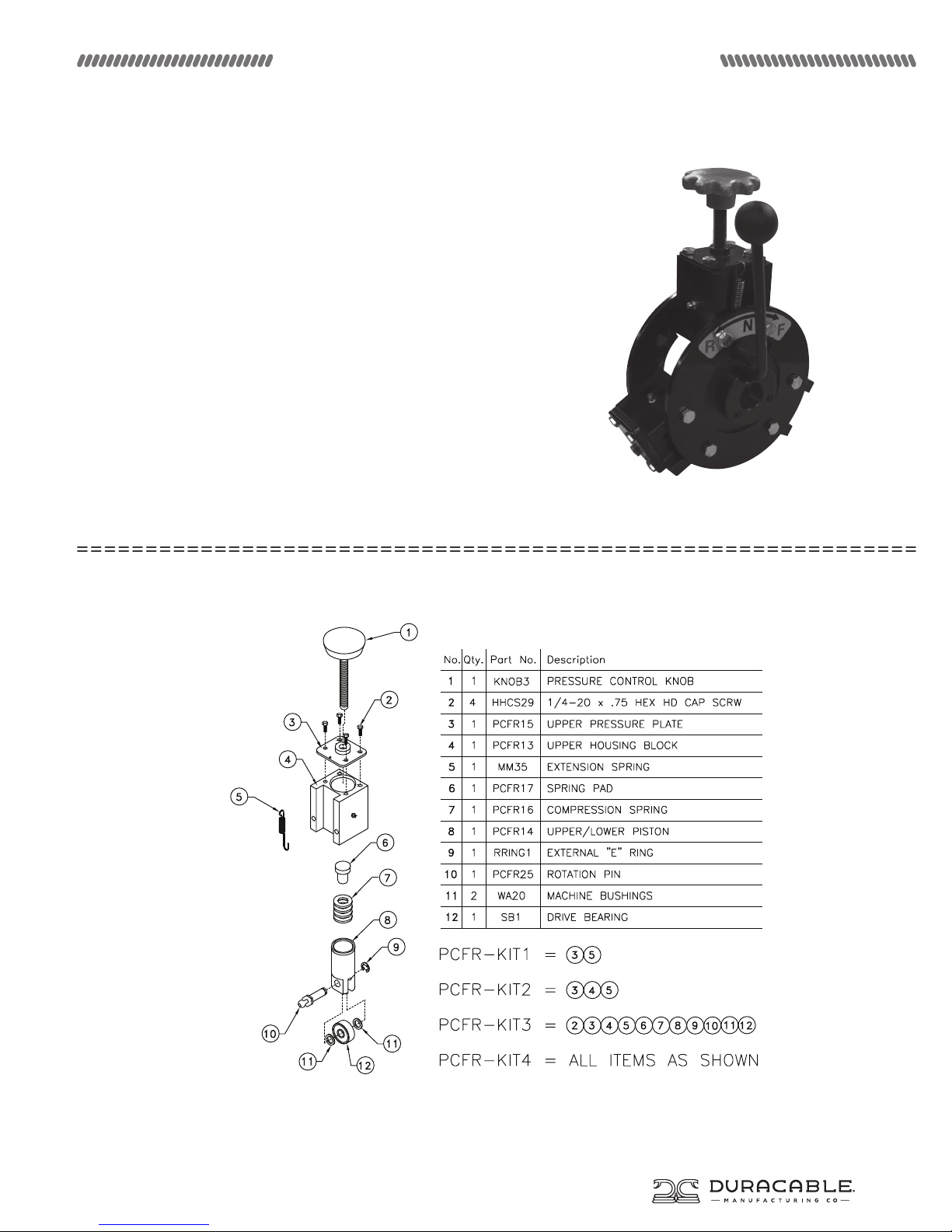

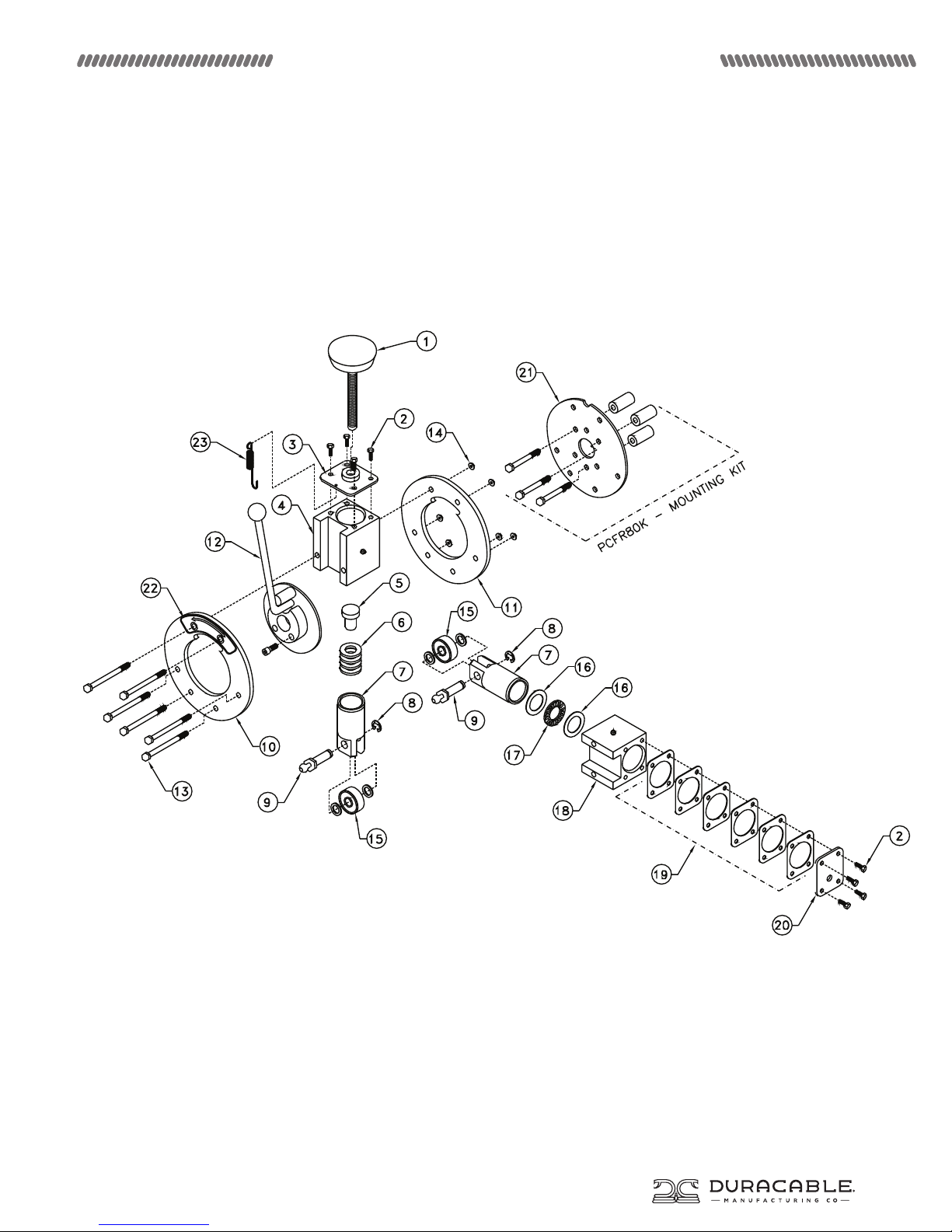

Power Cable Feed and Return (PCFR)

Power Cable Feed & Return

The Power Cable Feed & Return (PCFR) is designed to help you run long lengths of cable into and out of lines. It will help you cut through roots or heavy blockages in any drain line. The PCFR’s Length is 6”; Width is 9”; Height is 12”; and Weight is 12 pounds.

The PCFR is standard equipment on DM10. Note: The recommended grease for the housing blocks is Lps® Thermaplex 70614 or LubriPlate® 630-Aa. Lubricate the rotation pin and bearing surface with Lps® 2 Industrial Lubricant 00216, WD-40® Lubricant or equivalent.

Adjusting PCFR by Cable Size

3/4” Cable: 11/16” Cable: 5/8” Cable: 1/2” Cable: 13/32” Cable: 3/8” Cable:

6 Sizing Plates per Block 5 Sizing Plates per Block 4 Sizing Plates per Block 2 Sizing Plates per Block 1 Sizing Plate per Block 0 Sizing Plates per Block

PCFR Spring Kit

Page 14

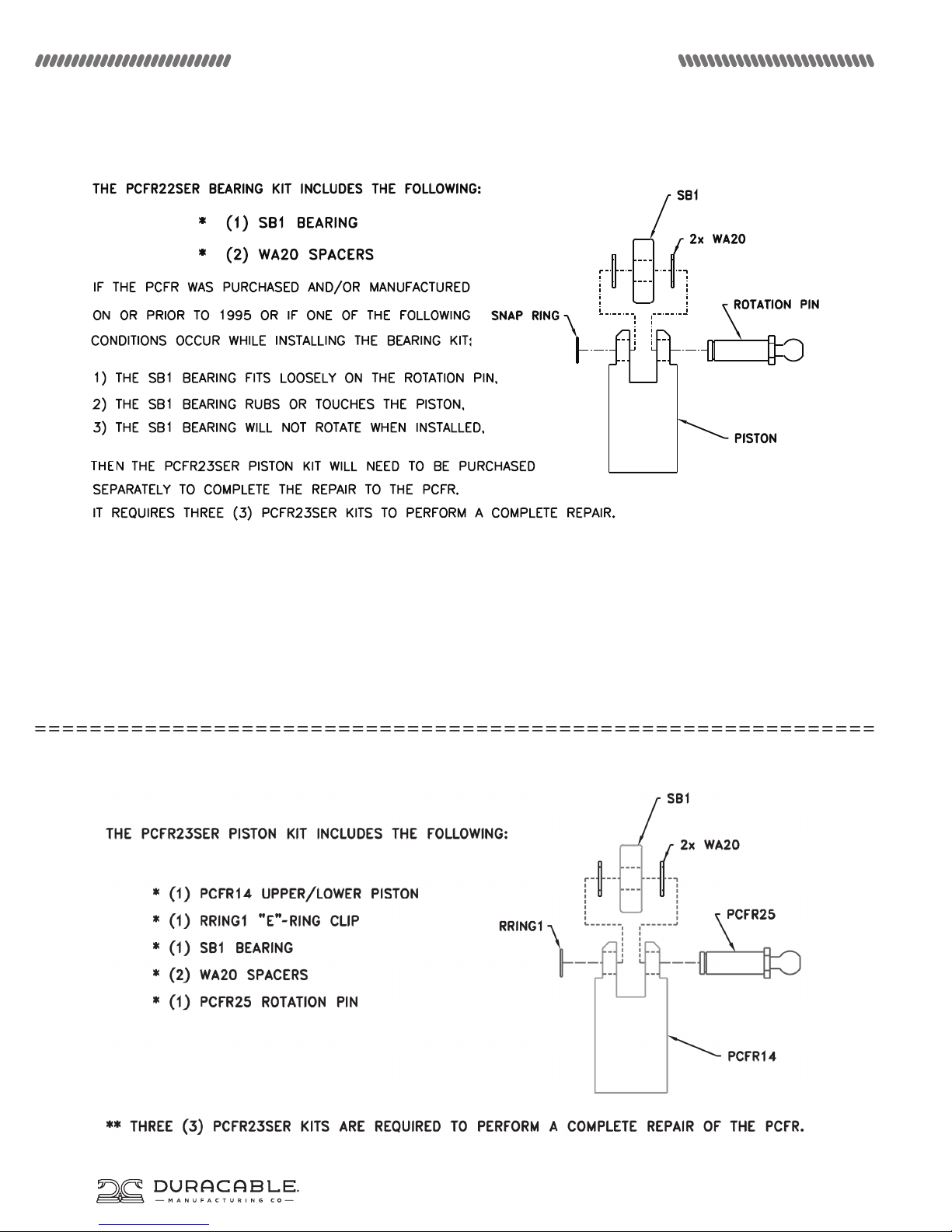

PCFR Bearing Kit

DM10 MACHINE MANUAL

How to Install the PCFR22SER Bearing Kit

1. Remove the six hex ﬂange nuts (FLNUT3).

2. Remove the rear disk (PCFR11).

3. Slip the upper housing (PCFR13) and/or the lower housings (PCFR18) from the hex bolts.

PCFR Piston Kit

4. Remove the upper piston (PCFR14) and /or the lower pistons (PCFR19).

5. Remove the spring retainer (PCFR23).

6. Pull out the rotation pin (PCFR25).

7. Remove the spacers (PCFR24) and the drive bearing (PCFR22).

8. Clean all the parts in kerosene or a cleaning solvent.

9. Lubricate all moving parts and grease the housings provided with zerk ﬁttings.

Page 15

DM10 MACHINE MANUAL

Power Cable Feed and Return (PCFR) Schematic

Page 16

DM10 MACHINE MANUAL

PCFR SchematiC

Item Qty. Part# Description

1 1 KNOB3 Knob, Pressure Control

2 12 HHCS29 1/4”-20 x 3/4” Hex Head Cap Screw

3 1 PCFR15 Pressure Plate, Upper

4 1 PCFR13 Housing Block, Upper

5 1 PCFR17 Spring Pad

6 1 PCFR16 Compression Spring

7 3 PCFR14 Piston, Upper and Lower

8 3 RRING1 External “E” Ring

9 3 PCFR25 Rotation Pin

10 1 PCFR10 Mounting Disc, Front

11 1 PCFR11 Mounting Disc, Rear

12 1 PCFR12 Direction Disc Assembly

1 PCFR12E Direction Disc

1 KNOB2 Knob, Black Plastic

1 PCFR33 Wear Ring

2 SHCS6 1/4”-28 x 5/8” Socket Head Cap Screw

13 6 HHCS12 5/16”-18 x 3-1/2” Hex Head Cap Screw

14 6 FLNUT3 5/16”-18 Hex Flange Nut, Locking

15 3 PCFR22SER PCFR Bearing Kit

1 SB1 Drive Bearing

2 WA20 Machine Bushing

16 4 PCFR29 Thrust Washer

17 2 PCFR28 Thrust Bearing

18 2 PCFR18 Housing Block, Lower

19 12 PCFR20 Sizing Plate (lower housing blocks only)

20 2 PCFR21 Pressure Plate, Lower

21 1 PCFR80K PCFR Adapter Kit

1 PCFR80A Adapter Plate

3 PCFR80B Spacers

3 HHCS11 5/16”-18 x 2” Hex Head Cap Screw

22 1 PCFR9 Decal, Reverse/Neutral/Forward

23 1 MM35 Extension Spring

3 PCFR23SER PCFR Piston Kit (kit includes items 7, 8, 9, and 15)

Page 17

DM10 MACHINE MANUAL

Electrical Schematic

The wiring diagram for the basic DM10 is shown above. If you experience any electrical diculties in operating your machine, or you notice any frayed or inadequate wiring, or wiring that does not conform to the diagram, discontinue use of your machine immediately and have a qualiﬁed electrician repair it, or return it for repair to Duracable Manufacturing.

Page 18

Electrical Safety

DM10 MACHINE MANUAL

Handle with Care

Most of us take electricity for granted. It has been with us since the day we were born. We use it every day for light, phone, home appliances, tools, and other equipment that helps us maintain our standard of living. Although electricity is one of the safest energy forms, we tend to forget how powerful and dangerous it can be if not used properly.

Every year many people are injured or killed by electricity. Most of these accidents could have been prevented with simple precautions and careful use of electricity. Following are some tips to help avoid electrical accidents. Read through this information. Be sure you understand its importance. If you have questions or feel you may have a potential electrical hazard, tell your supervisor or call a qualiﬁed electrician immediately.

General Electrical Guidelines

Remember, electricity is always trying to make a circuit. It can travel through an electric wire, metal pipe, or even your body. Electrical shock can occur when you come in contact with an energized electrical unit and a good conductor. Shock can range from a slight tingle to a severe burn, or death by electrocution.

Electrical accidents happen in everyday situations. Most electrocutions occur in a wet environment or when an electrical product is being repaired or installed. Think about, and take precautions against, potentially dangerous situations. When disconnecting electrical cords, pull on the plug rather than the cord to avoid damage. Use rubber gloves and rubber boots or insulated shoes to protect yourself, especially if you are in a wet or damp environment. Before using this machine, make sure a properly grounded, three-prong, 110-volt outlet is available. Where it is not available, use a three-prong adapter and connect the grounding lug to a known ground. Never cut o a grounding prong to ﬁt a two-prong outlet. This eliminates the ground protection.

Electrical Procedures

Do not leave the machine plugged in when not in use. Even with the switch o, a machine can shock or electrocute its handler. The DM10 machine must be grounded to protect the operator from shock. This is accomplished by using the Ground Fault Circuit Interrupter (GFCI) Cord to ensure proper grounding.

Check electrical cords before each use for signs of damage. Repair or replace cords which are pinched, cracked, frayed, or worn. Remember, the GFCI oers no protection against electric shock for wiring preceding it in the system. Your GFCI is directwired to the machine, plug the GFCI into the power source receptacle. Discontinue use and repair immediately any machine that causes the slightest shock or is damaged in any way. It could lead to a serious electrical shock or electrocution. Inspect the machine daily for wear or damage that might expose live electrical parts.

Ground Fault Circuit Interrupters (GFCI)

A GFCI works by detecting changes in electrical current ﬂow. It breaks the circuit before serious injury can occur. For your protection, heed the “DANGER” warning on the machine cover and use the GFCI cord. The GFCI must be tested before each use. Use the following procedure:

• Insert the unit into a 110-volt, AC-grounded receptacle;

• Push the “test” button in - the red indicator light should go o;

• Push the “reset” button in - if the red indicator light goes on, the unit is ready for use;

• Do not use the unit if the light does not go on when reset;

• Do not use the unit if the indicator light remains on when the test button is pushed.

Extension Cords

• Use extension cords only when necessary.

• Position cords in use to prevent tripping hazards. Do not place them in areas where they can be damaged by trac.

• Avoid coiling extension cords during use to prevent possible overheating of the cord.

• Discard cracked or damaged cords.

• The following cord sizes and lengths should be observed according to the National Electrical Code when using this machine:

• 12 gauge wire - 75’ of cord, including 25’ of GFCI cord.

• 14 gauge wire - 50’ of cord, including 25’ of GFCI cord.

• Cord sizes smaller than 12 gauge should not be used for 3/4 HP motors. Larger gauge cords can be run greater distances, but are not practical because of their size and weight.

• To protect your motor, observe the guidelines mentioned. If you have a run more than 75’, use a generator to reduce your cord length from the power source to a working distance within these guidelines.

Overhead Power Lines

• When working outdoors, keep clear from overhead power lines in all directions.

• Check the location of power lines before using a ladder. Use approved ladders made of non-conductive material.

• Never place a ladder where it can slide into a power line.

• When carrying or moving a ladder or equipment, lower it to avoid touching a power line.

• Never assume that a wire is safe to touch.

Page 19

DM10 MACHINE MANUAL

How to splice duraflex® cable

1 2 3 4

1. Cut a few inches off of each cable end and remove any burrs with a grinding disk or file.

5. Apply Loctite Retaining Compound to other end of splice core.

2. Spray Loctite Primer in and around the cable end and splice core to thoroughly remove grease and grime.

6 7 8

6. Align other piece of cable onto splice core.

How to Bond End Fittings to duraflex

You can attach end fittings and splice cores to DuraFlex cable using a chemical bonding process, which means you can make quick cable repairs on the job—without welding. With Loctite Primer and Loctite Retaining Compound, you can quickly create a dependable bond that is as strong as a conventional weld. Please note that these products are not the same thread-locking compounds available in hardware stores and plumbing-supply houses, they are heavy-duty, permanent-bonding compounds made especially for jobs such as bonding cable fittings.

1. Cut the cable end and remove any burrs with a grinding disk or file.

2. Spray Loctite Primer in and around the cable end to thoroughly remove grease and grime.

3. Apply Loctite Retaining Compound to splice core.

7. Place vise grips on free cable end and turn counterclockwise.

cable

3. Spray Loctite Primer on the end fitting to thoroughly remove grease and grime.

4. Insert splice core into cable one turn.

8. Continue turning and the cable ends will meet at the center of the splice core.

4. Apply Loctite Retaining Compound to the end fitting.

4 5

5. Using the wrench (part number EW), screw the fitting into the cable end until fitting is totally sealed.

6. The Retaining Compound will be fully bonded to the cable in just a few minutes.

Page 20

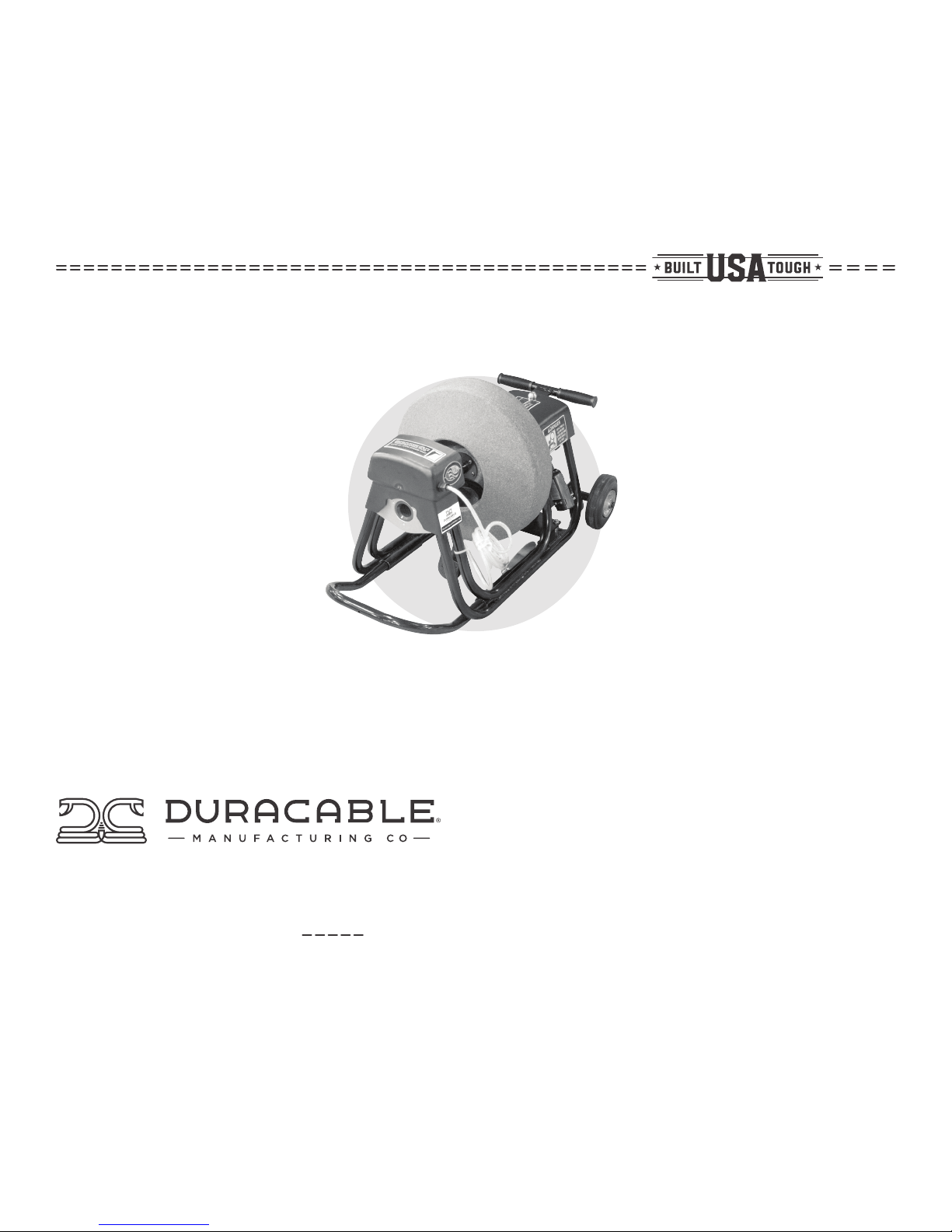

DM10 Machine Manual

dm10

300 ASHWORTH ROAD

WEST DES MOINES, IOWA 50265

DURACABLE.COM 800.247.4081

ANSWER LINE: 877.257.1781

FAX: 515.223.6109

DM10MM

UPDATED JUNE 2017
