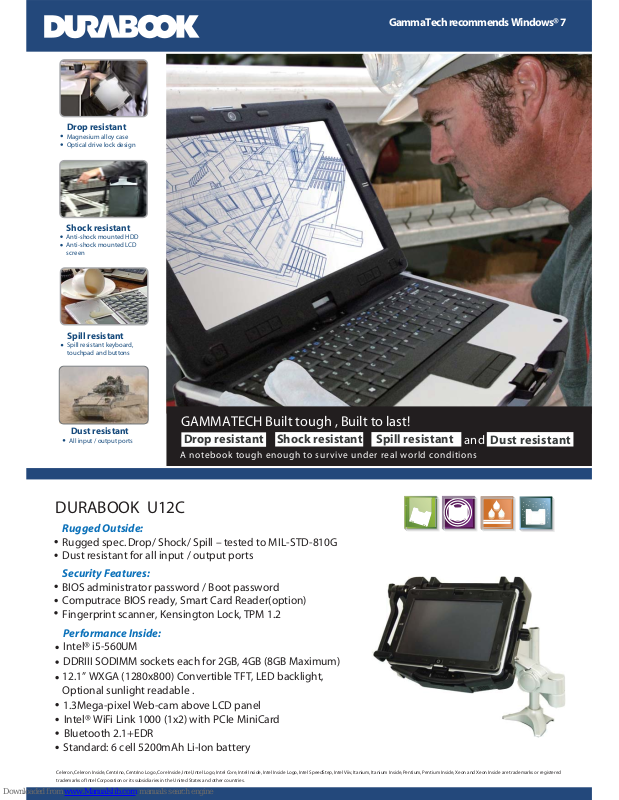

Durabook U12C Specifications
Drop resistant
Magnesium alloy case
Optical drive lock design
Shock resistant
Anti-shock mounted HDD
Anti-shock mounted LCD
screen
GammaTech recommends Windows® 7
Spill resistant
Spill resistant keyboard,
touchpad and buttons
GAMMATECH Built tough , Built to last!
Dust resistant
All input / output ports
Drop resistant
A notebook tough enough to survive under real world conditions
DURABOOK U12C
Rugged Outside:
Rugged spec. Drop/ Shock/ Spill – tested to MIL-STD-810G
Dust resistant for all input / output ports
Security Features:
BIOS administrator password / Boot password
Computrace BIOS ready, Smart Card Reader(option)
Fingerprint scanner, Kensington Lock, TPM 1.2
Spill resistantShock resistant
and
Dust resistant
Performance Inside:
Intel® i5-560UM
DDRIII SODIMM sockets each for 2GB, 4GB (8GB Maximum)
12.1” WXGA (1280x800) Convertible TFT, LED backlight,
Optional sunlight readable .
1.3Mega-pixel Web-cam above LCD panel
Intel® WiFi Link 1000 (1x2) with PCIe MiniCard
Bluetooth 2.1+EDR
Standard: 6 cell 5200mAh Li-Ion battery
Celeron, Celeron Inside, Centrino, Centrino Logo, Core Inside, Intel, Intel Logo, Intel Core, Intel Inside, Intel Inside Logo, Intel SpeedStep, Intel Viiv, Itanium, Itanium Inside, Pentium, Pentium Inside, Xeon and Xeon Inside are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
U12C
Durabook Tough Features
DropResistant
Shock Resistant
Spill Resistant
Dust Resistant
Battery Protection
Stylish Rugged
System Specifications
Processor
Chipset
System Memory
Storage
Display
Graphics & Video
Audio
I/O Devices
I/O Ports
Keyboard
GammaTech recommends Windows® 7.
MIL-STD-810G, Method 516.6, Procedure IV,
4 feet high with 26 drops to 2” plywood over concrete with unit off Up to 5 units to pass.
MIL-STD-810G, Method 514.6, Procedure I, Category 24, Fig. 514.6E-1, Fig.
(Non-operating)ASTM 4169, Truck Transport, 11.5.2 Random test, Assurance Level 2(Operating)
100C.C.water drop on all C cover area in 2-5 seconds with system operational, with no effect on system operation or stability.
All Input/Output ports
Double protection smart battery circuitry prevents damage caused by current or voltage surges and overheating.
Smart Battery Calibration helps fight the loss of battery capacity after repeated charge-discharge cycles.
A, D parts are Magnesium alloy & B,C parts are PC+ABS
Intel® Core™ i5-540UM or i5-560UM processor
Intel® HM55
Two 204-pin DDRIII SODIMM sockets each for 2GB / 4GB (8GB Maximum)
2.5” 9.5mm SATA HDD or SSD
An internal SATA SSD for data backup(option)
12.1” WXGA (1280x800) Convertible touch panel, LED backlight (Optional sunlight readable function)
1.3Mega-pixel Web-cam above LCD panel
Support optional 12.1” resistive and digitizer dual types touch panel
Integrated graphic controller
ΘHigh Definition Audio, Stereo ΘTwo 1.5W speakers
ΘAnalog Microphone
ΘOne SD Card reader slot supports SDHC ΘOne Mic-in phone jack for external Microphone
ΘOne Express 34 card slot
ΘOne Head Phone out phone jack
ΘOne e-SATA/USB 2.0 combo connector ΘOne USB 2.0 connector
ΘOne RJ-45 jack for 10/100/1000Mbps Ethernet ΘOne DC-In jack
ΘOne 15 pin D-sub VGA port for ext. monitor/projector
ΘOne 84 pin docking connector which support DC, VGA, LAN and USB
Spill resistant keyboard with Function Keys:
ΘFn+F3㧦Touchpad on/off ΘFn+F4㧦Suspend to RAM/Suspend to HDD
ΘFn+F5㧦LCD/Ext. Display Switch(LCD->Ext. Display->Both) ΘFn+F8㧦Volume down
ΘFn+F9 : Volume up!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!ΘFn+F10㧦Mute
One I/O Module slot*
Wireless/Communications
ΘBluetooth 2.1+EDR
ΘIntel® Mini Express Wireless LAN 802.11 a/b/g/n or b/g/n network connection
Temperature
Operating Environment Temperature: 32 F ~ 122 F (-0 C ~ 50 C)
Operating Environment Temperature: -4 F ~ 122 F (-20 C ~ 50 C)
Storage Environment Temperature: -40 F ~158 F (-40 C~70 C)
Humidity
Security
AC/ DC Adapter
Battery
Dimensions & Weight
Certification
Green Tech
*
I/O module1:
USB 2.0 x1, Smart card reader x1
I/O module 2:
USB 2.0 x2, RS-232 x1
I/O module 3:
GPS (option: External Antenna)
I/O module 4:
WWAN 3G module that support HSDPA/EVDO module,
including External Antenna
Operating Humidity:10%~90% RH
ΘBIOS administrator password / Boot password ΘComputrace BIOS ready
ΘFingerprint Scanner ΘKensington Lock Hole
ΘTPM 1. 2 ΘSmart Card Reader
Input: AC 100~240V 50/60Hz, Output: DC 19V, 3.42A, 65W
Standard: 6 cell 5200mAh Li-Ion battery (Approx. 4 hrs*)
328mm (W ) x 277mm (D) x 40 mm (H) /12.91” (W ) x 10.9” (D) x1.57” (H)
2.5Kg /5.5lbs (with Standard Battery)
FCC, CE, CUS, CB
EPEAT Silver, RoHS Compliance
o
o
o
o
o
o
o
o
o
o
o
o
ΘThe specification and pictures are subject to change without notice.
ΘAll brand names are registered trademarks of their respective owners.
* Battery life may vary based on setting and usage.
GAMMATECH COMPUTER CORPORATION
Tel:1-510-492-0828
Email:sales@gammatechusa.com
http://www.gammatechusa.com
BCU12C_04192012
