Durabook R11 User Manual

Rugged Tablet PC
R11 User Manual
Table of Contents
BEFORE YOU START ...................................................................................... 4
PACKAGE CONTENTS ..................................................................................... 4
PRODUCT OVERVIEW .................................................................................... 5
Front View ............................................................................................................. 5
Back View .............................................................................................................. 6
Right View ............................................................................................................. 7
Left View ............................................................................................................... 7
Bottom View .......................................................................................................... 8
S
GETTING STARTED ................................................................ 10
INST ALLING T HE BATTERY ............................................................................. 10
Charging the Battery ............................................................................................. 10
When to replace the Battery Pack ........................................................................... 11
Removing the Battery ........................................................................................... 11
CONNECTING THE POWER ............................................................................. 12
Connecting the AC Adapter .................................................................................... 12
Using Battery Power .............................................................................................. 12
ST ARTING YOUR TABLET PC .......................................................................... 13
Turning On Your Device ......................................................................................... 13
Turning Off Your Device ......................................................................................... 13
O P ER A T IN G Y O UR T A B LE T P C .................................................... 14
USING THE QUICK MENU .............................................................................. 14
Quick Menu Overview ............................................................................................ 14
Viewing the Version Information ............................................................................. 15
Viewing the Battery Charge Cycles .......................................................................... 15
Configuring the Function Button (Barcode/Camera)
Configuring the Programmable Button (P) ................................................................ 16
Configuring the Up/Down Button ............................................................................ 16
Assigning an Application to the P Butto n .................................................................. 17
Accessing the Mobility Center ................................................................................. 18
Configuring External Antenna Switchi ng Mode .......................................................... 18
Configuring Adaptive Brightness Setting .................................................................. 19

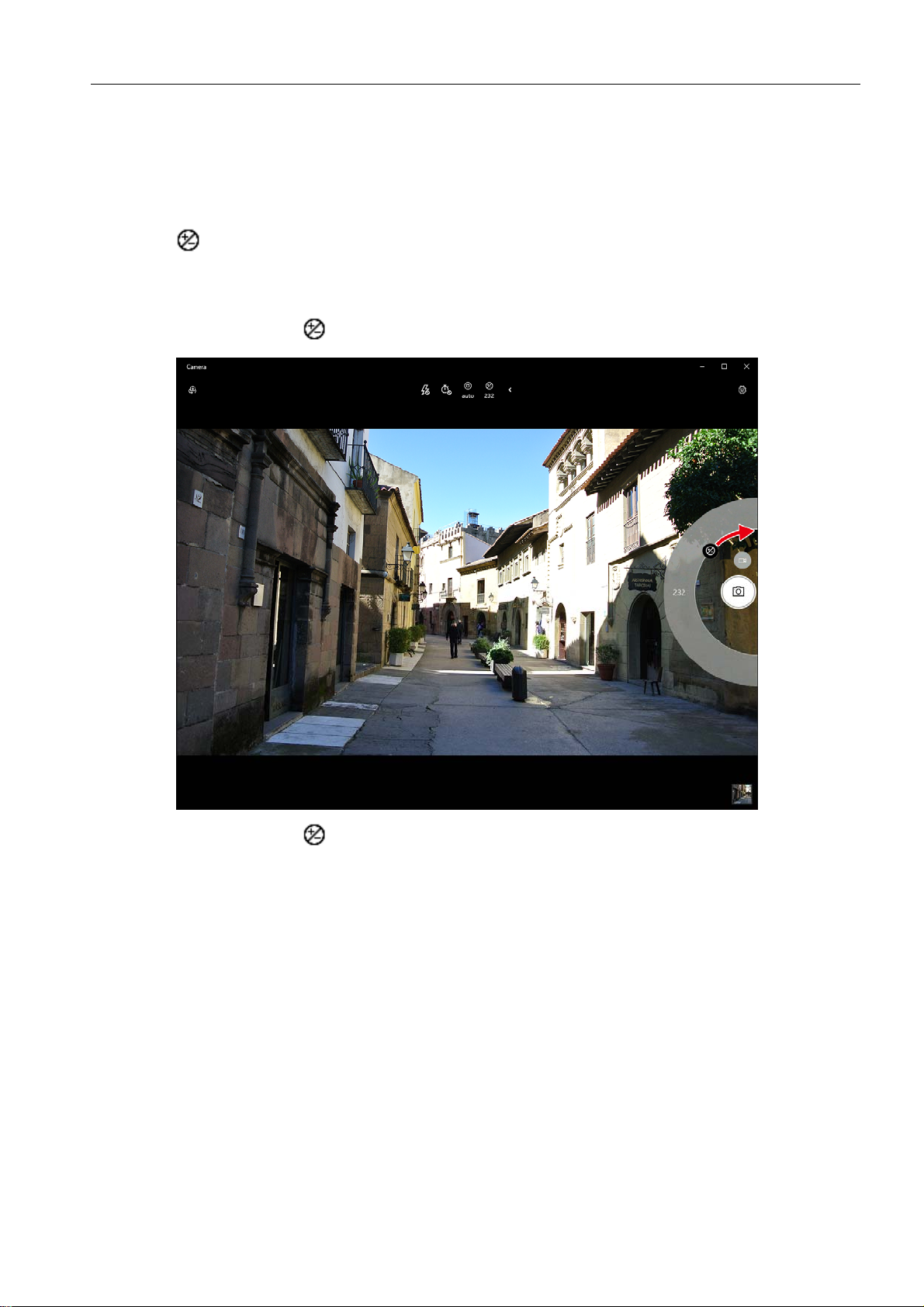

USING THE CAMERA .................................................................................... 19

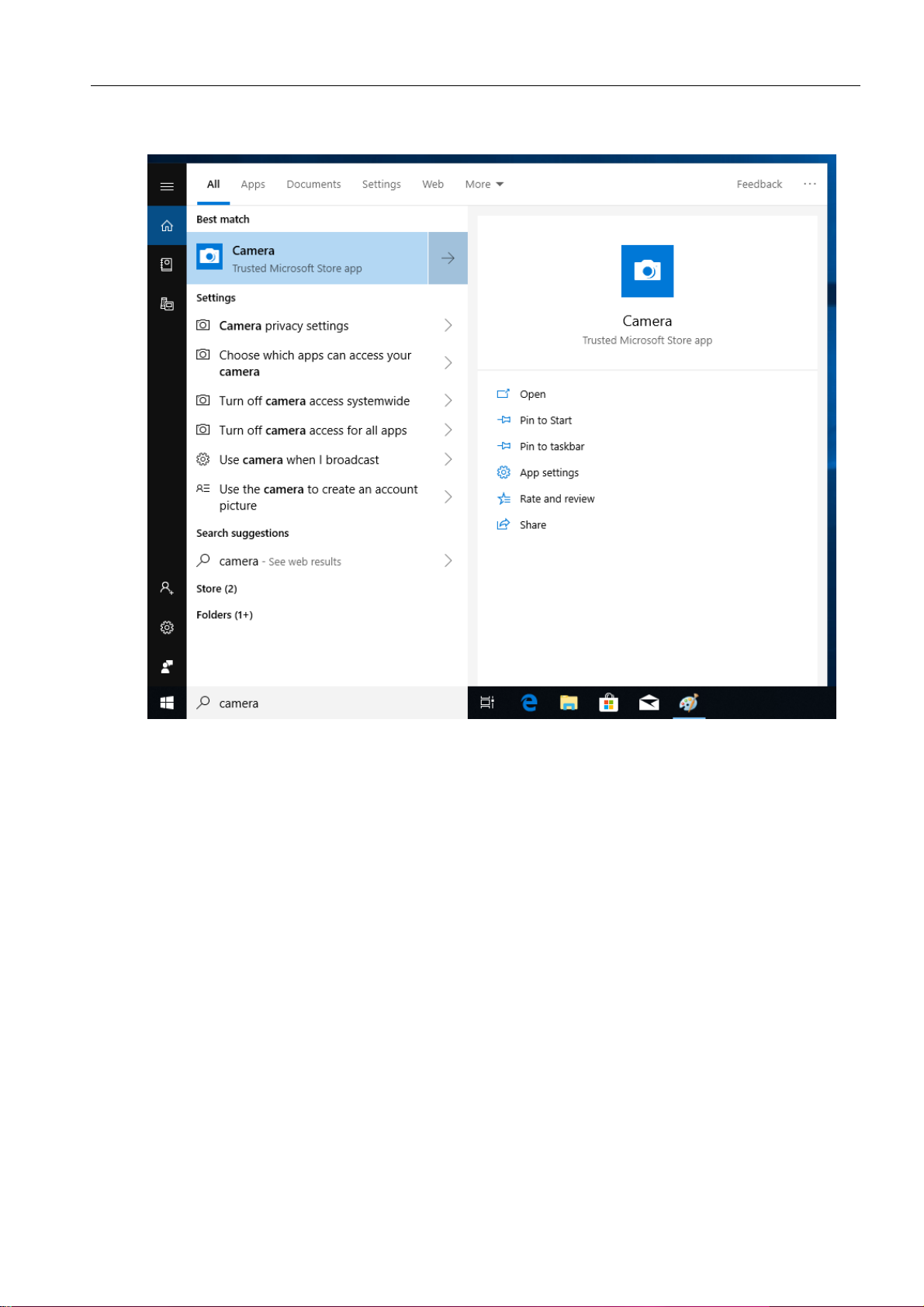

Opening the Camera App ....................................................................................... 19

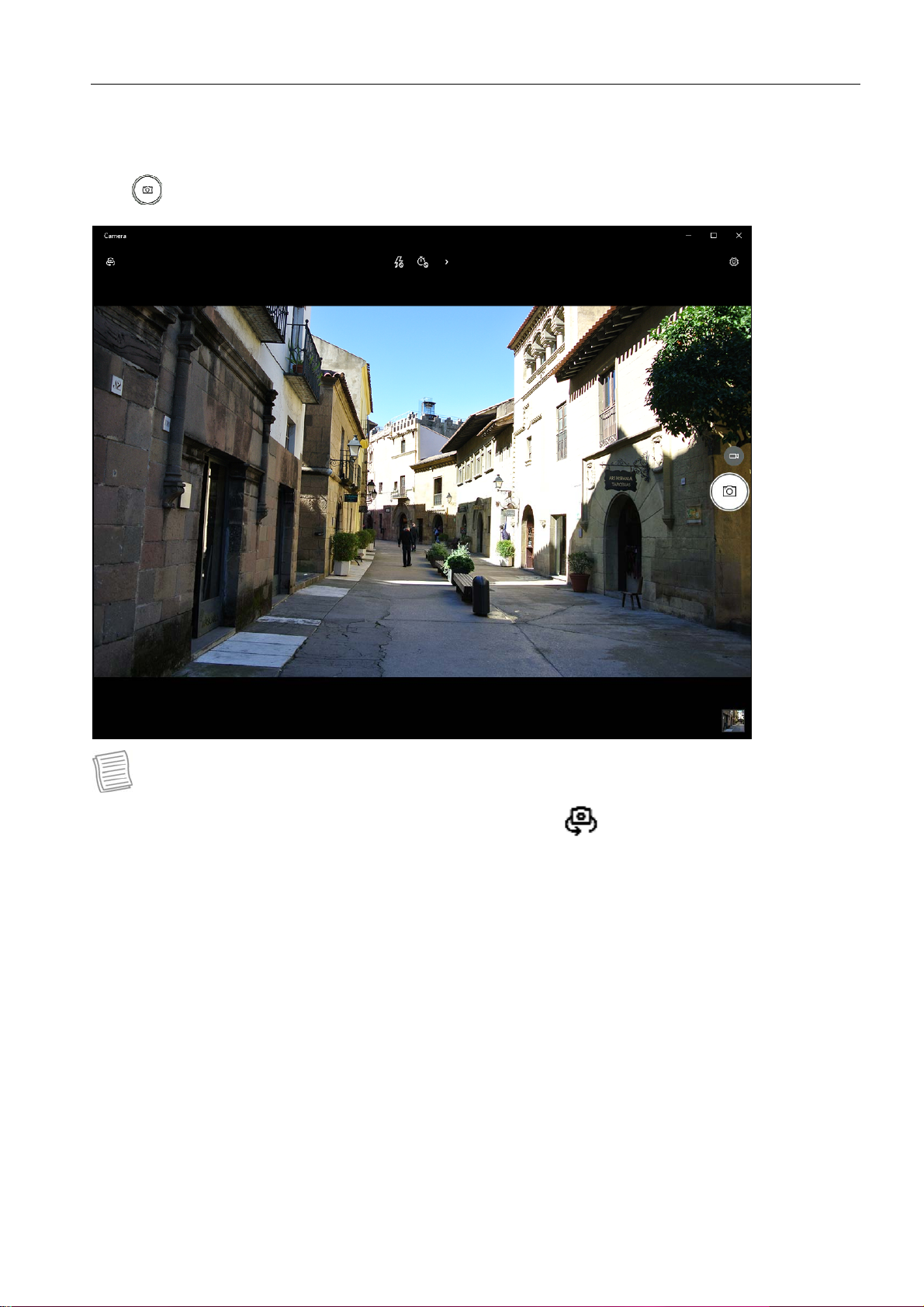

Taking Photos ...................................................................................................... 21

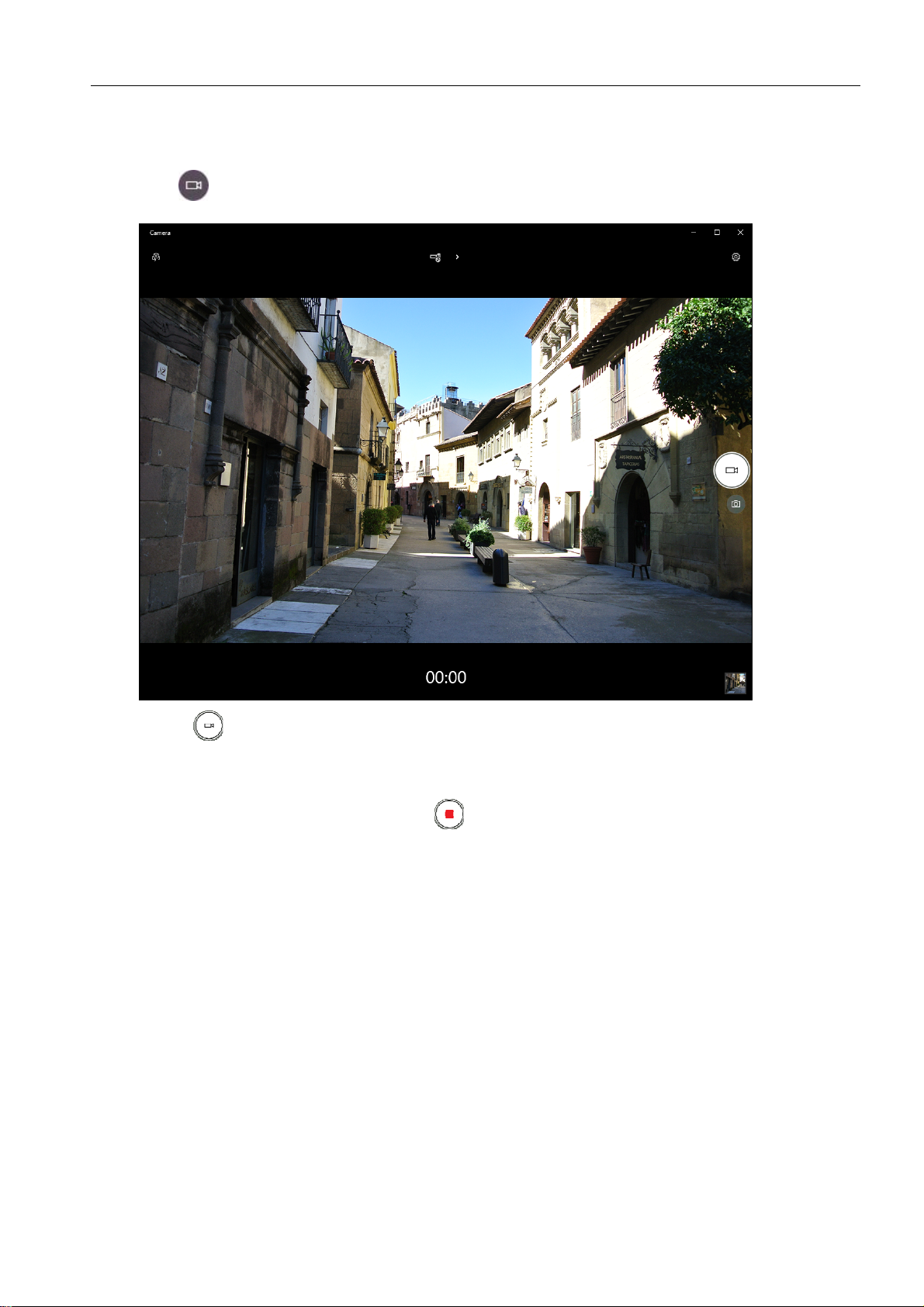

Recording Videos .................................................................................................. 22
Setting a Flash Mode ............................................................................................. 23
Setting Photo Timer .............................................................................................. 23

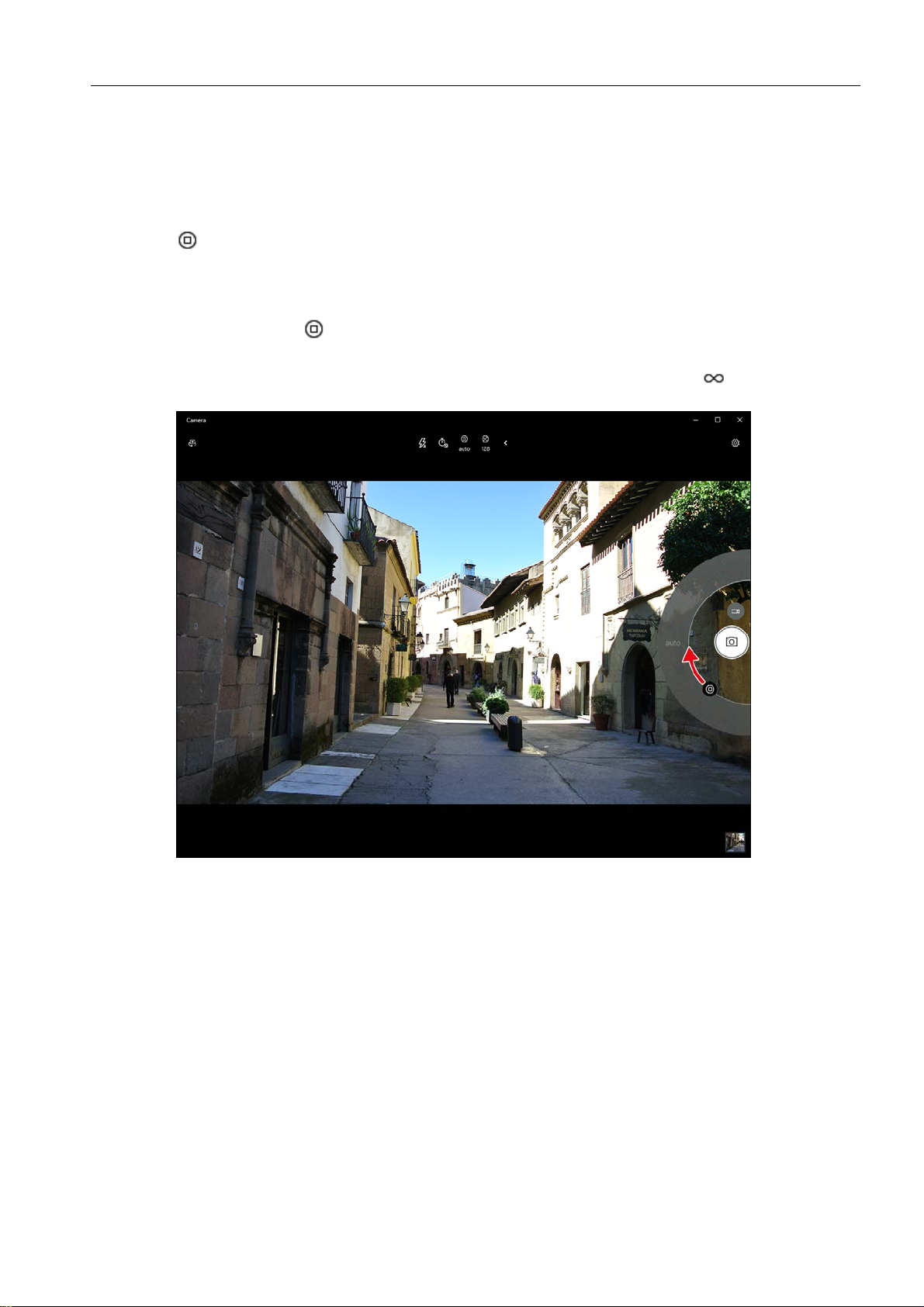

Adjusting Focus .................................................................................................... 24
Adjusting Brightness ............................................................................................. 25
....................................................... 15
EN-2

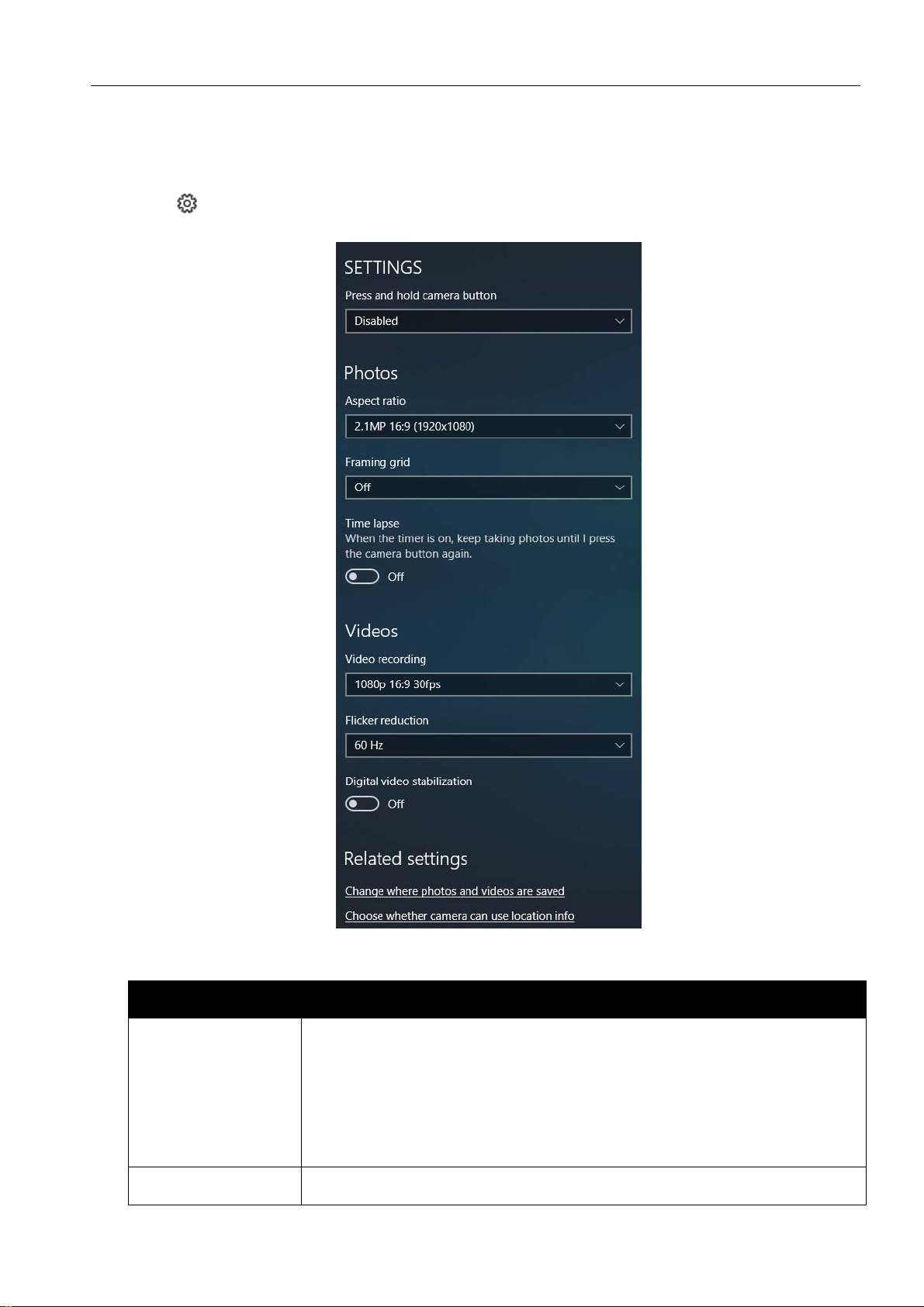

Configuring Camera Settings .................................................................................. 26

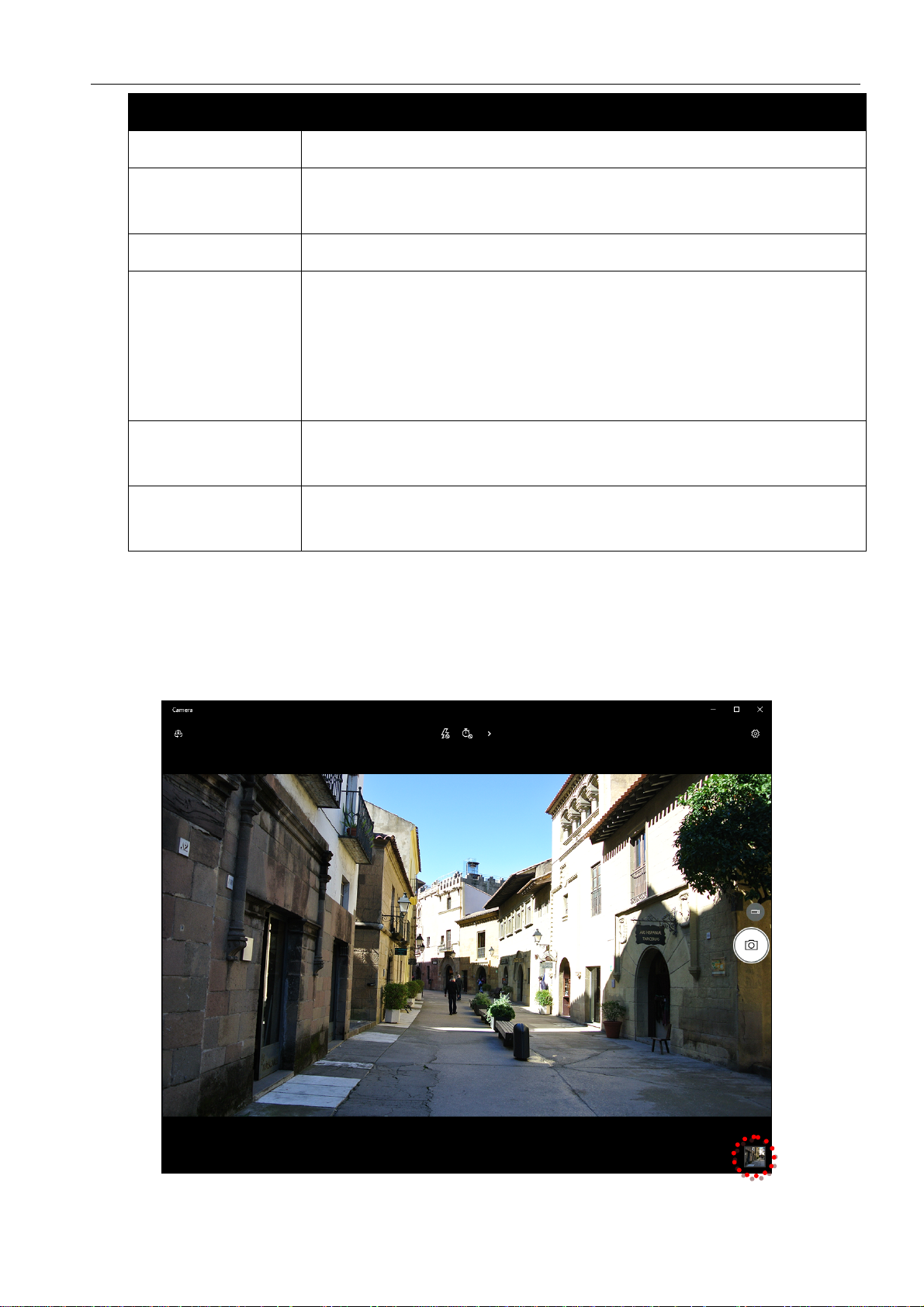

Viewing Photos/Videos .......................................................................................... 27
MAKING CONNECTIONS ........................................................ 28

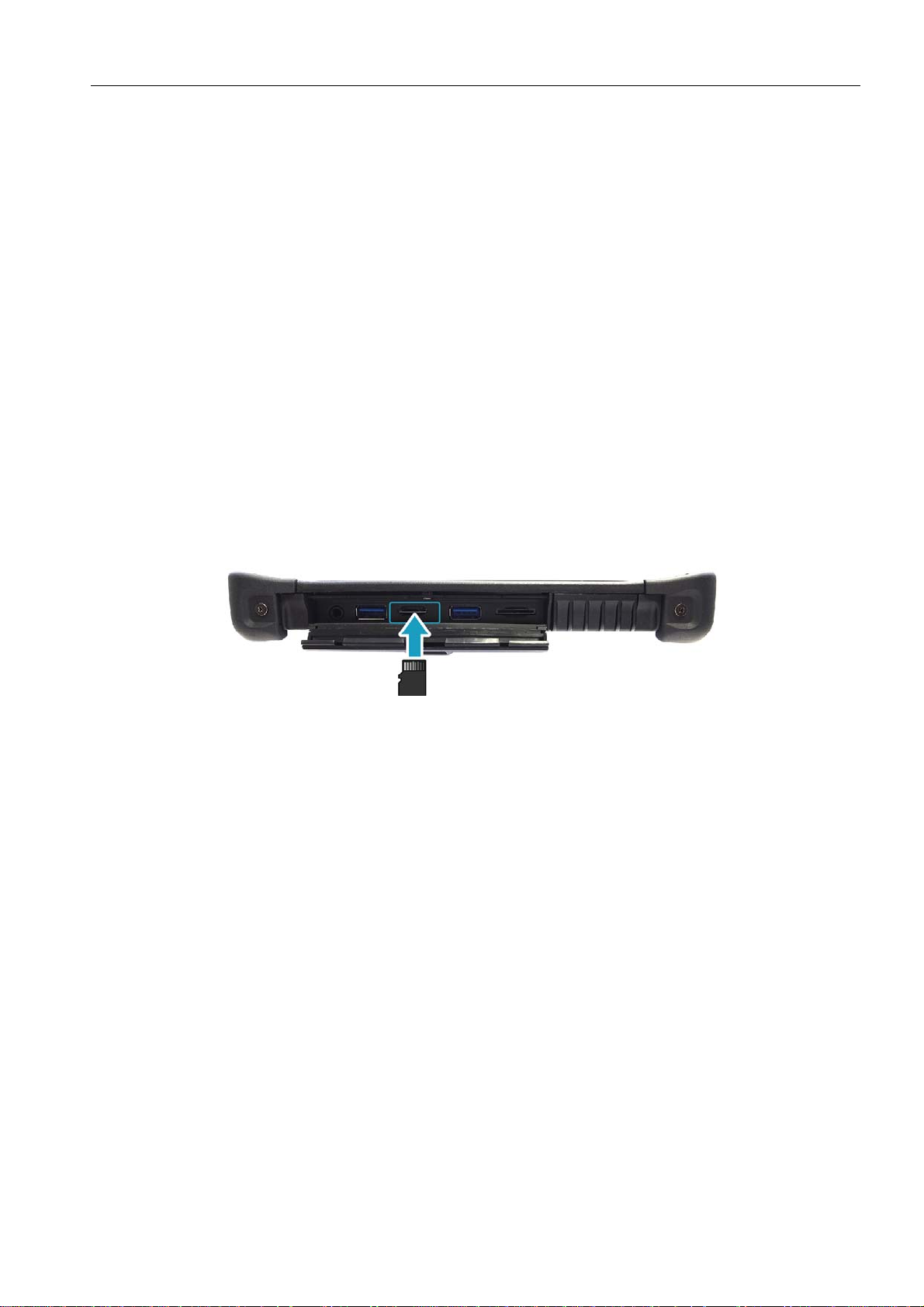

INST ALLING THE MICROSD MEMORY CARD ......................................................... 28

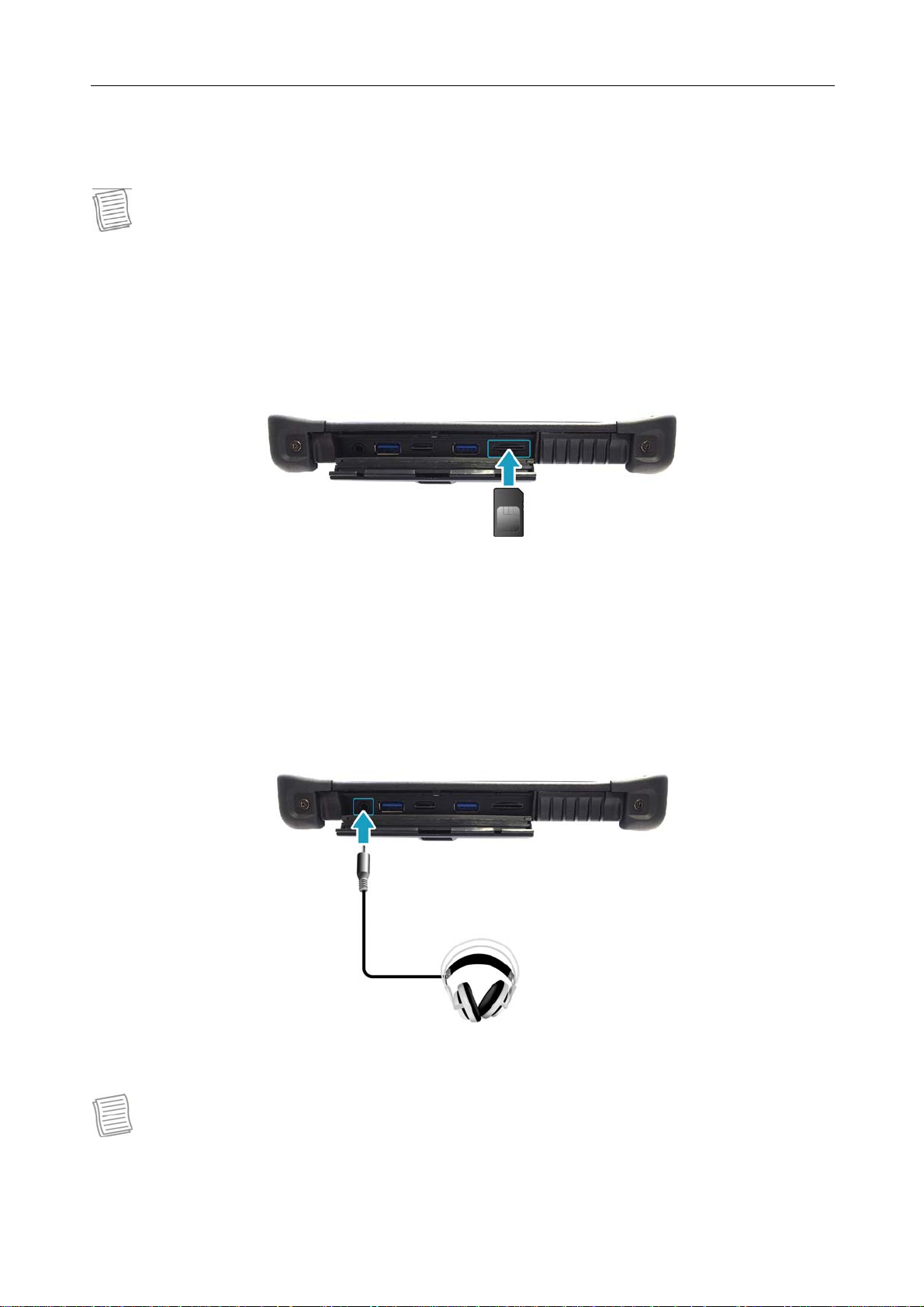

INST ALLING T HE SIM CARD .......................................................................... 29
CONNECTING THE MICROPHONE/HEADSET ................................................................. 29

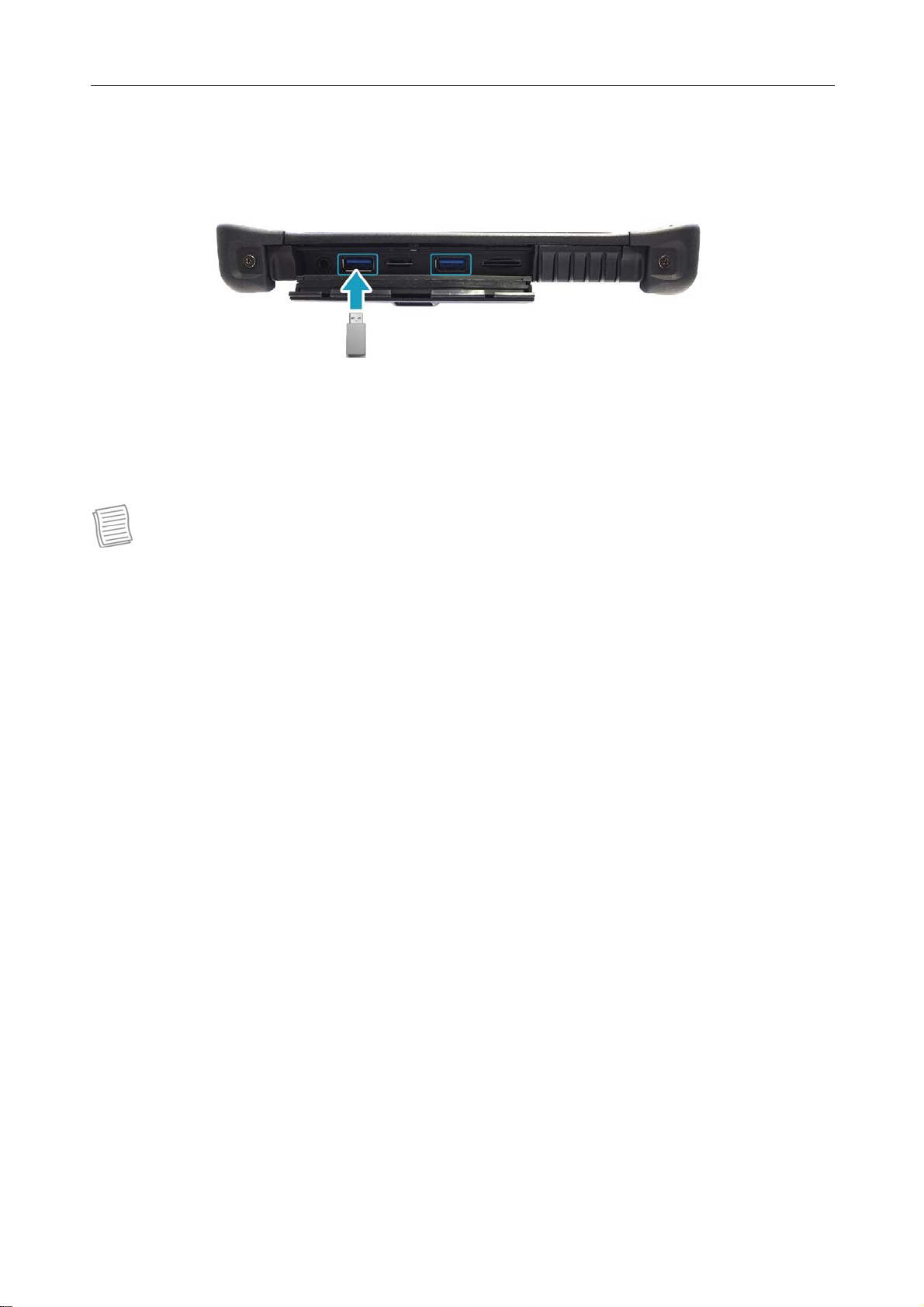

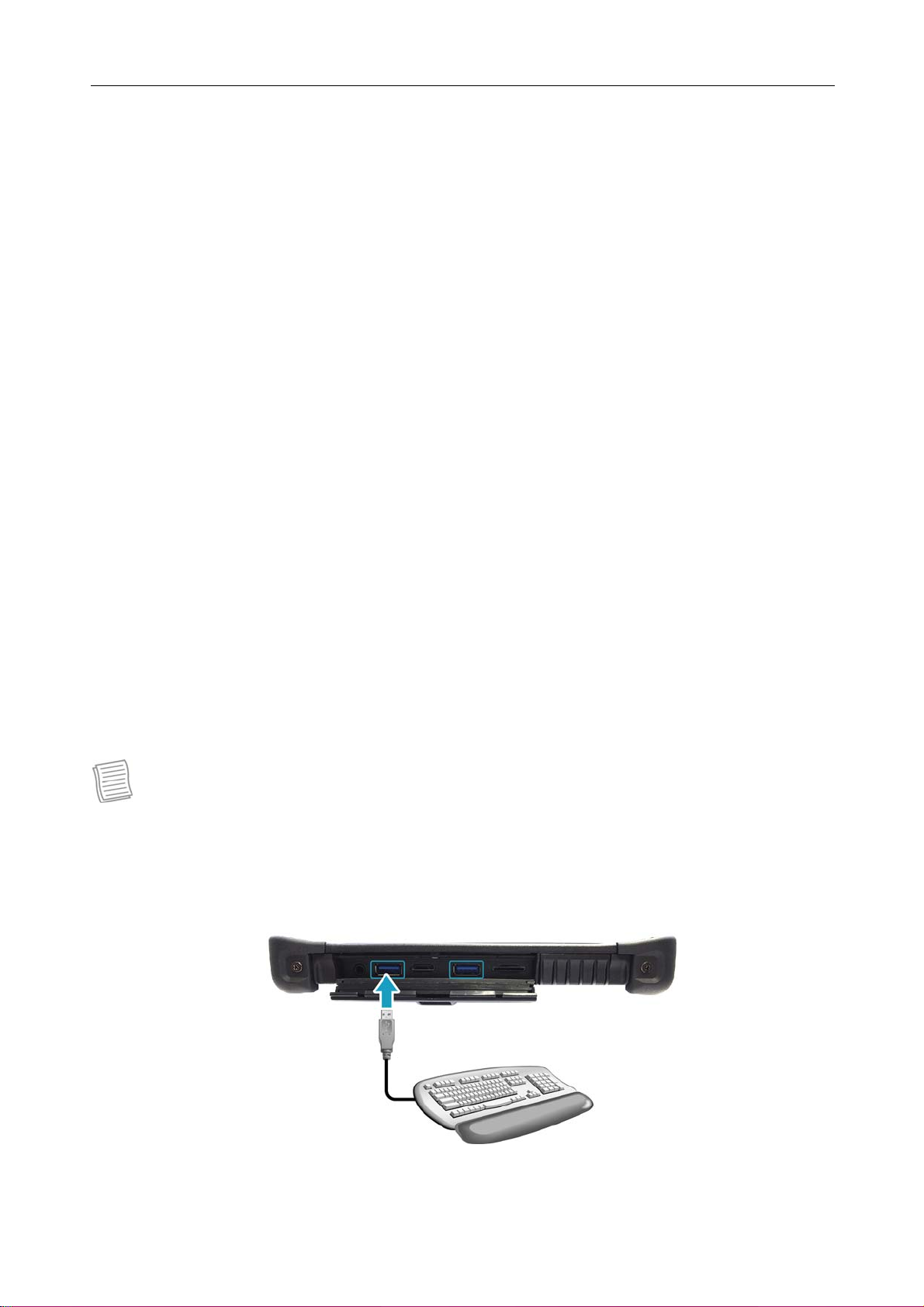

CONNECTING USB DEVICES .......................................................................... 30

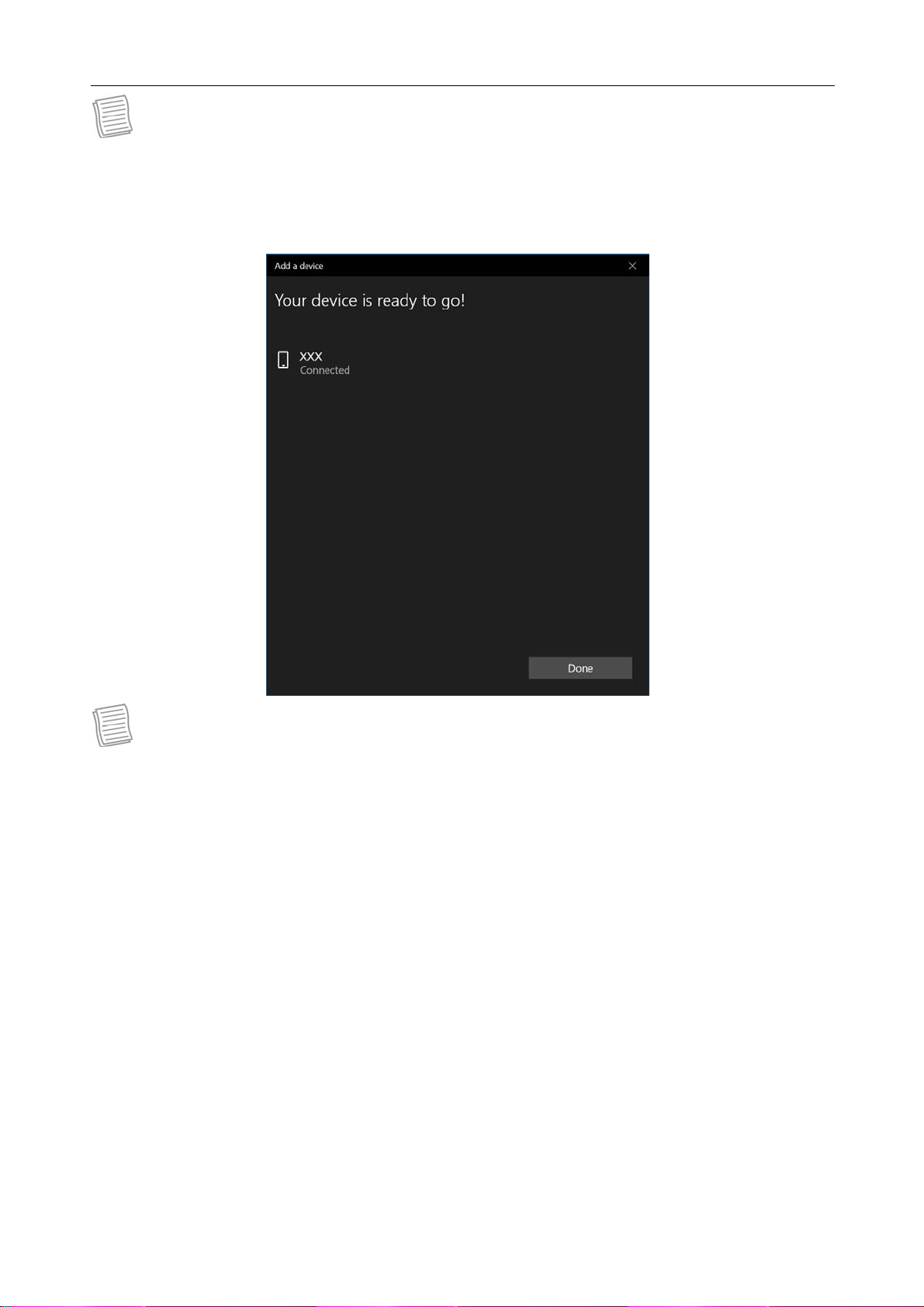

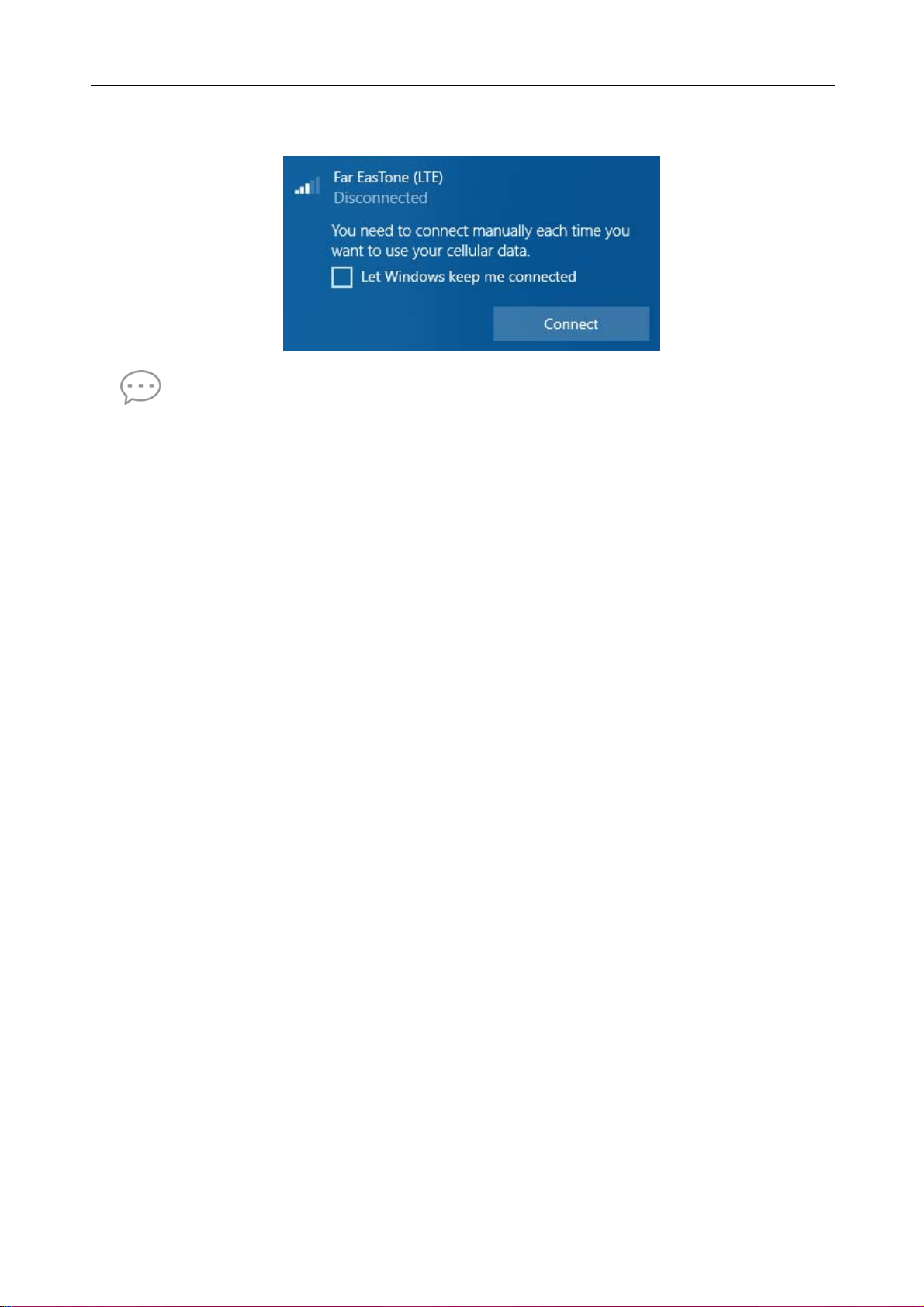

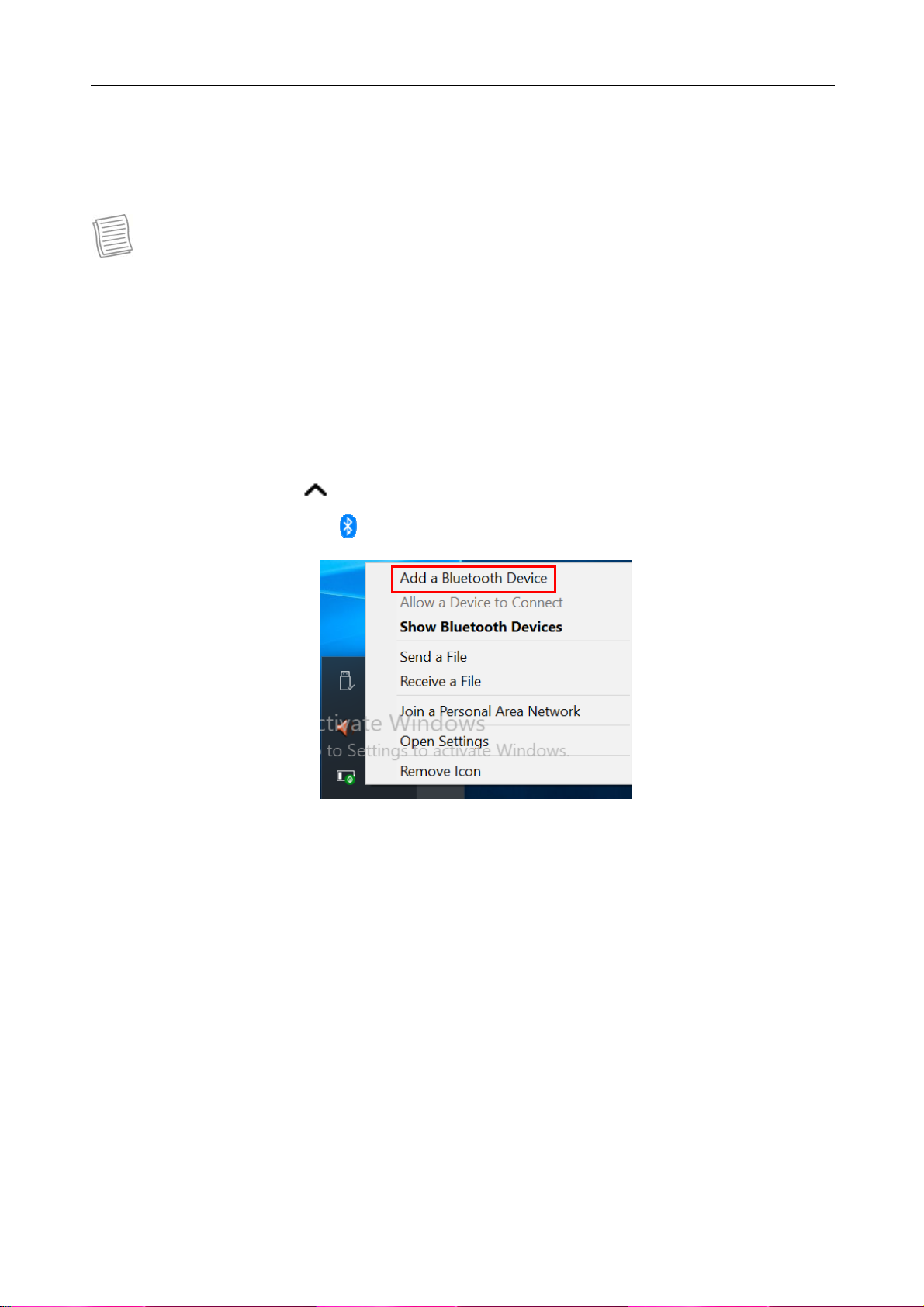

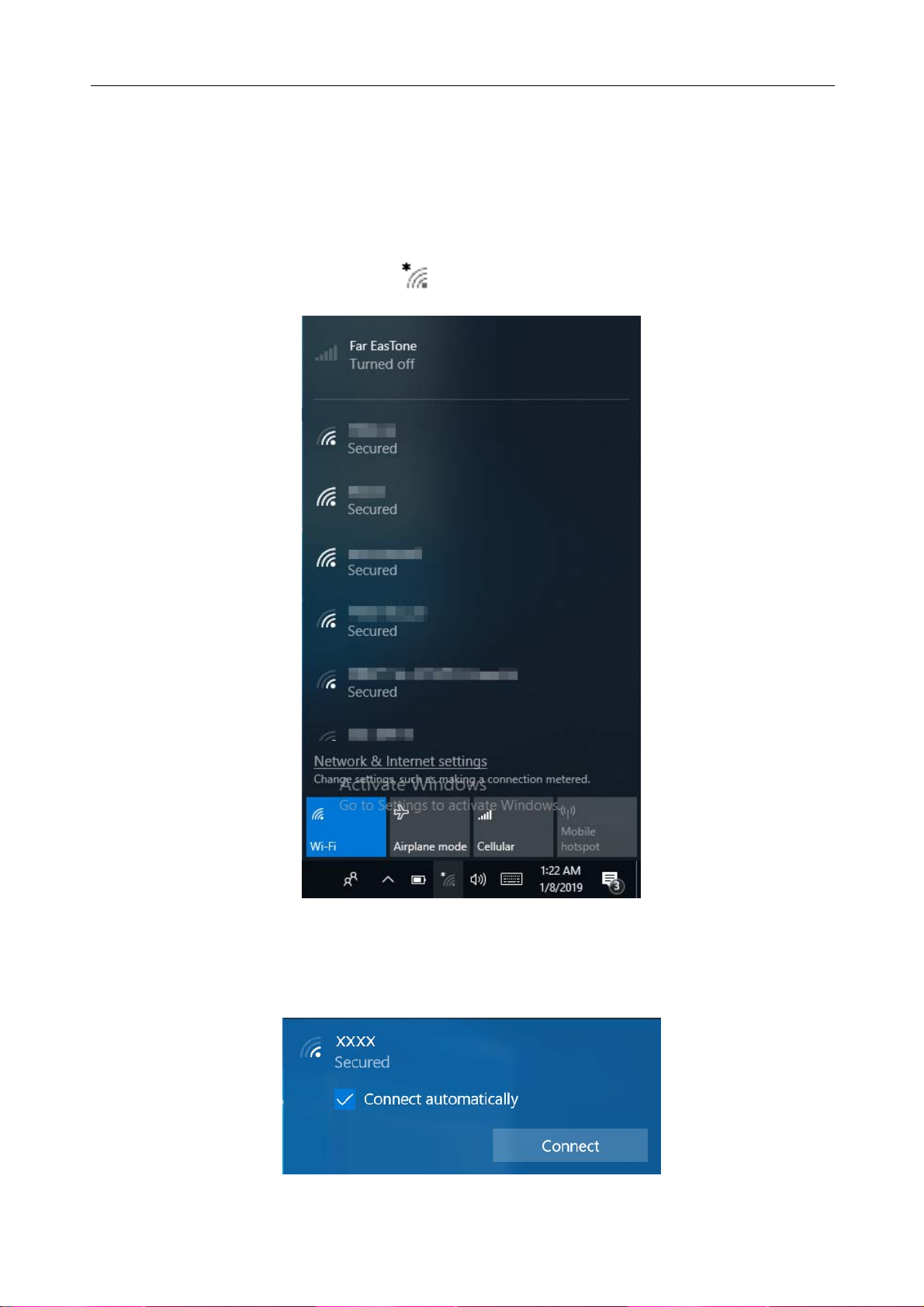

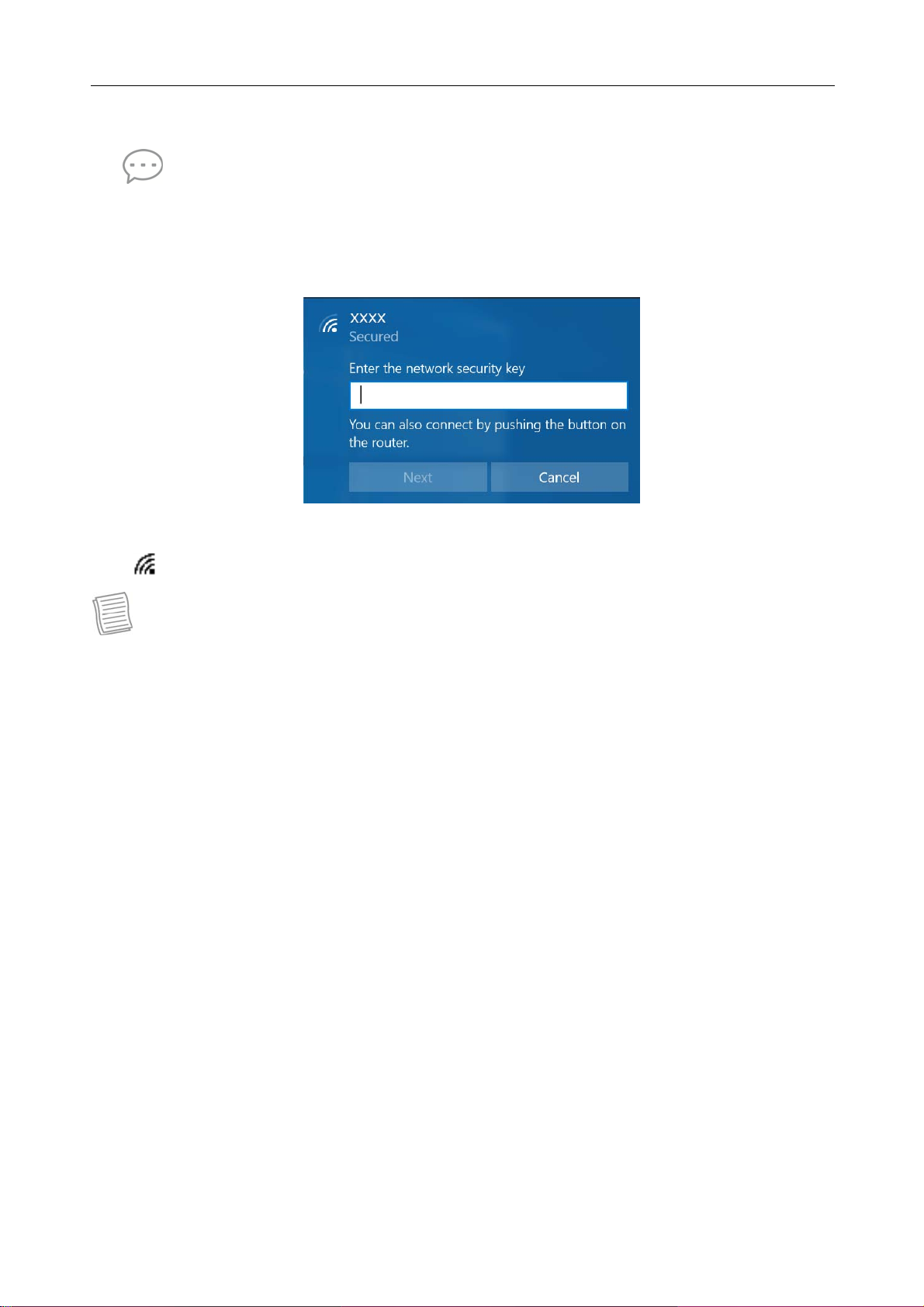

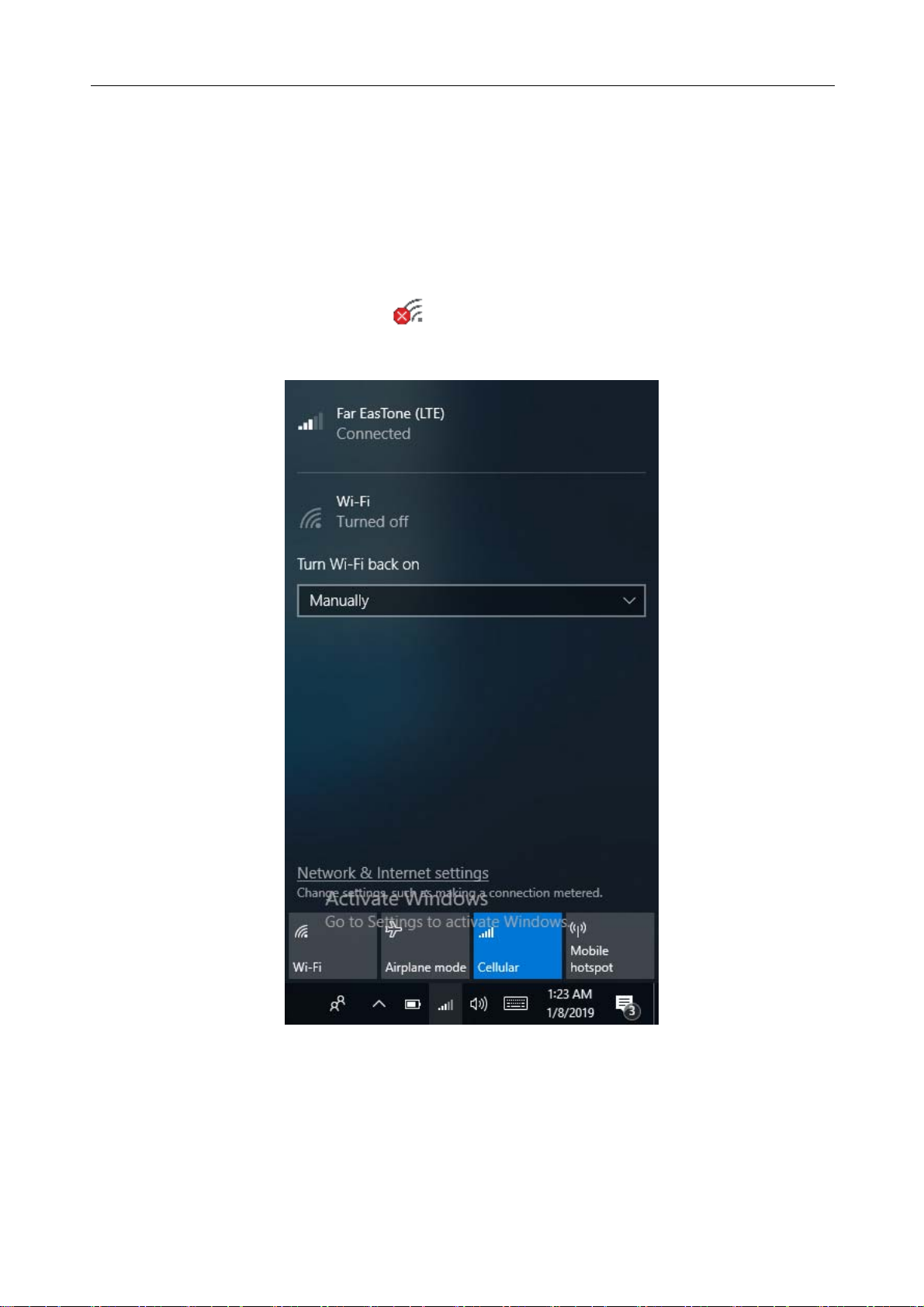

CONNECTING T O WIRELESS CONNECTIONS ......................................................... 31
USING THE BIOS SETUP UTILITY .......................................... 38
BIOS SETUP MENU .................................................................................... 38

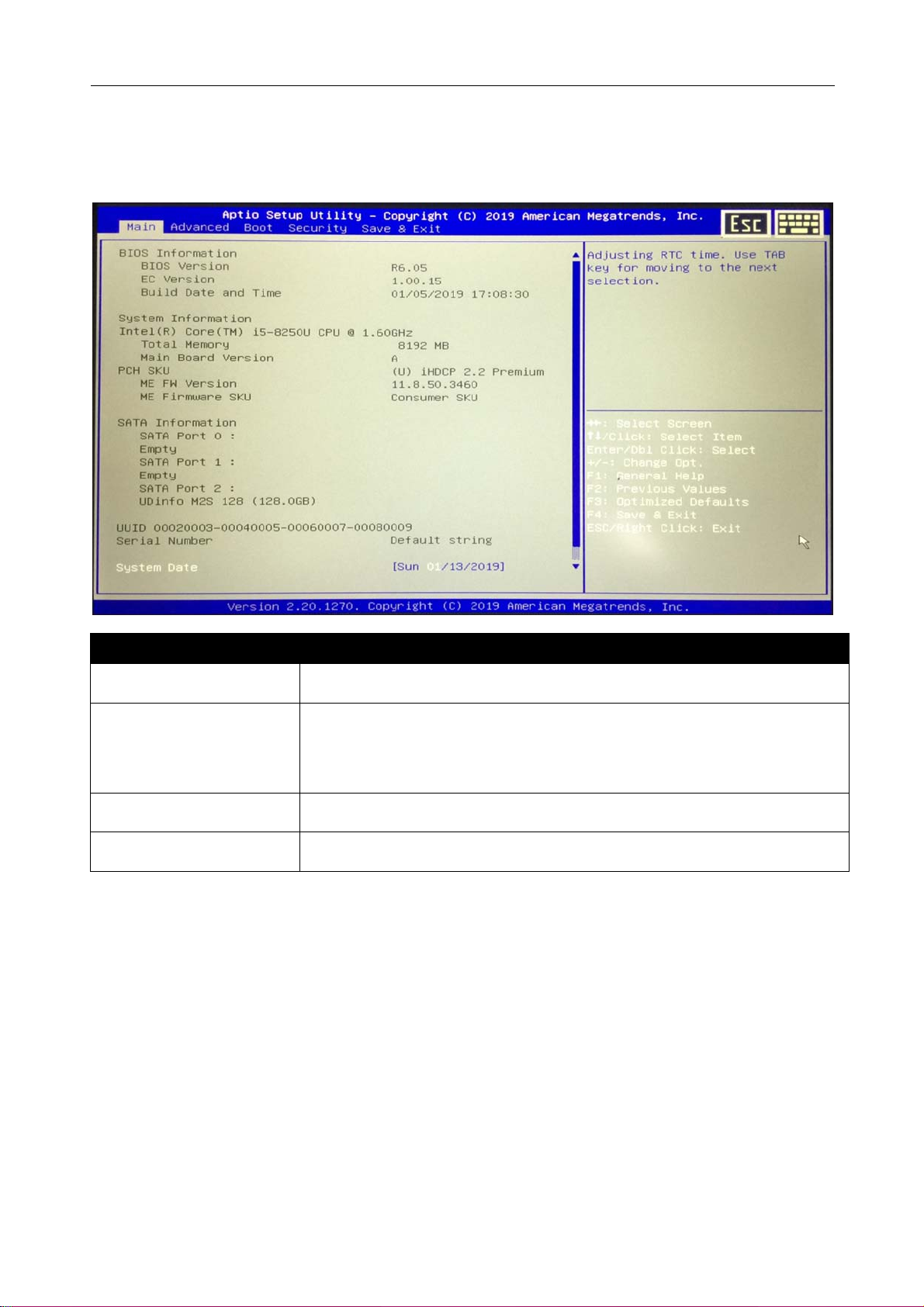

MAIN MENU ............................................................................................. 39

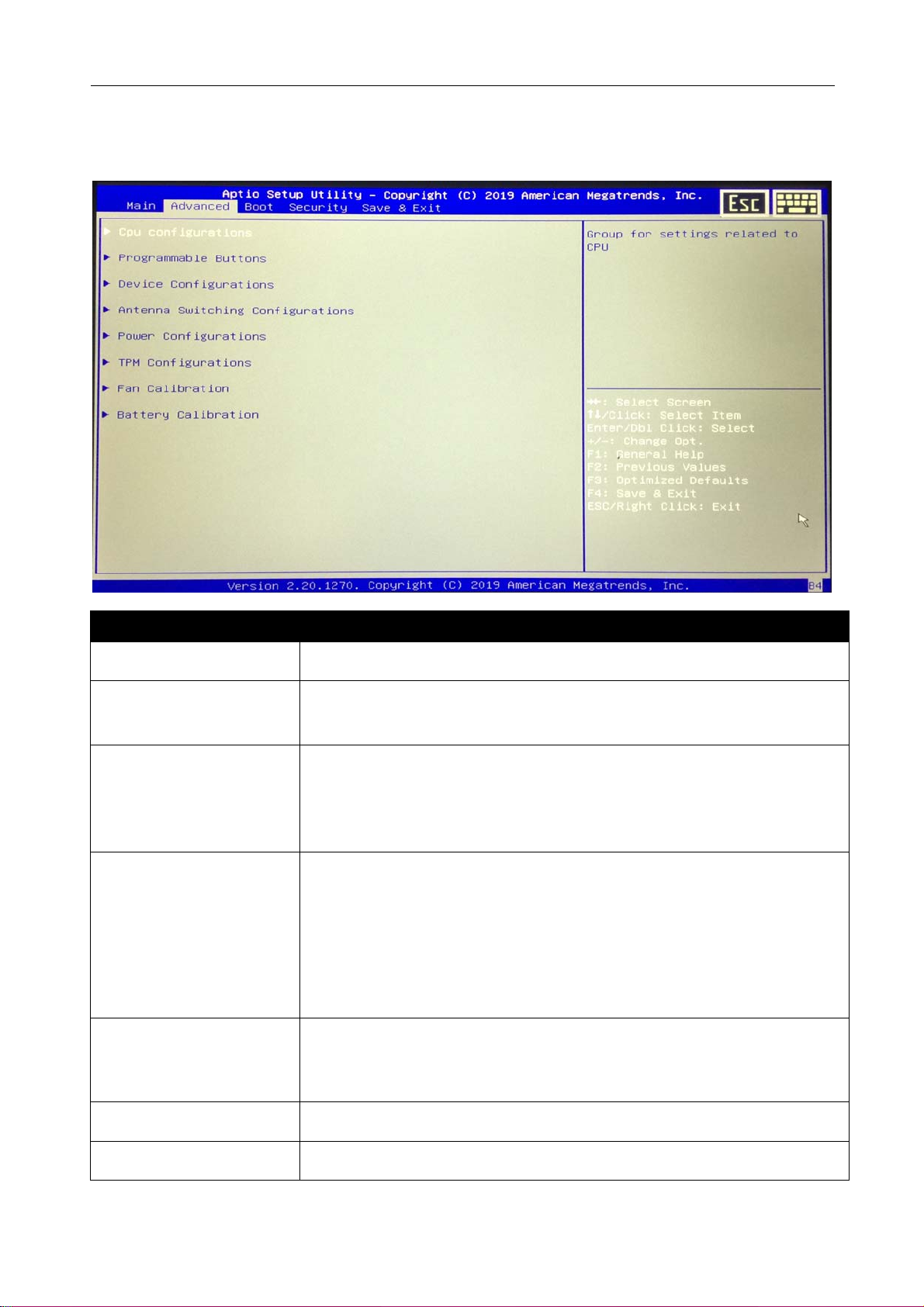

ADVANCED MENU ...................................................................................... 40

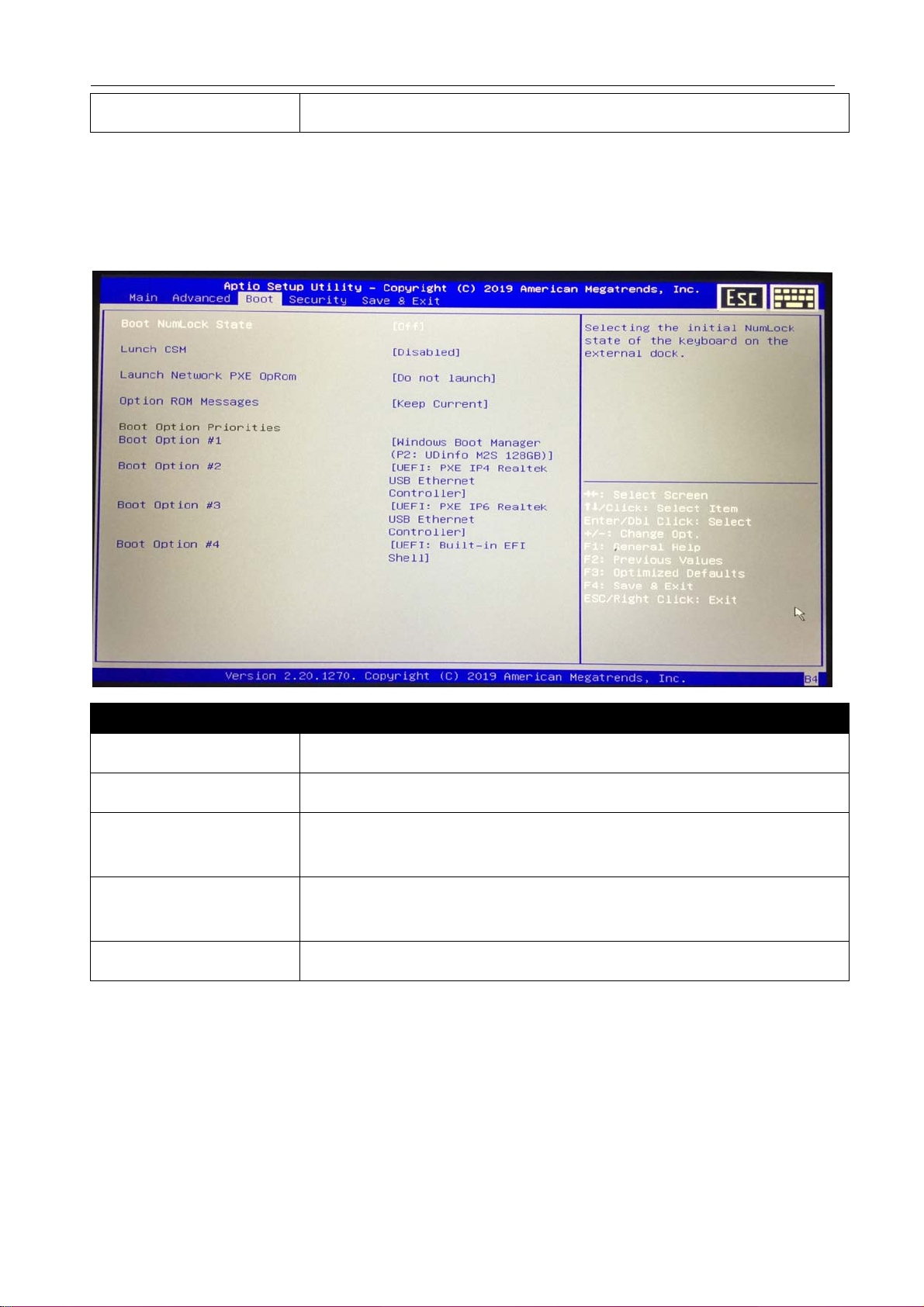

BOOT MENU ............................................................................................. 41

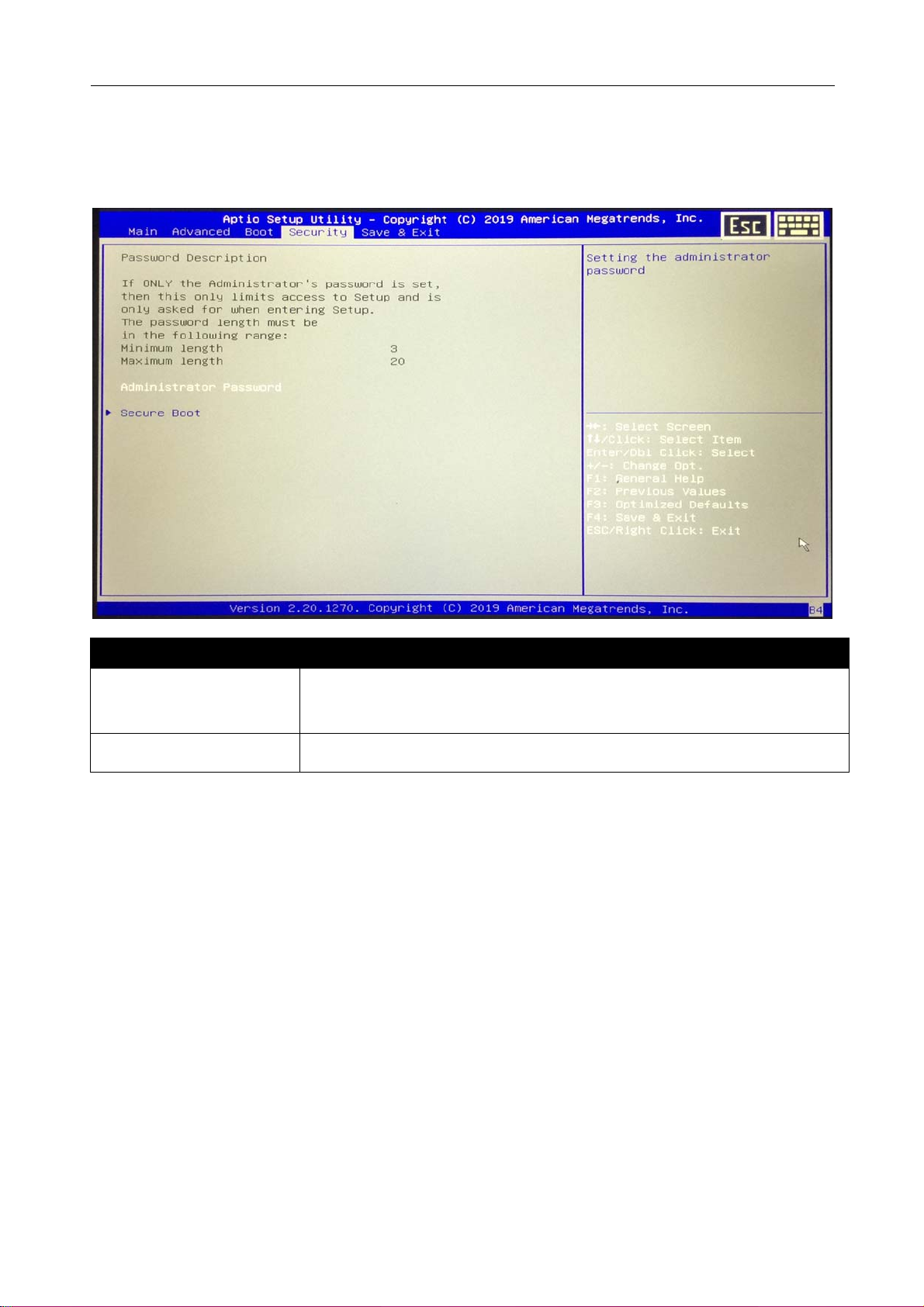

SECURITY MENU ........................................................................................ 42

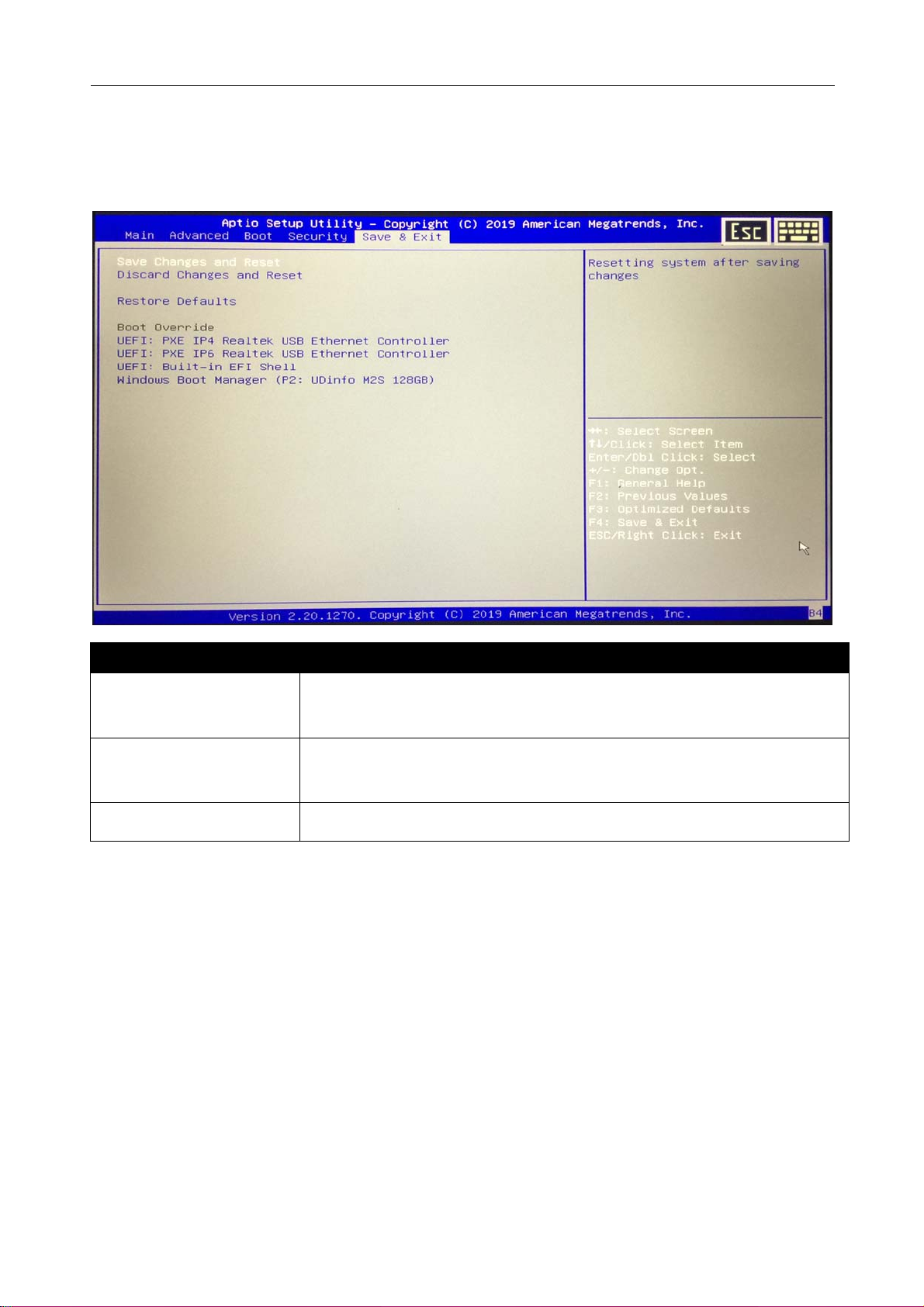

SAVE & EXIT MENU .................................................................................... 43
MAINTAINING AND CARING FOR YOUR TABLET PC .............. 44
PROTECTING YOUR TABLET PC ....................................................................... 44
STORING AND HANDLING YOUR TABLET PC ........................................................ 44
CLEANING YOUR TABLET PC .......................................................................... 46
TRAVELING WITH YOUR TABLET PC ................................................................. 47
TROUBLESHOOTING .............................................................. 48
PRELIMINARY CHECKLIST .............................................................................. 48
S D
ISPLAY PROBLEMS .................................................................................... 50
HARD DISK PROBLEMS ................................................................................ 50
THER PROBLEMS ...................................................................................... 54
O
APPENDIX ............................................................................. 55
COPYRIGHT .............................................................................................. 55
SPECIFICA TIONS ........................................................................................ 55
REGULA T OR Y STATEMENT .............................................................................. 58
Federal Communications Commission Statement ...................................................... 58
Declaration of Conformity ...................................................................................... 58
RF exposure warning ............................................................................................. 58
Canada, Industry Canada (IC) Notices ..................................................................... 59
Battery Disposal ................................................................................................... 60
CLASS 1 LASER PRODUCT ..................................................................................... 60
S
AFETY INSTRUCTIONS ................................................................................ 62
EN-3
Before You Start
Before You Start
Congratulations on your purchase of this tablet PC. This rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you begin using your tablet PC, read this chapter to familiarize y ourself with the main components installed in the system.
Package Contents
If any of following items is damaged, please contact your retailer.
Tablet PC AC adapter Power cord
Hand strap
NOTE
The pictures are for reference only, actual items may slightly differ.
EN-4
Product Overview
Front View
Before You Start
No. Item Description
1 Program button Tap to enter the chosen program (user definition)
or enable Stealth mode. 2 Front camera Use for video conference. 3 Ambient light sensor Use to detect the current level of visible light in the
surrounding environment. 4 Microphone Record the surrounding sound. 5 Function button The button functionality can be assigned via Quick
Menu.
Barcode trigger button: Press to trigger the
Barcode scan function if the barcode scanner is enabled.
Launch Windows Camera Application button.
Disable
6 Window button Tap to return to the Start screen.
EN-5
Before You Start
Back View
No. Item Description
1 Barcode scanner Scan barcodes. 2 Camera light Provide additional lighting when taking pictures
under low light environment. 3 Rear camera Use to take pictures. 4 Battery Pack Battery Pack. 5 Battery latch release
button
6 Speaker Emit sound.
Press and hold the button to slide the battery
latch to the unlock position.
EN-6
Right View
No. Item Description
1
Audio Combo jack Connect a headphone or an external speaker or
microphone.
2 USB 3.0 ports (x2) Connect USB 3.0 peripheral devices.
Before You Start
3 MicroSD memory
card slot
Use to insert a MicroSD card to transfer pictures, music, and data between your Tablet PC and flash compatible devices.
4 SIM card slot Use to insert a SIM card for WWAN module
connection.
Left View
No. Item Description
1
Power button Press to turn your tablet PC on or off .
2 Up/Down buttons
The button functionality can be assigned via Quick Menu. Brightness adjustment: Press to adjust the
brightness level.
Volume adjustment: Press to adjust the volume
level.
Disable
3 Kensington lock slot A Kensington cable can be connected.
EN-7
Before You Start
NOTE
When using the tablet PC without attaching an external keyboard, the three-
finger salute (Ctrl+Alt+Del) function is defined by pressing the and buttons simultaneously. By pressing the two-button combination, it will switch to Windows Security screen, which lets you lock the device, switch to different user, sign out, change a password, enter T ask Manager, or shutdown/Restart the device.
Bottom View
No. Item Description
1
Docking connector Connect the tablet PC to a docking station.
2 DC-IN jack Connect the power adapter.
EN-8
Before You Start
Status Indicators
The status indicators in the upper side of the tablet PC light up when a particular function of the tablet PC is active.
Icon Item Description
Power Green LED always lights on when the system is running.
Battery Indicate the battery status:
When the system is in sleep mode, the LED blinks.
Green: when battery is fully charged (95% or above) Orange: when battery is charging Flashing Red: when battery capacity is lower than 10%Off: when discharged
RF
Blue LED lights on when any of RF features (WLAN/ Bluetooth/ WWAN/ GPS) is on. Blue LED lights off when none of RF features (WLAN/ Bluetooth/ WWAN/ GPS) are on.
NOTE
On Windows 10 OS, you need to install the Quick Menu application in order to
verify the RF signal status.
EN-9
Getting Started
Getting Started
This chapter will help you get started using the device.
Installing the Battery
To install the battery, follow the steps below:
1. Align and insert the battery to the battery compartment.
2. Push completely until the battery locks into place.
3. Slide the battery latch to the lock position to secure the battery.
Charging the Battery
The Lithium-ion battery is not fully-charged upon purchase. To charge the battery, follow the steps below:
1. Install the battery to your tablet PC. See procedures above.
2. Connect the AC adapter to the DC-IN jack of your tablet PC.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to an electrical outlet.
EN-10
Getting Started
When to replace the Battery Pack
The battery performance gradually decreases over time and usage. We recommend you to replace y our battery pack after 18 to 24 months of usage.
Removing the Battery
To remove the battery, follow the steps below:
1. Press and hold the battery latch release button to slide the battery latch to the unlock position.
2. Remove the battery out of the battery compartment.
EN-11
Getting Started
Connecting the Power
Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery.
Connecting the AC Adapter
The AC adapter powers up your tablet PC and charges the battery.
1. Connect the AC adapter to the DC-IN jack of your tablet PC.
2. Connect the AC adapter to the power cord.
3. Plug the power cord to an electrical outlet.
Using Battery Power
1. Install a charged battery in the battery compartment.
2. Remove the AC adapter (if plugged). Your tablet PC will automatically use the battery power.
NOTE
If your tablet PC is connected to an electrical outlet and the battery is installed,
your tablet PC uses power from the electrical outlet.
EN-12
Getting Started
Starting Your Tablet PC
Turning On Your Device
Press the button until the Power LED lights up.
Turning Off Your Device
It is important to properly shut down your tablet PC to avoid the l oss of unsav ed data. To shut down your tablet PC, do the following:
Tap > Power > Shut down. Wait for yo ur notebook to turn off power
completely before removing the power source (if necessary).
EN-13
Operating Your Tablet PC
Operating Your Tablet PC
This chapter will guide you on how to use your Tablet PC.
Using the Quick Menu
To enter the Quick menu, tap the arrow on the task bar to display hidden icons. Then tap the Quick Menu icon ( ).
Y ou can also access the Quick menu in the All apps list.
Quick Menu Overview
NOTE
If the tab is green (i.e.
indicates the current function is
EN-14
activated.
), this
Operating Your Tablet PC
Viewing the Version Information
On the Version section, you can view the Bios version, EC v ersion, and Quick Menu version.
Viewing the Battery Charge Cycles
On the Battery Charge Cycles section, you can view the battery charge cycle and battery status.
Configuring the Function Button (Barcode/Camera)
On the Barcode/Camera Button Setting section, you can assign the function for the Barcode/Camera button.
There are three available options:
Barcode trigger: Scan the barcode (if the barcode scanner is integrated). Launch Windows Camera Application: Shortcut key for launching the
Windows Camera application.
Disable: No function.
EN-15
Operating Your Tablet PC
Configuring the Programmable Button (P)
On the P Button Setting section, you can assign the function for the P button.
There are three available options: Stealth Mode: Turn off the LCD backlight, LEDs, speakers, camera flash, and
RF devices.
Launch Application: Shortcut key for launching a specific application. To
assign the application, refer to the “Assigning an Application to the P Button” section.
Disable: No function.
Configuring the Up/Down Button
On the Up/Down Button Setting section, you can assign the function for the Up/Down button.
There are three available options:
Brightness adjustment: To adjust screen brightness level; Volume adjustment: To adjust volume level; Disable: No function.
EN-16
Operating Your Tablet PC
Assigning an Application to the P Button
Tap the P-Key tab to assign an appli cation to the P button. Select the desired application and click Open.
EN-17
Operating Your Tablet PC
Accessing the Mobility Center
Tap the Mobility Center tab to adjust or configure the brightness, volume l evel, battery status, screen orientation, external display, sync, and presentation settings.
Configuring External Antenna Switching Mode
Select the respective external antenna tab to configure the setting.
Tap the LTE Antenna tab to enable/disable the device to automatically switch
to the external WWAN antenna when it is affixed on a docking statio n.
Tap the GPS Antenna tab to enable/disable the device to automatically switch
to the external GPS antenna when it is affixed on a docking station.
NOTE
 If the tab is green, this indicates the current function is activated.
EN-18
Operating Your Tablet PC
Configuring Adaptive Brightness Setting
Tap the Adaptive Brightness tab to enable/disable the device to automatically adjust the brightness level according to the ambient light.
Using the Camera
Using the Camera application, you can use this tablet PC to take photos or videos.
Opening the Camera App
To access the Camera application, do one of the following:
a. Tap > Camera.
EN-19
Loading...
+ 43 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
