DBTV2501 SERIES A
SER VICE MANUAL
COLOR TELEVISION RECEIVER
ORIGINAL
MFR’S VERSION A
Design and specifications are subject to change without notice.
Page 2
DBTV2501 SERIES A
SER VICE MANUAL
COLOR TELEVISION RECEIVER
ORIGINAL 1
MFR’S VERSION B
MFR’S VERSION
A
B
Please file this revision with the original version.
CRT
A63AHC26X
A63ADT15*08
Page 3
Change of CRT
ELECTRICAL REPLACEMENT PARTS LIST
MFR'S VERSION A MFR'S VERSION B
REF. NO.
! R406 R903N8332J RC 3.3K OHM 1/8W R903N8100J RC 10 OHM 1/8W
! R408 R4X5T6183F R,METAL 18K OHM 1/6W R4X5T6273F R,METAL 27K OHM 1/6W
R410 R002T2821J RC 820 OHM 1/2W
R411 R002T2561J RC 560 OHM 1/2W R002T2102J RC 1K OHM 1/2W
R412 R002T2271J RC 270 OHM 1/2W
R413 R002T2681J RC 680 OHM 1/2W DEL
! R415 R3X181471J R,METAL OXIDE 470 OHM 1W DEL
R416 R0L2U2102J RC 1K OHM 1/2W DEL
R418 R002T4223J RC 22K OHM 1/4W R002T4273J RC 27K OHM 1/4W
R419 R002T4182J RC 1.8K OHM 1/4W R002T4122J RC 1.2K OHM 1/4W
R420 R002T4103J RC 10K OHM 1/4W R002T4682J RC 6.8K OHM 1/4W
! R429 R6558A1R8J R,FUSE 1.8 OHM 2W R6558A2R7J R,FUSE 2.7 OHM 2W
R432 R002T2821J RC 820 OHM 1/2W
R433 R002T2271J RC 270 OHM 1/2W
R438 R002T2151J RC 150 OHM 1/2W
R553 R903N8182J RC 1.8K OHM 1/8W R903N8472J RC 4.7K OHM 1/8W
PART NO. DESCRIPTION PART NO. DESCRIPTION
R613 R002T4473J RC 47K OHM 1/4W
R638 R903N8103J RC 10K OHM 1/8W R903N8822J RC 8.2K OHM 1/8W
C401 C0JTB0512K CC 100 PF 500V B
C427 E50HU5100M CE 10 UF 50V
C444 C0JLYR713K CC 0.001 UF 2KV YR
VR401 V1163H3BTC
PCB010 A3K004G01A MAIN PCB ASS'Y TMA501A A3K004I010K
C809 CS0KW04W2M CC 820 PF 50V W CS0KW04U2M CC 680 PF 50V W
C810 CS0KW04S2M CC 560 PF 50V W CS0KB04Q2K CC 470 PF 50V B
C811 CS0KW04U2M CC 680 PF 50V W CS0KW04S2M CC 560 PF 50V W
PCB110 A3K004G11G CRT PCB ASS'Y TCA358A A3K004I110K
CD804 06CU34002A
! DY801 027M062505 DY 7M062505 DEL
K001 129A000010 WEDGE 8115529 DEL
K002 129A000010 WEDGE 8115529 DEL
VOLUME,SEMI FIXED
EVNCYAA03BE3
MAIN PCB ASS'Y (VERSION B)
TMA501A
CRT PCB ASS'Y (VERSION B)
TCA358A
CORD CONNECTOR
SM1198-002-1A
K003 129A000010 WEDGE 8115529 DEL
MG801 026A062704
! V801 0984250502 CRT A63AHC26X 0984250503 CRT W/DY A63ADT15*08
MAIN PCB's and CRTPCB's are not interchangeable.
MAGNET,CONVERGENCE
29MMSTAR
DEL
Page 4

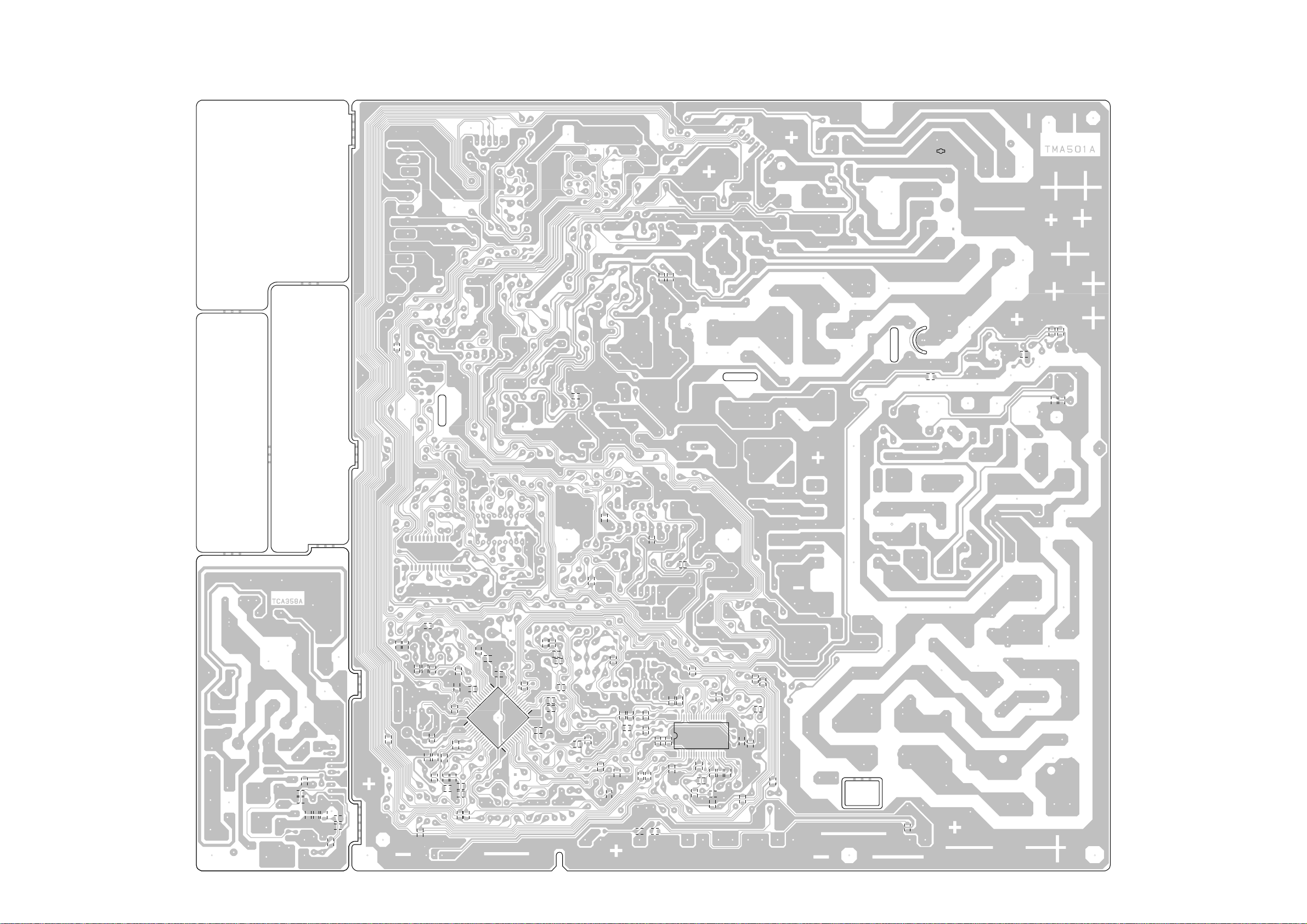

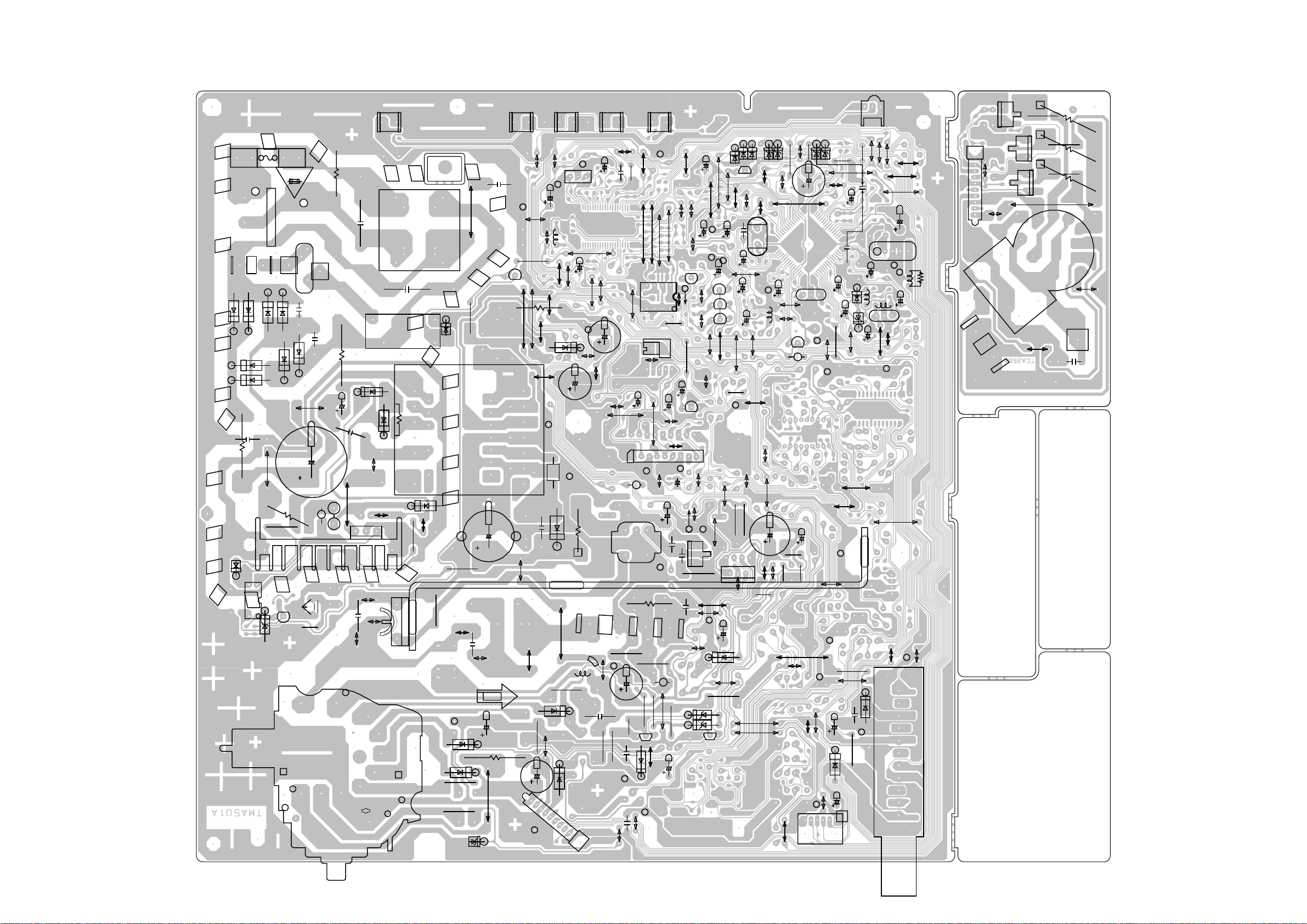

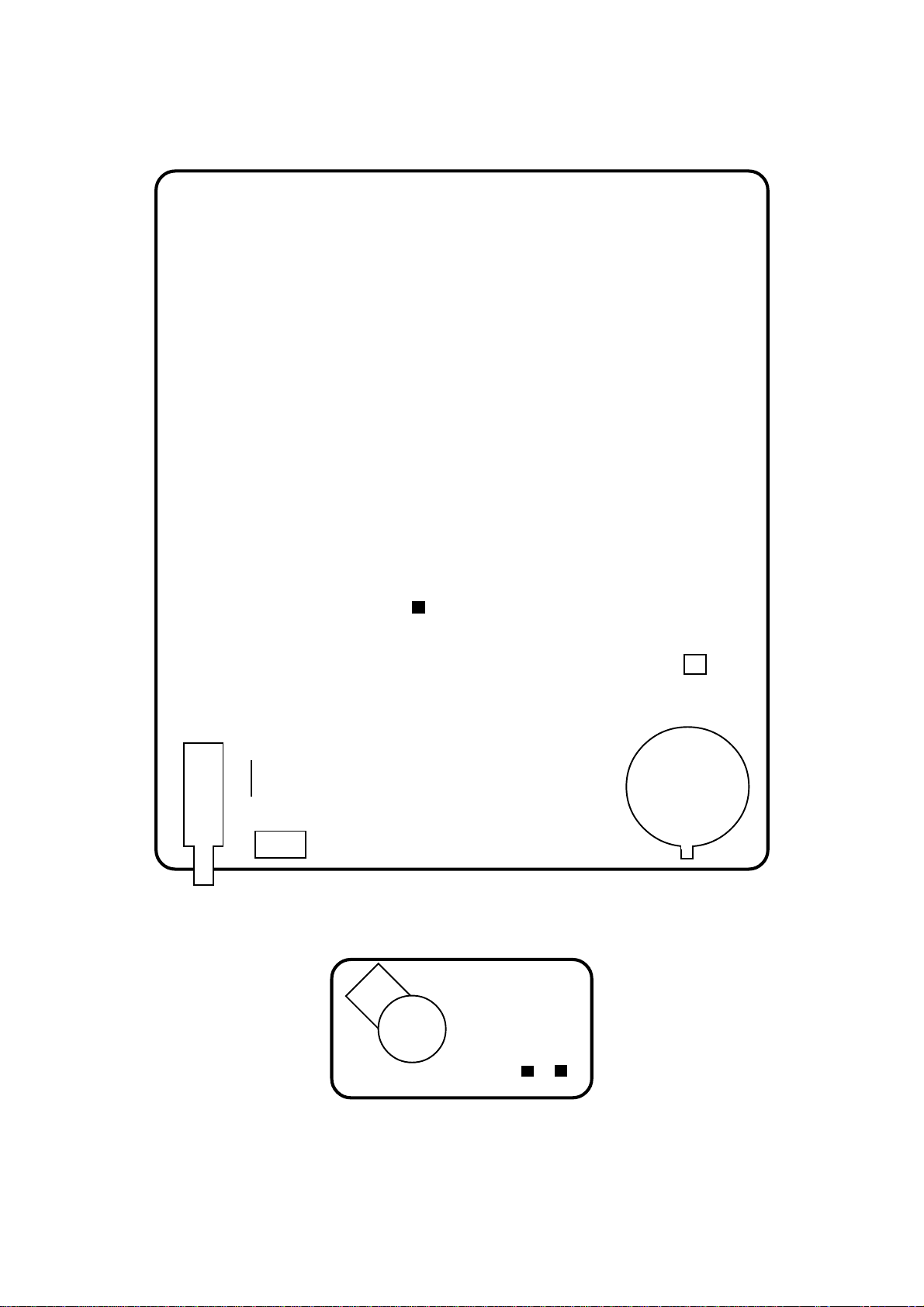

PRINTED CIRCUIT BOARDS
(MFR'S VERSION B)
MAIN/CRT (INSERTED PARTS)
SOLDER SIDE
FH501
S501A
CP502
D501
R501
D518
F501
D511
D502
D513
C532_1
W140
D528
_A_V
6.3A125VOR250V
PH003
TH501_1
C502_1
D504
D512
D517
D503
W137
R542
R506
IC506
VR502
Q507
R514
S501B
R543
R500
C503_1
R505
C507_1
HS501
FB401
PH004
C514
B502
C510
W139
C443_2
W141
D521
IC501
W143
C505_2
RY501
D506
W138
Q401
W142
SW105
W812
T501
D515
C506_2
R502
L501
R503
W820
R427
C444
D408
D410
W897
W891
R431
R422
D516
R554
W133
C401
W121
W132
D405
R523
C437
C404
C530
R429
W136
SW104
Q504
R517
C521_1
W131
W843
D407
C448_1
W120
R515
W129
R421
C118
W119
W128
D514
C517
CP802A
W123
W147
W124
B504
SW103
W118
W127
W146
S101Y
W122
D510
L406
R428
L101
W117
W134
D411
X101
W072
TP402
CP401_1
R433
C115
W827
W125
R440
C416
R412
SW102
C122
W809
C501_1
W107
R445
W099
W088
HS401
R409
W084
W114
C124
W817
C531_1
W828
W087
R653
T401
C435_2
VR401
C709
R118
R424
D413
SW101
W083
W078
CP351_1
C352_1
R432_1
R410
R411
C433
R408
Q403
W115
W077
W074
IC199
C357
W858
IC351_1
W103
C446
R405
W144
W075
R623
C360
W086
W859
C353_4
C439
W150
W085
W098
S801Y
C440
C430_1
R401
C434
W076
W073
Q603
Q351
Q402
W108
S801X
W801
R354
R446
CD806B
C613
W080
W844
C638_2
W802
W835
W152
W110
C427_1
Q101
C640
W836
C645_2
Q605
W096
W840
W105
R002
D611
W082
Q604
Q601
W092
W109
R438
D402
D401
W081
W090
W101
R436
IC401
C414
Q608
C622
R359
D607
W079
S802Y
W111
D403
D604
W863
C625
C627
C647
W829
W825
R407
W066
W064
L608
W094
R420
W862
W069
W113
D606
W810
X602
W813
W041
D608
W864
W030
C418
W059
R641
C612
C635
W031
R418
W051
W061
W010
Q606
W151
R648
R613
CF603
R632
C417
R417
R419
W065
D610
S802X
W067
W062
CP601
D609
W012
C605
W058
C002
D605
R625
C624_1
W022
W034
W048
W014
R612
C003
D601
W027
W036
R001
C004
R606
R631
C603
C659_2
CF601
C606
D602
D001
OS101
W020
C628
L606
C632
W019
L607
W029
TU001
W018
W011
C601
CF604
W023
W032
W013
W052
W015
L601
C604
W804
R604
CP802B
W003
S101X
W857
CP805
Q803
Q801
Q802
TP023
W004
R806
TP024
R804
TP022
R802
W002
R807
R805
R803
J801
W005
CP806
C802
Page 5

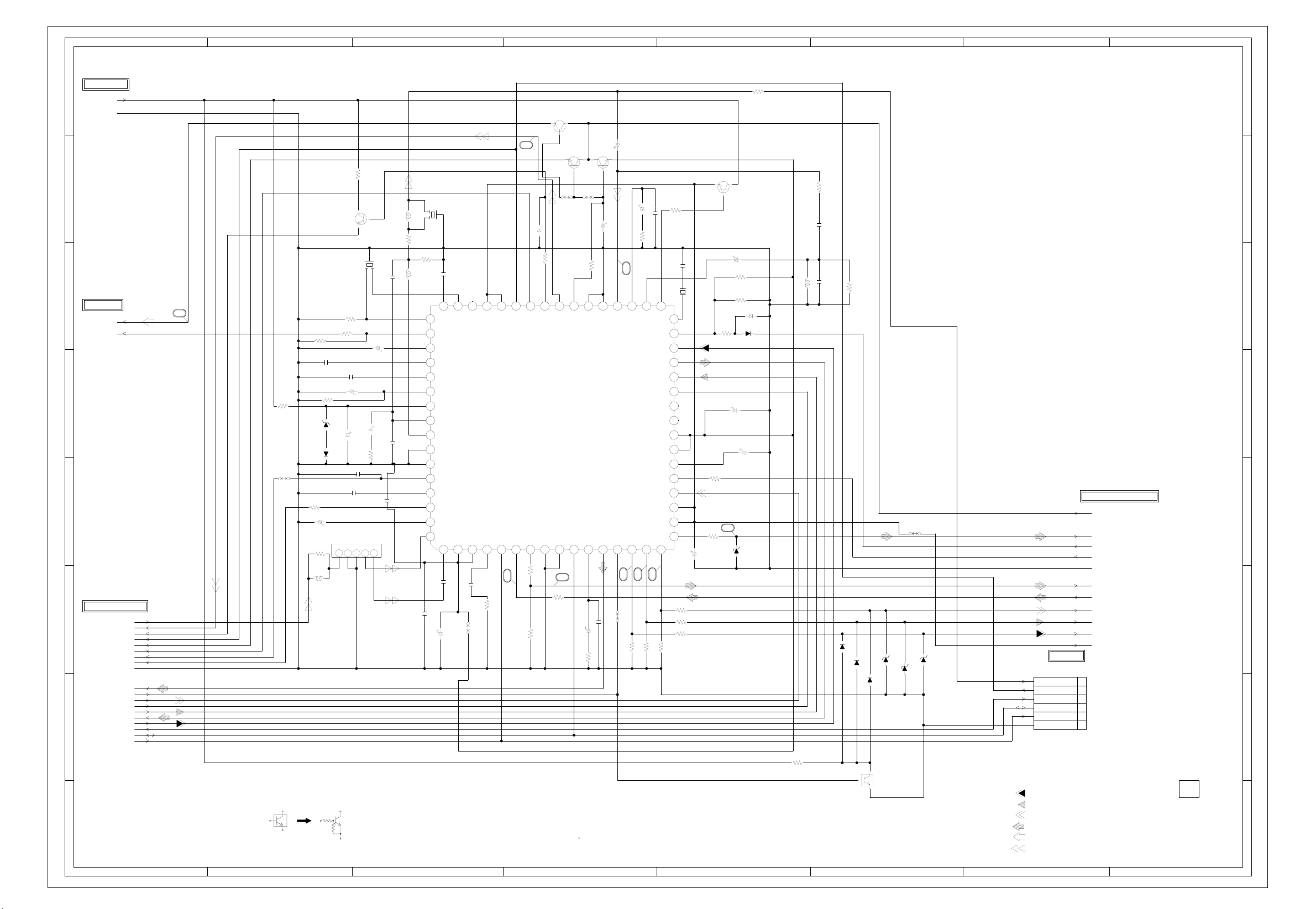

ABC D E F GH
8
7
6
5
4
FROM/TO MICON/TUNER
3
2
1
CHROMA SCHEMATIC DIAGRAM
FROM/POWER
AT+10V
GND
R623
120 1/4W
CF604
L607
R622
100P SL
15uH
68
L606
22P CH
TPSRA4M50C00-A0
R615
470
2.2uH
2.3
3.0
2.3
NC
3.8
3.1
9.2
3.0
2.6
0
0
0
2.9
1.8
2.9
1.8
C628
0.01 F
C636_1
NC
08.28.2
49
AUDIO OUT ACL/ABCL
50515253545556575859
AUDIO BYPASS
EXT AUDIO IN
FM DIRECT OUT
VIF VCO F/B
VREG Vcc
VIF APC FILTER
VIF VIDEO OUT
VIF GND
AFT OUT
6061626364
QIF IN
RF AGC OUT
RF AGC FILTER
1 10111213141516
2
1.5 5.0 5.0 2.7 4.9 6.2 6.2 0 0 4.9 3.5 4.9 4.9 4.0 4.0 4.8
C634
0.01F
0.001 B
10006.3V YK
C601
VIF Vcc
C639_1
W810
3
0.01 F
R624
Hi Vcc
46 SW REG CONT
47 LIMITER IN
48 IF AGC
49 QIF OUT
64 VIF IN (1)
1 VIF IN (2)
H VCO F/B
SCL
5
8
2K
INTELLIGENT MONI
FBP IN
6
10.64.8
5.5
Q603
5V REG
KTC3203_Y
CF603
SFSH4.5MCB
C656_1
TO/ SOUND
STEREO+5V
AUDIO_OUT
IF G.OUT
Y_VIDEO
AT+5V R.OUT
SYNC
TUNER+5V CLAMP
RESET
AFT
AGC
GND
HD
POWER
OSD_B
OSD_BLK
OSD_G
VD
OSD_R
I2C_OFF
SDA
SCL
5
C658_1 0.001 Y
R632
100 1/2W
W817
R612
R611
R618 10M
D602
D601
C606
0.2250V KA
R604
2.2K
L601
1.2uH
R634 10K
5.6K 1/4W
10K
C623_3 0.0033 Y
C632 2.250V KA
MTZJ8.2B
C605
4716V KA
C624_1
R609
1SS133
C621 0.01 F
C626_1
0.001 Y
R606
10K
SAW FILTER
CF601
SAFGP45M7VHCZR
OUTOUT G IN IN
12345
C604
150V KA
0.4750V KA
330
C659_2
470P B
C618
5V REG
Q601
KTC3203_Y
4.97 7.6
6
C635 4716V KA
R635 100
MCU RESET
5.7V REG OUT(FOR CPU)
CHROMA IC
IC601
M61206FP
H OUT
DEF
789
2.2K
R601
R626
10K
1K
R602
5.6
5V REG
Q604
2SD734
7.6
4.97
5.6
W801 W802
5v REG
Y SW OUT
34 EXT C in
33 8.7V REG OUT
32 X’TAL
17 V OUT
16 B OUT
SDA
9
C603 150V KA
R605
5V REG
Q605
KTC3203_Y
7.6
5.6
C640
27
R629
0003.45.54.83.98.22.32.9
VIDEO/CHROMA GND
AFC FILTER
INV FBP OUT
C607 0.01 F
5.6K
150V KA
C627
4.97
C625
4716V KA
7
TV/Y IN
VIDEO CHROMA Vcc
V RAMP FEEDBACK
R OUT
POWER ON CONT
11 12 13
W844
R614 2.2K
150V KA
R633
2.02.9
CHROMA APC FILTER
V PULSE OUT
FAST BLK
SPOT KILLER
fsc OUT
V RAMP CAP
STRAT UP Vcc
G OUT
R619 2.2K
R639
100
C622 0.015 M
8.2K
C616
X602
8.83.3
333435363738394404142434445464748
3.5
2.6
0
R IN
30 31 32
5.0
0
G IN
0
7.3
0
5.0
5.0
5.6
2.5
0
B IN
20 21 22 23 24 25 26 27 28 29
8.2
8.2
4.5
17 18 19
R627 100
R630 100
R631 100 1/4W
R625
2.2K 1/4W
(MAIN PCB)
15.08.2
8.8
Q606
KTC3203_Y
C647
15P CH
3.579545MHz
NC
NC
C612
R641
22K 1/4W
R648
100 1/4W
100010V YK
R638 8.2K
R646 27K
R642
6.8K
C645_2
4716V KA
10
D610
REG
150V KA
D605
11E1-EIC
C638_2
R645
10
3316V KA
C613
150V TF
MTZJ6.8B
(MFR’S VERSION B)
220
R647
C651_1
33P SL
C650_1
220P B
L608 6.8uH
D604
R653
560 1/2W
R650 1K
1SS133
4.9
D607
1SS133
D611
0
0
D609
1SS133
SWITCHING
DTC114ES
MTZJ9.1B
Q608
47K 1/4W
D608
R613
D606
MTZJ9.1B
MTZJ9.1B
TEST POINT
TKC-M06X-A1
VIDEO
INT.MONI
IIC_OFF
SDA
SCL
GND
CAUTION: DIGITAL TRANSISTOR
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
ABC D E F GH
FROM/TO DEFLECTION/CRT
FBT+8V
V_OUT
ABCL
V_FEEDBACK
GND
H_OUT
H_SYNC
B.OUT
CP601
6
5
4
3
2
1
PCB010
TMA501
R.SIGNAL
G.SIGNAL
B.SIGNAL
DEFLECTION SIGNAL
AUDIO SIGNAL
TUNER VIDEO SIGNAL
8
7
6
5
4
3
2
1
Page 6
ABC D E F GH
FROM/TO CHROMA
8
V_FEEDBACK
7
6
5
FROM/TO MICON/TUNER
X-RAY_TEST
4
3
2
FROM POWER
1
CLAMP
G.OUT
B.OUT
R.OUT
V_OUT
ABCL
H_SYNC
H_OUT
FBT+8V
GND
R401
100K+-1%
X-RAY
C439
SL
22P500V
H.DRIVE
Q402
2SC2621
0.3
R440
3.3K 5W
+B
TP402
FBT+8V
+B
GND
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
C416
200V PP
0.027
L406
18uH
8.2
27.0
0
R428
C440
R446
1/2W
R405
D401
15
R404
B
0.0022500V
1/2W
4.7K
1K
22K+-1%
HZ27-1L
D402
HZ11B1L
IC401 LA78041V-OUT IC
PUMP
UP
+
AMP
-
1234567
14
HS401
763WAA0104
5013001
345
T401
C446
R406
R408
1160V YK
CH012102
10
27K +-1%
12
16
C404
GNDVCC
03.9 26.1 2.2 13 26
C414
10035V YK
C408_1
150PSL
R417
CD806B
X-RAY TEST SW.
16.0
9.6 16.1
H.OUTPUT
2SD2499(LBOEC1)
47016V YK
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
R424
12K +-1%
Q401
R427
100 1/4W
AU02A-EIC
D408
17
114.0
0
KRA104MAT
0
THERMAL
PROTECTION
R418
27K 1/4W
12K1/4W
Q403
R409
6.2K +-1%
D405
3.9
C437
0.56200V
C443_2
C401
MTZJ6.2B
100P500V B
R422
6.8K 1/2W
R445
100K
R419
C417
FHS
MPP
0.011.25KV
1/2W
C434
W897
W891
1.2K1/4W
4.750V
C444

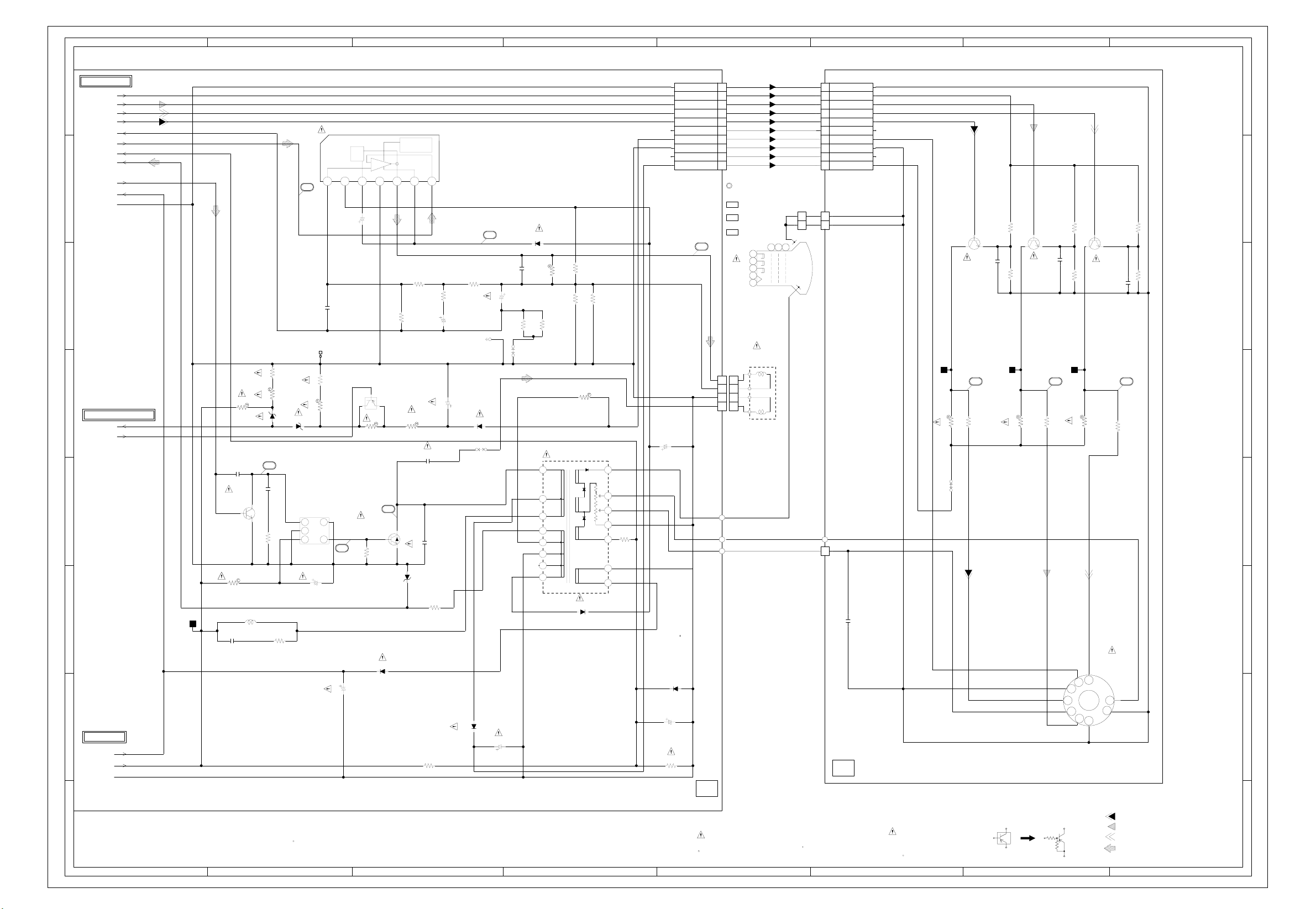

DEFLECTION/CRT SCHEMATIC DIAGRAM
CP802A
NC
C433
47035V YK
D413
11E1-EIC
C435_2
0.1100V MHE
R421
220K 1/4W
ARESINCE THESE PARTS MARKED BYCAUTION:
B2013H02-10P
GND
CLAMP
G.OUT
B.OUT
R.OUT
NCNC
HEATER
GND
NC
180V
19
PCB010
TMA501
6.8K
KA
22100V YK
R420
0.0012KV YR
R432_1
1/4W
D411
AU02A-EIC
W843
D410
18
820 1/2W
C418
S801Y
AU02A-EIC
C448_1
10250V YK
R410
1000
25V
820 1/2W
YK
R407
W840
D403
11E1-EIC
C430_1
C427_1
2.2 1/2W
112.0
128.0
128.0
0
0
0
0
NC
0.3
MKT
0.022100V
R411
1K 1/2W
1050V KA
R438
R436
2.2 1/2W
R429
2W
2.7
FB401
3225010F
COL
1
VIDEO
6
B+
2
AFC
9
HEA
TER
10
GND
8
E12
4
E25
3
D407 AU02A-EIC
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
150 1/2W
(W106)
GND
ABL
GND
E8
R412
R433
HV
F
S
11
7
3.9K 1/4W
0
8
-27.0
5
2701/2W
VR401
EVNCYAA03BE3
2701/2W
R431
GND
CLAMP
G.OUT
B.OUT
R.OUT
HEATER
GND
180V
1
2
3
4
5
6
7
8
9
10
CD804
SM1198-002-1A
4
3
2
1
CP401_1
TS-80P-04-V1
S101
CD805
SM1098-009-1A
CD806A
CH012102
11
B
6
G
8
R
10
9
V801
A63ADT15*08
4
3
2
1
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
(MAIN PCB)
10
1
2
175
FOCUS
SCREEN
CP806
005P-2100
CP802B
B2013H02-10P
1
2
3
4
5
6
7
8
9
CP805
A2361WV2-2P
1
2
1
PCB110
TCA358
ETANTLES PIECES REPAREES PAR UNATTENTION:
(MFR’S VERSION B)
GND
CLAMP
G.OUT
B.OUT
R.OUT
HEATER
GND
180V
C802
GND
CLAMP
G.OUT
B.OUT
R.OUT
NC
NC
HEATER
GND
NC
NC
180V
0.0012KV B
CAUTION: DIGITAL TRANSISTOR
TP022
W857
R803
3.2
RED OUT
Q801
2SC4217
2W
R802
12K
R
R809 4.7K
2.7
GREEN OUT
560P W
C811_1
390
R813
TP023
20
1/4W
2.7K
R807
R.SIGNAL
G.SIGNAL
B.SIGNAL
DEFLECTION SIGNAL
3.2
Q803
2SC4217
2W
12K
R814 4.7K
2.7
R806
GB
C810_2
22
101.6
2.7K 1/4W
99.6
95.498.4100.6
470P B
R816
TP024
R805
6.4
0
9
8
7
BLUE OUT
390
10
6
3.2
2.7
Q802
2SC4217
2W
12K
CVT3275-5102
96.4
11
5
J801
8
7
R811 4.7K
680P W
C809_1
R815
390
6
21
5
R804
2.7K 1/4W
4
3
F
0
1
2
1
ABC D E F GH
Page 7
SPEC.NO.
O/R NO.
M3K0-04I
A173518
Page 8
SERVICING NOTICES ON CHECKING
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
3. USE THE DESIGNATED PARTS
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
PUT PARTS AND WIRES IN THE
4.
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathoderay tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
6. AVOID AN X-RAY1. KEEP THE NOTICES
Safety is secured against an X-ray by considering about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage peripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathoderay tube.
7.PERFORM A SAFETY CHECK AFTER
SERVICING
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
Unplug the plug from the AC outlet.
2.
Remove the antenna terminal on TV and turn
on the TV.
3.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
4.
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
HOW TO ORDER PARTS
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
IMPORTANT
Inferior silicon grease can damage IC's and transistors.
When replacing an IC's or transistors, use only specified silicon grease (YG6260M).
Remove all old silicon before applying new silicon.
A1-1
Page 9
CONTENTS
SERVICING NOTICES ON CHECKING......................................................................................................
HOW TO ORDER PARTS ...........................................................................................................................
IMPORTANT................................................................................................................................................
CONTENTS .................................................................................................................................................
GENERAL SPECIFICATIONS ....................................................................................................................
DISASSEMBLY INSTRUCTIONS ...............................................................................................................
SERVICE MODE LIST.................................................................................................................................
CONFIRMATION OF USING HOURS.........................................................................................................
NOTE FOR THE REPLACING OF MEMORY IC ........................................................................................
ELECTRICAL ADJUSTMENTS ..................................................................................................................
MAJOR COMPONENTS LOCATION GUIDE .............................................................................................
BLOCK DIAGRAM ......................................................................................................................................
PRINTED CIRCUIT BOARDS
MAIN/CRT...........................................................................................................................................
SCHEMATIC DIAGRAMS
MICON/TUNER..................................................................................................................................
CHROMA ...........................................................................................................................................
DEFLECTION/CRT ............................................................................................................................
POWER .............................................................................................................................................
SOUND ..............................................................................................................................................
WAVEFORMS .............................................................................................................................................
MECHANICAL EXPLODED VIEW ..............................................................................................................
MECHANICAL REPLACEMENT PARTS LIST ..........................................................................................
ELECTRICAL REPLACEMENT PARTS LIST ............................................................................................
A1-1
A1-1
A1-1
A2-1
A3-1~A3-4
B-1, B-2
C-1
C-1
C-1
D1-1~D2-1
D3-1
E-1, E-2
F-1~F-4
G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
H-1, H-2
I-1
J1-1
J2-1, J2-2
A2-1
Page 10
GENERAL SPECIFICATIONS
G-1 TV CRT CRT Size / Visual Size 25 inch / 626mmV
G-2 Tuning Broadcasting System US System M
G-3 Power Power Source AC 120V AC 60Hz
G-4 Regulation Safety UL /CSA
G-5 Temperature Operation +5oC ~ +40oC
G-6 Operating Humidity Less then 80% RH
G-7 On Screen Menu Yes
System CRT Type Normal
Deflection 100 degree
Magnetic Field BV/BH +0.45G/0.18G
Color System NTSC
Speaker 2Speaker
Position Front
Size 1.5 x 2.7 Inch
Impedance 4 ohm
Sound Output MAX 0.75 + 0.75 W
10%(Typical) 0.5 + 0.5 W
NTSC3.58+4.43 /PAL60Hz No
System Tuner and System 1Tuner
Receive CH Destination Ohers
Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm
CH Coverage A - I, J - W, W+1 - W+84
Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz
FP-FS 4.50MHz
Preset CH
Stereo/Dual TV Sound
Tuner Sound Muting Yes
DC
Power Consumption at AC
110 W at AC 120 V 60 Hz
Stand by (at AC) 8 W at AC 120 V 60 Hz
Per Year -- kWh/Year
Protector Power Fuse Yes
Radiation FCC /DOC
X-Radiation DHHS/HWC
Storage -20oC ~ +60oC
Display Menu Type Character
Picture Yes
Contrast Yes
Brightness Yes
Color Yes
Tint Yes
Sharpness Yes
Audio No
Bass No
Treble No
Balance No
BBE On/Off No
Stable Sound On/Off No
CH Set Up Yes
TV/CATV Yes
CH Program Yes
Add/Erase Yes
Language Yes
V-chip Yes
CH Label No
Favorite CH No
Color Stream DVD/DTV No
Control Level Yes
Volume Yes
Brightness Yes
Contrast Yes
Color Yes
Tint (NTSC Only) Yes
Sharpness Yes
Tuning No
Bass No
Treble No
Balance No
Back Light No
Stereo,Audio Output,SAP No
Video No
Color Stream No
Channel(TV/Cable) Yes
CH Label No
Sleep Timer Yes
Sound Mute Yes
V-chip Rating Yes
2 - 69, 4A, A-5 - A-1,
No
No
A3-1
Page 11
GENERAL SPECIFICATIONS
G-8 OSD Language English French Spanish
G-9 Clock and Sleep Timer Max Time 120 Min
Timer Step 10 Min
On/Off Timer Program(On Tim / Off Tim) No
Wake Up Timer No
Timer Back-up (at Power Off Mode) more than -- Min Sec
G-10 Remote Unit RC-DW
Control Glow in Dark Remocon No
Format NEC
Custom Code 86-05 h
Power Source Voltage(D.C) 3V
Total Keys 26 Keys
Keys Power Yes
Multi Brand Keys CH Up(VCR) No
OSD Language Setting English
UM size x pcs UM-4 x 2 pcs
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
100 No
CH Up Yes
CH Down Yes
Volume Up Yes
Volume Down Yes
TV/Caption/Text Yes
CH1/CH2 Yes
TV/Video(TV/AV) No
CH RTN/CH ENT(Quick View) Yes
Sleep Yes
RE Call(Call) Yes
Reset Yes
Menu Yes
Enter Yes
Mute Yes
Exit No
MTS(Audio Select) No
Set + Yes
Set - Yes
CH Down(VCR) No
Pause/Still No
TV/VCR(VCR) No
Code No
FF No
Rew No
Rec No
Play No
Stop No
TV No
VCR No
Cable No
A3-2
Page 12
GENERAL SPECIFICATIONS
G-11 Features Auto Degauss Yes
G-12 Accessories Owner's Manual Language English /French
Auto Shut Off Yes
Canal+ No
CATV Yes
Anti-theft No
Rental No
Memory(Last CH) Yes
Memory(Last Volume) Yes
V-Chip Yes
BBE No
Auto Search No
CH Allocation No
SAP No
Channel Lock No
Just Clock Function No
Game Position No
CH Label No
VM Circuit No
Full OSD No
Premiere No
Comb Filter No
Auto CH Memory Yes
Hotel Lock No
Closed Caption Yes
Stable Sound No
Favorite CH No
Remote Control Unit Yes
Rod Antenna No
Loop Antenna
U/V Mixer
DC Car Cord (Center+)
Guarantee Card
Warning Sheet
Circuit Diagram
Antenna Change Plug
Service Facility List
Important Safeguard
Dew/AHC Caution Sheet
AC Plug Adapter
Quick Set-up Sheet
Battery
AC Cord
AV Cord (2Pin-1Pin)
Registration Card
PTB Sheet
300 ohm to 75 ohm Antenna Adapter
Type USA,ORION Type
Lines
w/Guarantee Card Yes
Poles
Terminal
Terminal
UM size x pcs
OEM Brand
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
A3-3
Page 13
GENERAL SPECIFICATIONS
N
3
G-13 Interface Switch Front Power Yes
Rear AC/DC No
Indicator Power No
Terminals Front Video Input No
Rear Video Input(Rear1) No
G-14 Set Size Approx. W x D x H (mm) 618 x 504 x 525
G-15 Weight Net (Approx.) 27kg
G-16 Carton Master Carton
Gift Box Yes
Drop Test
Container Stuffing 204
G-17 Cabinet Material Cabinet Front PS 94V0 DECABROM
System Select No
Main Power SW No
Sub Power No
Channel Up/Reset Yes
Channel Down/Enter Yes
Volume Up/Set Up Yes
Volume Down/Set Down Yes
Menu: Vol Up + Vol Down Yes
TV/CATV Selector No
Degauss No
Main Power SW No
Stand-by No
On Timer No
Audio Input No
Other Terminal No
Video Input(Rear2) No
Audio Input(Rear1) No
Audio Input(Rear2) No
Video Output No
Audio Output No
Euro Scart No
Color Stream No
Diversity No
Ext Speaker No
DC Jack 12V(Center +) No
VHF/UHF Antenna Input
AC Outlet No
Gross (Approx.) 29Kg
Content ---Material --
Dimensions W x D x H(mm) -- x -- x --
Description of Origin
Material Double/White
Dimensions W x D x H(mm) 689 x 577 x 620
Design As per Buyer's
Description of Origin Yes
Height (cm) 31
Cabinet Rear PS 94V0 DECABROM
F Type
( 59.9 lbs)
( 64.3 lbs)
No
Sets
/--
No
atural Dropping At 1 Corner /
Sets/40' container
A3-4
Page 14
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
*
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
Do not use pliers to loosen or tighten the Anode Cap
*
terminal, this may cause the spring to be damaged.

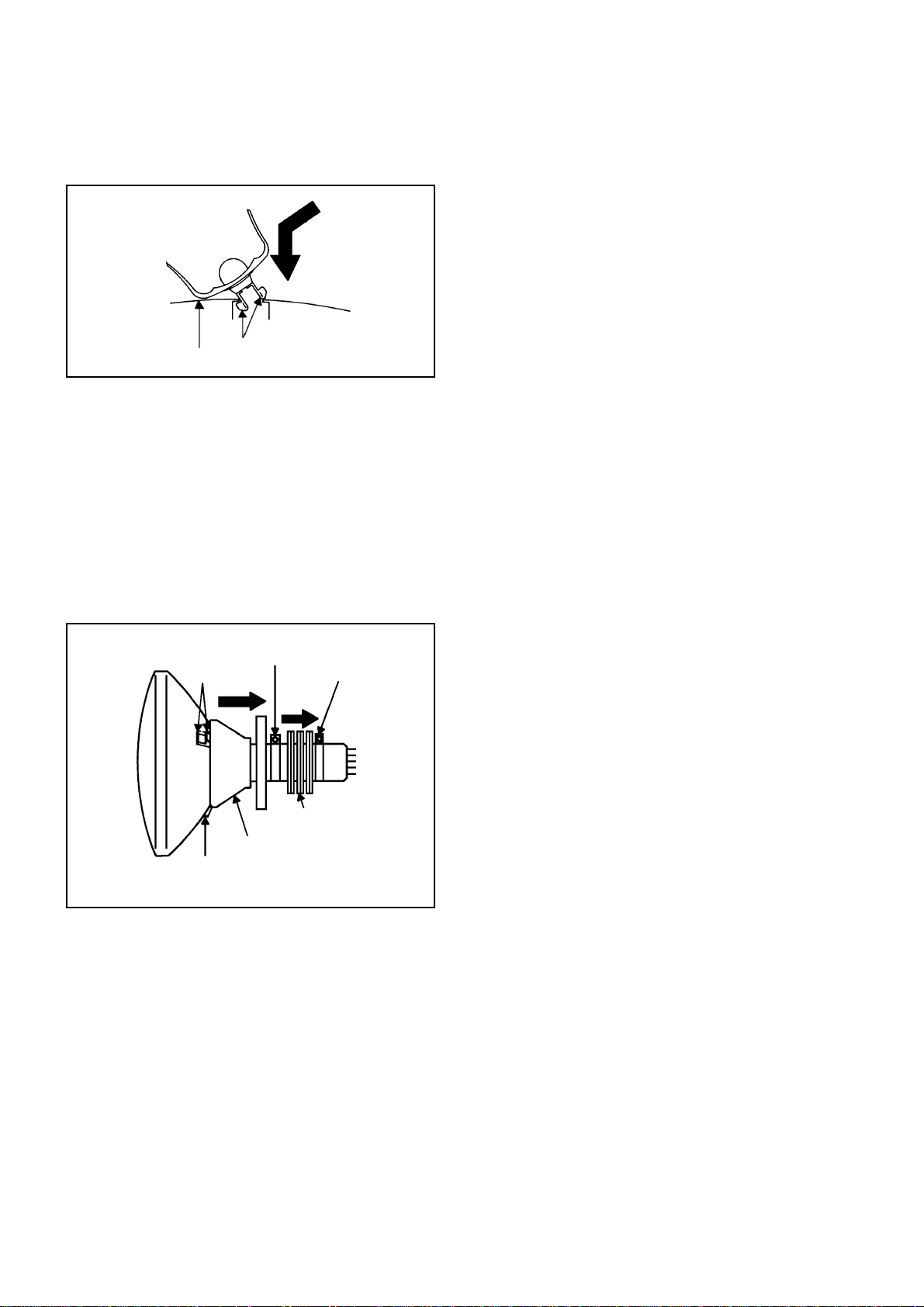

REMOVAL

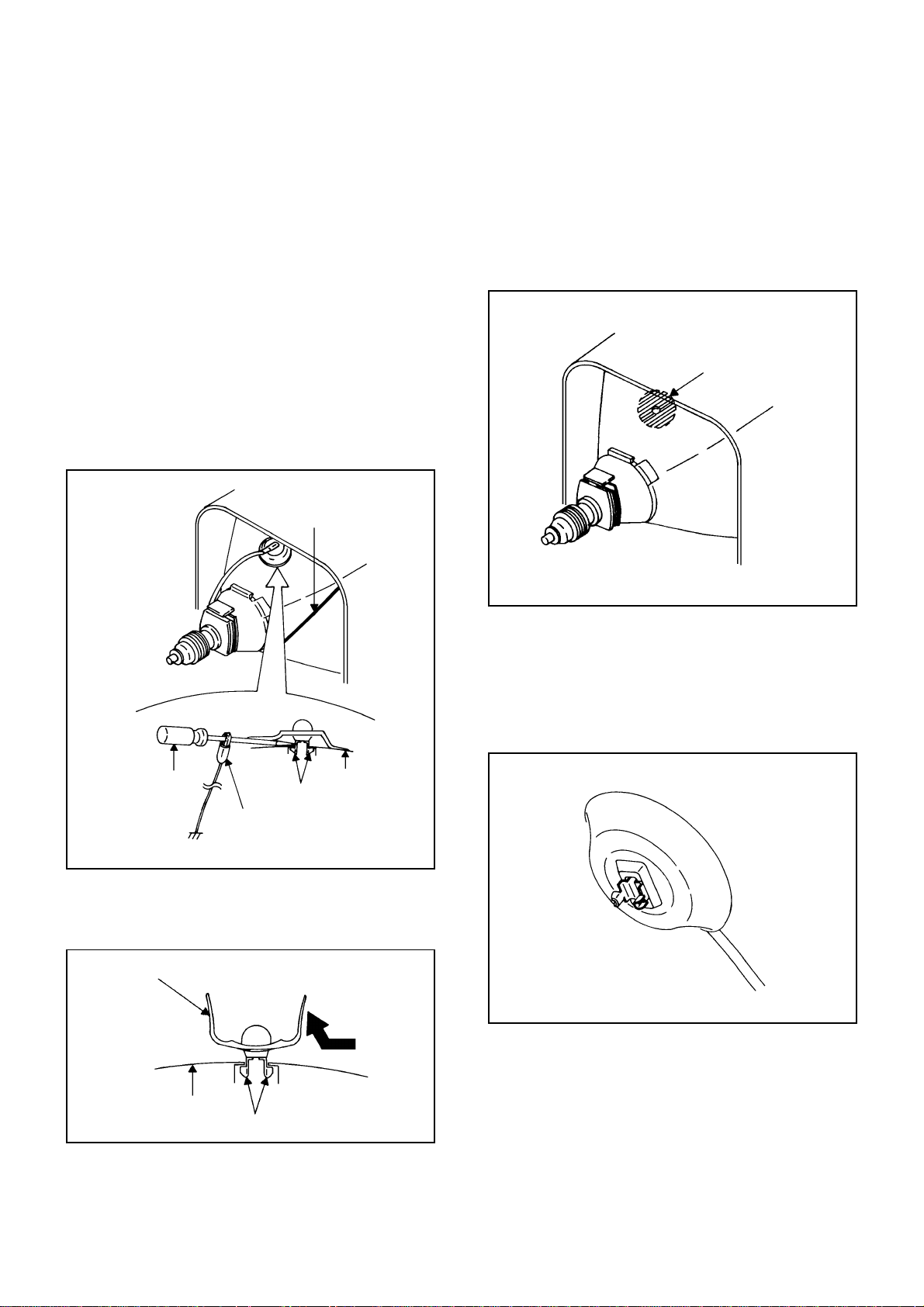

1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 1-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
GND on the CRT
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 1-3.)
Location of Anode Cap
Screwdriver
Alligator Clip
GND on the CRT
Flip up the sides of the Rubber Cap in the direction of the
2.
arrow and remove one side of the support.
(Refer to Fig. 1-2.)
Rubber Cap
Support
CRT
Fig. 1-1
Fig. 1-3
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 1-4.)
Fig. 1-4
CRT
Support
Fig. 1-2
B-1
Page 15
DISASSEMBLY INSTRUCTIONS
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 1-5.
Support
CRT
5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.

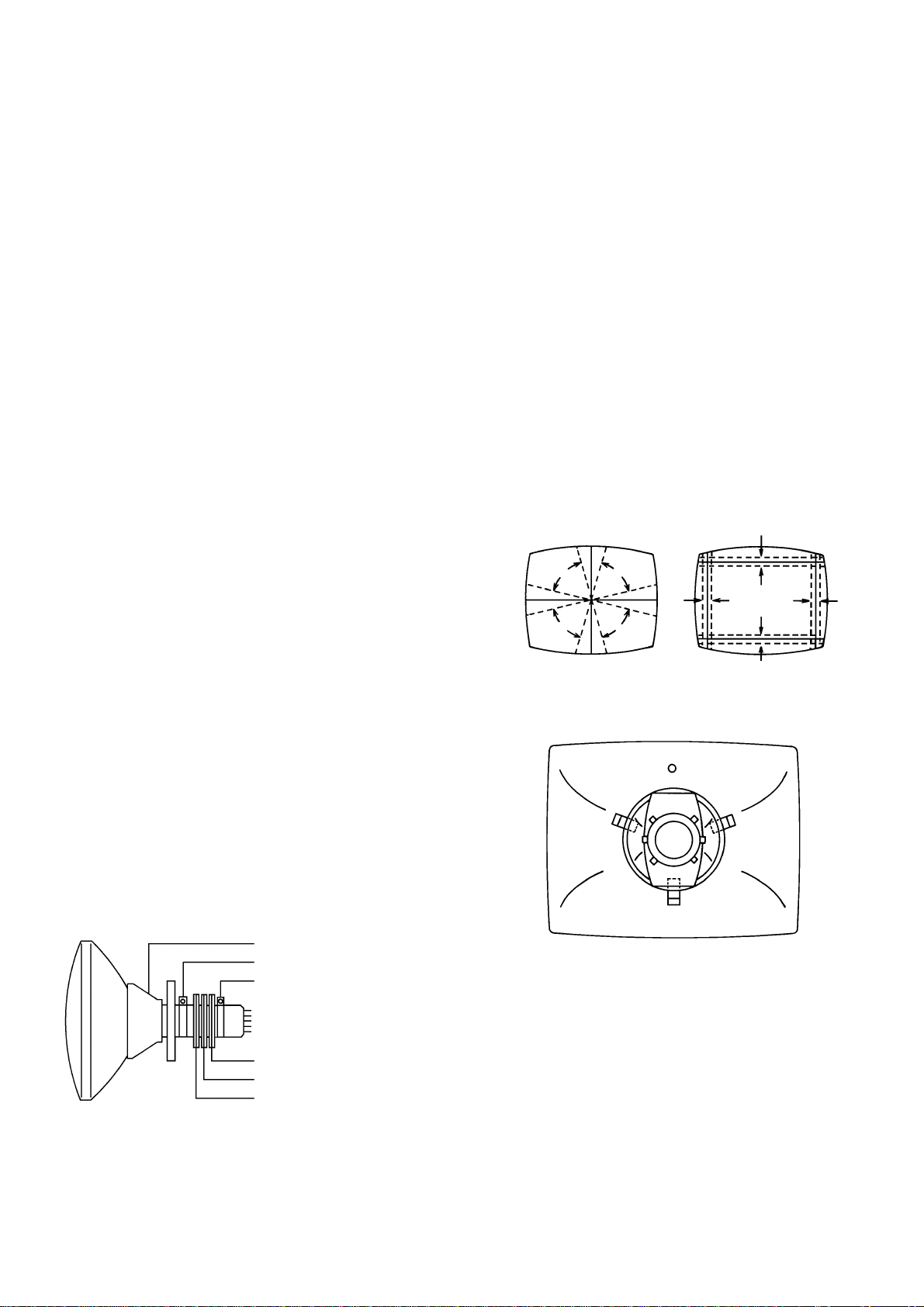

2. REMOVAL OF DEFLECTION YOKE
(Refer to Fig. 2-1)
1.
Loosen the screw 1.
2.
Remove the Convergence • Purity Magnet in the
direction of arrow (A).
3.
Loosen the screw 2.
4.
Remove the 3 Wedges.
5.
Remove the Deflection Yoke in the direction of arrow
(B).
Fig. 1-5
2
Wedge
Wedge
INSTALLATION
Install new Deflection Yoke in reverse steps of REMOVAL.
NOTE
After adjusting the purity and the convergence, fix the
screw 2 and lock the wedges.
(B)
Deflection Yoke
1
(A)
Convergence •
Purity Magnet
Fig. 2-1
B-2
Page 16
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter the Service Mode, press both set key and remote control key for more than 1 second.
Set Key Remocon Key Operations
VOL. (-) MIN
0
Releasing of V-CHIP PASSWORD.
VOL. (-) MIN 1
VOL. (-) MIN 6
VOL. (-) MIN 8
VOL. (-) MIN
9
Initialization of the factory.
NOTE: Do not use this for the normal servicing.
POWER ON total hours is displayed on the screen.
Refer to the "CONFIRMATION OF USING HOURS".
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "NOTE FOR THE REPLACING OF MEMORY IC".
Writing of EEPROM initial data.
NOTE: Do not use this for the normal servicing.
Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
CONFIRMATION OF USING HOURS
POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.
1.
Set the VOLUME to minimum.
2.
Press both VOL. DOWN button on the set and Channel
button (6) on the remote control for more than 1 second.
3.
After the confirmation of using hours, turn off the power.
ADDRESS DATA
INIT 00 83
CRT ON
0010
FIG. 1
Initial setting content of MEMORY IC.
POWER ON total hours.
= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)
NOTE FOR THE REPLACING OF MEMORY IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
+2
INI +0 +1
70
1.
Enter DATA SET mode by setting VOLUME to minimum.
2.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 1 second.
ADDRESS and DATA should appear as FIG 1.
3.
ADDRESS is now selected and should "blink". Using the SET + or - keys on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.
4.
Press ENTER to select DATA. When DATA is selected, it will "blink".
5.
Again, step through the DATA using SET + or - until required DATA value has been selected.
6.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
7.
Repeat steps 3 to 6 until all data has been checked.
8.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
The unit will now have the correct DATA for the new MEMORY IC.
+3 +4 +5
02 63
Table 1
+6 +7
24 3A A1 21 FFA0 5A A2 39
+8 +A
+9
C-1
Page 17
ELECTRICAL ADJUSTMENTS
1. BEFORE MAKING ELECTRICAL
ADJUSTMENTS
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
•
Use an isolation transformer when performing any
service on this chassis.
•
Before removing the anode cap, discharge electricity
because it contains high voltage.
•
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
Inferior silicon grease can damage IC's and transistors.
•
When replacing IC's and transistors, use only specified
silicon grease (YG6260M).
Remove all old silicon before applying new silicon.
Prepare the following measurement tools for electrical
adjustments.
1. Synchro Scope
2. Digital Voltmeter
On-Screen Display Adjustment
In the condition of NO indication on the screen.
1.
Press the VOL. DOWN button on the set and the
channel button (9) on the remote control for more than
1 second to appear the adjustment mode on the screen
as shown in Fig. 1-1.
TV
00 OSD 15
Fig. 1-1
2.
Use the channel UP/DOWN button or channel button
(0-9) on the remote control to select the options shown
in Fig. 1-2.
3.
Press the MENU button on the remote control to end
the adjustments.
FUNCTION
NO.
00
01
02
03
04
05
06
07
08
09
10
11
12
OSD H
CUT OFF
RF AGC
VIF VCO
H VCO
H PHASE
V SIZE
V SHIFT
R DRIVE
B DRIVE
R BIAS
G BIAS
B BIAS
FUNCTION
NO.
BRIGHTNESS
13
CONTRAST
14
COLOR
15
TINT
16
SHARPNESS
17
FM LEVEL
18
LEVEL
19
SEPARATION 1
20
SEPARATION 2
21
TEST MONO
22
TEST STEREO
23
X-RAY TEST
24
Fig. 1-2
2. BASIC ADJUSTMENTS
2-1: RF AGC DELAY
1.
Receive an 60dB monoscope pattern.
2.
Connect the digital voltmeter to R606.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "RF AGC".
4.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.65 ± 0.05V.
2-2: CUT OFF
Adjust the unit to the following settings.
1.
R.DRIVE=74, B.DRIVE=56, R.BIAS=68, G.BIAS=85,
B.BIAS=64, BRIGHTNESS=135, CONTRAST=100.
Place the set with Aging Test for more than 15 minutes.
2.
Activate the adjustment mode display of Fig. 1-1 and
3.
press the channel button (01) on the remote control to
select "CUT OFF".
Adjust the Screen Volume until a dim raster is obtained.
4.
2-3: FOCUS
1.
Receive the monoscope pattern.
2.
Turn the Focus Volume fully counterclockwise once.
3.
Adjust the Focus Volume until picture is distinct.
2-4: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
1.
Place the set with Aging Test for more than 10 minutes.
2.
Receive the color bar pattern.
3.
Using the remote control, set the brightness and contrast
to normal position.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (10) on the remote control to
select "R.BIAS".
5.
Using the VOL. UP/DOWN button on the remote control,
adjust the R.BIAS.
6.
Press the CH. UP/DOWN button on the remote control to
select the "R.DRIVE", "B.DRIVE", "G.BIAS" or "B.BIAS".
7.
Using the VOL. UP/DOWN button on the remote control,
adjust the R.DRIVE, B.DRIVE, G.BIAS or B.BIAS.
8.
Perform the above adjustments 6 and 7 until the white
color is looked like a white.
2-5: SUB TINT/SUB COLOR
1.
Receive the color bar pattern. (RF Input)
2.
Connect the oscilloscope to TP024.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (16) on the remote control to
select "TINT".
4.
Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes a straight line.

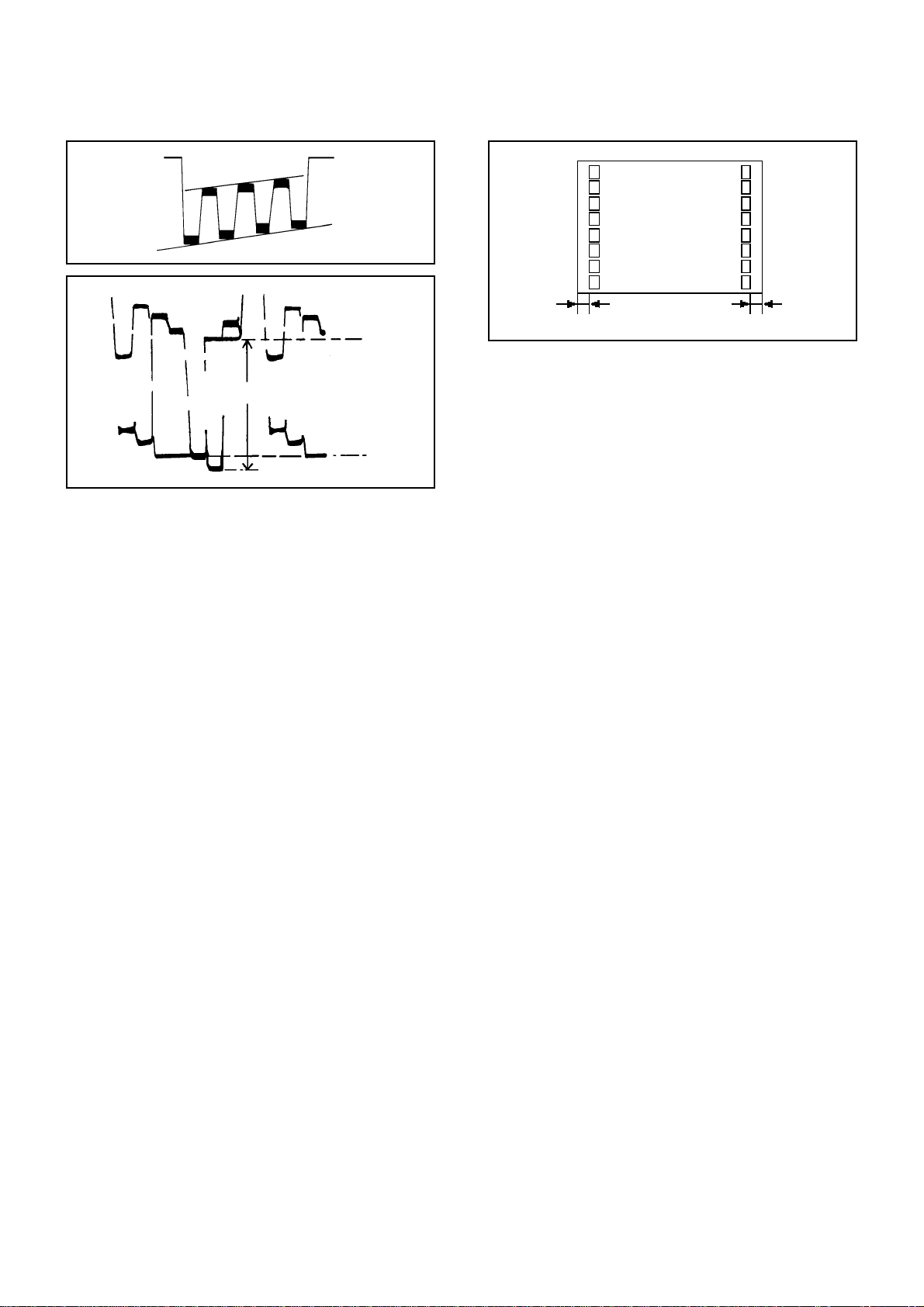

(Refer to Fig. 2-1)
5.
Connect the synchro scope to TP022.
6.
Press the CH DOWN button once to set to "COLOR" mode.
7.
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 110% of the white
level. (Refer to Fig. 2-2)
8.
Receive the color bar pattern. (Audio Video Input)
9.
Press the TV/AV button on the remote control to set to
the AV mode. Then perform the above adjustments 2~7.
D1-1
Page 18
ELECTRICAL ADJUSTMENTS
"A"
Fig. 2-1
TV
00 OSD 15
0%
110%
100%
Fig. 2-2
2-6: HORIZONTAL PHASE
1.
Receive the center cross signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select "H.PHASE".
4.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on right
and left becomes minimum.

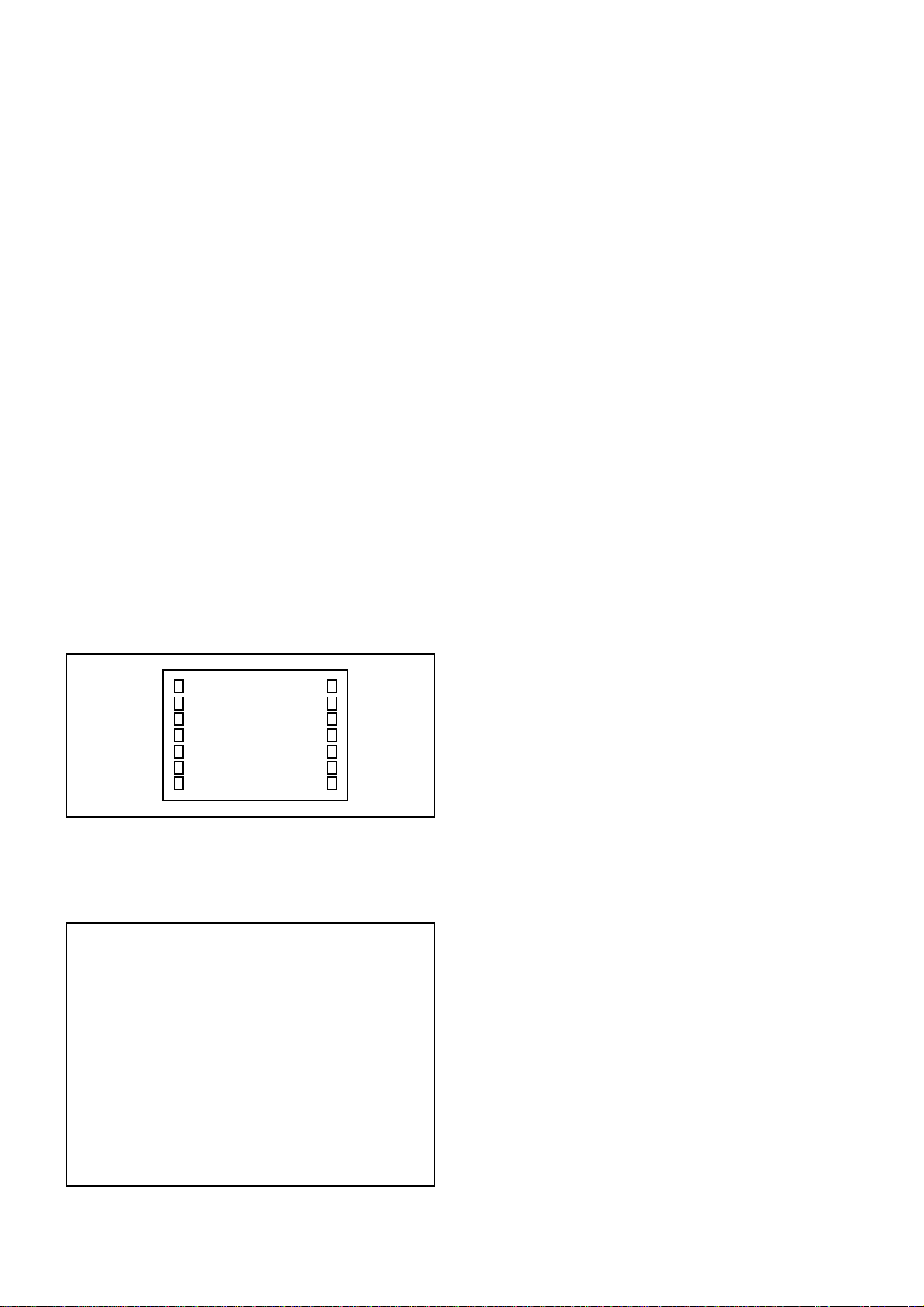

2-7: VERTICAL SIZE
NOTE: Adjust after performing adjustments in section 2-6
1.
Receive the center cross signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "V.SIZE".
4.
Press the VOL. UP/DOWN button on the remote control
until the rectangle on the center of the screen becomes
square.
5.
Receive a broadcast and check if the picture is normal.
BA
2-9: OSD HORIZONTAL
1.2.Activate the adjustment mode display of Fig. 1-1.
Press the VOL. UP/DOWN button on the remote control
until the difference of A and B becomes minimum.
(Refer to Fig. 2-3)
2-10: VERTICAL VCO
1.
Place the set with Aging Test for more than 15 minutes.
2.
Receive an 80dB monoscope pattern.
3.
Connect the digital voltmeter between the pin 5 of
CP601.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "VIF VCO".
5.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5V.
2-11: CONSTANT VOLTAGE
Using the remote control, set the brightness and contrast to
1.
normal position.
Connect the digital voltmeter to TP402.
2.
Set condition is AV MODE without signal.
3.
Adjust the VR502 until the digital voltmeter is 130V ± 0.5V.
4.
Fig. 2-3
2-8: VERTICAL SHIFT
NOTE: Adjust after performing adjustments in section 2-7
1.
Receive the center cross signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select "V.SHIFT".
4.
Press the VOL. UP/DOWN button on the remote control
until the horizontal line becomes fit to the notch of the
shabow mask.
D1-2
Page 19
ELECTRICAL ADJUSTMENTS
3.
PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
Turn the unit on and let it warm up for at least 30
1.
minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the
2.
terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.
3.
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
Tighten the screw for the magnet. Refer to the adjusted
1.
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
Receive the green rastezr pattern from the color bar
2.
generator.
Slide the deflection yoke until it touches the funnel
3.
side of the CRT.
Adjust center of screen to green, with red and blue on the
4.
sides, using the pair of purity magnets.
Switch the color bar generator from the green raster
5.
pattern to the crosshatch pattern.
Combine red and blue of the 3 color crosshatch pattern
6.
on the center of the screen by adjusting the pair of
4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
7.
pair of 6 pole magnets.
Adjust the crosshatch pattern to change to white
8.
by repeating steps 6 and 7.
3-2: PURITY
NOTE
Adjust after performing adjustments in section 3-1.
1.
Receive the green raster pattern from color bar
generator.
2.
Adjust the pair of purity magnets to center the
color on the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.
3.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole
screen is green.
4.
Confirm red and blue colors.
5.
Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
3-3: STATIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-2.
1.
Receive the crosshatch pattern from the color bar
generator.
2.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.
3.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
3-4: DYNAMIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-3.
1.2.Adjust the differences around the screen by moving
the deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
B
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
WEDGE
WEDGE POSITION
R
G
B
Fig. 3-2-a
WEDGE
WEDGE
Fig. 3-2-b
R G B
Fig. 3-1
PURITY MAGNETS
6 POLE MAGNETS
4 POLE MAGNETS
D2-1
Page 20
MAJOR COMPONENTS LOCATION GUIDE
TU001
R606
CP601
TP402
MAIN PCB
J801
TP022
VR502
FB401
FOCUS VOLUME
SCREEN VOLUME
TP024
CRT PCB
D3-1
Page 21
Q608
SW TCHING
L503
DEGAUSS COIL
AC IN
VR502
+B ADJ
CH UP
VOL UP
CH DOWN
VOL DOWN
POWER
OS101
1
2
3
CST8.00MTW-TF01
F501
Q507
FEED BACK
SW.
X101
TH501
IC506
LTV-817M-VB
FEED BACK
MICON IC
IC101 OEC7045B
AUDIO MUTE
5
KEY2
26
KEY1
27
REMOCON
10
POWER
36
19 XIN
XOUT
20
DEGAUSS_H
X_RAY_TEST
RY501
RELAY
D501~D504
RECTIFIER
5
1
SW REG. IC
IC501
STR-G6624
Q351
MUTE SW.
CVIN
GREEN G
BLUE B
BLANK BL
H. SYNC
V. SYNC
SCL1
SDA1
RESET
17
42RED R
41
40
39
1
2
34
32
25
35
30
Q504
RELAY DRIVE
T501
7
3
14
12
AT+10V
BTL
9
Q101
IF
BPL
7
11
X-RAY TEST SW
TU001
SCL
SDA
4
5
6
5
SDA
SCL
Q403
X-RAY TEST SW.

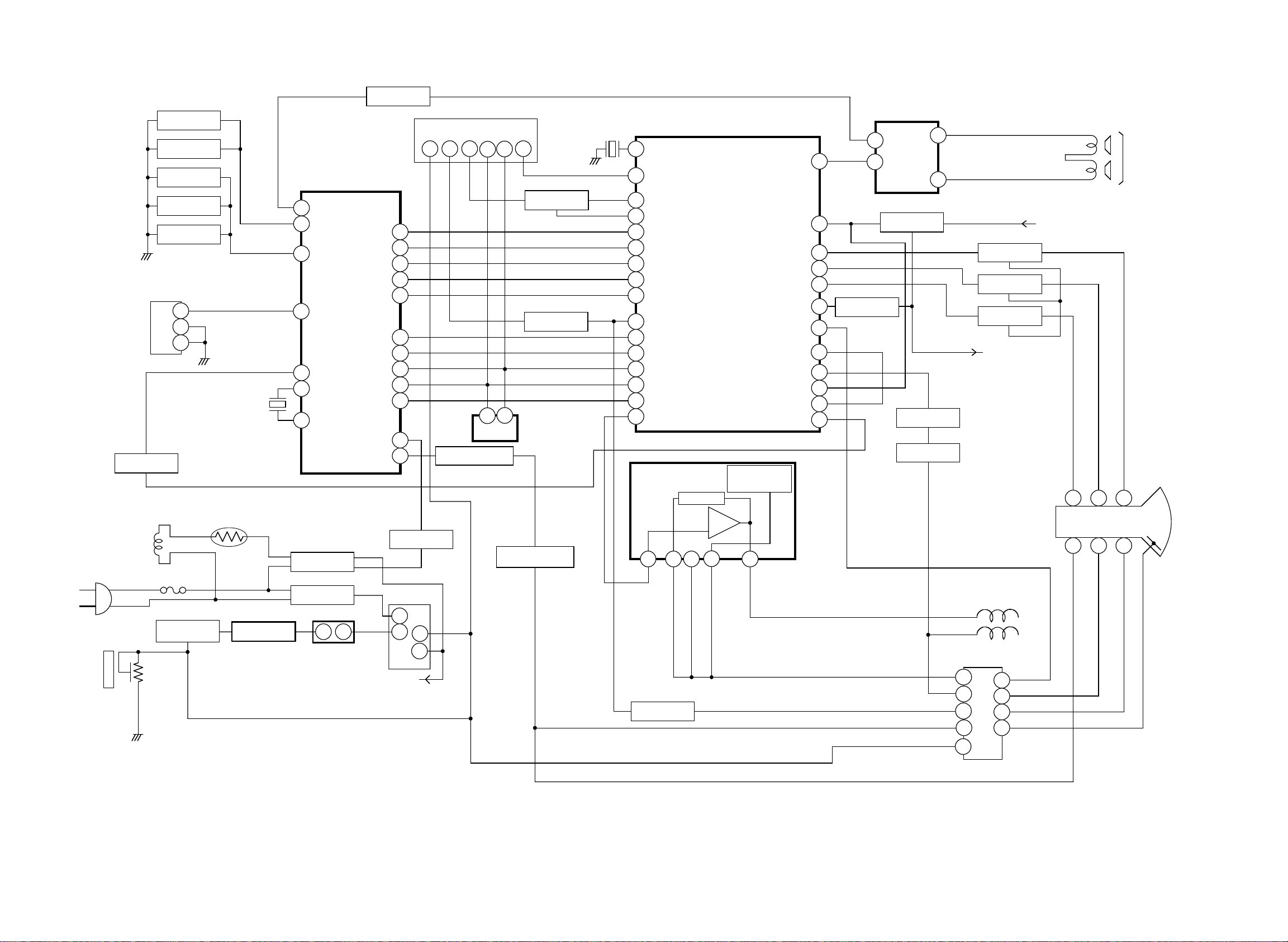

BLOCK DIAGRAM
AGC
1
CF601
Q604, Q605
MEMORY IC
IC199
S-24C02BDP-1A
X602
3.579545MHz
SAW FILTER
5V REG
CHROMA IC
IC601 M61206FP
X' TAL
32
AUDIO OUT
62
RF AGC OUT
64
VIF IN (1)
1
VIF IN (2)
40
Y SW OUT
R IN
30
28
G IN
20
B IN
27
FAST BLK
39
5V REG
12
INV FBP OUT
29
V PULSE OUT
SCL
5
SDA
10
42
MCU RESET
17
V OUT
THERMAL
PROTECTION
PUMP UP
AMP
+
VCC
3
2
75
Q601
5V REG
6
REG OUT
R OUT
G OUT
B OUT
REG OUT
FBP IN
Y IN
H OUT
VREG VCC
VIF VIDEO OUT
V-OUT IC
IC401 LA78041
14
15
16
41
36
13POWER ON CONT
50
33
55
57
SOUND AMP IC
IC351 AN7523
9
6
Q606
REG
Q603
5V REG
6
7
Q402
Q401
2
4
H. DRIVE
H. OUTPUT
Q801
Q802
FB401
3
1
5
10
2
RED OUT
Q803
GREEN OUT
BLUE OUT
AT+5V
9
F
S
HV
DY
AT+10V
Heater
11
10
SP351
6
8
RGB
9
F
CRT
E-1
E-2
Page 22
PRINTED CIRCUIT BOARDS
MAIN/CRT (INSERTED PARTS)
SOLDER SIDE
FH501
S501A
CP502
D501
D518
F501
D511
D502
D513
C532_1
R501
D528
FH502
_A_V
6.3A125VOR250V
PH003
TH501_1
C502_1
D512
D504
D517
D503
W137
W140
R542
R506
IC506
VR502
Q507
R514
S501B
R543
R500
C503_1
R505
C507_1
HS501
FB401
PH004
B502
SW105 SW104 SW103
C530
C505_2
W121
L501
C510
C514
W139
C443_2
W141
IC501
W143
RY501
D521
D506
W138
Q401
W142
C506_2
R502
W812
T501
D515
W820
R503
R427
D408
D410
R431
R422
D516
R554
W133
R523
C437
W132
C404
R429
W136
D405
Q504
R517
C521_1
W131
W843
C448_1
W120
R515
W129
D407
C118
W128
C517
C
P
W123
W119
W147
D514
W124
R421
802A
W118
B504
W146
W122
W127
D510
R428
L101
W134
D411
X101
W117
TP402
CP401_1
L406
W072
W827
W125
R440
C115
C501_1
W107
C416_1
R445
SW102
C122
W099
W809
W088
R409
W084
HS401
W114
C124
W817
C531_1
W087
R413
C435_2
C709
R653
T401
R424
D413
W083
R118
CP351_1
R408
Q403
W115
SW101
W078
W828
C352_1
R415
R411
C433
W074
W077
IC199
C360
W858
W086
IC351_1
W103
S805Y
C439
R416
W150
R405
W144
W075
R623
C357
W859
C353_4
C446
C440
R401
W076
W073
Q603
W098
Q351
Q402
R446
C430_1
W108
C434
W085
W844
S805X
R354
C613
W080
C638_2
W801
W835
W152
W110
C640
W802
W836
Q101
C645_2
Q605
W096
W840
W105
R002
D611
W082
Q604
Q601
W092
W109
D402
D401
W081
R359
W101
IC401
Q608
W079
C622
R436
D403
D607
W090
W111
C414
D604
W863
C625
C627
C647
W829
W825
R407
W066
W064
W094
C418
W113
R420
D606
W810
W862
W069
L608
X602
W813
D608
W864
W030
W041
W059
R641
C635
W031
R418
W051
W151
W061
W838
W010
Q606
R632
C417
CF603
R417
R419
W065
R648
D610
C612
W067
W062
W012
W058
C002
D605
D609
R625
C605
C624_1
W022
R001
W014
C659_2
R612
W034
C003
D601
W027
W036
W048
C004
R631
C603
D602
D001
R606
OS101
W020
CF601
C606
C632
C628
L606
W019
L607
TU001
W018
C601
CF604
W023
W029
W032
W013
W011
W052
W015
L601
C604
R604
W804
CP802B
W003
CP805
W857
Q803
Q802
Q801
TP023
R806
W004
TP024
TP022
W002
R807
R804
R805
R802
R803
J801
W005
CP806
C802
F-1
CP601
F-2
Page 23
R645
PRINTED CIRCUIT BOARDS
MAIN/CRT (CHIP MOUNTED PARTS)
SOLDER SIDE
R406
R404
C554_1
R532
R533
R809
C811_1
R813
R815
C801_1
R816
C809_1
C810_1
R811
R814
R110
C623_1
C658_1
R618
R622
C127_1
R615
R624
C656_1
C634
C639_1
R626
C128_1
R602
R605
R609
C621
C626_1
R601
C607
R614
R619
R630
C618
1
R627
R611
R634
C636_1
49
IC601
17
R553
C408_1
C512_1
C515_1
C363_1
R358
R356
R355
R647
R650
C651_1
C650_1
R639
R635
R633
C616
33
R646
R638
R642
R120
R629
R104
R122
R124
R103
R102
R114
R123
R121
R111
R126R128
R109
R106
R116
C134
R105
R119
IC101
R115
R133
C121_1
R129
R130
C125
R107
C120_1
C129_1
C119
R134
C114
C113
R113
R117
R112
R101
F-3
F-4
Page 24
ABC D E F GH

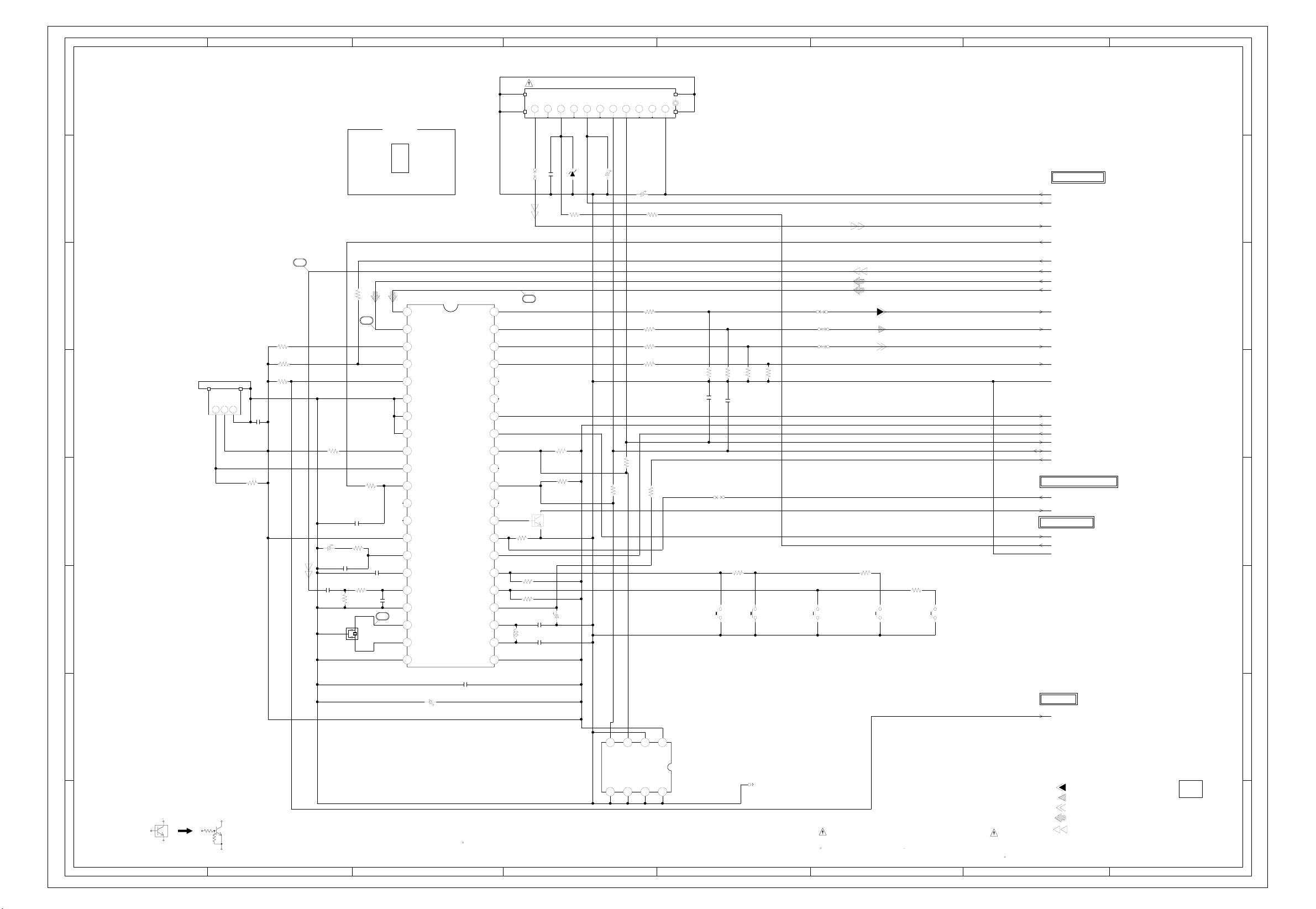

MICON/TUNER SCHEMATIC DIAGRAM
8
ACCESSORY
TM101
R133
RC-DW020
1K
4.9
4
4.9
0
4.9
0
0
0
0
4.8
4.8
R118
3.9
1K
NC
0
NC
0
4.9
3.0
C120_1
0.8
0.001 Y
470
3.4
0
C129_1
220PB
1
3.7
4.2
0 4.9
IC101 OEC7045B
110111213141516171819 22021
P50/H.SYNC
P51/V.SYNC
3
P00/EXT MUTE
4
P01/I2C_OFF
56789
P02/AUDIO MUTE
P03/(Surround)
P04
P05/(Center_SP)
INT2/P.FAIL
INT1/REMOCON
P23/SYNC
P24
P25/ON_TIMER
AVCC
HLF
V.HOLD
CVIN
CNVSS
Xin
Xout
VSS
C118
4706.3V YK
MICON IC
OUT1/BLANK BL
P10/DEGAUSS_H
AD1/X_RAY_TEST
C119
0.01 F
RED R
GREEN G
BLUE B
P20/AV2
P21/AV1
P22/POWER
SCL1
SCL2
SDA1
SDA2
X-RAY
AD4/AFT
AD5/KEY1
AD6/KEY2
RESET
OSC1
OSC2
VCC
0
0
0
40 41 42
0
0
NC
0
NC
0
0
4.9
NC
0
5.0
NC
31 32 33 34 35 36 37 38 39
0
0
30
0
3.2
4.9
4.9
4.9
3.6
4.1
22 23 24 25 26 27 28 29
7
2
6
R109
4.7K
R116
C125
0.01 F
R117
4.7K
47K
OS101
PIC-28143SY-2
5
B+
Vout
123
GND
R115
47K
R110
R134
10K
4
C134
100P SL
C122
R130
1K
150V KA
C121_1 220P B
C124
0.1 F
1M
R129
3
1
2
3
X101
EFOEC8004T4
2
CAUTION: DIGITAL TRANSISTOR
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
TU001 ENV56D66G3
BTL
BPL
SDA
0.0
R001
KA
8
NC
V.S
5
6
7
NC
5.0
5.0
4706.3V YK
MTZJ30B
C002
R111
5678
SDA
VSS
0.0
IF
9
11
10
14 15
NC
0.0
0.0
30.0
W804
C004
D001
0.022 F
18K 1/2W
3
R105 2.2K
R106 2.2K
16.0
X-RAY TEST SW
0
Q101
DTC114TSTP
0
R107
10K
R112
2.2K
R113
2.2K
L101
2.7uH
15P CH
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
C114
15P CH
C113
C115
0.4750V
SCL
4
5.0
1.3
C003
4.750V KA
R123 4.7K
R122 4.7K
R121 4.7K
R120 4.7K
220
R114
220
0.05.05.0 5.0
SCL
E2
ADRES
2
3
NC
NC
6.2
R002
18K 1/2W
R119
MODE
E1
0.00.00.0
AGC
1
12 13
4.6
2.2K
R102
R103
C128_1
C127_1
100P SL
1K
VCC
MEMORY IC
E0
1234
25 POWER
IC199
S-24C02BDP-1A
W827
SW105
SKHVBED010
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
(MAIN PCB)
2.2K
2.2K
R104
100P SL
R101
560
SW104
SKHVBED010
25 VOL DOWN
S805X
R124
4.7K
SW103
25 VOL UP
SKHVBED010
W862
W863
W864
8
FROM/TO CHROMA
AGC
TUNER+5V
IF
SYNC
I2C_OFF
Y_VIDEO
VD
HD
OSD_R
OSD_G
OSD_B
OSD_BLK
GND
7
6
5
POWER
AT+5V
AFT
SCL
SDA
RESET
FROM/TO DEFLECTION/CRT
R126
2.7K
SW102
SKHVBED010
25 CH DOWN
R128
560
25 CH UP
SW101
SKHVBED010
X-RAY
X-RAY_TEST
FROM/TO POWER
DEGAUSS_H
+B
GND
TO SOUND
AUDIO_MUTE
R.SIGNAL
G.SIGNAL
PCB010
TMA501
4
3
2
B.SIGNAL
DEFLECTION SIGNAL
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
TUNER VIDEO SIGNAL
1
ABC D E F GH
G-2G-1
Page 25
FROM POWER
8
7
6
TO SOUND
5
4
FROM/TO MICON/TUNER
3
2
1
ABC D E F GH
CHROMA SCHEMATIC DIAGRAM
(MAIN PCB)
AT+10V
GND
R623
120 1/4W
CF604
L607
R622
22P CH
TPSRA4M50C00-A0
15uH
68
R615
470
L606
2.2uH
C636_1
0.01 F
NC
0 8.28.2
2.3
49
3.0
AUDIO OUT ACL/ABCL
50515253545556575859
2.3
AUDIO BYPASS
NC
EXT AUDIO IN
3.8
FM DIRECT OUT
3.1
VIF VCO F/B
9.2
VREG Vcc
3.0
VIF APC FILTER
2.6
VIF VIDEO OUT
0
VIF GND
0
0
AFT OUT
6061626364
2.9
QIF IN
1.8
RF AGC OUT
2.9
RF AGC FILTER
1.8
1 10111213141516
1.5 5.0 5.0 2.7 4.9 6.2 6.2 0 0 4.9 3.5 4.9 4.9 4.0 4.0 4.8
C634
0.01 F
C628
0.001 B
10006.3V YK
C601
VIF Vcc
2
C639_1
W810
3
Hi Vcc
0.01 F
R624
46 SW REG CONT
47 LIMITER IN
48 IF AGC
49 QIF OUT
64 VIF IN (1)
1 VIF IN (2)
H VCO F/B
SCL
5
6
8
2K
INTELLIGENT MONI
FBP IN
10.64.8
Q603
5.5
5V REG
KTC3203_Y-AT
CF603
SFSH4.5MCB
C656_1 100P SL
STEREO+5V
AUDIO_OUT
IF G.OUT
Y_VIDEO
AT+5V R.OUT
SYNC
TUNER+5V CLAMP
RESET
AFT
AGC
GND
HD
POWER
OSD_B
OSD_BLK
OSD_G
VD
OSD_R
I2C_OFF
SDA
SCL
5
R611 10K
C658_1 0.001 Y
R632
100 1/2W
W817
R606 10K
R612 5.6K 1/4W
C623_1 0.0033 Y
C632 2.250V KA
R618 10M
D602
MTZJ8.2B
D601
1SS133
C606
0.2250V KA
R604
2.2K
L601
1.2uH
R634 10K
C605
4716V KA
C624_1
R609
C621 0.01 F
C626_1
0.001 Y
SAW FILTER
CF601
SAFGP45M7VHCZR
OUTOUT G IN IN
12345
C604
150V KA
0.4750V KA
330
C618
C659_2
470P B
CAUTION: DIGITAL TRANSISTOR
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
5V REG
KTC3203_Y-AT
4.97 7.6
6
2SD734(E,F)-AA
C635 4716V KA
R635 100
MCU RESET
5.7V REG OUT(FOR CPU)
CHROMA IC
IC601
M61206FP
H OUT
DEF
789
R601
2.2K
R626
10K
1K
R602
Q601
5.6
5V REG
Q604
4.97
W801 W802
Y SW OUT
9
7.6
7.6
5.6
5.6
R629
5v REG
34 EXT C in
33 8.7V REG OUT
32 X’TAL
17 V OUT
16 B OUT
AFC FILTER
SDA
C607 0.01 F
C603 150V KA
5.6K
R605
Q605
5V REG
C627
KTC3203_Y-AT
4.97
C625
4716V KA
C640
27
7
0003.45.54.83.98.22.32.9
TV/Y IN
VIDEO/CHROMA GND
VIDEO CHROMA Vcc
V RAMP FEEDBACK
INV FBP OUT
POWER ON CONT
W844
R614 2.2K
150V KA
150V KA
C622 0.015 M
R633
8.2K
2.02.9
8.83.3
333435363738394404142434445464748
R IN
CHROMA APC FILTER
V PULSE OUT
G IN
FAST BLK
SPOT KILLER
fsc OUT
V RAMP CAP
B IN
STRAT UP Vcc
R OUT
G OUT
1211
13
R627 100
R630 100
R631 100 1/4W
R625
R619 2.2K
NOTE:
15P CH
3.579545MHz
NC
C612
8.8
R642
6.8K
R641
22K 1/4W
R648
100 1/4W
100010V YK
R639
100
C616
X602
3.5
2.6
0
30 31 32
5.0
0
0
7.3
0
NC
5.0
5.0
5.6
2.5
0
20 21 22 23 24 25 26 27 28 29
8.2
8.2
4.5
17 18 19
2.2K 1/4W
THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
15.08.2
REG
Q606
KTC3203_Y-AT
C647
150V KA
R638 10K
R64627K
C638_2
D605
11E1-EIC
C645_2
4716V KA
C613
150V KA
10
D610
MTZJ6.8B
R645
10
3316V KA
L608 6.8uH
R653
560 1/2W
R647
C651_1
C650_1
220
33P SL
220P B
R650 1K
W838
D604
1SS133
D607
4.9
1SS133
D611
0
0
D609
1SS133
SWITCHING
DTC114ES
MTZJ9.1B
Q608
D608 MTZJ9.1B
D606
MTZJ9.1B
TEST POINT
TKC-M06X-A1
VIDEO
INT.MONI
IIC_OFF
SDA
SCL
GND
R.SIGNAL
G.SIGNAL
B.SIGNAL
DEFLECTION SIGNAL
AUDIO SIGNAL
TUNER VIDEO SIGNAL
FROM/TO DEFLECTION/CRT
FBT+8V
V_OUT
ABCL
V_FEEDBACK
GND
H_OUT
H_SYNC
B.OUT
CP601
6
5
4
3
2
1
PCB010
TMA501
8
7
6
5
4
3
2
1
ABC D E F GH
G-4G-3
Page 26
ABC D E F GH
8
7
6
5
4
3
2
FROM/TO CHROMA
CLAMP
G.OUT
B.OUT
R.OUT
V_FEEDBACK
V_OUT
ABCL
H_SYNC
H_OUT
FBT+8V
GND
FROM/TO MICON/TUNER
X-RAY
X-RAY_TEST
FROM POWER
FBT+8V
+B
GND
+B
TP402
R401
100K+-1%
C439
22P500V
H.DRIVE
Q402
2SC2621
0.3
R440
3.3K 5W
C416_1
200V PP
0.027
SL
L406
18uH
27.0
0
C440
R446
R404
R405
D401
15
DEFLECTION/CRT SCHEMATIC DIAGRAM
IC401 LA78041V-OUT IC
THERMAL
+
AMP
GNDVCC
03.9 26.1 2.2 13 26
10035V YK
X-RAY TEST SW.
R424
17
114.0
0
0
100 1/4W
D408
AU02A-EIC
PROTECTION
R418
22K 1/4W
R417
12K 1/4W
Q403
DTA144ESTP
R409
6.2K +-1%
D405
3.9
C437
0.56200V
C443_2
MTZJ6.2B
R422
6.8K 1/2W
R445
100K
MPP
0.011.25KV
1/2W
R419
C417
FHS
C434
1.8K
4.750V
1/4W
KA
22100V YK
R420
1/4W
10K
AU02A-EIC
D410
AU02A-EIC
D411
W843
18
S805Y
C418
C448_1
10250V YK
1000
25V
W840
C430_1
YK
R407
D403
11E1-EIC
MKT
0.022100V
2.2 1/2W
112.0
128.0
128.0
0
0
0
0
NC
0.3
R436
10
1
6
2
9
8
4
3
R415
COL
VIDEO
B+
AFC
HEA
TER
GND
E12
E25
R411
470 1W
560 1/2W
R413
R416
680 1/2W
2.2 1/2W
R429
2W
1.8
FB401 3225010F
D407
AU02A-EIC
1K 1/2W
HV
F
S
GND
11
ABL
7
0
GND
8
-27.0
E8
5
PUMP
UP
1234567
14
C414
C408_1
150P SL
HS401
763WAA0104
1K
3.3K
R406
22K+-1%
B
0.0022500V
1/2W
4.7K
R428
8.2
HZ27-1L
HZ11B1L
1/2W
D402
R408
T401
5013001
345
C446
1160V YK
18K +-1%
12
16
C404
16.0
9.6 16.1
12K +-1%
H.OUTPUT
Q401
2SD2499(LBOEC1)
R427
47016V YK
(MAIN PCB)
CLAMP
G.OUT
B.OUT
R.OUT
HEATER
R431
3.9K
1/4W
GND
GND
180V
NC
NC
C433
47035V YK
D413
11E1-EIC
C435_2
0.1100V MHE
R421
220K 1/4W
51048-1010
GND
CLAMP
G.OUT
B.OUT
R.OUT
NC
HEATER
GND
NC
180V
PCB010
TMA501
CP802A
19
1
2
3
4
5
6
7
8
9
10
A63AHC26X
4
3
2
1
CP401_1
TS-80P-04-V1
MG801
29MMSTAR
8115529
8115529
8115529
V801
4
3
2
1
K001
K002
K003
11
6
8
10
9
DY801
7M062505
CP802B
51048-1010
1
2
3
4
5
6
7
8
9
10
GND
CLAMP
G.OUT
B.OUT
R.OUT
HEATER
GND
180V
GND
CLAMP
G.OUT
B.OUT
R.OUT
NC
NC
HEATER
GND
NC
NC
180V
8
7
CD805
8M82025A
1
1
2
2
CP805
175
B
G
R
TS-80P-02-V1
TP022
100.6
RED OUT
2SC4217
Q801
3.2
2.7
20
C811_1
R809 4.7K
680P W
R813
TP023
3.2
98.4
GREEN OUT
2SC4217
390
Q803
2.7
C810_1
22
560P W
R816
TP024
95.4
BLUE OUT
390
2.7
Q802
2SC4217
3.2
R814 4.7K
R811 4.7K
R815
390
C809_1 820P W
21
6
5
FOCUS
SCREEN
CP806
005P-2100
2W
1/4W
R802
R803
12K
2.7K
W857
R
1
2W
R807
R806
12K
2.7K 1/4W
GB
R805
2W
R804
12K
2.7K 1/4W
4
3
C802
0.0012KV B
J801
CVT3275-5102
96.4
6.4
11
10
0
9
PCB110
TCA358
101.6
8
7
99.6
F
0
1
6
5
2
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
CAUTION: DIGITAL TRANSISTOR
R.SIGNAL
G.SIGNAL
B.SIGNAL
DEFLECTION SIGNAL
1
ABC D E F GH
G-6G-5
Page 27
ABC D E F GH

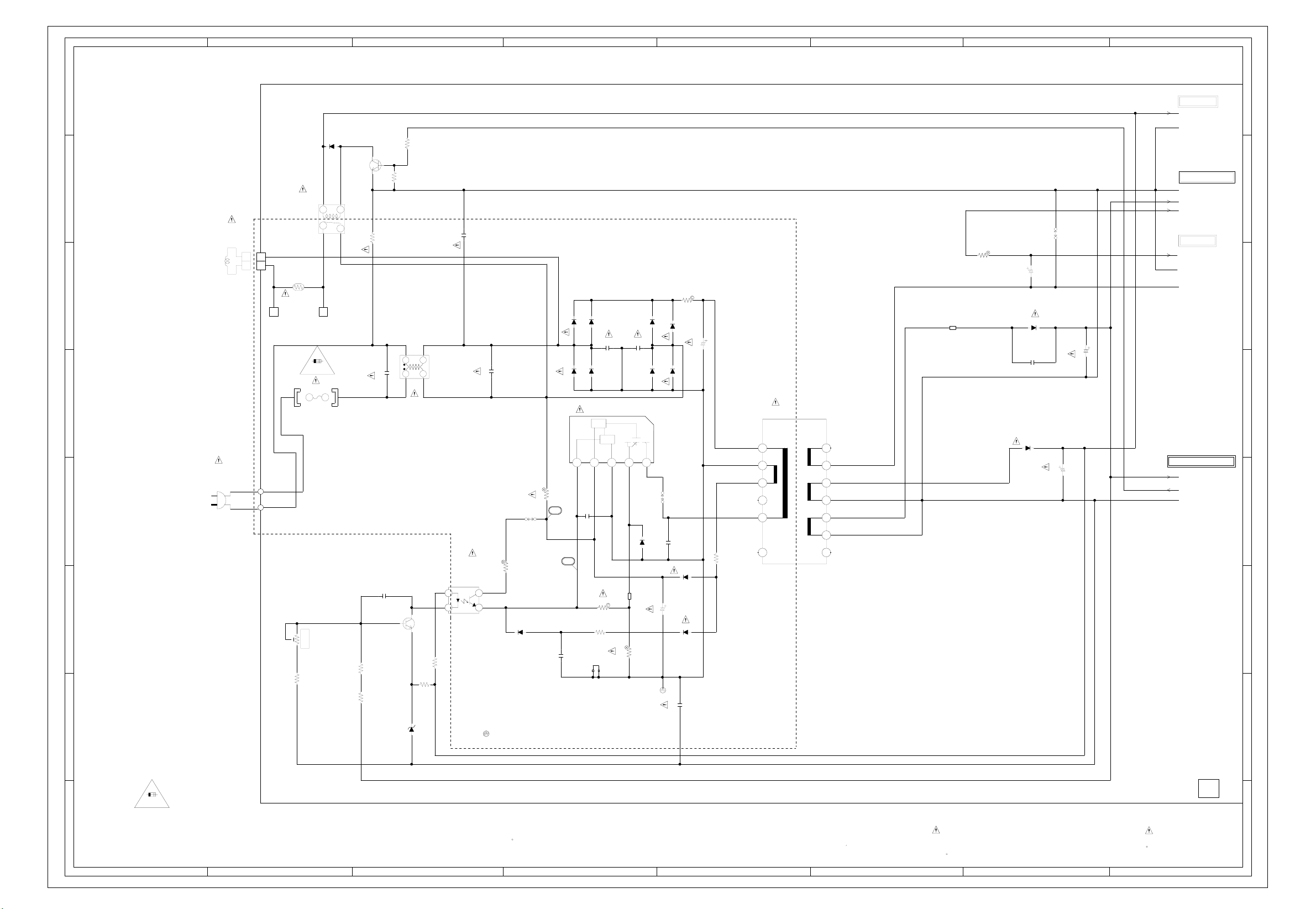

POWER SCHEMATIC DIAGRAM
1N4005-EIC
C502_1
0.001500V
B
1N4005-EIC
STR-G6624
DRIVER
CONT
R542
(MAIN PCB)
D513
D502
1N4005-EIC
C503_1
0.001500V
B
D503
D517
1N4005-EIC
DS
12345
W812
D515
C514
11EQS04N
B502
C510
W4BRH3.5X6X1.0X2
0.15 1W
10035V YK
GND1
R501
3.3 7W
1N4005-EIC
1N4005-EIC
0.00122KV YR
D506
RMPG06J
D521
1SS133
C532_1
8
TO CHROMA
AT+10V
GND
C507_1
TO DEFLECTION/CRT
GND
+B
FBT+8V
W809
R517
4.7 2W
100025V YK
C501_1
B504
W5RH3.5X5X1.0
330200V UP
D510
RU2AM-EIC
C517
0.00152KV YR
100160V YXF
C521_1
TO SOUND
SOUND+B
GND
SOUND_GND
7
6
5
T501
8135048S
D514
11EQS04N
C531_1
FROM/TO MICON/TUNER
100016V YK
+B
DEGAUSS_H
GND
4
R502
22 1/2W
154.4
150.4
0
7
0
6
0
5
4
NC
3
1
NC
10
NC
0
11
0
12
0
13
-1.3
14
0
15
NC
16
3
0.0022250V KH
2
8
RELAY DRIVE
KTC3198-AT(Y,GR)
0.2
0
12
4
R500
KTC3198-AT(Y,GR)
R553
1.8K
R554
56K 1/2W
Q504
2.7M 1/2W
C554_1
0.0022 Y
FEED BACK
SWITCHING
0.6
R523
+-10%
C505_2
Q507
R515
10K 1/4W
10K 1/4W
34
0.1275V PHE840
12
L501
FET24S-H22502
6.3
6.0
5.4
R532
C530
0.001250V KH
D501
D511
1N4005-EIC
0.1275V PHE840
C506_2
W820
FEED BACK
IC506
LTV-817M-VB
10.40
1
2
9.39
680
R533
330
16.47
34
1.61
R503
+-1%
3.3K 1/4W
D518
1SS133
D504
FB/
OCP VCC GND
17.36
1.7 100.5 16.5 0
R505
47K 3W
23
C512_1
470P B
24
C515_1
470P B
D512
1N4005-EIC
SW REG. IC
IC501
R543
680 1/2W
R506
2.2K 1/2W
HS501
763WAAA023
D516
1SS133
7
RY501
ALKS325
TH501_1
FH501
WHITE
PH004
003P-2100
6.3A 125V
F501
6.3A125V
51MS063LCC
BLACK
3
1
EYF-52BC
FH502
DEGAUSS COIL
L503
8R250009
6
21
TV-50P-02-A1
2
1
PH003
003P-2100
CP502
ZPB45BL3R0A
1
5
EYF-52BC
AC120V_60Hz
CD501_1
07415905
S501A
BLACK
4
WIDE
BLADE
WHITE
S501B
3
330
VR502
+B ADJ
R514
2.7K 1/4W
2
D528
MTZJ5.6B
IS THE LIVE CONNECTIONCAUTION:
PCB010
TMA501
6.3A 125V
CAUTION:
1
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE
6.3A 125V(F501)
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE
N’UTILISER QUE DES FUSIBLE DE MEME TYPE
6.3A 125V(F501)
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
1
ABC D E F GH
G-8G-7
Page 28
ABC D E F GH

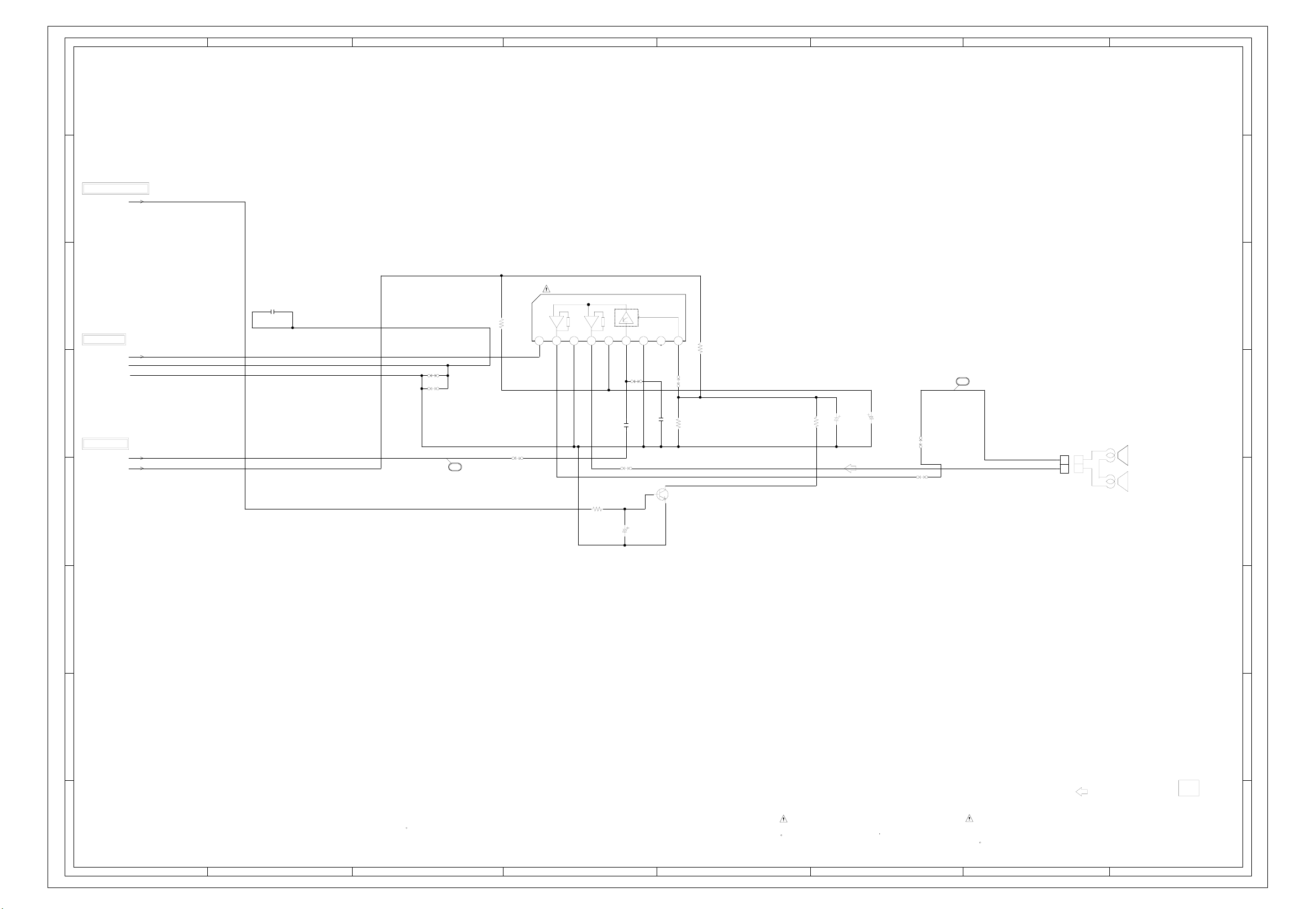

SOUND SCHEMATIC DIAGRAM
8
(MAIN PCB)
8
7
6
5
4
FROM MICON/TUNER
AUDIO_MUTE
FROM POWER
SOUND+B
GND
SOUND_GND
FROM CHROMA
AUDIO_OUT
STEREO+5V
C709
220P CH
W829
W825
7
R356
+-
-+
120K
+
VCC
1234567
-
05.7 4.64.6
IC351_1 AN7523SOUND AMP IC
GND
89
00 2.91.64.1
NC
W835
W859
R355
3.9K
26
6
5
F
1K
0
C363_1
2.9
R358
0.01
MUTE SW.
0
KTC3198-AT(Y,GR)
Q351
2.250V KANP
C353_4
W813
25
4.7K 1/4W
R354
W858
C360
476.3V KA
R359
4716V KA
C357
82
C352_1
150V KA
W836
W828
CP351_1
TID-X02P-B2
1
2
1
2
SPEAKER
SP351_1
S0407F02
4OHM 2.5W
4
3
2
PCB010
AUDIO SIGNAL
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
TMA501
3
2
1
ABC D E F GH
G-10G-9
Page 29

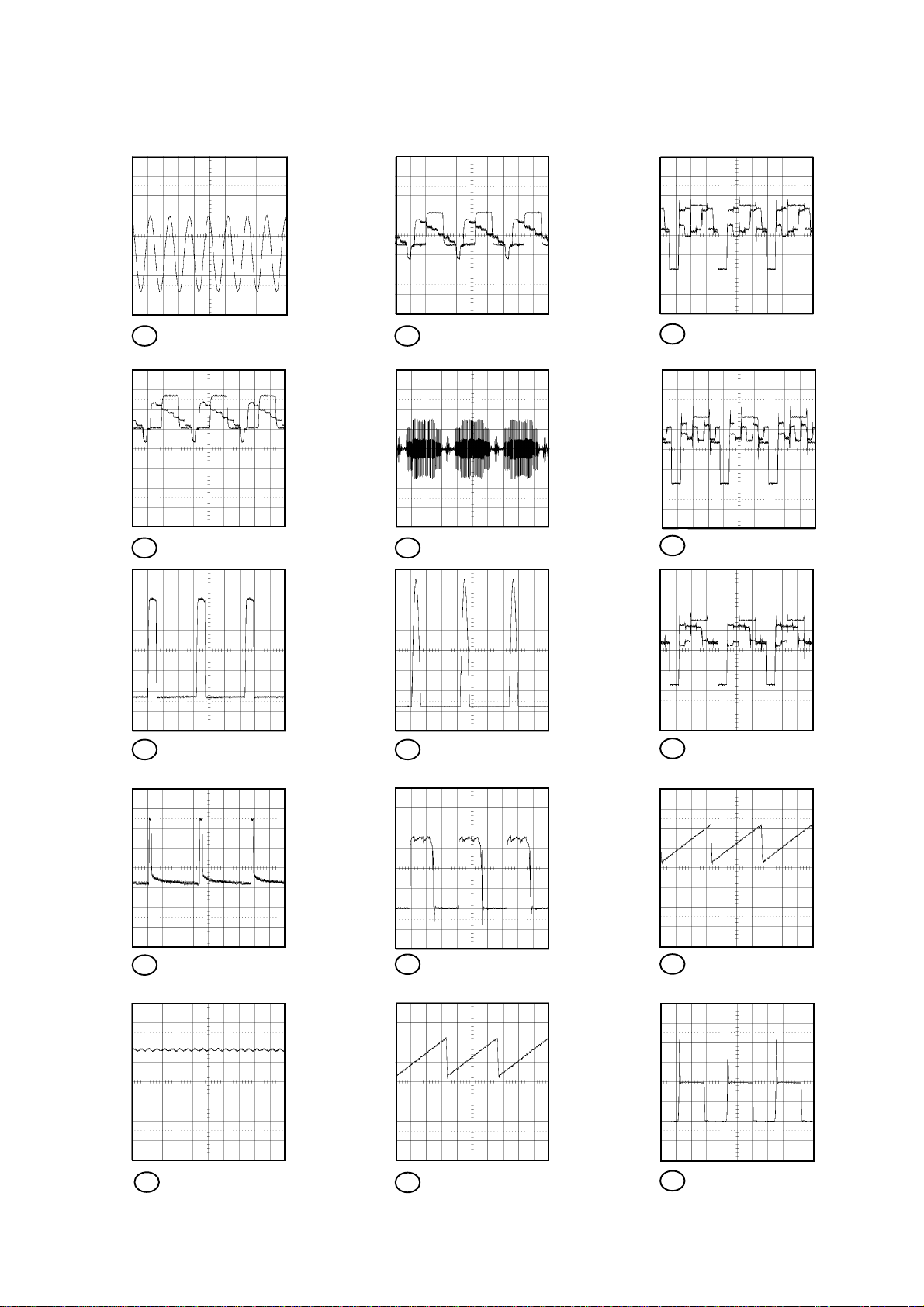

MICON/TUNER
1 1V 0.1µs/div
2
0.5V 20µs/div
WAVEFORMS
6
0.5V 20µs/div
200mV 20µs/div
7
1V 20µs/div
11
1V 20µs/div
12
200mV 20µs/div
200mV 5ms/div
4
CHROMA
5
0.5V 2ms/div
20V 20µs/div3
8
200mV 20µs/div
9
0.5V 5ms/div
10
1V 20µs/div13
DEFLECTION/CRT
0.5V 5ms/div
14
20V 20µs/div
15
NOTE: The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram.
H-1
Page 30

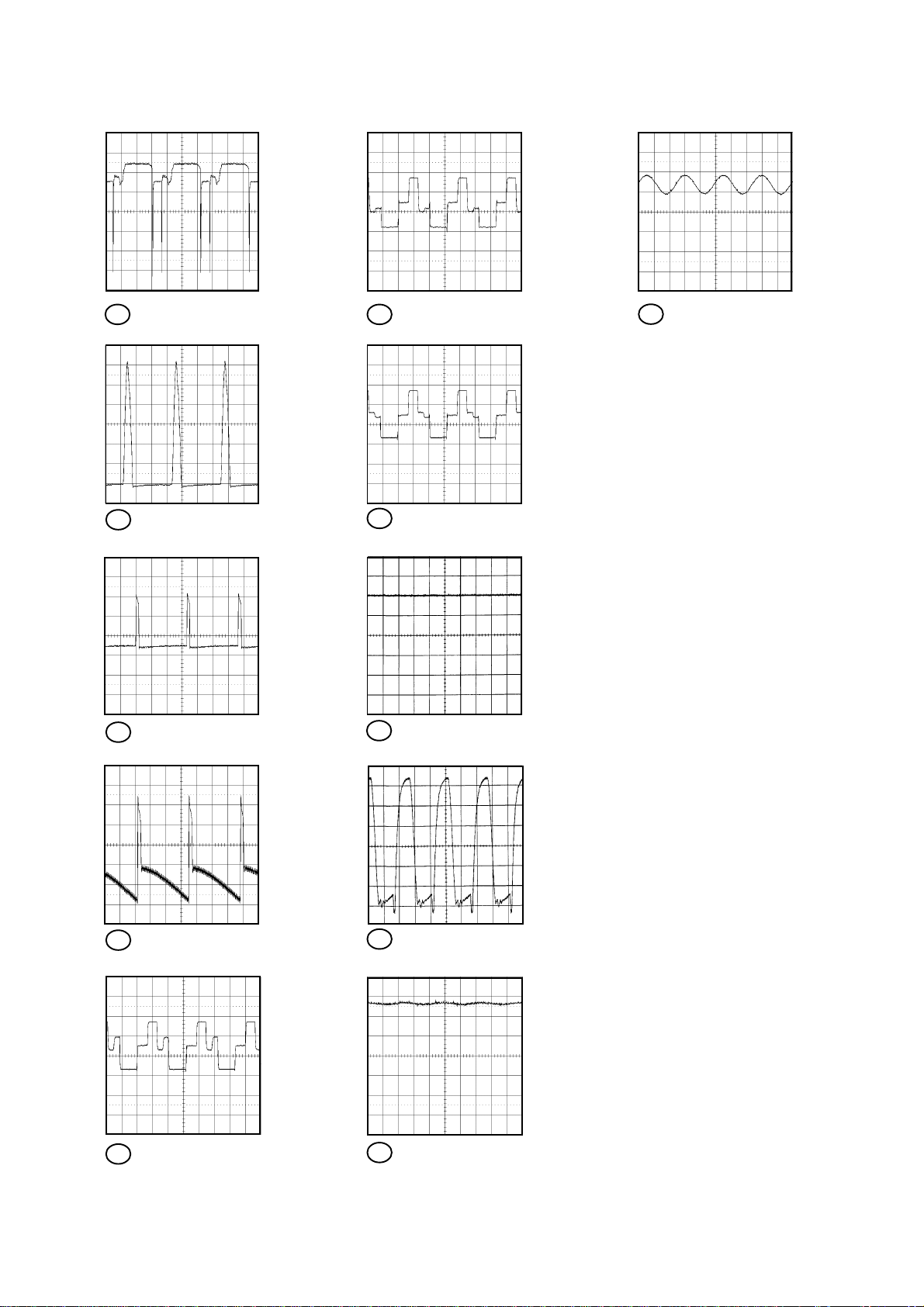

WAVEFORMS
16 2V 20µs/div 21 50V 20µs/div
200V 20µs/div
17
22 50V 20µs/div
POWER
10V 5ms/div18
23 5.0V 20ms/div
1V 1ms/div26
19
10V 5ms/div
50V 20µs/div
20
24 500mV 5µs/div
SOUND
25
0.5V 1ms/div
NOTE: The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram.
H-2
Page 31

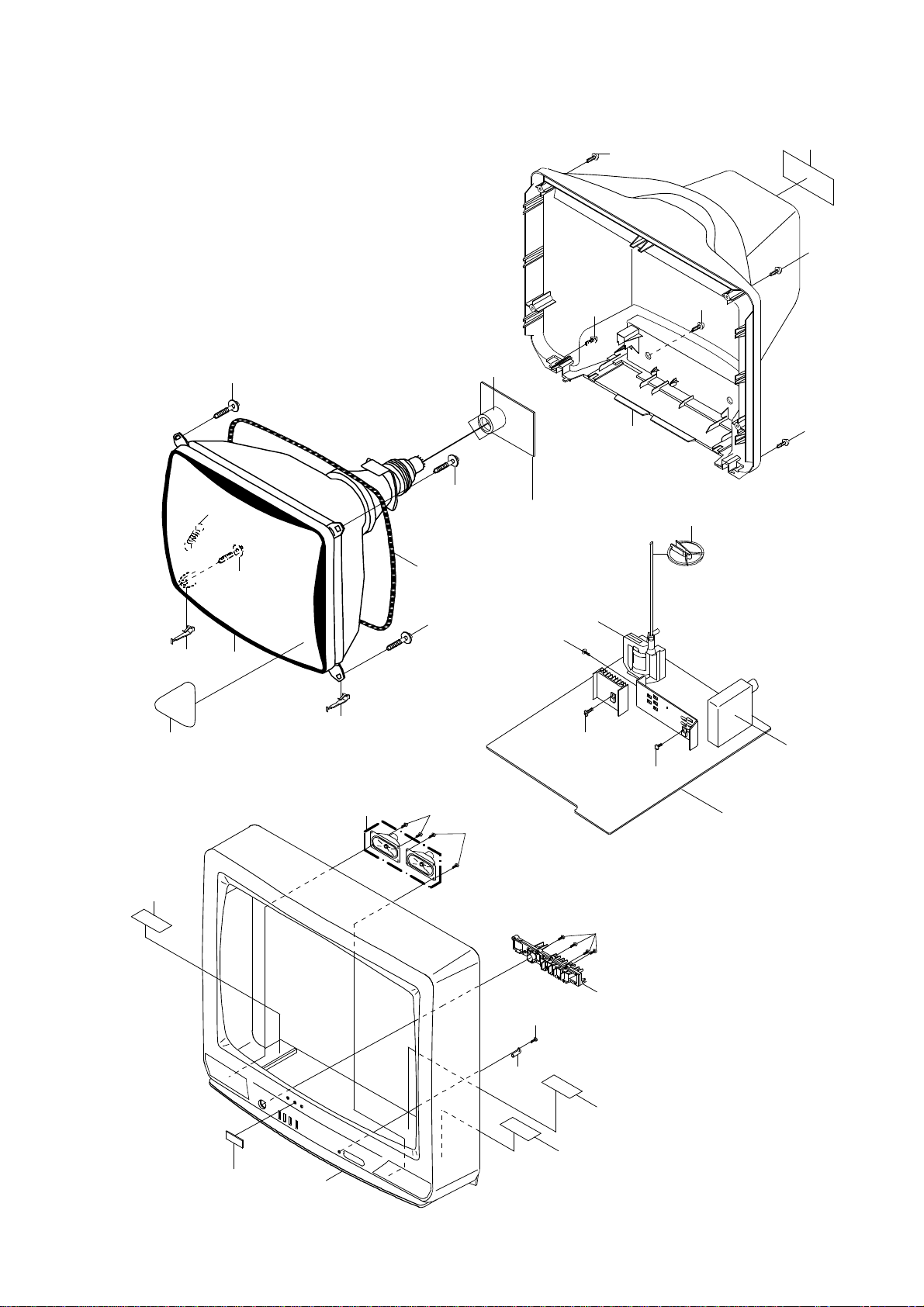

MECHANICAL EXPLODED VIEW
105
205
205
L503
205
J801
PCB110
(CRT PCB)
204
204
110
109
204
204
204
102
113
104
103
V801
103
SP351
205
201
201
FB401
203
202
TU001
203
PCB010
(MAIN PCB)
201
101
201
112
107
108
111
106
I-1
Page 32
MECHANICAL REPLACEMENT PARTS LIST
REF. NO. PART NO. DESCRIPTION
101 735WPA0562 BUTTON,ASS'Y
102 899HV3T000 HOLDER,ANODE WIRE
103 762WPA0009 HOLDER,CRT WIRE
104 723000B179 FILM,DECORATION
105 741WUA0021 SPRING,EARTH
106 701APJA057 CABINET,FRONT
107 713WPA0096 GUIDE,REMOCON
108 7230006856 SHEET,CAUTION
109 722552A006 SHEET,RATING
110 702APA0121 CABINET,BACK
111 7220001109 SHEET,HWC
112 723552A003 BADGE,BRAND
113 7240001041 SHEET,CSA WARNING
201 8110630A04 SCREW,TAP TITE (P) BRAZIER 3x10
202 810B130A04 SCREW/WASHER (B) M3x10
203 8109I30A04 SCREW,TAP TITE (B) WH7 3x10
204 8117540B04 SCREW,TAPPING (B0) TRUSS 4x20
205 8111J50D05 SCREW,TAPPING (A) GW22 5x35
--- JB5L0100 POLY BAG
--- J3K00401 INSTRUCTION BOOK
--- 791AHA0021 FILM,BAG
--- 792AHA0073 PACKAGE,TOP
--- 792AHA0074 PACKAGE,BOTTOM
--- 793ACDA111 GIFT BOX
--- A3K004E975 INSTRUCTION BOOK KIT
J1-1
Page 33
ELECTRICAL REPLACEMENT PARTS LIST
REF. NO. PART. NO. DESCRIPTION REF. NO. PART. NO. DESCRIPTION
RESISTORS DIODES
! R401 R4X5T6104FR, METAL 100K OHM 1/6W D517 D2WXN40050DIODE, SILICON 1N4005-EIC
! R404 R903N8102JRC 1K OHM 1/8W D518 D1VT001330DIODE, SILICON 1SS133T-77
! R405 R4X5T6223FR, METAL 22K OHM 1/6W ! D521 D1VT001330DIODE, SILICON 1SS133T-77
! R406 R903N8332JRC 3.3K OHM 1/8W D528 D97U05R61BDIODE, ZENER MTZJ5.6B T-77
R407 R002T22R2JRC 2.2 OHM 1/2W D601 D1VT001330DIODE, SILICON 1SS133T-77
! R408 R4X5T6183FR, METAL 18K OHM 1/6W D602 D97U08R21BDIODE, ZENER MTZJ8.2B T-77
! R409 R4X5T6622FR, METAL 6.2K OHM 1/6W D604 D1VT001330DIODE, SILICON 1SS133T-77
R415 R3X181471JR, METAL 470 OHM 1W D605 D2WT011E10DIODE, SILICON 11E1-EIC
! R421 R001T4224TRC 220K OHM 1/4W D606 D97U09R11BDIODE, ZENER MTZJ9.1B T-77
! R424 R4X5T6123FR, METAL 12K OHM 1/6W D607 D1VT001330DIODE, SILICON 1SS133T-77
R429 R6558A1R8JR, FUSE 1.8 OHM 2W D608 D97U09R11BDIODE, ZENER MTZJ9.1B T-77
! R440 R5X2CD332JR, CEMENT 3.3K OHM 5W D609 D97U09R11BDIODE, ZENER MTZJ9.1B T-77
! R500 R0G3K2275KRC 2.7M OHM 1/2W D610 D97U06R81BDIODE, ZENER MTZJ6.8B T-77
R501 R5Y2CE3R3JR, CEMENT 3.3 OHM 7W D611 D1VT001330DIODE, SILICON 1SS133T-77
R502 R002T2220JRC 22 OHM 1/2W
R503 R4X5T4332FR, METAL 3.3K OHM 1/4W IC101 I56F07045B IC OEC7045B
! R505 R3X28B473JR, METAL OXIDE 47K OHM 3W IC199 A3K005E015IC S-24C02BDP-1A
R506 R002T2222JRC 2.2K OHM 1/2W ! IC351 I0FSP75230 IC AN7523
R514 R002T4272JRC 2.7K OHM 1/4W ! IC401 I03TD80410 IC LA78041
R515 R002T4103JRC 10K OHM 1/4W ! IC501 I2BT06624GIC STR-G6624
R517 R3X18A4R7JR, METAL 4.7 OHM 2W IC506 0002E00610PHOTO COUPLER LTV-817M-VB
! R542 R33681R15JR, METAL 0.15OHM 1W IC601 I06FC61206 IC M61206FP
! R543 R635U2681JR, FUSE 680 OHM 1/2W
R604 R001T6222JRC 2.2K OHM 1/6W Q101 TNYTJ03001COMPOUND TRANSISTOR DTC114TSTP or
! R803 R3X18A123JR, METAL OXIDE 12K OHM 2W TNATJ03003COMPOUND TRANSISTOR KRC111MAT
! R805 R3X18A123JR, METAL OXIDE 12K OHM 2W Q351 TCATC31980TRANSISTOR, SILICON KTC3198-AT(Y,GR)
! R807 R3X18A123JR, METAL OXIDE 12K OHM 2W ! Q401 TDUU024990TRANSISTOR, SILICON 2SD2499(LBOEC1)
CAPACITORS
! C404 E02LT2471MCE 470 UF 16V Q403 TPYTD03001COMPOUND TRANSISTOR DTA144ESTP or
C414 E02LT4101MCE 100 UF 35V TPATD03003COMPOUND TRANSISTOR KRA104MAT
C416 P3N1F2273JCPP 0.027 UF 200V Q504 TCATC31980TRANSISTOR, SILICON KTC3198-AT(Y,GR)
! C418 E02LT3102MCE 1000 UF 25V Q507 TCATC31980TRANSISTOR, SILICON KTC3198-AT(Y,GR)
C433 E02LT4471MCE 470 UF 35V Q601 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT or
! C434 E02LT8220MCE 22 UF 100V TC5T021204TRANSISTOR, SILICON 2SC2120Y(TPE2)
! C437 P447F2564JCMPP 0.56 UF 200V FHS Q603 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT or
! C443 P4N8FJ103HCMPP 0.01 UF 1.25KV TC5T021204TRANSISTOR, SILICON 2SC2120Y(TPE2)
! C446 E02LTB010MCE 1 UF 160V Q604 TD3T007340TRANSISTOR, SILICON 2SD734(E,F)-AA
! C448 E0ELTD100MCE 10 UF 250V Q605 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT or
C501 E02LT3102MCE 1000 UF 25V TC5T021204TRANSISTOR, SILICON 2SC2120Y(TPE2)
! C502 C0JTB0513KCC 0.001 UF 500V Q606 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT or
! C503 C0JTB0513KCC 0.001 UF 500V TC5T021204TRANSISTOR, SILICON 2SC2120Y(TPE2)
! C505 P2472B104MCMP 0.1 UF 275V PHE840 Q608 TNYTB03001COMPOUND TRANSISTOR DTC114ESTP
! C506 P2472B104MCMP 0.1 UF 275V PHE840 ! Q801 TC3F042170TRANSISTOR, SILICON 2SC4217(D,E)-RAC
! C507 E51CGC331MCE 330 UF 200V ! Q802 TC3F042170TRANSISTOR, SILICON 2SC4217(D,E)-RAC
! C510 E02LT4101MCE 100 UF 35V ! Q803 TC3F042170TRANSISTOR, SILICON 2SC4217(D,E)-RAC
C514 C0JLYR7B3KCC 0.0012UF 2KV YR
C517 C0JLYR7E3KCC 0.0015UF 2KV YR L101 021LA62R7KCOIL LAP02TA2R7K
! C521 E62NFB101MCE 100 UF 160V L406 021U6D180KCOIL RCH-895-180K
! C530 CB3LE0M13MCC 0.001 UF 250V ! L501 029F000074 COIL, LINE FILTER FET24S-H22502
! C531 E02LT2102MCE 1000 UF 16V ! L503 028R250009COIL, DEGAUSS 8R250009
! C532 CB3LE0MH3MCC 0.0022UF 250V L601 021LA61R2KCOIL LAP02TA1R2K
C628 CHG0B0413KCC 0.001 UF 50V B L606 021LA62R2KCOIL LAP02TA2R2K
C802 C13VB0713KCC 0.001 UF 2KV B L607 021LA6150KCOIL LAP02TA150K
DIODES
D001 D97U03001BDIODE, ZENER MTZJ30B T-77 T401 045013001J TRANS, HORIZONTAL DRIVE5013001
! D401 D94TA27011DIODE, ZENER HZ27-1L TD ! T501 048135048STRANSFORMER, SWITCHING 8135048S
! D402 D94TA11B11DIODE, ZENER HZ11B1L TD
! D403 D2WT011E10DIODE, SILICON 11E1-EIC ! J801 066C130015SOCKET, CRT CVT3275-5102
D405 D97U06R21BDIODE, ZENER MTZJ6.2B T-77
! D407 D2WTAU02A0DIODE, SILICON AU02A-EIC SW101 0504201T31 SWITCH, TACT SKHVBED010
! D408 D2WTAU02A0DIODE, SILICON AU02A-EIC SW102 0504201T31 SWITCH, TACT SKHVBED010
! D410 D2WTAU02A0DIODE, SILICON AU02A-EIC SW103 0504201T31 SWITCH, TACT SKHVBED010
! D411 D2WTAU02A0DIODE, SILICON AU02A-EIC SW104 0504201T31 SWITCH, TACT SKHVBED010
D413 D2WT011E10DIODE, SILICON 11E1-EIC SW105 0504201T31 SWITCH, TACT SKHVBED010
! D501 D2WXN40050DIODE, SILICON 1N4005-EIC
! D502 D2WXN40050DIODE, SILICON 1N4005-EIC VR502 V1163L2BTCVOLUME, SEMI FIXED EVNCYAA03BY2
! D503 D2WXN40050DIODE, SILICON 1N4005-EIC
! D504 D2WXN40050DIODE, SILICON 1N4005-EIC PCB010 A3K004G01APCB ASS'Y TMA501A
! D506 D2LTPG06J0DIODE, SILICON RMPG06J-G3 or PCB110 A3K004G11APCB ASS'Y TCA358A
D2WXN49370DIODE, SILICON 1N4937
! D510 D2WXRU2AM0DIODE, SILICON RU2AM-EIC B502 024HT03563CORE, BEADS W4BRH3.5X6X1.0X2
D511 D2WXN40050DIODE, SILICON 1N4005-EIC B504 024HT03553CORE, BEADS W5RH3.5X5X1.0
D512 D2WXN40050DIODE, SILICON 1N4005-EIC ! CD501 1207415905 CORD, AC 07415905
D513 D2WXN40050DIODE, SILICON 1N4005-EIC CD805 068M82025ACORD, CONNECTOR 8M82025A or
! D514 D28TQS04N0DIODE, SCHOTTKY 11EQS04N-TA1B2 06CU82039ACORD, CONNECTOR SM1098-009-1A
D515 D28TQS04N0DIODE, SCHOTTKY 11EQS04N-TA1B2 CD806 06CH012101CORD, CONNECTOR CH012101
D516 D1VT001330DIODE, SILICON 1SS133T-77 CF601 1022T45R73FILTER, SAW SAFGP45M7VHCZR
! Q402 TC3Q026210TRANSISTOR, SILICON 2SC2621(D,E)-RAC
COILS &TRANSFORMERS
L608 021LA66R8KCOIL LAP02TA6R8K
VARIABLE RESISTOR
P.C.BOARD ASSEMBLIES
ICS
TRANSISTORS
JACK
SWITCHES
MISCELLANEOUS
J2-1
Page 34
ELECTRICAL REPLACEMENT PARTS LIST
.
.
.
.
.
REF. NO. PART. NO. DESCRIPTION
MISCELLANEOUS
CF603 1012T4R509 FILTER, CERAMIC SFSH4.5MCB-TF21
CF604 1012T4R519 FILTER, CERAMIC TRAP TPSRA4M50C00-A0
CP351 069W120019 CONNECTOR PCB SIDE TID-X02P-B2
CP401 069W340018 CONNECTOR PCB SIDE TS-80P-04-V1
CP502 069W420029 CONNECTOR PCB SIDE TV-50P-02-A1 or
CP601 0697260650 CONNECTOR PCB SIDE TKC-M06X-A1
CP805 069W320018 CONNECTOR PCB SIDE TS-80P-02-V1 or
CP806 069W010010 CONNECTOR PCB SIDE 005P-2100
CP802A 067R010019 WIRE HOLDER 51048-1010 or
CP802B 067R010019 WIRE HOLDER 51048-1010 or
! DY801 027M062505 DY 7M062505
! F501 081PC6R304 FUSE 51MS063LCC
! FB401 043225010F TRANSFORMER, FLYBACK 3225010F
FH501 06710T0006 HOLDER, FUSE EYF-52BC
FH502 06710T0006 HOLDER, FUSE EYF-52BC
MG801 026A062704 MAGNET, CONVERGENCE 29MMSTAR
OS101 077Q014003 REMOTE RECEIVER PIC-28143SY-2
PH003 069W01001A CONNECTOR PCB SIDE 003P-2100
PH004 069W01001A CONNECTOR PCB SIDE 003P-2100
! RY501 0560V10118 RELAY ALKS325
SP351 070Y533002 SPEAKER S0407F02
! TH501 DF5EL3R0A0 DEGAUSS, ELEMENT ZPB45BL3R0A
TM101 076N0DW020 TRANSMITTER RC-DW020
! TU001 0145S00052 TUNER, VHF-UHF ENV56D66G3
! V801 0984250502 COLOR PICTURE TUBE A63AHC26X
069S420110 CONNECTOR PCB SIDE A1561WV2-2P
069S320010 CONNECTOR PCB SIDE A2361WV2-2P
067U010049 WIRE HOLDER B2013H02-10P
067U010049 WIRE HOLDER B2013H02-10P
K001 129A000010 WEDGE 8115529
K002 129A000010 WEDGE 8115529
K003 129A000010 WEDGE 8115529
X101 1001T8R004 CERAMIC, OSCILLATOR EFOEC8004T4
X602 100CT3R505 CRYSTAL HC-49/C 3.579545MHz
RESISTOR
CAPACITORS
RC.................... CARBON RESISTOR
CC.................... CERAMIC CAPACITOR
CE....................
CP....................
CPP.................. POLYPROPYLENE CAPACITOR
CPL..................
CMP.................
CMPL...............
CMPP............... METAL POLYPROPYLENE CAPACITOR
ALUMI ELECTROLYTIC CAPACITOR
POLYESTER CAPACITOR
PLASTIC CAPACITOR
METAL POLYESTER CAPACITOR
METAL PLASTIC CAPACITOR
J2-2
Page 35
SPEC.NO.
O/R NO.
M3K0-04G
A153510
Loading...
