Duplo Duprinter DP-43E, Duprinter DP-43S, Duprinter DP-31S, Duprinter DP-33E, Duprinter DP-33S Service Manual
...
DUPRINTER
DP-43E/S
DP-33E/S
DP-31E/S
V er.2
SERVICE MANUAL
Be sure to read this manual carefully, so that you
repair and service this machine safely and
correctly. Do not begin work until you have
thoroughly understood the contents of this manual.
Repairing or servicing the machine with insufficient
knowledge about it could lead to unforeseen
accidents or falls in the machine's performance or
quality.
DUPLO SEIKO CORP.
1
Introduction
The cause of most accidents is failure to adhere to basic safety rules and observe
safety instructions. It is important to prevent potential causes of accidents from
occurring. In order to do so, read this manual carefully, and be sure to understand
all the safety instructions and correct inspection and servicing procedures that it
provides before beginning repair or servicing work.
Repairing or servicing the machine with insufficient knowledge about it could
lead to unforeseen accidents.
It is not possible to anticipate and describe in a manual such as this every possi-
ble hazard that could arise in the course of repair and servicing. Therefore, besides
observing the safety instructions marked in this manual and on the machine's
labels, service personnel should be safety-conscious and take other safety precau-
tions as necessary. When performing repair or service work not covered by this man-
ual, you should obtain safety guidance from an appropriately knowledgeable person.
Copyright c 1999
DUPRO SEIKO CORPORATION
All Rights Reserved
2
'Safety-related instructions
'Service work-related instructions
If the instructions accompanying this symbol are ignored and the
machine is operated incorrectly, death or serious injury is likely to
result.
If the instructions accompanying this symbol are ignored and the
machine is operated incorrectly, death or serious injury, or else material
damage, is likely to result.
WARNING:
COUTION:
Examples of pictorial symbols
A " " symbol tells you that a certain action is forbidden. Precisely what
is forbidden is indicated by a picture inside the symbol (in the example
here, the picture means that disassembly is forbidden), or in writing at the
side of the symbol.
A " " symbol means that a certain action is forbidden and/or that a specific instruction must be followed. The specific instruction is indicated by a
picture inside the symbol (in the example here, the instruction is "Remove
the power plug from the socket").
IMPORTANT:
NOTE:
Draws attention to important information. If this information is ignored and
the machine is operated or serviced incorrectly, the machine`s performance could drop, or it could break down.
Draws attention to information that is useful for operation or maintenance
of the machine, and to information about its performance, etc.
D Using the service manual
• This manual contains the following information: structure and function of major parts, disas-
sembly and reassembly procedures, specifications, and procedures for adjustment, mainte-
nance, inspection and corrective action. This information is current as of May 1999, and applies
basically to the model DP-43E/S,33E/S,31E/S Duprinter.
From time to time, parts are changed to improve quality, performance or safety. Note therefore
that in some cases, certain parts or machine structure aspects described in the text or illustra-
tions of this manual may not be precisely the same as the product being serviced.
• Safety instructions marked with a " " (WARNINGS and CAUTIONS) are very important for
safety and must be observed.
3
Safety instructions
Safety instructions
Safety instructions
1. Cautions regarding the installation location
Installation environment
• Avoid installing the machine in places exposed to direct sunlight.
• Sunlight will cause the temperature in the machine's interior to rise, possibly leading to mal-
function of the control system.
• Sunlight could cause misoperation of the sensors.
• The heat of direct sunlight could cause deformation of the machine's plastic parts.
* Also avoid installation near to a ground glass window; light and heat penetrate such windows
although they are opaque.
• Avoid installing the machine in places subject to high or low temperature or humidity.
• High or low temperature or humidity could cause the machine to operate abnormally.
Suitable temperature and humidity ranges are:
Ambient temperature: 10y430y
Ambient humidity: 40%470%
Optimum temperature and humidity: 20y, 65%
• If the machine is installed near to faucets, water heaters or humidifiers, or in cool (sunless)
parts of a building or in the vicinity of water sources, the paper could absorb moisture and curl,
leading to misfeeds or poor image quality.
• Avoid installing the machine in places with open flames, or where reflected heat or other hot air
currents (from stoves, etc), or cold air currents from coolers, etc will strike it directly.
• Avoid installing the machine in poorly ventilated places.
• Avoid installing the machine in dusty places.
• The machine should not be tilting when it is used.
• Install the machine so that it is level.
(The machine should be level to within 5mm in the front-rear direction, and 5mm in the lateral
direction.)
•Do not install the machine on shaky, sloping or otherwise unstable surfaces.
• The machine could fall over on such surfaces, or fall off them, causing injury.
4
Safety instructions
• The machine's power supply voltage and power consumption depend on the model. Details of this
are given in the tables below. The power supply voltage and power consumption for the machine
are given in the table below. The machine's power supply voltage is indicated on the identification
plate located on the machine's left side; the machine must be connected to a power supply of the
voltage indicated.
a Otherwise, fire or electric shock could result.
If the power supply voltage is unstable or if the power supply has insufficient capacity, the
machine may not operate normally.
Make sure that the power supply has sufficient capacity for the system as a whole, including
optional equipment.
Warning
Connect to outlet of 120V AC, 60Hz, at least 15A
With no load*
At full load
Power consumption
No more than 130V AC
At least 110V AC
During platemaking : 230W
During printing at speed 3 (printing speed) :110W
On standby : 30W
Power supply voltage
}
Use power supply meeting these requirements
Connect to outlet of 230V AC, 50Hz, at least 8A
With no load*
At full load
Power consumption
No more than 250V AC
At least 210V AC
During platemaking : 230W
During printing at speed 5 (printing speed) :300W
On standby : 30W
Power supply voltage
}
Use power supply meeting these requirements
* 120V AC model
* 230V AC model
* "With no load" - when the machine is on standby.
* "At full load" - when the machine is running at maximum power consumption.
• Use only the power cord that is provided among the accessories.
Insert the power cord plug firmly into the socket, so that proper electrical contact is effected.
• Install the machine close to its power supply. The outlet used should be exclusively for the
machine, and have no other equipment connected to it.
If an extension cord is necessary, it should have a ground terminal, and be of the following ratings:
* For a 120V AC model: 130V, at least 15A, length not exceeding 5m.
* For a 230V AC model: 250V, at least 8A, length not exceeding 5m.
• Never tread on the power cord or pinch it between other objects, or accidents could result.
2. Cautions for installation work
• Install the machine in accordance with the installation procedure appended to this manual.
• Lock the casters after the machine is installed.
a Otherwise, the machine could move or fall over, causing injury.
• To move the machine, push it by its mounting base.
a Pushing the printing (upper) part of the machine could make it fall over.
CAUTION
5
Safety instructions
' Precautions for safe servicing
• Always remove the power cord plug from the outlet before starting work.
a Otherwise, you could get a shock or your hands/fingers could be injured.
• However, the plug must be left connected to the outlet when performing function checks (of indi-
vidual motors, a given series of operations, or electrical circuits). When motors are operated alone
in function checks, interlocks are deactivated, so be aware of the conditions and positions of relat-
ed equipment, and take great care not to put your hands or fingers into moving parts.
• The cutter unit contains hazardous sharp blades. Exercise great care when inspecting the cutter
unit or replacing it or its parts.
a Otherwise, your hands/fingers could be injured.
• Do not touch the drum or rollers after turning on the jog switch.
• Do not put your hands or fingers inside the machine while the drum is rotating.
a Otherwise, your hands/fingers could get caught and crushed between the drum and rollers.
' Working clothes
• Wear clothing than enables you to work safely.
Work clothing (overalls, etc) should be close-fitting.
Warning
' Tools
• Use tools that are appropriate for the work.
CAUTION
3. Cautions for maintenance, inspection and servicing
6
Safety instructions
DLocations of warning stickers
The locations of the machine's warning stickers are shown below. To ensure safe work, read the
stickers and heed their instructions. Keep the stickers clean at all times. If they become damaged
or peel off, replace them with new ones.
No. Parts No. Name Q'ty
q
J3-T3200 Warning Sticker 1 1
w
L5-T3020 Warning Sticker 2 1
J3/-T3200
q
Warning
¡Do not remove this cover. The
inside of the printer contains
movable cutting instruments,
contact with which could result
in injury.
L5-T3020
2
Do NOT touch the drum or rollers
when you operate the jog switch.
Do NOT put hands Inside
machine while it is operatung.
Hands could get caught up
or crushed.
WARNING
7
Chapter 8
Chapter 7
Chapter 6
Chapter 5
Chapter 4
Chapter 3
Chapter 2
Chapter 1
HELP Mode
Others
Countermeasures
Installation
Standard / Adjustment
Mechanism
Description of the Operation
Introduction
8
Table of Contents
Chapter 1
z Features ................................................................................10
x Specifications ........................................................................14
c Dimensions ...........................................................................16

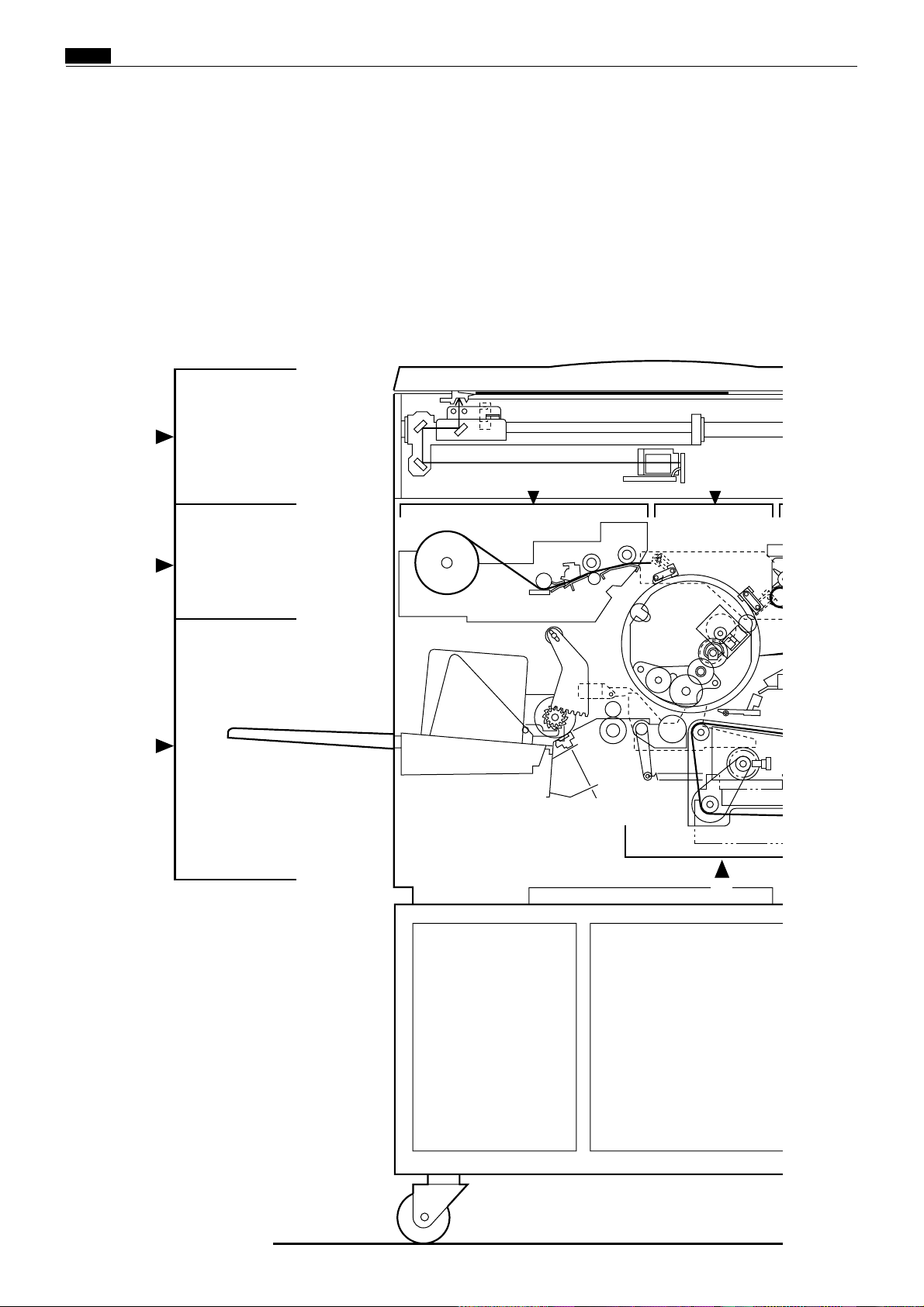

v Mechanism............................................................................17
b Master ...................................................................................18
n Ink .........................................................................................19
m System Setup ........................................................................20

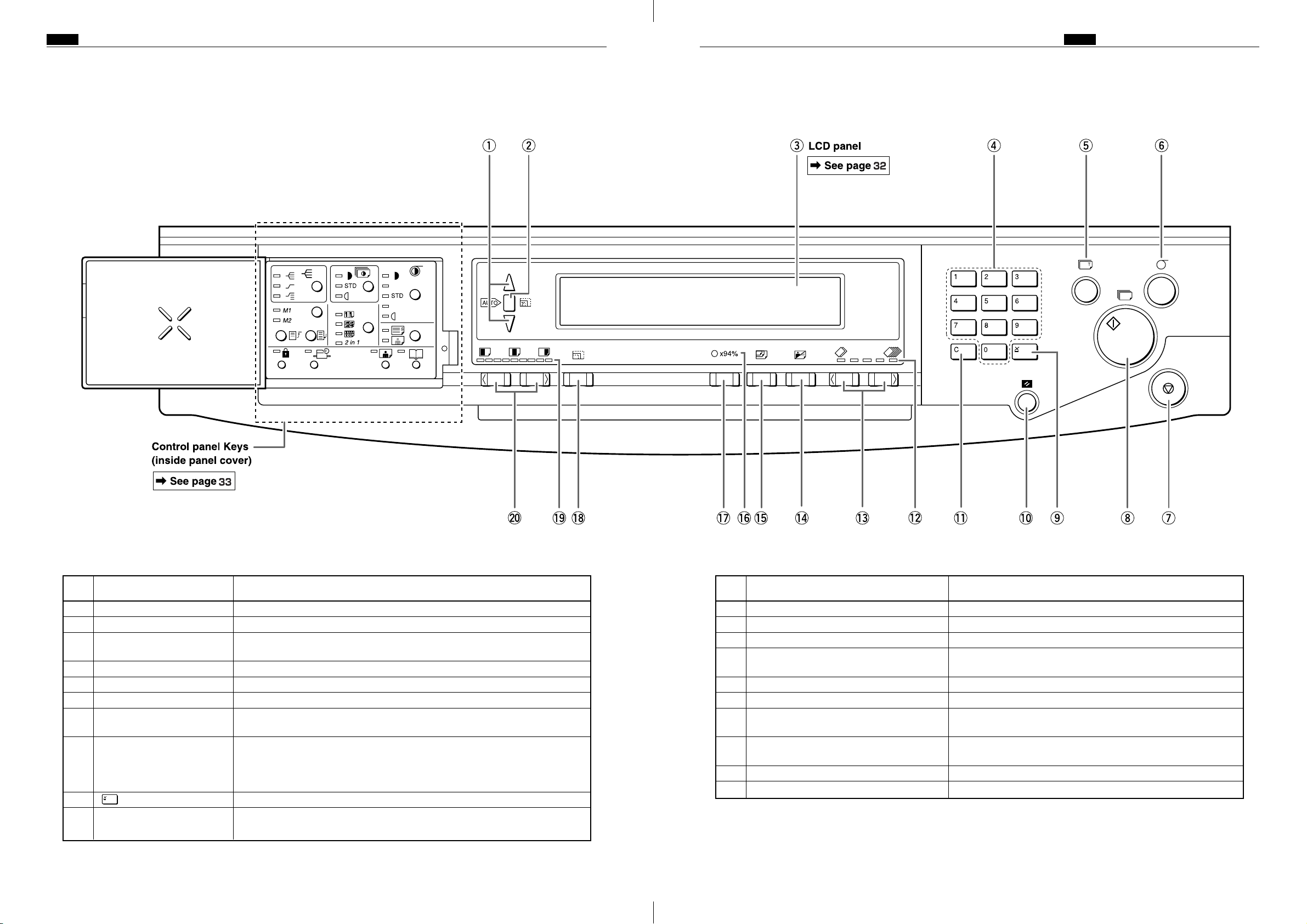

, Part Names and Their Functions ........................................21
. Operation Procedures ..........................................................34
⁄0 Error Messages and Corrective Action ...............................38
⁄1 Option ...................................................................................60
Chapter 2
z
Scanner Section ..........................................................86
x
Platemaking/Master Feed/Ejection Section..............94
c
Paper Feed Section...................................................115
v
Drum Driving Section ..............................................129
b
Press Section.............................................................135
n
Paper Ejection Section .............................................142
m
Drum Section............................................................148
,
Option .......................................................................160
Chapter 3
z
Exterior .....................................................................164
x
Scanner Section ........................................................172
c
Platemaking/Master Feed/Ejection Section............180
v
Paper Feed Section...................................................188
b
Drum Driving Section ..............................................192
n
Paper Ejection Section .............................................194
m
Drum Section............................................................202
Chapter 4
z
Scanner Section ........................................................212
x
Platemaking/Master Feed/Ejection Section............214
c
Paper Feed Section...................................................222
v
Drum Driving Section ..............................................229
b
Press Section.............................................................231
n
Paper Ejection Section .............................................233
m
Drum Section............................................................235
,
Electrical System......................................................239
.
Option .......................................................................249
Chapter 5
z
DUPRINTER installation instructions...................252
x
Drum unit installation instructions........................262
c
KEYCARD COUNTER 3 installation procedure....266
v
A4 DRUM installation procedure............................270
Chapter 6
z
Troubleshooting Guide.............................................272
x
Error Display............................................................283
Chapter 7
Chapter 8
z
Electrical Parts Layout and Their Functions .........366
x
Overall Timing Chart...............................................375
c
Overall Wiring Layout
E type models...........................................................377
S type models ...........................................................378
z
HELP Mode List.......................................................286
x
Overview ...................................................................290
c HELP Mode Functions and Operation Procedures
........291
(1)Basic Procedure for Accessing HELP Modes ......291
(2)Guide to the HELP Mode Descriptions ...............291
• HELP Mode Descriptions.....................................292
Introduction.................................................................................1
Using the service manual ...........................................................2
Safety instructions ................................................................3
1.Cautions regarding the installation location.........................3
2.Cautions for installation work................................................4
3.Cautions for maintenance, inspection and servicing ............5
• Locations of warning stickers.................................................6
Countermeasures
Installation
Standards / Adjustment
HELP Mode
Others
Mechanism
Description of the Operation
Introduction
9
Chapter 1 Introduction
z Features ........................................................................10
x Specifications................................................................14
c Dimensions ...................................................................16

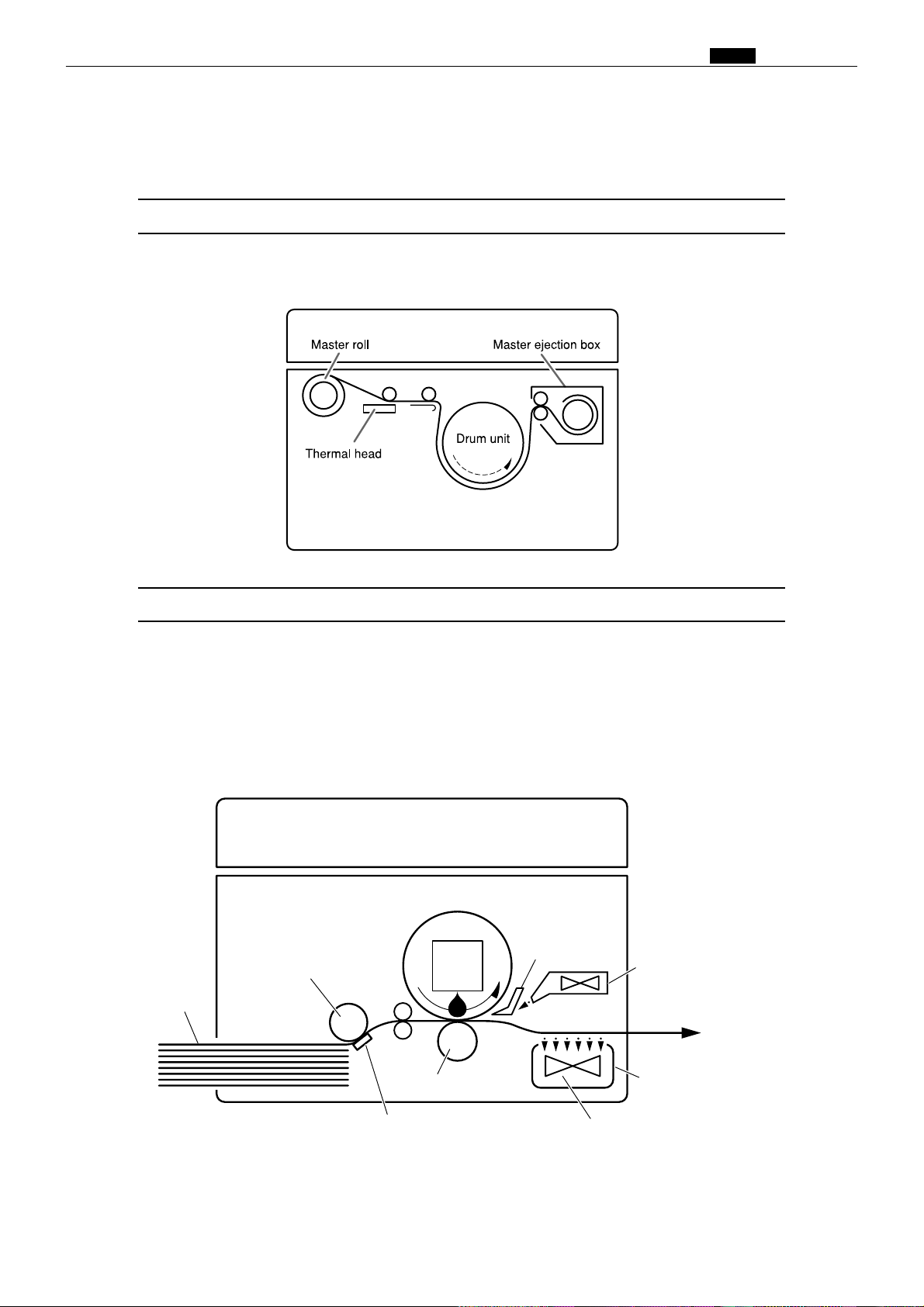

v Mechanism....................................................................17
b Master ...........................................................................18

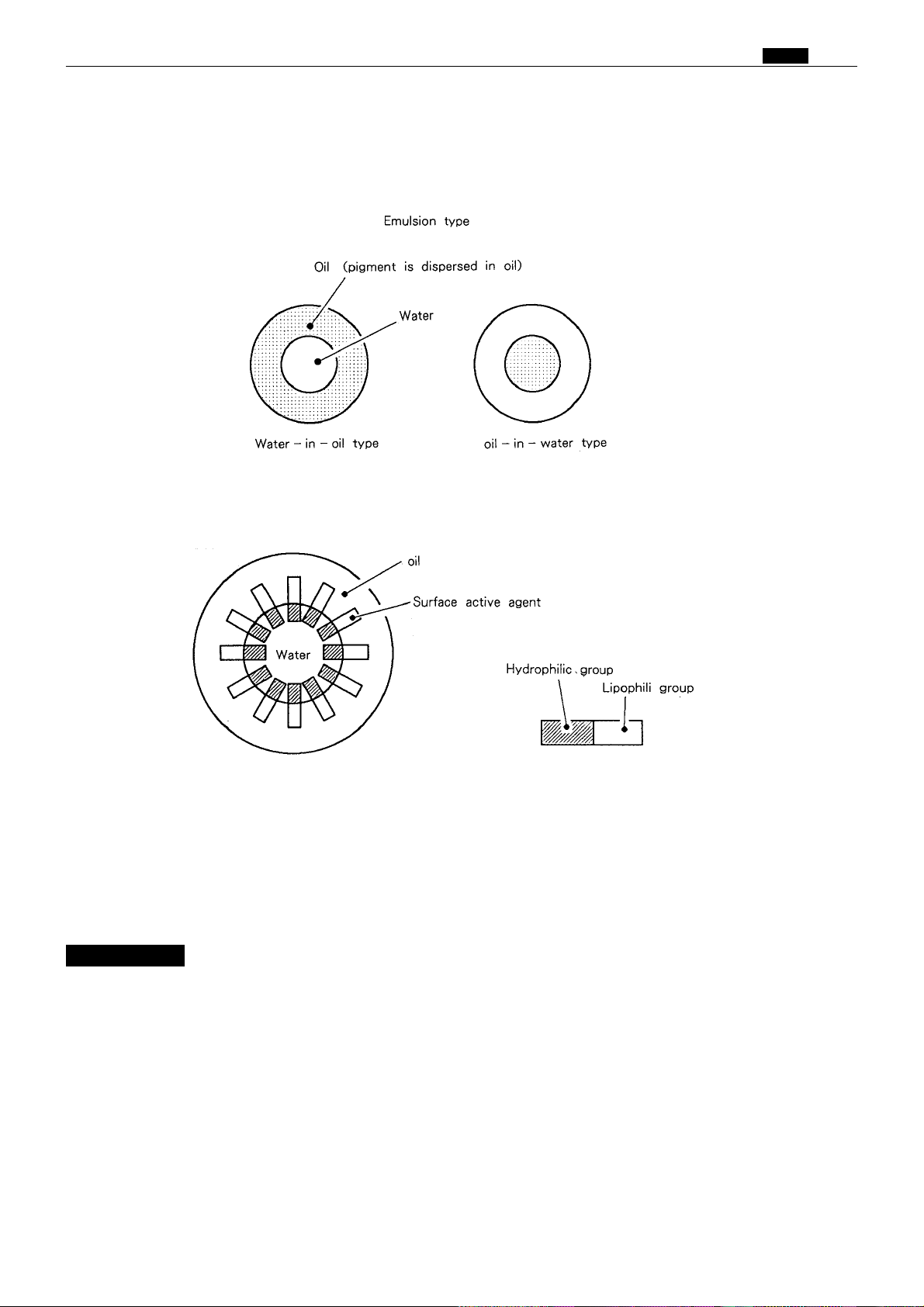

n Ink .................................................................................19
m System Setup................................................................20
, Part Names and Their Functions................................21
1. Machine exteriors ....................................................21

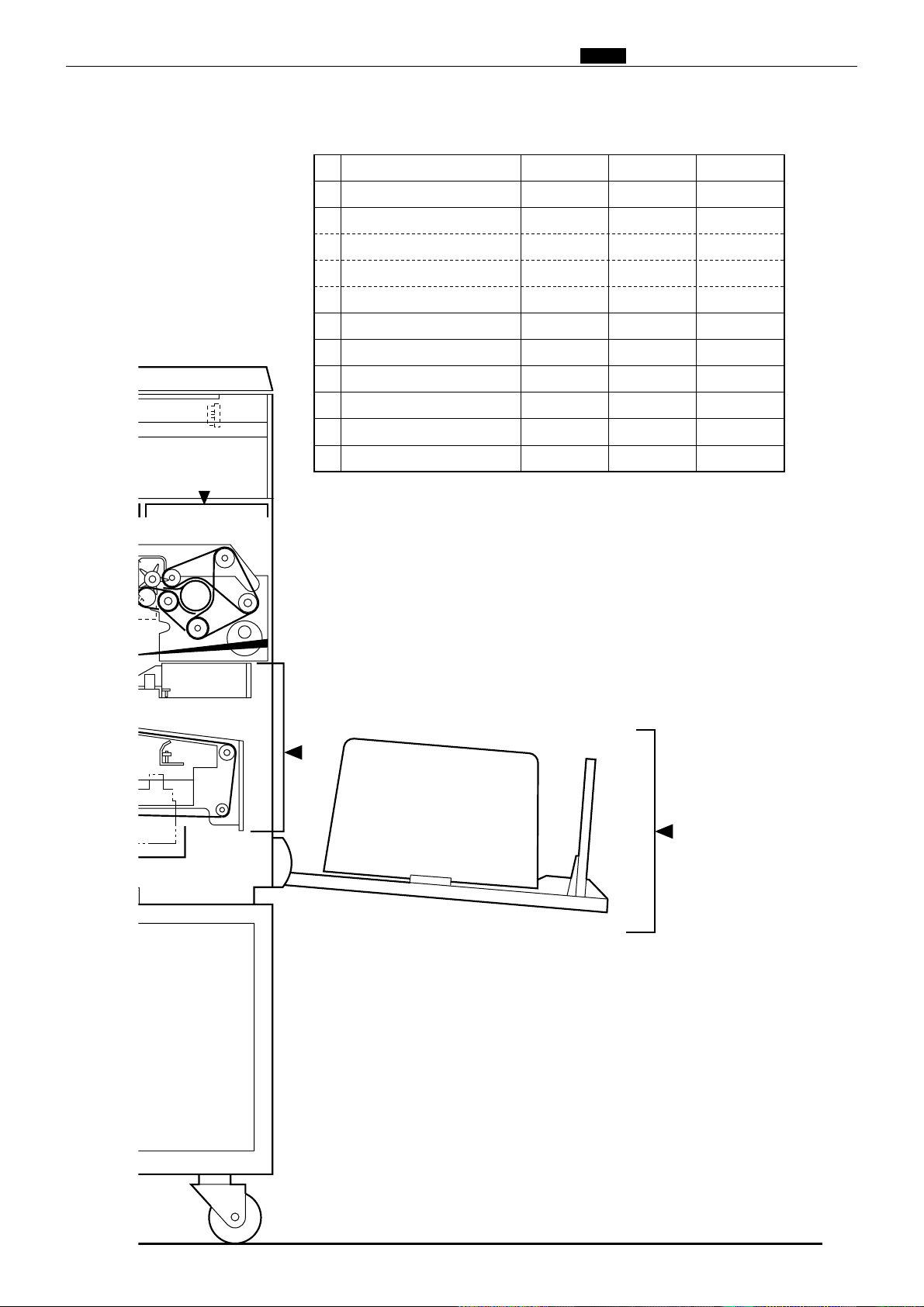

2. Sectional (structural) view of the machine.............24

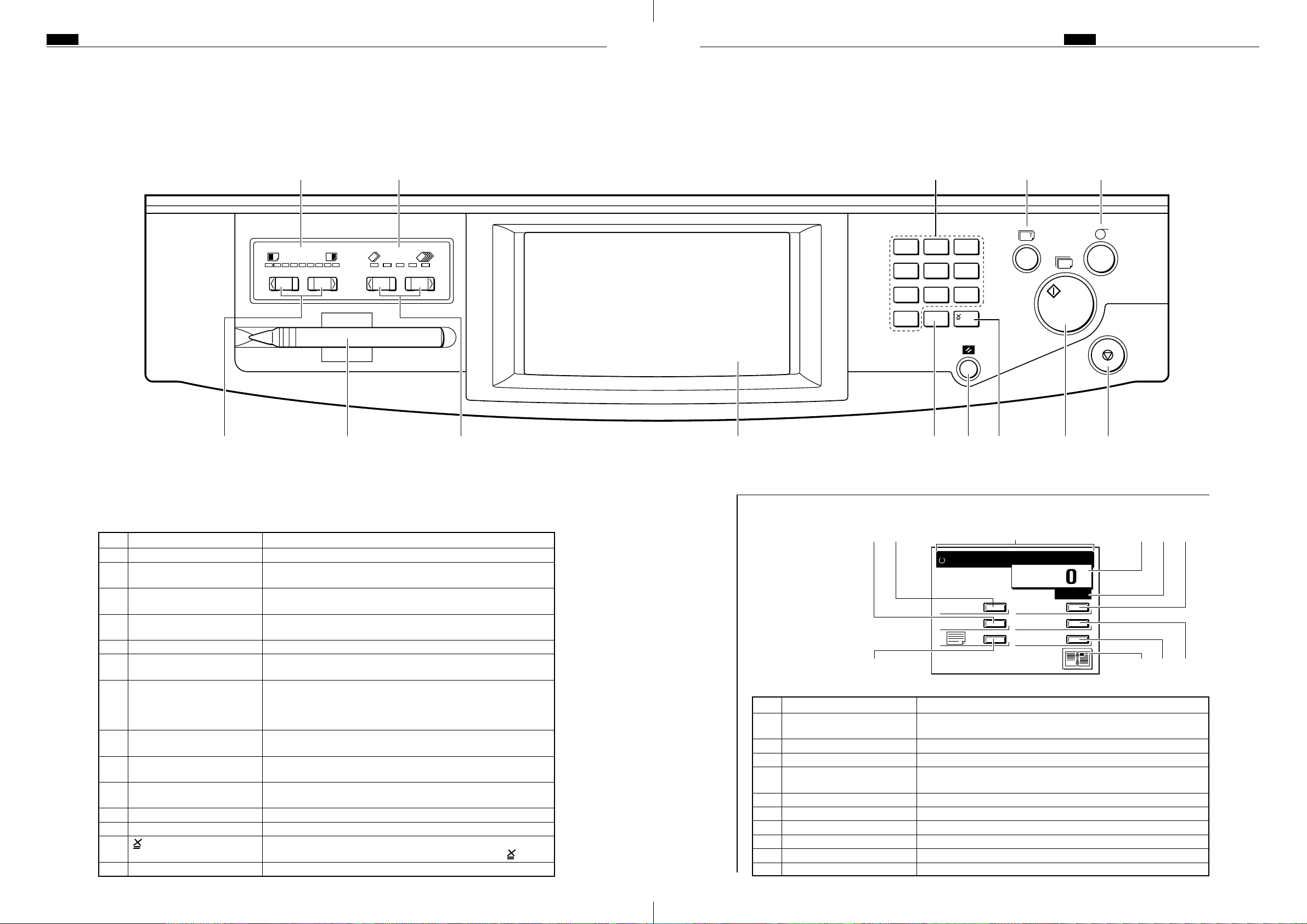

3. Control Panel
E type models...........................................................26
S type models ...........................................................30
. Operation Procedures...................................................34
1. Printing
E type models...........................................................34
S type models ...........................................................35

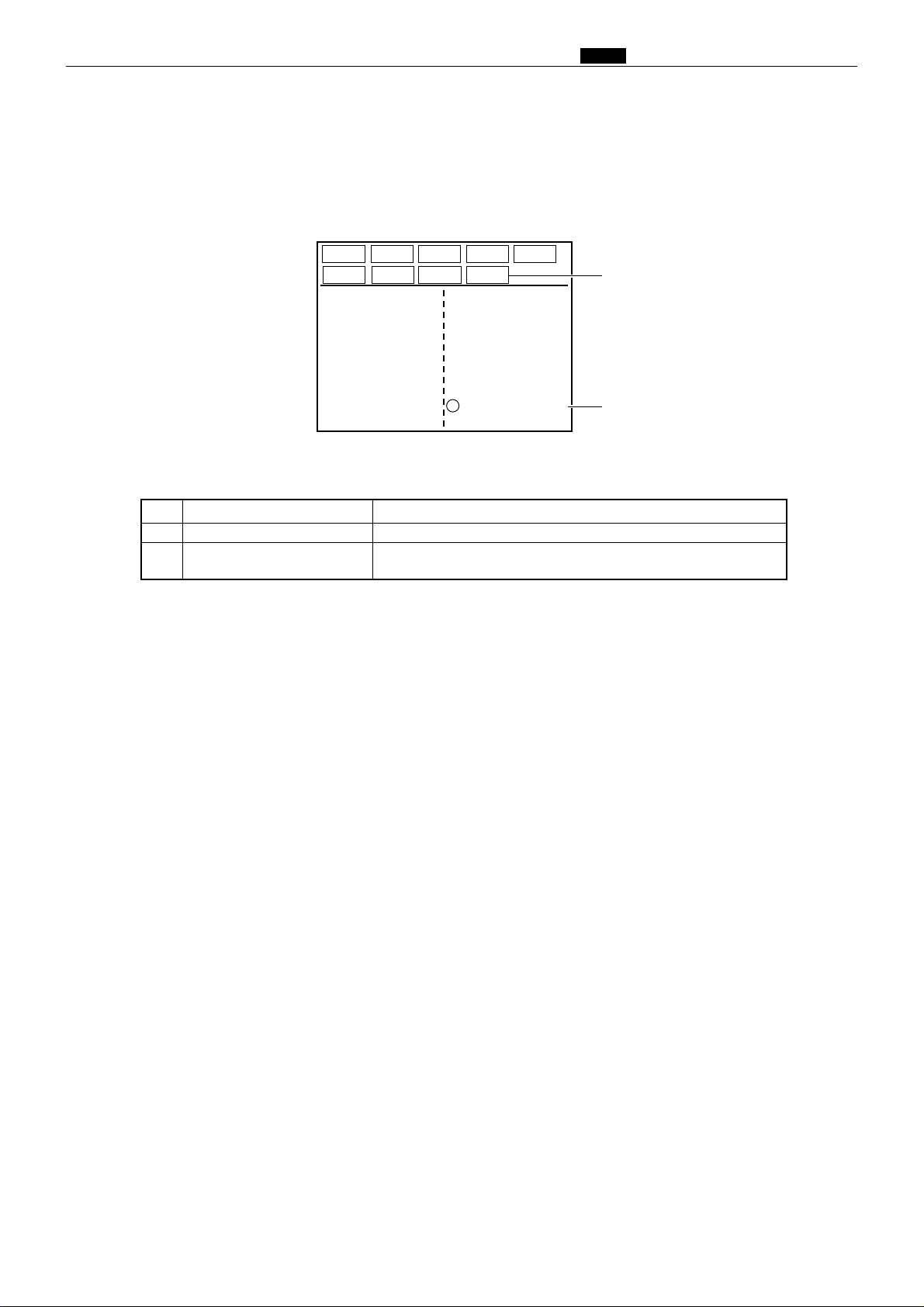

2. Multiple Image Printing / 2 IN 1 Layout Mode
E type models...........................................................36
S type models ...........................................................37
⁄0 Error Messages and Corrective Action........................38
1. Error messages.........................................................38
2. Corrective action ......................................................41
(1) Replacing the Ink Pack ......................................41
(2) Replacing the Master Roll .................................43
(3) Replacing the Master Ejection Core..................46
(4) Supplying Paper ................................................48
(5) Replacing the Drum Unit ..................................51
(6) Paper Jam (Feeder side) ....................................53
(7) Paper Jam (Ejection side) ..................................54
(8) Master is Not Ejected.........................................57
(9) Master Set Incorrectly .......................................59
⁄1 Option............................................................................60
1. DUPRINTER Opion.................................................60
(1) TAPE CLUSTER 3 .............................................60
(2) KEYCARD COUNTER 3 ...................................61
(3) A4 DRUM (for DP-43E/S) ..................................80
1
Chap.1 z Features
zFeatures
1. Size A3 printing
The DP-43E/S has size A3 (290X410mm)
printing area.
The DP-33E/S and DP-31E/S has size B4
(250X350mm) printing area.
2. High-speed platemaking
With the DP-43E/S, it takes 17 seconds
*2
print the first sheet of paper
(size A3).
With the DP-33E/S and DP-31E/S, it takes
*1
15 seconds
*2
paper
*1: Time required to print the first sheet of paper
after the platemaking key is pressed.
*2: When the Fine Start mode is not activated.
to print the first sheet of
(size A4).
3. High print quality
A new, originally-developed superfine thermal head gives beautifully accurate reproductions of fine print and halftone photographs.
Resolution is 400dpi in the DP-43E/S,and
DP-33E/S.
*1
to
Resolution is 300dpi in the DP-31E/S.
4. Simple operation
In the E series, a touch panel provides simple
operation.
In the S series, operation is simplified by concealing occasionally-used keys under a panel,
leaving just the basic function keys permanently accessible.
5. Fine Start Mode
This mode automatically sets optimum values for the following start conditions: timing of ink roller actuation during platemaking, number of no-paper rotations with the
ink roller actuated. These optimum settings
*3
are based on the room temperature
, the
length of time the printer was out of use, and
the number of prints last time it was used.
They ensure clear printing right from the
first sheet.
*3: Room temperature of 10ºC or below can cause
insufficient ink supply, even in Fine Start
Mode.
6. High-performance lamp
A long-life, high-brightness xenon arc lamp
is used to illuminate the documents. Since
the lamp's intensity is not affected by tem-
*4
perature variation
temperatures is greatly enhanced
*4: The lamp is filled with xenon gas, which means
that it does not require heat to vaporize mercury, as a fluorescent lamp does, and therefore its intensity does not vary with temperature.
*5: Increased viscosity of the ink at low tempera-
tures results in fainter printing than at normal temperatures.
, printing quality at low
*5
.
10
Chap.1 z Features
7. Full range of necessary functions
qDocuments are easily enlarged or re-
duced.
In addition to same-size printing, there are
three automatic settings for both enlargement and reduction. The margin function
(94% reduction) can be used with any setting.
• Size A/B models
• Free ratio setting (50-499%)
• Auto zoom settings
(70, 81, 86, 115, 122, 141%)
• Same-size (100%) printing
141% [A4/A3, B5/B4]
Enlargement
122% [A4/B4]
115% [B4/A3]
*6
86% [A3/B4]
Reduction
81% [B4/A4]
70% [A3/A4, B4/B5]
• Inch size model
• Free zoom range 50 to 499%
zoom (64, 74, 77, 121, 129, 141%)
• Same-size (100%)
141%
Enlargement
129% [LTR/LDG]
121% [LGL/LDG]
*6
*6
Reduction
77% [LGL/LTR]
74% [LDG/LGL]
67% [LDG/LTR]
*6: Maximum printing area of DP-33E/S and DP-
31E/S is B4(250X350mm).
wEditing functions
Editing functions are standard features of
E series printers (DP-43E,DP-33E,DP31E).
eMemory functions
The printers have memory functions that
can memorize frequently-used settings.
ySelf-diagnosis
The machines have self-diagnostic functions. Messages for self-diagnosed errors,
as well as consumable part replacement
prompt messages, appear on an LCD
panel.
uDocument modes
To the pre-existing Text and Photograph
Modes have been added the "Text-Photograph", "Text-Fine Lettering", "Photograph-Fine Lettering", "Screen 1 & 2" and
"Photo Dark" Modes, accommodating
printing of a wider variety of documents.
*6
Text-Photograph Mode:
Intermediate between the Text and Photograph Modes, this Mode is for documents
with mixed photographs and text.
Text-Fine Lettering Mode:
Emphasizes letter outlines more than the
regular Text Mode, providing better reproducibility of fine lettering.
Photograph-Fine Lettering Mode:
Emphasizes shape outlines more than the
regular Photograph Mode, providing better reproducibility of fine lines.
Screen Modes 1 & 2:
Add dots to images produced by the Photograph Mode, to bring out the contrast.
Mode 1 uses larger dots than Mode 2.
Photo Dark Mode:
Increases the number of gradations in
bright halftone portions of images produced by the Photograph Mode, to prevent
over-bright reproduction of bright documents.
iError message display
An LCD panel displays error messages and
messages prompting replenishment of
consumables.
DP-43E,33E,31E
3 types
DP-43S,33S,31S
2 types
rMultiple image printing
Multiple images (2, 4 or 8) of a single document can be printed on a single sheet of
paper.
tBook shadow erasure
Shadows in the middle or at the edges of
book documents can be erased.
11
Chap.1 z Features
oSpecial functions
The following functions/modes, which formerly could only be changed/used by service personnel, have been made into user
functions/modes.
• Auto Clear
• Preprint
• Print Number Input Mode
• Change Initial Setting
• Fine Start
!0Adjusting the Printing Position
(vertical /horizontal)
In addition to vertical direction
adjustment,there is now a function for
adjusting the printing position in the horizontal direction as well.
!12 in 1 Layout Mode
In conjunction with an ADF (optional), this
mode makes possible continuous printing
of 2 documents onto single sheets of paper.
8. Options
qADF
Use of the ADF permits continuous platemaking and printing of 30 documents (64g/
2
paper). The ADF's tray fits completely
m
inside the ADF, so as not to interfere with
loading/removal of printing paper.
wTape cluster
This permits sectionized printing, by inserting tape automatically during printing.
eKey card counter
This magnetic card can control the numbers of prints and platemakings by up to
200 sections.
NOTE: Without this optional counter, the
number of sections controlled is 30 (standard).
rDrums
Replacing the drum with optional drums
permits printing with different colors.
!2Key card counter
Raises the number of sections controlled
*7
to up to 200
. Versions with internalized
control panel also available.
*7: Standard: 30 sections. Using the counter (op-
tional) raises the number to 200 sections.
tSorter
The newly-developed 25-bin tandem sorter
can sort up to 50 sets of sheets. A stapler
can be installed to staple the sets after
sorting.
yOn-line functions
*8
These enable data processed on a personal
computer or word processor to be directly
input and used for platemaking/printing.
*8: These functions require an IPC I/F kit and PC
interface.
12
MEMO
Chap.1 z Features
13
Chap.1 x Specifications
xSpecifications
• Specifications
Product name/model No.
Model Floor model
Platemaking method Thermal digital platemaking
Platemaking interval
Resolution 15.7 dots/mm (400 dpi)
Scanning method Fixed document
Printing method Stencil printing
Document type Sheet, Book (less than 10 kg)
Document size
Printing area
Feeding capacity 1000 sheets (64 g/m
Stacking capacity 1000 sheets (64 g/m2, duodecimo 55kg,high-grade paper)
Paper size
Paper thickness 53 g/m
Printing speed 120 pages par minute. (45 to 120 pages par minute, 5 step adjustment)
Print enlargement/reduction
A, B size model Same size 100%
Inch size model Same size 100%
Printing position adjustment
Image modes Text mode / Photograph mode / Text and photograph mode /
Contrast control Platemaking density 5 step adjustment
Ink supply method Complete automatic control (600 cc, 1000 cc)
Color printing Drum unit exchange method
Master feeder Roll master automatic feed
Plate ejection Complete automatic ejection plate rolling method
Power source
120VAC model 120VAC 60Hz, 5A
230VAC model 230VAC 50Hz, 2.5A
Power consumption
Size Operational Idle
Weight
Operating temperature
※ Specifications are subject to change without notice.
DP-43E / DP-43S DP- 33E / DP-33S
17 seconds (A3, same size)
Max. 297 mm×432 mm
Max. 290 mm×410 mm
2
, duodecimo 55kg,high-grade paper)
Max. 297 mm×432 mm (A3: 11” × 17”)
Min. 100 mm×150 mm (postcard)
2
to 210 g/m2(45 kg to 180 kg)
Fixed zoom ratios 70, 81, 86, 115, 122, 141%
Print with border 94%
Free zoom range 50 to 499%
Auto zoom 70, 81, 86, 115, 122, 141%
Fixed zoom ratios 64, 74, 77, 121, 129, 141%
Print with border 94%
Free zoom range 50 to 499%
Auto zoom 67, 74, 77, 121, 129, 141%
Vertical ±15 mm
Horizontal ±10 mm
Finelettering / Screen / Photo dark, Multiple printing (2, 4, 8 up)
Book shadow eraser
Printing density 3 step adjustment
230W(during platemaking), 110W(during3-speed printing),
30W(during standby)
1288mm(W)×670mm(D)×652mm(H)
675mm(W)×670mm(D)×652mm(H)
(cabinet height 350mm)
Machine 103kg
Base 12kg
10Y430Y
15 seconds (A4, same size)
Max. 250 mm×350 mm
1288
mm
(W)×655mm(D)×652mm(H)
675
mm
(W)×655mm(D)×652mm(H)
(cabinet height 350
Machine 96kg
Base 12kg
DP-31E / DP-31S
11.8 dots/mm (300 dpi)
mm
)
14
• Specifications
Display panel
DP-43E/DP-33E/DP-31E DP-43S/DP-33S/DP-31S
320×240 dots, full dot matrix
LCD with Touch Panel (pressure
sensitive) input capabilities.
240×64 dots, full dot matrix LCD
Chap.1 x Specifications
Input
Strength
LCD
Recommended
viewing angle
range
Editing Functions
Other standard functions
※ Specifications are subject to change without notice.
Trimming
Makeup
Photograph Mode, Reversing,
Masking, Outline Type, Halftones,
Background Designs, Reversing
Background Designs, Mask Area
Exchange, Addtional Makeup
• OK monitor (graphical display,
Kanji characters/illustration
display)
• Memory ( 3 channels)
• Confidential Safeguard Function
• Entry of different number of
prints or sets
• Special function
• Fine start mode
By fingertip or special pen
Able to withstand maximum 29.4N (3kgf), a pplied
perpendicularly to the tablet surface for 1 minute
Recommended operating temperature: 0Y4 40Y
Vertical: up to 30Y above/below perpendicular
Horizontal: up to 30Y to either side of perpendicular
• OK monitor (graphical display,
Kanji characters/illustration
display)
• Memory ( 2 channels)
• Confidential Safeguard Function
• Entry of different number of
prints or sets
• Special function
• Fine start mode
• Option specifications
DUPRINTER DP-43E/DP-33E/DP-31E/DP-43S/DP-33S/DP-31S
Options
PC interface kit
※ Specifications are subject to change without notice.
ADF (Automatic Document Feeder)
Drum unit ,A4 Drum(DP-43E/S)
Keycard counter (built-in type)
Tape cluster
Sorter
PC interface kit
The printer driver must be installed in the PC.
• Compatible with Windows95 / Windows98
• Macintosh compatibility
(System 7.1 or later, MAC OS or later)
I/F board in main unit (on-line set III board unit)
SCSI cable (4 m)
15
Chap.1 c Dimensions
cDimensions
103
DP-43E/S
DP-33E/S,31E/S
85
490(DP-43E/S)
675(DP-43E/S)
478(DP-33E/S,31E/S)
653(DP-33E/S,31E/S)
437
135
533(DP-43E/S)
513(DP-33E/S,31E/S)
1002
962
350
215 620 453
1288
(mm)
16
vMechanism
The machine carries out the processes of “platemaking” and “printing.”
Platemaking
In the “platemaking” process, the old master on the drum is removed while the
thermal head creates the scanned image on the new master and transfers it onto the
drum.
Chap.1 v Mechanism
Printing
In the “printing” process, paper separated from the stack by the paper feed roller and
the paper separator unit is pressed against the drum unit by the press roller. There are
small holes over only the image area of the master that is attached to the drum, and ink
that seeps from these holes is transferred to the paper. The paper is then peeled from
the master by the paper stripper finger and the top blow fan. The paper is directed onto
the paper ejection belt by a fan unit and discharged from the machine.
Drum unit
Paper stripper
finger
Top blow fan
Paper
Feeder roller
Ink
Press roller
Paper separator unit
17
Paper ejection belt
Fan unit
Chap.1 b Master
bMaster
1) Characteristics of the master
(1) Structure of the thermal master
(2) Functions and materials of the layers
Coated surface …… Prevents the film from fusing, being damaged due to friction,being peeled,
and being conveyed defectively due to electric static charge.
Material: silicon fluorine mold lubricant
Thermal film …… Holes are made by the heat of the thermal head.
Material: Polyethylene terephthalate (polyester)
Adhesive ………… 1] Adheres the film to the base.
2] Does not prevent ink from seeping.
3] Increases impression endurance.
Base ……………… 1] Base material for the master. Fibrous layer
2] Ink seeps the base.
(3) Cross section of the master during platemaking
Holes are made on the coated surface, thermal film and adhesive, while base fiber, base material
for the master, is left.
A part of the film fused by the thermal head is stuck to the head or banks up.
(4) Printed image
As the image consists of innumerable dots, it is taken as a continuous line through our eye.
INPORTANT :
•Precautions to be taken in dealing in the master.
(1) Do not put a heavy thing on the box in which masters are packed.
•This may damage the master and may cause defective platemaking.
(2) Do not leave the master as it is after it is taken out.
•Foreign objects are stuck to the master and this may cause defective platemaking.
(3) Keep the master from direct sunlight, too high or low temperature and too high or low humidity.
(Desirable storage temperature and humidity: 5-35 °C, 20-80%)
• If the master curls, defective plate attachment may occur.
18
Chap.1 n Ink
nInk
1) Characteristics of ink
(1) Ink for the digital printer is an emulsion type. It has a water-in-oil type structure.
(2) The surface active agent has two characteristics: hydrophilic group and lipophilic group in one molecule.
Oil and water bond together by these two characteristics as shown in the figure.
(3) Ink
(3) Ink viscosity is high at a low temperature and it is low at a high temperature. So when ink is used at a
low temperature (10°C or less), the amount of ink transferred to the paper is smaller and the print
darkness is slightly lighter.
When ink is used at a high temperature (30°C or more), the amount of ink transferred to the paper is
larger and the print darkness is slightly darker.
INPORTANT :
• Precautions to be taken in handling ink
(1) Storage environment
• When an emulsion type ink is stored at too high or low temperature for a long time, oil and water in the
ink pack may be isolated. Keep the ink from too high or low temperature (5°C or less, 35°C or more).
Also keep the ink from direct sunlight since the temperature rises sharply in the direct sunlight.
• When the water content is frozen, the water content is solidified and the bond characteristics decreases.
• When ink is stored at a high temperature, the bond characteristics decreases due to the change of the
surface conditions (surface tension, solubility). The bond characteristics also decreases due to evaporatin
of the water content.
(2) Precautions to be taken in handling the ink pack
• When the ink pack is removed from the drum unit to store, put the ink pack with its mouth up, screw
the cap firmly after expelling air from the ink tube. (If air is in the ink pack, water content is generated.)
19
Chap.1 m System Setup
mSystem Setup
The machine and its optional equipment are set up as follows:
ADF
Sorter
Dupulo Direct Print System
Personal computer
Key card counter
Drum unit
Tape cluster
Exclusive machine base
: Option
NOTE
• DDP system
Documents prepared on a personal computer can be printed on this machine. The
IPC board and PC interface kit are required to connect this machine to a personal
computer.
20
,Part Names and Their Functions
1. Machine exteriors
Chap.1 , Part Names and Their Functions
21
Chap.1 , Part Names and Their Functions
Thermal head escape lever
Master set switch
Master holder
Roll master
Paper tray
descending
switch
Lever
Scanner unit
(
Top cover
)
Paper tray descending switch
Feed pressure switching lever
Paper guide
Paper feed roller
Paper
tray
Supplemental paper tray
(Feeder tray)
Paper guide lock lever
Printing position adjustment dial
22
Chap.1 , Part Names and Their Functions
Master ejection core
Master ejection box
release lever
Jamp stands
Master ejection box lid
release lever
Master ejection box lid
Master ejection box
Paper stacker guide
Paper stopper
Drum rotator switch
Print tray
23
Chap.1 , Part Names and Their Functions
2. Sectional (structural) view of the machine
1
2A
2C
2
3
5
24
Chap.1 , Part Names and Their Functions
2B
No.
Section Name
1
Scanner section
Platemaking/Master feed/ejection section
2
Platemaking/Master feed section
2A
Master ejection section
2B
Master clump opening/closing section
2C
Paper feed section
3
Drum driving section
4
Press section
5
Paper ejection section
6
Print tray
7
Drum section
8
Description of
the Operation
86page
94page
94page
107page
109page
115page
129page
135page
142page
4
148page
Mechanism
172page
180page
180page
185page
186page
188page
192page
4
194page
4
202page
Srandard/Adjustment
212page
214page
214page
215page
217page
222page
229page
231page
233page
4
235page
4,8
6
7
25
43E00001
!091
2
3
4
5
678
EDIT
F-SET
MENU
PRINTING
1
×
Ａ４
１００％
3. Control panel
<<E type models>>
1. Keys of the control panel
Chap.1 , Part Names and Their FunctionsChap.1 , Part Names and Their Functions
e q !1 y t
1 2 3
4 5 6
7 8 9
0 C
No. Name Functions
Printing speed indicator lamp
q
“PRINTING SPEED The printing speed is adjusted with these keys.
w
ADJUSTMENT” keys
Printing position indicator The lamp for the specified printing position lights.
e
lamp
“PRINTING POSITION The printing position (vertical) is adjusted with these keys.
r
ADJUSTMENT” keys
“PLATEMAKING” key Starts platemaking.
t
“TEST PRINT” key Prints one copy. This is used to check the image position and
y
“PRINT” key Starts printing. This will not start platemaking. When the tape
u
“STOP” key Stops printing. If this key is pressed while the machine is
i
“ALL CLEAR” key Returns the control panel settings back to the standard made.
o
LCD panel Displays number of prints and other machine settings. Displays
!0
Key pad Used for entering the number of prints.
!1
“CLEAR” key Clears the display to “0”. Clears the number of prints only.
!2
!3
Input Pen Used with the Edit Functions.
!4
key Enters the number of prints and number of sets. To enter the
The lamp for the specified printing speed lights.
contrast.
cluster or ADF have been installed, platemaking will start
automatically after end of printing if the document is placed on
the ADF .
stopped, the number of copies and plates will be displayed.
Hold down for at least 0.5 second.
error messages when error is occurred.
number of prints per document after a clear, press the key.
2. LCD Panel main screen
No. Name Functions
Message Display Area Displays "PRINT" and other messages related to the operation of
q
the printer.
Paper Size This button is used to select the size of the paper for printing.
w
Enlargement/Reduction This button is used to set the enlargement/reduction ratio.
e
Photograph Mode This button is used to set the Photograph Mode and other
r
Edit This button is used to select Editing Functions.
t
F Settings This button is used to select Function modes.
y
Menu This button is used to display and manipulate the Menu Screen.
u
Status This button displays the current settings.
i
Counter Displays the number of copies remaining to be printed.
o
Number of Sets Displays the number of sets.
!0
Platemaking methods.
2726
iuo!2 !3!0wr!4
Chap.1 , Part Names and Their Functions
3. Function Mode Screen
Screen A
o Function Keys (F1-F3)
Normal key q
Page Cgange key w
Save key e
No. of Copies/No. of Sets indicator r
Paper Size indicator t
Document Mode indicator y
Enlargement/Reducation indicator u
94% indicator i
No. Name Feature
Normal key Clears the Function Mode.
q
Page Change key Changes from Screen A to Screen B and vice versa.
w
Save key Stores settings under Function keys F1 through F3.
e
No. of Copies/No. of Sets indicator
r
Paper Size indicator Indicates the Paper Size setting.
t
Document Mode indicator Indicates the Document Mode setting
y
Enlargement/Reduction indicator
u
94% indicator A black dot "•" indicates the 94% Reduction Mode is ON.
i
Function Keys (F1-F3) Allow information pertaining to enlargement/reduction, paper
o
End key Terminates Function setting operation.
!0
Clear key Clears settings stored in memory under Function Keys F1-F3.
!1
Plate Darkness indicator Indicates the Plate Darkness (contrast) setting.
!2
Print Darkness indicator Indicates the Print Darkness setting
!3
Trimming indicator A black dot "•" indicates the Trimming Mode is ON.
!4
Makeup indicator A black dot "•" indicates the Makeup Mode is ON.
!5
Book Shadow Eraser indicator
!6
Sorter indicator Indicates the Sorter Mode setting. (Indicator only functions when
!7
Multiple Printing indicator Indicates the Multiple Printing Mode setting.
!8
NORMAL
PAGE
0 ✕ 1
F 1 F 2 F 3
SAVE CLEAR
A 4
100%
✕ 94%
END
!0 End key
!1 Clear key
!2 Plate Darkness indicator
!3 Print Darkness indicator
!4 Trimming indicator
!5 Makeup indicator
!6 Book Shadow Eraser indicator
!7 Sorter indicator
!8 Multiple Printing indicator
Indicates the number of copies and sets that have been set.
Indicates the Enlargement/Reduction setting.
size, multiple printing, number of copies, makeup, etc. to be
stored in advance, and then called up as needed for printing
operations.
Pressing the Clear key returns the Function Keys to their default
settings.
A black dot "•" indicates the Book Shadow Eraser Mode is ON.
the sorter is hooked up.)
28
Screen B
Chap.1 , Part Names and Their Functions
NORMAL
PAGE
1: 1 ✕ 1
2: 2 ✕ 2
3: 3 ✕ 3
4: 4 ✕ 4
5: 5 ✕ 5
6: 6 ✕ 6
7: 7 ✕ 7
8: 8 ✕ 8
F 1 F 2 F 3
SAVE CLEAR
MODIFY
9: 9 ✕ 9
A: 10 ✕ 10
B: 11 ✕ 11
C: 12 ✕ 12
D: 13 ✕ 13
E: 14 ✕ 14
F: 15 ✕ 15
NUMBER OF PRINTS
END
!9
@0
No. Name Feature
Modify key Allows the No. of Copies/No. of Sets to be revised.
!9
Number of Prints
@0
A black dot "•" indicates that the Print Number Input Mode is
NUMBER.
29
<<S type models>>
1. Keys outside of the panel cover
Chap.1 , Part Names and Their FunctionsChap.1 , Part Names and Their Functions
No. Name Function
q “ZOOM” key Adjusts the zoom factor in 1% increments.
w “AUTO ZOOM” key Turns the auto zoom function ON.
e LCD panel Displays the number of prints and other settings. Displays error messages
when an error has occurred.
r Key pad Used for entering the number of prints.
t “TEST PRINT” key Prints one copy. This is used to check the image position and darkness.
y “PLATE MAKING” key Starts platemaking.
u “STOP” key Stops printing. If this key is pressed while the machine is stopped, the total
number of prints and plates will be displayed.
i “PRINT” key Starts printing. This will not start platemaking. Printing cannot start when
the print key lamp is red; press this key only when the lamp is blue. When
the ADF has been installed, platemaking will start automatically after the
end of printing if there is a document on the ADF.
o key Enters the number of prints and number of sets.
!0 “ALL CLEAR” key Returns the control panel settings to the standard mode settings. Press and
hold for at least 1 second.
No. Name Function
!1 “CLEAR” key Clears the display to “0”. Clears the number of prints only.
!2 Printing speed indicator lamp The lamp for the specified printing speed lights.
!3
“PRINTING SPEED ADJUSTMENT” keys
!4 “TEXT/PHOTOGRAPH” key Each press of this key switches between the text mode,
!5 “PAPER SIZE” key Selects the paper size.
!6 94% reduction LED Lit when in the x94% Reduction Mode.
!7 “94%” key Toggles the x94% reduction mode ON/OFF. When ON, 94%
!8 “PRINT SIZE” key Selects Reduction/Enlargement (standard size ➞ standard
!9 Printing position indicator lamp The lamp for the specified printing position lights.
@0
“PRINTING POSITION ADJUSTMENT” keys
The printing speed is adjusted with these keys.
photograph mode, and text/photograph mode.
reduction is applied to the selected zoom ratio.
size) percentage.
The printing position (vertical) is adjusted with these keys.
3130
Loading...
