Duplo DP-U850, DP-U620, DP-U510, DP-U650, DP-U550 Instruction Manual

INSTRUCTION MANUAL

DUPRINTER

DP-U850/U650
DP-U620/U550
DP-U520/U510

Be sure to read this manual prior to use.

Please leave this manual at the site of use for easy reference.

Introduction

Thank you for your purchase of the DUPRINTER DP-U850/U650/U620/U550/U520/U510.
To ensure safe and effi cient prolonged use of this machine, read and thoroughly understand this
manual before using this machine.
After using this manual, be sure to keep it in a handy place to reference.

● Macintosh and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and
other countries.

● Microsoft, Windows NT, Windows 2000, Windows XP and Windows Vista are trademarks of
Microsoft Corporation, registered in the U.S. and other countries.

Precautions for printing and duplicating
There are restrictions on what you may print on the printer.
Please be aware that there are some printed materials that are illegal even to possess.

1. Printed matters banned by law

● Paper money, currency, government bonds and national and local bonds cannot be
duplicated, even if they are stamped with the “sample” seal.

● Paper money, currency and bonds, etc. that are valid in foreign country cannot be duplicated.

● Unused postage stamps and postcards cannot be duplicated without governmental consent.

● Government-issued papers pertaining to stamps, liquor and sales tax laws cannot be

duplicated.

2. Printed matters that require caution

● Printed-issued securities (stocks, bills and checks, etc.), passes and tickets require caution in
duplicating unless a business is duplicating them for required number for their own business
needs.

● Government-issued passports, public- and private-issued driver’s licenses, permits, IDs,

passes, food stamps, etc. require caution in duplicating.

3. Copyrighted materials

● Books, music, artwork, prints, maps, diagrams, movies, photography, etc. are banned from
duplicating outside the limits of private home use and their related non-sale usage.

As an ENERGY STAR® Partner, we have determined that these
products meet the ENERGY STAR Guidelines for energy effi ciency.

Complies with the provisions defi ned by the regulations listed below.
EC Low Voltage Directive (2006/95/EC)
EC Electromagnetic Compatibility Directive (89/336/EEC)

PLEASE NOTE
In the interest of upgrading our products, specifi cations and other data given in this manual are
subject to change without notice. If the manual contains anything that you do not understand,
contact the dealer for clarifi cation.

i

Disposal of Old Electrical & Electronic Equipment

This symbol (the symbol of the crossed out wheeled bin) indicates that in European
countries this product should not be disposed of as household waste.

Please recycle where facilities exist by checking with your local authority or supplier for
recycling advice.

By ensuring this product is disposed of correctly through proper treatment, recovery and
recycling, you will help prevent potential negative effects on the environment and human
health.

En

Entsorgung von alten elektrischen und elektronischen Ausrüstungsteilen

Dieses Symbol (das Symbol mit dem durchgekreuzten fahrbaren Müllbehälter) zeigt an,
dass dieses Produkt in europäischen Länden nicht als Haushaltsmüll entsorgt werden
darf. Bitte informieren Sie sich bei Ihren örtlichen Behörden oder bei Ihrem Händler
hinsichtlich einer Empfehlung für die Entsorgung und führen Sie die betreffenden Teile
dort, wo solche Einrichtungen vorhanden sind, einem Recycling-Prozess zu.

Indem sie sicherstellen, dass das betreffende Produkt durch richtige Behandlung,
Rückführung und Recycling entsorgt wird, tragen Sie dazu bei, möglichen negativen
Auswirkungen auf die Umwelt und die menschliche Gesundheit vorzubeugen.

Ge

Elimination du matériel électronique et électrique usagé

Ce symbole (une poubelle marquée d’une croix) indique que dans les pays européens, ce
produit ne doit pas être éliminé comme des ordures ménagères.

Recyclez-le dans les sites adaptés qui vous seront indiqués par les autorités locales ou
renseignez-vous auprès de votre fournisseur.

En veillant à ce que ce produit soit éliminé correctement avec un traitement, une collecte
et un recyclage adaptés, vous contribuez à éviter son action nocive potentielle sur l’
environnement et la santé humaine.

Fr

Smaltimento di attrezzature elettriche ed elettroniche consumate

Questo simbolo (il simbolo della pattumiera con rotelle barrata) indica che nei paesi
europei questo prodotto non deve essere buttato nei rifiuti domestici.

Per favore smaltire in luogo addetto al riciclo, dove esistente, chiedendo informazioni alle
autorità locali o a chi fornisce consulenza a proposito.

Garantendo uno smaltimento adeguato di questo prodotto (trattamento, recupero e riciclo
corretto), aiuterete a prevenire effetti negativi sull’ambiente e sulla salute dell’uomo.

Eliminación de residuos de aparatos eléctricos y electrónicos

Este símbolo (un cubo de basura tachado) indica que en los países europeos este
producto no deberá eliminarse como si se tratara de un residuo doméstico. Solicite
asesoramiento sobre reciclaje a las autoridades locales o a su distribuidor, y siga la
normativa en materia de gestión medioambiental y reciclaje de este tipo de residuos.

Si toma las medidas pertinentes para que este producto se elimine mediante un
tratamiento, recuperación y reciclaje adecuados, contribuirá a evitar posibles efectos
negativos en el medio ambiente y la salud humana.

Sp

It

ii

iii

Notes on Safety (Please Read and Observe)

Safety Precautions

Various symbols and pictures are used in this manual and on the labels affi xed to the machine.
These symbols and pictures provide warnings and instructions to prevent danger to you or other
personnel, and to prevent damage to offi ce property.
The meanings of these symbols and pictures are explained below.

WARNING

CAUTION

<Examples of Pictorial Symbols>

Indicates a high degree of potential danger. If the warning is ignored,
death or serious injury may result.

Indicates a medium degree of potential danger. If the caution is ignored,
medium injury or damaged to property may result.

A circle with a line through it indicates a prohibited action.
The particular act prohibited is indicated by a picture inside the circle.
(In the example shown here, the prohibited act is disassembly.)

A black disc indicates an instruction, or sometimes a prohibited action.

●

The instruction itself is indicated by pictorial symbols drawn in white on
the disc. (In the example shown here, the instruction is ‘Remove the plug
from the outlet.’)

● Precautions for use

WARNING

● If the machine is used after foreign matter (metal fragments, water, or liquid) has
entered the machine, this may result in fi re or electric shock.
→ Turn the main unit’s power switch OFF, and then remove the power plug from
the outlet. Contact the sales distributor.

● If the machine is used after heat, smoke, strange smell, or other abnormality is
detected, this may result in fi re or electric shock.
→ Turn the main unit’s power switch OFF, and then remove the power plug from
the outlet. Contact the sales distributor.

● Do not insert or drop metal, fl ammable material, or other matter through the
ventilation holes into the machine interior.

→ Doing so may result in fi re or electric shock.

● Do not place fl ower vases, fl owerpots, cups, or water containers (including metal

containers) on top of the machine.
→ Fire or electric shock may result if liquid spills inside the machine.

iv

Notes on Safety (Please Read and Observe)

CAUTION

● Some paper may cause paper dust in the machine. Keep clean the machine
and suffi cient ventilation.

● Caution for Grounding (Be sure to use the supplied power cord)

WARNING

● Use only the power cord that is provided among the accessories.
Insert the power cord plug fi rmly into the socket, so that proper electrical
contact is effected.

→ Use of any other power cord could result in imperfect grounding.

If grounding is imperfect and electrical leakage occurs, fi re or electric shock
could result.

● Caution for Power Supply and Power Cord

WARNING

● Do not use a source voltage other than that specifi ed.
Do not connect two or more loads to a single outlet.

→ Doing so may result in fi re or electric shock.

● Be sure to remove dust on the power plug and/or the outlet.

Using these without removing dust may have minute electric current fl ow to the
surface due to the humidity and cause a fi re due to the heat.

→ It may cause a fi re or electric shock.

● Do not remove or insert the power plug with wet hands.
→ Doing so may result in electric shock.

● Do not damage, break, or modify the power cord.

Do not place heavy objects on, tug, or unnecessarily bend the power cord.

→ Doing so may result in fi re or electric shock.

● Remove the power plug itself, not the cord.
→ Tugging the cord may damage it (expose conductors, or cause disconnections,

etc.), resulting in fi re or electric shock.

v

Notes on Safety (Please Read and Observe)

● Prohibition of Disassembly or Modifi cation

WARNING

● Do not modify the machine.
→ Doing so may result in fi re or electric shock.

● Do not remove the rear lid, cabinet, or covers from the machine.
→ The inside of the machine contains high-voltage parts, which may cause

electric shock.

● Caution for Location

WARNING

● Do not place the machine in a humid or dusty area.
→ Doing so may result in fi re or electric shock.

● Install the machine on the optional cabinet.

● Do not use any other desks or table than optional cabinet.

● Do not place the machine on the desk.
→ If the machine is dropped or falls over, this could result in personal injury.

● Once the machine is in position, secure in place using the casters.

→ If the machine falls over, this could result in personal injury.

CAUTION

vi

● Before moving the machine, remove the power plug from the outlet.
→ If the cord is damaged, this may result in fi re or electric shock.

● Do not place the machine in an unstable position, such as on an unsteady

support or sloping area.

→ If the machine is dropped or falls over, this could result in personal injury.

Notes on Safety (Please Read and Observe)

CAUTION

● Do not place the machine in a place subject to direct sunlight or heating
equipment such as a stove.

→ It may degrade ink quality and affect printing. The machine also may

malfunction.

● Avoid placing the machine in a place subject to high or low temperature or high
humidity.

→ The paper absorbs moisture and it may cause paper jam or creasing.

● Leave the power cord unplugged when the machine is not used for a long

period.

→ Insulation may deteriorate and cause an electrical fi re.

● Cleaning

CAUTION

● Before cleaning the machine, turn off the power switch and unplug the power
cord.

→ If the machine is activated accidentally, injury may result.

● Do not use fl ammable sprays or solvents inside or near the machine.

→ Gas may accumulate inside the machine causing a fi re or explosion.

vii

Notes on Safety (Please Read and Observe)

● Notes on Ink

CAUTION

● If ink gets into eyes or mouth, immediately wash it away with water and
contact a doctor.

● If ink comes into contact to skin, immediately wash it away with soap and water.

● Keep ink away from children.

Ink pack:

● Refer to "Chapter 5 Replacing Consumables" for handling the ink pack.
“Replacing Ink Pack” → see p. 164

Storage conditions:

● Store in a cool and dry place avoiding direct sun light.
Adequate storage temperature: -5 to 40 degrees (C)

● Never put ink pack close to fi re.

viii

Notes on Safety (Please Read and Observe)

WARNING

●

Do not remove this cover. The inside of the printer contains movable cutting instruments,

contact with which could result in injury.

● Locations of Warning Labels

● Keep the WARNING and CAUTION labels clean at all times. If labels become damaged or
come off, please call our service person.

1

2

CAUTION

3

M7-T3060

4

Do NOT touch the drum or rollers
when you operate the jog switch.
Do NOT put hands inside machine
while if is operating.
Hands could get caught up
or crushed.

R8-T3010

V3M0001

5

No. Part No. Name Q'ty

Warning label
Caution label
Caution label
Warning label
Caution label

1
1
1
2
1

V3M0002

1 L1-T3060
2 M7-T3060
3 R8-T3080
4 R8-T3010
5 R8-T3040

ix

● Pictorial Symbols and Other Notations Used in This Manual

IMPORTANT

REFERENCE

Continue Page

(“xxxx”→ see p. xx )

•••

: Introduces instructions for correct operation of the machine.
If these instructions are ignored, the machine may not be able to operate at
optimum performance or may break down.

: Introduces information that is useful for operation and maintenance of the
machine, or information about the machine’s performance, etc.

: Indicates that the description of the operating sequence is continued on
the next page.

: Indicates the page number and item containing related information.

x

Function Index

The followings are a brief introduction of various functions of the machine.

Functions for Master Making

Paper Size → P.31

Sets paper size.
Nonstandard-size paper is available.

Image Mode

Sets image mode suitable for the
document.

Scan Darkness

Adjusts the density of scanning
the document.

→ P.49

→ P.45

Zoom → P.29,P.38

Enlarges or reduces the size of copy as you
want.

Darkness

Adjusts the density of the master.

Document Size

Sets the size of document to be
printed.

→ P.46

→ P.94

Preview

You can check print image before
master making on the LCD.

2in1

Prints two different documents on
one page.

90° Rotation

Rotates document on the scan
image.

→ P.54

→ P.61

→ P.71

Multiple Exposure

Prints multiple copies of the
document on one page.

Book Shadow Erasure

Erases shadows by book binding
and around of the periphery of the
document.

Edit Image

Edits the image of the document
on the preview screen.

→ P.57

→ P.66

→ P.73

xi

Document Memory

→ P.92

Ink Saving Mode

→ P. 11 2

Remakes a master of previous
image without scanning.

Document Darkness Detection

Scans the entire document and
distinguishes the brightest part of
the document.

Drum Size

Switches drum size.

→ P. 11 8

→ P.132

Pre-print → P.149

Saves ink when printing by
changing document scanning
density.

Document Misset Detection

Warns you if the document is not
placed correctly on the glass plate.

Fine Start

Makes clear and vivid prints from the
beginning of printing.

→ P.126

→ P.145

Disables counting a specifi ed number of
prints following the start of printing operation.

xii

Functions for Printing

Print Darkness

Adjusts print darkness.

Print Speed

Adjusts print speed.

Double Feed Detection

Detects double feed.

→ P.47

→ P.34

→ P.108

Print Position

Adjusts the position of the printed
image.

Paper Type

Sets mode suitable for printing
paper.

Narrow Paper

Enables printing on narrow paper.

→ P.51

→ P.106

→ P. 11 0

Replenishing Ink

Replenishes ink.

Interval Print

Performs printing at regular
intervals.

Online Mode

Makes prints using a personal
computer.

→ P. 11 4

→ P.120

→ P.128

Confi dential Safeguard

Prohibits others from printing
confi dential documents.

Batch Print/
Sequential Batch Print

Makes prints in groups.
Changes the number of prints
made from each document.

→ P. 11 6

→ P.122

Tape Cluster → P.130

Automatically separate prints into
groups with tape strips.

xiii

Optimize Print

→ P.147

Repeat Counter → P.151

Adjusts printed image to the best print
darkness by setting room temperature and
print speed.

Print Position Adjustment While Printing

Adjusts print position while printing.

→ P.153

Displays the same number of prints after
printing completes.

xiv

Other Functions

Job Setting Memory

Saves and retrieves settings when
needed.

Shortcut Settings

Retrieves frequently used functions by
touching shortcut icon at the bottom of the
main screen.

Automatic Power Off

Automatically turns off the machine when it
is not operated for a specifi ed period of time.

→ P.96

→ P.137

→ P.141

Initial Confi guration → P.134

Changes settings in Standard Mode.

Energy Save Mode

Automatically turns off the LCD when it is not
operated for a specifi ed period of time. This
reduces power consumption.

Automatic Reset

Automatically resets the machine and
returns all settings to Standard Mode.

→ P.139

→ P.143

Date & Time

Sets date and time.

LCD Reversing

Highlights the touch panel LCD in black and
white.

→ P.155

→ P.159

Buzzer

Sets buzzer ON/OFF and buzzer volume.

Information

Checks total master make count,
total print count, master roll
monitor, used master monitor, date
& time and shortcut settings.

→ P.157

→ P.161

xv

Contents

Chapter 1

Introduction
Notes on Safety (Please Read and Observe)

Safety Precautions
Locations of Warning Labels

Function Index

................................................................................

.......................................

..................................................................

.......................................................

...........................................................................

Before Use

Part Names and Their Functions

Printer Appearance

Inside of machine
Outside/Inside of print output side

Control Panel (DP-U850/U650/U620)
Main Screen

Turning Power ON/OFF

Turning Power ON
Turning Power OFF

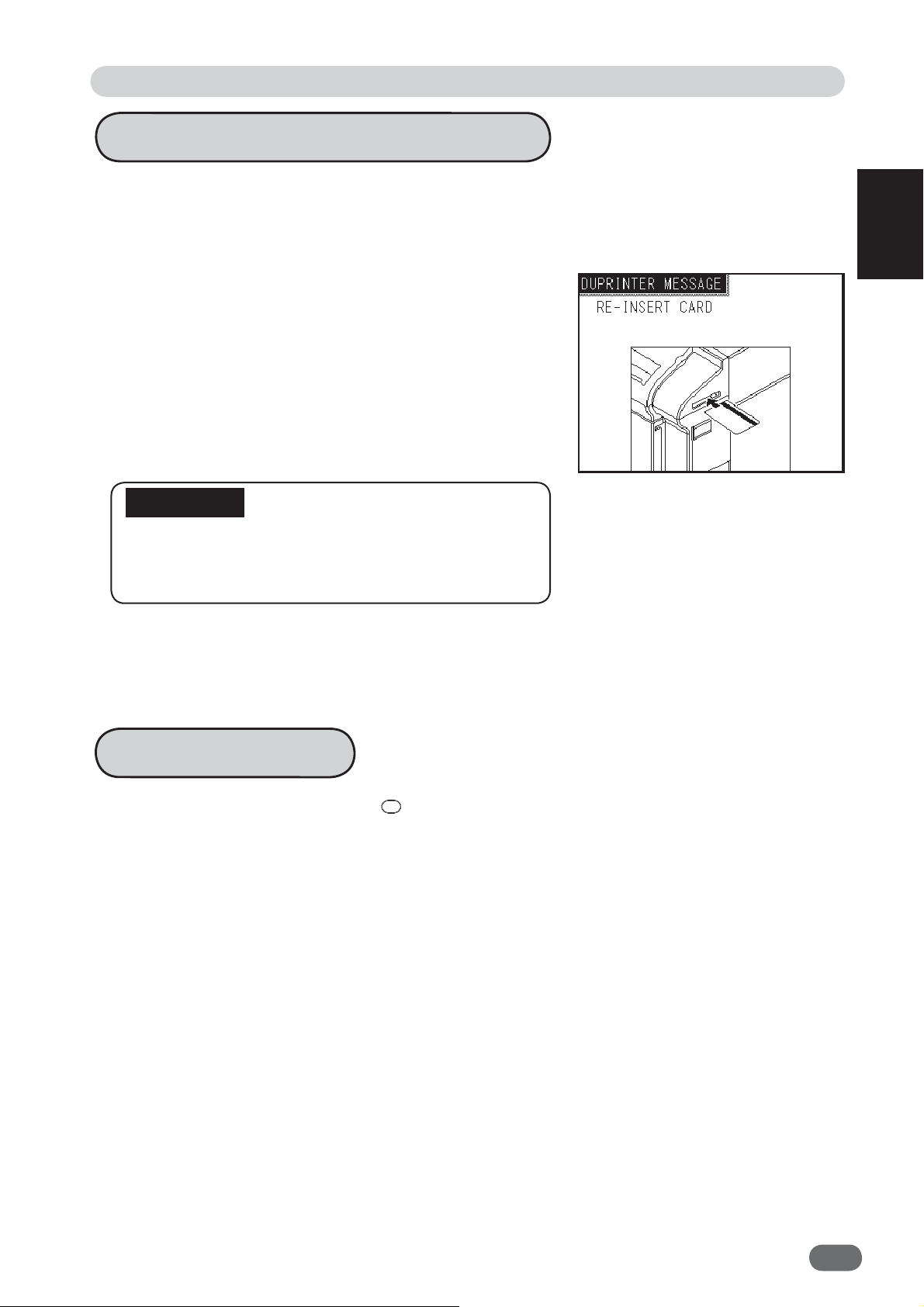

Key Card Counter (optional)
Standard Mode

Document/Printing Paper Specifi cations

Acceptable Documents
Acceptable Printing Paper

How Master Making and Printing are Performed

Master Making
Printing

.........................................................................

...............................................................................

..................................................................

.....................................................................

................................................................

..................................................................

.................................................................

......................................................................

............................................................

......................................................................

......................................................

................................................

............................................

.......................................................

..........................................

.........................................................

.................................

i

iv
iv

ix
xi

8

8
9

10
12

13
14
14
14
15
15
16
16
16
18
18
18

Chapter 2

Basic Operations

Preparing for Printing

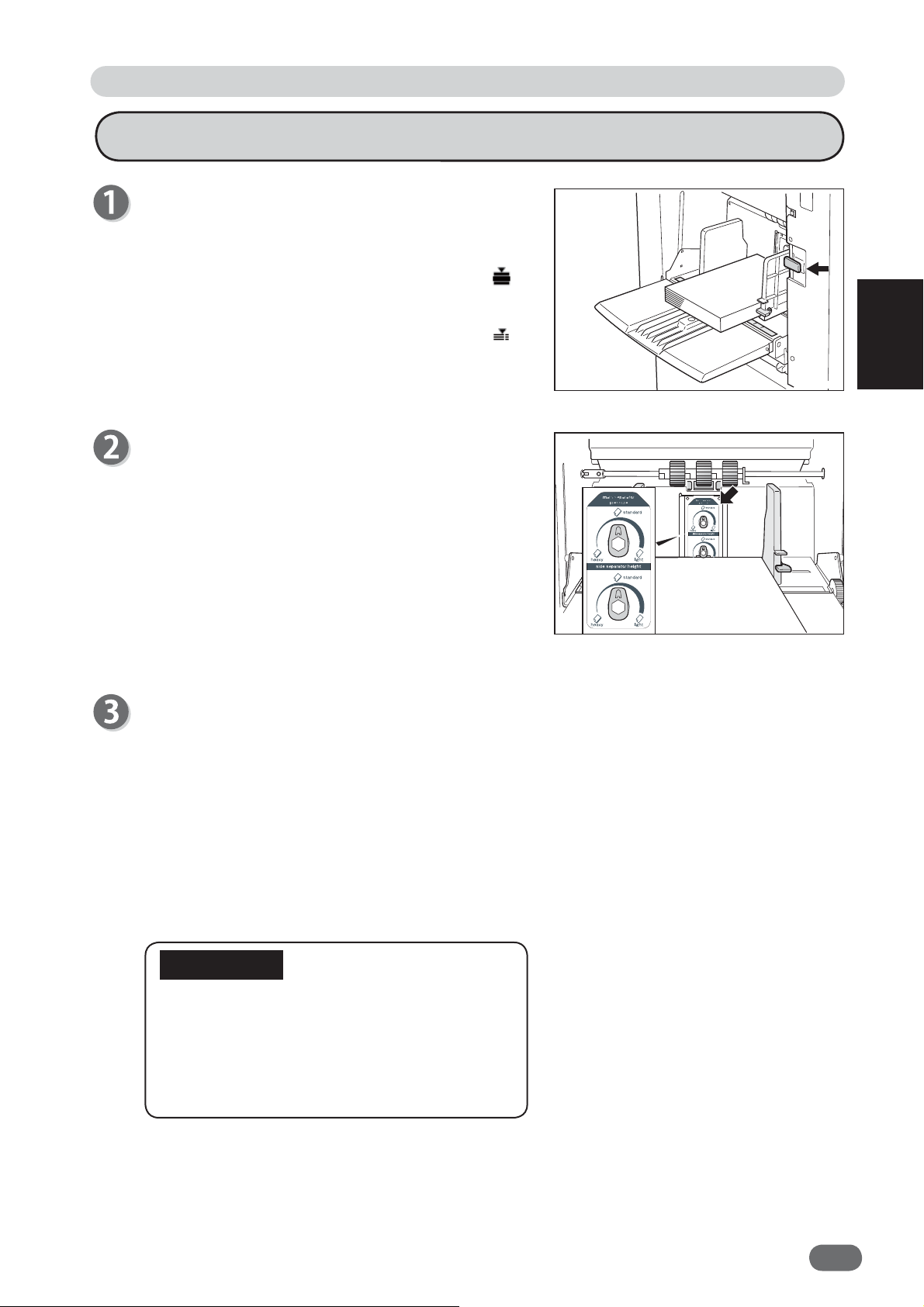

How to Set Papers
When no heavy weight paper is fed or two sheets of light weight paper are fed
How to Supply or Replace Paper While Printing
How to Set the Print Tray

Loading Documents

How to Load Document

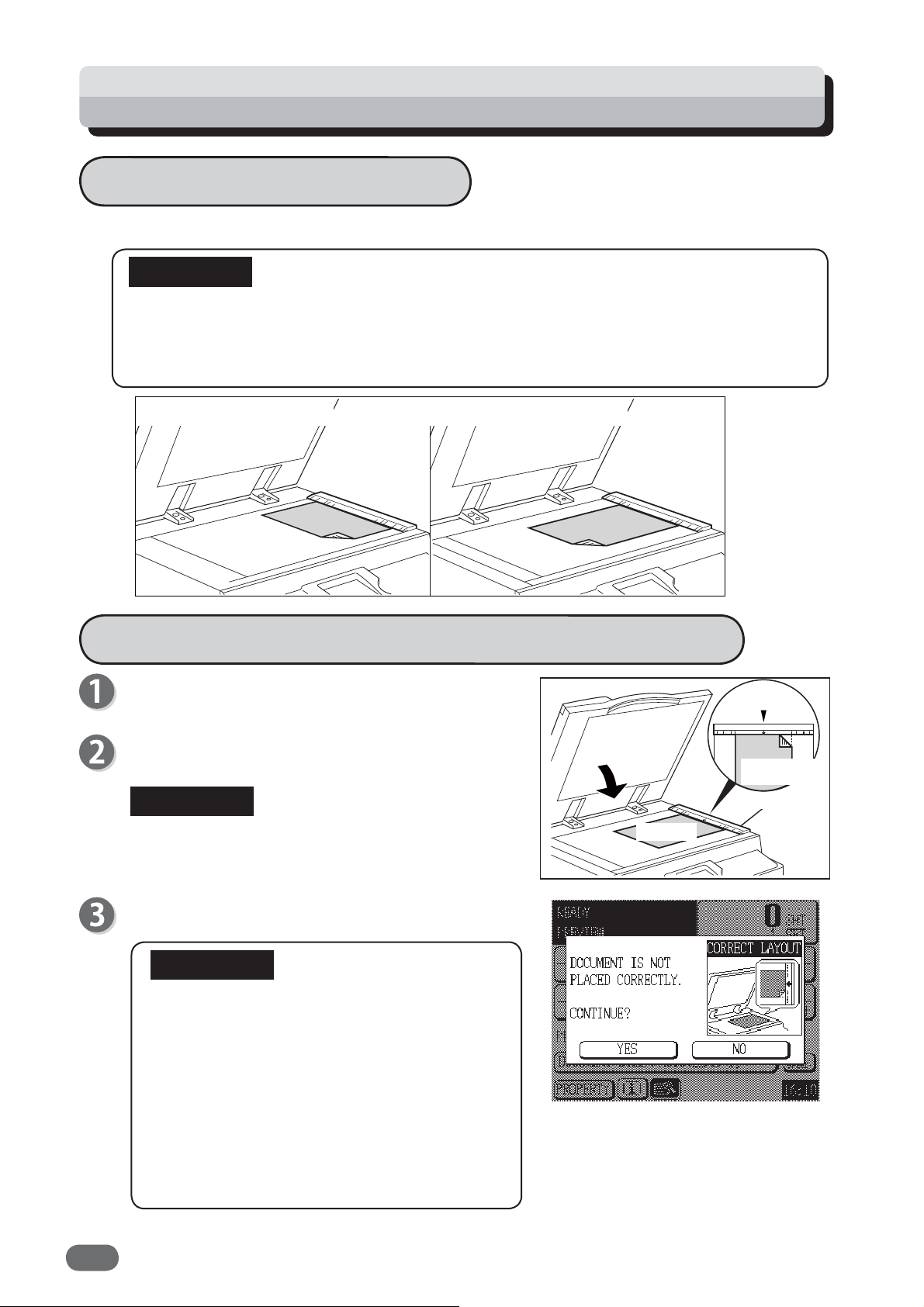

How to Load Document on the Glass Plate
Loading Document in Automatic Document Feeder (ADF)(Optional)

Basic Printing

Printing Using Basic Functions

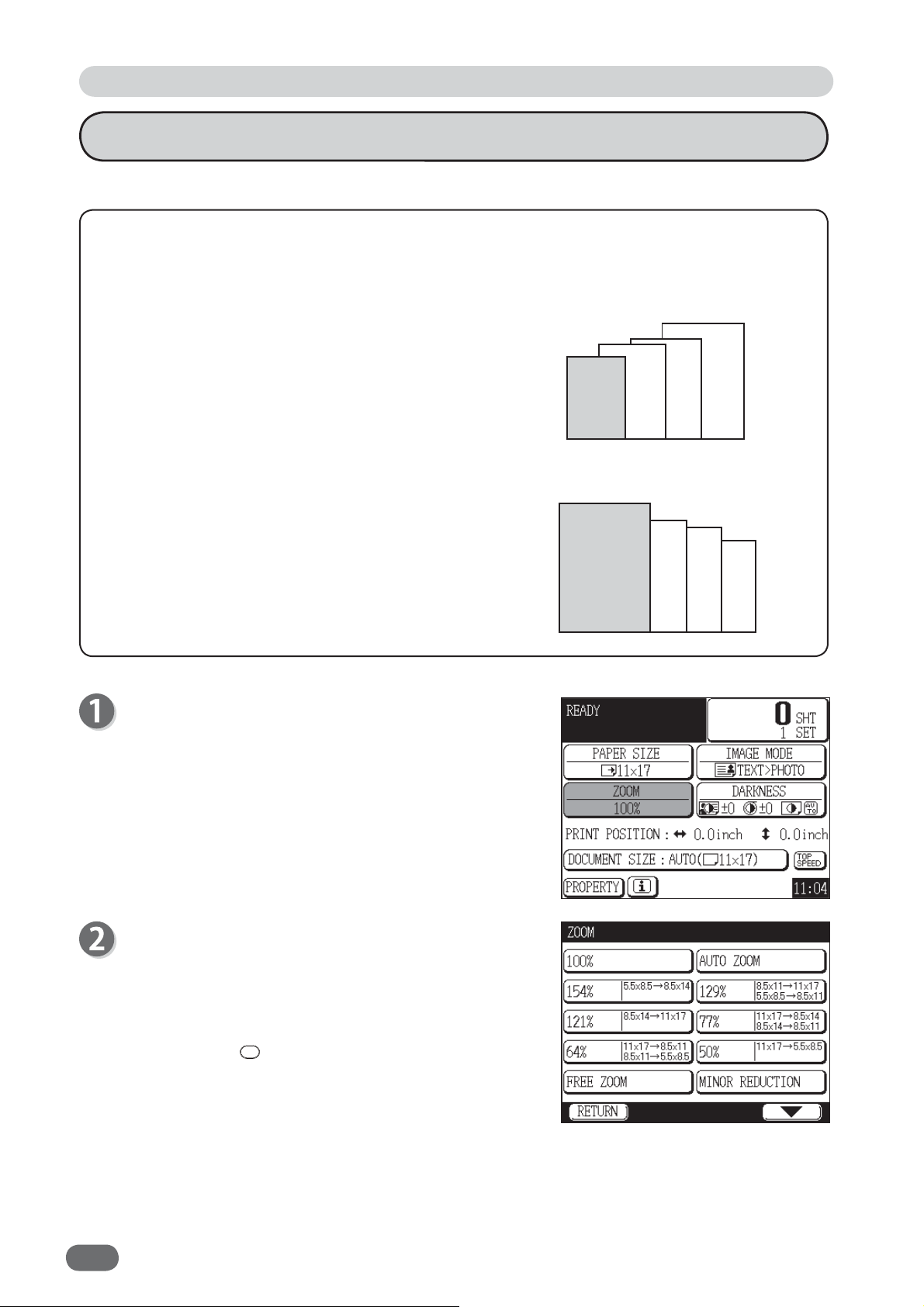

Enlargement/Reduction

Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper[European]
Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper [U.S.]

Selecting Printing Paper Size

Master Making Area by Paper Size

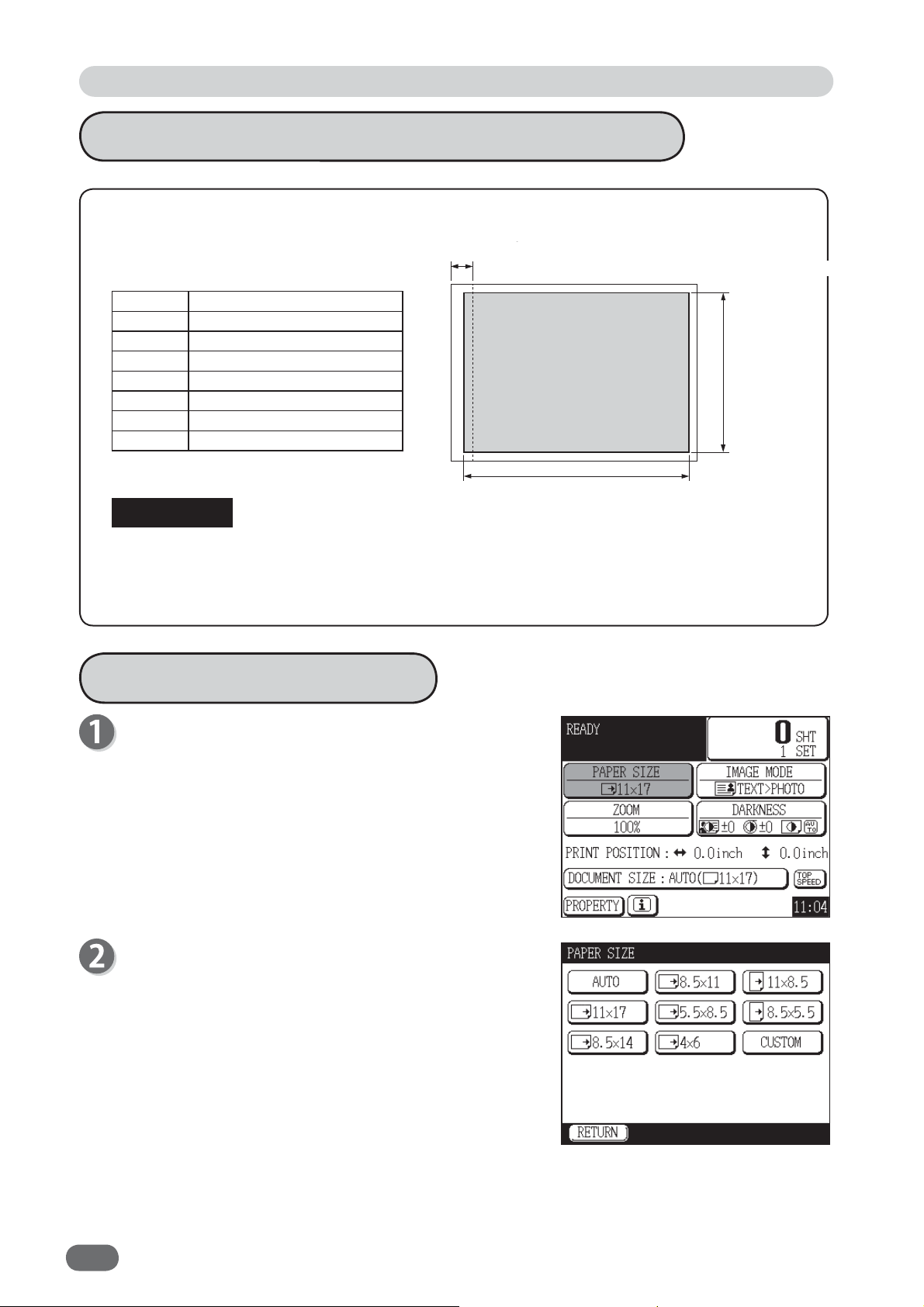

How to Set Paper Size
Master Making Area by Paper Size
How to Set Paper Size
How to Set "CUSTOM" in Paper Size Setting

Print Speed Adjustment

Print Speed Adjustment

...........................................................................

..................................................................

..................................................................

....

................................

..........................................................

....................................................................

............................................................

.....................................

........

....................................................

...............................................................

........

............

........................................................

[European]

......................................

.............................................................

.........................................

[U.S.]

.............................................................

...................................

...............................................................

............................................................

20
20
21
22
23
24
24
24
25
27
27
29
29
30
31
31
31
32
32
33
34
34

1

Contents

Chapter 3

How to Adjust Print Speed
How to Set TOP SPEED

........................................................

...........................................................

Printing with Useful Functions

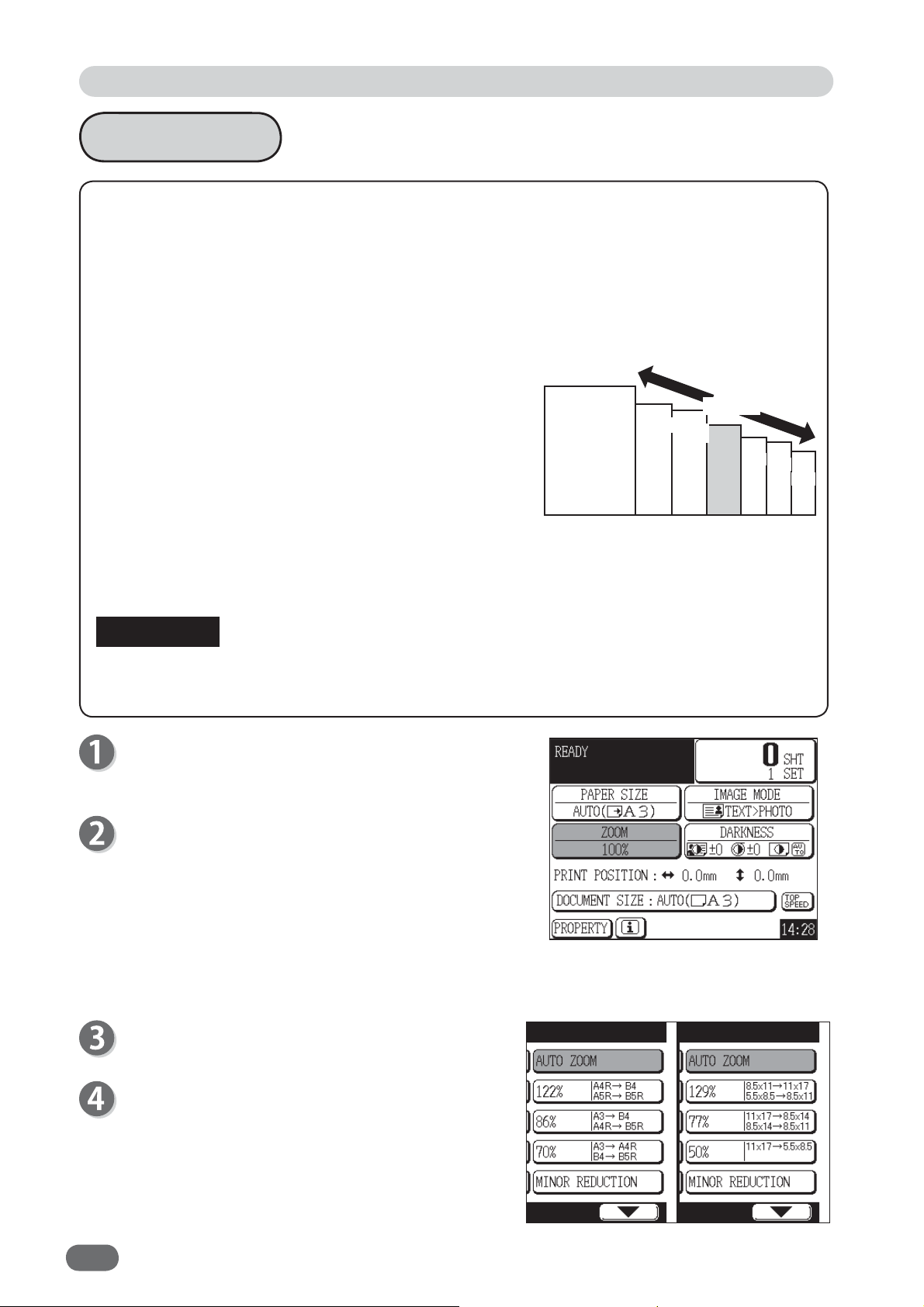

Enlargement / Reduction

Enlargement / Reduction
Minor Reduction
Auto Zoom
Free Zoom
Custom Scaling

Adjusting Darkness

Adjusting Darkness
Scan Darkness
How to Adjust Scan Darkness
Master Darkness
How to Adjust Master Darkness
Print Darkness
How to Adjust Print Darkness

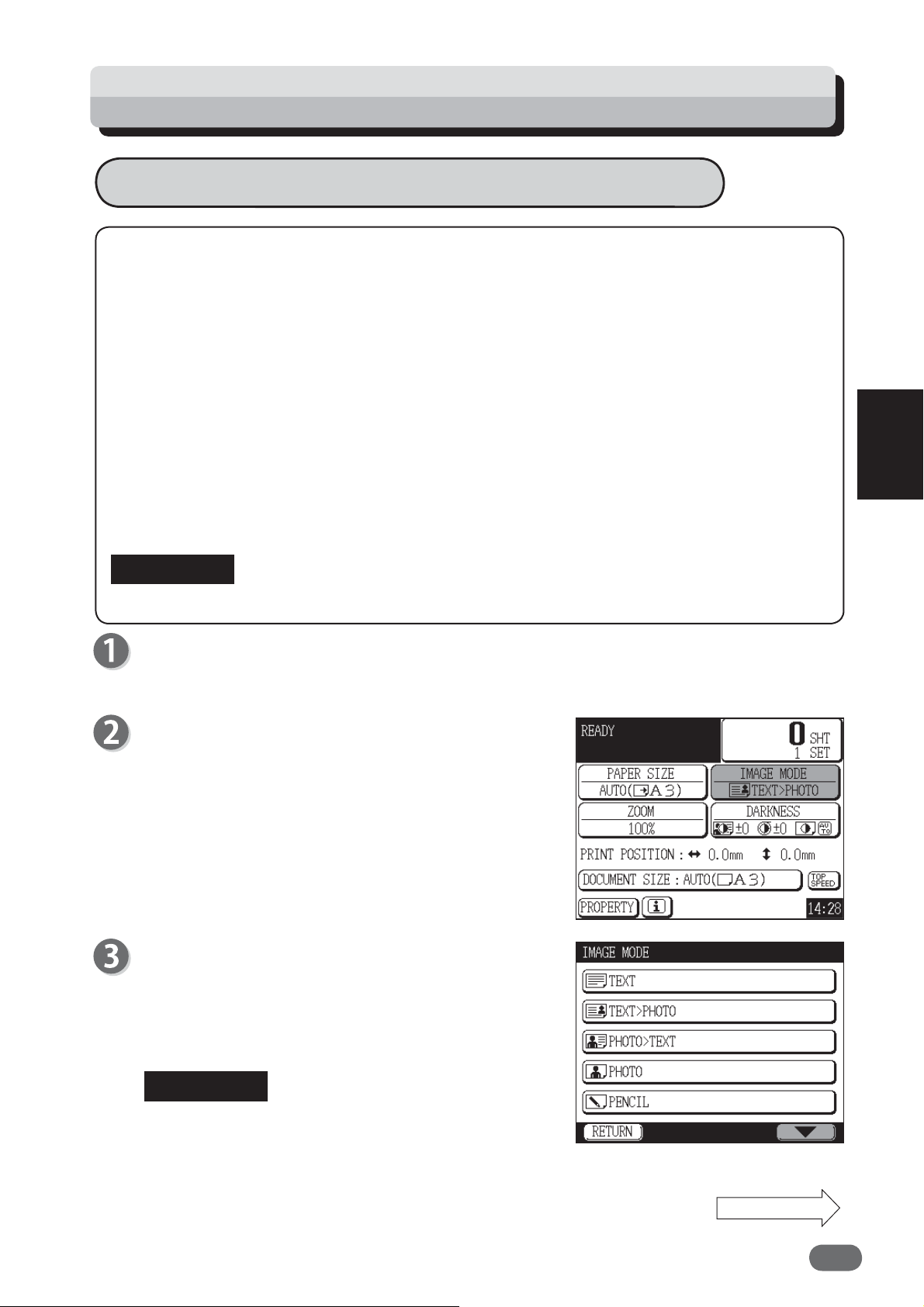

Printing Photographs and Color Documents

TEXT, TEXT>PHOTO, PHOTO>TEXT, PHOTO, PENCIL, SCREEN

Adjusting Print Position

Print Position Adjustment

...........................................................................

...........................................................................

......................................................................

......................................................................

..............................................................

..........................................................

....................................................................

.....................................................................

....................................................................

.................................................................

.....................................................

....................................................................

..................................................

.....................................................

.....................................

...............................................................

..........................................................

........

34
35

38
38
39
40
42
43
45
45
45
45
46
46
47
47
49
49
51
51

Chapter 4

Other Functions

Edit Function

Preview

Checking Document To Be Printed

Multiple Exposure

Multiple Exposure on One Page
How to Set Multiple Exposure (2, 4, 8, and 16-up)
2 IN 1
How to Set 2 IN1
Custom
How to Set Custom

Book Shadow Erasure

Book Shadow Erasure
Area of Shadow Erasure
How to Set Book Shadow Erasure

90° Rotation

90° Rotation
How to Set 90° Rotation

Edit Image

Edit Image
Make Up
How to Set Make Up
ADD MAKE UP,SWITCH ERASE AREA,NEW MAKE UP
Trimming
How to Set Trimming

................................................................................

...............................................

....................................................................

..................................................

.................................................................................

....................................................................

...............................................................................

.................................................................

...............................................................

.............................................................

...........................................................

...............................................

............................................................................

.........................................................................

...........................................................

..............................................................................

...........................................................................

.............................................................................

...............................................................

.............................................................................

...............................................................

.............................

.....................

54
54
57
57
59
61
62
64
64
66
66
67
68
71
71
71
73
73
73
74
85
89
89

2

Document Memory

Document Memory
How to Set Document Memory

Document Size

Document Size
How to Set Document Size
How to Set “Custom” in Document Size

Special Function

Job Setting Memory

JOB Setting Memory
Retrieving Settings
Clearing Settings

Paper Type

Paper Type
How to Set Paper Type

Double Feed Detection

Double Feed Detection
How to Set Double Feed Detection

Narrow Paper

Narrow Paper
How to Set Narrow Paper

Ink Saving Mode

Ink Saving Mode
How to Set Ink Saving Mode

Replenish Ink

Replenishing Ink
How to Replenish Ink

Confi dential Safeguard

Confi dential Safeguard
How to Set Confi dential Safeguard

Document Darkness Detection

Document Darkness Detection
How to Set Document Darkness Detection

Interval Print

Interval Print
How to Set Interval Print

Batch Print Sequential Batch Print

How to Set Batch Print / Sequential Batch Print
How to Enter Batch Print / Sequential Batch Print
Separating Prints with Tape Strips(Available only with Tape Cluster Unit)

Document Misset Detection

Document Misset Detection
How to Set Document Misset Detection

Peripheral Function

Online Mode

Making Prints Using Personal Computer
How to Set Online Mode
How to Cancel Reprint When in Manual Setting

Tape Cluster

Using Tape Cluster
How to Set Tape Cluster Mode

............................................................................

..........................................................................

..........................................................................

...................................................................

.................................................................

...................................................

........................................................................

......................................................................

........................................................

.........................................

..................................................................

...............................................................

................................................................

...................................................................

.........................................................................

...........................................................

...........................................................................

............................................................

..............................................

.........................................................................

......................................................................

.........................................................

.....................................................................

...................................................................

.....................................................

........................................................................

...................................................................

..............................................................

..........................................................................

............................................................

..............................................

...................................................

...................................................

.....................................

........................................................................

..........................................................

..............................................

...............................

.............................

.......................................................

......................................................

........................................

......................................

..........................................................

...............................

.........................................................................

................................................................

...................................................

Contents

101
104
106
106
106

108
108
108

110
110
110
112
112
112
114
114
114

116
116
116
118
118
118

120
120
120
122
123
124

...........

125
126
126
126

128
128
128
129
130
130
130

92
92
92
94
94
94
95

96
96

3

Contents

Drum Size

Drum Size
How to Set Drum Size

Setting Function

Initial Confi guration

Initial Confi guration
How to Set Initial Confi guration

Shortcut Setting

Shortcut Setting

Energy Save Mode

Energy Save Mode
How to Set Energy Save Mode

Automatic Power OFF

Automatic Power OFF
How to Set Automatic Power OFF

Automatic Reset

Automatic Reset
How to Set Automatic Reset

Fine Start

Fine Start
How to Set Fine Start

Optimize Print

Optimize Print
How to Set Optimize Print

Pre-print

Pre-print
How to Set Pre-print

Repeat Counter

Repeat Counter
How to Set Repeat Counter

Print Position Adjustmen

Print Position Adjustment While Printing
How to Set Print Position Adjustment While Printing

Date & Time

Date & Time
How to Set Date & Time

Buzzer

Buzzer
How to Set Buzzer

LCD Reversing

LCD Reversing
How to Set LCD Reversing

Information

Information
How to Confi rm Information

...........................................................................

..........................................................................

............................................................

................................................................

...............................................................

.................................................

....................................................................

...................................................................

.................................................................

...............................................................

.................................................

.............................................................

............................................................

..............................................

....................................................................

..................................................................

.....................................................

.............................................................................

..........................................................................

............................................................

.......................................................................

.....................................................................

.......................................................

..............................................................................

............................................................................

..............................................................

.....................................................................

...................................................................

.....................................................

(While Printing)

......................................

.........................................................................

.......................................................................

.........................................................

................................................................................

..............................................................................

................................................................

......................................................................

....................................................................

......................................................

..........................................................................

.........................................................................

.....................................................

....................................

.........................

132
132
132

134
134
134
137
137
139
139
139
141
141
141
143
143
143
145
145
145
147
147
147
149
149
149
151
151
151
153
153
153
155
155
155
157
157
157
159
159
159
161
161
161

Chapter 5

4

Replacing Consumables

Replacing Ink Pack

Replacing Ink Pack
How to Replace Ink Pack

...................................................................

...............................................................

........................................................

164
164
164

Contents

Chapter 6

Replacing Roll Master

Replacing Roll Master
How to Replace Roll Master

How to Dispose of Used Masters

How to Dispose of Used Masters

Replacing Drum Unit

Replacing Drum Unit
How to Remove Drum Unit
How to Set Drum Unit

Replacing Separator Unit

Replacing Separator Unit

Replacing Side Separator Unit

Replacing Side Separator Unit

................................................................

............................................................

.....................................................

...................................................

................................................

..................................................................

..............................................................

.......................................................

.............................................................

............................................................

.........................................................

.....................................................

..................................................

Troubleshooting

If Trouble Occurs

If Trouble Occurs

When Messages Appear
Supplying Paper While Printing

If Paper Runs Out During Printing
Supplying Paper While Printing
Changing Paper Size

Paper Jams

Paper Jam on the Feeder Side (Feed Tray)
Paper Jam on the Ejection Side (Print Tray Side)
Paper Adhering to Drum

When “MASTER EJECTION ERROR” is Displayed

Removing the Master Adhering to the Drum

When Master Setting Error Has Occurred

How to Remove the Master

When “SET MASTER ROLL PROPERLY” is Displayed

How to Set the Master Roll

......................................................................

...................................................................

..............................................................

....................................................

...............................................

..................................................

..............................................................

.............................................................................

....................................

.............................

..........................................................

.............................

...................................

........................................

......................................................

.......................................................

........................

166
166
166
169
169
171
171
171
172
174
174
175
175

178
178
179
182
182
182
183
185
185
186
187
189
189
192
192
193
193

Chapter 7

Chapter 8

Chapter 9

Daily Maintenance

Daily Maintenance

.....................................................................

Specifi cations / Information

Specifi cations
Information on Replacing Battery

..........................................................................

..................................................

Appendix

.....................................................................................

Index

196

198
202

204

5

Chapter

1

1

Before Use

This chapter contains essential information such as the names of the machine
parts, the names and functions of keys, etc., on the control panel, and the sizes
of documents and printing papers that you can use. Please be sure to read this
chapter carefully before attempting to use the printer.

Before Use

Part Names and Their Functions ..…………………………………………………… 8

Printer Appearance ...…………………………………………………………… 8
Inside of Machine ...…...………………………………………………………… 9
Outside/Inside of print output side…….……………………………………… 10

Control Panel ........…………………………………………………………….. 12

Main Screen ...……...………………………………………………….........… 13

Turning Power ON/OFF .………………………………………………………………14

Turning Power ON ...……………………………………………………………14

Turning Power OFF .....…………………………………………………………14

Key Card Counter (optional) ..…………………………………………………15

Standard Mode .…………………………………………………………………15

Document/Printing Paper Specifi cations ...…………………………………………16

Acceptable Documents .……..…………………………………………………16
Acceptable Printing Paper ..……………………………………………………16

How Master Making and Printing are Performed ..…………………………………18

Master Making ..…………………………………………………………………18

Printing ...…………………………………………………………………………18

Part Names and Their Functions

Printer Appearance

11

10

12

3

4

1

2

13

9

5

7

No. Name Function Reference

1 Scanner cover Keeps the document in contact with the document glass plate. 24
2 Glass The document is placed on this glass. 24
3 Feed tray descend

switch
4 Feed tray Load papers on this tray. 20, 22
5 Support tray Use this when you set the large size papers. 20
6 Cabinet (Option) Place the printer on this cabinet.
7 Caster lock Locks the printer in position on the fl oor. Always lock the

8 Front cover Open to replace ink pack and drum unit, etc.

9 Control panel Displays operations and status, and sets functions.

10 Scanner button Press to open the scanner unit.

11 Connector (PC) Use to connect a PC. *It varies by confi guration.

USB port

12
13 Scale Put the document along this scale.

Press to lower the feed tray.

*It varies by confi guration. -

caster locks when installing the printer.

Use to connect a USB fl ash drive. * It varies by confi guration.

8

6

V3M0101

22, 182,

183, 185

-

164, 171,

189

12

166, 192,

193

-

-

24

8

Inside of machine

Inside of the master cover area.

Master cover

Roll master

Cutter

V3M0104

15

Part Names and Their Functions

22

Drum release lever

1

1

Before Use

Paper feed rollers

Ink pack

16

17

18

20
21

19

No. Name Function Reference

Drum removal

14

button
Master cover

15

open lever
Feed pressure

16

adjuster lever
Separation

17

pressure adjuster
knob

Side separator

18

height adjuster
knob

19 Side guide Slide to match the width of the paper. 20

Side guide lever Adjusts the side guides to paper size.

20

Feed tray hori-

21

zontal registration
adjuster dial

22

Scanner unit Open to set the roll master.

Pressing this button rotates the drum and stops it in position
to be removed. And then LED lights up.

Press to open the master cover. Used when replacing the
master, etc.

Adjusts paper feed pressure according to paper thickness. 21

Adjusts separation pressure according to paper thickness. 21

Adjusts side separator height according to paper thickness.

Use to adjust the print position (horizontal).
*For DP-U550/U520/U510 only.

V3M0102

Ink holder

14

V3M0103

171, 189

166, 193

21

20

52

166, 192,

193

9

Part Names and Their Functions

Outside/Inside of print output side

Master ejection section

28

23

24

25

V3M0105

27

V3M0106

26

No. Name Function Reference

Master ejection

23

box open button

24 Paper eject switch

25 Power switch Press to switch the power ON and OFF. 14

Master ejection

26

box cover open

lever

Master ejection

27

core

Master ejection

28

box cover

Press to open the master ejection box.

Press and hold to rotate the drum for the set time.
Use to remove paper jams, etc.

Press to open the master ejection box cover.
Use when disposing of used master, etc.

Use when disposing of used master. 169

Open when disposing of used master. 169

169, 186,

187

186,

187,188

169

10

Part Names and Their Functions

29

31

32

30

33

V3M0107

1

1

Before Use

No. Name Function Reference

29 Key card slot Slot a key card. *It varies by confi guration. 15
30 Print tray Holds printed papers. 23
31 Side fence Slide to match the size of printed paper. 23
32 Paper stopper Slide to match the size of printed paper. 23

Connectors

33

(Optional)

Use to connect options. -

11

Part Names and Their Functions

Control Panel (DP-U850/U650/U620)

1

2

789101112

3

2

1

4

7

C

3

6

5

9

8

×

0

＝

13 14 15 16

4

6

5

-

+

V3M0108

No. Name Function

1

Clip holder
2 Pen holder
3

RESET key

Returns setting to standard mode. Setting not stored is cleared.

4 Control keys

PRINT DARKNESS keys

Controls print darkness.

PRINT POSITION keys Controls print position (horizontal/vertical). *PRINT POSITION keys for

horizontal are not available on DP-U550/U520/U510.

PRINT SPEED keys Controls print speed.
5 ENERGY SAVE key Turns the touch panel LCD OFF.

(Reduces standby power consumption.)

6 LCD BRIGHTNESS

Controls brightness of the LCD.

ADJUST DIAL
7

LAMP Blue (lights up): Operating

Red (blinking): Error message is displayed.
Orange (blinking): Message replacing consumables is displayed.

8 LCD (touch panel) Displayes current settings such as number of printed sheet.

Touch to change settings. Displays error messages in case of error.

9

PROPERTY key Press to use special functions.

10

CLEAR key Returns the number of prints and the entered values to 0.

11 NUMERIC keys Enters the number of prints.

×

12 key Enters the number of prints and sets in batch printing/sequential

＝

batch print.

13

MASTER MAKING key Starts making a master. Master making cannot be performed during

printing. Clear the number of prints before master making.

14 PRINT key

Starts printing. Master making is not performed. Printing cannot start
when the light of the START key is red (When confi dential function is
set, when a master is not set on the drum, when error is displayed,
when the number of prints is not entered.)

15 STOP key Stops printing. When this key is pressed during making a master,

the machine stops after making a master.

TEST PRINT key

16

Prints 1 copy to check the image position and density. The machine
keeps printing while this key is pressed.

12

Part Names and Their Functions

Main Screen

● The operation status or messages appear on the touch panel LCD.

1

1

Message appears.

Paper Size
Image Mode
Zoom
Darkness

Document size

Touch when you set
various functions.

● Icon is displayed when
shortcut is set.

● The set icon is highlighted in
black and white.

Number of prints

Print position

Clock time

Before Use

The above screen is for DP-U850.

Some ions are not displayed on other models.

IMPORTANT

You can select setting by touching the touch panel LCD softly with your fi nger or the supplied
stylus pen. Please DO NOT PRESS the touch panel LCD and buttons strongly.

13

Turning Power ON/OFF

The following describes how to turn the power ON and OFF.

Turning Power ON

Connect the “female plug” of the power cord to the
“inlet”.

Connect the “male plug” of the power cord to the
“outlet”.

V3M0109

CAUTION

● Insert the power cord plug fi rmly into the
socket, so that proper electrical contact is
effected. If grounding is imperfect and
electrical leakage occurs, fi re or electric
shock could result.

Press the "I" side on the "power switch".
The model name appears on the touch panel LCD
and warm-up starts.
The printer is ready when the main screen appears
on the touch panel LCD.
"Standard Mode" is set for each function.
(“Standard Mode” → see p.15.)

Turning Power OFF

Male plug of

the power

supply cord

Outlet

V3M0110

V3M0111

14

Press the "O" side on the "power switch".
The printer is turned off and the panel display goes
out.

V3M0112

Turning Power ON/OFF

Key Card Counter (optional)

You can control the number of master making and printed sheets of individual and each
department.
Please read the Instruction Manual of the Key Card Counter for the details.

1

1

The message "RE-INSERT CARD" is displayed on the touch
panel LCD.
Insert a key card in the key card slot.

The printer is ready to print when the main screen appears
on the touch panel LCD.
"Standard Mode" is set for each function.

IMPORTANT

● Do not bend the key card and/or do not get it dirty.

● Do not bring magnetism close to the key card counter.

● Do not slot anything other than key card in the slot.

Before Use

Standard Mode

When the power is turned ON or the RESET key is pressed, the functions are set to
Standard Mode.
Standard Mode settings are as follows:
If default settings are changed, the settings are the changed ones.

Print quantity : 0
Paper size : Auto (DP-U850/U650/U620), A3 (DP-U550), B4 (DP-U520), Legal (DP-U510)
Zoom : 100%
Master darkness : ±0
Scan darkness : ±0
Image mode : TEXT > PHOTO
Document size : Auto (DP-U850/U650/U620), Off (DP-U550/U520/U510)
Print position : 0.0mm
Print darkness : ±0
Print speed : Speed 3
Ink saving mode : OFF

15

Document/Printing Paper Specifi cations

Acceptable Documents

Document glass plate

●

Documents and books not exceeding 10kg
Document Size : 297mm × 432mm (max.)

Automatic document feeder (ADF) (optional)

●

Document weight : 64gsm - 128gsm
Document size : 297mm × 432mm (max.)
100mm × 148mm (min.)
Stacking capacity in document tray : 100 sheets (64gsm), 85 sheets (80gsm)

IMPORTANT

● The following types of document cannot be used :
* Documents with large fi le-binding holes

* Documents with staples or paper clips attached
* Documents with markedly curling ends/sides, or marked folds
* Documents with tears or rough edge
* Chemically treated documents with such as thermal paper and carbon paper, etc.
* Highly transparent documents such as OHP fi lm and tracing paper, etc.
* Documents which surface is slippery such as art paper and coated paper, etc.
* Documents with correction fl uid and glue, etc.
* Documents with smaller pieces of glued paper

● Always use documents of the same size. If you load documents in different length, the
printer may not operate correctly.

Acceptable Printing Paper

● Feed tray / Print tray

* Paper weight : 45gsm - 210gsm
* Paper size : 297mm × 432mm (max. ) (The main unit can feed up to “320mm×450mm”.)
100mm × 148mm (min.)
* Paper stacking capacity : 297mm × 432mm (max. )
100mm × 148mm (min.)
(The main unit can feed up to “320mm×450mm”.)

1500 sheets may not be loaded depending on paper condition such as paper type, etc.

Recycled paper of 100% recycled pulp with different basis weight can be used.

16

Document / Printing Paper Specifi cations

IMPORTANT

The following types of paper cannot be used.

* Documents with large fi le-binding holes
* Documents with staples or paper clips attached
* Documents with markedly curling ends/sides, or marked folds
* Documents with tears or rough edge
* Chemically treated documents with such as thermal paper, carbon paper, and
stickers, etc.
* Highly transparent documents such as OHP fi lm and tracing paper, etc.
* Documents with correction fl uid and glue, etc.
* Documents with smaller pieces of glued paper

1

1

Before Use

17

How Master Making and Printing are Performed

This machine has two main processes, 'Master Making" and "Printing".

Master Making

In the “master making” process, the old master on the drum is removed while the thermal head
creates the scanned image on the new master and transfers it onto the drum.

Roll master

Thermal head

Master ejection box

Drum
unit

V3M0113

Printing

In the “printing” process, paper is separated from the stack by the feeder roller and paper
separator unit is pressed against the drum unit by the press roller. There are small holes over
only the image area of the master that is attached to the drum, and ink that seeps from these
holes is transferred to the paper. The paper is then peeled from the master by the paper
stripper fi nger and the top blow fan. The paper is directed onto the paper ejection belt by a fan
unit and discharged from the machine.

18

Paper

Feeder roller

Paper sepatator unit

Drum unit

Ink

Press roller

Paper stripper fi nger

Top blow fan

Paper ejection belt

Fun unit

V3M0114

Chapter

2

Basic Operations

This chapter describes basic operations such as basic printing, how to set a
document and how to enlarge/reduce the size of copy, etc.

Preparing for printing

How to Set Papers
When no heavy weight paper is fed or two sheets of light weight paper are fed
How to Supply or Replace Paper While Printing
How to Set the Print Tray

Loading Documents

How to Load Document
How to Load Document on the Document Glass Plate
Loading Document in Automatic Document Feeder (ADF)(Optional)

Basic Printing

Printing Using Basic Functions

Enlargement/Reduction

Enlargement and Reduction from Standard-Size Document to Standard-Size Paper [European]
Enlargement and Reduction from Standard-Size Document to Standard-Size Paper [U.S.]

Selecting Printing Paper Size

Master Making Area by Paper Size [European]
How to Set Paper Size
Master Making Area by Paper Size [U.S.]
How to Set Paper Size
How to Set "CUSTOM" in Paper Size Setting

Print Speed Adjustment

Print Speed Adjustment
How to Adjust Print Speed
How to Set TOP SPEED

.........................................................................................................

.............................................................................................

..........................................................................................

.......

............................................

................................................................................

...............................................................................................

..................................................................................

..................................

.............

.......................................................................

.........................................................................................

..............

....................

................................................................................

.............................................

...................................................................................

.....................................................

...................................................................................

................................................

.........................................................................................

..................................................................................

..............................................................................

.................................................................................

20
20
21
22
23
24
24
24
25
27
27
29
29
30
31
31
31
32
32
33
34
34
34
35

2

Basic Operations

Preparing for Printing

How to Set Papers

Open the “support tray”.

Hold the “side guide lever” and adjust the
“side guide” according to the paper size.

V3M0201

Loosen sheets and align them.

Put the sheets between the “side guides” and push
them to the inside of the machine.

REFERENCE

About 1500 sheets of 64gsm high-quality
paper can be loaded.

IMPORTANT

1,500 sheets may not be loaded depending
on paper conditions such as paper type, etc.

A3 /A4

B4

A4
A5

B5

/

B5

R

R

V3M0202

V3M0203

20

Preparing for Printing

When no heavy weight paper is fed or two sheets of light weight paper are fed

Adjust the "feed pressure adjuster lever" to paper
thickness.

● If no paper is fed:
Adjust the "feed pressure adjuster lever" to

(heavy) by moving it upward.

● If 2 sheets are fed:
Adjust the "feed pressure adjuster lever" to

(light) by moving it downward.

Adjust the "separation pressure adjuster knob" to the
separation pressure .

● If no paper is fed:
Turn the "separation pressure adjuster knob"
"heavy”.

V3M0204

to

2

2

Basic Operations

● If 2 sheets are fed:
Turn the "separation pressure adjuster knob"
"light".

If the problem persists even after adjusting the
separation pressure with the "separation pressure
adjuster knob", adjust the side separator height with
the ”side separator height adjuster knob".

●

If no paper is fed:
Turn the “side separator height adjuster knob” to
“heavy”.

●

If 2 sheets are fed:
Turn the “side separator height adjuster knob” to
“light”.

IMPORTANT

● When you print on a postcard or heavy weight
paper, turn the "side separator height adjuster
knob" to "heavy".

● If the leading edge of the paper is scratched,
turn the "side separator height adjuster knob"

to "heavy".

to

V3M0205

21

Preparing for Printing

How to Supply or Replace Paper While Printing

If paper runs out during printing or when you replace paper, press the “feed tray descend
switch” to lower the “feed tray”.

Make sure that the machine stops.
If printing is in progress, press the STOP key.

Press the “feed tray descend switch”.
The “feed tray” is lowered for the time that the “feed
tray descend switch” is pressed.

REFERENCE

When paper runs out or papers in the feed tray are
removed, the feed tray is automatically lowered.

Follow the steps 2,3, and 4 in “How to Set Papers”
(“How to Set Papers” → see p.20)

V3M0206

IMPORTANT

● When supplying different size paper, set the
“side fences“ and “paper stopper" again.

● When supplying different quality paper,
adjust the “feed pressure adjuster lever“,
“Separation pressure adjuster knob“, and
"side separator height adjuster knob".

22

How to Set the Print Tray

The following describes how to set the print tray.

Open out the “print tray”.

Open out the “side fences”.

Preparing for Printing

V3M0207

2

2

Basic Operations

Open out the “paper stopper”.

Grasp the “knobs” on the “side fences” and adjust
the position according to the paper size.
Adjust the “SET LINE” according to the paper size.

Grasp the “knobs” on the “paper stopper” and
adjust the position according to the paper size.
Adjust the “SET LINE” according to the paper size.

SET LI NE

V3M0208

V3M0209

SET
LIN E

B4 A3

R

B5

A4

R

B4

V3M0210

23

Loading Documents

How to Load Document

The document can be loaded in the “portrait” or landscape” position.

IMPORTANT

● A4, B5, and A5-size documents can be loaded in the “portrait” or landscape” position.

●

Use the

standard-size paper, such as A4 to A3.

● A3 and B4 documents can only be loaded in the portrait position.

portrait

position when enlarging or reducing from standard-size documents to

●ヨコ置き ●タテ置き

● Landscape (Lateral) Placement
(to paper feed direction)

● Portrait (Vertical) Placement
(to paper feed direction)

V3M0211

How to Load Document on the Glass Plate

Gently open the “scanner cover”.

Place the “document face down” on the document
glass plate, aligned with the guide (scale).

REFERENCE

When you load a non standard-size document,
place it with the center of the document aligned
with the arrow on the guide (scale).

Document

Arrow

Printing face
down

Scale

V3M0212

24

Gently close the “scanner cover”.

IMPORTANT

● When you place a thick document such as a
book on the document glass plate, take care
not to force the scanner cover as this may
damage the document glass plate with a risk
of personal injury.

● Turn the power switch ON before placing a
document. If not, the machine cannot
recognize the document size correctly.

● If the document is not aligned with the center of

the guide (scale), a message is displayed on
the touch panel LCD. Set the document again.

Loading Documents

Loading Document in Automatic Document Feeder (ADF)(Optional)

Load documents that consist of sheets to be printed in the ADF. When one or more documents
are loaded in the ADF, master making and printing are automatically repeated until the docu­ment tray is empty.

IMPORTANT

● ADF mode is automatically selected when a document is loaded in the ADF.
The ADF then takes priority over the document glass plate in the master making process.

2

● Document with smaller pieces of glued paper cannot be used.

The document can be loaded in the “portrait” or landscape” position.

IMPORTANT

● A4, B5, and A5-size documents can be loaded in the “portrait” or landscape” position.

● Use portrait position when enlarging or reducing from standard-size documents to
standard-size paper, such as A4 to A3.

● A3 and B4 documents can only be loaded in the portrait position.

2

Basic Operations

● Book Shadow Erasure function cannot be available with the ADF.

● When AUTO ZOOM is “ON”, use the portrait position.

AUTO ZOOM may not be performed correctly when loaded in the landscape.

●Landscape(Lateral)Placement

● ●

ヨコ置き

(to paper feed direction)

●Portrait(Vertical)Placement

タテ置き

(to paper feed direction)

AA

Align the “document guides” with the marks for the
size of document to be loaded in the ADF.

Document size

V3M0213

Document Guides

V3M0214

Continue Page....

25

Loading Documents

Place the “document face up” in the document tray.
Master making starts with the top document in the
tray.

IMPORTANT

Do not attempt to remove or add to the
documents in the document tray while master
making and printing are in progress.

Document Tray

Printing
face up

Document

V3M0215

26

Basic Printing

Printing Using Basic Functions

Press the “I” side on the “power switch”.
→ P14 "Turning Power ON/OFF"

REFERENCE

● When the power is already turned on, press the
RESET key. If the last-entered setting remains,
press the RESET key. The setting returns to
Standard Mode.

2

Basic Operations

Load paper.
“Preparing for Printing” → see p.20

Load the document.
“Loading Documents” → see p.24

Set the “print tray”.
“How to Set the Print Tray” → see p.23

Make sure that main screen appears on the touch panel
LCD.

Set functions.

V3M0216

Press the MASTER MAKING key.
When the master has been made, one test print is
automatically made.

IMPORTANT

● The test print is for verifi cation purposes only
and may be fainter than the fi nal print.

REFERENCE

You can enter the number of desired prints before
pressing the MASTER MAKING key to immediately
print the required number of copies.

V3M0230

Continue Page....

27

Basic Printing

Check the printing fi nish such as print position and
print darkness, etc.

Use the NUMERIC keys to enter the “number of prints”.

REFERENCE

● You can specify up to 9999 prints.

● If you want to change the “number of prints“, press

the CLEAR key and then enter the correct number.

Press the PRINT key.
The print run starts and the count displayed on the
touch panel LCD is decremented by one for each print
made. The printed pages are output to the “print
tray”.

1 2 3

4 5 6

7 8 9

C

0

V3M0218

REFERENCE

● When you want to stop a print run, press the
STOP key. To restart the print run, press the
PRINT key again.

When you want to print multiple documents, repeat step 3 to 10.

V3M0228

28

Enlargement/Reduction

Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper

[European]

You can enlarge or reduce the size of the copy to the desired size from standard-size documents
to standard-size paper.

● Enlargement
You can make a copy that is enlarged from
standard-size document to standard-size paper.

141% A4R→A3/B5R→B4/A5R→A4R/A5→A4
122% A4R→B4/A5R→B5R/A5→B5
115% B4 →A3/B5R→A4R/B5→A4

● Reduction
You can make a copy that is reduced from
standard-size document to standard-size paper.

86% A3→B4 /A4R→B5R/A4→B5
81% B4→A4R/B5R→A5R/B5→A5
70% A3→A4R/B4 →B5R /A4R→A5R/A4→A5

Touch “ZOOM”.
A list of zoom ratio is displayed on the touch panel
LCD.

2

141%

122%

115%

A

A

A

A

V3M0220

86%

81%

70%

A

A

A

A

V3M0229

Basic Operations

Touch the zoom you want to set.
Zoom is set and the main screen is redisplayed.

REFERENCE

● To return to 100%:
* Touch “ZOOM” and touch “100%”.
* Press the
In this case, all settings are reset to Standard
Mode.

* Auto Zoom function is not available on

DP-U550/U520/U510.

RESET key.

29

Enlargement/Reduction

Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper

[US]

You can enlarge or reduce the size of the copy to the desired size from standard-size documents
to standard-size paper.

● Enlargement

141%

You can make a copy that is enlarged from
standard-size document to standard-size paper.

154% 5.5×8.5→8.5×14
129%

8.5×11→11×17/5.5×14→8.5×11

121% 8.5×14→11×17

● Reduction
You can make a copy that is reduced from
standard-size document to standard-size paper.

77% 11×17→8.5×14/8.5×14→8.5×11
74% 11×17→8.5×14
64% 11×17→8.5×11/8.5×11→5.5×8.5

121%

115%

A

A

77%

122%

129%

A

141%

A

V3M0220

74%

64%

Touch “ZOOM”.
A list of zoom ratio is displayed on the touch panel
LCD.

Touch the zoom you want to set.
Zoom is set and the main screen is redisplayed.

● To return to100%:

●

Touch “ZOOM” and touch “100%”.

●

Press the RESET key.
In this case, all settings are reset to Standard
Mode.

A

A

A

A

V3M0229

30

* Auto Zoom function is not available on

DP-U550/U520/U510.

Selecting Printing Paper Size

Master Making Area by Paper Size

The following shows the image size that can be scanned for master making.

About 8 mm cannot be printed.

約 8 ㎜はプリントできません。これを先端余白といいます。

This margin is defi ned as top margin.

Paper Size

A3 293 mm 413 mm
A4R 206 mm 290 mm
A4 293 mm 203 mm
B4 253 mm 357 mm
A5R 206 mm 141 mm
A5 144 mm 203 mm
B5R 253 mm 175 mm
B5 178 mm 250 mm

IMPORTANT

● When you do not select a paper size and print to a smaller paper, the internal
parts of the machine and the print may be soiled.

● You will not obtain the correct layout when you start multiple printing with a

wrong-sized paper selected.

A (±1%) × B (±1%)

[European]

B

2

Basic Operations

A

V3M0224

How to Set Paper Size

Touch “PAPER SIZE”.
A list of paper sizes is displayed on the touch panel
LCD.

Touch the paper size you want to set.
Paper size is set, and the main screen is redisplayed.

* Auto Zoom function is not available on
DP-U550/U520/U510.

31

Selecting Printing Paper Size

Master Making Area by Paper Size

The following shows the image size that can be scanned for master making.

About 8 mm cannot be printed.

約 8 ㎜はプリントできません。これを先端余白といいます。

This margin is defi ned as top margin.

Paper Size

LDG 273 mm 426 mm
LT(R) 210 mm 273 mm
LT 273 mm 210 mm
LGL 210 mm 350 mm
MAX 291 mm 414 mm
ST(R) 134 mm 210 mm
ST 210 mm 134 mm

A (±1%) × B (±1%)

[U.S.]

B

IMPORTANT

● When you do not select a paper size and print to a smaller paper, the internal
parts of the machine and the print may be soiled.

● You will not obtain the correct layout when you start multiple printing with a

wrong-sized paper selected.

A

V3M0224

How to Set Paper Size

Touch “PAPER SIZE”.
A list of paper sizes is displayed on the touch panel
LCD.

Touch the paper size you want to set.
Paper size is set, and the main screen is
redisplayed.

32

* Auto Zoom function is not available on
DP-U550/U520/U510.

Selecting Printing Paper Size

How to Set "CUSTOM" in Paper Size Setting

Proceed with steps 1 to 5 of the sequence described
in "Basic Printing".
(“Basic Printing” → see p.27)

Touch "PAPER SIZE".

Touch "CUSTOM".

2

2

Basic Operations

Up to 3 custom sizes can be stored.

Specify the sizes for A and B.
Touching "+" increments the value.
Touching "-" decrements the value.
The value can be entered using the NUMERIC keys.

Touch "OK".

33

Print Speed Adjustment

Print Speed Adjustment

Print speed can be adjusted in 5 steps between 45 pages per minute and 130 pages per
minute, and TOP speed (150 sheets per minute). The default setting when the power is turned
ON is about 100 pages per minute (standard speed). However, when default settings have
been changed in Initial Confi guration setting, the print speed is currently set print speed.

IMPORTANT

RESTRICTIONS in TOP SPEED
Use size B4 or smaller.
Paper stacking performance may deteriorate when using thin paper.
Print position performance may deteriorate slightly.
Some paper may cause wrinkles.

REFERENCE

● Paper jam may occur more frequently and the paper stacking may deteriorate at high and

low speeds with certain types of paper and with certain image. Use the LOW or HIGH key
to select the optimum print speed.

● You can adjust the print speed while the machine is printing.

How to Adjust Print Speed

Press the LOW (left cursor) or HIGH (right cursor)
key to adjust the speed.

Press the HIGH key to decelerate printing.
The speed lamp moves to the right.

Press the LOW key to accelerate printing.
The speed lamp moves to the left.

REFERENCE

● To return to default setting (about 100 pages per minute):

●

Press the LOW or HIGH key repeatedly until the speed lamp

moves to the center.

●

After pressing the STOP key, press the RESET key.
In this case, all settings are reset to Standard Mode.
However, when default settings have been changed in Initial
Confi guration setting, the print speed is the currently set print
speed.

V3M0225

V3M0226

V3M0227

34

How to Set TOP SPEED

Touch ”TOP SPEED”.

A message appears on the touch panel LCD.
If you select “YES”, use the paper according to the re­strictions below. If the paper to be used does not meet
the restrictions, select “NO”.

Print Speed Adjustment

2

2

Basic Operations

IMPORTANT

RESTRICTIONS in TOP SPEED

●

Use size B4 or smaller.

●

Paper stacking performance may deteriorate

when using thin paper.

●

Print position performance may deteriorate

slightly.

●

Some paper may cause wrinkles.

REFERENCE

● To return to default setting (about 100 pages per minute):

●

Press the LOW or HIGH key repeatedly until the speed

lamp moves to the center.

●

After pressing the STOP key, press the RESET key.
In this case, all settings are reset to standard mode.
However, when default settings have been changed in Initial
Confi guration setting, the print speed is the currently set print
speed.

When TOP SPEED is valid, the speed lamp blinks at the
position of speed 5.

35

Chapter

3

Printing with Useful Functions

This chapter describes how to make prints using various useful functions.

3

Printing with Useful Functions

Enlargement / Reduction

Enlargement / Reduction
Minor Reduction
Auto Zoom
Free Zoom
Custom Scaling

Adjusting Darkness

Adjusting Darkness
Scan Darkness
How to Adjust Scan Darkness
Master Darkness
How to Adjust Master Darkness
Print Darkness
How to Adjust Print Darkness

Printing Photographs and Color Documents

TEXT, TEXT>PHOTO, PHOTO>TEXT, PHOTO, PENCIL, SCREEN

Adjusting Print Position

Print Position Adjustment

................................................................................

................................................................................

....................................................................

...............................................................

..........................................................................

..........................................................................

...........................................................................

......................................................................

...........................................................................

.........................................................

.........................................................................

.......................................................

............................................................................

..........................................................

..................................................

......................................................................

..............................................................

..........

38
38
39
40
42
43
45
45
45
45
46
46
47
47
49
49
51
51

Enlargement / Reduction

Enlargement / Reduction

You can enlarge or reduce the size of the copy to the desired size.

A4 document A4 printout

● Minor Reduction → page 39
You can make a copy that is slightly smaller
(90 - 99%) than the original document.

A

(90 - 99%)

(90 - 99%)

A

V3M0301

● Auto Zoom → page age 40
You can have the machine automatically set the
zoom ratio from the document size and the selected
paper size.
* Auto Zoom is not available on the DP-U550/U520/U510.

● Free Zoom → page 42
You can enlarge or reduce the size of the copy in 1%
increments between 50% and 500%.

● Custom Scaling → page 43
You can enlarge or reduce the size of the copy in
1% increments between 50% and 500% in
vertical/horizontal direction.

141%

141%

122%

122%

[129%]

A

A

500%

Document

A

Vertical direction

500%

Document

115%

115%

[121%]

A

A

Document

86%

[77%]

A

86%

A

[ ]:U.S.

81%

81%

70%

[74%]

70%

[64%]

A

V3M0302

50%

A

V3M0303

50%

A

%05%005

%05%005

38

A

A

Horizontal direction

500%

Document

A

A

A

V3M0304

A

V3M0305

50%

%05%005

Minor Reduction

Enlargement / Reduction

The copy is printed at 90 - 99% size of the document.
Minor reduction is used when you want to make a binding
margin or the document has text or illustrations in
non-master making area.

IMPORTANT

Select “MINOR REDUCTION” before master making.

Proceed with steps 1 to 5 of the sequence
described in “Basic Printing”.
“Basic Printing” → see p.27

Touch “ZOOM”.
A list of zoom ratios is displayed on the touch panel
LCD.

Touch “MINOR REDUCTION”.

A4 document A4 printout

(90~99%)

(90~99%)

A

A

V3M0301

3

Printing with Useful Functions

Touch “ON” and set zoom between 90% and 99%.
Touching “+” increments the value.
Touching “-” decrements the value.

The value can be also entered using the NUMERIC
keys.

Touch “OK”.
The zoom ratio is set and the display returns to the
main screen.

REFERENCE

To reset to 100%:

● Touch “MINOR REDUCTION” again and touch “OFF”, and then touch “OK”.

● Press the

RESET key. In this case, all settings are reset to Standard Mode.

39

Enlargement / Reduction

Auto Zoom

* Auto Zoom function is not available on the DP-U550/U520/U510.

The machine automatically selects the optimum zoom ratio and proceeds with master making
and printing when you load the document to be copied.
The auto zoom ratio is automatically selected from the following preset ratios (50% - 500%).

●European

200% A5R→A3
173% A5R→B4
163% B5R→A3
141% A4R→A3/B5R→B4/

A5R→A4R/A5→A4
122% A4R→B4/A5R→B5R/A5→B5
115% B4→A3/B5R→A4R/B5→A4

●U.S.

154% 5.5×8.5→8.5×14
129% 8.5×11→11×17/5.5×14→8.5×11
121% 8.5×14→11×17

86% A3→B4/A4R→B5R/A4→B5
81% B4→A4R/B5R→A5R/B5→A5
70% A3→A4R/B4→B5R/A4R→A5R/

A4→A5
61% A3→B5R
57% B4→A5R
50% A3→A5R

141%

A

122%

[129% ]

A

115%

[121% ]

A

77% 11×17→8.5×14/8.5×14→8.5×11
64% 11×17→8.5×11/8.5×11→5.5×8.5
50% 11×17→5.5×8.5

Document

86%

[77% ]

A

[ ]: U.S.

A

81%

[74% ]

A

V3M0302

70%

[64% ]

A

IMPORTANT

● Select “AUTO ZOOM” before starting master making.

● You cannot set document size OFF at the same time as Auto Zoom.

Proceed with steps 1 to 5 of the sequence
described in “Basic Printing”.
“Basic Printing” → see p.27

Touch “ZOOM”.
A list of zoom ratios is displayed on the touch panel
LCD.

Touch “AUTO ZOOM”.

●U.S.●European

40

“AUTO ZOOM” is set and the display returns to the
main screen.

Load paper.
“Preparing for Printing” → see p.20

IMPORTANT

● If you are using the DP-U550/U520/U510:
* Always set the sizes of printing paper and
document to be used.
You cannot obtain the correct zoom ratio
if you set wrong size.
* The machine cannot detect the size
correctly if the document is positioned as
shown on the right.

Enlargement / Reduction

* Place document centrally positioned
against the scale.

・原稿を目盛板の中央に合わせて置く。

Scale

Document

・原稿を目盛板から離して置く。

* Edge of paper not touching scale

* Document not positioned centrally

・原稿を目盛板の中央に合わせていない。

against the scale.

REFERENCE

● To reset to 100%:
* Touch “ZOOM” and then touch “100%”.
* Press the
In this case, all settings are reset to Standard Mode.

RESET key.

3

Printing with Useful Functions

Document

Document

V3M0306

Start master making and printing.

* Auto Zoom function is not available on the DP-U550/U520/U510.

41

Enlargement / Reduction

Free Zoom

You can set a zoom ratio between 50 % and 500% in

1% steps.

IMPORTANT

●

Select “FREE ZOOM” before starting master making.

Proceed with steps 1 to 5 of the sequence
described in “Basic Printing”.
“Basic Printing” → see p.27

Touch “ZOOM”.
A list of zoom ratios is displayed on the touch panel
LCD.

A

A

Document

A

V3M0303

%05%005

Touch “FREE ZOOM”.

Set zoom ratio between 50% and 500%.
Touching “+” increments the value.
Touching “-” decrements the value.
The value can be also entered using the NUMERIC
keys.

Touch “OK”.
“FREE ZOOM” is set and the display returns to the
main screen.

REFERENCE

42

● To reset to 100%:
* Touch “ZOOM” and then touch 100%.
* Press the

IMPORTANT

●

Text and lines may appear jagged at high zoom ratios.

RESET key. In this case, all settings are reset to Standard Mode.

Custom Scaling

Enlargement / Reduction

You can enlarge or reduce the size of the copy in
1% increments between 50% and 500% in
vertical/horizontal direction.

IMPORTANT

Set “CUSTOM SCALING” before starting master
making.

Proceed with steps 1 to 5 of the sequence
described in “Basic Printing”.
“Basic Printing” → see p.27

Vertical direction

Document

A

Horizontal direction

A

A

Document

A

A

V3M0304

A

%05%005

%05%005

3

Printing with Useful Functions

V3M0305

Touch “ZOOM”.
A list of zoom ratios is displayed on the touch panel
LCD.

Touch the screen switch button in the lower right cor­ner of the screen.

Continue Page....

43

Enlargement / Reduction

Touch “CUSTOM SCALING”.

Set zoom ratio between 50% and 500% in A
(horizontal) and B (vertical).
Select A and set the zoom ratio using the “+” and “-” keys.
Select B and set the zoom ratio using the “+” and “-” keys.

Touching “+” increments the value.
Touching “-” decrements the value.
The values can be also entered using the
NUMERIC keys.

Touch “OK”.
Zoom ratio is set and the display returns to the main
screen.

REFERENCE

● To reset to 100%:
* Touch “ZOOM” and then touch 100%.
* Press the
In this case, all settings are reset to Standard Model.

RESET key.

IMPORTANT

● Text and lines may appear jagged at high zoom ratios.

44

Adjusting Darkness

Adjusting Darkness

If the test print made after master making is too light, adjust the print darkness. If you cannot
adjust the print darkness suffi ciently to give a satisfactory print, adjust the master darkness.

IMPORTANT

● You can print immediately after adjusting the print darkness.

● If you adjust the master darkness, you must repeat the master making process before making
prints.

● If you adjust the scan darkness, you must repeat the master making process before making
prints.

Scan Darkness

3

3

Scan darkness can be adjusted in 5 steps.
If thin line is not printed, adjust the scan darkness.
When the color of the document is light, touch “DARK”.
When the color of the document is dark, touch “LIGHT”.

IMPORTANT

● Set scan darkness before starting master making.

● Thin line may not be printed even scan darkness is adjusted.

How to Adjust Scan Darkness

Touch “DARKNESS”.

Printing with Useful Functions

Touch “DARK” if the color of the document is light.
Touch “LIGHT” if the color of the document is dark.

Touch “OK”.
Scan darkness adjusted in step 2 is set.

REFERENCE

● To reset to standard:
* Touch “DARKNESS” again and adjust scan
darkness to “±0”, and then touch “OK”.
* Press the
are reset to Standard Mode.

RESET key. In this case, all settings

45

Adjusting Darkness

Master Darkness

Master darkness can be adjusted in 5 steps.
When the color of the document is light, touch “DARK”.
When the color of the document is dark, touch “LIGHT”.

IMPORTANT

● Set master darkness before starting master making.

How to Adjust Master Darkness

Touch “DARKNESS”.

Touch “DARK” if the color of the document is light.
Touch “LIGHT” if the color of the document is dark.

Touch “OK”.
Master darkness adjusted in step 2 is set.

REFERENCE

● To reset to standard:
* Touch “DARKNESS” again and adjust master darkness to “±0”, and then touch
“OK”.
* Press the
In this case, all settings are reset to Standard Mode.

RESET key.

46

Adjusting Darkness

Print Darkness

Print darkness can be adjusted in 5 steps.
To make the print darker, touch “DARK” (increased ink transfer amount).
To make the print lighter, touch “LIGHT” (reduced ink transfer amount).

How to Adjust Print Darkness

There are 2 ways to adjust print darkness.

● Adjustment using PRINT DARKNESS keys on the control panel

Adjust print darkness using the PRINT DARKNESS
keys.

3

Printing with Useful Functions

V3M0313

Print darkness becomes darker by touching
(DARK).

V3M0314

Print darkness becomes lighter by touching
(LIGHT).

V3M0315

REFERENCE

● To reset to standard:
* Move the light of the print darkness indicating lamp to center using the PRINT
DARKNESS keys.
* Press the
However, if print darkness is changed in Initial Confi guration Mode, it returns to the one
you set.

RESET key. In this case, all settings are reset to Standard Mode.

47

Adjusting Darkness

● Adjustment on the touch panel LCD

Touch “DARKNESS”.

Touch “MANUAL”.

Touch “DARK” if the color of the document is light.
Touch “LIGHT” if the color of the document is dark.
Selecting “AUTO” automatically adjusts print
darkness depending on print speed.

IMPORTANT

Even when “PRINT DARKNESS” is set to “AUTO”,
if print darkness is adjusted using the PRINT
DARKNESS keys, the setting will be changed from
“AUTO” to “MANUAL”.

Touch “OK”.
Print darkness adjusted in step 3 is set.

REFERENCE

● To reset to standard:
* Touch “DARKNESS” again and adjust print darkness to
“±0”, and then touch “OK”.
* Press the
In this case, all settings are reset to Standard Mode.

RESET key.

48

Printing Photographs and Color Documents

TEXT, TEXT>PHOTO, PHOTO>TEXT, PHOTO, PENCIL, SCREEN

● This function includes seven modes for enhancing text and photographic documents.

Text mode : Enhances the printing of text documents.
TEXT>PHOTO : Enhances the printing of documents with both text and photographs.

Especially, suitable for documents containing more text than photographs.

PHOTO>TEXT : Enhances the printing of documents with both text and photographs.

Especially, suitable for documents containing more photographs than text.

PHOTO : Enhances the printing of the subtle gradations of photographs and light images

from color documents.

3

PENCIL : Enhances the print of penciled light-colored document.
SCREEN COARSE : Enhances the printing of non-screened photographs.
SCREEN FINE : Enhances the printing of non-screened photographs.

3

Printing with Useful Functions

IMPORTANT

Set the above settings before starting master making.

Proceed with steps 1 to 5 of the sequence
described in “Basic Printing”.
“Basic Printing” → see p.27

Touch “IMAGE MODE”.
A list of documents is displayed on the touch panel
LCD.

Select one from the list (TEXT, TEXT>PHOTO,
PHOTO>TEXT, PHOTO, PENCIL, SCREEN
COARSE, SCREEN FINE).
"IMAGE MODE" is set and the display returns to main
screen.

REFERENCE

To set “SCREEN COARSE” or “SCREEN FINE”, touch
the screen switch button in the lower right corner of
the screen.

Continue Page....

49

Printing Photographs and Color Documents

Touch either "SCREEN COARSE" or "SCREEN
FINE".
"IMAGE MODE" is set and the display returns to the
main screen.

50

Adjusting Print Position

Print Position Adjustment

After master making has fi nished, you can fi ne-tune the position of the printed image 15mm
in the vertical direction and 10mm in the horizontal direction.
DP-U850/U650/U620: Adjusts print position using PRINT POSITION keys.
DP-U550/U520/U510: Adjusts only vertical print position using PRINT POSITION keys.
(“Adjusting horizontal print position on the DP-U550/U520/U510” → see p.52)

IMPORTANT

● You cannot adjust print position while printing.

Stop the operation with the

● You can adjust print position when “PRINT POSI ADJ (p)” (Print Position Adjustment While
Printing) is “ON”. In this case, adjustment range is
horizontal. (“Print Position Adjustment (While Printing)” → See page 153.)

● When “NARROW PAPER” is “ON”, print position should be “ 0.0”.

(“Narrow Paper” → see p.110)

STOP key to adjust the position.

30 steps in vertical and 20 steps in

3

3

Printing with Useful Functions

Proceed with steps 1 to 5 of the sequence
described in “Basic Printing”.
“Basic Printing” → see p.27

Press the PRINT POSITION keys to adjust.

The print position adjustment screen is displayed on
the touch panel LCD. Each press of “CURSOR” keys
changes the print position by 0.5mm.

V3M0316

REFERENCE

Adjustment keys (cursors) are also displayed on the
touch panel LCD. Touching the CURSOR keys
adjusts print position as well as PRINT POSITION keys.
If you do not touch any PRINT POSITION key for about
5 seconds, the display returns to the main screen.

● To reset to standard:
* Press the center key of the PRINT POSITION key.
* Press the
settings are reset to Standard Mode.

RESET key. In this case, all

Continue Page....

51

Adjusting Print Position

Adjusting horizontal print position on the DP-U550/U520/U510

Turn the feed tray horizontal registration adjuster dial which is located in the
right of the feed tray to adjust print position.

Turning the dial toward you moves the feed tray to the left.

Turning the dial toward the machine moves the feed tray to
tray to the right.

V3M0311

V3M0312

52

Chapter

Other Functions

This chapter describes various functions.

4

Edit Function

Preview
Multiple Exposure

Book Shadow Erasure
90° Rotation
Edit Image

Document Memory
Document Size

Special Function

Job Setting Memory
Paper Type
Double Feed Detection
Narrow Paper
Ink Saving Mode
Replenish Ink
Confi dential Safeguard
Document Darkness Detection
Interval Print
Batch Print/Sequential Batch Print
Document Misset Detection

Peripheral Function

Online Mode
Tape Cluster
Drum Size

Setting Function

Initial Confi guration
Shortcut Setting
Energy Save Mode
Automatic Power OFF
Automatic Reset
Fine Start
Optimize Print
Pre-print
Repeat Counter
Print Position Adjustment (While Printing)
Date & Time
Buzzer
LCD Reversing
Information

..............................................................................................................

..............................................................................................

.......................................................................................

.......................................................................................................

..........................................................................................................

............................................................................................

..................................................................................................

...........................................................................................

......................................................................................................

....................................................................................

....................................................................................................

...............................................................................................

....................................................................................................

.....................................................................................

.........................................................................

.....................................................................................................

...................................................................

.............................................................................

....................................................................................................

.....................................................................................................

........................................................................................................

..........................................................................................

...............................................................................................

..........................................................................................

.....................................................................................

..............................................................................................

.........................................................................................................

..................................................................................................

...........................................................................................................

...............................................................................................

.....................................................................................................

..............................................................................................................

................................................................................................

.......................................................................................................

.......................................................

54
57

66
71
73

92
94

96
106
108

110
112
114
116

118
120
122
126

128
130
132

134
137
139
141
143
145
147
149
151
153
155
157
159
161

4

Other Functions

Edit Function: Preview

Checking Document To Be Printed

You can preview print image to be printed on the touch panel LCD before starting master
making. For example, it is convenient to check if the print image can be fi tted in the paper size
when enlarged or reduced.

Proceed with steps 1 to 5 of the sequence described
in “Basic Printing”.
(“Basic Printing” → see p.27)

Touch “PROPERTY”.

Touch “EDIT”.

Touch “PREVIEW”.

Touch “ON”.

Touch “END”.

54

REFERENCE

When “PREVIEW” is set, the “PREVIEW” icon
appears at the bottom of the main screen. When you
touch the icon, the setting screen of “PREVIEW” ap­pears and you can change the setting. However, if fi ve
shortcut icons are already displayed, the “PREVIEW”
icon will not appear.

Set a document and press the MASTER

MAKING key.

REFERENCE

When no document is placed on the glass,
“THERE IS NO DOCUMENT ON SCANNER
CONTINUE?” appears.
Touch “NO” and set a document.
Press the

The document is scanned and the scanned data is
displayed on the touch panel LCD.

IMPORTANT

Displayed data is processed to be fi tted in paper size.

MASTER MAKING key.

Edit Function: Preview

Touch "ZOOM" and then touch the center of the area
you want to zoom in. You can enlarge and check the
scanned data.

If you select ZOOM2/ZOOM3/ZOOM4, you can
select "SHIFT".
The following description is when "ZOOM2” is touched.

Touch the center of the area you want to zoom in.
The area you touched is zoomed in.

4

4

Other Functions

Continue Page....

55

Edit Function: Preview

Touch “SHIFT”.
The preview screen shifts by touching and moving
the screen.

Press the MASTER MAKING key or touch “END”.
"MAKE A NEW MASTER?” appears.

If you touch "YES", master making starts.
If you touch “NO”, the display returns to the main
screen.
If you touch "RETURN", the display returns to the pre­view screen.

56

Edit Function: Multiple Exposure

Multiple Exposure on One Page

This mode allows you to print multiple copies of the document on one page and two different
documents on one page.

● MULTIPLE EXPOSURE (2, 4, 8, and 16-up)

This mode prints multiple copies of the document on one page.

Document

Document

● 2 IN1
This mode prints two different documents
on one page.

● CUSTOM
You can make multiple exposure as you want.

2
images

4
images

Document

Document

Document

8
images

16
images

Printout

V3M0401

4

4

Other Functions

● CUT LINE
You can put a cut line on the printout.
It makes cut easy after printing.

IMPORTANT

Master making for multiple exposure requires more time than that for normal printing.

57

Edit Function: Multiple Exposure

Multiple Exposure (2, 4, 8, and 16-up)

●

This mode allows you to print 2, 4, 8, or 16 copies of the
document on one page.
If you are reducing or enlarging, refer to the right diagram
to set the zoom ratio and the orientation of the document.

REFERENCE

Zoom ratio and orientation of the document

● Copying A4 to A3 (2 prints on one page)

A3

A3
(B4)

(B4)

A4

A4
(B5)

(B5)

A6

A8
(B7)

(B7)

A5

A5
(B6)

(B6)

Lands placement
(to paper feed direction

ヨコ置き

Zoom ratio
100%

A4

A4 A4 A4

A4

A3

A3

A7

A7
(B8)

(B8)

V3M0402

A4

V3M0403

● Copying A4 to A3 (4 prints on one page)

Portrait placement
(to paper feed direction

タテ置き

A4R

A4R

Zoom ratio

倍率　70％

70%

A3

A3

A5 A5

A5

A5

A5 A5

A5

A5

V3M0404

58

Edit Function: Multiple Exposure

How to Set Multiple Exposure (2, 4, 8, and 16-up)

Proceed with steps 1 to 5 of the sequence described
in “Basic Printing”.
(“Basic Printing” → see p.27)

Touch "PROPERTY".

Touch “EDIT”.

Touch “MULTIPLE EXPOSURE”.
A list of multiple exposure appears.

Touch your preferred multiple exposure (2, 4, 8, or 16-up).
"2" is selected here.

"CUT LINE" screen appears.

If you want to put a cut line, touch "ON".
If not, touch “OFF”.
"MULTIPLE EXPOSURE” will be set.

4

4

Other Functions

REFERENCE

To return to “OFF” (standard):

● Touch “MULTIPLE EXPOSURE” and then touch
“OFF”.

● Press the
In this case, all settings will be returned to Standard
Mode.

RESET key.

Continue Page....

59

Edit Function: Multiple Exposure

Touch "END".

REFERENCE

When “MULTIPLE EXPOSURE” is set, the
“MULTIPLE EXPOSURE” icon appears at the
bottom of the main screen. When you touch the
icon, the setting screen of “MULTIPLE EXPOSURE”
appears and you can change the setting. However,
if fi ve shortcut icons are already displayed, the
“MULTIPLE EXPOSURE” icon will not appear.

60

Edit Function: Multiple Exposure

2 IN 1

Two-in-one (2 IN 1) function allows you to print two small documents on one page and also
easily print for creating booklets that will be saddle stitched. This is called “2 IN 1 layout mode”.
When you use "2 IN 1 layout mode”, the layout is as follows.

B A D C

Document
(even number)

Printout 1

Printout 2

B A D C E

Document
(odd number)

IMPORTANT

● Set "2 IN 1" before starting master making.

● If you are printing the documents at 100%, select a printing paper that is the size of the
two documents.

● When you enlarge or reduce two documents size by side, select a zoom ratio so that the
documents fi t exactly on one page.

● Note the followings when using 2-IN-1 layout mode:
* You must select a paper size and zoom ratio that will accommodate two documents.
* Correct layout may not be obtained with other than standard size papers.

Printout 1

Printout 2

Printout 3

V3M0405

4

4

Other Functions

61

Edit Function: Multiple Exposure

How to Set 2 IN1

Proceed with steps 1 to 5 of the sequence described
in “Basic Printing”.
(“Basic Printing” → see p.27)

Touch “PROPERTY”.

Touch “EDIT”.

Touch “MULTIPLE EXPOSURE”.
A list of multiple exposure appears.

Touch the screen switch button in the lower right
corner of the screen.

Touch “2 IN1”.

Select orientation on the “2 IN 1” screen.

62

Edit Function: Multiple Exposure

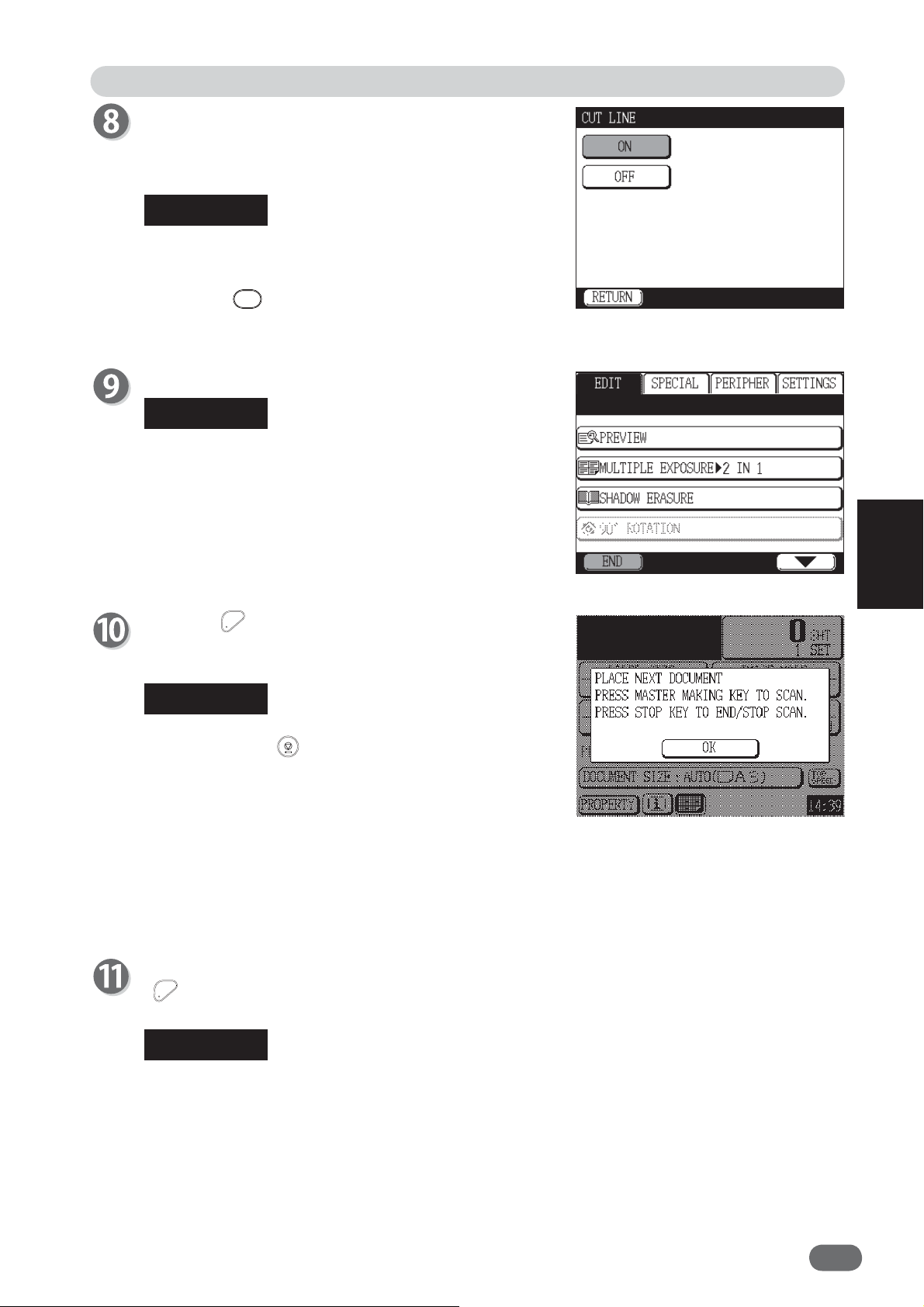

"CUT LINE" screen appears.
If you want to put a cut line, touch "ON".
If not, touch "OFF".
"MULTIPLE EXPOSURE" will be set.

REFERENCE

To return to "OFF" (standard):

● Touch "MULTIPLE EXPOSURE" and then touch
"OFF".

● Press the
In this case, all settings will be returned to Standard
Mode.

Touch "END".

REFERENCE

When “MULTIPLE EXPOSURE” is set, the
“MULTIPLE EXPOSURE” icon appears at the bottom
of the main screen. When you touch the icon, the
setting screen of “MULTIPLE EXPOSURE” appears
and you can change the setting. However, if fi ve
shortcut icons are already displayed, the "MULTIPLE
EXPOSURE" icon will not appear.

RESET key.

4

4

Press the MASTER MAKING key.
After the fi rst document is scanned, a message
appears on the touch panel LCD.

REFERENCE

● After the fi rst document is scanned, touch "OK" and
then press the
The following message appears.
END SCANNING: "2 IN 1” is performed for the fi rst
document.
STOP: Processing for the fi rst document is stopped.
RETURN: The screen returns to previous one.

● When the Automatic Document Feeder (ADF) is used,
the second document is automatically scanned.

Set the second document and press the

MASTER MAKING key.

REFERENCE

STOP key.

Other Functions

If you experience problems with the layout, check the
followings:

● Document orientation

● Document size, paper size, zoom ratio

● Orientation of "2 IN 1"

63

Edit Function: Multiple Exposure

Custom

You can specify the number to be set for multiple exposure on each side of the paper.

How to Set Custom

Proceed with steps 1 to 5 of the sequence described
in "Basic Printing".
(“Basic Printing” → see p.27)

Touch "PROPERTY".

Touch "EDIT".

Touch "MULTIPLE EXPOSURE".
A list of multiple exposure appears.

Touch the screen switch button in the lower right
corner of the screen.

64

Touch "CUSTOM".

"CUSTOM" screen appears.
Set the number to be specifi ed on each side and
touch "OK".
Touching "+" increments the value.
Touching "-" decrements the value.
The value can be also entered using the NUMERIC
keys.

REFERENCE

Edit Function: Multiple Exposure

Up to 5 can be entered for each side.

“CUT LINE” screen appears.

If you want to put a cut line, touch “ON”.
If not, touch “OFF”.
“MULTIPLE EXPOSURE” will be set.

REFERENCE

To return to “OFF” (standard):

● Touch “MULTIPLE EXPOSURE” and then touch
“OFF”.

● Press the
In this case, all settings will be returned to Standard
Mode.

Touch "END".

REFERENCE

When “MULTIPLE EXPOSURE” is set, the
“MULTIPLE EXPOSURE” icon appears at the bottom
of the main screen. When you touch the icon, the
setting screen of “MULTIPLE EXPOSURE” appears
and you can change the setting. However, if fi ve short-
cut icons are already displayed, the “MULTIPLE
EXPOSURE” icon will not appear.

RESET key.

4

4

Other Functions

65

Edit Function: Book Shadow Erasure

Book Shadow Erasure

This function erases the shadows caused by book binding when printing an open spread
from a book or other folded document. It also erases the shadow around the periphery of
the document.

REFERENCE

If print image is light, use document darkness detection function.
(“Document Darkness Detection” → see p.118)

IMPORTANT

* Select “BOOK SHADOW ERASURE” before starting
master making.
* This function is not available with the ADF (Automatic
Document Feeder) installed.
* Master making for shadow erasure requires more time
than that for normal printing.

● OFF
The shadow is erased from approximately 2mm
around the periphery of the document.

Document

O P

OFF

PO

● Center Shadow Erasure
Prints documents with 15mm center shadow erased
when printing an open spread from a book or other
folded document.

IMPORTANT

The shadow is also erased from approximately 2mm
around the periphery of the document.

● Outline Shadow Erasure
Prints documents with 6mm periphery erased when
printing an open spread from a book or other folded
document.

● Center & Outline Shadow Erasure
Prints documents with both 15mm center shadow
and 6mm periphery erased when printing an open
spread from a book or other folded document.

Document

O P

Document

O P

Document

O P

Shadow
Erasure

Shadow
Erasure

Shadow
Erasure

V3M0406

Center

PO

V3M0407

Outline

PO

V3M0408

Center & Outline

PO

66

V3M0409

Edit Function: Book Shadow Erasure

● Specify Area
Prints documents with a specifi ed area erased when
printing an open spread from a book or other folded
document. (The erasure area can be selected within
the range from 0 to 99mm.)

IMPORTANT

* If shadow erasure (0 to 99mm) is set at ANY, a slight
error sometimes occurs.
* Even if “B” or “C” is set to 2mm or less, the shadow is
erased from approximately 2mm around the periphery
of the document.

Area of Shadow Erasure

IMPORTANT

When you select “OFF”, the shadow is erased from
approximately 2mm around the periphery of the
document.

The margin at the printed leading edge is for removing
the paper from the drum.

- SPECIFY AREA ­ * Even if a numeric value smaller than 8mm is selected
at ANY, a margin of 8mm is set for this leading edge
section.
* Even if a margin (0 to 99mm) is set at ANY, a slight
error sometimes occurs.

Shadow

Document

Erasure

O P

● OFF

Approx. 8mm

約

● With shadow erasure

Specify Area
(Set A, B & C)

2mm

2㎜

2mm

2㎜

PO

BAB

V3M0410

2mm

2㎜

V3M0411

C

C

4

4

Other Functions

The shadow erasure dimensions are as the
illustrations indicate.

Approx.

約

8mm

8

6mm

15mm

15

6mm

6

6mm

6

V3M0412

67

Edit Function: Book Shadow Erasure

How to Set Book Shadow Erasure

Proceed with steps 1 to 5 of the sequence described
in “Basic Printing”.
(“Basic Printing” → see p.27)

Touch "PROPERTY".

Touch “EDIT”.

Touch “SHADOW ERASURE”.
A list of book shadow erasure appears.

Touch one item you want to set.
“CENTER” is selected here.

Touch the document size you want to set.
Book shadow erasure is not performed correctly if
document size is not selected.

REFERENCE

● DP-U850/U650/U620: Selecting “AUTO”
automatically sets document size.

● When you select “CUSTOM”, refer to “Document
Size”. (“Document Size”

● If the book you are using is thick and “AUTO” is
selected, document size may not be able to be
detected correctly. In this case, select document
size other than “AUTO”.

→ see p.95)

68

Edit Function: Book Shadow Erasure

"SHADOW ERASURE" is set.

REFERENCE

To return to “OFF” (standard):

● Touch “SHADOW ERASURE” and then touch
“OFF”.

● Press the
In this case, all settings will be returned to
Standard Mode.

Touch "END".

REFERENCE

When “SHADOW ERASURE” is set, the “SHADOW
ERASURE” icon appears at the bottom of the main
screen. When you touch the icon, the setting screen
of “SHADOW ERASURE” appears and you can
change the setting. However, if fi ve shortcut icons are
already displayed, the “SHADOW ERASURE” icon
will not appear.

RESET key.

When selecting "SPECIFY AREA" in step 5.

●

Touch the document size you want to set.
Book shadow erasure is not performed correctly if
document size is not selected.

REFERENCE

● DP-U850/U650/U620: Selecting “AUTO”
automatically sets document size.

● If the book you are using is thick and “AUTO” is
selected, document size may not be able to be
detected correctly. In this case, select document
size other than “AUTO”.

4

4

Other Functions

Continue Page....

69

Edit Function: Book Shadow Erasure

Specify the sizes for "A", "B", and "C", and then touch
"OK".

Touch “A” and specify numeric value using the “+” or
“-”.
Touching “+” widens shadow erasure area.
Touching “-” narrows shadow erasure area.
The value can be also entered using the NUMERIC
keys.
Specify the sizes for “B” and “C” in the same
procedure.

REFERENCE

You can set the sizes from 0 to 99mm.

Touch "END".

REFERENCE

When “SHADOW ERASURE” is set, the “SHADOW
ERASURE” icon appears at the bottom of the main
screen. When you touch the icon, the setting screen
of “SHADOW ERASURE” appears and you can
change the setting. However, if fi ve shortcut icons are
already displayed, the “SHADOW ERASURE” icon
will not appear.

70

Edit Function: 90° Rotation

90° Rotation

This function is for rotating documents on the digital scan image.
There are two types of 90° rotation, clockwise 90° rotation and counterclockwise 90°.
This reduces A3-size document placed in the portrait position (to paper feed direction) and
produces A4-size printout in the landscape position (to paper feed direction) by setting “ZOOM”
to AUTO/REDUCTION. A3/A4 drum is recommended to be used for 90° rotation.

REFERENCE

If original image has solid black portion, set proper rotation so that the solid black portion comes
to rear part of print.
Example: If A3-size document has solid black
portion in the right side more than the
left side, set clockwise 90° rotation.
Doing this prints out the right part of the
document on the rear part of the ejected
printout.

IMPORTANT

A3 document

A3 原稿

clockwise
90° rotation

右 90°回転

Printout

プリント

V3M0413a

4

4

Other Functions

Master making for 90° rotation requires more time than that for normal master making.

How to Set 90° Rotation

Proceed with steps 1 to 5 of the sequence described
in “Basic Printing”.
(“Basic Printing” → see p.27)

Touch "PROPERTY".

Touch "EDIT".

Touch "90°ROTATION".
A display of rotation directions appears.

Continue Page....

71

Edit Function:

Touch preferred direction on the touch panel LCD.
Clockwise 90°rotation is selected here.

"90° ROTATION" is set.

90°

Rotation

REFERENCE

To return to “OFF” (standard):

● Touch “90°ROTATION” and then touch “OFF”.

● Press the

In this case, all settings will be returned to Standard
Mode.

RESET key.

Touch "END".

REFERENCE

When “90°ROTATION” is set, the “90°ROTATION”
icon appears at the bottom of the main screen.
When you touch the icon, the setting screen of
“90°ROTATION” appears and you can change the
setting. However, if fi ve shortcut icons are already
displayed, the “90°ROTATION” icon will not appear.

72

Edit Function: Edit Image

Edit Image

This function edits the image of the document.
There are two functions, Make Up and Trimming in Edit Image.

● Make Up
Make Up function edits the image of the document with both text and photograph for fine
master making.

● Trimming
Trimming automatically zooms the specifi ed area of the document for enlarged printing and
reduced printing.

REFERENCE

Using the provided stylus pen allows you for easy operation.

Make Up

You can make a fi ne master for the document with both text and photographs by specifying the

●

area for TEXT

Edit modes

●TEXT Makes text, in specifi ed area of the document with both text and photograph,
clear with proper density for fi ne master making.

●ERASE Erases unnecessary area of the document and makes master for necessary area
only. For 2-color printing, it switches between "INSIDE" and "OUTSIDE" in the fi rst
specifi ed area by "SWITCH ERASE AREA" mode. You do not have to specify the
area again for 2-color printing.

●OUTLINE/PATTERN
OUTLINE Outlines text easily such as title or product name etc. to give a strong impression.
PATTERN Upgrades image using various kinds of pattern. You can select it from 17 types of
pattern such as hatching.

● NEGATIVE IMAGE Switches the specifi ed image to negative image to emphasize a title

such as reference letters.

IMPORTANT

ERASE●OUTLINE/PATTERN●NEGATIVE IMAGE.

4

4

Other Functions

● Each mode has edit priority. If the specifi ed area is overlapped with the area in other mode,

highest-priority edit mode is performed.

1. ERASE 2. NEGATIVE IMAGE 3. OUTLINE/PATTERN 4. TEXT

(Smaller number has higher priority.)

● These image modes are not available with the Automatic Document Feeder (ADF) installed.

73

Edit Function: Edit Image

IMPORTANT

● The table below shows if each edit mode of MAKE UP is available for each image mode for
the document.
○ :Available
:Available only for the text in the specifi ed area in MAKE UP mode.
× :Not available

IMAGE MODE

TEXT × ○ ○ ○
TEXT/PHOTO ○ ○ ○ ○
PHOTO/TEXT ○ ○ ○ ○

PHOTO ○ ○ ○

PENCIL × ○ ○ ○

SCREEN(COARSE) × ○ × ○

SCREEN(FINE) × ○ × ○

TEXT ERASE

MAKE UP edit mode

OUTLINE/PATTERN NEGATIVE IMAGE

How to Set Make Up

Proceed with steps 1 to 5 of the sequence described
in “Basic Printing”.
(“Basic Printing” → see p.27)

Touch "IMAGE MODE".
Set it to your preferred image mode.

Touch "PROPERTY".

Touch "EDIT".

Touch the screen switch button in the lower right cor­ner of the screen.

74

Touch "EDIT IMAGE".

Touch "MAKE UP".

Touch the document size you want to set.

REFERENCE

When the image is scanned with “OFF” in
"DOCUMENT SIZE", it is scanned in the set size in
"PAPER SIZE".

Edit Function: Edit Image

A message, "SCAN DOCUMENT?", appears on the
touch panel LCD.
Touch “YES”. The document will start to be scanned.
Do not turn off and on the power, or do not press the

RESET key while “SCANNING" or "PLEASE

WAIT" is displayed.

REFERENCE

● The image is scanned in TEXT mode regardless of
the setting in "IMAGE MODE".

● The image is scanned at 100% regardless of the
zoom ratio.

After scanning is completed, the right screen
appears.
The following description is when "TEXT" is touched.

4

4

Other Functions

Continue Page....

75

Edit Function: Edit Image

REFERENCE

When "OUTLINE/PATTERN" is touched:
Specify pattern using the ▲ or ▼ button. (You can also

use the NUMERIC keys.)

Specify 18/18 for OUTLINE.
Specify the number from 1/18 to 17/18 for PATTERN.
Refer to "OUTLINE/PATTERN" on page 79.

Touch “OK”.

Touch "AREA".

REFERENCE

If you want to zoom in some area, touch "ZOOM".
You can view the zoomed image and specify the area
easily.

Touch the area mode to be set.
The following description is when "BOX" is touched.

REFERENCE

● Select the area mode from BOX/POLYGON/PEN 1/
PEN 2/PEN 3/PEN 4.
If you select “BLINK” beforehand, the specifi ed area
blinks when it is fi xed. If you want to cancel blinking
in the specifi ed area, touch “AREA” and then touch
“LIGHT”.

● When "BOX" or "POLYGON" is selected and you
want to change the area mode, touch “MENU”.

Specify the area.
1 Touch the start point of the area you want to
specify.
2 Move your fi nger or the stylus pen while touching
it to move the area.
3 Remove your finger or the stylus pen from the
screen to fi x the specifi ed area.
* If you want to change the area, repeat the above
steps 1 to 3 .
4 Touch "OK".

76

5 Touch "INSIDE" or "OUTSIDE".
“INSIDE” is touched here.
If you touch “OUTSIDE”, the outside of the
specifi ed area is edited in the current mode.
(“Using AREA Function” → see p.81)

Touch "END".

REFERENCE

When you want to cancel the specifi ed area, touch
"CLEAR". The display changes as below.
If “ALL CL” is touched, all of the set area is

ALL CL

BOX

cleared.

POLYGON

If “BOX”or “POLYGON” is touched, the

PEN 1

specifi ed area is cleared.

PEN 2

If “PEN 1”, “PEN 2”, “PEN 3”, or “PEN 4” is

PEN 3

touched, the area you want to cancel is

PEN 4

cleared with the stylus pen.

Edit Function: Edit Image

4

4

Other Functions

Touch "END".
"MAKE UP" is set.

Touch "END".

Continue Page....

77

Edit Function: Edit Image

Touch "END".

REFERENCE

When "EDIT IMAGE" is set, the "EDIT IMAGE" icon
appears at the bottom of the main screen. When you
touch the icon, the setting screen of "EDIT IMAGE"
appears and you can change the setting. However, if
fi ve shortcut icons are already displayed, the
"EDIT IMAGE" icon will not appear.

Press the
Master making performed with the edited setting.

MASTER MAKING key.

78

You can select the following patterns and the outlined character.

Edit Function: Edit Image

1

2

3

4

10

11

12

13

4

4

Other Functions

5

6

7

8

14

15

16

17

9

18

79

Edit Function: Edit Image

Using ZOOM Function

●

You can zoom in the image by touching a part of the document with the stylus pen.

ZOOM1 < ZOOM2 < ZOOM3

ZOOM1 Displays whole document on the touch panel LCD.
ZOOM2 Displays the zoomed-in peripheral area of the touched position with the stylus pen.
Double zoom of ZOOM1
ZOOM3 Displays the zoomed-in peripheral area of the touched position with the stylus pen.
Quadruple zoom of ZOOM1

Touch "ZOOM".
Touch one from the list (ZOOM1/ZOOM2/ZOOM3).
The following description is when "ZOOM2" is
touched.

Touch the center of the area you want to zoom in.
The area you touched is zoomed in.
To change “ZOOM2” to "ZOOM1" or "ZOOM3", touch
"ZOOM".

REFERENCE

To confi rm the zoomed-in peripheral area of the
document by ZOOM function, touch “SHIFT”, then
touch anywhere on the image and move the touched
position to the area you want to view while touching
it. If “ZOOM1” is selected, you can not use shift
function.

Using SHIFT Function

●

When you confi rm the zoomed-in peripheral area of the document by zoom function, you can-
move the touched position to the area you want to view while touching it.

Touch "SHIFT".

80

REFERENCE

You can shift the image only when "ZOOM2" or
"ZOOM3" is selected.

Touch anywhere on the image and move the touched
position to the area you want to view while touching it.

Remove your fi nger or the stylus pen from the image
when the area you want to view appears.

REFERENCE

To fi nish the shift function, touch “SHIFT” again or
touch other function.

Edit Function: Edit Image

Using AREA Function

●

You can select area from 6 types (BOX, POLYGON, PEN 1, PEN 2, PEN 3, and PEN 4)
according to your document.

● BOX You can specify a rectangular area.

●

POLYGON You can specify a polygonal area (up to pentadecagon).

●

PEN 1/PEN 2/PEN 3/PEN 4 You can specify an area with the stylus pen.

IMPORTANT

●

Do not put an excessive pressure on the touch panel LCD.

●

Using the provided stylus pen allows you for easy operation.

Specifying “BOX”

●

Touch "AREA".
Touch "BOX".

4

4

Other Functions

Continue Page....

81

Edit Function: Edit Image

Specify the area.
1 Touch the start point of the area you want to
specify.
2 Move your fi nger or the stylus pen while touching
it to move the area.
3 Remove your fi nger or the stylus pen from the
screen to fi x the specifi ed area.
* If you want to change the area, repeat the above
steps 1 to 3 .
4 Touch “OK”.
5 Touch “INSIDE” or “OUTSIDE”.
“INSIDE” is touched here.
If you touch “OUTSIDE”, the outside of the
specifi ed area is edited in the current mode.

When the specifi ed area is OK, touch "END".

REFERENCE

When you want to cancel the specifi ed area, touch
“CLEAR”. The display changes as below.

ALL CL

BOX

is cleared.

POLYGON

PEN 1

specifi ed area is cleared.

PEN 2

PEN 3

is touched, the area you want to cancel

PEN 4

is cleared with the stylus pen.

●

If “ALL CL” is touched, all of the set area

●

If “BOX”or “POLYGON” is touched, the

●

If “PEN 1”, “PEN 2”, “PEN 3”, or “PEN 4”

82
