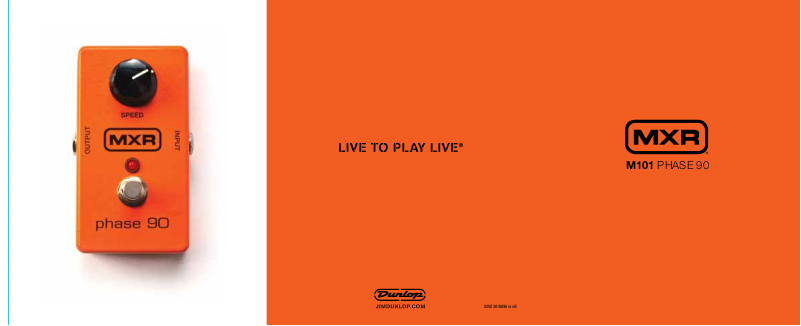

Dunlop Manufacturing M101 User Manual

92503016096 revB

M101 PHASE 90

M101 PHASE 90

DESCRIPTION

• Add’s shimmery velocity to
lead licks and a thick
swoosh to chords

• Works well with bass, keyboards

and even vocals

• True bypass

CONTROLS

SPEED knob controls
overall effect rate

FOOTSWITCH toggles effect on/

bypass (red LED indicates on)

POWER

The MXR Phase 90 is powered
by one 9-volt battery (remove
bottom plate to install), a 9-volt
AC Adapter such as the Dunlop
ECB003/ECB003EU or a DC Brick
power supply.

DIRECTIONS

• Run a cable from your guitar
to the Phase 90’s INPUT jack
and run another cable from the

™

Phase 90’s OUTPUT jack to
your amplier.

• Start with the SPEED control
at 12 o’clock.

• Turn the effect on by depressing
the footswitch.

• Rotate the SPEED knob

SPECIFICATIONS

Input Impedance 1 MΩ
Output Impedance 10 kΩ

Nominal Intput Level -20 dBV
Nominal Output Level -20 dBV

Noise Floor* -96 dBV

Bypass True Hardwire

Current Draw 5 mA
Power Supply 9 volts DC

*A-weighted

clockwise for a faster phase
effect or counterclockwise
for a slower phase effect.

SAMPLE SETTINGS

CLASSIC 80’s

PSEUDO LESLIE

YOUR SETTING

ROCK
