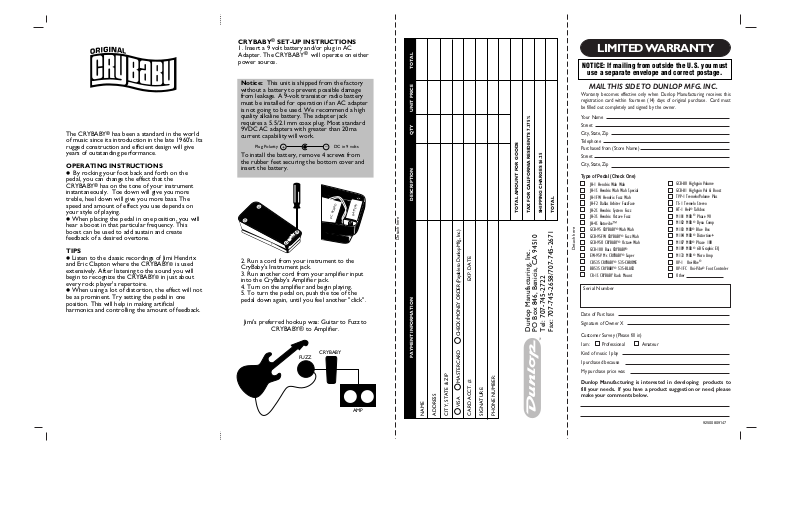

The CRYBABY® has been a standard in the world
of music since its introduction in the late 1960's. Its
rugged construction and efficient design will give
years of outstanding performance.
OPERATING INSTRUCTIONS
By rocking your foot back and forth on the
•
pedal, you can change the effect that the
CRYBABY® has on the tone of your instrument
instantaneously. Toe down will give you more
treble, heel down will give you more bass. The
speed and amount of effect you use depends on
your style of playing.
When placing the pedal in one position, you will
•
hear a boost in that particular frequency. This
boost can be used to add sustain and create
feedback of a desired overtone.
TIPS
Listen to the classic recordings of Jimi Hendrix
•
and Eric Clapton where the CRYBABY® is used
extensively. After listening to the sound you will
begin to recognize the CRYBABY® in just about
every rock player's repertoire.
When using a lot of distortion, the effect will not
•
be as prominent. Try setting the pedal in one
position. This will help in making artificial
harmonics and controlling the amount of feedback.
CRYBABY® SET-UP INSTRUCTIONS
1. Insert a 9 volt battery and/or plug in AC
Adapter. The CRYBABY® will operate on either
power source.
Notice: This unit is shipped from the factory
without a battery to prevent possible damage
from leakage. A 9-volt transistor radio battery
must be installed for operation if an AC adapter
is not going to be used. We recommend a high
quality alkaline battery. The adapter jack
requires a 5.5/2.1mm coax plug. Most standard
9VDC AC adapters with greater than 20ma
current capability will work.
Plug PolarityDC in 9 volts
+
–
To install the battery, remove 4 screws from
the rubber feet securing the bottom cover and
insert the battery.
P.C. BOARD
Box 846 Benicia CA 94510 USA
BATTERY
2. Run a cord from your instrument to the
CryBaby's Instrument jack.
3. Run another cord from your amplifier input
into the CryBaby's Amplifier jack.
4. Turn on the amplifier and begin playing.
5. To turn the pedal on, push the toe of the
pedal down again, until you feel another "click".
Jimi's preferred hookup was: Guitar to Fuzz to
CRYBABY® to Amplifier.
FUZZ
CRYBABY
AMP
LIMITED WARRANTY
TOTALDESCRIPTIONPAYMENT INFORMATION
QTYUNIT PRICE
Detach here
EXP. DATE:
NOTICE: If mailing from outside the U.S. you must
use a separate envelope and correct postage.
MAIL THIS SIDE TO DUNLOP MFG. INC.
Warranty becomes effective only when Dunlop Manufacturing receives this
registration card within fourteen (14) days of original purchase. Card must
be filled out completely and signed by the owner.
Your Name
Street
City, State, Zip
Telephone
Purchased from (Store Name)
Street
City, State, Zip
Customer Survey (Please fill in)
I am: Professional Amateur
Kind of music I play
I purchased because
My purchase price was
Dunlop Manufacturing is interested in developing products to
fill your needs. If you have a product suggestion or need, please
make your comments below.
92500809147
The Ultimate Crybaby Wah-Wah
Technique and Instruction Manual
IN THE
IF MAILED
NECESSARY
NO POSTAGE
UNITED STATES
Since its introduction in the late 60’s, the Wah-Wah has
become the most stepped on pedal of all time. The Wah-Wah Book has it all: history, technique, perspectives,
philosophy, product information and some great music!
Included are note-for-note transcriptions and playing tips
of great Wah-Wah solos by Jimi Hendrix, Eric Clapton,
Stevie Ray Vaughan, Randy Rhoads, Slash, Kirk Hammett,
Mike McCready, Zakk Wylde, Eddie Van Halen and others.
To order this First Edition
9"x12" copy of The WahWah Book, please fill out
the information on the back
side of this card.
AC Adapter 9VDC AC 3.5mm Positive Tip Plug
AC Adapter 9VDC AC 5.5/2.1mm Coax Plug
AC Adapter 18VDC AC 5.5/2.1mm Coax Plug
1/4" Stereo Jack "INST IN" PC Mountable
CRYBABY Hot Potz 100K with Gear
470K OHM Audio Pot (GCB80, 81&JH1S Model)
CRYBABY Hot Potz II with Gear
Mr. Crybaby Dual Hot Potz (EW95V Model)
CRYBABY PC Board Jacks Mounted - ECB-03 Jack
CRYBABY ON/OFF Switch
CRYBABY Bottom Plate
CRYBABY Offset Grommets
Gear
Rack
Knob
ROTOVIBE Switch
4 Rubber Feet w/ Screw
CRYBABY 500 MH Inductor
TALKBOX Diaphragm
TALKBOX Tube 6.5' Length
MXR Switch
CRYBABY RACK Stereo Cable 25' Length
$14.97
14.97
23.97
3.96
34.98
26.98
26.98
50.00
30.00
13.47
9.00
1.50
1.50
1.50
2.10
15.00
2.46
15.00
75.00
12.00
21.00
31.98
DUNLOP MANUFACTURING, INC.
P.O. BOX 846, BENICIA, CA 94510 U.S.A.
AC ADAPTER SPECIFICATIONS
ECB -04 5.5/2.1mm coax plug. 18VDC regulated AC adapter
Plug Polarity DC in 18 Volts
ECB -03 5.5/2.1mm coax plug. 9VDC regulated AC adapter
Plug Polarity DC in 9 Volts
ECB-02 Positive tip, 3.5 mm plug.
9VDC regulated AC adapter
+
+
–
–
LIMITED
WARRANTY
LIMITED WARRANTY
KEEP THIS SIDE FOR YOUR RECORDS!
535
Heavy die-cast pedal for years of hard use.
0 to +11db adjustable Boost; 4 position
multi-range Wah mode selection; LED
indicators for both Wah & Boost modes.
Available in Chrome and Black
Heavy die-cast pedal for years of hard use.
Six models available including the Original
CRYBABY® Wah Wah, CRYBABY® Fuzz
Wah and the CRYBABY® Octave Wah.
Available in two versions-TVP-1 Heavy diecast pedal for full control of Tremolo effect
plus volume boost and TS-1 Tremolo Stereo
stomp box, both built to withstand years of
hard use.
An electronic foot pedal-sized rotating
speaker simulator with chorus and
vibrato modes.
Volume pedals for dynamic control.
Available in two models - passive or
active with volume boost.
Recreate classic sounds with Hendrix
effects, including the Hendrix Wah Wah,
Fuzz, Fuzz Wah and Octave Fuzz.
Jim Dunlop reintroduces five MXR®
original effects in response to requests
by today's musicians wanting to create
authentic sounds.
The effect that makes your guitar talk!
Sounds are shaped by your mouth via
the speaker driven tube.
The legendary Uni-Vibe electronic
rotating speaker effect with adjustable
speed, volume and intensity. Speed
Controller foot pedal available.
Keep this warranty with your sales slip. In the
event that your Dunlop Electronics product
needs service work, you must include a copy of
your dated proof of purchase.
Type of Product
Serial No.
Purchase Date
Dunlop Manufacturing, Inc. will repair or replace, at its option, defective
workmanship or materials on all new Dunlop Electronics, through the
selling dealer or authorized service technician, for one year from the date
of purchase, at no cost to the original purchaser. Repair or replacement
parts installed will then be warranted for the unexpired portion of the
original warranty term.
Damages caused by accident, abuse, alteration or misuse
are not covered by this warranty. Product appearance is
not covered by this warranty.
Shipping costs are not covered by this warranty.
A dated sales slip must accompany a product being
returned for warranty service.
Please allow 4 weeks for warranty service.
For more information, write to:
Dunlop Manufacturing, Inc.
150 Industrial Way
P.O. Box 846
Benicia, CA 94510 U.S.A.
No other warranty is expressed or implied.
