Dunavox COMPRESSOR WINE COOLER Instruction Manual
INSTRUCTION
MANUAL
COMPRESSOR WINE
COOLER
This manual contains important information including safety and installation instructions of
the
appli
ances. Please read it carefully before use and follow all safety information
&
instructions. It
is
recommended to keep this manual for easy reference so that you can be
familiar with the operation of the
appliance.
CONTENTS
IMPORTANT SAFETY INFORMATION ................................................................................................................................ 2
STURCTURE AND INSTALLATION DRAWING ................................................................................................................ 3
ACCESSORY INSTALLATION BEFORE OPERATING .................................................................................................... 6
OPERATING THE WINE COOLER ..................................................................................................................................... 7
CARE AND MAINTENANCE ............................................................................................................................................. 11
TROUBLESHOOTING ....................................................................................................................................................... 13

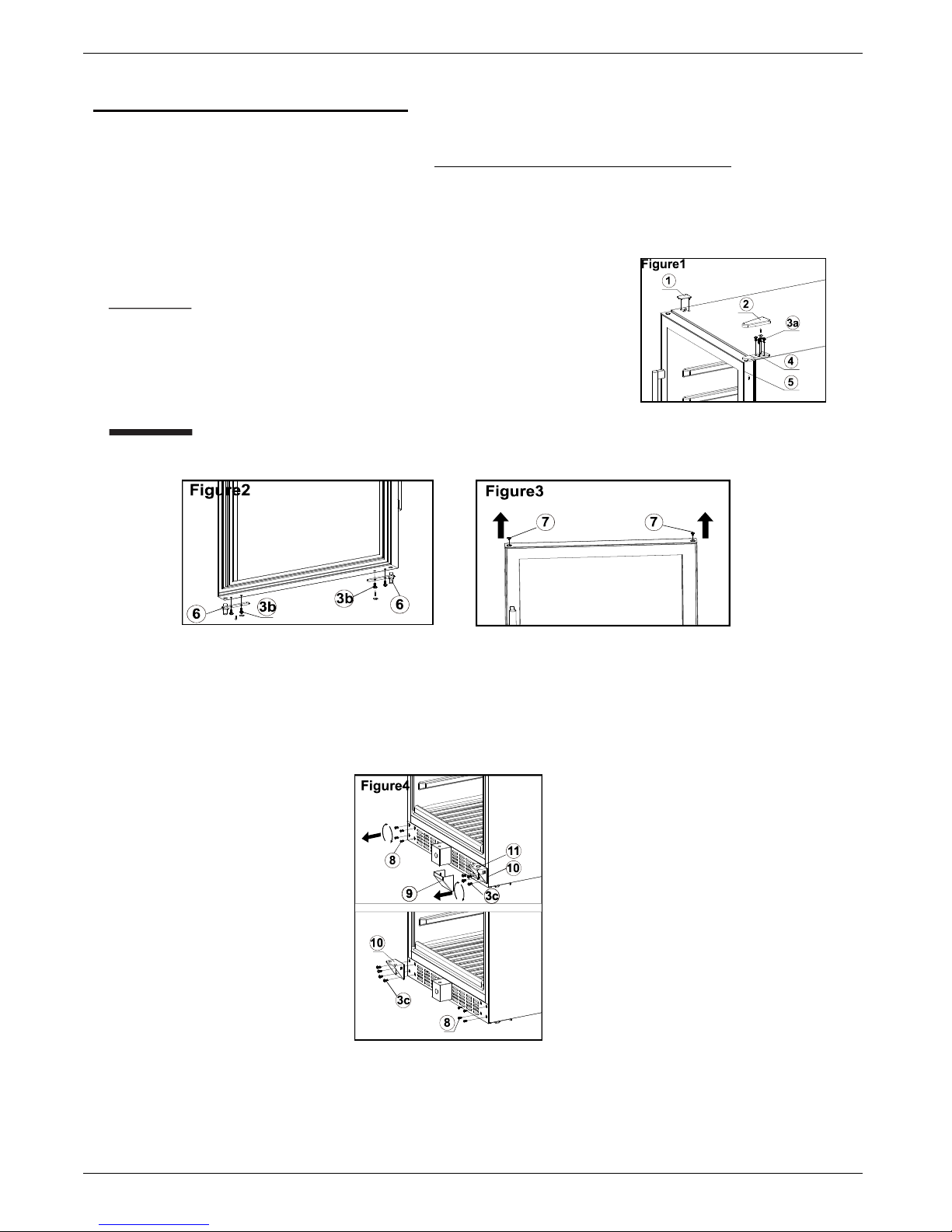

REVERSE THE DOOR SWING ......................................................................................................................................... 14
INSTRUCTION MANUAL
2
IMPORTANT SAFETY INFORMATION
Before use the appliance, please properly position and install it as described in this manual. To avoid the
risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions:
The appliance is intended to be used exclusively for the storage of wine.
Make sure the voltage/current marked on the rating label corresponds with your supply voltage.
Plug into a grounded 3-pin outlet, do not remove grounding pin, do not use an adapter, and do not
use an extension cord.
It is recommended that a separate circuit, serving only your appliance be provided.
Never clean the appliance parts with flammable fluids which may create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of the
appliance.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to
do so can result in electrical shock or death.
Do not attempt to repair or replace any part of the appliance unless it is specifically recommended
in this material. All other servicing should be referred to a qualified technician.
Ensure enough peoples to move and install the appliance to avoid any damage to the appliance or
injury to the peoples.
To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed.
Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
The fuse (or circuit breaker) size should be 10 amps or higher.
It is important for the appliance to be leveled in order to work properly. You may adjust the appliance’s
feet to level it.
This appliance is not intended for use by young children. Never allow children to operate, play with
or crawl inside the appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this appliance for other than its intended purpose.
The use of attachments not recommended by the manufacturer may be hazardous.
When you dispose the appliance, take off the door and leave the shelves in place so that children
may not easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the
back/bottom of the unit not be damaged. The symbol on the product or its packaging indicates
that this product is not to be handled as normal household waste and it is to be taken to a recycling
collection point for electrical and electronic goods.
INSTRUCTION MANUAL
3
STURCTURE AND INSTALLATION DRAWING
The following pictures only show the structure of the appliance as well as the installation drawing. The dimension and
shelf quantity may differ among the models of the same series.
BUILT-UNDER SERIES
(Built under a kitchen table top)
Single Zone Structure
T
o u c h - k e y
Control Panel
&
Digital D
is p la y
D
eep S h e lf
S
hallow Sh e l f
Front Louver
Outside Cabinet
Door
Handle
Gasket
Leveling Foot
Dual Zones Structure
T
o u c h - k e y
Control
Panel
&
Digital D
is p la y
Deep Shelf
Shallow Shelf
Front Louver
Outside Cabinet
Door
Handle
Gasket
Leveling Foot
150 mm width Installation Drawing (mm)
INSTRUCTION MANUAL
4
295 mm Width Installation Drawing (mm)
595 mm Width Installation Drawing (mm)
BUILT-IN-COLUMN SERIES
(Built into a kitchen cabinet)
Single Zone Structure
Touch-Key Control Panel
&
Digital Display
Deep Shelf
Shallow Shelf
Outside Cabinet
Condenser
Door
Handle
Gasket
Leveling Foot
Mounting Bar
INSTRUCTION MANUAL
5
Dual Zones Structure
Outside Cabinet
Door
T
o u c h - k e y
Control P
a n e l
& Digi tal
Display
Deep S
h e lf
Shallow S
h e lf
Condenser
Handle
Gasket
Leveling Foot
Mounting Bar
455mm Height Installation Drawing
885mm Height Installation Drawing
1. Before inserting the unit into the kitchen cabinet,
please unscrew the original 4 leveling feet (in white),
and screw the 2 short leveling feet (in black), which
are packed as the accessory, to the front bottom of
the unit.
2. Tighten the 2 screws to fix the mounting bar (which
has been fixed on the bottom of the unit) to the
kitchen cabinet. See below drawing.
Mounting Bar
Mounting Bar
1. Before inserting the unit into the kitchen cabinet,
please unscrew the original 4 leveling feet (in white),
and screw the 2 short leveling feet (in black), which
are packed as the accessory, to the front bottom of
the unit.
2. Tighten the 2 screws to fix the mounting bar
(which has been fixed on the bottom of the unit) to
the kitchen cabinet. See below drawing.
INSTRUCTION MANUAL
6
FLOOR-STANDING SERIES
Single Zone Structure
T o u c h - k e y Control P a n e l
& Digital D is p la y
Outside Cabinet
Upper Right Hinge
Door
Deep S h e lf
Handle
Front Louver Shallow S h e lf
Leveling Foot Lock
Dual Zones Structure
Upper Right Hinge
Outside Cabinet
Door
Handle
Deep S h e lf
T o u c h - k e y Control P a n e l
& Digital D is p la y
Front Louver Shallow S h e lf
Leveling Foot
Lock
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER
Remove the exterior and interior packing materials.
Let the appliance stand upright for approximately 2 hours before connecting it to the power source, which helps
to reduce the possibility of a cooling-system malfunction from handling during transportation.
Use a soft cloth to clean the interior surface with lukewarm water.
Install the door handle provided with the appliance by following these steps:
¡
ãC
¡ãF
