USER GUIDE
Hi, Welcome to use the
PS-1604 WiFi smart switch!
Model : PS-1604
APP : eWelink
IN : AC85-265V 50/60Hz
OUT : Max 16A
WiFi : 2.4G_wifi
Made in China
Preparation before use
1. Your Smart phone or tablet
has connected to a 2.4G WiFi
with internet
2. You have the correct wifi
password
3. Not allow to hide wifi(SSID).
4. Router no MAC filter is set.
Remote
wifi
gprs
Phone Server Router
Internet
WiFi
ON
OFF
PS-1604
1. Download APP
eWelink
eWeLink
In APP store or Google play
2. If permission request appears in
APP, please allow it
Register/Create an account in3.
eWelink APP and login
4. Follow below wiring instruction
to the connect the device.
IN
OUT
Live wire
Neutral wire
5. Press the button for 7s until the
green LED fast blinks 3 times and
repeats. Like the picture below.
If the device is already in the pairing
state. proceed to the next step.
Repeats
Time
Green LED is off
Green LED is on
6. Tap add a new device
7. Select “Quick Pairing Mode”
and click “Next”
8. Input you home WiFi
Password. click “Next”
9. Name your device to complete
When Green LED is on, the Device10.
is online, start to control now!
A. If pairing failed, Try again.
If pairing failed many times Read
FAQ or try compatible pairing Mode
Q: Pairing failed
1. Check WiFi password, try again
2. Restart Router, Try Again
3. Try Compatible Pairing Mode
4. Read FAQ or fill in the feedback
Q: Device display is “Offline”
A: The newly added device needs 1-2 minutes
to connect to your WiFi router and the
internet. If it keeps offline for a long time.
please judge the problem by the LED
blinking status.
Green LED is quickly blinks one time every
second. device failed to connect to WiFi.
1. The device is too far away the router
2. The device does not support 5G WiFi
choose 2.4G WiFi, try again
3. Check the router for MAC address filtering
4. Restart router, release the address, try again
5. Read the FAQ or fill in feedback for help.
Green LED is quickly blinks twice every second
The device is connected to WiFi but not to the
server. Please check your network connection
FAQ & Help & Feedback
Amazon Echo and google home user guide
Help Document : http://ewelink.coolkit.cc
Help Video : http://www.coolkit.cn/video/
Works with smart devices
DULUCK SMART SPEAKER
Set Inching duration

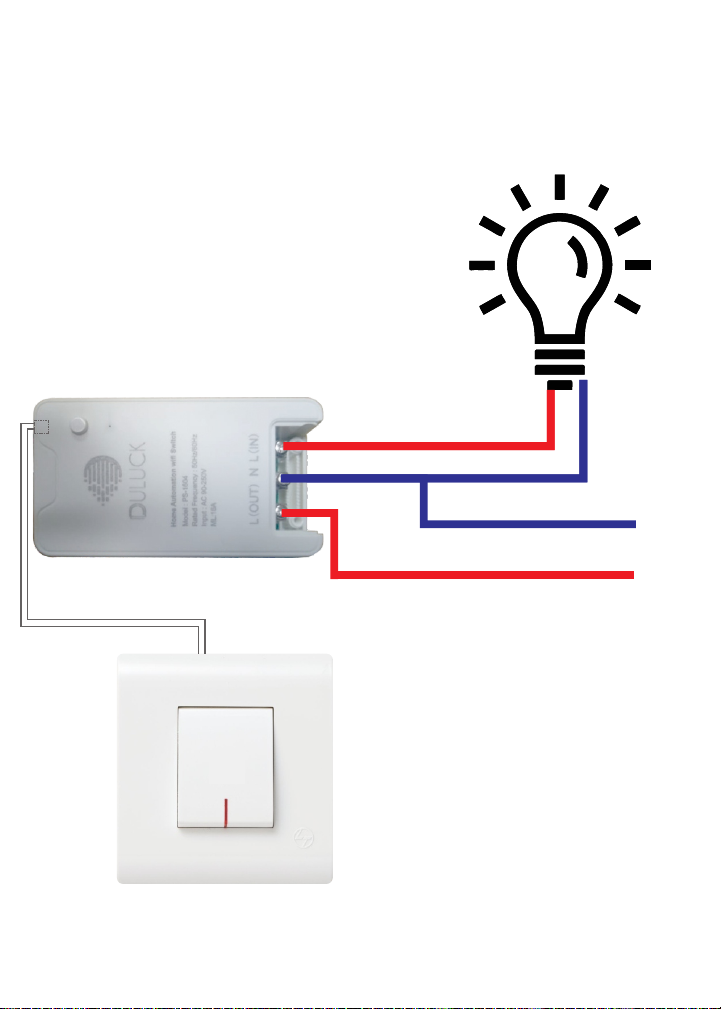

2. Can Connect In Series (Wiring diagram)
2. Can Connect In Series (Wiring diagram)
Smart switches are connected in
Smart switches are connected in
Series between wall switches
Series between wall switches
and electrical appliances
and electrical appliances
Smart Switch
Self Release Switch
Electric
Electric
Appliance
Appliance
Lamps
Lamps
N
L
Or Bell Push Switch
Scope of warranty: Product has one –year warranty from the date of
purchase. The user/ customer has to produce original
purchase invoice for availing warranty.
Product warranty is valid only when the failure of the product does not
arise due to use for any unintended purpose
Product doesn't fall/cover under warranty for damage resulting due to
product installed or used in abnormal environments or due to water
leakage/seepage from the ceiling /walls.
Product doesn't fall/cover under warranty for damage resulting due to
usage of power supply other than 230 volts, 50 Hz AC mains single
phase.
Product doesn't fall/cover under warranty for damages resulting from
accidents, mishandling, improper use or negligence on part of the
customer and also damage during transit after the customer purchases
the product.
Product doesn't fall/cover under warranty for Modification in product or
company warranty seal broken.
Product doesn't fall/cover under warranty in case of fire, flood and
other natural disasters/act of God.
Limitation of liability:
Under no circumstances the company shall be liable for any special,
indirect, incidental, exemplary or consequential loss or damages, inter
alia including, loss of profit, loss of use, loss of revenues even if
informed of possibility of these damages. The company aggregate
liability in respect of all claims under the warranty shall not exceed the
original purchase price of the Product or at the company's option,
replacement of the Product with like or similar product. The company
excludes all other warranties, conditions, terms, representations and
undertakings whether express or implied.
Jurisdiction: -
Claims, if any, shall be made only before the courts having jurisdiction in
New Delhi and no claim shall be made against the company outside New
Delhi not withstanding that the Appliance may have been sold or
delivered elsewhere.
DULUCK SMART CONTROLLER_ WIFI SMART SWITCH
MODEL NO.: PS-1604
Warranty Stands/covers For Receiver Only
Unit Serial No.
TO BE FILLED IN AT (POP) POINT OF SALES
Name and Address of seller
Date of sale
Cash Memo Number
FOR DETAILED FEATURES AND USAGE LIKE VOICE COMMAND CONTROL, APP CONTROL,
KINDLY LOG IN AND GO TO DEVICES.www.duluckos.com
