2. Getting Started
The PRO FC comes pre-assembled and almost ready for use, just install the
Disk Modules, attach the Fibre Channel to the computer or the switch, and install
the JAVA RAID Manager. If you are using a Mac, you are good to go, by default
the unit is pre-formatted for Mac OS X operation. For Windows, a small format
procedure is needed.
2.1. Packaging
Please do not discard the boxes and packing materials in case you
might need to reuse them later. Always ship the product in its original
packaging. Improperly packaged products will be subjected to shipping
damage, for which you will be liable for the repair.
2.2. Check List
• Installation and User’s Manual.
• Power Cord (North America user only).
• Set of keys.
• 3u 19” rackmount 16 disk bay system enclosure.
• 16 Disk Modules.
• One Ethernet Cable.
• One 3-meter LC to LC optical Fibre Channel cable.
• One SFP Optical Transceiver.
• Rackmount rails (optional)
3. Overview
The PRO FC consists of one RAID controller, the controller manages all 16
drives.
3.1. The Bezel
The front bezel can be easily removed to access the Disk Modules. The bezel is
held on by four snap pins located at each of the four corners.
Use both hands, push from behind the left and right side of the bezel. Access
through the rack mount handles.
3.2. Disk Module
Disk Module
Pull right
to unlock
Lock Pin
during
insert and
Page 9
Page 10
Page 6
PRO FC
g2
Installation and User’s Manual
Port
PRO FC
g2
Installation and User’s Manual
Please follow these few steps to install the
minutes to complete.
Installation
FC is
formatted for Apple Mac OS X.
for your exact configuration.
Windows operation will require a format/partition process. The
already pre
Windows Disk Management utility to prepare the RAID for Windows
Rackmount Installation
can be rackmounted to a standard 19” rack. 3u height space is
An optional rackmount kit is available for 24”

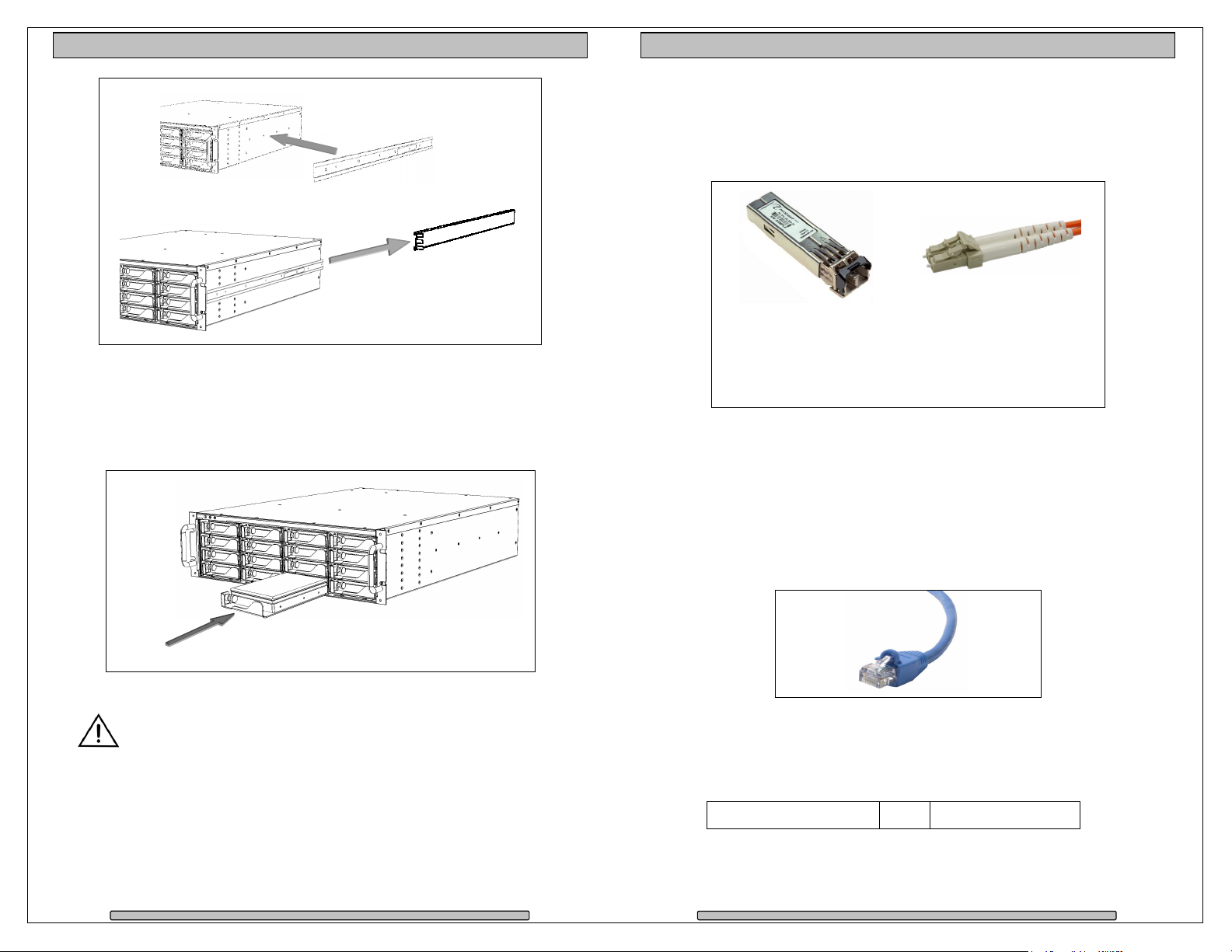

Mount the left and right rails to the rack, ensure sufficient 3u space is
Mount the left and right sliders on the PRO IDC.
The PRO IDC loaded with Disk Modules will be heavy, install the PRO
IDC to the rack before installing the drives will make it easier. Install
the PRO IDC carefully o
Front heavy topple warning
IDC in the rack extended position when mounted on the rack, your
entire rack might tip over and will cause severe damage and harm.
his process typically takes
mode and
configuration Sheet
PRO
available.
n the rack by aligning the sliders in the rails.
Do not operate or configure the PRO
3.1. Front and rear views
Mute Button, Fan Alarm, Temp Alarm
Removable Cooling Fans
Power
Supply.
Optional
Dual
Redundant
Serial Port Alarm Reset / Mute
Front view
Rear view
RAID Controller
RAID Controller
FC Ports A & B
4. Installation
PRO FC. T
about 30
Overview of installation:
•
Rackmount installation
•
Disk Module Installation
•
FC Cable Installation
•
Ethernet Configuration
•
RAID Manager
By default, the PRO
pre-
shipped pre-configured in RAID 5
Check the Pre-
FC is shipped
-configured in RAID 5. Simply run the
usage.
4.1.
The PRO FC
required.
to 30” depths.
Adjust depth as required.
–
Enclosure
Expander
Port
Power Status FC Activity
Fault
Disk Activity
Ethernet
Management
Ready Status
Page 11
Page 12
Page 7
PRO FC
g2
Installation and User’s Manual
Rail mounted
Slider
PRO FC
g2
Installation and User’s Manual
to rack.
4.3. FC Cable Installation
Install the SFP into one of the FC ports in the rear of the PRO FC, then install the
LC to LC optical Fibre Channel Cable in to the SFP, connect the other end to
your FC HBA in the computer or the FC switch.
4.2. Disk Module Installation
Remove the front bezel. Install each marked Disk Module into the slot indicated.
Pull the Lock Pin to the right and insert drive tray fully, release Lock Pin to
secure.
DO NOT ship the PRO FC with the Disk Modules installed, the Disk
Modules MUST be packaged separately in a single or multi-pack to
properly protect them during shipment.
SFP Remove the
protective covering.
Insert into FC port
label up.
LC to LC cable Remove the protective
tip covering. Insert into
SFP.
4.4. Drivers
Drivers are not needed to operate the PRO FC. But the Fibre Channel adapter
the PRO FC connects to will need drivers, please refer to the requirements of the
adapter.
4.5. Ethernet Configuration
The PRO FC uses the built-in Ethernet port for RAID management, connect the
PRO FC to your existing network.
The PRO FC will use the network DHCP for automatic IP Address assignment if
this is enabled on your network, otherwise the PRO FC defaults to the static IP
address below. After connection is made, the default static IP Address can be
changed at RAID Manager > Administration > IP Connection.
Auto Assign (DHCP) or 169.254.32.10
Page 13
Page 14
Page 8
RAID Manager
based RAID Manager to configure and manage the

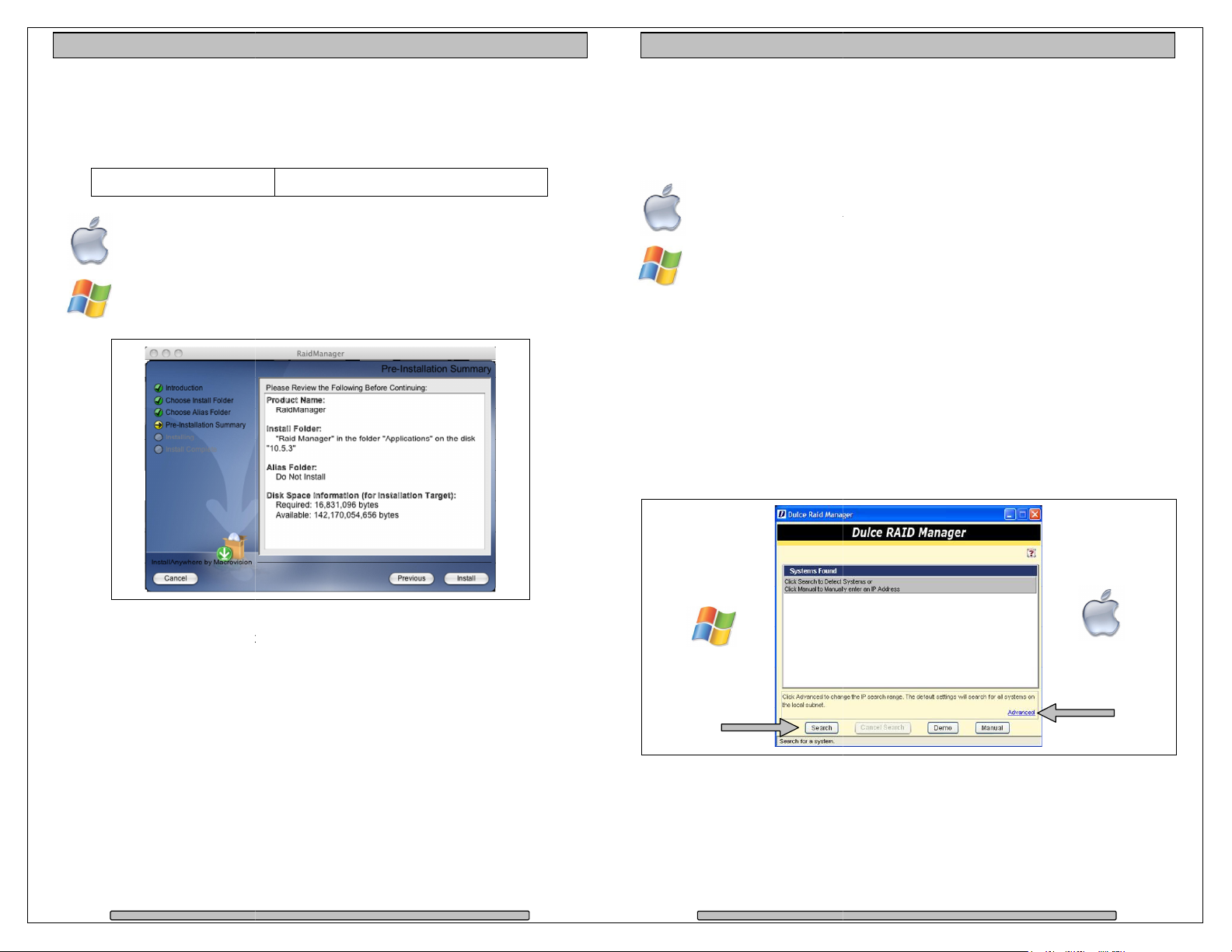

Use the supplied installation CD or visit our web site and download the
Start the install program from the Downloads folder on
download completes.
Save the install.exe on the desktop then run it after download is
Mac screen shot shown. Windows will be similar.
ts to complete the installation. See next section for
RAID Manager operational instructions.
Page
PRO FC
g2
Installation and User’s Manual
after
PRO FC
g2
Installation and User’s Manual
Operations
Manager
Start the RAID Manger from the RAID Manger folder.
> RAID Manager folder
menu > RAID Manger folder
Connect RAID Manger to PRO FC
PRO FC Discovery
RAID Manager needs to know the IP Address of the PRO FC, use the Search
(Windows) or Advanced (Mac) method to auto discover or use Manual if you
d use the Advanced method due to the security nature of the
Mac operating system. Windows and Mac users with root user access can use
Advanced
4.6.
The PRO FC uses a Java
RAID.
RAID Manager Installer.
Download From:
complete.
Installation
www.dulcesystems.com/download
.
the dock
5. RAID Manager
5.1. Start RAID
Applications folder
All Programs
5.2.
5.2.1.
know the IP Address.
Mac users shoul
Search.
Follow the on screen promp
Mac use
option.
15
Page 16
Windows
use Search
option.
Page 9
PRO FC
g2
Installation and User’s Manual
Mac user
PRO FC
g2
Installation and User’s Manual
(cont).
5.3. RAID System Information

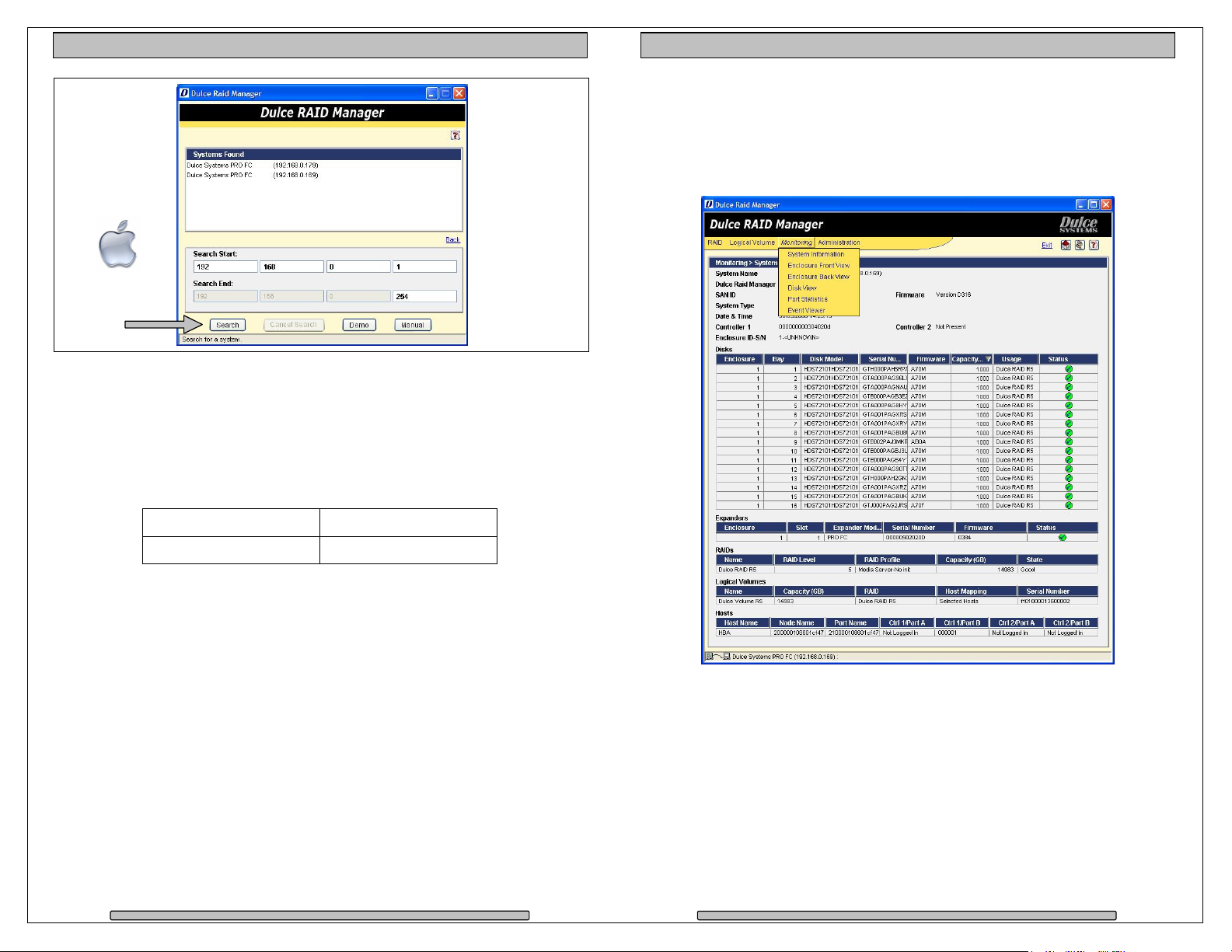

The System Information screen (under the Monitoring menu) provides a quick
overview of the PRO FC configuration. It shows the status and configuration of
the physical drives connected, the RAID setup and the Volumes assigned under
each RAID.
Advanced / Search method could take up to 5 minutes to cover the entire search
range. This operation is only needed to be performed once, after discovery the
RAID Manager will remember the IP Address.
5.2.2. Login
The Systems Found list will show the discovered PRO FCs. Double click on an
entry to start the login.
Username: admin
Password: admin
Page 17
Page 18
Page 10
PRO FC
g2
Installation and User’s Manual
(Page left blank intentionally)
PRO FC
g2
Installation and User’s Manual
5.4. RAID Creation
A new PRO FC is normally pre-configured and formatted, you might not need to
go through this process, check the Pre-Configuration sheet that came with the
PRO FC for details.
If you are changing the RAID configuration, you will need to 1st delete the RAID
then create a new RAID, see the Delete RAID section in this manual.
Creating a RAID set is easy; 1st create a RAID set of your choice with the disk
drives attached. 2nd create a Logical Volume under the new RAID set.

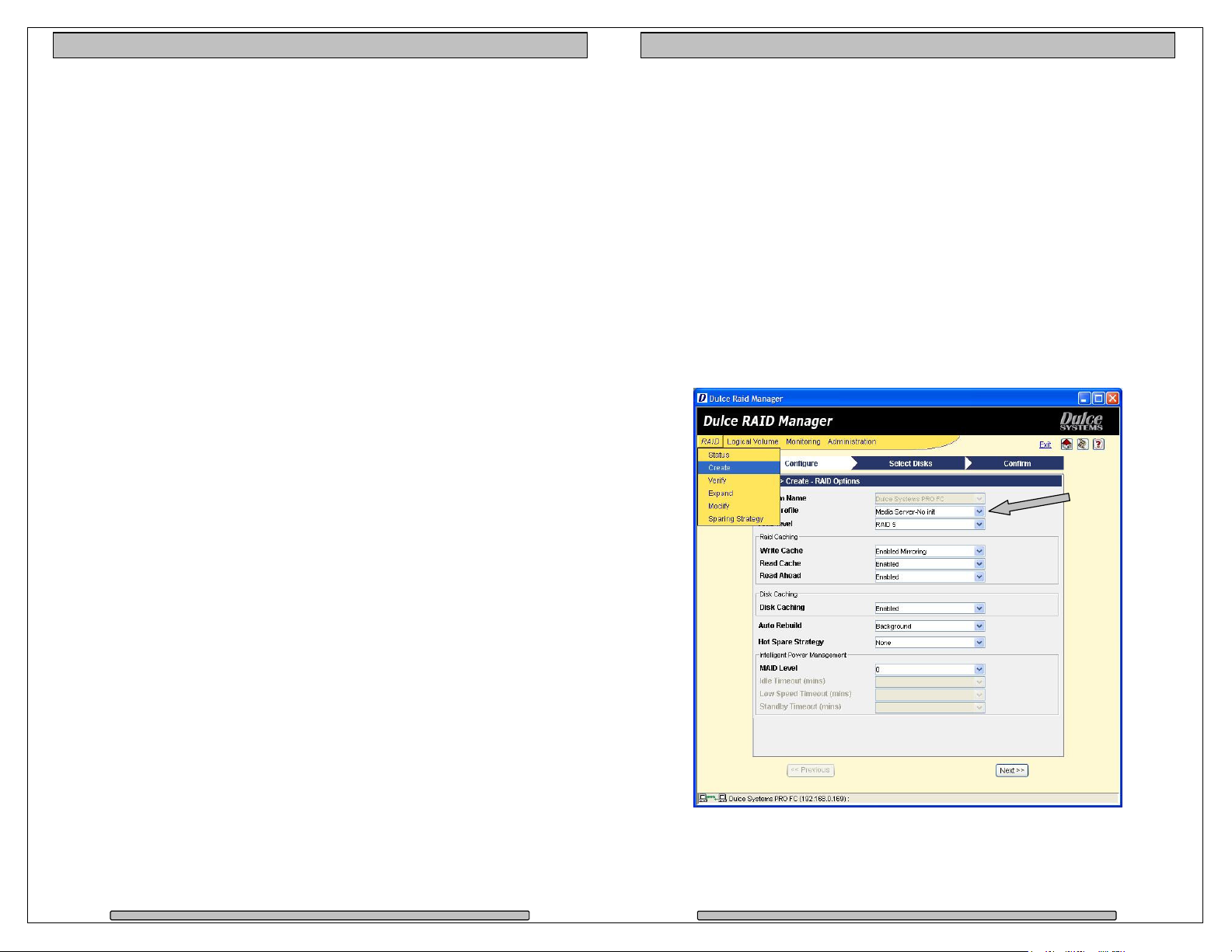

Click on the RAID menu and select Create. Select your desired options and click
Next. A number of preset RAID Profile is provided.
The Media Server – No Init profile will give you instant RAID availability, no need
to wait for long RAID format.
Page 19
Page 20
Page 11
PRO FC
g2
Installation and User’s Manual
PRO FC
g2
Installation and User’s Manual

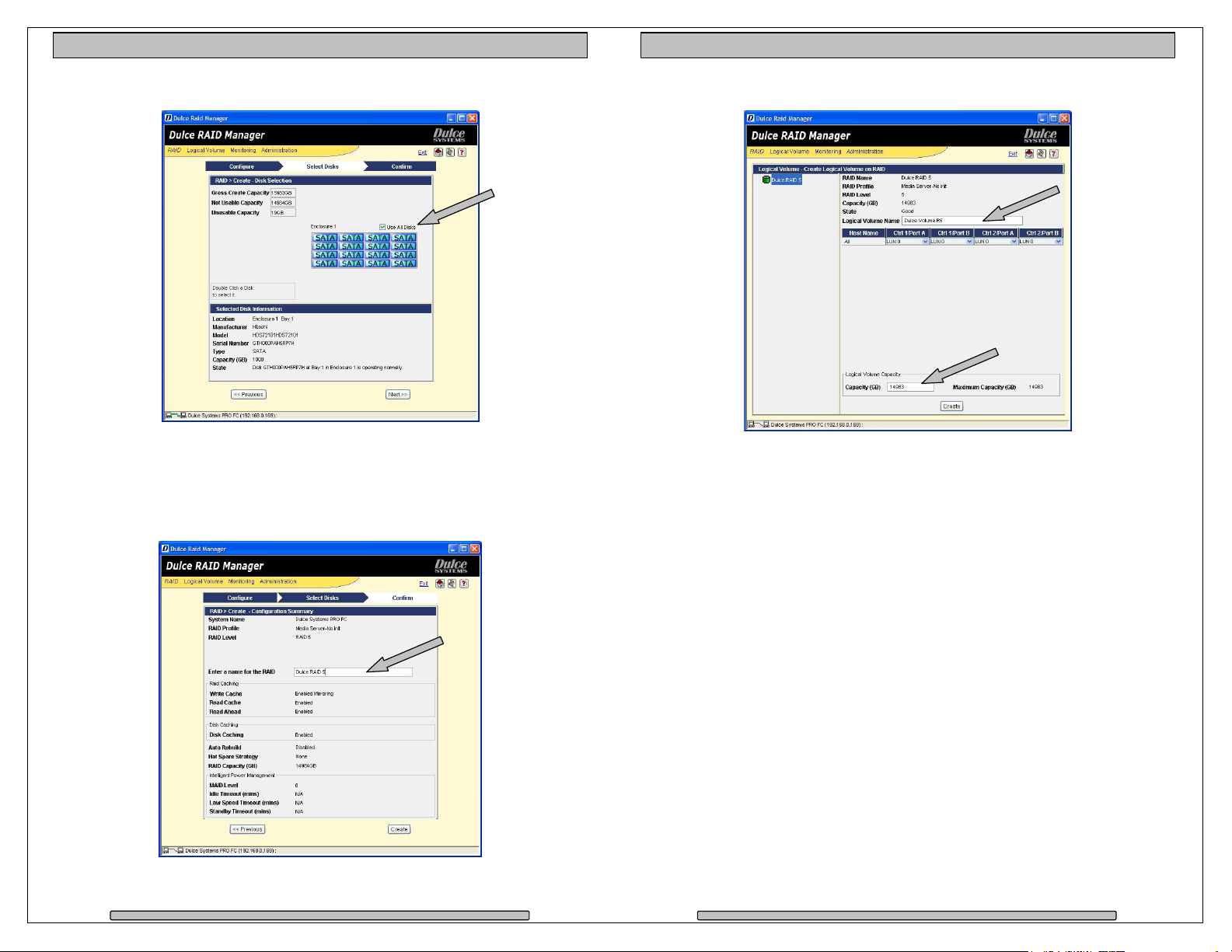

Check the Use All Disks or individually select each disk for the RAID.
Enter a name for the RAID and Logical Volume, they are only used within RAID
Manager, this is not a name you will see in your operating system.
You can use ‘Dulce RAID’ for the RAID name and ‘Dulce Volume’ for the Volume
name.
Enter the desired Capacity for the Logical Volume, then lastly click on Create.
Attach the PRO FC to your computer. You would see the PRO FC as an
available disk in the format utility of your operating system.
Page 21
Page 22
Page 12
PRO FC
g2
Installation and User’s Manual
5.5. RAID Deletion
PRO FC
g2
Installation and User’s Manual
Deleting a Logical Volume and RAID will destroy all data.

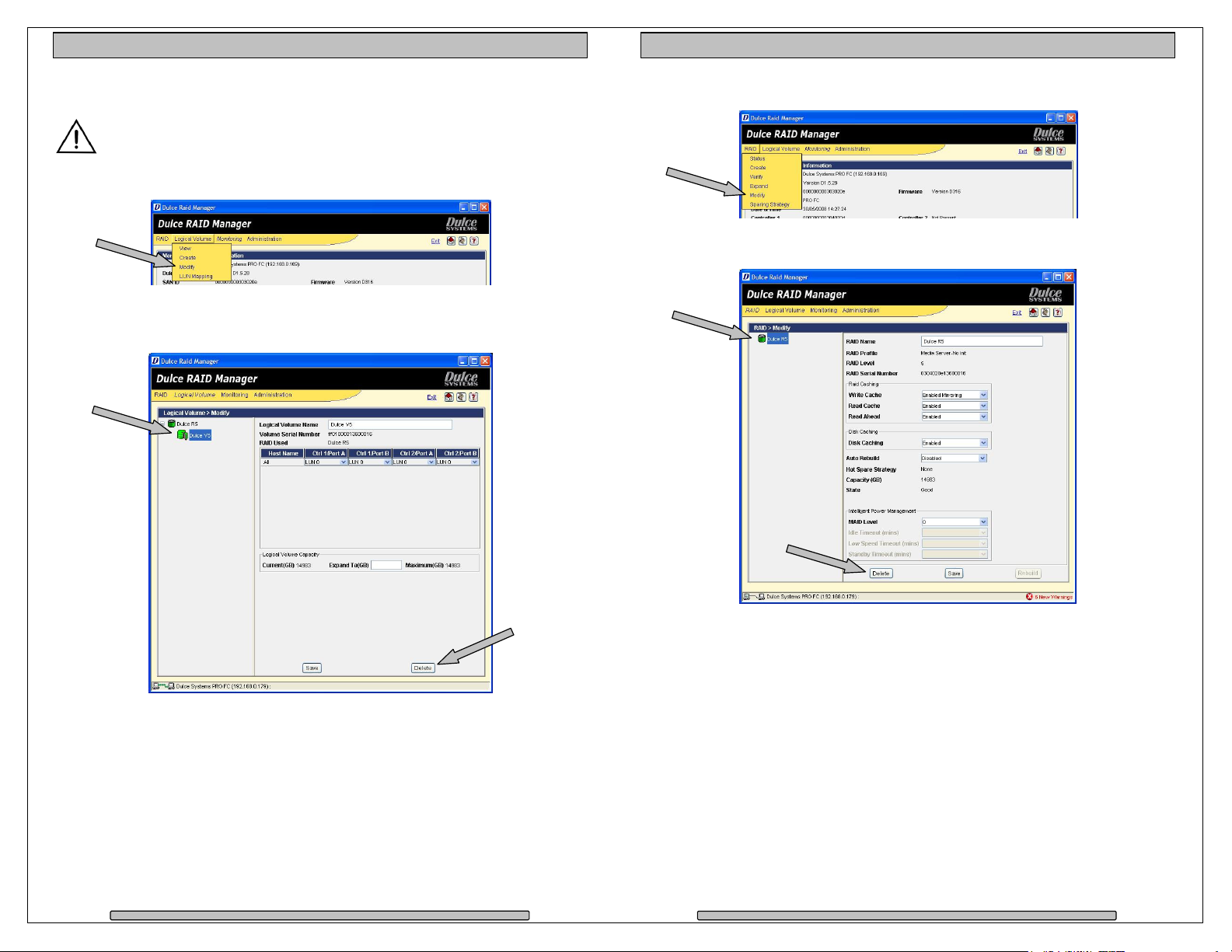

1st: Delete the Logical Volume, from the Logical Volume menu select Modify.
On left side, expand the RAID to expose the Logical Volume under it. Click on
the Logical Volume to select it, click on Delete.
2nd: Delete the RAID, from the RAID menu select Modify.
On the left side, click on the RAID to select it, then Delete.
Page 23
Page 24
Page 13
PRO FC
g2
Installation and User’s Manual
PRO FC
g2
Installation and User’s Manual
5.6. Create >2TB RAID Set for Windows XP (32bit):
This only applies to Windows XP (32 bit) where it has a 2TB disk size limitation.
Create a RAID of your choice with the number of desired disk drives, then create
multiple Logical Volumes of 2TB size. This will present to Windows XP as
several disks of 2TB sizes. Use Windows Disk Manager to Span them together
(not Stripe) to create one drive letter of the sum of all the <=2TB sized disks.
6. Alarm Conditions / Degraded RAID Set
There are several possible sources for alarms, the front and rear indicators and
the RAID Management will provide the details of the alarm.

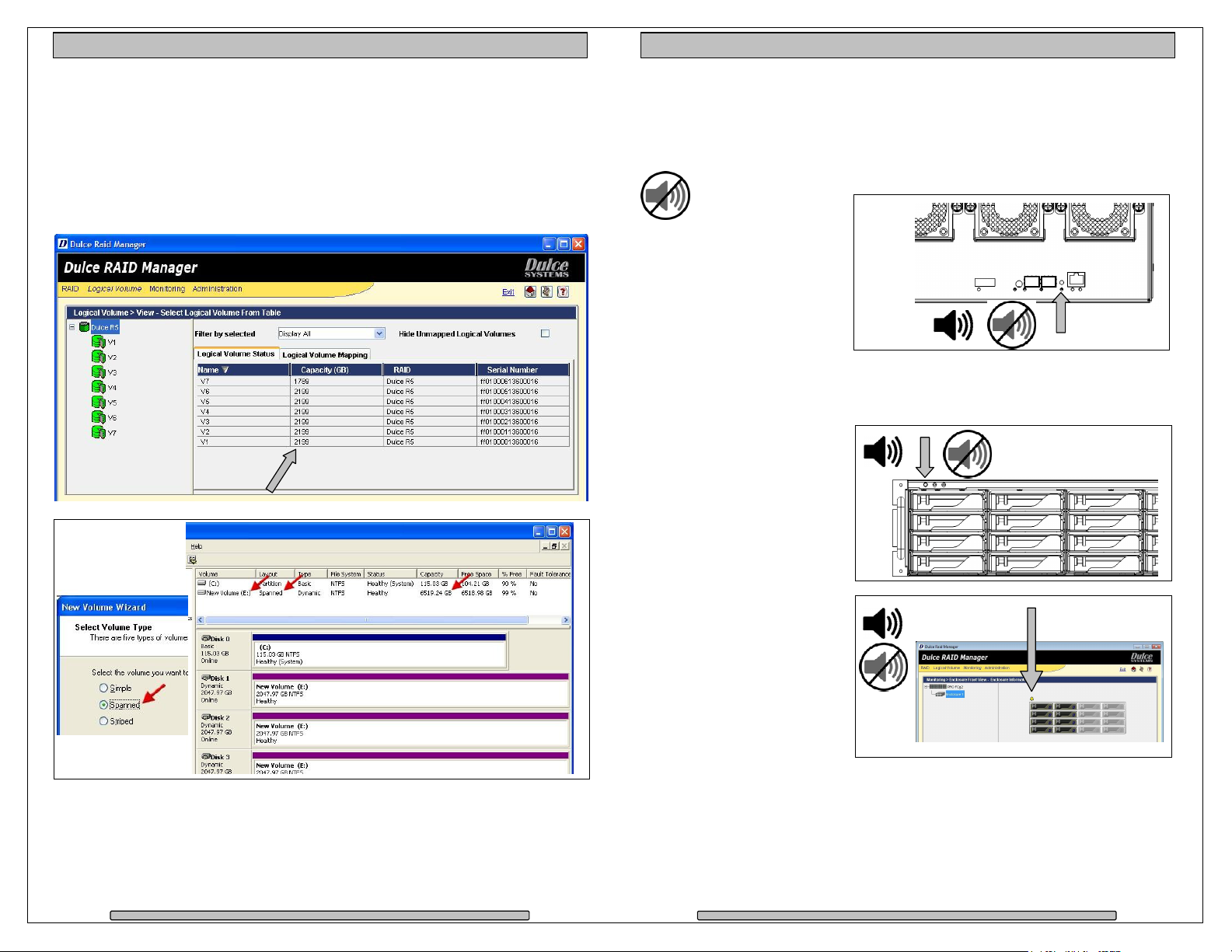

Mute Alarm:
1) Alarm Reset button in
the rear of unit.
Controller Alarm
confirmed with a red
ALT indicator.
• Temperature
(enclosure detected over heating condition)
• Fan (enclosure cooling fan not operational, could lead to overheating)
• RAID related problem such as a failed disk drive.
2) Reset button at the top
front left of unit.
3) RAID Manager GUI.
RAID Alarm
• Degraded RAID Set
(one or more drives not
detected or down)
• Temperature (RAID
Controller detected
over heating)
RAID Manager > Monitoring > Enclosure Front/Back View. Double click on the
yellow bell.
The Event Viewer screen provides a log of events which triggered the alarm. To
view it, from the Monitoring menu, click on Event Viewer.
Page 25
Page 26
Page 14
PRO FC
g2
Installation and User’s Manual
PRO FC
g2
Installation and User’s Manual
Formatting and Partitioning
Formatting
are shipped pre
appear on the desktop after driver installation and reboot.
Should it be necessary to re
To start Disk Utility, move pointer to upper left corner of screen, click on Go then
ocate and launch Disk Utility.
existing partition
Select the RAID on left, click on Partition tab, select Free Space. Click on
X, the RAID will
6.1. Replacing a Disk Module
A defective Disk Module can be easily replaced. Hot swapping is allowed without
interruption to your workflow if the RAID is operating in one of the drive
redundant RAID mode (1,5,6).
In a redundant RAID mode, rebuild will start automatically after replacement of a
defective module.

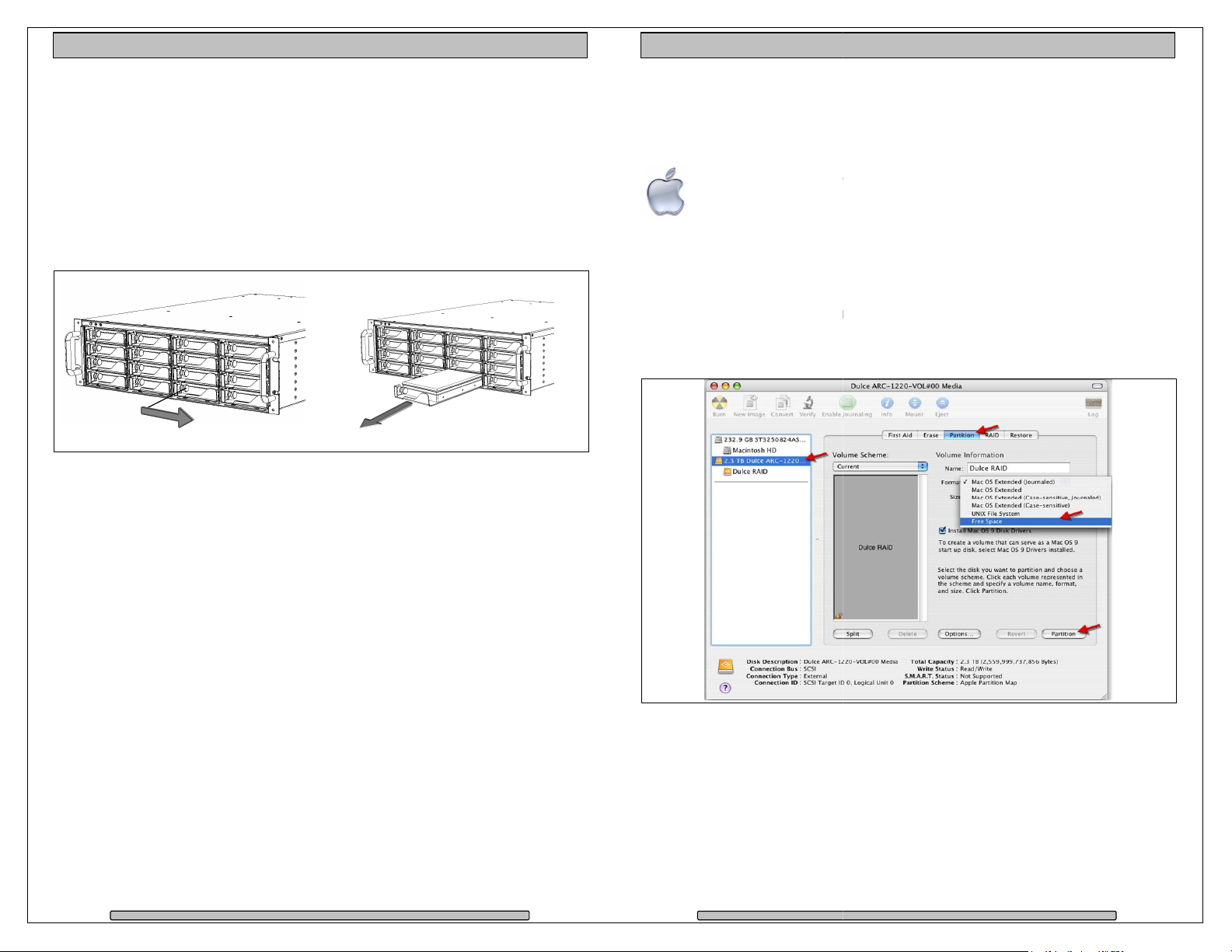

• Pull the Lock Pin to the right and pull the Disk Module out.
The RAID rebuild will consume some processing power from the overall
operation speed of the PRO FC, the rebuild can be suspended during time
sensitive operations.
From RAID Manager, click on RAID > Modify. Select the RAID on the left side,
then click on Stop Rebuild at the lower right.
The audible alarm will sound, follow the Alarm Condition / Mute Alarm to handle
it.
7.
7.1. Apple OS X
The PRO FC
Apple Disk Utility.
click on Utilities. L
7.1.1. Erase an
Partition on lower right.
-configured for Mac OS
-format and partition the RAID, use the
Page 27
Page 28
Page 15
PRO FC
g2
Installation and User’s Manual
PRO FC
g2
Installation and User’s Manual

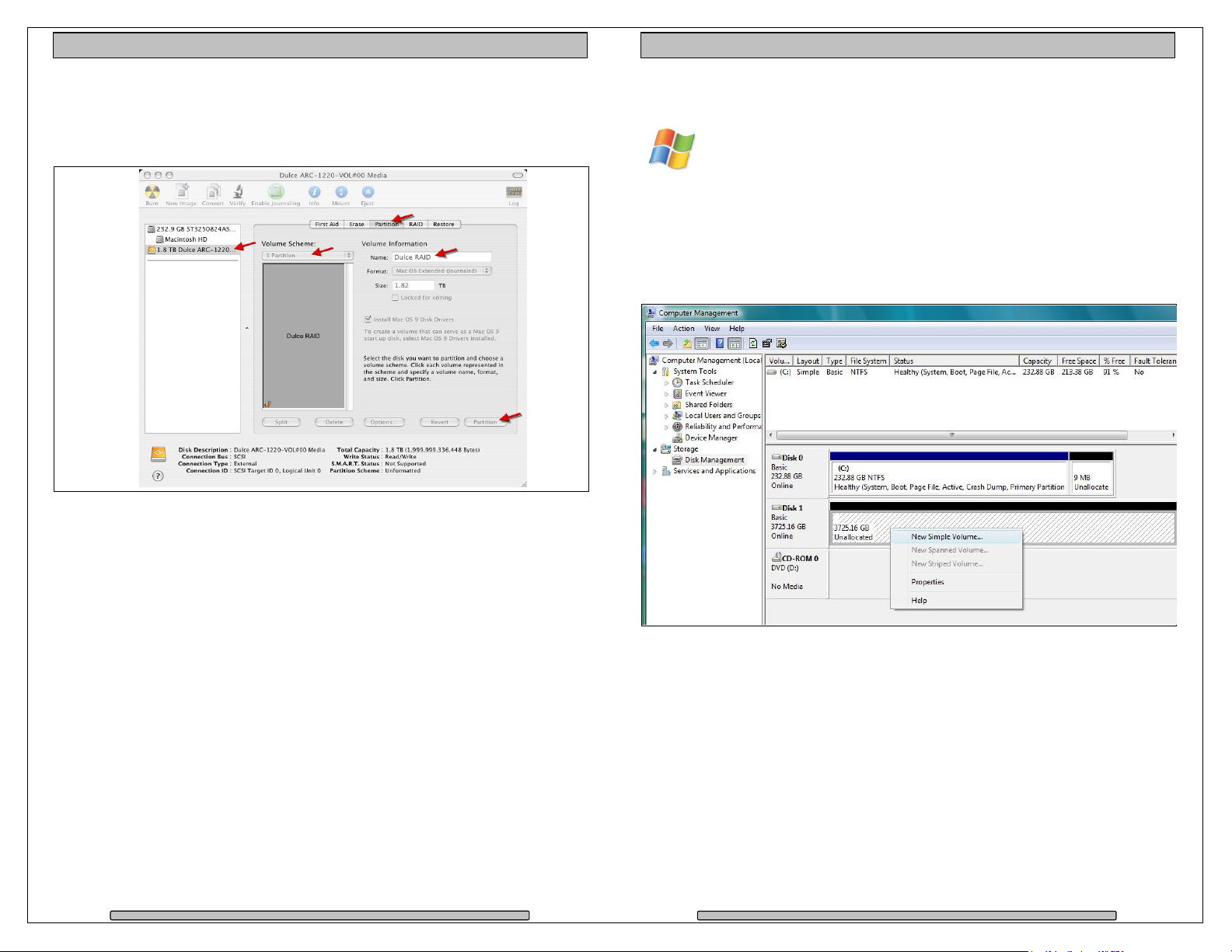

7.1.2. Create a new partition
Select Dulce on the left side drive list, click on Partition tab, change Volume
Scheme to 1 Partition, change Name as desired, click on Partition on lower right.
The drive will appear on the desktop after successful completion of the Partition.
7.2. Windows XP / Vista Formatting

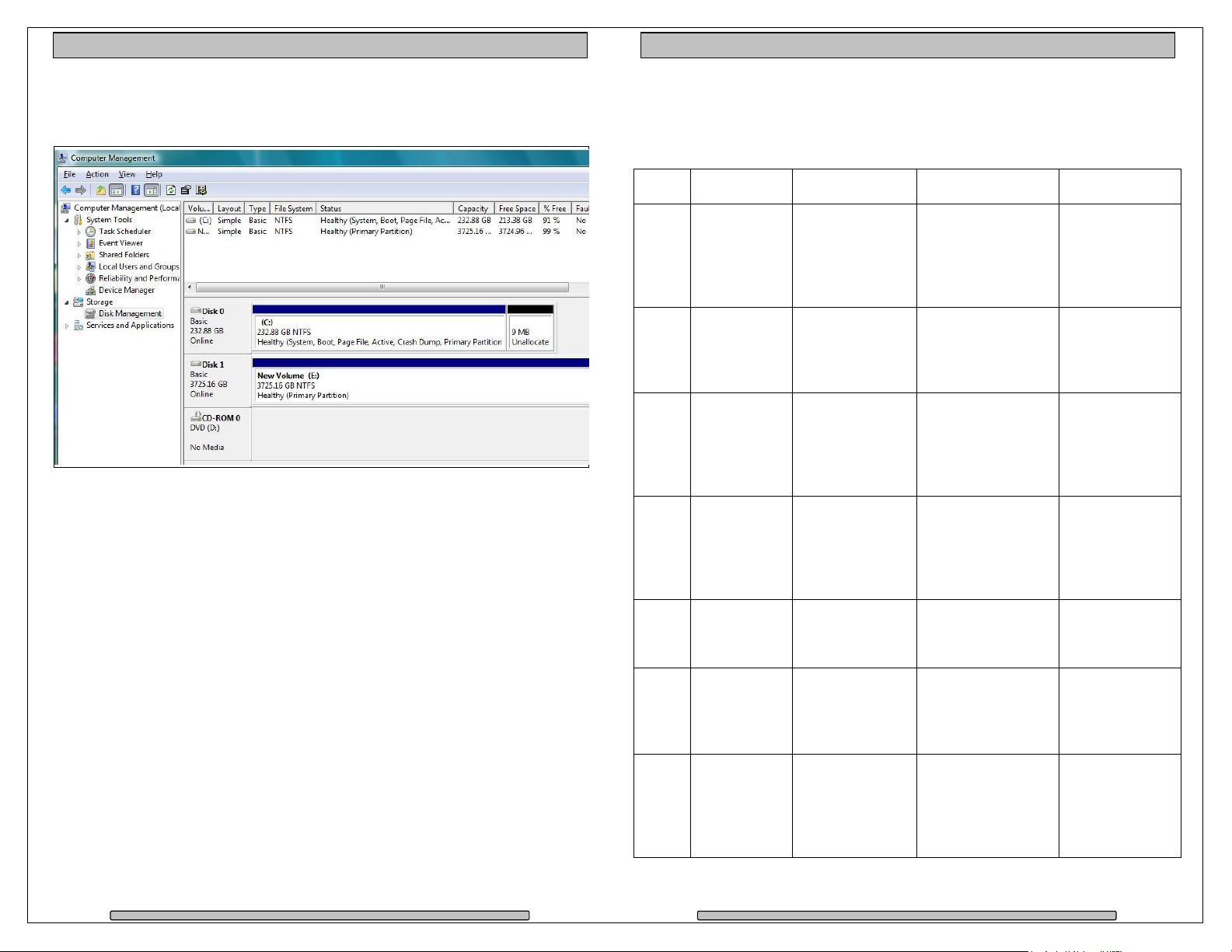

Start Disk Management (can be found at Control Panel > System and
Maintenance > Administrative Tools > Computer Management. Under
Storage.)
If the RAID shows up as Unknown / Not Initialized, right click on the disk and
Initialize it.
If the drive is larger than 2TB, if using Vista, right click over the disk and Convert
to GPT Disk. Windows XP 32 bit does not support larger than 2TB capacity.
Configure with multiple capacities of 2TB or less.
Page 29
Page 30
Page 16
PRO FC
g2
Installation and User’s Manual
Right click the Unallocated segment and select New Simple Volume. Enter the
PRO FC
g2
Installation and User’s Manual
desired Volume Size, assign the desired Drive Letter or Path, check Perform a
Quick Format at the Format Partition screen.
8. RAID Level Descriptions
Although the RAID Controller supports a large variety of RAID Levels, RAID 0 or
RAID 3 are most commonly used for video and content creation purpose.
RAID
Level
JBOD
RAID
Spare
Description Advantage Disadvantage Ideal for
No disk
0 Striping.
Highest
performance.
redundancy, one
drive failure will
lose all data.
Less cost efficient
1 Mirroring.
Highest
redundancy.
for redundancy,
loses ½ disk
capacity.
Efficient drive
redundancy, 1
drive used for
parity.
Efficient drive
redundancy,
parity distributed
to all drives.
Double drive
redundancy, 2
drives used for
parity.
Loses 1 disk drive
capacity.
Loses 1 disk drive
capacity.
Loses 2 disk drive
capacity.
3
5
6
Striping with
a dedicated
parity drive.
Striping the
parity across
all drives.
Striping with
two
dedicated
parity drives.
Each drive can
Just a Bunch
of disks.
be accessed
individually from
operating
No redundancy.
system.
Loses another
+
A drive is set
aside as an
online hot
spare.
Automatic
rebuild of a
failed drive.
drive capacity. (In
addition to the
drive(s) needed for
the RAID level
selected.)
Highest
resolution HD,
2K, and
maximum
multiple
streams.
Data protection
is paramount,
maximum disk
failure
protection.
Well balanced
for video
requiring
performance
and
redundancy.
Well balanced
for file server
requiring
performance
and
redundancy.
Mission critical.
Audio
applications.
Minimizes
degraded RAID
level exposure
time.
Page 31
Page 32
Page 17
PRO FC
g2
Installation and User’s Manual
PRO FC
g2
Installation and User’s Manual
9. Limited Warranty
WHAT THE WARRANTY COVERS
Dulce Systems warrants your product against any defect in material and workmanship and conforms to Dulce published
specifications under normal use.
WHAT THE WARRANTY DOES NOT COVER
The warranty does not cover equipment which has been damaged due to accident, misuse, abuse, fire, flood, "Acts of
God," or other contingencies beyond our control; use of incorrect line voltages; improper or insufficient ventilation; failure
to follow operating instructions; or improper or unauthorized repair; improperly packaged for shipping; packaged in nonapproved shipping container; shipping damage.
The warranty is voided by removal or alteration of the product or parts identification labels.
Dulce has no liability for general, consequential, incidental or special damages. These include loss of r ecorded data, the
cost of recovery of lost data, lost profits and the cost of the installation or removal of any Products, the installation of
replacement Products, and any inspection, testing, or redesign caused by any defect or by the repair or replacement of
Products arising from a defect in any Product.
WHAT THE WARRANTY PERIOD IS
Dulce Systems warrants your PRO FC product for 36 months and if the product is registered with Dulce within 30 days of
purchase, we will extend the warranty for another 6 months totaling 42 months. We warrant the Duo for 36 months. The
warranty period begins at the date of shipment to the original end user, company or organization.
Our warranty applies to repaired or replaced Products for the balance of the applicable period of the original warranty or
ninety days from the date of shipment of a repaired or replaced Product, whichever is longer.
WHAT WE WILL DO TO CORRECT THE PROBLEM
We may elect which remedy or combination of remedies to provide at our sole discretion. We shall have a reasonable
time after determining that a defective Product exists to repair or replace a defective Product. Our replacement Product
under its limited warranty will be manufactured from new or reconditioned parts.
Your exclusive remedy for any defective Product is limited to the repair or replacement of the defective Product.
We will return the repaired or replacement Product to you prepaid using the same method of shipping (ex: overnight,
ground, 2nd day, …) as was shipped to us. If a more expedited return shipping method is required, extra charges might
apply at our discretion.
HOW YOU CAN GET SERVICE
Contact our Technical Support to obtain a RMA (Return Materials Authorization) number. The model number, serial
number, and description of the problem will be required. A valid proof of purchase might be required to further validate the
Products warranty eligibility, the valid proof of purchase document must show the product model, serial number, purchase
date, and supplier name. If the valid proof of purchase is not available, the original manufacturing date of the product will
be used to determine the warranty period.
No returns will be accepted without a RMA number. We reserve the right to refuse the delivery of the return.
You shall bear all shipping, packing and insurance costs and all other costs, excluding parts and labor, necessary to
effectuate repair or replacement under this warranty.
All products returned to us must be shipped in the original packaging or Dulce approved packaging. If you do not have the
original packaging, call us to request packaging. A nominal fee will be charged for the requested packaging and for
shipment. Ship the RMA to us pre-paid.
Products that are improperly packaged for shipping; packaged in a non-approved shipping container; or incur shipping
damages are not covered under warranty.
HOW STATE LAW RELATES TO WARRANTY
In the United States, some states do not allow exclusion or limitation of incidental or consequential damages, so the
limitations above may not apply to you. This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
10. Product Registration
R E G I S T E R N O W
ADDS 6 MONTHS
Register your product within 30 days of purchase
and extend your warranty by another 6 months.
1 minute = 6 months
It will take only one minute to register and you’ll get 6 months in return!
By registering your PRO FC, the standard 36 months warranty will be extended
for another 6 months. That’s a total of 42 months (3 years and 6 months
warranty.) The longest warranty in the industry!
Please visit our web site and register online.
www.dulcesystems.com/register
A valid proof of purchase might be required to further validate the Products warranty eligibility, the
valid proof of purchase document must show the product model, serial number, purchase date,
and supplier name. If the valid proof of purchase is not available, the original manufacturing date
of the product will be used to determine the warranty period.
Page 33
Page 34
Page 18
PRO FC
g2
Installation and User’s Manual
PRO FC
g2
Installation and User’s Manual
(Page left blank intentionally)
www.dulcesystems.com
Page 35
Page 36
Loading...
