Video Storage Solutions
HD Commander
Installation and User’s Manual
Document 900-0004-0 v1
Page 2
HD Commander
Installation and User’s Manual
Table of Content
HD Commander
Installation and User’s Manual
1. Introduction ................................................................................................... 3
1.1. Safety Considerations............................................................................ 4
1.1.1. SAFETY CONSIDERATIONS......................................................... 4
1.1.2. CONSIDÉRATIONS DE SÉCURITÉ............................................... 5
1.1.3. SAFTY BERÜCKSICHTIGUNGEN................................................. 6
1.1.4. CONSIDERACIONES DE SEGURIDAD......................................... 7
1.2. System Requirements............................................................................ 8
1.3. Technical Support.................................................................................. 8
2. Getting Started.............................................................................................. 9
2.1. Check List .............................................................................................. 9
3. Overview ..................................................................................................... 10
3.1. Removing the Bezel............................................................................. 10
3.2. Disk Modules, Indicators, Controls, Connections................................. 10
3.3. PCI-e / PCI-x Host Adapter Port Assignment....................................... 12
4. Installation................................................................................................... 14
4.1. Disk Module Installation....................................................................... 14
4.2. RAID Controller Installation.................................................................. 14
4.3. Host Adapter Installation...................................................................... 15
4.3.1. PCI-e Controller Installation.......................................................... 15
4.3.2. PCI-x Controller Installation .......................................................... 15
4.4. Making the Connections ...................................................................... 16
4.4.1. Mac Connection............................................................................ 17
4.4.2. Windows PC Connection .............................................................. 17
4.5. Driver Installation ................................................................................. 18
4.5.1. Mac Pro – Expansion Slot Utility Settings..................................... 18
4.5.2. Mac Driver Installation .................................................................. 19
4.5.3. Windows Driver Installation........................................................... 19
5. Formatting and Partitioning......................................................................... 20
5.1. Apple OS X Formatting ........................................................................ 20
5.1.1. Erase an Existing RAID Set and Partition..................................... 20
5.1.2. Create a New RAID Set................................................................ 22
5.1.3. Change the Icon ........................................................................... 22
5.2. Windows XP / Vista Formatting............................................................ 23
6. Limited Warranty......................................................................................... 26
7. Product Registration.................................................................................... 27
1. Introduction
We appreciate your purchase of the HD Commander product from Dulce
Systems. You have everything you need to quickly and easily connect the
storage unit to your editing computer. You are a short time way from your next
blockbuster creation.
This Installation and User’s Manual is intended to streamline the process of
getting your storage system up and running so you can get to work quickly.
Page 2
Page 3
Page 3
HD Commander
Installation and User’s Manual
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HD Commander
Installation and User’s Manual
RISQUE DE DÉCHARGE ÉLECTRIQUE
N'OUVRIR PAS
1.1. Safety Considerations
1.1.1. SAFETY CONSIDERATIONS
W A R N I N G
WATER AND MOISTURE
To reduce the risk of fire or electrical shock, do not expose unit to rain or
moisture. Do not operate unit near water – such as: bathtub, washbowl, kitchen
sink or laundry tub, wet basement, or near a swimming pool.
STABILITY
Do not place this unit on an unstable cart, stand, bracket, or table. Unit may fall,
causing serious injury.
VENTILATION
Do not block front and rear ventilation. Proper airflow is required to ensure
reliable operation and prevents unit from over heating. Do not place unit in an
enclosed space where no or insufficient ventilation is available.
ELECTRICAL
Do not defeat the safety purpose of the grounding power plug. The power cord
should be routed so that it is not likely to be walked on or pinched by items
placed upon or against them.
SERVICING
Do not attempt to service this unit yourself. Opening or removing the top, side
and rear covers will expose you to dangerous voltages or other hazards.
1.1.2. CONSIDÉRATIONS DE SÉCURITÉ
AVERTISSEMENT
EAU ET HUMIDITÉ
Pour réduire le risque de feu ou de choc électrique, n'exposez pas d'unité pour
pleuvoir ou l'humidité. Ne faites pas marcher d'unité près de l'eau – comme; la
baignoire, la cuvette, l'évier ou la cuve de blanchisserie, la cave mouillée ou près
d'une piscine.
STABILITÉ
Ne placez pas cette unité sur un chariot instable, un éventaire, une parenthèse
ou une table. L'unité peut tomber, en provoquant la blessure sérieuse.
VENTILATION
Ne bloquez pas de devant et élevez la ventilation. L'écoulement d'air nécessaire
est tenu de garantir l'opération sûre et prévient l'unité de sur le chauffage. L'unité
ne peut pas placé dans un espace fermé où aucune ventilation ou dans suffisant
n'est disponible.
ÉLECTRIQUE
Ne vainquez pas le but de sécurité de la prise de courant de pouvoir de bases.
La corde de pouvoir devrait être mise en déroute pour qu'ils ne seront pas
probablement marchés sur ou pincés par les articles placés sur ou contre eux.
ENTRETIEN
N'essayez pas d'assurer l'entretien de cette unité vous-même. En s'ouvrant ou le
fait d'enlever le haut, le côté et les couvertures arrière vous exposeront aux
voltages dangereux ou à d'autres hasards.
Page 4
Page 5
Page 4
HD Commander
Installation and User’s Manual
NICHT ÖFFNEN
HD Commander
Installation and User’s Manual
GEFAHR DES STROMSCHLAGS
NICHT ÖFFNEN
1.1.3. SAFTY BERÜCKSICHTIGUNGEN
W A R N U N G
ELEKTROSCHOCKGEFAHR
WASSER UND FEUCHTIGKEIT
Um eine Brand- oder Elektroschockgefahr weitgehend auszuschließen, Gerät
nicht Regen oder Feuchtigkeit aussetzen. Gerät nicht in der Nähe von Badeoder Waschwannen, Wasch- oder Spülbecken, feuchten Kellern oder
Schwimmbecken betreiben.
STABILITÄT
Das Gerät nicht auf wacklige Karren, Ständer, Halterungen oder Tische stellen,
da es herunterfallen und Verletzungen verursachen könnte.
BELÜFTUNG
Vordere und hintere Belüftungsöffnungen nicht versperren. Das Gerät muss
ausreichend be- und entlüftet werden können, damit es sich nicht während des
Betriebs überhitzt. Daher darf das Gerät nicht in geschlossenen Räumen
aufgestellt werden, in denen keine ausreichende Be- und Entlüftung
gewährleistet ist.
STROMVERSORGUNG
Nicht den Schukostecker modifizieren. Das Stromkabel sollte so verlegt werden,
dass es nicht durch Auftreten oder durch spitze oder scharfe Gegenstände
beschädigt werden kann.
WARTUNG
Das Gerät nicht eigenmächtig warten. Durch das Öffnen des Geräts (Abziehen
der oberen, seitlichen und hinteren Abdeckung) setzen Sie sich
lebensgefährlichen Spannungen aus.
1.1.4. CONSIDERACIONES DE SEGURIDAD
ADVERTENCIA
AGUA Y HUMEDAD
Para reducir el riesgo de fuego o electrochoque, no exponga la unidad para
llover o humedad. No haga funcionar la unidad cerca del agua – como; bañera,
lavatorio, fregadero o tina de lavandería, sótano mojado o cerca de una piscina.
ESTABILIDAD
No coloque esta unidad en un carro inestable, soporte, soporte o mesa. La
unidad puede caerse, causando la herida seria.
VENTILACIÓN
No bloquee delantero y críe la ventilación. El corriente de aire apropiado es
requerido asegurar la operación confiable y previene la unidad de sobre la
calefacción. La unidad no puede colocado en un espacio incluido donde ninguna
ventilación o en suficiente está disponible.
ELÉCTRICO
No derrote el objetivo de seguridad del enchufe de poder que da buenos
conocimientos. La cuerda de poder debería ser derrotada de modo que ellos
probablemente no sean andados en o pellizcados por artículos colocados sobre
o contra ellos.
REVISIÓN
No intente atender esta unidad usted mismo. Abriéndose o quitar la cumbre, el
lado y las tapas traseras le expondrán a voltajes peligrosos u otros riesgos.
Page 6
Page 7
Page 5
HD Commander
Installation and User’s Manual
HD Commander
Installation and User’s Manual
1.2. System Requirements
• Windows PC with one available PCI-e x8 or PCI-x
64bit/100/133MHz slot. Microsoft Windows XP / Vista.
• Apple Mac Pro, Power PC with PCI-e with one available
PCI-e x8 slot. Mac OS X 10.4 or higher.
1.3. Technical Support
Phone 818-435-6007
FAX 818-576-0324
E-mail [email protected]
Web www.dulcesystems.com
If the product requires service, please contact Dulce Systems’ Technical Support
and obtain an RMA number. Ship the product properly packaged to:
Dulce Systems
Attn: RMA
9532 Topanga Canyon Blvd,
Chatsworth, CA 91311
2. Getting Started
The HD Commander comes pre-assembled and ready for use, simply follow the
steps outlined in this manual and the HD Commander will be ready for work.
Please do not discard the boxes and packing materials in case you
need to reuse them later. Always ship the product in its original
packaging. Improperly packaged products will be subjected to shipping
damage, for which you will be liable for the repair.
2.1. Check List
• Installation and User’s Manual
• HD Commander enclosure
• 5 disk drive modules
• PCI-e x8 or PCI-x 64bit/133Mhz 4 eSATA port host adapter
• Power Cord (North America user only)
• 1-meter eSATA cables
Page 8
Page 9
Page 6
HD Commander
Installation and User’s Manual
3. Overview
HD Commander
Installation and User’s Manual
Key Lock
Power (white)
C
ooling Fan
The HD Commander contains five removable 3Gb SATA disk drives. The drives
are connected to an internal Port Multiplier device where all five drives can be
accessed with one simple external SATA connection.
A PCI-e x8 or PCI-x 64bit/133MHz four eSATA port host adapter is supplied as
well as a 1-meter eSATA cable.

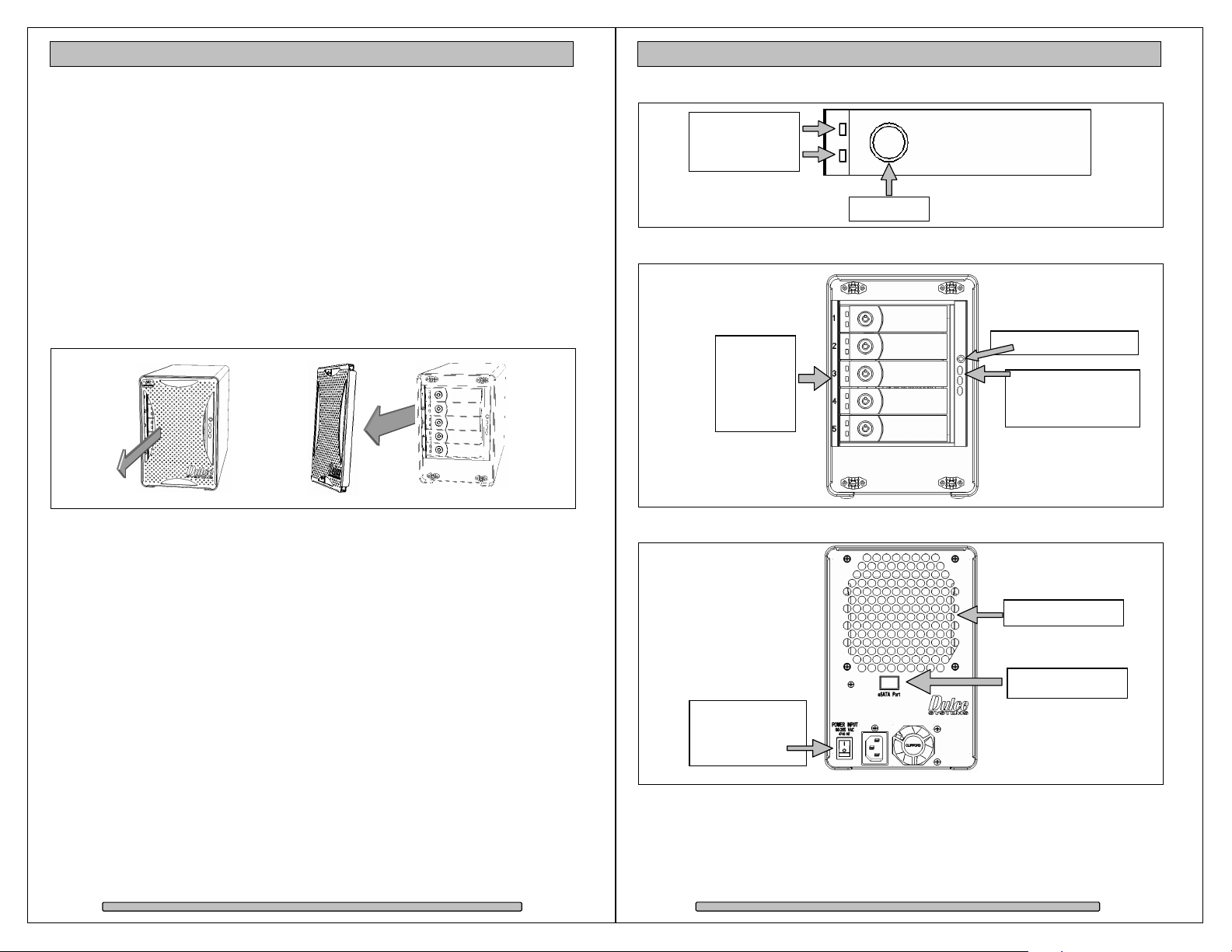

3.1. Removing the Bezel
The front bezel can be easily removed to access the Disk Modules. The bezel is
held on by four snap pins located at each of the four corners.
Using one hand or both hands, firmly grab the left and right side curved openings
and pull forward.
Drive Module
Power (white)
Activity (blue)
Front View with Bezel Removed
Drive #1
Mute Button (green)
Drive #2
Drive #3
Drive #4
Temp Alarm (red)
Fan Alarm (red)
Drive #5
3.2. Disk Modules, Indicators, Controls, Connections
The disk enclosure has stand alone self-monitoring features. It monitors the
temperature and the fan continuously. Should the temperature exceed a safe
operating range or the fan spin below a preset minimum, the alarm will be
triggered. A red indicator light will come on plus an audible alarm will sound.
Audible Alarm can be muted by pressing the green Mute button. The red
indicator remains on until the condition is corrected.
Page 10
Back View
eSATA Port
On / Off Switch
Power Plug
Fan
Page 11
Page 7
HD Commander
Installation and User’s Manual

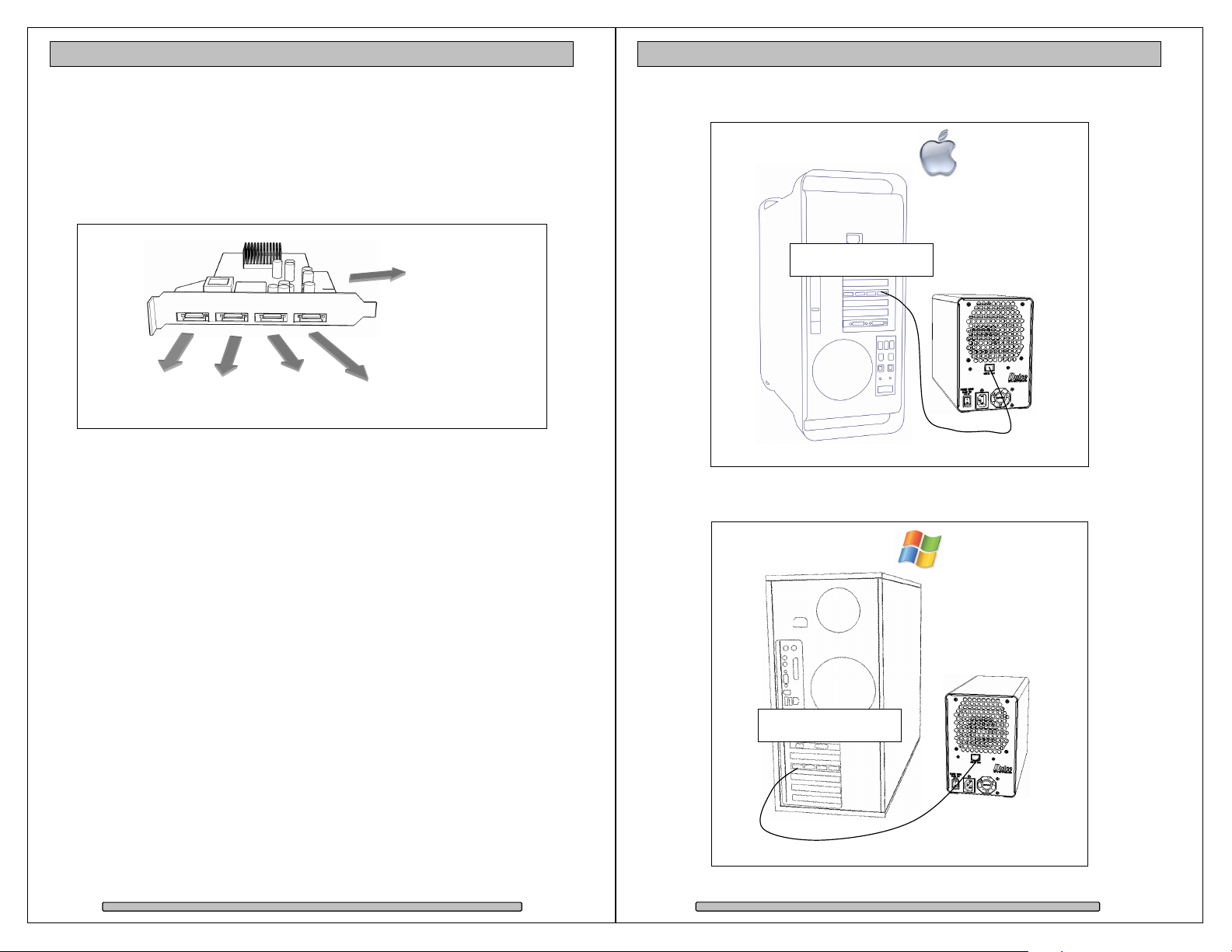

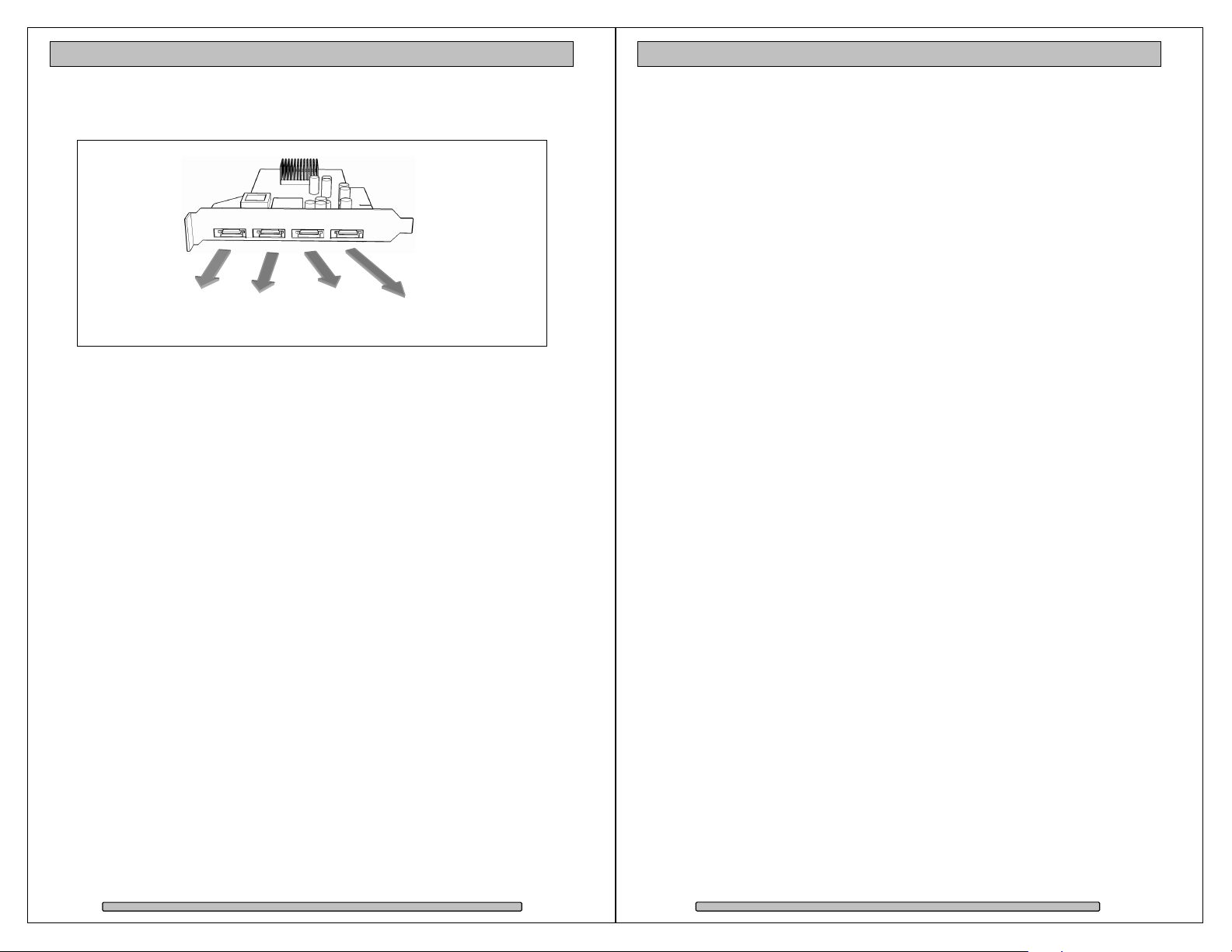

3.3. PCI-e / PCI-x Host Adapter Port Assignment
Po
rt 1
HD Commander
Installation and User’s Manual
(This page intentionally left blank)
Port 4
Port 3
Port 2
Page 12
Page 13
Page 8
HD Commander
Installation and User’s Manual
HD Commander
Installation and User’s Manual
4. Installation

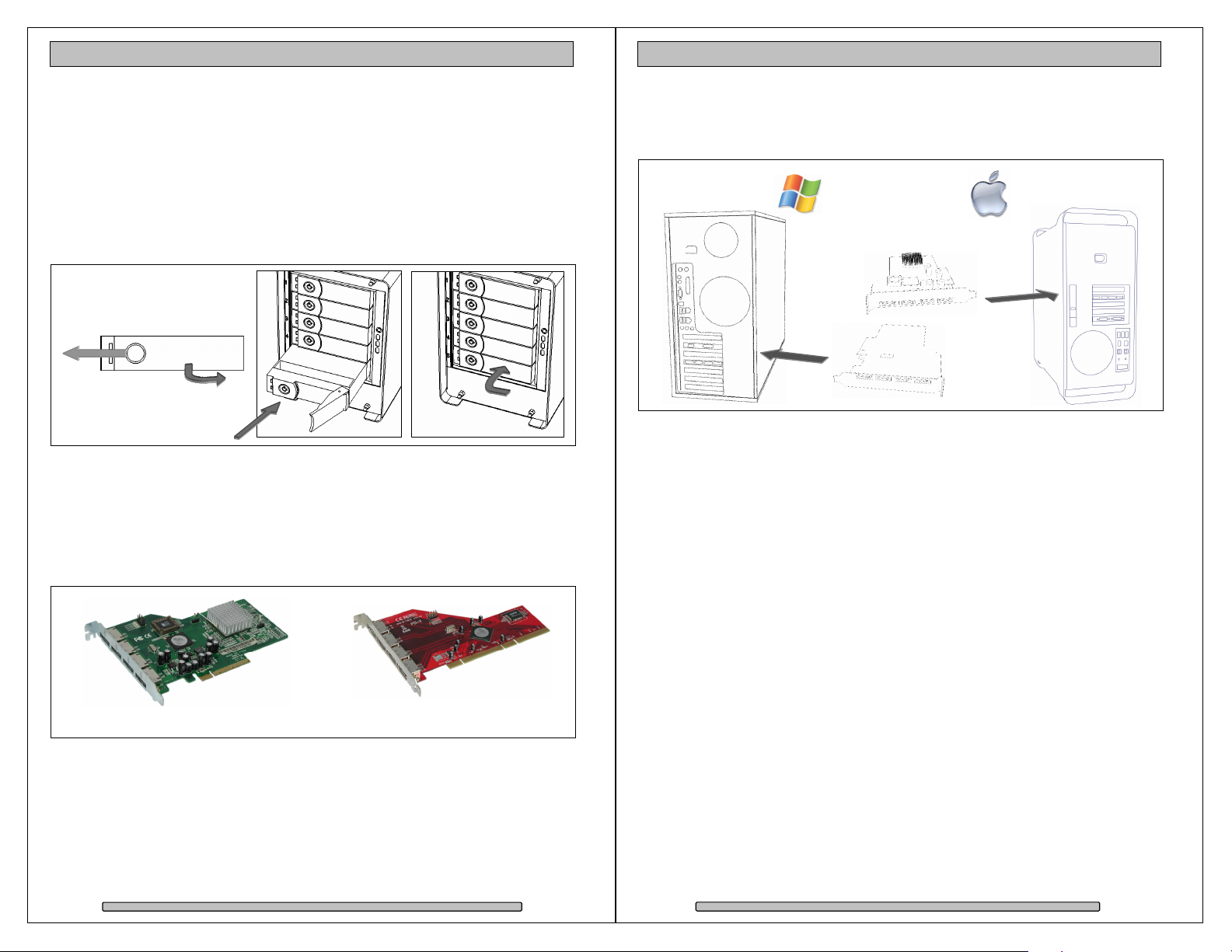

4.1. Disk Module Installation
Remove the front bezel. Install each marked Disk Module into the slot indicated.
Pull the lock of the Disk Module left to open the latch. Insert into slot until latch
begins to close, close latch to lock Disk Module into place.
4.2. RAID Controller Installation
Turn off the computer and unplug the power source before proceeding with the
RAID Controller installation.
A PCI-e or PCI-x RAID Host Adapter is supplied with your HD Commander. The
Host Adapter will require an available slot in your computer.
4.3. Host Adapter Installation
Turn off the computer and unplug the power source before proceeding with the
PCI-e host adaptor installation.
Typical
Windows PC
4.3.1. PCI-e Controller Installation
The PCI-e (also known as PCI-express) Host Adapter requires a x8 slot or larger.
Computers with PCI-e slots less than x8 will not accommodate the Host Adapter.
PCI-e slots x8 or larger will work. Some PCI-e slots have x8 slots but electrically
it is x4 or less. As long as a slot is mechanically x8 or larger, it will work. A
slower electrical speed will also work but at reduced performance.
Apple Mac Pro (Intel) and newer versions of Power Mac G5 support PCI-e x8, as
well as the HP xw series workstations.
Apple Mac Pro
and Power Mac
PCI-e (x8) Host Adapter PCI-x 64bit/133MHZ Host Adapter
PCI-e and PCI-x are not compatible nor are they interchangeable with each
other. A PCI-e Host Adapter can only be installed in a PCI-e equipped computer
and PCI-x Host Adapter in a PCI-x equipped computer. Some computers
support both PCI-e and PCI-x such as the HP xw series but not Apple Macs.
Page 14
4.3.2. PCI-x Controller Installation
The PCI-x Host Adapter operates at 64 bit at up to 133MHz. The Host Adapter
will operate with a slower PCI-x slot such as the 100MHz slots, but it could affect
performance.
Page 15
Page 9
HD Commander
Installation and User’s Manual
Port 1
HD Commander
Installation and User’s Manual
4.4.1. Mac Connection
4.4. Making the Connections
Install the PCI-e or PCI-x adapter card into a free compatible slot in the
computer.
PCI-e
or PCI-x slot
Port 4
Port 3
Attach the supplied eSATA cable to the Host Adapter and the disk unit as shown
next. It does not matter which port is used, but to be consistent, use Port 1 for
your 1st enclosure, then the 2nd and the 3rd as you add more enclosures.
Port 2
Mac
Port 1 on right side
4.4.2. Windows PC Connection
Windows PC
Page 16
Port 1 on left side
Page 17
Page 10
HD Commander
Installation and User’s Manual
HD Commander
Installation and User’s Manual
4.5. Driver Installation

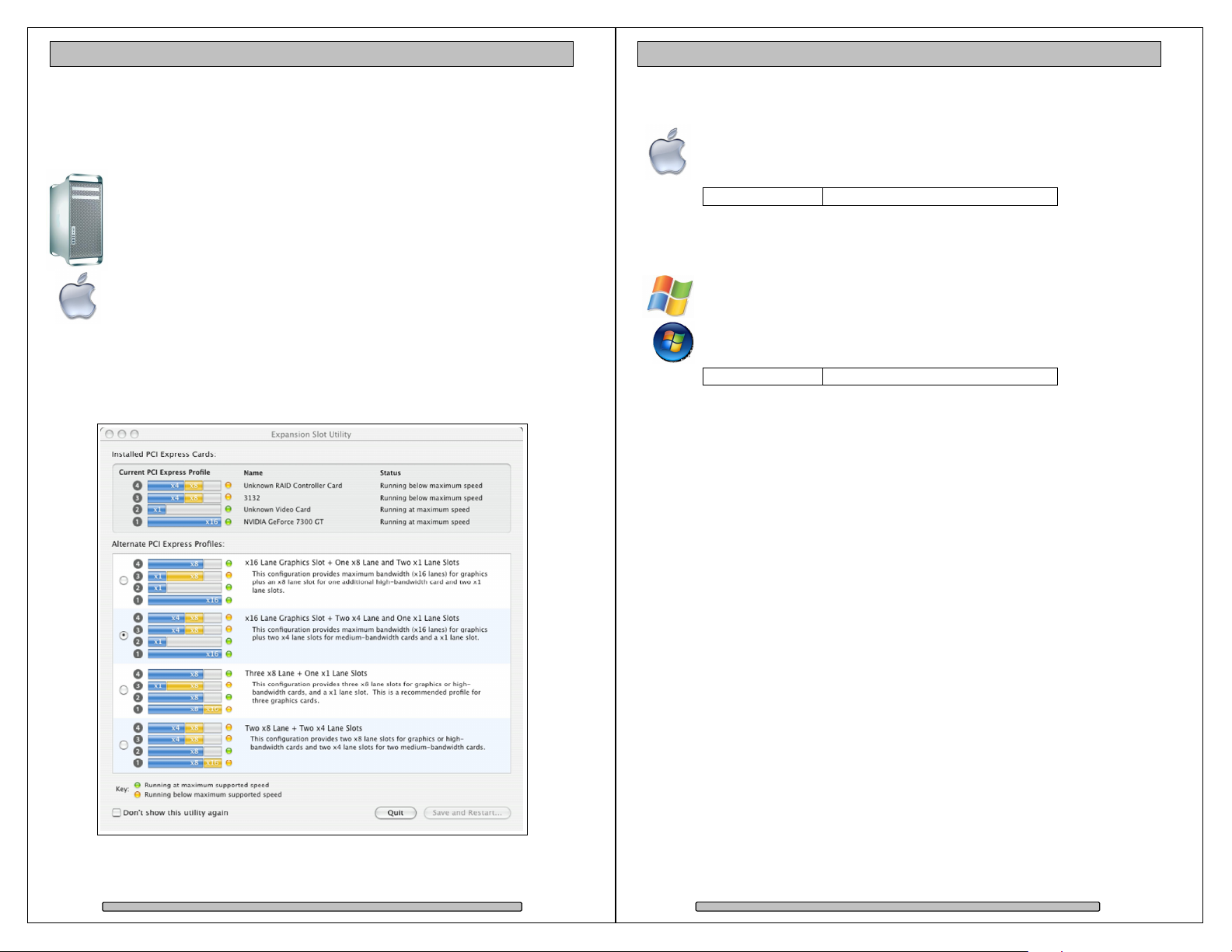

4.5.1. Mac Pro – Expansion Slot Utility Settings
This section applies exclusively to the Apple Mac Pro, this section
can be skipped for all other computers.
The Mac Pro (Intel Xeon-based) will detect changes in the PCI-e slot
configuration, it will automatically launch the Expansion Slot Utility
where you can make performance adjustments for the various PCI-e
slots. The utility can be manually started also, it can be found at:
Under my Mac Pro: /System/Library/CoreServices.
The 4 port eSATA Host Adapter will operate at x4 speed. Make sure that your
video capture/playback card and video display card also get a sufficient x value.
Example below shows the eSATA port Host Adapter in slot 3, a popular video
capture card in slot 2, the Dulce RAID Controller in slot 4, and the standard video
graphics card in slot 1.
4.5.2. Mac Driver Installation
For the latest Mac drivers, please visit our web site and download the
appropriate driver for your Mac.
Download From: www.dulcesystems.com/download
The installer will start automatically, follow the on screen instructions.
4.5.3. Windows Driver Installation
After boot, Windows will detect the RAID Controller and launch the
“Found New Hardware Wizard.” Click Cancel to dismiss the wizard.
Download the latest driver appropriate for your version of Windows.
Download From: www.dulcesystems.com/download
Unzip the downloaded folders and place the content on the desktop.
Launch the Hardware Update Wizard (can be found at Start > Control
Panel > System > Hardware < Device Manager).
Expand Other Devices, right click RAID Controller, click Update Driver…,
click Yes then Next.
Select “Install from a list….(Advanced)”, click Next.
Browse to the unzipped folder and follow the instructions on screen.
Page 18
Page 19
Page 11
HD Commander
Installation and User’s Manual
5. Formatting and Partitioning
HD Commander
Installation and User’s Manual

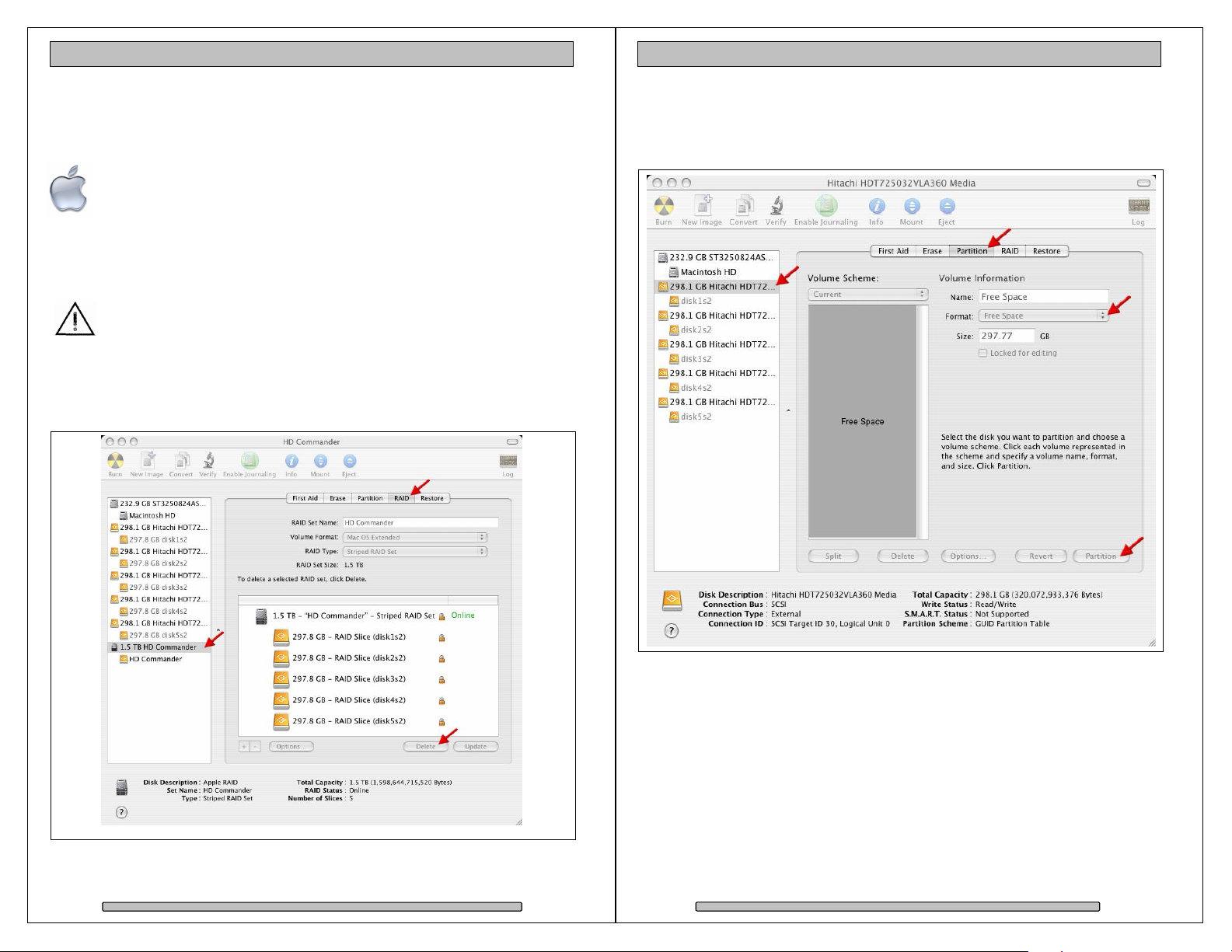

5.1. Apple OS X Formatting
The Apple Disk Utility is the tool to format / partition the HD Commander.
To start Disk Utility, move the pointer to the upper left corner of screen,
click on Go then click on Utilities. Locate and launch Disk Utility.
5.1.1. Erase an Existing RAID Set and Partition
Should it be necessary, you may need to delete an existing RAID set to start
things off clean.
If you have other RAID Sets, you might consider turning them off 1st
before proceeding with the erase to eliminate any accidental data
erasures.
To delete the RAID set: Select the RAID tab on top, then the HD Commander
RAID set on the left drive list (your RAID Set name might be different), click on
Delete to delete the RAID set. Then….
To make the former RAID Set disks as Free Space: Select the Partition tab at the
top, select one of the former RAID Set disk on the left drive list, select Free
Space at the Format pull down menu. Click on Partition at lower right to make
Free Space of that disk. Repeat this for the other disk drives.
Page 20
Page 21
Page 12
HD Commander
Installation and User’s Manual
TO
www.dulcesystems.com/download
HD Commander
Installation and User’s Manual

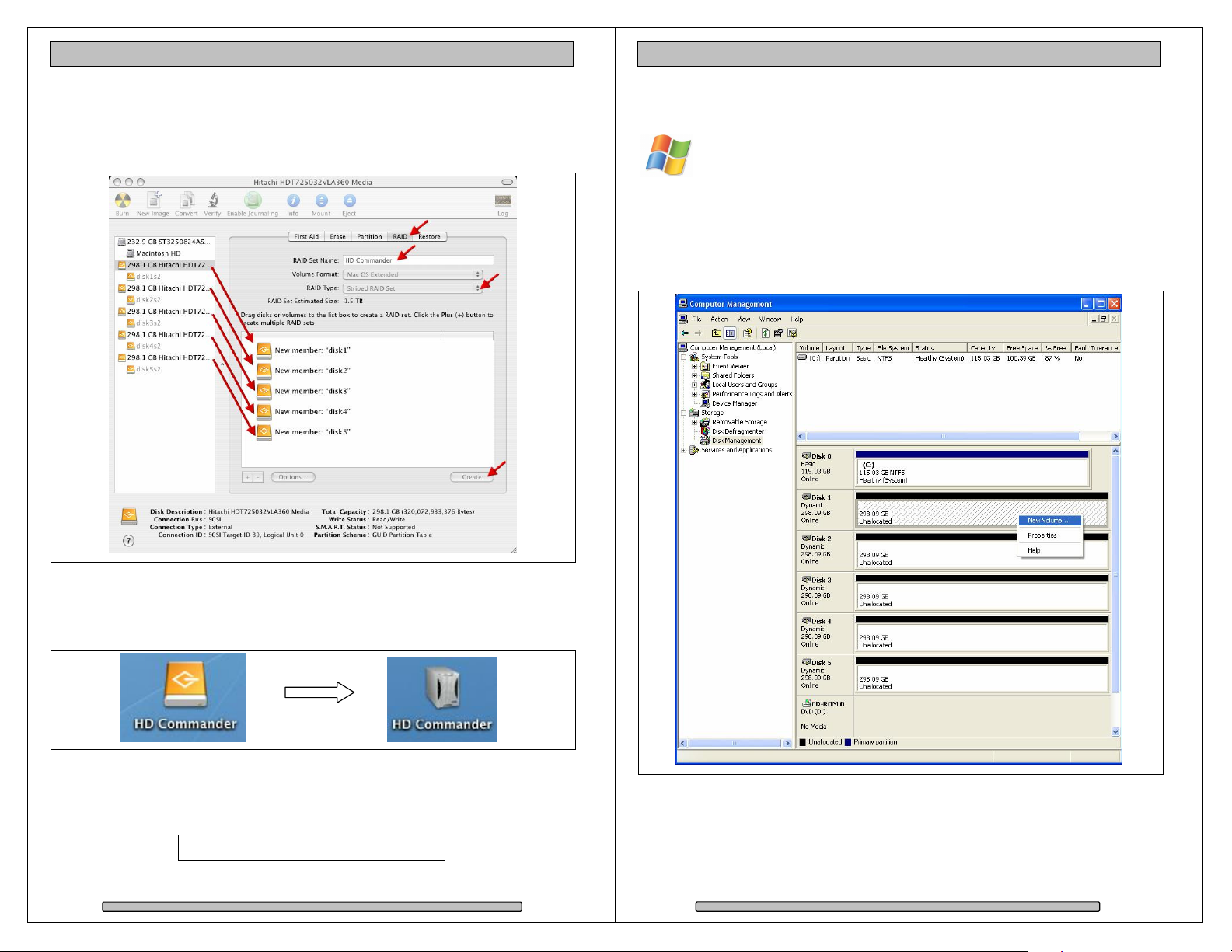

5.1.2. Create a New RAID Set
Select the two free disks on the left side drive list and drag them into the list box,
click on RAID tab at the top, change RAID Set Name as desired, change RAID
Type to Striped RAID Set, click on Create on lower right.
The drive will appear on the desktop after successful completion of the Partition.

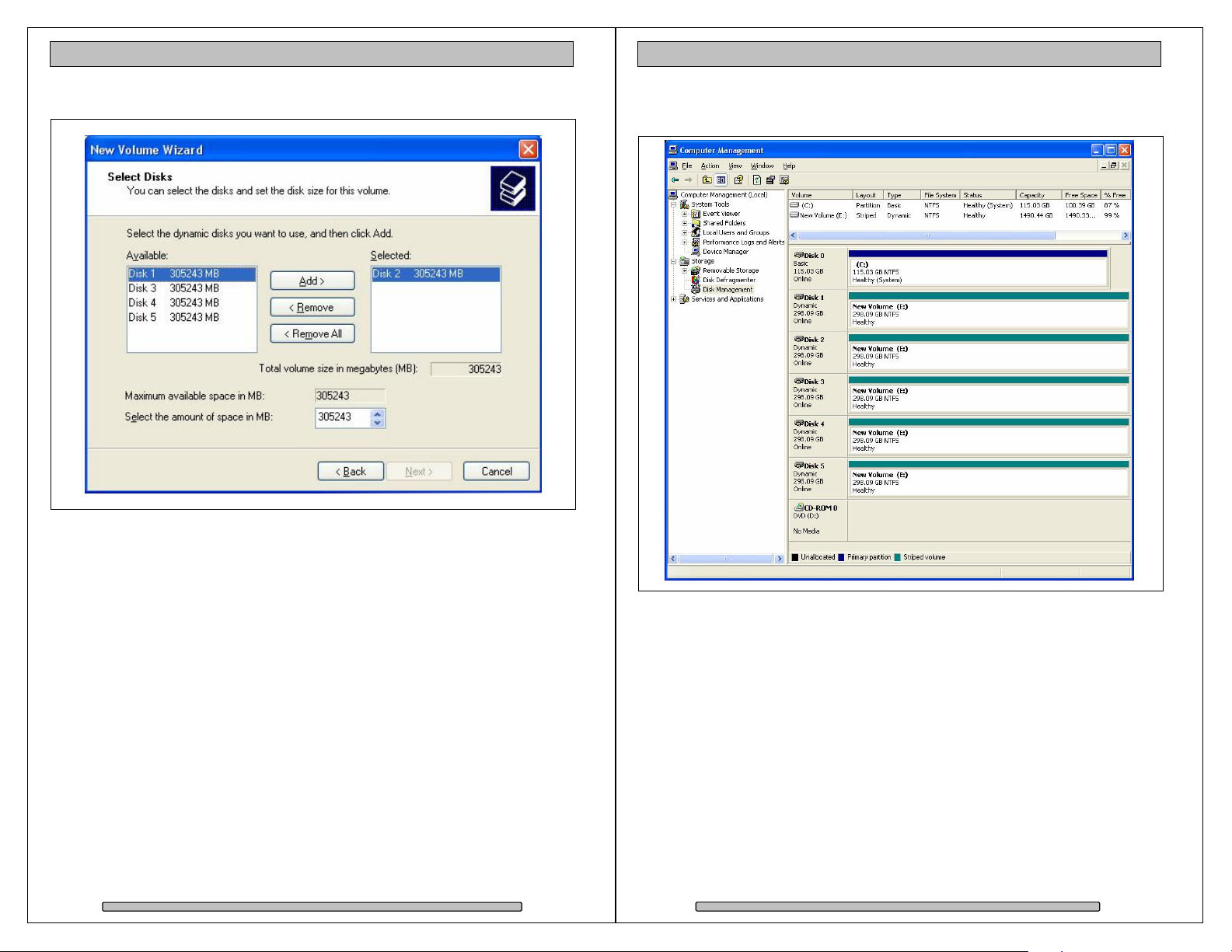

5.2. Windows XP / Vista Formatting
Start Disk Management (can be found at Control Panel > System and
Maintenance > Administrative Tools > Computer Management. Under
Storage.)
If the Initialize and Convert Disk Wizard starts, select the two disks to initialize
them and then to convert them to Dynamic Disks.
To stripe the two disks: Point to Unallocated of Disk 1, right click > New Volume
> Next. Select Stripe > Next. Select and add Disk 2 > Add > Next.
5.1.3. Change the Icon
Disk Utility uses a generic default icon for the drives, this can be changed to the
cooler looking Dulce icon. Visit our download page to get the icons and
instructions.
Page 22
Page 23
Page 13
HD Commander
Installation and User’s Manual
HD Commander
Installation and User’s Manual
Repeat adding until all five drives are selected, then click Next.
Assign drive letter as desired > Next. Check the Perform a Quick Format box >
Next > Finish.
Page 24
The HD Commander appears as a striped volume and a single drive letter.
Page 25
Page 14
HD Commander
Installation and User’s Manual
HD Commander
Installation and User’s Manual
6. Limited Warranty
WHAT THE WARRANTY COVERS
Dulce Systems warrants your product against any defect in material and workmanship and conforms to Dulce published
specifications under normal use.
WHAT THE WARRANTY DOES NOT COVER
The warranty does not cover equipment which has been damaged due to accident, misuse, abuse, fire, flood, "Acts of
God," or other contingencies beyond our control; use of incorrect line voltages; improper or insufficient ventilation; failure
to follow operating instructions; or improper or unauthorized repair; improperly packaged for shipping; packaged in nonapproved shipping container; shipping damage.
The warranty is voided by removal or alteration of the product or parts identification labels.
Dulce has no liability for general, consequential, incidental or special damages. These include loss of recorded data, the
cost of recovery of lost data, lost profits and the cost of the installation or removal of any Products, the installation of
replacement Products, and any inspection, testing, or redesign caused by any defect or by the repair or replacement of
Products arising from a defect in any Product.
WHAT THE WARRANTY PERIOD IS
Dulce Systems warrants your Quad, Duo Quad, HD Commander product for 36 months and if the product is registered
with Dulce within 30 days of purchase, we will extend the warranty for another 6 months totaling 42 months. We warrant
the Duo for 36 months. The warranty period begins at the date of shipment to the original end user, company or
organization.
Our warranty applies to repaired or replaced Products for the balance of the applicable period of the original warranty or
ninety days from the date of shipment of a repaired or replaced Product, whichever is longer.
WHAT WE WILL DO TO CORRECT THE PROBLEM
We may elect which remedy or combination of remedies to provide at our sole discretion. We shall have a reasonable
time after determining that a defective Product exists to repair or replace a defective Product. Our replacement Product
under its limited warranty will be manufactured from new or reconditioned parts.
Your exclusive remedy for any defective Product is limited to the repair or replacement of the defective Product.
We will return the repaired or replacement Product to you prepaid using the same method of shipping (ex: overnight,
ground, 2nd day, …) as was shipped to us. If a more expedited return shipping method is required, extra charges might
apply at our discretion.
HOW YOU CAN GET SERVICE
Contact our Technical Support to obtain a RMA (Return Materials Authorization) number. The model number, serial
number, and description of the problem will be required. A valid proof of purchase might be required to further validate the
Products warranty eligibility, the valid proof of purchase document must show the product model, serial number, purchase
date, and supplier name. If the valid proof of purchase is not available, the original manufacturing date of the product will
be used to determine the warranty period.
No returns will be accepted without a RMA number. We reserve the right to refuse the delivery of the return.
You shall bear all shipping, packing and insurance costs and all other costs, excluding parts and labor, necessary to
effectuate repair or replacement under this warranty.
All products returned to us must be shipped in the original packaging or Dulce approved packaging. If you do not have the
original packaging, call us to request packaging. A nominal fee will be charged for the requested packaging and for
shipment. Ship the RMA to us pre-paid.
Products that are improperly packaged for shipping; packaged in a non-approved shipping container; or incur shipping
damages are not covered under warranty.
HOW STATE LAW RELATES TO WARRANTY
In the United States, some states do not allow exclusion or limitation of incidental or consequential damages, so the
limitations above may not apply to you. This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
7. Product Registration
R E G I S T E R N O W
Please visit our web site and register online.
www.dulcesystems.com/register
A valid proof of purchase might be required to further validate the Products warranty eligibility, the
valid proof of purchase document must show the product model, serial number, purchase date,
and supplier name. If the valid proof of purchase is not available, the original manufacturing date
of the product will be used to determine the warranty period.
Page 26
Page 27
Page 15
HD Commander
Installation and User’s Manual
Page 28
www.dulcesystems.com
Loading...
