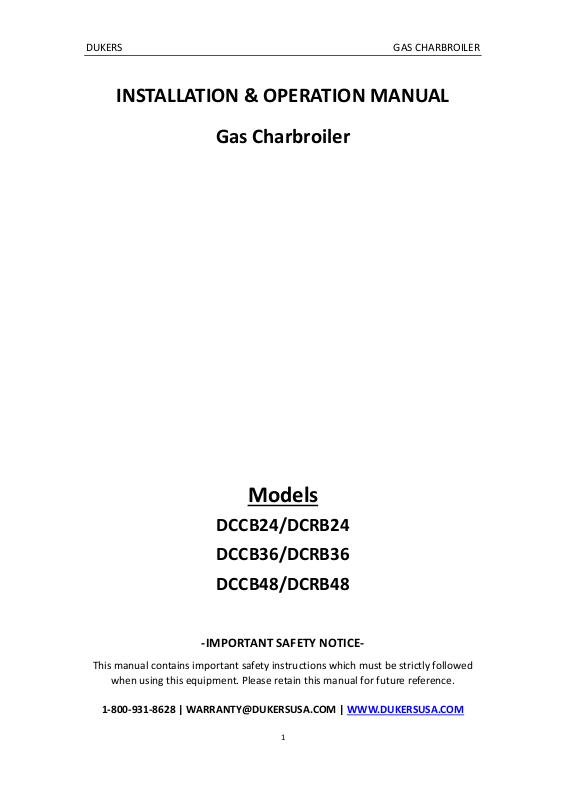

Dukers DCCB24, DCRB24, DCCB36, DCRB36, DCCB48 Manual

DUKERS GAS CHARBROILER

1

INSTALLATION & OPERATION MANUAL

Gas Charbroiler

Models

DCCB24/DCRB24
DCCB36/DCRB36
DCCB48/DCRB48

-IMPORTANT SAFETY NOTICE-

This manual contains important safety instructions which must be strictly followed

when using this equipment. Please retain this manual for future reference.

1-800-931-8628 | [email protected] | WWW.DUKERSUSA.COM

DUKERS GAS CHARBROILER

2

INDEX

ATTENTION OWENERS AND OPERATORS…………………..…………………3

UNPACKING & INSTALLATION……………………………….……………………..4

WARNINGS & SAFEGUARDS FOR OPERATION……………………….….....7

OPERATING INSTRUCTIONGS……………………….………………………………10

CLEANING INSTRUCTIONGS…………………………………………………………...9

LIMITED WARRANTY…………………………………….…………………….………..16

FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors or liquids
in vicinity of this or any other appliance

WARNING: Improper installation, adjustment, alteration,

service or maintenance can cause property damage, injury of death.
Read the installation, operation and maintenance instructions
thoroughly before installing or servicing this equipment.

DUKERS GAS CHARBROILER

3

The equipment is designed to provide safe and productive processing, cooking
and warming of food products as long as the equipment is used in accordance with
the instructions in this manual and is properly maintained. Unless the operator is
adequately trained and supervised there is a possibility of serious injury. Owners of
this equipment bear the responsibility to make certain that this equipment is used
properly and safely, and to strictly follow all of the instructions contained in this
manual and the requirements of local, state of federal law.

Owners should not permit anyone to touch this equipment unless they are over
18 years old, are adequately trained and supervised, and have read and understood
this manual. Do not attempt to repair or convert any gas types one your own. Repairs
and conversions are to be made solely by an authorized local servicer.

Owners should also ensure that no customers, visitors or other unauthorized
personnel come in contact with this equipment. Please remember that supplier
cannot anticipate every circumstance of environment in which its equipment will be
operated. It is the responsibility of the owner and the operator to remain alert to any
hazards posed by the function of this equipment. If you are ever uncertain about a
particular task or the proper method of operating this equipment, ask your

supervisor.

This manual contains a number of precautions to follow to help promote safe
use of this equipment.

Throughout the manual you will see additional warnings to help alert you to
potential hazards.

Warning affection your personal safety indicated by:

△

!

WARNING OR △

!

Warning affect or possible damage to the equipment and property are

indicated by: CAUTION

If any warning labels or this manual are misplaced,damaged,or illegible, or if you
require additional copies, please contact your nearest representative or vender
directly for these items at no charge.

Please remember that this manual or the warning labels do not replace the need
to be alert, to properly train and supervise operators, and to use sense when using
this equipment.

Please remember that this manual or the warning labels do not replace the need
to be alert, to properly train and supervise operators, and to use sense when using
this equipment.

Attention owner and Operators

DUKERS GAS CHARBROILER

4

△

!

WARNING TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE:

➢ ALWAYS install equipment in a work area with adequate light and space.
➢ ONLY operate on a solid, level, nonskid surface that is nonflammable and

away from sinks and water hazards

➢ NEVER bypass, alter or modify this equipment in any way from its original

condition. Doing so may create hazards and will void warranty.

GAS and GAS PRESSURE

CAUTION

This unit is factory supplied in Nature Gas. This unit can be converted to L. P gas
by a licensed and certified gas technician. Documentation may be necessary for
warranty issues. Failure to comply with this instrction , will void warranty.

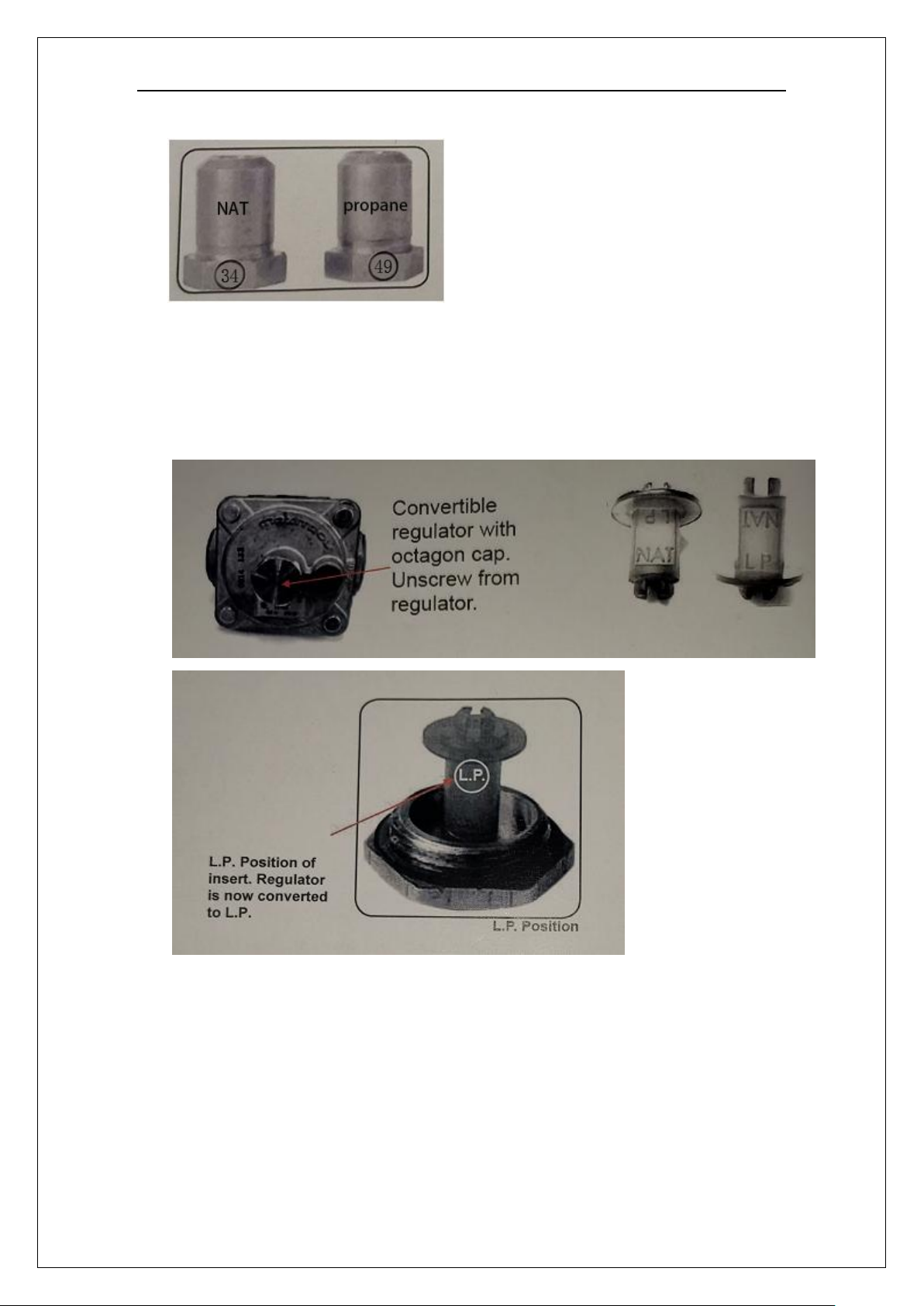

See the included L.P. conversion kit for gas coversion parts and instrutions.

△

!

WARNING

Unit installation must conform with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, the National Gas installation Coade, CSA-B149.1, or the Propane
installation Code, CSA-B149.2 as applicable and in accordance with local codes.

△

!

WARNING

The appliance and it’s individaual shutoff valve (to be supplied by user) must be

disconnected from the gas supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psi(3.45kPa)

These models are designed, built, and sold for commercial use only.

Instructions must be posted in a prominent location. ALL safety precautions must
be taken in the event the user smells gas. Safety information can be obtained from
your local gas supplier.

UNPACKING

Unpack the Charbroiler immediately after receipt. Remove the gas Charbroiler
from the crate; remove all packaging on and surrounding the unit and be certain to
remove all protective plastics and residues from all surfaces. Make sure that all parts
provided including the L.P. gas conversion kit are located.

If the machine is found to be damaged, save the packaging material and contact
the carrier within fifteen (15) days of delivery. Immediately contact Dukers or your
local dealer of the equipment. You have no recourse for damage after fifteen (15)
days.

Unpacking & Installation

DUKERS GAS CHARBROILER

5

INSTALLATION

1. Read this manual thoroughly before installation and operation. DO NOT proceed

with installation and operation if you have any questions of do not understand
anything in this manual. Contact your local representative.

2. Select a location for the Charbroiler that has a level, solid, nonskid surface that is

nonflammable and away from water hazards or sinks, and is in a well-lighted
work area away from children and visitors.

3. Equipment must be installed under proper ventilation as required per local code.

4. NOTICE: Local codes regarding installation and ventilation vary greatly by area.

The National File Protection Association, Inc. states in its NFPA 96 latest edition

(see NFPA page at the beginning of this manual) that local codes are “authority
having jurisdiction” when it comes to requirements for installation of equipment.

Therefore, installation should comply with all local codes.

5. This appliance is equipped for Natural gas, for conversion to LP gas please see

another conversion kits instruction.

6. Screw legs into the permanently fastened nuts on the four corners of the unit and

tighten by hand. Legs must be installed to adequately provide proper ventilation
to the unit.

7. Level unit by adjusting the four feet and tighten securely. The adjustable feet

have an adjustment of on inch for lineup with other countertop lines. Do not
slide unit with legs mounted, lift if necessary to move unit.

8. The supplied gas pressure regulator is factory set a 4” Natural gas W.C. or 10” for

L.P.

9. THESE UNIT SARE SUITABLE FOR INSTALLATION ON NO-COMBUSTIBLE SURFACES

ONLY.
Noncombustible clearances: 0”side (0 mm)6” rear(152 mm)4”floor(102mm)

10. Do not obstruct the flow of combustion and ventilation air, under the unit by the

legs or behind the unit by the flue. Do not place objects between the bottom of
the unit and the counter top.

11. There must be adequate clearance for removal of the front panel. Al major parts

except the burners are removable thru the front if the gas line is disconnected.

12. It may be necessary to adjust the balance of gas volume and air supply to each

burner. This must be done by an authorized service technician.

13. Pipe threading compound must be resistant to the action of liquefied petroleum

gases.

△

!

WARNING DO NOT use an open flame to check for leaks. Check all gas piping

for leaks with a soap and water solution before operating unit.

Unpacking & Installation

DUKERS GAS CHARBROILER

6

COMMISSIONING:

Commissioning of your new Charbroiler is of the utmost imporatance.
Commissioning is the thorough and methodical testing of the equipment, sub
systems, and systems to ensuore that the final product functiongs properly and safely
at the work site. By identifying any potential problems(i.e.:equipment location,
ventilation, local fire/electrical codes, installation, operator training and certification)
prior to equipment being placed into service, costly outages and potential damages
may be avoided.

DUKERS GAS CHARBROILER

7

△

!

WARNING

TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE

△

!

WARNING For your safety, do not store or use gasoline or other flammable

vapors or liquids in the vicinity of this of any other appliances. Keep thearea free
and clear fo combustible.(See ANSI Z83.14B.1991).

△

!

WARNING Improper installation,adjustment,alteration,service or maintenance of

this equipment can cause property damage, personal injury, or death and voids warranty,
Read the installation operating and maintenance instructions thoroughly before instaling,
or operating this equipment.

△

!

WARNING Instructions must be posted in a prominent loation. All safety

precautions must be taken in the event th user smells gas. If you smell gas, immediately
shut off the main gas valve, extinguish all heat and flames,and call 911. Safety information
canben obtained from your local gas supplier.

IMPORTRANT SAFEGUARDS & SAFETY INSTRUCTIONS

CAUTION when using gas cooking equipment, basic safety precautions shoud

always be followed, including the following:

The Charbroiler burners, cooking grates and outside surfaces may become HOT after
use. Use caution when touching the unit.

⚫ Never directly touch the burners of cooking grates while the Charbroiler is on.
⚫ Always turn off the unit when not in use, servicing of adjusting any parts or

attachments, and before cleaning.
⚫ Do not operate any equipment with a damaged or leaking gas line, ignitor of

valves of or if the unit is dropped or damaged in any manner. Call for service
⚫ The use of attachments no recommended of sold by the manufacturer may

cause fire, injury of even death.

⚫ Do not use outdoors.
⚫ Do not use this equipment for any use other than the use intended by the

manufacturer.

⚫ Never use the equipment for any use a heating source
⚫ The Charbroiler does not contain any user-serviceable parts. Dealers of

recommended qualified technicians should carry out repairs. Do not remove any

components or service panels on this product.
⚫ Never bypass, alter, modify of attach any unauthorized parts tor this equipment.

Warnings and Safeguards for Operation

DUKERS GAS CHARBROILER

8

Doing so may create hazards and will void warranty
⚫ Supplier takes every care to ensure that all products are safe. Steal cutting

procedures used to however, we insist the operator take care when in contact

with this piece of equipment.

⚫ Always keep hands, hair and clothing away from heating source.
⚫ Allow the Charbroiler to cool down after use and before dismantling for cleaning;

the unit will be too hot handle immediately after use.

Operating the Charbroiler-pilot lighting instructions

Before operating Charbroiler, it should be checked to see that it is sitting level. Adjust
the feet to level the Charbroiler. Be sure the catch tray has been properly placed.
The pilot lights on the appliance have been set at factory. Each burner has a pilot
light.

1. Make sure all knobs are in the “OFF” position.

2. The main gas valve should be “CLOSED/OFF” for five minutes prior to

lighting pilots to clear any exiting gas. (Main gas valve is supplied by
others.)

3. Turn “ON/OPEN” the main gas valve to the unit.

4. Light and hold an ignition source (match) at the pilots. When the flame is

established, remove the ignition source. Repeat this step for each burner

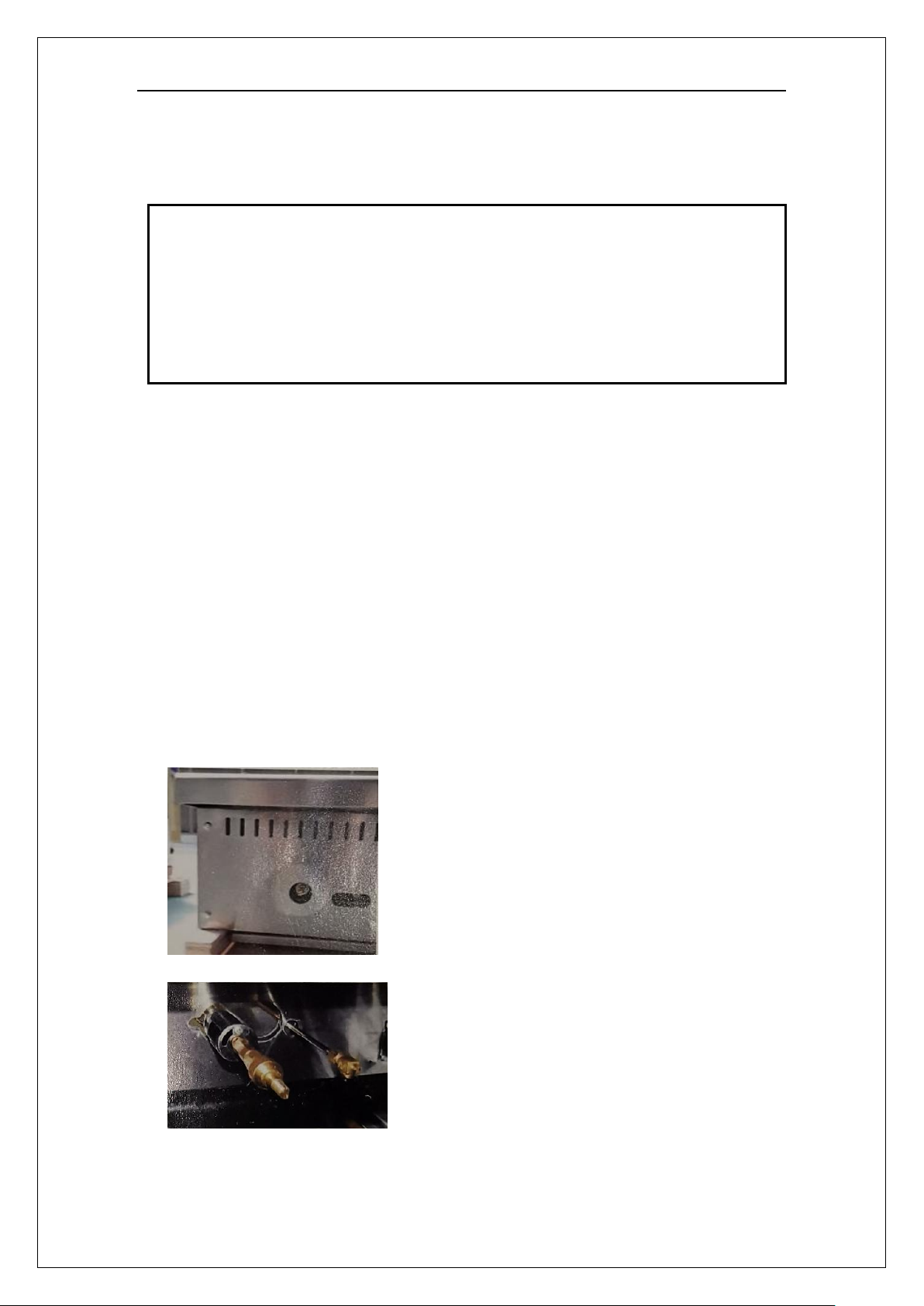

as each burner has its own individual pilot. The pilot can be reached
through the holes in the front of the unit.

5. Adjust the pilot valve， make sure the pilot flame at 1/2 inch height.

6. Turn each burner knob “ON”. If the burners do not ignite promptly, turn the

Knobs “OFF”, from the opening in the front panel, use a screwdriver and

turn the pilot valve screw counterclockwise which will increase the flame
height and repeat step4.
The pilot flame should be as small as possible but large enough to
guarantee reliable ignition of the burners when the knobs are turned to

“ON”. The holes located in the front panel are pilot valve adjustments.

Use a screwdriver to turn the valve to adjust the flame height to your
desired level.

Igniting the burner

To ignite the burner, turn knob to the “ON” position. Then back off to the desired
flame level. The range of adjustment is virtually infinite between “ON” and ”OFF”

The space between the legs at the bottom admits combustion air. DO NOT BLCOCK
THIS SPACE.
All burners are lit from constantly burning pilots. Turning the valve to the desired
flame height is all that is required to put the unit in service.

Operating Instructions

DUKERS GAS CHARBROILER

9

Do not permit fans to blow directly at the unit. Wherever possible, avoid open

windows next to the unit’s sides or back. Avoid wall type fans which create air

cross-currents within a room.
It is also necessary that sufficient air should be allowed to enter the room to
compensate for the amount of air, removed by any ventilating system. Otherwise, a
subnormal atmospheric pressure will occur, affecting operation and causing
undesirable working conditions.
A properly designed and installed hood will act as the heart of the ventilating system
for the room of area in which the unit is installed, and will leave the unit
independent of changing draft conditions.
NOTE: it may be necessary to adjust the balance of gas, volume and air supply
to each burner. This must be done by a authorized technician.

Shutdown the burner

To turn “OFF” the appliance completely, turn the gas control knob completely
clockwise to “O” position, the pilot burner will extinguish.

OPERATION THE CHARBROILER

Prior to operating your new charbroiler, thoroughly wash the exterior with a mild
detergent or soap solution. Do not use abrasive cleaners, since this might damage
the cabinet finish. If the stainless steel surfaces become discolored, scrub by rubbing
only in the direction of the finished grain.
Turn the burners on about 15-20 minutes before cooking for preheating. Set the
knobs to the desired flame height or temperature. Each valve will control the gas
flow to the burner to bring that area of the unit up to the set temperature. If
different temperature settings are to be used, adjoining areas should be set at
progressively higher temperatures using the lowest temperatures on the outside
burners, A uniform and systematic approach to the loading of the unit will produce
the most consistent product results.
NOTE: When the charbroiler is first heated, it will smoke until oil used in
manufacturing, preservation dust from storage and shipping are burned off. An hour
at "max, "on all burners is usually sufficient

Radiant Charbroiler

1. Place the angled radiants in their position as shown in 8-1

2. Make sure that the radiants are setting properly into the slots on the front

And rear supports Radiants should be centered over straight section of the
burners.

COOKING GRATES

Place the top cooking grates with the the grid bars angled toward the front as shown
in Fig.8-2. Or, place the grid bars flat, not angled for cooking.
NOTE: When cooking grates are placed angled toward the front, the grooves on top

DUKERS GAS CHARBROILER

10

will guide the excess fat drippings into the grease trough.
The cooking grates are heavy duty cast iron which will oxidize if emerged in water.
Lightly oil grates if not being used regularly.

DUKERS GAS CHARBROILER

11

CAUTION

DO NOT use any abrasive or flammable cleaning fluids;
DO NOT hose down immerse or pressures wash any part of the Charbroiler, excluding
the catch tray.
NEVER use a scrubber pad, steel wool or abrasive material, or cleaners containing
chlorine, iodine and ammonia or bromine chemicals as these will deteriorate the
stainless steel and shorten the life of the unit.

△

!

IF CLEANING THE BURNER OF THE CHARBROILER, THE MAIN GAS VALVE MUST

BE SWEITCHED TO THE CLOSED POSITION. AFTER CLEANING, THEGAS LINE CAN BEN
SWITCHED BACK TO THE OPEN POSITIONG. PLEAE FOLLOW TH LIGHTING
INSTRUCTIONS IN THIS MANUAL TO RELIGH THE CHARBROILER’S PILOT LIGHTS.

RECOMMENDED CLEANING

It takes very little time and effort to keep the Charbroiler attractive and performing at
the top efficiency. Please follow the cleaning steps below.

PART

REQUIRED ACTION

FREQUENCY

Grate

Wash with soap and water

Daily

Body

Use a clean cloth and a non-abrasive cleaner to clean
the stainless steel body of the Charbroiler. Wipe the
polished areas with a soft cloth

Daily

Controls

Unit should be turned off when not in use. It is
recommended that the unit be disconnected from the
gas supply by closing the main gas valve. Use a clean
cloth to wipe any down controls and/or knobs

Daily

Grates
and
Radiants

Caution: When handing grates/grids or radiants, always
use insulated gloves to prevent burns.
➢ Place grates on broiler, with grid bars horizontal,

facing down.

➢ Turn the broiler on for approximately 45 minutes
➢ Clean top and bottom surfaces of grate with a

wire brush to remove animal fats and carbonized
grease.

➢ Clean channels on grates with a scarper
➢ Remove grates from broiler. Clean top surface of

radiants with the wire brush. They may be cleaned

in place
Warning: Do not cover the top of the grates grid during
a burn off operation. Restricting the airflow by covering
the grid during a burn off operation. Resticting the

Daily or as
needed

Cleaning Instructions

DUKERS GAS CHARBROILER

12

airflow by covering the grid grates may cause them to
warp. It will also cause damage to the valves, the knobs
and the front panel decal.

Catch Tray

Once the unit has cooled, remove the catch tray and
discard the wastes, debris and crumbs. CAUTION: if the
catch tray is permitted to fill too high, debris is likely to
accumulate under the unit. The catch tray/drawer is
removed by pulling forward. USE CAUTION WHEN
ROMOVING!

Per use or at
least Daily

Char
Grate
Back
Support
Brace

Once the unit has cooled, remove the case iron grates.
Lift the support brace up off the back splash guard.
Clean and de-grease/remove debris from char grate
back support brace. Once the char grate back support
brace is clean, reinstall it back into place.

Daily or as
need

Burner Air
shutter
openings

Main burner ports must be kept clean, Close the gas
valve to the unit shutting of the gas and extinguishing
the pilot light. Clean in place with brush or clean gas
ports or the burners may be removed and washed in
soapy water for 15-20 minutes

As needed
Regulator

Make sure the vent opening is open and not blocked in
any way. Failure to do so will cause variations in
pressure. Your unit will not function as well and it could
shorten the life of the product

Monthly

DUKERS GAS CHARBROILER

13

ISSUE

CAUSE

SOLUTION

Charbroiler not lighting

Main gas line is closed

Open valve

Pilot light is not lit

Ignite pilot light

Cause unknown

Call for service

Flame is too high or too
low

Adjustment knob is turned
up or down

Adjust flame with control
knob

Pilot light not staying lit

Flame is too low

Adjust pilot light flame
height

Pilot tube clogged

Replace pilot tube. Call for
service

Strong smell of gas in
cooking area

Main gas line leak

Turn off main gas valve.
DO NOT LIGHT FLAME,
ignite anything, or
turn/switch on anything
electrical, Call fire
department if needed and
call for service

Cooking surface is heating
up slowly

Carton build up

Ensure that the burners
are kept clean and free
from carbon build
up/debris

Gas type of Unit needs to
be converted

Contact an authorized
servicer. Do not attempt
conversion on your own

IF problems persist and the assigned solution does not remedy the

issue, please call service department or your local service company.

Troubleshooting

DUKERS GAS CHARBROILER

14

Conversion Kit Instructions for the

Gas Charbroiler

Charbroiler Conversion Kit Instructions

△

!

WARNING Do not attempt gas conversion by yourself. Gas conversion of your

unit is to be made by a certified/licensed technician.

CONVERSION

Instructions are for conversion from Natural Gas to Propane (L.P.) on all models.
The conversion should be done before connecting the unit to the gas supply. Units
are shipped from the factory equipped for use on natural gas.

Parts necessary for L.P. (propane) are provided with the unit .Turn off the main

gas supply before doing any maintenance.

1. Remove the knobs and front panel

2. Unscrew bolts and pilot valve, then remove manifold

IMPORTANT SAFETY NOTICE

These conversion instructions are for conversion of the griddle. The
instructions provide in this kit are for the conversion of Natural Gas to LP gas
and refer to the conversion of the unit and kit provided. An properly convert
this unit, can result in serious injury, property damage or death and will void
warranty.

DUKERS GAS CHARBROILER

15

3. Replace the front panel and knobs

4. Before installing the included convertible regulator, unscrew the octagon cap.

You can read (NAT) on the plastic insert attached to the head of the cap; flip it
over and snap back in place.
Pictured is the plastic insert. Pull off insert from the octagon cap head and
reverse the plastic insert position so that the L.P. position is attached to the
octagon cap head.

5. Continue with installation

DUKERS GAS CHARBROILER

16

DUKERS warrants to the original purchaser of new equipment that said equipment,
when installed in accordance with our instructions within North America and
subjected to normal use, is free from defects in material or workmanship for a
period of 1 year. The labor warranty is one year from original installation or 18
months from actual factory shipment date whichever date occurs first. Warranty
includes onsite service calls within 60 miles of an authorized service company. End
user is responsible for all extra travel and mileage at prevailing rates

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR
IMPLIEDDUKERSEXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR EXPRESSEDOR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE.

Dukers’s obligation and liability under this warranty is expressly limited to repairing
and replacing equipment which proves to be defective in material or workmanship
within the applicable warranty period.
All repairs pursuant to this Warranty will be performed by an Authorized
Designated DUKERS Service Location during normal working hours.
This warranty does not cover services performed at overtime or premium labor
rates. End user is responsible for the difference between normal service rates and
premium service rates.
IN NO EVENT SHALL DUKERSBELIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES TO BUYER OR ANY THIRD PARTYINCLUDING, WITHOUT LIMITATION,
LOSS OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESSOR PROFITS OR OTHER
ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGESWHETHER IN
NEGLIGENCE, WARRANTY, STRICT LIABILITY, OR QTHERWISE
This warranty is given only to the first purchaser from a retail dealer. No warranty is
given to subsequent transferees.

Warranty does not cover product failures caused by: failure to maintain, neglect,
abuse, damage due to excess water, fire, normal wear, improper set up and use.
Periodic maintenance is not covered This warranty is not in force until such time as
a properly completed and signed installation/warranty registration or an online
registration form has been received by DUKERS within 30 days from the date of
installation.
Proof of purchase is required to extend warranty more than 1 year from date of
shipment from the factory.

Limited Warranty

DUKERS GAS CHARBROILER

17

THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE
STATEMENTETWEEN THE BUYER AND SELLER. DUKERSNEITHER ASSUMES NOR
AUTHORIZES ANYPERSONS TO ASSUME FOR IT ANY OTHER OBLIGATION OR
LIABILITY IN CONNECTION WITH SAIDEQUIPMENT
Example of items not covered under warranty, but not limited to just these items
1 Acts of God, fire, water damage, burglary, accident, theft
2 Freight damage
3 Improper installation or alteration of equipment
4 Use of generic or after-market parts
5 Repairs made by anyone other than a DUKERS designated servicer
6 Lubrication.
7 Expendable wear parts, adjustable feet, blown fuses, lamps, etc
8 Cleaning of equipment
9 Misuse or abuse

DUKERS APPLIANCE CO., USA LTD

TOLL FREE: 1-800-931-8628 | FAX: [phone]

[email protected] | [email protected]

CORPORATE OFFICE: 2488 PECK ROAD, CITY OF INDUSTRY, CA 90601

WWW.DUKERSUSA.COM
