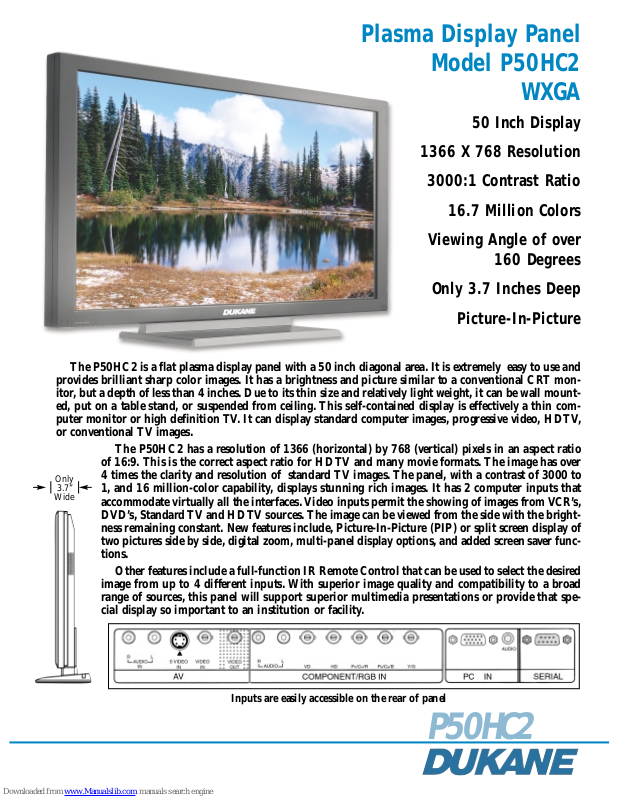

Page 1
Plasma Display Panel
Model P50HC2
WXGA
50 Inch Display
1366 X 768 Resolution
3000:1 Contrast Ratio
16.7 Million Colors
Viewing Angle of over
160 Degrees
Only 3.7 Inches Deep
Picture-In-Picture
The P50HC2 is a flat plasma display panel with a 50 inch diagonal area. It is extr emely easy to use and
provides brilliant sharp color images. It has a brightness and picture similar to a conventional CRT monitor , but a depth of less than 4 inches. D ue to its thin size and r elatively light weight, it can be wall mounted, put on a table stand, or suspended from ceiling. This self-contained display is effectively a thin computer monitor or high definition TV. It can display standard computer images, progressive video, HDTV,
or conventional TV images.
The P50HC2 has a resolution of 1366 (horizontal) by 768 (vertical) pixels in an aspect ratio
of 16:9. This is the correct aspect ratio for HDTV and many movie formats. The image has over
Only
3.7”
Wide
4 times the clarity and resolution of standard TV images. The panel, with a contrast of 3000 to
1, and 16 million-color capability, displays stunning rich images. It has 2 computer inputs that
accommodate virtually all the interfaces. Video inputs permit the showing of images fr om VCR’s,
DVD’s, Standard TV and HDTV sources. The image can be viewed from the side with the brightness remaining constant. New features include, Picture-In-Picture (PIP) or split screen display of
two pictures side by side, digital zoom, multi-panel display options, and added screen saver functions.
Other features include a full-function IR Remote Control that can be used to select the desir ed
image from up to 4 different inputs. With superior image quality and compatibility to a broad
range of sources, this panel will support superior multimedia presentations or provide that special display so important to an institution or facility.
Inputs are easily accessible on the rear of panel
P50HC2
Page 2
Model P50HC
Plasma Display Panel
Specifications (Specifications are subject to change without notice)
Plasma Display Panel
Display, diagonal 50 inches
Display Area 43.2” (H) X 24.4” (V)
Resolution, pixels 1366 (H) X 768 (V) WXGA
Video Compatibility NTSC/PAL/SECAM, HDTV 1125,
1080i, 1080p, 720p, 625, 575 ,525,
480i/p
Aspect Ratio 16:9
Number of colors 16.7 Million, 24 bit
Contrast Ratio 3000:1 Typ.
Brightness 340cd/sq m
Viewing Angle Over 160 degrees
Image Features Picture in/by Picture (PIP)/(P&P)
Digital Zoom
Computer Signal VGA, SVGA, XGA; SXGA, and
Compatibility UXGA Compressed
Scanning Frequency Hf 15.5-110 kHz, Hr 48-120 Hz
Inputs, Computer (A) RGB 1, 15 pin D-sub with
audio, stereo M3 jack
(B) RGB 2, BNC X 5, shared, with
audio RCA X 2
Inputs, Video (B) Component, BNC X 3, shared
with audio RCA X 2
(C) Composite, BNC X 1, with
audio RCA X 2 or
(D) S-Video mini DIN 4 Pin.
Output, Audio Speaker L/R, 8-16 ohm, 8W, wire x 2
Control, RS-232 D-sub, 9 pin
Output, Composite Video BNC X 1, bridged out
Operating Temperature 0 – 40ºC, 34–104ºF (20-80% RH)
Power AC 100 -120 VAC, 50/60 Hz, 500W
Size (W x H x D) 48” x 28.5” x 3.7”
Weight 97 lbs.
Shipping Weight 114 lbs.
Carton Size 13.5” x 33” x 52”
Safety/EMI UL, C/UL/FCC Class A
Accessories Included Remote control, Batteries, Power
cord, cable clamps, User’s Manual
Optional Accessories Table Stand – TS-C50P5G
Angled Wall Mount– TS-C50P2G
Mount for Suspended Ceilings –
TS-C50P3G
Straight Wall Mount – TS-C50P6G
Side Mount Speakers –TS-C5001SPG
One year limited warranty on parts and labor.
FAST FAX
P50HC2 Dukane Plasma Display Panel
The P50HC2 is a flat plasma display panel with a 50 inch
diagonal viewing screen that is extremely easy to use and
provides brilliant, crisp-color images. It has a brightness and
picture similar to a conventional CRT monitor, but a depth of
under 4 inches. Due to its thin size and relatively light weight,
it can be wall mounted, put on a table stand, or held by a
mounting arm. This self-contained display is effectively a thin
computer monitor or high definition TV. It can display standard
computer images, progressive video or conventional TV
images.
The P50HC2 has a resolution of 1366 (horizontal) by 768
(vertical) pixels in an aspect ratio of 16:9. This is the correct
aspect ratio for HDTV and many movie formats. The image
has over 6 times the clarity and resolution of a standard TV
image. The panel, with a contrast of 3000 to 1 and 16 million
color capability displays brilliant crisp images. It has computer inputs that accommodate virtually all the interfaces. Video
inputs permit the showing of images from VCR’s, DVD’s,
Standard TV and HDTV sources. The image can be viewed
over a wide range with the brightness remaining constant.
In addition to a sensational picture, the P50HC2 has built-in 8
watt amplifiers that provide stereo sound. The audio signals
will automatically switch with the selected source. The source
selection and sound level can be easily set using the IR
remote control unit or by employing the edge-mounted controls on the panel.
The inputs consist of standard computer connections via the
15 pin VGA style connector and the RGB - HV plus an audio
input. Computer signals in VGA, SVGA, XGA, SXGA, and
UXGA compressed format can all be displayed. This includes
both the PC and Apple formats. BNC connectors assure a reliable, quality signal interface.
Video signals can be connected via the composite or s-video
connectors. Also, component signals can be connected.
There is a separate audio input for the video inputs. Video signals of NTSC, PALor SECAM can be displayed along with the
component signals from sources as DVD players. Also, HDTV
signals such as 480p, 720p and 1080I can be displayed.
The panel consists of an image area surrounded by a thin,
stylish frame. New features include, Picture-In-Picture (PIP)
or split screen display of two pictures side by side, digital
zoom, multi-panel display options, and added screen saver
functions.
There are built-in screen savers, standard color mode selection, a 3D comb filter and numerous other features. Remote
control of the panel using a distant PC is possible via the RS232 link.
The panel is ideal for presentations or dynamic displays in
universities, learning resource centers, and special installations where depth is a limitation. It can also be used for pointof-sale locations, in conference rooms, lobbies, courtrooms,
and anywhere a large, self-contained display is required.
Audio Visual Products
Dukane Corporation
Audio Visual Products
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485
Fax (630) 584-5156
e-mail: [email protected]
Form #11620-A-04
