Page 1
Video 2, Composite
Only
3.8”
Wide
RCA, Component
Video 3, S-Video
29”
Tall
DVD1/ HD1
RCA, L&R
Audio 2
5 BNC,
RGB2 / DVD2 / HD2 Input
D-Sub, 15 Pin
RGB1/ RGB Out

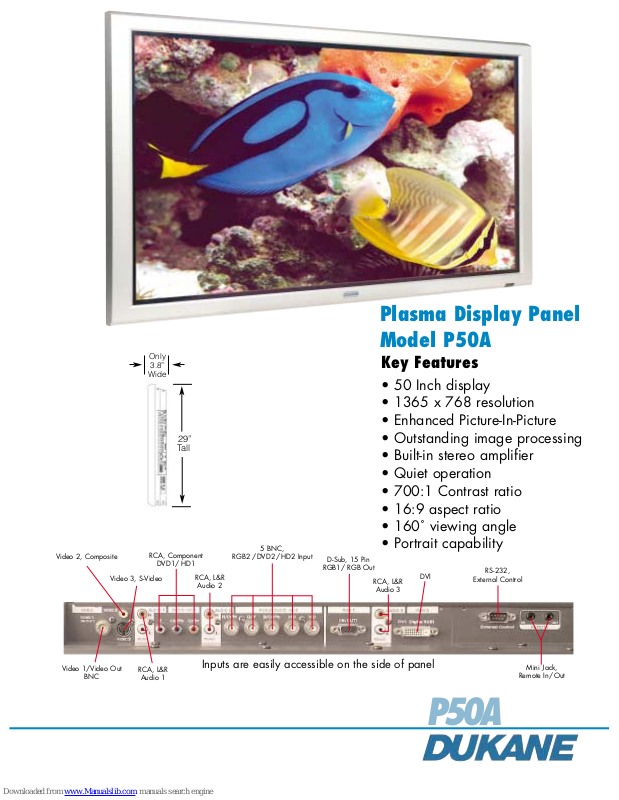

Plasma Display Panel
Model P50A
Key Features
• 50 Inch display
• 1365 x 768 resolution
• Enhanced Picture-In-Picture
• Outstanding image processing
• Built-in stereo amplifier
• Quiet operation
• 700:1 Contrast ratio
• 16:9 aspect ratio
• 160˚ viewing angle
• Portrait capability
RS-232,
External Control
RCA, L&R
Audio 3
DVI
Video 1/Video Out
BNC
RCA, L&R
Audio 1
Inputs are easily accessible on the side of panel
Mini Jack,
Remote In/Out
P50A
Page 2
Plasma Display Panel P50A
Dukane P50A plasma display panel draws your audience right into your message and commands their
attention. Super bright images, pure reds and saturated
colors combined with built-in stereo amplifier makes
sure your message is always loud and clear no matter
what your environment or angle. In areas with direct
lighting an anti-glare filter keeps images vibrant and
contrast high for a perfect image every time.
Advanced scan
conversion and
3/2 pull down processing, delivers
smooth, lifelike
video. A patented
color filter ensures
realistic color.
Connect to multiple
sources from video to HD to RGB. Signal loop-through
capability allows a source to easily be looped from one
monitor to the next enabling you to connect 4 displays
without the use of an external DA*.
A sleek new design with cable management system,
programmable timer and portrait capability make the
P50A the perfect choice for any environment.
Key features:
• 50 Inch display
• 1365 x 768 resolution
• Enhanced Picture-In-Picture
• Outstanding image processing
• Built-in stereo amplifier
• Quiet operation
• 700:1 Contrast ratio
• 16:9 aspect ratio
• 160˚ viewing angle
• Low power consumption
• Portrait capability
• Cable management
• Programmable timer
* Signal DA is required for sending a signal to more than 4 monitors simultaneously.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 or 2486 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp.com/av
Specifications P50A
Display, diagonal 50 inches
Display, area 43.5" (H) x 24.5" (V)
Resolution, pixels 1365 (H) x 768 (V), WXGA
Video Compatibility NTSC, PAL, SECAM, HDTV 1080i,
1035i, 720p, 625i/p, 540p,
525i/p, 480i/p
Aspect Ratio 16:9
Number of Colors 16.7 million
Contrast Ratio 700:1
Brightness 450cd/sq m
Viewing Angle 160 degrees
Image Features Portrait/Landscape Mode, Zoom,
Enhanced PIP
Computer Compatibility VGA, SVGA, XGA, SXGA, UXGA,
WVGA, WXGA
Scanning Frequency fh 15.5-110 kHz, fv 50-120 Hz
Inputs, Computer 15-pin mini D-sub
5 BNC (RGB/HV)
24-pin DVI-D (HDCP Compatible)
Inputs, Video Composite BNC x 1
Composite RCA x 1
S-Video 4-pin DIN
RCA Component (Y,Pb,Pr/Y,Cb,Cr)
BNC Component (Y,Pb,Pr/Y,Cb,Cr)
Inputs, Audio RCA Stereo x 3
Ouptup, Computer 15 PIN mini D-sub
Output, Video Composite BNC
Audio Internal Amplifier, 8W x 2 ouput
power
Control 9-pin mini D-Sub, RS232, Wired
remote(In/Out)
Operating Temperature 32-104 degrees F (0-40 degrees C)
(20-80% operating humidity)
Power 120V 50/60 Hz, 480W (typical),
0.9W (standby)
Weight 96.4 lbs.
Size (W x H x D) 48.1" x 29" x 3.8"
Shipping Weight 125 lbs.
Carton Size 17" x 33" x 53"
Safety FCC Class A, UL Approved
Accessories Included Power Cord, User Manual,
Remote Contol, Batteries, Cable
Clamps
Optional Accessories Tabletop Stand (PX-ST1U),
Attachable Speakers (PX-50SP1U)
Terminal Cover (PX-CV1U)
Fixed Wall Mount (FWMK)
Tilt Wall Mount (TWMK)
Ceiling Mount (CMK)
Fixed Wall Mount for PC
(FWMKPC)
Tilt Wall Mount for PC (TWMKPC)
Ceiling Mount for PC (CMKPC)
One (1) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).
1
YR
#11648-J-04
