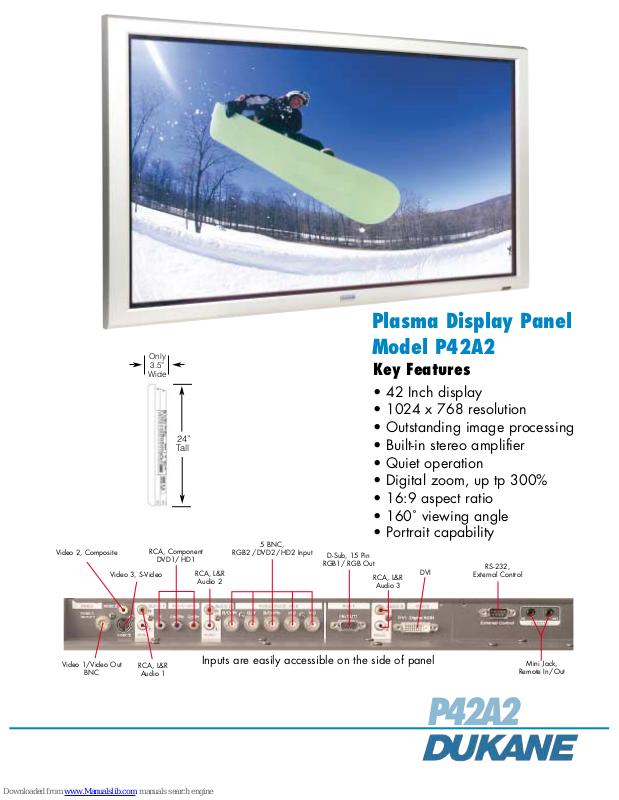

Page 1
Plasma Display Panel
Video 2, Composite
Only
3.5”
Wide
RCA, Component
Video 3, S-Video
24”
Tall
DVD1/ HD1
RCA, L&R
Audio 2
5 BNC,
RGB2 / DVD2 / HD2 Input
D-Sub, 15 Pin
RGB1/ RGB Out
Model P42A2
Key Features
• 42 Inch display
• 1024 x 768 resolution
• Outstanding image processing
• Built-in stereo amplifier
• Quiet operation
• Digital zoom, up tp 300%
• 16:9 aspect ratio
• 160˚ viewing angle
• Portrait capability
RS-232,
External Control
RCA, L&R
Audio 3
DVI
Video 1/Video Out
BNC
RCA, L&R
Audio 1
Inputs are easily accessible on the side of panel
Mini Jack,
Remote In/Out
P42A2
Page 2
Plasma Display Panel P42A2
Dukane P42A2 plasma display produces stunning
images in a native 1024 x 768 format. The color filter
technology provides extremely realistic and saturated
colors as well as enhanced contrast.
The P42A2 delivers superb image quality from any
source. Advanced scan conversion and 3/2 pull down
processing, delivers smooth, lifelike video. A patented
color filter ensures
realistic color.
Connect to multiple
sources from video
to HD to your computer. Signal loopthrough capability
allows a source to
easily be looped
from one monitor to
the next enabling you to connect 4 displays without the
use of an external distribution amplifier (DA)*.
Digital zoom allows you to select any portion of the
screen and magnify it to emphasize a point or highlight
information. Zoom up to 300% with a push of a button
from the remote control.
A sleek new design, programmable timer and portrait
capability make the P42A2 the perfect choice for any
environment.
Key features:
• 42 Inch display
• 1024 x 768 resolution
• Outstanding image processing
• Built-in stereo amplifier
• Quiet operation
• Digital zoom, up to 300%
• 16:9 aspect ratio
• 160˚ viewing angle
• Low power consumption
• Portrait capability
• Programmable timer
* Signal DA is required for sending a signal to more than 4 monitors simultaneously.
Specifications P42A2
Display, diagonal 42 inches
Display, area 36.3" (H) x 20.4" (V)
Resolution, pixels 1024 (H) x 768 (V), XGA
Video Compatibility NTSC, PAL, SECAM, HDTV 1080i,
1035i, 720p, 625i/p, 540p,
525i/p, 480i/p
Aspect Ratio 16:9
Number of Colors 16.7 million
Contrast Ratio 650:1
Brightness 380cd/sq m
Viewing Angle 160 degrees
Image Features Portrait/Landscape Mode, Zoom
Computer Compatibility VGA, SVGA, XGA, SXGA, UXGA,
WVGA, WXGA
Scanning Frequency fh 15.5-110 kHz, fv 50-120 Hz
Inputs, Computer 15-pin mini D-sub (shared)
5 BNC (RGB/HV) (shared)
29-pin DVI
Inputs, Video Composite BNC x 1
Composite RCA x 1
S-Video 4-pin DIN
RCA Component (Y,Pb,Pr/Y,Cb,Cr)
BNC Component (shared)
(Y,Pb,Pr/Y,Cb,Cr)
Inputs, Audio RCA Stereo x 3
Output, Computer 15 PIN mini D-sub (shared)
Output, Video Composite BNC
Audio Internal Amplifier, 8W x 2 output
power
Control 9-pin mini D-Sub, RS232,
Wired remote(In/Out)
Operating Temperature 32-104 degrees F (0-40 degrees C)
(20-80% operating humidity)
Power 120V 50/60 Hz, 350W (typical),
0.9W (standby)
Weight 65 lbs.
Size (W x H x D) 40.1" x 24" x 3.5"
Shipping Weight 95 lbs.
Carton Size 16" x 33" x 51"
Safety FCC Class A, UL Approved
Accessories Included Power Cord, User Manual,
Remote Control, Batteries, Cable
Clamps
Optional Accessories Tabletop Stand (PX-ST1U),
Attachable Speakers (PX-42SP1U)
Terminal Cover (PX-CV1U)
Fixed Wall Mount (FWMK)
Tilt Wall Mount (TWMK)
Ceiling Mount (CMK)
Fixed Wall Mount for PC
(FWMKPC)
Tilt Wall Mount for PC (TWMKPC)
Ceiling Mount for PC (CMKPC)
Stand Plug (PX-PL1U)
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 or 2486 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
One (1) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).
