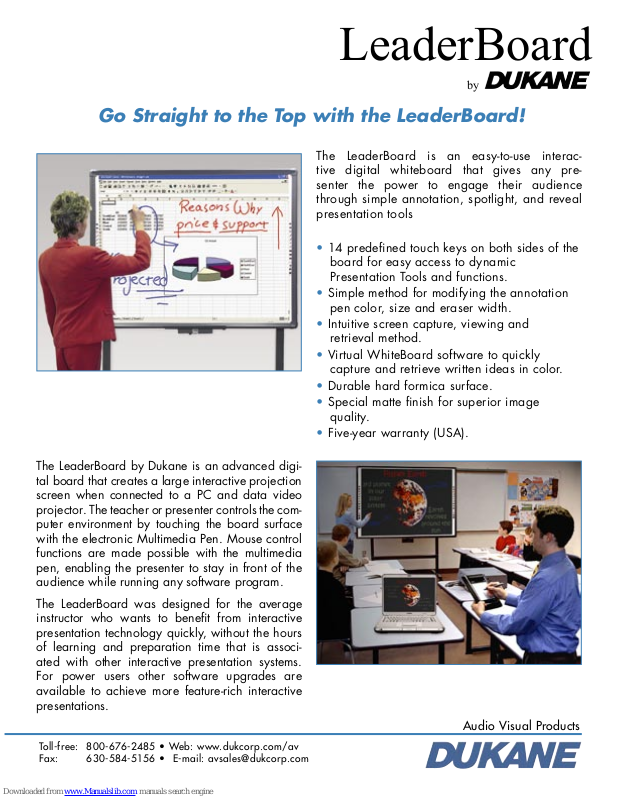

Page 1
LeaderBoard
by
Go Straight to the Top with the LeaderBoard!
The LeaderBoard is an easy-to-use interactive digital whiteboard that gives any presenter the power to engage their audience
through simple annotation, spotlight, and reveal
presentation tools
• 14 predefined touch keys on both sides of the
board for easy access to dynamic
Presentation Tools and functions.
• Simple method for modifying the annotation
pen color, size and eraser width.
• Intuitive screen capture, viewing and
retrieval method.
• Virtual WhiteBoard software to quickly
capture and retrieve written ideas in color.
• Durable hard formica surface.
• Special matte finish for superior image
quality.
• Five-year warranty (USA).
The LeaderBoard by Dukane is an advanced digital board that creates a large interactive projection
screen when connected to a PC and data video
projector. The teacher or presenter controls the computer environment by touching the board surface
with the electronic Multimedia Pen. Mouse control
functions are made possible with the multimedia
pen, enabling the presenter to stay in front of the
audience while running any software program.
The LeaderBoard was designed for the average
instructor who wants to benefit from interactive
presentation technology quickly, without the hours
of learning and preparation time that is associated with other interactive presentation systems.
For power users other software upgrades are
available to achieve more feature-rich interactive
presentations.
Toll-free: 800-676-2485 • Web: www.dukcorp.com/av
Fax: 630-584-5156 • E-mail: [email protected]
Audio Visual Products
Page 2
Hard Matte White Surface
Soft Keys for
Quick Access to
Annotation, Image,
& Presentation Tools
Multimedia Pen
Soft Keys for Quick Access
to Annotation, Image, &
Presentation Tools
Convenient Pen Tray
Serial/Power Cable Input
Available Models, Active Viewing Area
LB62 - 50.2” x 38.3” (127.5 cm x 97.3 cm)
62” (157.5 cm) Diagonal; 25 lbs. (11.3 kgs)
LB77 - 63.3” x 45.6” (160.8 cm x 115.8 cm)
77” (195.6 cm) Diagonal; 36 lbs. (16.3 kgs)
LeaderBoard Benefits
• Engage your audience with interactive presentations.
• Increase the retention of ideas.
• Develop multimedia presentations quickly.
• Deliver entertaining and informative computer generated
presentations quickly and easily.
• Bring ideas to life with Virtual WhiteBoard annotation
software.
• Capture brainstorming ideas in color for data sharing and
future retrieval.
• Only pay for the software features you actually use.
Upgrade whenever you are ready for more advanced
features.
• Hard surface material designed to take daily abuse without damage.
• Matte finish delivers excellent image quality for easy
viewing.
• Low product acquisition cost with 5 year warranty.
Visit www.dukcorp.com/av to find a high quality ImagePro
data video projector and complete your interactive classroom or conference room!
LeaderBoard Carton Contents
• LeaderBoard
• Choice of either:
Rechargeable Multimedia Pen with detachable 100” cable.
Multimedia Pen with permanently attached 100” cable.
• Universal Input Power Supply (IEC type)
• 21’ Serial/Power Cable
• Fast Start Installation Card
• Installation and Driver CD Rom
• Wall Mount Brackets
Optional Accessories
• Mobile stand or mobile adjustable stand
• USB adapter
• RF Wireless adapter
• Software upgrades
System Requirements
• Windows 98SE, NT 4.0 sp6, 2000, ME, XP
• 32 MB RAM
• One free COM port (RS-232) or USB
• CD Rom Drive
Power Requirements
• 100-240 VAC, 50/60 Hz
Shipping Dimensions & Weights
• LeaderBoard 62
• 60” x 50” x 6” (153 cm x 127 cm x 16 cm) 40 lbs. (19 kgs)
• LeaderBoard 77
• 74” x 57” x 7” (188 cm x 145 cm x 18 cm) 59 lbs. (27 kgs)
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
E-mail: [email protected]
Web: www.dukcorp.com/av
LeaderBoard is a registered trademark of Dukane Corporation
#11713- G-06
