3.5”
Wide
Plasma Display Panel
Model P42
42 Inch Display
1024 X 1024 Resolution
700:1 Contrast Ratio
16.7 Million Colors
Viewing Angle of over
160 Degrees
Only 3.5 Inches Deep

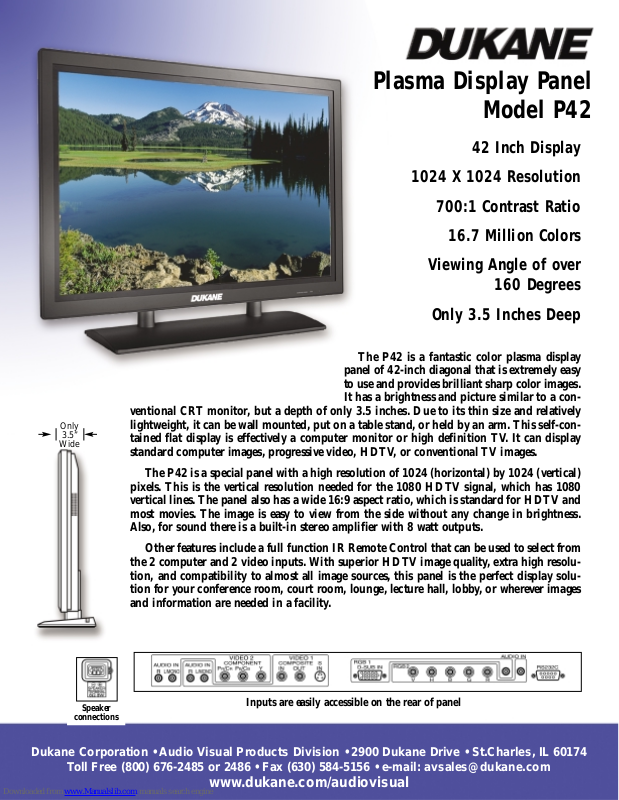

The P42 is a fantastic color plasma display
panel of 42-inch diagonal that is extremely easy
to use and provides brilliant sharp color images.
It has a brightness and picture similar to a con-
ventional CRT monitor, but a depth of only 3.5 inches. Due to its thin size and relatively
lightweight, it can be wall mounted, put on a table stand, or held by an arm. This self-contained flat display is effectively a computer monitor or high definition TV. It can display
standard computer images, progressive video, HDTV, or conventional TV images.
The P42 is a special panel with a high resolution of 1024 (horizontal) by 1024 (vertical)
pixels. This is the vertical resolution needed for the 1080 HDTV signal, which has 1080
vertical lines. The panel also has a wide 16:9 aspect ratio, which is standard for HDTV and
most movies. The image is easy to view from the side without any change in brightness.
Also, for sound there is a built-in stereo amplifier with 8 watt outputs.
Other features include a full function IR Remote Control that can be used to select from
the 2 computer and 2 video inputs. With superior HDTV image quality, extra high resolution, and compatibility to almost all image sources, this panel is the perfect display solution for your conference room, court room, lounge, lecture hall, lobby, or wherever images
and information are needed in a facility.
Speaker
connections
Dukane Corporation • Audio Visual Products Division • 2900 Dukane Drive • St.Charles, IL 60174
Toll Free (800) 676-2485 or 2486 • Fax (630) 584-5156 • e-mail: [email protected]
www.dukane.com/audiovisual

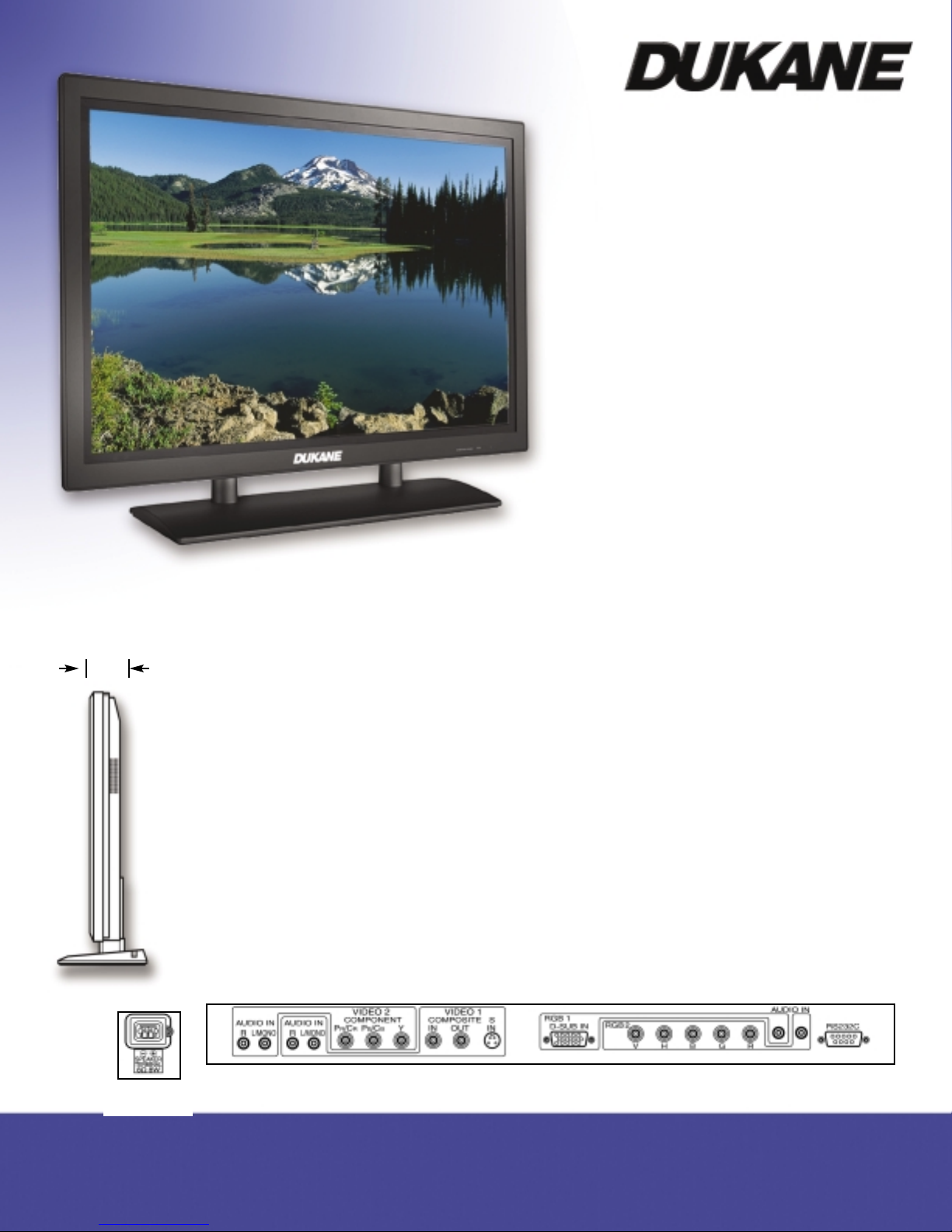

Inputs are easily accessible on the rear of panel
Page 2
Model P42
Plasma Display Panel
Specifications (Specifications are subject to change without notice)
Plasma Display Panel
Display, diagonal 42 inches
Display Area 36.4” (H) X 20.6” (V)
Resolution, pixels 1024 (H) X 1024 (V)
Pixel Pitch 0.9mm (H) x 0.51mm (V)
Aspect Ratio 16:9
Number of colors 16.7 Million, 24 bit
Contrast Ratio 700:1 Typ.
Brightness 360cd/sq m
Viewing Angle Over 160 degrees
Computer Signal VGA, SVGA, XGA,
Compatibility SXGA UXGA, Apple 1152 x 870
Video Compatibility NTSC, PAL, SECAM,
S-Video, Composite,
Component,
HDTV (1080i, 720p, 1035i,
480p, 575p, 480i)
Inputs, Computer (1) RGB 1, 15 pin D-sub
(1) RGB 2, BNC X 5
(2) Audio, 3.5mm Mini jack,
stereo
Inputs, Video (1) Component, BNC X 3
(1) Composite, BNC X 1
(1) S-Video
(2) Audio, RCA X 2 (L/R)
Input, Control (1) 8 Pin mini DIN, RS-232
Output, Video Composite, BNC X 1
Output, Audio Speaker 8W x 2, 8 ohm, clip
Operating Temperature 5 - 35°C
Power AC 100 -120 VAC, 200 - 240 VAC,
50/60 Hz, 380W
Size (W x H x D) 40.6” x 25.5” x 3.5”
Weight 68.2 lbs
Shipping Weight 86 lbs.
Carton Size (WxHxD) 17” x 33” x 49”
Safety/EMI UL, CSA/FCC Class B
Accessories Included Remote control , Batteries, Power
cord, Interface cable, Users
Manual,
Optional Accessories Tabletop Stand, 2 models,
Attachable Speakers, Wall Mount
One year limited warranty on parts and labor .
FF
AST FAST F
F
AST F
FF
AST FAST F
AXAX
AX
AXAX
P42 Dukane Plasma Display Panel
The P42 is a color plasma display panel of 42-inch diagonal
that is extremely easy to use and provides brilliant crisp images. It has a brightness and picture similar to a conventional
CRT monitor, but a depth of only 3.5 inches. Due to its thin size
and relatively lightweight, it can be wall mounted, put on a
table stand, or held by a mounting arm. This self-contained flat
display is effectively a XGA computer monitor or high definition
TV. It can also display standard computer images, progressive video or conventional TV images.
The P42 has a special resolution of 1024 (horizontal) by 1024
(vertical) pixels in an aspect ratio of 16 by 9. This is the correct
aspect ratio for HDTV and many movie formats. The image
has approximately 6 times the clarity of the standard TV image. The panel displays outstanding video images. The ability
to display 16 million colors fits both video and computer image requirements. Video images from VCR’s, DVD’s, and other
sources can also be shown. Finally, the image can be viewed
over a 160-degree angle cone with the brightness remaining
constant.
In addition to a sensational picture, the P42 has built in 8 watt
amplifiers that provide stereo sound outputs. For interface with
a variety of sources there are two inputs for computer signals
and two for video signals. The audio signals that accompany
the sources will automatically switch with the selected source.
The source selection and sound level can be easily set using
the IR remote control unit or by employing the edge mounted
controls on the panel.
The inputs consist of standard computer connections via the
15 pin VGA style connector and the RGB - HV plus an audio
connector pair. Computer signals in VGA, SVGA, XGA, and
SXGA, UXGA format can all be displayed. This includes both
the PC and Apple formats. BNC connectors assure a reliable,
quality signal, interface.
One video signal can be connected via the composite or svideo connectors and the other by component receptacles.
There is a separate audio input for each of the two video inputs. Video signals of NTSC, PAL or SECAM can be displayed
along with the component signals from sources as DVD players. Also HDTV signals as 480p, 720p and 1080I can be
displayed.
The panel consists of an image area surrounded by a thin
stylish dark gray frame. An optional tabletop stand is available.
Operation requires only 380 watts and the panel has a universal power supply so it can be operated from power outlets
anywhere in the world. There are built in screen savers, gamma
correction, color mode selection, a 3D comb filter and numerous other features. Remote control of the panel using a distant PC is possible via the RS-232 link.
The panel is ideal for presentations or dynamic displays in
universities, learning resource centers, and special installations where depth is a limitation. It can also be used for point
of sale locations, in conference rooms, lobbies, courtrooms,
and anywhere a large self-contained display is required.
