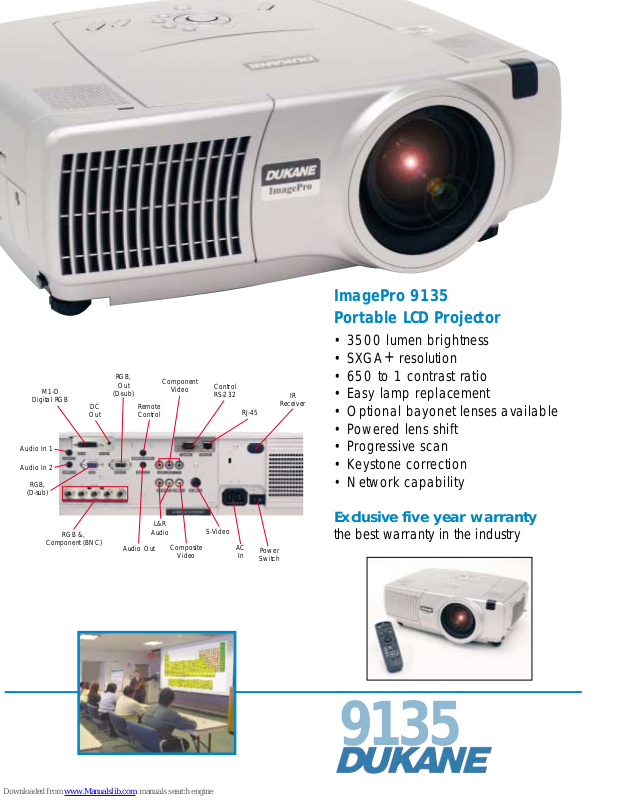

Page 1
ImagePro 9135
Portable LCD Projector
• 3500 lumen brightness
• SXGA
+
resolution
• 650 to 1 contrast ratio
• Easy lamp replacement
• Optional bayonet lenses available
• Powered lens shift
• Progressive scan
• Keystone correction
• Network capability
Exclusive five year warranty
the best warranty in the industry
9135
Audio Out
IR
Receiver
RGB &,
Component (BNC)
AC
In
RGB,
Out
(D-sub)
S-Video
Power
Switch
Composite
Video
M1-D
Digital RGB
Control
RS-232
RJ-45
Remote
Control
L&R
Audio
DC
Out
Audio In 1
Audio In 2
RGB,
(D-sub)
Component
Video
Page 2
The Dukane ImagePro 9135 combines high brightness
with super high resolution to offer one of the most impressive projectors available even in the most demanding
presentation applications. When attention detail is
extremely important the 9135 truly shines with SXGA+
resolution and 3500
lumens of brightness. Ideal
for command and control,
engineering, and CAD
applications, this full
featured LCD makes installations easy with optional
bayonet lenses and power
zoom and focus.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 or 2486 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
ImagePro is a registered trademark of Dukane Corporation
#11677-G-05
ImagePro 9135
Portable LCD projector
Specifications 9135
Image Element 0.99” polysilicon TFT x3, MLA
Brightness 3500 ANSI lumens
2800 (whisper mode)
Resolution 1400 x 1050 pixels (H X V), SXGA+
Contrast 650 to 1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Power zoom (F=1.7 to 2.4), 1.5X
Lens Throw Ratio 1.5 -2.2:1 throw distance
to image width
Keystone Correction Digital, vertical +/-15 deg,
horizontal +/- 3 deg
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, and
Compatibility SXGA/UXGA Compressed,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i, 720p, 575i, 480i/p
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using M1 to USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 310W UHB
Lamp Life 2000 hours
Audio 1.0 W x 2
Throw Distance 46” to 364”
Screen Size, diagonal 40” to 500”
Inputs, Video (1) Component, RCA x 3,
BNC (shared)
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
Audio, Stereo, RCA x 2,
Inputs, Computer (1) RGB Signal: D-sub, 15 pin
(1) BNC x 5 (shared), RGBHV
(1) M1-D (digital RGB) & Audio,
Stereo mini jack x 2
Outputs Monitor 15 pin, D-sub
Audio, Stereo mini jack x 1
Outputs,Control 9 pin D-sub Connector, RS-232
M1-D with USB for mouse
3.5mm mini jack (wired remote
control)
Network RJ-45 port / 10Base-T
Security Kensington slot
Fan Level 42dB, (38dB in whisper mode)
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC220-240V
50/60 Hz, 470 watt
Size (WxHxD) 16.5” x 6.3” x 12.6”
Weight 17 lbs.
Carton Size 20.5" x 13.5" x 19
Shipping Weight 27 lbs.
Accessories Included Remote control, batteries, power
cord,
RGB Cable, Video/Audio Cable,
M1 cable (DVI & USB to M1), and
operator/safety manual.
Safety UL/CSA, FCC/DOC Class B, CE
Optional Accessories Lamp 456-8942
Key features:
• 3500 lumen brightness
• SXGA+ resolution
• 650 to 1 contrast ratio
• Easy lamp replacement
• Optional bayonet lenses available
• Lens shift
• Network capability
• Picture-In-Picture
• Five year warranty and One year
Peace -of- Mind service
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
5YR
Diagonal Width Min. Max.
Inches Inches Feet Feet
40 32 3.8 5.9
60 48 5.9 8.9
70 56 6.9 10.5
100 80 10.0 15.1
120 96 12.0 18.1
150 120 15.1 22.7
200 160 20.3 30.3
Image Size 4:3
Throw Distance
Throw Ratio (distance to width) 1.50 2.27
