Page 1
8951P
Education. Presentation. Inspiration.
T H E A L L N E W

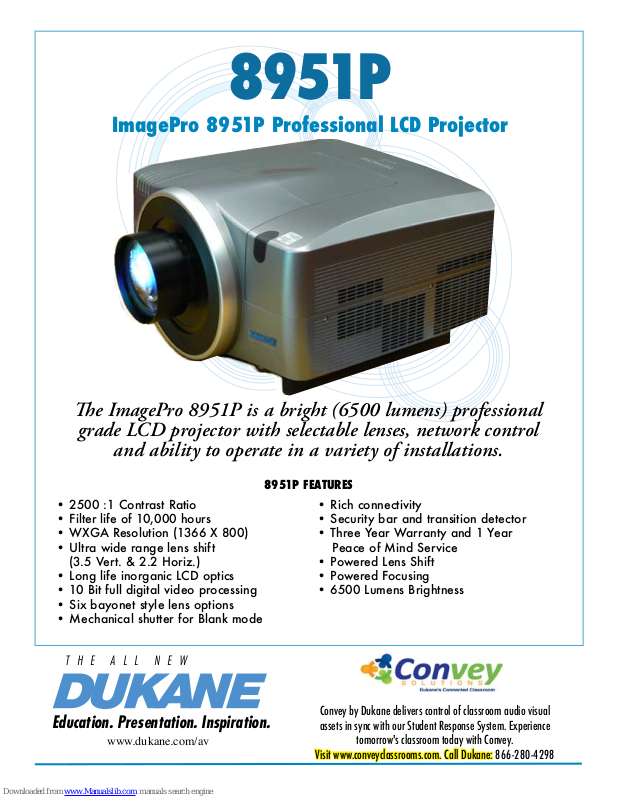

ImagePro 8951P Professional LCD Projector
e ImagePro 8951P is a bright (6500 lumens) professional
grade LCD projector with selectable lenses, network control
and ability to operate in a variety of installations.
8951P FEATURES
• 2500 :1 Contrast Ratio
• Filter life of 10,000 hours
• WXGA Resolution (1366 X 800)
• Ultra wide range lens shift
(3.5 Vert. & 2.2 Horiz.)
• Long life inorganic LCD optics
• 10 Bit full digital video processing
• Six bayonet style lens options
• Mechanical shutter for Blank mode
• Rich connectivity
• Security bar and transition detector
• Three Year Warranty and 1 Year
Peace of Mind Service
• Powered Lens Shift
• Powered Focusing
• 6500 Lumens Brightness
www.dukane.com/av
Convey by Dukane delivers control of classroom audio visual
assets in sync with our Student Response System. Experience
tomorrow's classroom today with Convey.
Visit www.conveyclassrooms.com. Call Dukane: 866-280-4298
Page 2
ImagePro 8951P

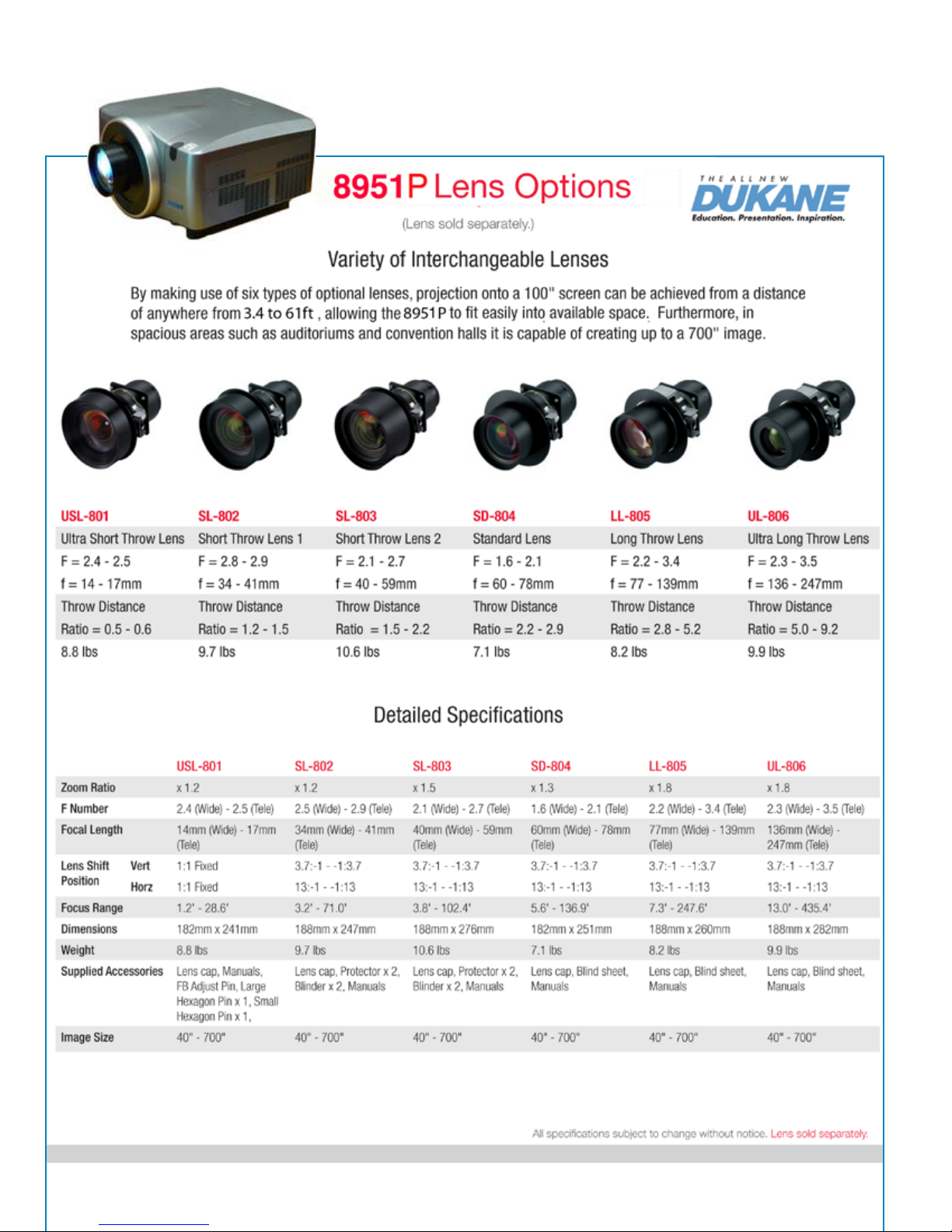

Lenses
For 8950P, 8951P, 8952P
PART
Throw Ratio
(distance/image
width)
Type of Throw
Zoom Ratio
USL-801
SL-802
SL-803
SD-804
LL-805
UL-806
0.5 - 0.6
1.2 - 1.5
1.5 - 2.2
2.2 - 2.9
2.8 - 5.2
5.0 - 9.2
ULTRA SHORT
SHORT THROW
SHORT THROW
SHORT THROW
LONG THROW
LONG THROW
1.2X
1.2X
1.5X
1.3X
1.8X
1.8X
Portable LCD projector
Back Panel
Connections
8951P FEATURES
• 6500 Lumens Brightness
• 2500 :1 Contrast Ratio
• Filter life of 10,000 hours
• XGA Resolution (1366 X 800)
• Ultra wide range lens shift (3.5 Vert. & 2.2 Horiz.)
• Long life inorganic LCD options
• 10 Bit full digital video processing
• Six bayonet style lens options
• Mechanical shutter for Blank mode
• Rich connectivity
• Security bar and transition detector
• Three Year Warranty and One Year Peace of Mind Service
8951P Projection Table
These are bayonet
style lenses that are
easily mounted on
the projector.
The Throw Ratio is
the distance from the
projector lens to the
screen divided by the
image width. TR =
Distance / Width.
Ex. If the SL-803 with
a TR of 1.5.- 2.2 is
installed in a projector that is 100 ft from
a screen, then the image width can be set between 45 and 67ft.
Calculation is: Width = Distance / TR
Calculation is: Width = 100 ft / 1.5 = 67ft
Calculation is: Width = 100 ft / 2.2 = 45 ft
Specications 8951P
Image Element 1.2” polysilicon inorganic TFT x3
Brightness
Resolution 1366 x 800 pixels (H X V), WXGA
Contrast 2500:1 (using active iris)
Scanning Frequency fh 15-106 kHz, fv 50-120 Hz
Lens Selectable, power focus
Keystone Correction Digital vertical & horizontal +/-40 & +/- 20 deg.
Aspect Ratio 16:10 native, 4:3 selectable
Computer VGA, SVGA, XGA, SXGA, SXGA+ WXGA and
Compatibility UXGA, MAC13”,16”,19", 21"
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM,
Image Control Freeze function, electronic
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 350W UHB
Lamp Life 2000 hours (3000 hours Whisper Mode)
Audio None
Throw Distance 1.2 to 435ft. (lens dependent)
Screen Size, diagonal 40” to 700”
Inputs, Video (2) Component, RCA x 3, (BNC x5 Shared)
Remote Control (2) Stereo Jack for wired remote, in/out
Inputs, Computer (2) RGB Signal: D-sub, 15 pin,
Outputs Monitor 15 pin, D-sub
Control (2)9 pin D-sub Connector, RS232. in/out
Network, Ethernet RJ-45 port / 100Base-T
Security Kensington slot, Security bar,
Fan Level 40dB, (32dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC220-240V
Size (WxHxD) 18.7” x 10.7” x 18.5”
Weight 29 lbs. + lens
Carton Size 22” x 15” x 22”
Shipping Weight 36 lbs. + lens (lens in separate carton)
Accessories Included Remote control, batteries (AA), power cord, RGB
Safety UL60950, C-UL, FCC Part15,
Optional Accessories
Optional lenses
6500 ANSI lumens, 6000 (whisper mode)
Horizontal & vertical lens shift power
Lens not included
HDTV 1080i/p, 720p, 576i, 480i/p
magnication and pan
(1) S-video, Min DIN 4-pin,
(2) Composite video, RCA x 1.
BNC x 1
(1) RGB, BNC x 5 (shared w/component)
(1) HDMI
(1) DVI-D
transition detector
50/60 Hz, 540 watt
cable, operator/safety manual.
Class A, CE, EN60950
Lamp 456-8950P
Ceiling mount, universal; RPA-U or RPM-U,
Filter; MU05661
See table
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
866-280.4298 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#09018-09-01
ImagePro is a registered trademark of Dukane Corporation
09035
Three (3) year limited warranty on parts and labor in North
America, lamp excluded (for other locations, local warranties
apply).Includes Dukane’s FREE 1 year Peace-of-Mind Loaner
3YR
