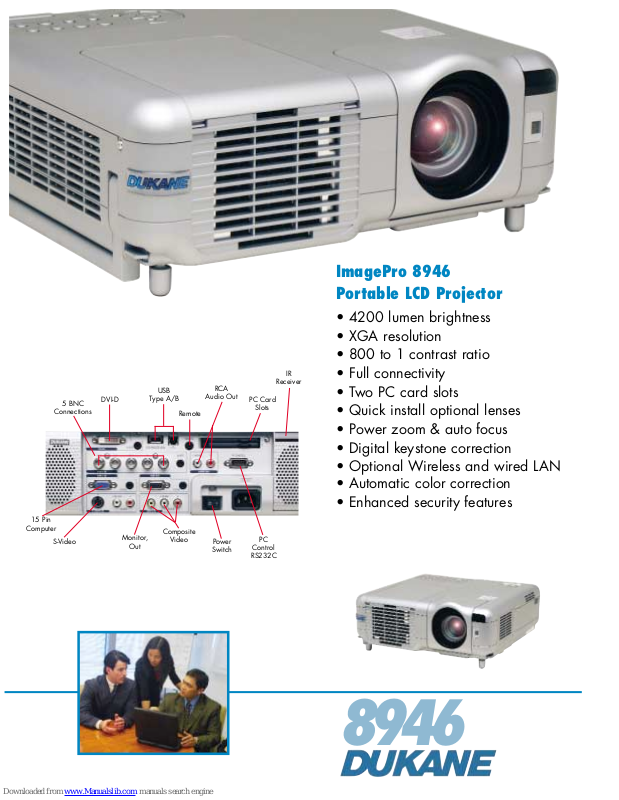

ImagePro 8946
Portable LCD Projector
• 4200 lumen brightness
• XGA resolution
• 800 to 1 contrast ratio
• Full connectivity
• Two PC card slots
• Quick install optional lenses
• Power zoom & auto focus
• Digital keystone correction
• Optional Wireless and wired LAN
• Automatic color correction
• Enhanced security features
8946
RCA
Audio Out
IR
Receiver
15 Pin
Computer
DVI-D
5 BNC
Connections
Monitor,
Out
S-Video
Power
Switch
Composite
Video
PC Card
Slots
USB
Type A/B
Remote
PC
Control
RS232C
Page 2
ImagePro 8946
Portable LCD projector
The Dukane ImagePro 8946™ is a versatile solution for
the most demanding presentation requirements.
Providing realistic colors, sharp contrast, and super
bright images, the 8946 is sure to impress.
Auto focus, power zoom, and automatic color corrections make set up and operation fast and easy. Flexible
connectivity, networking capability, and enhanced security features make the 8946 a great choice for classrooms, conference rooms, or other locations where a
bright image is required.
From the lens to the connector panel, our environmentally friendly projector is precision crafted for
performance, quality and
long-term reliability.
Key features:
• 4200 lumen brightness
• XGA resolution
• 800 to 1 contrast ratio
• Full connectivity
• PC card slots
• Quick install optional lenses
• Lamp access on top of projector for easy
changing in ceiling mounted applications
• Power zoom & auto focus
• Digital keystone correction
• Optional Wireless and wired LAN
• Automatic color correction
• Enhanced security features
• Two year warranty and One year
Peace -of- Mind service
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
ImagePro is a registered trademark of Dukane Corporation
#11662-B-06
Specifications 8946
Image Element 1.0" polysilicon TFT x 3, MLA
Brightness 4200 ANSI lumens
(3400 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 800:1
Scanning Frequency fh 15-100 kHz, fv 48-120 Hz
Lens Power zoom and focus F=1.74-
2.18, Auto focus
Lens Throw Ratio 1.5-2.1:1 throw distance
to image width
Keystone Correction Digital, vertical +/-40 deg.,
horizontal +/-35 deg.
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, and
Compatibility SXGA/UXGA Compressed
Mac 13" and Mac 16"
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i,1080i/50 Hz, 720p,
576p, 480i/p
Component Video, Comp, horz res, 800TV line
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 300W NSH
Lamp Life 2000 hours, 3000 in whisper mode
Audio 2 x 5W with volume, bass,
treble control
Throw Distance 29" to 826"
Screen Size, diagonal 25" to 500" diagonal
Inputs, Video (1) Component, BNC x 3
(1) S-video, Min DIN 4-pin, with
RCA audio
(1) Composite video, with
L/R RCA audio
(1) Audio, Stereo, RCA x 2
Inputs, Computer (1) DVI, with audio stereo mini jack
(1) RGB Signal: D-sub, 15 pin and
audio stereo mini jack
(1) RGB Signal: 5-BNC
(2) PC Card slot
Outputs Monitor 15 pin, D-sub with audio
stereo mini jack
Outputs,Control PC control DIN 8 pin, RS-232
Audio out, stereo, RCA x 2
Remote, mini jack, USB Type A & B
Security Kensington slot and password
Fan Level 39dB, 34dB in whisper mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC200-240V
50/60 Hz, 415 watt
Size (WxHxD) 13.2" x 4.6" x 12.8"
Weight 13 lbs.
Shipping Weight 22 lbs.
Carton Size 20" x 14" x 20"
Accessories Included Remote control w/ laser pointer,
power cord, computer cable, USB
cable, remote control cable,
CDROM, operators manual,
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-8946, Ceiling mount,
universal; PJF-UNV-S
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year
Peace-of-Mind Loaner Program
.
