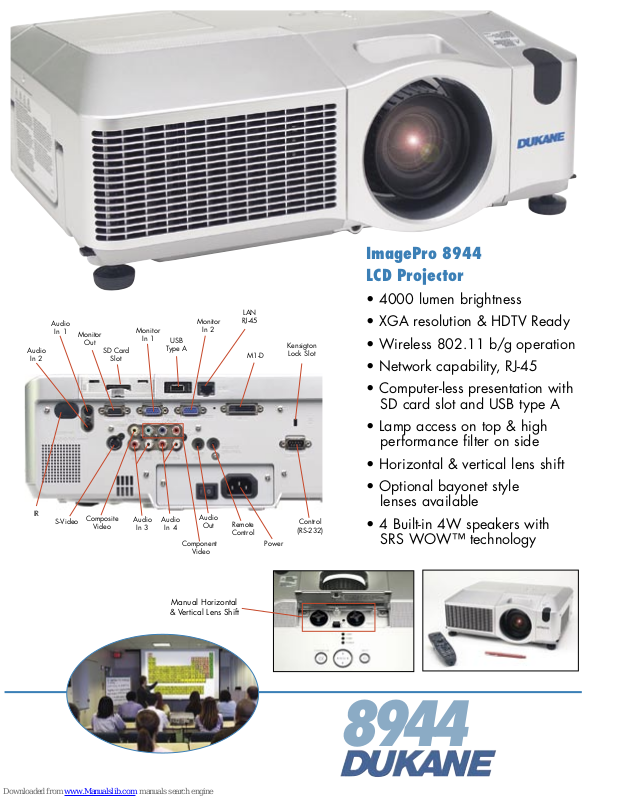

Page 1
Audio
In 2
IR
Audio
In 1
S-Video
Monitor
Out
Composite
Video
SD Card
Slot
Monitor
In 1
Audio
In 3
USB
Type A
Audio
In 4
Monitor
In 2
Audio
Out
Component
Video
LAN
RJ-45
Remote
Control
M1-D
Power
Kensigton
Lock Slot
Control
(RS-232)
ImagePro 8944
LCD Projector
• 4000 lumen brightness
• XGA resolution & HDTV Ready
• Wireless 802.11 b/g operation
• Network capability, RJ-45
• Computer-less presentation with
SD card slot and USB type A
• Lamp access on top & high
performance filter on side
• Horizontal & vertical lens shift
• Optional bayonet style
lenses available
• 4 Built-in 4W speakers with
SRS WOW™ technology
Manual Horizontal
& Vertical Lens Shift
8944
Page 2
ImagePro 8944
LCD projector
The ImagePro 8944 is a LCD projector that can be used in
a variety of applications. With sufficient brightness for most
classrooms and conference rooms the 8944 is designed to
be reliable and easy to maintain.
Computer-less presentations using your SD Card or USB
Flash Drive. Wireless operation using 802.11 b/g via
an SD receiver. Can connect to 4 PC's wirelessly. Lamp
and filter access points are conveniently located and
Kensington™ lock slot and our new
security bar makes this projector secure
and a wise multimedia investment.
Key features:
• XGA (1024 x 768) resolution
• 4000 ANSI lumens of brightness
• Wireless 802.11 b/g operation
• Network Capability, RJ-45
• Computer-less presentation with
SD card slot and USB type A
• Whiteboard & Blackboard Modes
• Easy maintenance in ceiling mount with lamp access
on top & filter access on side
• Monitor loopthrough & remote mouse control
• Remote control with "My Buttons"
• Optional bayonet style lenses available
• 4 Built-in 4W speakers with SRS WOW™ technology
• Input source naming
• Horizontal & vertical lens shift
• HDTV ready & progressive scan
• Kensington lock slot & security bar
• Five Year Warranty and One Year Peace of Mind Service
8944 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 2.8 3.4
60 48 5.8 7.0
80 64 7.8 9.3
100 80 9.8 11.7
120 96 11.7 14.1
150 120 14.7 17.6
200 160 19.5 23.5
300 240 29.3 35.3
Throw Ratio (distance to width), 1.46 1.75
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
#11730-A-07 ImagePro is a registered trademark of Dukane Corporation
Specifications 8944
Image Element 0.8” polysilicon TFT x3
Brightness 4000 ANSI lumens, 2300 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 1000:1
Scanning Frequency fh 15-106 kHz, fv 50-120 Hz
Lens Manual zoom (F=1.7 to 2.1), 1.2X.
Horizontal & vertical lens shift
Lens Throw Ratio 1.5 -1.8 :1 throw distance to image width
Keystone Correction Digital vertical & horizontal +/-40 deg.
Aspect Ratio 4:3 native, 16:9 selectable
Computer VGA, SVGA, XGA, SXGA, SXGA+ and
Compatibility UXGA Compressed, MAC13”, MAC16”
Video Compatibility
Image Control Freeze function, electronic magnification
Mouse Control Using MI
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 285W UHB
Lamp Life 2000 hours (3000 hours Whisper Mode)
Audio 4W x 4
Throw Distance 35” to 436”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Component, RCA x 3
Inputs, Computer (2) RGB Signal: D-sub, 15 pin,
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control 9 pin D-sub Connector, RS232, M-1 (for
Network RJ-45 port / 100Base-T
Other SD Card, USB 2.0 Memory
Security Kensington slot, Security bar
Wireless 802.11 b/g with SD card
Fan Level 35dB, (28dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC220-240V
Size (WxHxD) 16.5” x 5.5” x 12.6”
Weight 15.6 lbs.
Carton Size 21” x 14” x 19”
Shipping Weight 25 lbs.
Accessories Included Remote control, batteries (AA), power
Safety UL60950, C-UL, FCC Part15,
Optional Accessories Lamp 456-8943, Ceiling mount,
Optional Lenses
FL-601 Short fixed, throw Ratio 0.8
SL-602 Short 1.7X zoom, throw ratio 1.2 to 2.0
LL-603 Long 2.0X zoom, throw ratio 1.9 to 3.9
UL-604 Long 1.8X zoom, throw ratio 3.9 to 7.4
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SE-
CAM, HDTV 1080i, 720p, 576i, 480i/p
and pan
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
Audio, Stereo, RCA x 2, (L/R)
(1) M1-D, Audio, Stereo mini jack x 2
USB remote mouse only) 3.5mm mini
stereo jack (wired remote)
50/60 Hz, 460 watt
cord, RGB cable, security cabel,
operator/safety manual.
Class B, CE, EN60950
universal; RPA-U
5YR
