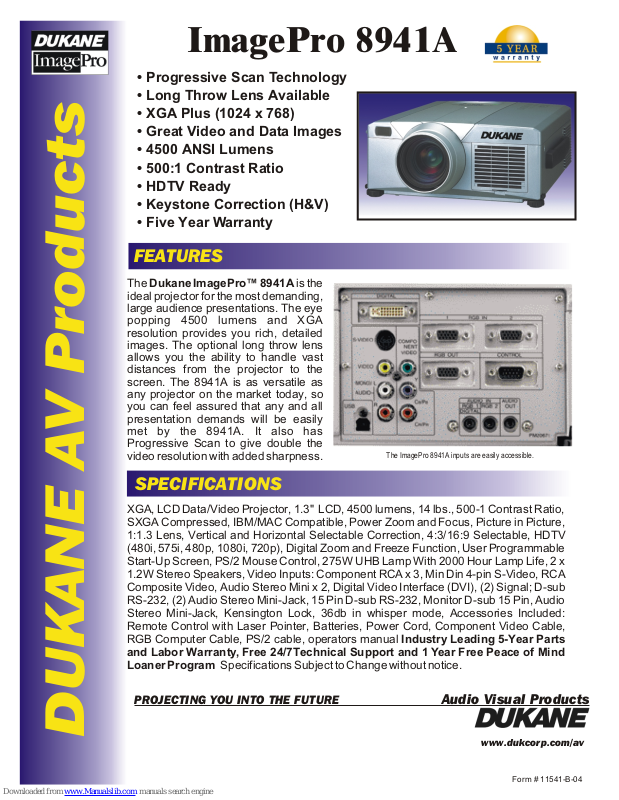

Page 1
ImagePro 8941A
• Progressive Scan Technology
• Long Throw Lens Available
• XGA Plus (1024 x 768)
• Great Video and Data Images
• 4500 ANSI Lumens
• 500:1 Contrast Ratio
• HDTV Ready
• Keystone Correction (H&V)
• Five Year Warranty
FEATURES
The Dukane ImagePro™ 8941A is the
ideal projector for the most demanding,
large audience presentations. The eye
popping 4500 lumens and XGA
resolution provides you rich, detailed
images. The optional long throw lens
allows you the ability to handle vast
distances from the projector to the
screen. The 8941A is as versatile as
any projector on the market today, so
you can feel assured that any and all
presentation demands will be easily
met by the 8941A. It also has
Progressive Scan to give double the
video resolution with added sharpness.
The ImagePro 8941A inputs are easily accessible.
SPECIFICATIONS
XGA, LCD Data/Video Projector, 1.3" LCD, 4500 lumens, 14 lbs., 500-1 Contrast Ratio,
SXGA Compressed, IBM/MAC Compatible, Power Zoom and Focus, Picture in Picture,
1:1.3 Lens, Vertical and Horizontal Selectable Correction, 4:3/16:9 Selectable, HDTV
(480i, 575i, 480p, 1080i, 720p), Digital Zoom and Freeze Function, User Programmable
Start-Up Screen, PS/2 Mouse Control, 275W UHB Lamp With 2000 Hour Lamp Life, 2 x
1.2W Stereo Speakers, Video Inputs: Component RCA x 3, Min Din 4-pin S-Video, RCA
Composite Video, Audio Stereo Mini x 2, Digital Video Interface (DVI), (2) Signal; D-sub
RS-232, (2) Audio Stereo Mini-Jack, 15 Pin D-sub RS-232, Monitor D-sub 15 Pin, Audio
Stereo Mini-Jack, Kensington Lock, 36db in whisper mode, Accessories Included:
Remote Control with Laser Pointer, Batteries, Power Cord, Component Video Cable,
RGB Computer Cable, PS/2 cable, operators manual Industry Leading 5-Year Parts
and Labor Warranty, Free 24/7Technical Support and 1 Year Free Peace of Mind
Loaner Program Specifications Subject to Change without notice.
PROJECTING YOU INTO THE FUTURE
DUKANE AV Products
Audio Visual Products
www.dukcorp.com/av
Form # 11541-B-04
Page 2
ImagePro 8941A
Data/Video Projector
Model 28A8941A
Specifications (Specifications are subject to change without notice)
FF
AST FAST F
F
AST F
FF
AST FAST F
AXAX
AX
AXAX
LCD Type 1.3” polysilicon active-
Brightness 4500 ANSI Lumens
Resolution 1024 x 768 pixels (H X V)
Contrast 500:1
Lens Power Zoom (F1.7-2.3)
Picture-In-Picture Via remote control
Keystone Correction Vertical & Horizontal
Aspect Ratio 4:3/16:9 mode
Computer SVGA, VGA, XGA, SXGA
Compatibility Compressed, Mac, 13”, Mac 16”
Video Compatibility NTSC, PAL, M-PAL, N-PAL,
Image Control Digital Zoom and Freeze
Start-up-Screen User programable
Mouse Control (remote) Use PS/2 or USB
Color Reproduction 24 bit (16.7 million)
Lamp 275W UHB
Lamp Life 2000 hours (typical)
Audio Speaker 2 x 1.2 watt
Throw Distance 55” to 386”
Screen Size 40” - 200” Min-Max
Inputs, Video (1) Component, RCA x 3
Inputs, Computer (2) Signal; D-sub 15 pin
Outputs, Control 15 pin, D-sub, RS-232
Outputs, Computer (1) Signal, D-sub 15 pin
Security Kensington lock slot
Fan Level 40dB,ultra quiet.
Power AC90-132 V / AC220-240V
(WxHxD)
Size
Weight 14.3 lbs
Shipping Weight 22 lbs.
Carton Size 15” x 13” x 21.5”
Accessories Included Remote control with laser
Safety UL/C-UL
Optional Accessories Lamps 456-225
Five (5) year Limited Warranty on Parts and Labor in North
America, lamp excluded (for other locations,local warranties
apply.) Includes Dukane’s FREE 12 month Peace-of-Mind
Loaner Program.
matrix TFT x 3
(3600 ANSI lumens in
Whisper Mode)
1:1.3, Power Focus
selectable
PAL60, SECAM, Component,
480i, 575i, 480p, 1080i,
720p, HDTV
Function
(1) Min DIN 4-pin, S-Video
(1) RCA, composite Video
(1) Audio, Stereo mini jack
(1) DVI, Digital Visual Interface
(2) Audio, Stereo mini jack
(1) Audio, Stereo mini jack
36dB in whisper mode
50/60 Hz, 440 watt
11.4" x 5.5" x 13.6"
pointer, Batteries, Power cord
(U.S., UK, Euro), Video cable,
Audio cable (stereo mini) RGB
cable, operators manual.
Performance and Portability
The Dukane ImagePro™ 8941A commands attention in
the boardroom, church or large auditorium. The eye
popping 4500 lumens makes this the perfect projector for
high ambiant light conditions or situations that require a
long throw.
Native XGA resolution LCD technology and only 14lbs
makes the ImagePro 8941A as versatile as any projector on the market today. Power zoom and focus, RGB
output, component/composite/S-video inputs, DVI Input
and 2 Analog RGB inputs connects the ImagePro 8941A
to the vast majority of signal requirements. A 500-1
contrast ratio provides clarity rarely seen in LCD projectors.
Other features include: vertical and horizontal keystone
correction, 36 dB (whisper mode), HDTV Theater Ready,
Picture in Picture, 16:9 mode, and remote controller with
laser pointer and mouse function.
Finally “My Screen” is a user programable Start-up
screen that allows the end user to check a message that
is seen during warm-up. This can identify the users
organization or any other desired graphic.
One-year Peace of Mind loaner program. For the first
year of the warranty period Dukane will send you a loaner
LCD projector within 24 hours after determining that your
projector requires warranty service. This program gives
you the peace of mind of knowing that you will always
have a projector for an important presentation. This
projector is backed by Dukane’s FIVE YEAR limited
warranty.
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485 or 2486
Fax (630) 584-5156
e-mail: [email protected]
DUK DUK
Image Pro® is a registered trademark of
ANEANE
DUK
ANE Corporation.
DUK DUK
ANEANE
Form # 11541-B-04
