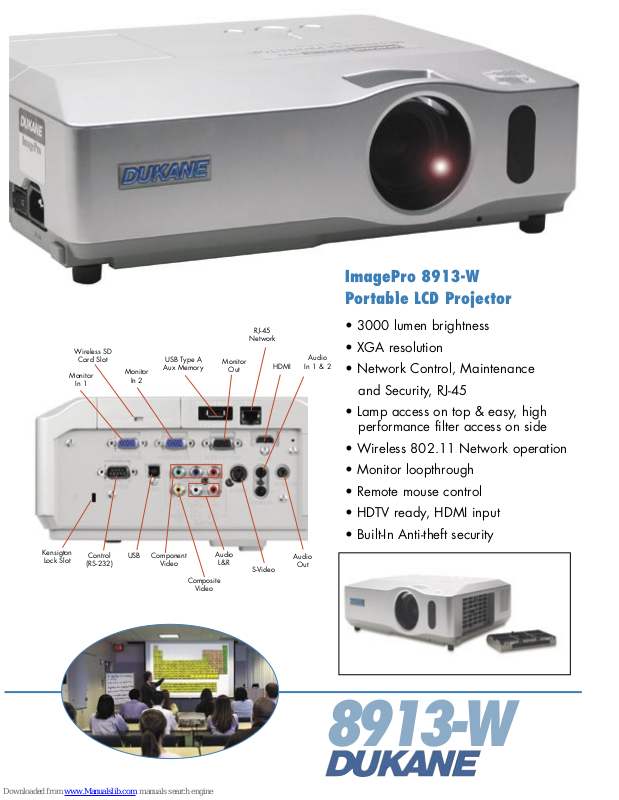

Page 1
ImagePro 8913-W
Portable LCD Projector
Kensigton
Lock Slot
Wireless SD
Card Slot
Monitor
In 1
Control
(RS-232)
Monitor
In 2
USB
USB Type A
Aux Memory
Component
Video
Composite
Video
Monitor
Audio
L&R
Out
RJ-45
Network
S-Video
HDMI
Audio
Out
Audio
In 1 & 2
• 3000 lumen brightness
• XGA resolution
• Network Control, Maintenance
and Security, RJ-45
• Lamp access on top & easy, high
performance filter access on side
• Wireless 802.11 Network operation
• Monitor loopthrough
• Remote mouse control
• HDTV ready, HDMI input
• Built-In Anti-theft security
8913-W
Page 2
ImagePro 8913-W
Portable LCD projector
The ImagePro 8913-W is a LCD projector that can be used
in a variety of applications. With sufficient brightness for
classrooms and conference rooms the 8913-W is designed
to be reliable and easy to maintain.
Computer-less presentations using your SD Card or USB
Flash Drive. Wireless operation
using 802.11 b/g via an SD
receiver. Can connect to 4 PC's
wirelessly. Lamp and filter access
points are conveniently located,
plus the new long life filter with 400 hours between
maintainance makes this a wise multimedia investment.
Key features:
• XGA (1024 x 768) resolution
• 3000 ANSI lumens of brightness
• Network connection for control, maintenance, and
security, RJ-45/wireless
• Easy maintenance in ceiling mount with lamp access on
top & 400 hour filter access on side
• Monitor loopthrough & remote mouse control
• Built-In Anti-theft security
• Wireless 802.11 b/g operation
• Auto Vertical keystone correction
• HDTV ready & progressive scan with HDMI input
• Kensington lock slot & security bar
• Five Year Warranty and
One Year Peace of Mind Service
8913-W Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 2.8 3.4
60 48 5.8 7.0
80 64 7.8 9.3
100 80 9.8 11.7
120 96 11.7 14.1
150 120 14.7 17.6
200 160 19.5 23.5
300 240 29.3 35.3
Throw Ratio (distance to width), 1.5 1.8
Specifications subject to change without notice.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
#080008 ImagePro is a registered trademark of Dukane Corporation
Specifications 8913-W
Image Element 0.63” polysilicon active-matrix TFT x3
Brightness 3000 ANSI lumens
(2500 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400:1
Scanning Frequency fh 15 -106 kHz, fv 50-120 Hz
Lens Manual zoom (F1.6 – 1.8), 1.2X
Lens Throw Ratio 1.5 to 1.8 throw distance to
image width
Keystone Correction Digital, vertical +/-30 deg
horizontal +/-20 deg
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, SXGA, UXGA,
Compatibility and MAC13” and MAC16”
Video Compatibility NTSC, NTSC4.43, PAL, SECAM
Component Video, HDTV (1080i, 720p, 576i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB, Type B
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 220W UHB
Lamp Life 2000 hours (typical) 3000 hours
(whisper mode)
Audio 1 speaker, 7 watt
Throw Distance 34” to 423”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
(1) HDMI digital video
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (2) Stereo mini jack
(1) RCA x 2 (for video)
Outputs, Audio (1) Stereo mini jack
Outputs, Monitor RGB, 15 pin D-sub
Control RS-232, 9 pin D-sub
USB Mouse control, Type B
Wireless 802.11 b/g with SD card
Network Connection LAN, RJ-45
Other USB Type A, Storage, SD Card Slot
Security Kensington lock slot & Security Bar
Fan Level 33dB, ultra quiet
29dB in Whisper Mode
Filter Service Filter cleaning at 400 hours
Operating Temperature 41-95 deg F
Power AC 100-120V, AC 220-240V
50/60 Hz, 350 watt
Size (WxHxD) 13.4” x 4.6” x 10.6”
Weight 8.8 lbs.
Shipping Weight 18 lbs.
Carton Size 19” x 14” x 10”
Accessories Included Remote control, batteries, power cord,
RGB cable, RCA video cable,
operators manual and soft carry case.
Safety UL/C-UL, FCC Class B
Optional Accessories Lamp 456-8755G, Universal Ceiling Mount
RPM-U, Wireless card:VA08331
Filter; MU04951
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
