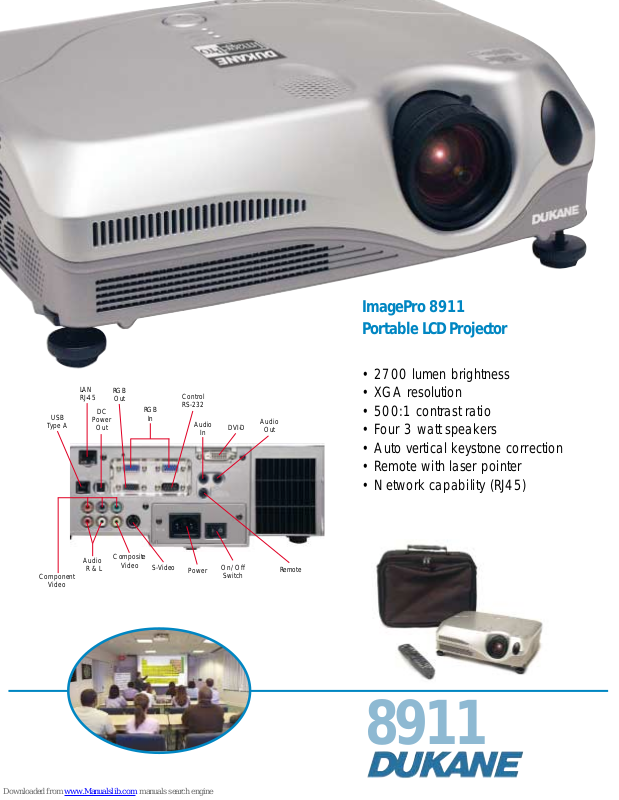

Page 1
8911
USB
Type A
Component
Video
LAN
RJ-45
Audio
R & L
DC
Power
Out
RGB
Out
Composite
Video
RGB
In
S-Video
Control
RS-232
Audio
Power
ImagePro 8911
Portable LCD Projector
• 2700 lumen brightness
• XGA resolution
DVI-D
In
On/Off
Switch
Audio
Out
Remote
• 500:1 contrast ratio
• Four 3 watt speakers
• Auto vertical keystone correction
• Remote with laser pointer
• Network capability (RJ45)
Page 2
ImagePro 8911
Premium-quality LCD projector
The Dukane ImagePro 8911 is a powerful yet versatile LCD projector designed to open new possibilities
in multimedia projection. Bright enough for most large
classrooms and conference rooms, the 8911 is sure to
impress with realistic colors, sharp contrast, and brilliant images.
Save money with the 8911 by eliminating the need
for additional external speakers. By incorporating four
built-in 3W speakers, which is typically sufficient for
most classrooms, you can be sure your message is
heard. In addition, full
connectivity and networking capabilities make
this one of the most versatile and efficient projectors available today.
Key features:
• 2700 lumens brightness
• XGA (1024 x 768) resolution
• 500:1 contrast ratio
• Vibrant rich colored images
• Four 3 watt speakers
• Automatic vertical keystone correction
• Remote with laser pointer
• HDTV compatible
• Five Year Warranty and One Year Peace of
Mind Service
8911 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
40 32 5.9 7.8
60 48 9.0 11.8
80 64 12.1 15.8
100 80 15.2 19.8
120 96 18.3 23.8
150 120 22.8 29.9
200 160 30.5 39.9
250 200 38.2 49.9
300 240 45.9 59.9
Throw Ratio (distance to width) 2.3 3.0
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11679-G-05.1
ImagePro is a registered trademark of Dukane Corporation
Specifications 8911
Image Element 0.8” polysilicon TFT x3, MLA
Brightness 2700 ANSI lumens
2100 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 500:1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual zoom (F=1.7 to 2.1), 1.3X
Lens Throw Ratio 2.3 -3.0 :1 throw distance
to image width
Keystone Correction Digital, ver tical +/-15 deg, automatic
horizontal +/- 5 deg
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, and
Compatibility SXGA Compressed, MAC16"
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i, 720p, 575i, 480i/p
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 230W UHB
Lamp Life 2000 hours
Audio 3.0 W x 4
Throw Distance 46” to 364”
Screen Size, diagonal 40” to 500”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
Audio, Stereo, RCA x 2, (L/R)
Inputs, Computer (2) RGB Signal: D-sub, 15 pin
(1) DVI (digital RGB)
Audio, Stereo mini jack x 1
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control 9 pin D-sub Connector, RS232C
USB connector x 1
3.5mm mini jack (wired remote control)
Network RJ-45 port / 10Base-T
Security Kensington slot
Fan Level 38dB, (33dB in whisper mode)
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC220-240V
50/60 Hz, 370 watt
Size (WxHxD) 13.2” x 3.7” x 10.4”
Weight 8.3 lbs.
Carton Size 14.3" x 16" x 17.3
Shipping Weight 20.2 lbs.
Accessories Included Remote control w/ laser pointer, batteries,
Safety UL, C-UL, FCC Class B, CE, TUV
Optional Accessories Lamp 456-8915
Five (5) year limited war
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 1 year
Peace-of-Mind Loaner Program.
power cord, RGB Cable, filter cover,
operator/safety manual, soft case.
Rolling briefcase; 185-406,
Ceiling mount , universal; PJF-UNV-S
ranty
