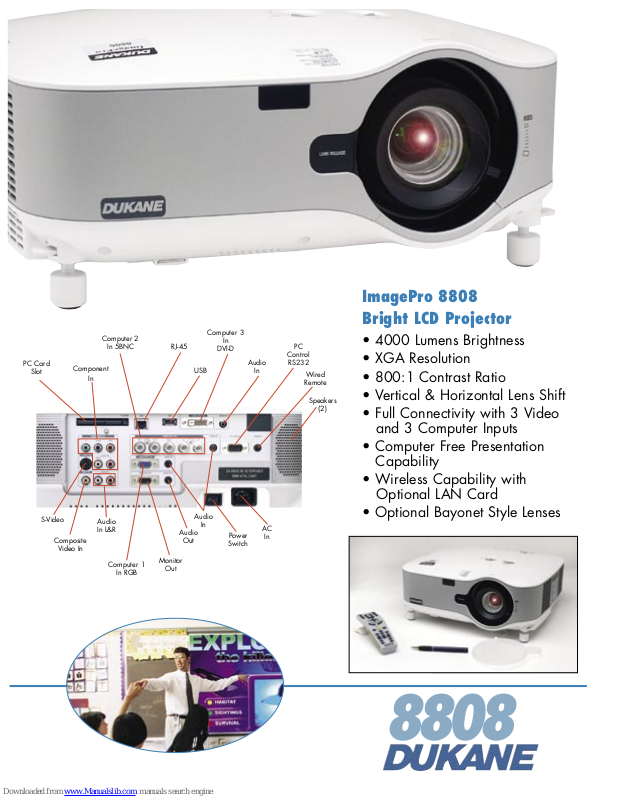

Page 1
PC Card
Slot
Component
In
Computer 2
In
5BNC
RJ-45
Computer 3
USB
In
DVI-D
Audio
ImagePro 8808
Bright LCD Projector
PC
Control
In
RS232
Wired
Remote
Speakers
(2)
• 4000 Lumens Brightness
• XGA Resolution
• 800:1 Contrast Ratio
• Vertical & Horizontal Lens Shift
• Full Connectivity with 3 Video
and 3 Computer Inputs
• Computer Free Presentation
Capability
• Wireless Capability with
Optional LAN Card
Out
Audio
Out
Audio
In
S-Video
Composite
Video In
Audio
In L&R
Computer 1
In RGB
Monitor
Power
Switch
• Optional Bayonet Style Lenses
AC
In
8808
Page 2
ImagePro 8808
Super Bright LCD projector
The Dukane ImagePro 8808™ is a full featured projector that has advanced functionality including wireless
capabiity, computer free
presentation capability
and enhanced video
processing.
Outstanding connectivity
and unique features
including lens shift, 3D
keystone correction, and optional lenses make this a
versatile projector for any installation application.
Key features:
• 4000 Lumens Brightness
• XGA Resolution
• 800:1 Contrast Ratio
• Vertical & Horizontal Lens Shift
• Full Connectivity with 3 Video and 3 Computer Inputs
• Advanced Video Processing with Contrast Enhancement
• Lamp Saver Technologies
• Direct Power Off
• Computer Free Presentation Capability
• Wireless Capability with Optional LAN Card
• Optional Bayonet Style Lenses
• Two Year Warranty and One Year Peace of Mind Service
8808 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 2.9 3.9
40 32 4.0 5.3
60 48 6.0 8.1
80 64 8.1 10.8
100 80 10.1 13.5
200 160 20.4 27.2
250 200 25.6 34.1
300 240 30.7 40.9
500 400 51.4 68.4
Throw Ratio (distance to width) 1.5 2.0
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#080001
Specifications 8808
Image Element 0.8” polysilicon TFT x3, MLA
Brightness 3500 ANSI lumens, 2800 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 800:1
Scanning
Frequency
Lens Manual focus (F=1.7 to 2.2), 1.3x Zoom
Lens Throw Ratio 1.5 -2.0 :1 throw distance to image width
Lens Shift Manual 50% Vertical, 10% Horizontal
Keystone
Correction
Aspect Ratio 4:3, 16:9 selectable
Computer
Compatibility
Video
Compatibility
Image Control Freeze function, electronic magnification and
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 300W AC
Lamp Life 2000 hours (3000 hours whisper mode)
Audio 5W x 2
Throw Distance 30” to 822”
Screen Size,
diagonal
Inputs, Video (1) Component, RCA x 3 w/ LR RCA Audio,
Inputs, Computer (1) RGB Signal: D-sub, 15 pin
Outputs Monitor 15 pin, D-sub
Outputs,Control 9 pin D-sub Connector, RS232
Network RJ-45 port, 10/100 base-T
Computer Free
Presentations
Security Kensington slot & Password protection
Fan Level 35dB, (30dB in whisper mode)
Operating
Temperature
Power AC 100-240V, 50/60 Hz, 435 watt
Size (WxHxD) 15.7” x 5.9” x 14.1”
Weight 16 lbs.
Carton Size 20.5” x 13.5” x 19
Shipping Weight 27 lbs.
Accessories
Included
Safety UL 1950, FCC Class B, CSA950 C-UL, NOM
Optional
Accessories
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
fh 15-100 kHz, fv 48-120 Hz
3D Image Square, Vertical, Horizontal,
and Diagonal
VGA, SVGA, XGA, and SXGA+/UXGA Compressed, Mac 13” and Mac 16”
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL60,
SECAM, HDTV 1080i, 720p, 576/ip, 480i/p
pan
25” to 500”
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
Audio, Stereo, RCA x 2,
(1) RGBHV, 5 BNC
(1) DVI-D w/ HDCP
Audio, Stereo mini jack x 3
Audio Out, Stereo mini jack x 1
3.5mm mini jack (wired remote control)
PC Card Slot, 802.11b/g wireless
w/ optional card
USB drive or PCMCIA card
41 to 104 deg. F (5-40 deg C)
Remote control, batteries, power cord,
Remote Control Cable, RGB Cable, Lens Cap,
User Manual CDROM, PC Card Lock, Lens
Anti-Theft Screw
Lamp 456-8806, Wireless Extender;
LV3500W, Ceiling mount universal; RPA-U
Wireless LAN Card; NWL-100A, Optional
Short & Long Throw Lenses Available
2YR
