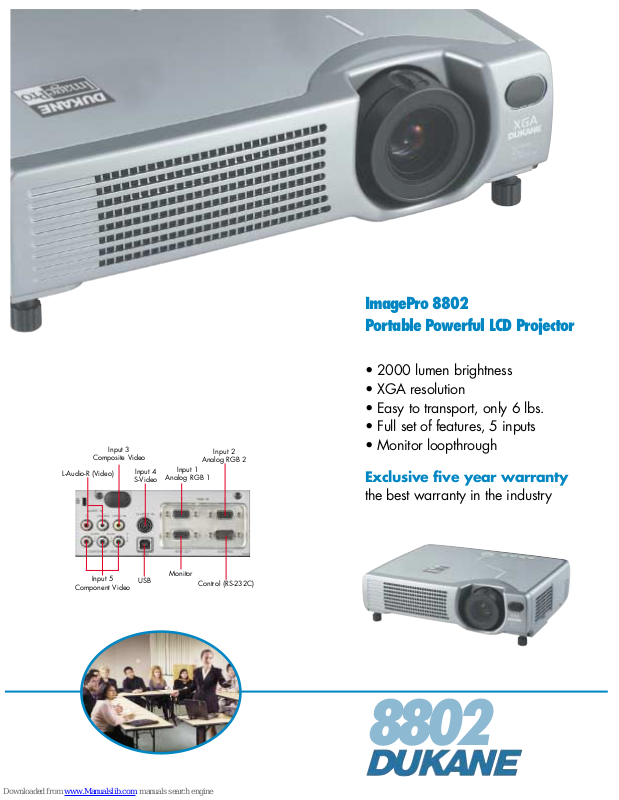

Page 1
ImagePro 8802
Portable Powerful LCD Projector
• 2000 lumen brightness
• XGA resolution
• Easy to transport, only 6 lbs.
• Full set of features, 5 inputs
Composite Video
L-Audio-R (Video)
Input 5
Component Video
Input 3
Input 4
S-Video
USB
Analog RGB 2
Input 1
Analog RGB 1
Monitor
Control (RS-232C)
Input 2
• Monitor loopthrough
Exclusive five year warranty
the best warranty in the industry
8802
Page 2
ImagePro 8802
Diagonal Width Min Max
40 32 47 55
60 48 71 87
80 64 95 114
100 80 118 142
120 96 142 173
150 120 181 217
200 160 240 287
*Screen Size 4.3
*Throw Distance
Premium-quality LCD projector
A new way of thinking about projection
The Dukane ImagePro 8802 is a projector that can be
easily moved around while still providing higher image
brightness and features to make your class or presentation easy. It is simple to use, transport, and can be setup
in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use it as a
portable or mount it on the
ceiling.
Key features:
• True XGA (1024 x 768) resolution
• 2000 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 6 lbs.
• Flexibility with 2 computer and 3 video inputs
• Full function remote with mouse/cursor control
• Custom Image for your startup and blank screens
• Wide angle zoom lens permits closer placement to
the screen
• "Silent Running" so you hear only your message
• Vertical and horizontal keystone correction
• Five Year Warranty and Peace of Mind Service
8802 Projection Table
Throw ratio 1.47-1.79:1 (distance:width)
*All measurements in inches.
Specifications
LCD Type 0.7” polysilicon active-matrix
TFT x3
Brightness 2000 ANSI lumens
(1600 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V)
Contrast 400:1
Scanning Frequency fh 15-80 kHz, fv 50-120 Hz
Lens Manual zoom (f1.7 – 1.9), 1.2X
Lens Throw Ratio 1:1.5 – 1.8:1 throw distance
to image width
Keystone Correction Digital, vertical & horizontal
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA,
Compatibility SXGA/Compressed PC and Mac
13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-PAL,
N-PAL, PAL60, SECAM, S-video
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHP
Lamp Life 2000 hours (typical)
4000 hours (whisper mode)
Audio 1 speaker, 1 watt
Throw Distance 47” to 233”
Screen Size 40” to 200”
Inputs, Video (1) Min DIN 4-pin, s-video
(1) Component, RCA x 3
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2
Inputs, Computer (2) Signal: D-sub, 15 pin
Outputs Monitor (1) 15 pin, D-sub
Outputs,Control (1) 15 pin, D-sub, RS-232
(1) USB Mouse control
Security Kensington lock slot
Fan Level 38dB, ultra quiet
33dB in Whisper Mode
Power AC 90-132V, AC220-240V
50/60 Hz, 240 watt
Size (WxHxD) 11.6” x 3” x 9.1”
Weight 6 lbs.
Shipping Weight 15 lbs.
Carton Size 16” x 14” x 12”
Accessories Included Remote control, batteries, power
cord, Video cable, Audio cable,
RGB cable, and operators manual.
soft carry case.
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-233; rolling
briefcase; 185-406
Ceiling mount, universal: PJF-UNV-S
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 or 2486 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
ImagePro is a registered trademark of Dukane Corporation
#11634-D-04.1
.
5
ranty
YR
Five (5) year limited war
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
