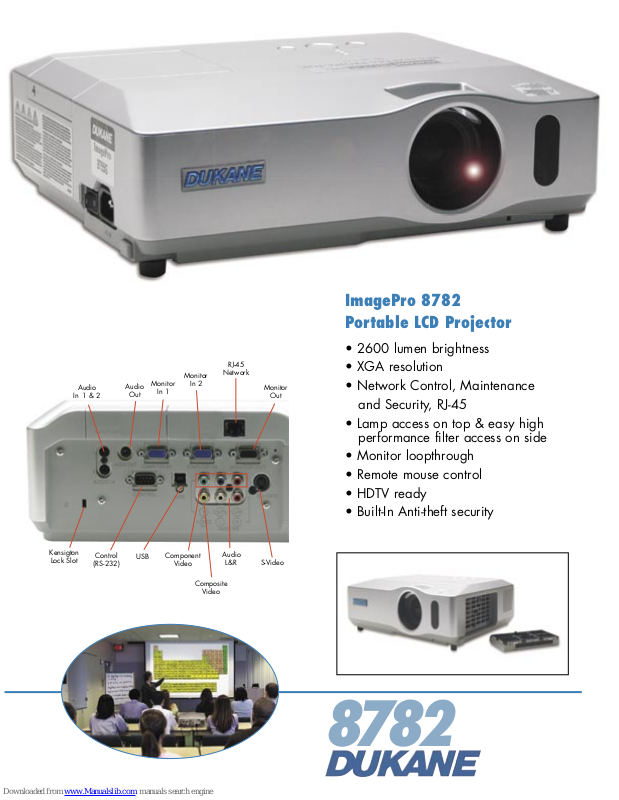

Page 1
Audio
In 1 & 2
Audio
Out
Monitor
In 1
Monitor
In 2
RJ-45
Network
Monitor
Out
ImagePro 8782
Portable LCD Projector
• 2600 lumen brightness
• XGA resolution
• Network Control, Maintenance
and Security, RJ-45
• Lamp access on top & easy high
performance filter access on side
• Monitor loopthrough
• Remote mouse control
• HDTV ready
• Built-In Anti-theft security
Kensigton
Lock Slot
Control
(RS-232)
USB
Component
Video
Composite
Video
Audio
L&R
S-Video
8782
Page 2
ImagePro 8782
Portable LCD projector
The ImagePro 8782 is a LCD projector that can be used
in a variety of applications. With sufficient brightness for
classrooms and conference rooms the 8782 is designed to
be reliable and easy to maintain.
Lamp and filter access points
are conveniently located and
Kensington™ lock slot and our
new security bar makes this
projector secure and a wise
multimedia investment.
Key features:
• XGA (1024 x 768) resolution
• 2600 ANSI lumens of brightness
• Network connection for control, maintenance, and
security, RJ-45
• Easy maintenance in ceiling mount with lamp access on
top & filter access on side
• Monitor loopthrough & remote mouse control
• Remote control with "My Buttons"
• Built-In Anti-theft security
• Auto Vertical keystone correction
• HDTV ready & progressive scan
• Kensington lock slot & security bar
• Five Year Warranty and
One Year Peace of Mind Service
8782 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 2.8 3.4
60 48 5.8 7.0
80 64 7.8 9.3
100 80 9.8 11.7
120 96 11.7 14.1
150 120 14.7 17.6
200 160 19.5 23.5
300 240 29.3 35.3
Throw Ratio (distance to width), 1.5 1.8
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
#080007.1 ImagePro is a registered trademark of Dukane Corporation
Specifications 8782
Image Element 0.63” polysilicon active-matrix TFT x3
Brightness 2600 ANSI lumens
(2100 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 500:1
Scanning Frequency fh 31.5 -106 kHz, fv 56-120 Hz
Lens Manual zoom (F1.6 – 1.8), 1.2X
Lens Throw Ratio 1.5 to 1.8 throw distance to image width
Keystone Correction Digital, vertical +/-30 deg
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, SXGA, UXGA
Compatibility Compressed PC and MAC13” and
MAC16”
Video Compatibility NTSC, NTSC4.43, PAL, SECAM,
PAL-M, PAL-N,
Component Video, HDTV (1080i, 720p, 576i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB, Type B
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 220W UHB
Lamp Life 2000 hours (typical) 3000 hours
(whisper mode)
Audio 1 speaker 7 watt
Throw Distance 34” to 423”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (2) Stereo mini jack
(1) RCA x 2 (for video)
Outputs, Audio (1) Stereo mini jack
Outputs, Monitor RGB, 15 pin D-sub
Control RS-232, 9 pin D-sub
USB Mouse control, Type B
Network Connection LAN, RJ-45
Security Kensington lock slot & Security Bar
Fan Level 33dB, ultra quiet
29dB in Whisper Mode
Operating Temperature 41-95 deg F
Power AC 100-120V, AC 220-240V
50/60 Hz, 320 watt
Size (WxHxD) 13.4” x 4.6” x 10.6”
Weight 8.8 lbs.
Shipping Weight 18 lbs.
Carton Size 19” x 14” x 10”
Accessories Included Remote control, batteries, power cord,
RGB cable, RCA video cable,
operators manual and soft carry case.
Safety UL/C-UL, FCC Class B
Optional Accessories Lamp 456-8755G, Ceiling Mount,
Universal; RPM-U, Filter; MU04951
Remote Control; HL02227
Specifications subject to change without notice.
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
