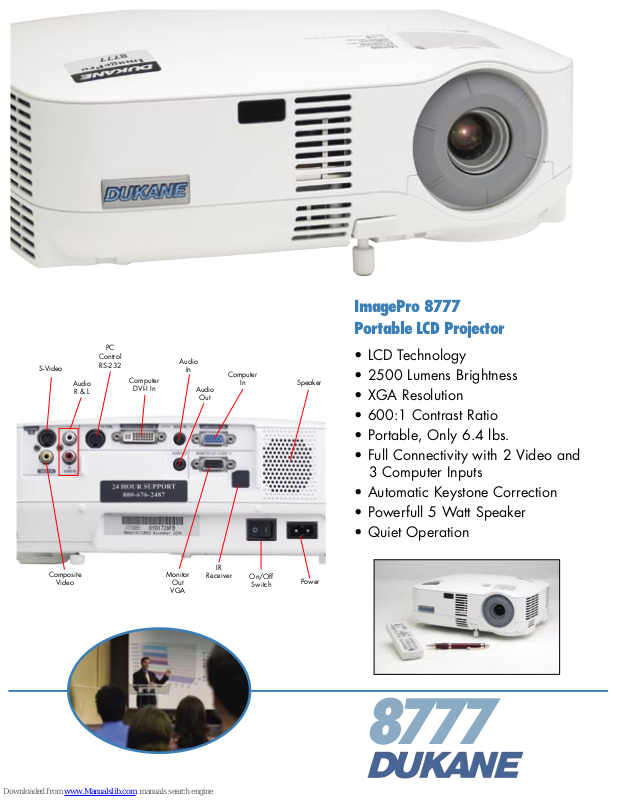

Page 1
S-Video
Audio
R & L
PC
Control
RS-232
Computer
DVI-I In
Audio
In
Audio
Out
Computer
In
Speaker
ImagePro 8777
Portable LCD Projector
• LCD Technology
• 2500 Lumens Brightness
• XGA Resolution
• 600:1 Contrast Ratio
• Portable, Only 6.4 lbs.
• Full Connectivity with 2 Video and
3 Computer Inputs
• Automatic Keystone Correction
• Powerfull 5 Watt Speaker
• Quiet Operation
Composite
Video
Monitor
Out
VGA
Receiver
IR
On/Off
Switch
Power
8777
Page 2
ImagePro 8777
Portable LCD projector
The Dukane ImagePro™ 8777 is an affordable full
featured LCD projector that is ideal for most classrooms or conference rooms. Start-up is only 9 seconds. So you can get to your presentation faster
without waiting.
This full-featured LCD
projector has outstanding video and computer
images. With it's extensive connections you can
hook up to a multitude
of sources. It has full XGA resolution (1024 x 768)
and a powerful five watt speaker so your presentation
can be heard in most any environment.
Key features:
• LCD Technology
• 2500 Lumens Brightness
• XGA Resolution
• 600:1 Contrast Ratio
• Portable, Only 6.4 lbs.
• Full Connectivity with 2 Video and
3 Computer Inputs
• Automatic Keystone Correction
• Powerfull 5 Watt Speaker
• Quiet Operation
• Monitor Loop Through
8777 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 3.3 3.6
60 48 6.0 7.0
72 58 7.2 8.6
90 72 9.0 10.8
100 80 10.0 12.0
200 160 20.0 24.0
250 200 25.0 30.0
300 240 30.0 35.0
Throw Ratio (distance to width) 1.50 1.80
Specifications 8777
Image Element 0.6” LCD
Brightness 2500 ANSI lumens
1900 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 600:1
Scanning Frequency fh 15 to 100 kHz, fv 50 to 120 Hz
Lens Manual zoom, (18.9-22.7mm),
1.2x
Lens Throw Ratio 1.5 - 1.8:1 throw distance to
image width
Keystone Correction Automatic or Manual +/-30 deg.
Aspect Ratio 4:3 native, 16:9 selectable
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+,
UXGA and MAC
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-60,
PAL-M, PAL-N, SECAM, HDTV
1080i, 720p, 576p, 480p, 480i,
Y/Cb/Cr component (with optional
adapter - ADP-CV1E)
Mouse Control With optional IR Receiver
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 200W DC/150W (Whisper Mode)
Lamp Life 2000 hours (3000 hours Whisper
Mode)
Audio 5W x 1
Throw Distance 40” to 400”
Screen Size, diagonal 21” to 300”
Inputs, Video (1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
Audio, Stereo RCA x 2 (L&R)
Inputs, Computer (1) RGB Signal: D-sub, 15 pin
(1) DVI-I
(1) Audio, Stereo mini jack
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control RS232
Security Kensington slot
Fan Level 35dB, (29dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-40 deg C)
Power AC 100-240V, 50/60 Hz, 280W
Size (WxHxD) 12.2” x 4.4” x 10.2”
Weight 6.4 lbs.
Carton Size 16.3" x 11.8" x 14.1"
Shipping Weight 11.4 lbs.
Accessories Included Remote control, batteries (AA),
power cord, Computer Cable (DVI-
RGB),S-Video Cable, DVI-1-VGA
Adapter CDROM, Carry Case,
User Manual
Safety FCC-B, UL/Cul, TUV, CB, CE, CCC
Optional Accessories Lamp 456-8777, IR-Receiver (IR-
RVCR), Ceiling mount , universal;
RPA-U
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11725-K-06.1
ImagePro is a registered trademark of Dukane Corporation
Toll-free: 800-676-2485
Fax: 630-584-5156
E-mail: [email protected]
Three (3) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 1 year
Peace-of-Mind Loaner Program.
