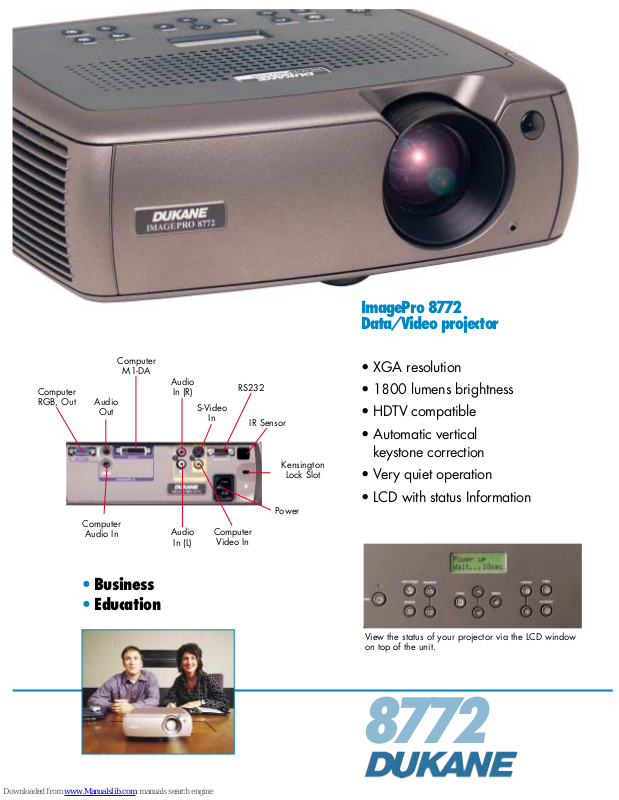

Page 1
ImagePro 8772
Data/Video projector
Computer
RGB, Out
Computer
M1-DA
Audio
Out
Computer
Audio In
• Business
• Education
Audio
In (R)
Audio
In (L)
S-Video
In
Computer
Video In
RS232
IR Sensor
Kensington
Lock Slot
Power
• XGA resolution
• 1800 lumens brightness
• HDTV compatible
• Automatic vertical
keystone correction
• Very quiet operation
• LCD with status Information
View the status of your projector via the LCD window
on top of the unit.
8772
Page 2
ImagePro 8772
Diagonal Width Min. Max. a*
Inches Inches Feet Feet Inches
40 32 4.3 5.1 1.5
60 48 6.4 7.6 2.0
100 80 10.7 12.7 4.0
120 96 12.9 15.3 5.0
150 120 16.1 19.1 6.5
210 168 22.5 26.7 7.0
a* = Distance Below Lens Center line.
Image Size 4:3
Throw Distance
Portable LCD projector
A way to present your images anywhere
The Dukane ImagePro 8772™ offers best-in-class
capabilities with intuitive controls. Get outstanding
color saturation and brightness that lasts. Quiet operation and superb audio fidelity let your audience
focus and remember.
The high-end features mean that you do less work.
Automatic vertical keystone correction,
plus ceiling detection
ensure your image is
proper, with no work
on your part. Automatic
synchronization with
computer and video
sources allows for quick
and smooth transitions.
features:
Key
• Light weight
• 1800 lumens brightness
• XGA resolution
• Simple, icon based menu
• HDTV compatible
• Zoom lens
• Automatic ceiling detection
• Picture-In-Picture (PIP)
• LCD window with status information
8772 Image Size Distance Table
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
Specifications 8772
Image Element 0.8” polysilicon TFT x3, MLA
Brightness 1800 ANSI lumens
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400 to 1
Scanning Frequency fh 16-110 kHz, fv 50-85 Hz
Lens Manual zoom, 1.2X
Lens Throw Ratio 1.61 - 1.91 to 1 throw distance
to image width
Keystone Correction Digital, vertical +/-25 deg,
Computer SVGA, VGA, XGA, and
Compatibility SXGA Compressed,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM, HDTV,
1080i,1080i/p, 720p, 480p
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB – using M1-USB
Picture in Picture, PiP Yes, video in computer
Other Feature Mask reveal for images
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 170 W UHP
Lamp Life 2000 hours
Audio 2 watt
Throw Distance 60” to 400”
Screen Size, diag. 40” to 300”
Inputs, Video S-video, Min DIN 4-pin,
Composite video, RCA x 1
Audio, Stereo, RCA x 2, for c-video
Inputs, Computer Computer, Stereo Mini Audio x 1
M1-D/A Computer (DVI)
Outputs Monitor 15 pin, D-sub
Outputs,Control 15 pin D-Sub, RS-232
Audio out, Stereo mini jack
USB, mouse control w M1-D/A
Security Kensington slot
Fan Level Ultra quiet, 34 dB normal
Operating Temp. 50 to 95 deg. F
Power AC 100-240V, AC 50/60 Hz, 260 watt
Size (WxHxD) 11.6” x 4.1” x 10.3”
Weight 7.5 lbs.
Shipping Weight 14 lbs.
Carton Size 16” x 16” x 14”
Accessories Included Remote control, batteries, power
cord, M1-D/A computer and USB cable,
3.5 mm audio cable, RCA x 3
cable,operators manual and
soft carry case
Safety UL/CUL, FCC/DOC Class A,
Optional Accessories Lamp; 456-8758
Rolling briefcase; 185-406, Ceiling
mount, universal; PJF-UNV-S M1 to
Component adapter; SP-M1-ADPT
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply). Includes
Dukane’s FREE 1 year
Peace-of-Mind Loaner Program
#11651-H-04.1
.
2
YR
