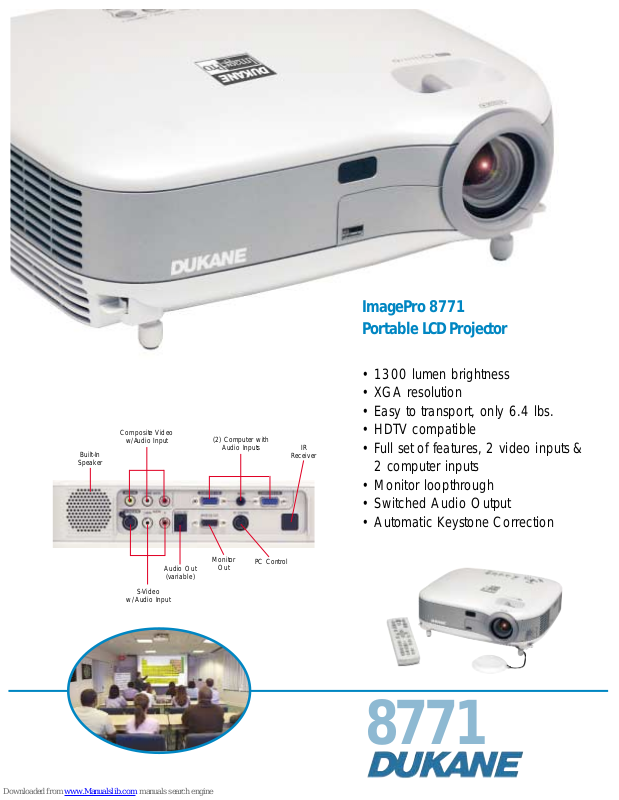

Page 1
8771
ImagePro 8771
Portable LCD Projector
• 1300 lumen brightness
• XGA resolution
• Easy to transport, only 6.4 lbs.
• HDTV compatible
• Full set of features, 2 video inputs &
2 computer inputs
• Monitor loopthrough
• Switched Audio Output
• Automatic Keystone Correction
S-Video
w/Audio Input
(2) Computer with
Audio Inputs
Built-In
Speaker
Audio Out
(variable)
Monitor
Out
PC Control
IR
Receiver
Composite Video
w/Audio Input
Page 2
ImagePro 8771
Premium-quality LCD projector
Specifications 8771
Image Element 0.7” polysilicon TFT x3, MLA
Brightness 1300 ANSI lumens
(1040 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400 to 1
Scanning Frequency fh 15-100 kHz, fv 50-120 Hz
Lens Manual zoom, 1.2X Optical
Lens Throw Ratio 1.5 -1.8 to 1 throw distance
to image width
Keystone Correction Digital, vertical +/-30 deg, Automatic
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, and
Compatibility SXGA/UXGA Compressed,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i, 720p, 576p, 480i/p
Image Control Freeze function, electronic
magnification and pan
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 130W, 110W in whisper mode
Lamp Life 2000 hours, 3000 in whisper mode
Audio 1 speaker , 1 watt
Throw Distance 29” to 430”
Screen Size, diagonal 21” to 300”
Inputs, Video S-video, Min DIN 4-pin, with L/R
RCA Audio,Composite video,
RCA x 1, with L/R RCA Audio
Inputs, Computer (2) RGB Signal: D-sub, 15 pin with
stereo mini audio
Outputs Monitor 15 pin, D-sub
Inputs,Control PC control DIN 8 pin
Outputs Audio Stereo mini jack (variable audio out)
Security Kensington slot
Fan Level 33 dB, Ultra quiet
28dB in Whisper Mode
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC200-240V
50/60 Hz, 190W (normal), 155W
(whisper), 8W standby
Size (WxHxD) 11.6” x 3.7” x10.2”
Weight 6.4 lbs.
Shipping Weight 12.6 lbs.
Carton Size 14.7” x 11” x 17.3”
Accessories Included Remote control, batteries, power
cord, computer cable, operator’s
manual and soft carry case
Safety UL/CSA, FCC Class B
Optional Accessories Lamp 456-8771
Rolling briefcase; 185-406,
Ceiling mount, universal; PJF-UNV-S
Key features:
The Dukane ImagePro 8771 is an ultra-portable projector that makes presentation setup fast and easy.
Automatic keystone correction and one touch source
selection will ensure a confident carefree presentation
every time.
This full-featured LCD projector is ideal for class rooms,
conference rooms or other locations where a bright
image is required. Use
it as a portable or
mount it on the ceiling.
• XGA (1024 x 768) resolution
• 1300 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 6.4 lbs.
• Flexibility with 2 computer and 2 video inputs
• Audio output switches with selection of either video
or computer source
• HDTV compatible
• "Silent Running" so you hear only your message
• Automatic vertical keystone correction
• Three Year Warranty and One Year Peace of
Mind Service
Three (3) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 1 year
Peace-of-Mind Loaner Program.
3YR
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#11674-C-05
Diagonal Width Min Max
Inches Inches Inches Inches
30 24 34.1 41.6
60 48 69.7 84.6
80 64 93.4 113.2
100 80 117.1 141.9
120 96 140.8 170.6
150 120 176.3 213.6
200 160 235.6 285.2
300 240 354.1 428.5
Throw ratio 1.5-1.8:1 (distance:width)
Image Size 4:3
Throw Distance
8771 Projection Table
