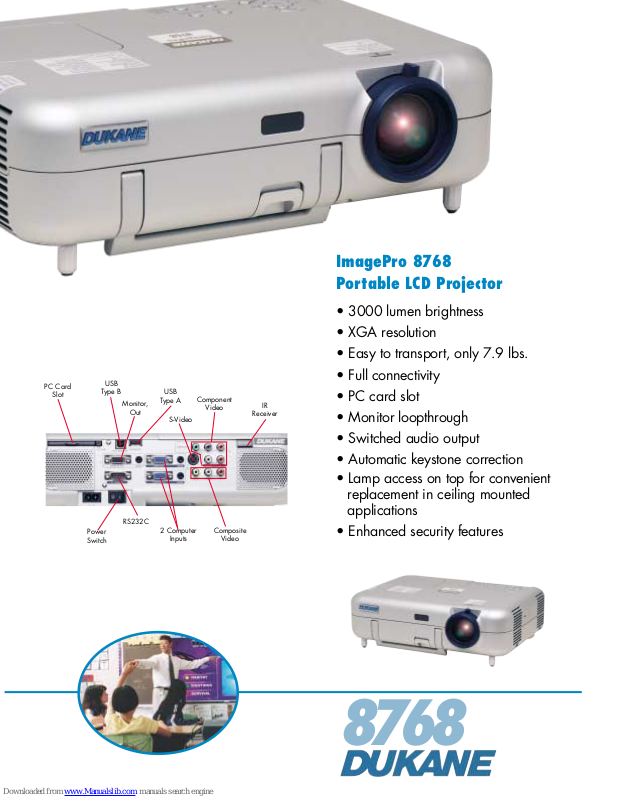

Page 1
ImagePro 8768
Portable LCD Projector
• 3000 lumen brightness
• XGA resolution
• Easy to transport, only 7.9 lbs.
PC Card
Slot
Power
Switch
USB
Type B
Monitor,
Out
RS232C
USB
Type A
S-Video
2 Computer
Inputs
Component
Video
Composite
Video
IR
Receiver
• Full connectivity
• PC card slot
• Monitor loopthrough
• Switched audio output
• Automatic keystone correction
• Lamp access on top for convenient
replacement in ceiling mounted
applications
• Enhanced security features
8768
Page 2
ImagePro 8768
Powerful LCD projector
The Dukane ImagePro 8768 is a bright powerful projector that makes presentation setup fast and easy. automatic keystone correction, one touch source selection, and
color coded input panel will ensure an impressive presentation every time.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use it
as a portable or mount it
on the ceiling.
Key features:
• XGA (1024 x 768) resolution
• 3000 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 7.9 lbs.
• Flexibility with 2 computer and 3 video inputs
• Monitor loopthrough
• Full function remote with mouse/cursor control
• Audio output switches with selection of either video or
computer source
• Enhanced security features
• HDTV Compatible
• "Silent Running" so you hear only your message
• Automatic vertical keystone correction
• Lamp access on top of projector for easy changing in
ceiling mounted applications
• Three year warranty and One year
Peace -of- Mind service
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
ImagePro is a registered trademark of Dukane Corporation
#11632-B-05
Specif
Image Element 0.8" polysilicon TFT x 3, MLA
Brightness 3000 ANSI lumens
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400:1
Scanning Frequency fh 15-100 kHz, fv 50-120 Hz
Lens Manual zoom and focus F1.7-2.0
Lens Throw Ratio 1.5 -1.8:1 throw distance
Keystone Correction Digital, vertical +/-40 deg,
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, and
Compatibility SXGA/UXGA Compressed
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
Component Video, Comp, horz res, 570TV line
Image Control Freeze function, electronic
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 200W AC
Lamp Life 2000 hours, 3000 in whisper mode
Audio 2 speakers, 5 watt
Throw Distance 28" to 430"
Screen Size, diagonal 25" to 300"
Inputs, Video (1) Component, RCA x 3 w/
Inputs, Computer (2) RGB Signal: D-sub, 15 pin
Outputs Monitor 15 pin, D-sub
Outputs,Control PC control DIN 8 pin, RS-232
Security Kensington slot and
Fan Level 35 dB, 30 dB in whisper mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC200-240V
Size (WxHxD) 13.4" x 4.2" x 10.2"
Weight 7.9 lbs.
Shipping Weight 14.0 lbs.
Carton Size 14” x 11” x 18”
Accessories Included Remote control, RGB cable, power
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-8768
Three (3) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year
ications 8768
(2300 in whisper mode)
to image width
automatic, horizontal +/- 35 deg
Mac 13” and Mac 16”
PAL-N, PAL60, SECAM,
HDTV 1080i,1080i/50 Hz, 720p,
576p, 480i/p
magnification and pan
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
(1) Audio, Stereo, RCA x 2, for
(1) Audio, Stereo, RCA x 2, for
(2) Audio, Stereo mini jack for PC
(1) PC Card slot
Audio out, Stereo mini jack
USB Type A & B
password protection
50/60 Hz, 280 watt
cord, USB cable, operators manual,
CD and soft carry case.
Ceiling mount, universal; PJF-UNV-S
Peace-of-Mind Loaner Program
L/R Audio
C-video shared
S-video shared
.
3
YR
