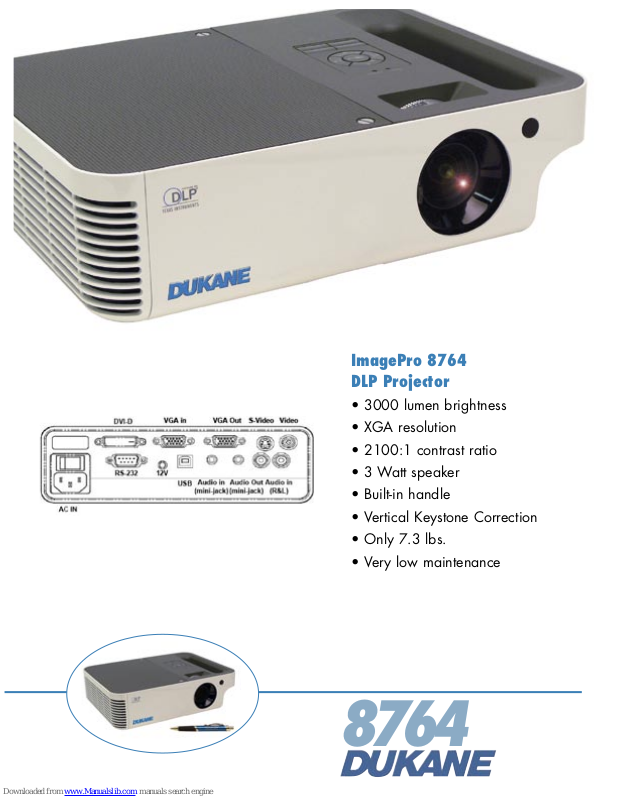

Page 1
ImagePro 8764
DLP Projector
• 3000 lumen brightness
• XGA resolution
• 2100:1 contrast ratio
• 3 Watt speaker
• Built-in handle
• Vertical Keystone Correction
• Only 7.3 lbs.
• Very low maintenance
8764
Page 2
ImagePro 8764
DLP projector
The ImagePro 8764 is a DLP projector that can be used
in a variety of applications. With a brightness of 3000
lumens the 8764 is great in classrooms and conference
rooms. The 8764 is designed to be reliable and extremely
easy to maintain since it has no filters to service.
This DLP projector has outstanding video and computer
images. It has full XGA resolution (1024 x 768) and
can be easily transported
or mounted near the
ceiling.
Key features:
• XGA (1024 x 768) resolution
• 3000 ANSI lumens of brightness
• 2100:1 contrast ratio
• 3 Watt speaker
• Built-in handle
• Vertical Keystone Correction
• Only 7.3lbs
• No filter to service
• Easy lamp replacement through top cover
• Three Year Warranty and One Year Peace of
Mind Service
8764 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
40 32 4.8 5.9
60 48 7.2 8.8
100 80 12.0 14.7
150 120 18.0 22.0
200 160 24.0 29.3
Throw Ratio (distance to width), 1.8 2.1
Specifications 8764
Image Element 0.7” DND DLP
Brightness 3000 ANSI lumens
2000 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 2100:1
Scanning Frequency fh 15, 31-90 kHz, fv 50-85 Hz
Lens Manual zoom, and Focus (26-29.8mm)
Lens Throw Ratio 1.8 - 2.1 :1 throw distance to image
width
Keystone Correction Digital vertical +/-15 deg.
Aspect Ratio 4:3 native, 16:9 selectable
Computer Compatibility VGA, SVGA, XGA, SXGA, and MAC
Video Compatibility
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 230W
Lamp Life 2000 hours (3000 hours Whisper)
Audio 3W x 1
Throw Distance 40” to 330”
Screen Size, diagonal 30” to 200”
Inputs, Video (1) S-video, Min DIN 4-pin,
Inputs, Computer (1) RGB Signal: D-sub, 15 pin
Outputs Monitor 15 pin, D-sub
Outputs Audio (1) Audio, Stereo mini jack
Outputs, Other 9 pin D-sub Connector, RS232
Screen Trigger 12V jack
Security Kensington slot & password select
Fan Level 36dB, (31dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 110-240V (auto ranging)
Size (WxHxD) 11.8” x 9.6” x 3.5”
Weight 7.3 lbs. (3.3 kg)
Carton Size 17” x 15” x 8”
Shipping Weight 12 lbs.
Accessories Included Remote control, batteries (AA),
Safety FCC-B, UL/CUL, TUV, CB, CE, CCC
Optional Accessories Lamp 456-8764
Specifications subject to change without notice.
NTSC, NTSC 4.43, PAL B/G/H/I/M/N 60
SECAM, HDTV 1080i, 720p, 480/p
(1) Composite video, RCA x 1
(1) Audio, Stereo RCA x 2 (L&R)
(1) DVI-D Digital
(1) Audio, Stereo mini jack
USB Type A
50/60 Hz, 290W (<10W Standby)
power cord, Computer Cable,
CDROM, User Manual
Ceiling mount , universal; RPA-U
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
#11735-B-07 ImagePro is a registered trademark of Dukane Corporation
Three (3) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
3YR
