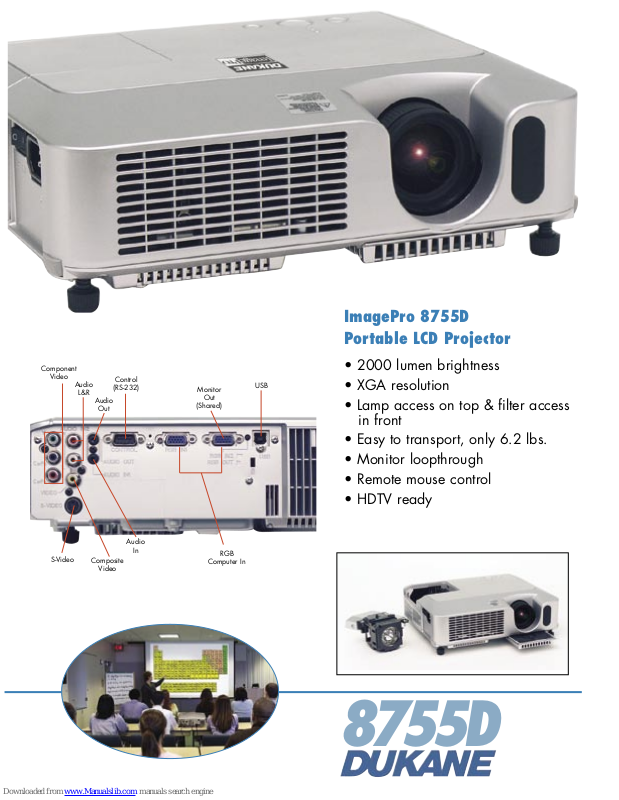

Page 1
ImagePro 8755D
Portable LCD Projector
Component
Video
S-Video
Audio
L&R
Control
(RS-232)
Audio
Out
Composite
Video
Audio
In
Monitor
Out
(Shared)
Computer In
RGB
USB
• 2000 lumen brightness
• XGA resolution
• Lamp access on top & filter access
in front
• Easy to transport, only 6.2 lbs.
• Monitor loopthrough
• Remote mouse control
• HDTV ready
8755D
Page 2
ImagePro 8755D
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 3.0 3.6
60 48 6.1 7.3
80 64 8.1 9.8
100 80 10.2 12.2
120 96 12.2 14.7
150 120 15.3 18.3
200 160 20.3 24.5
300 240 30.6 36.8
Image Size 4:3 Throw Distance
Portable LCD projector
The ImagePro 8755D is a portable LCD projector that
can be used in a variety of applications. With sufficient
brightness for most classrooms and conference rooms
the 8755D is designed to be reliable and easy to
maintain.
Lamp and filter access points
are conveniently located
and new security options
make this projector a wise
multimedia investment.
Key features:
• XGA (1024 x 768) resolution
• 2000 ANSI lumens of brightness
• Easy maintenance in ceiling mount with lamp access on
top & filter access in front
• Monitor loopthrough & remote mouse control
• Individual Audio - Source Assignment
• “Instant Off” Capability
• “Custom Image” for your startup and blank screens
• “Whisper Mode” so you hear only your message
• Vertical keystone correction
• HDTV ready & progressive scan
• Kensington lock slot & security bar
• Five Year Warranty and One Year Peace of Mind Service
8755D Projection Table
Throw Ratio (distance to width), 1.53 - 1.83
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
[email protected]
www.dukcorp.com/av
#11688-A-06 ImagePro is a registered trademark of Dukane Corporation
Specifications 8755D
Image Element 0.6” polysilicon active-matrix TFT x3
Brightness 2000 ANSI lumens
(1600 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400:1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual zoom (F1.7 – 1.9), 1.2X
Lens Throw Ratio 1.52:1 – 1.86:1 throw distance to
image width
Keystone Correction Digital, vertical +/-15 deg
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, SXGA, UXGA
Compatibility Compressed PC and MAC13” and
MAC16”
Video Compatibility NTSC, NTSC4.43, PAL, SECAM,
PAL-M, PAL-N,
Component Video, HDTV (1080i, 720p, 576i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 180W UHB
Lamp Life 2000 hours (typical) 3000 hours in
(whisper mode)
Audio 1 speaker 1 watt
Throw Distance 36” to 441”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (1) Stereo mini jack (for RGB)
(1) RCA x 2 (for video)
Outputs, Audio (1) Stereo mini jack
Outputs, Monitor RGB, 15 pin D-sub (share with
RGB2 input)
Outputs, Control RS-232, 9 pin D-sub
USB Mouse control
Security Kensington lock slot & Security Bar
Fan Level 38dB, ultra quiet
33dB in Whisper Mode
Operating Temperature 32-95 deg F
Power AC 100-120V, AC 220-240V
50/60 Hz, 290 watt
Size (WxHxD) 12.0” x 3.4” x 9.8”
Weight 6.2 lbs.
Shipping Weight 16 lbs.
Carton Size 16” x 14” x 12”
Accessories Included Remote control, batteries, power cord,
RGB cable, operators manual and
soft carry case.
Safety UL/C-UL, FCC Class B, CE
Optional Accessories Lamp 456-8755D
Ceiling Mount, Universal; RPA-U
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
5YR
