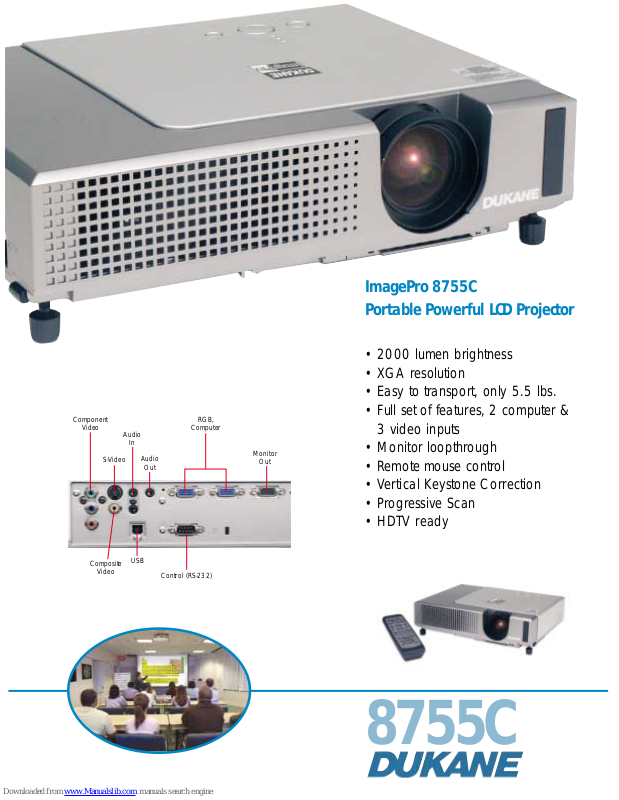

Page 1
8755C
ImagePro 8755C
Portable Powerful LCD Projector
• 2000 lumen brightness
• XGA resolution
• Easy to transport, only 5.5 lbs.
• Full set of features, 2 computer &
3 video inputs
• Monitor loopthrough
• Remote mouse control
• Vertical Keystone Correction
• Progressive Scan
• HDTV ready
S-Video
Audio
In
RGB,
Computer
Component
Video
USB
Monitor
Out
Control (RS-232)
Audio
Out
Composite
Video
Page 2
ImagePro 8755C
Premium-quality LCD projector
Specifications
Image Element 0.7” polysilicon active-matrix
TFT x3
Brightness 2000 ANSI lumens
(1600 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V)
Contrast 400:1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual zoom (F1.7 – 1.9), 1.2X
Lens Throw Ratio 1.5:1 – 1.8:1 throw distance
to image width
Keystone Correction Digital, vertical +/-15 deg
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, SXGA,
Compatibility UXGA Compressed PC and Mac
13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, Component,
SECAM, HDTV (1080i,
Component Video, 720p, 575i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 165W UHB
Lamp Life 2000 hours (typical)
Audio 1 speaker 1 watt
Throw Distance 35” to 433”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (2) Stereo mini jack
Outputs, Audio (1) Stereo mini jack
Outputs, Monitor RGB, 15 pin D-sub
Outputs,Control RS-232, 9 pin D-sub
USB Mouse control
Security Kensington lock slot
Fan Level 37dB, ultra quiet
31dB in Whisper Mode
Operating Temperature 32-95 deg F
Power AC 100-120V, AC220-240V
50/60 Hz, 240 watt
Size (WxHxD) 11.7” x 2.5” x 9.2”
Weight 5.5 lbs.
Shipping Weight 15 lbs.
Carton Size 16” x 14” x 12”
Accessories Included Remote control, batteries, power
RGB cable, operators manual and
soft carry case.
Safety UL/C-UL, FCC Class B
Optional Accessories Lamp 456-8063, rolling
briefcase 185-406
A new way of thinking about projection
Key features:
The Dukane ImagePro 8755C is an ultra-projector that
makes presentation setup fast and easy. It is simple to
use, transport, and can be setup in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use
it as a portable or
mount it on the ceiling.
• XGA (1024 x 768) resolution
• 2000 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 5.5 lbs.
• Flexibility with 2 computer and 3 video inputs
• Full function remote with mouse/cursor control
•“Custom Image” for your startup and blank screens
• Progressive scan
• HDTV compatible
• "Silent Running" so you hear only your message
• Vertical keystone correction
• Five Year Warranty and 1 Year Peace of Mind Ser vice
Five (5) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program.
5YR
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#11676-F-05
Diagonal Width Min Max
Inches Inches Inches Inches
30 24 35 42
60 48 72 85
80 64 96 114
100 80 120 143
120 96 144 172
150 120 181 216
200 160 242 288
300 240 363 433
Throw ratio 1.5-1.8:1 (distance:width)
Image Size 4:3
Throw Distance
8755C Projection Table
