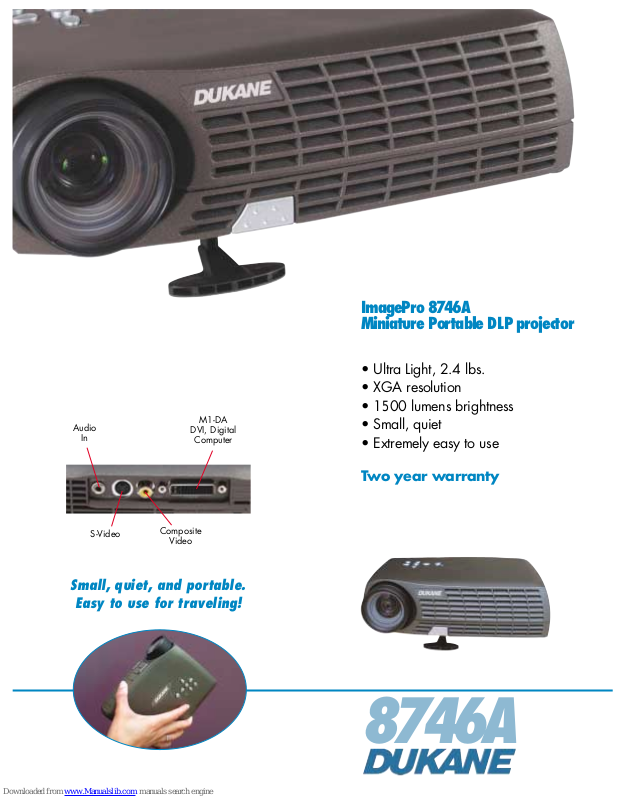

Page 1
Audio
In
M1-DA
DVI, Digital
Computer
ImagePro 8746A
Miniature Portable DLP projector
• Ultra Light, 2.4 lbs.
• XGA resolution
• 1500 lumens brightness
• Small, quiet
• Extremely easy to use
Two year warranty
S-Video
Small, quiet, and portable.
Easy to use for traveling!
Composite
Video
8746A
Page 2
ImagePro 8746A
Throw
MIN
MAX
Diagonal
Width
Height
Throw
Image Size in inches (feet)
Ultra portable DLP projector
A way to present your images anywhere
The Dukane ImagePro 8746A provides exceptional performance with tremendous portability. It’s the ideal way to
present rich, saturated color images from your PC or
video source.
The projector is one - half the size of most laptop computers while providing a full set of features. Use it as your
traveling companion or just as a fast way to collaborate
with your associates.
features:
Key
•Ultra light weight
•1500 lumens brightness
•Crisp XGA resolution,
with auto sizing image
•DVI connection for analog and digital images
•Full-function remote control with USB mouse operation
•Computer plus composite, and S-video inputs
•Only 2.4 lbs. in a miniature package
•1.3X zoom lens for flexible projector placement
•Audio sound from built-in speaker
Projection throw distances for 4:3 Aspect, in inches (feet)
60 (5.0) 48 (4.0) 32 (3.0) 89 (7.4) 113 (9.5)
72 (6.0) 57 (4.7) 43 (3.6) 107 (8.9) 136 (11.4)
84 (7.0) 67 (5.6) 50 (4.2) 124 (10.4) 159 (13.3)
100 (8.3) 80 (6.7) 60 (5.0) 148 (12.4) 189 (15.8)
120 (10.0) 96 (8.0) 72 (6.0) 178 (14.9) 227 (19.0)
Minimum distance to screen is 59 inches (4.9 feet)
Image offset 110%
Specifications
Image Element Type 0.7” DMD, DDR,
Digital Micromirror Device
DLP by Texas Instruments, XGA
Brightness 1500 ANSI lumens
Resolution 1024 x 768 pixels (H x V)
Contrast 1100:1
Scanning Frequency fh 15-100 kHz, fv 43.5-130 Hz
Lens Manual zoom 1.3X
Lens Throw Ratio 1:8 to 2.4:1 width to throw
distance
Keystone Correction Digital, +/- 15 degrees
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, SXGA
Compatibility PC and Mac
Video Compatibility NTSC, PAL, SECAM, SDTV
(480i), EDTV (480p)
Image Control Freeze function, electronic
magnification, pan and Picture-
in-Picture
Mouse Control Using M1 to USB
Projection Modes Front/rear
Color Reproduction 24 bit (16.7 million)
Lamp 120W UHP
Lamp Life 4000 hours (typical)
Audio 1 speaker, 1 watt
Throw Distance 5 to 35 ft.
Screen Size 2.7 to 22.2 ft.
Inputs, Video (1) Min DIN 4-pin, s-video
(1) RCA, composite video
Inputs, Computer (1) DVI, M1D/A, VESA with
USB mouse
(1) Audio, stereo mini jack
Security Kensington lock slot
Fan Level 32dB, ultra quiet
Operating Temperature 5 to 40 degrees C
Power AC 100-240V, 50/60 Hz,
155 watt
Size (WxHxD) 7.8” x 2.5” x 6.1”
Weight 2.4 lbs.
Shipping Weight 10 lbs.
Carton Size 11.8” x 12.2” x 13.2”
Accessories Included Remote control,
batteries, power cord,
RCA video cable,
DVI cable with USB,
audio cable (stereo mini), and
operator’s manual.
Safety UL/CSA, FCC Class B
Optional Accessories Lamp 456-241; rolling
briefcase; 185-406
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
Two (2) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
#11645-E-05
.
