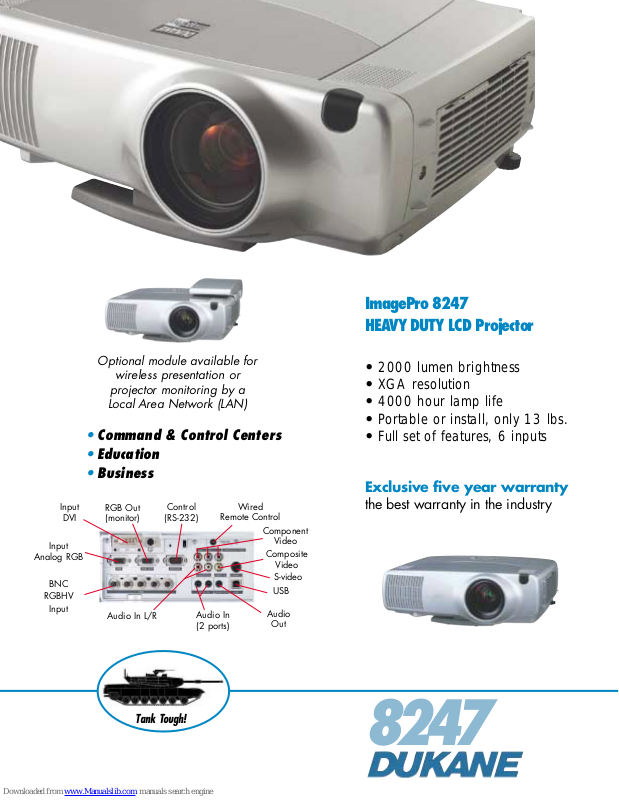

Page 1
ImagePro 8247
HEAVY DUTY LCD Projector
Input
DVI
Input
Analog RGB
BNC
RGBHV
Input
Optional module available for
wireless presentation or
projector monitoring by a
Local Area Network (LAN)
• Command & Control Centers
• Education
• Business
RGB Out
(monitor)
Audio In L/R
Control
(RS-232)
Audio In
(2 ports)
Wired
Remote Control
Component
Video
Composite
Video
S-video
USB
Audio
Out
• 2000 lumen brightness
• XGA resolution
• 4000 hour lamp life
• Portable or install, only 13 lbs.
• Full set of features, 6 inputs
Exclusive five year warranty
the best warranty in the industry
Tank Tough!
8247
Page 2
ImagePro 8247
HEAVY DUTY LCD projector
Wireless or LAN operation
The projector for heavy duty operation!
The Dukane ImagePro 8247 is a projector designed for
long continuous operation. It is the first projector designed
to provide 4000 hours of lamp life at a heavy-duty output
level of 2000 lumens. In addition it provides a bright, ultra
crisp image while permitting either easy transport or permanent installation, plus it’s really simple to use.
This projector is ideal for control centers, simulators, business environments, or any application where a rich full
color image must be continuously displayed for extended
periods. With special extra large 1.3
inch LCD panels and a reduced light
concentration, it is designed to run long
and cool. Furthermore, when an optional module is attached, it can be operated in a wireless mode interfacing with up to 4 PC’s or can
be connected to a LAN for remote control and monitoring.
• Heavy duty operation
• True XGA (1024 x 768) resolution
• 2000 ANSI Lumens of brightness
• Vibrant rich colored images
• Wireless/LAN connectivity option
• Flexibility, 2 computer, 3 video and BNC x 5 inputs
• Full function IR remote with mouse/cursor control and
wired control option
• Compatible with all types of video including HDTV
• “ Custom Image” for your startup and blank screens
• Powered focus and zoom lens permits closer place-
ment to the screen and wider placement range
• Vertical and horizontal keystone correction
• Five Year Warranty and Peace of Mind Service
Input
DVI
Input
Analog RGB
BNC
RGBHV
Input
RGB Out
(monitor)
Audio In L/R
Control
(RS-232)
Audio In
(2 ports)
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
avsales@dukcorp.com e-mail
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#11589-J-05
Wired
Remote Control
Component
Composite
Audio
Out
Video
Video
S-video
USB
Specifications
LCD Type 1.3” poly-Si, TFT x 3
Brightness 2000 ANSI lumens
Resolution 1024 x 768 pixels (H X V)
Contrast 400:1
Scanning Frequency fh 15 -91 kHz, fv 50-120 Hz
Lens Power focus & zoom ( f1.7 - 2.4),1 .3x
Lens Throw Ratio 1.72 – 2.44:1 throw distance
Keystone Correction Digital, vertical & horizontal
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, SXGA, UXGA
Compatibility PC and Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-PAL,
N-PAL, PAL60, SECAM, HDTV
(1080i, 720p, 575i, 525p, 625i)
Image Control Freeze function, electronic
magnification, pan and
picture-in-picture (PIP)
Mouse Control Using USB & D-sub
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHP
Lamp Life 4000 hours (typical)
Audio 2 speakers x 1 watt
Throw Distance 34” to 547”
Image Size 30” to 300” diagonal
Inputs, Video (1) Component, RCA x 3
(1) Shared RGB, BNC x 5
(1) Min DIN 4-pin, S-video
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2
Inputs, Computer (1) Signal D-sub, 15 pin
(1) Shared RGB, BNC x 5
(1) DVI-D
(2) Audio, stereo mini
Outputs, Monitor 15 pin, D-sub x 1
Outputs, Control 15 pin, D-sub, RS-232/Mouse
USB Mouse control x 1
Output, Audio Stereo mini x 1
Security Kensington lock slot
Fan Level 39dB, quiet
Power AC 100-120V, AC220-240V
50/60 Hz, 270 watt
Size (WxHxD) 15” x 4.8” x 11.5”
Weight 13.9 lbs.
Shipping Weight 24 lbs.
Carton Size 18.2” x 13.5” x 18.5”
Accessories Included Remote control, batteries, power
cord, video cable, audio cable,
RGB cable, USB cable, operators
manual, and soft carry case.
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-240; Wireless/LAN
Module WNM80
Five (5) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
(Normal operating conditions apply)
.
