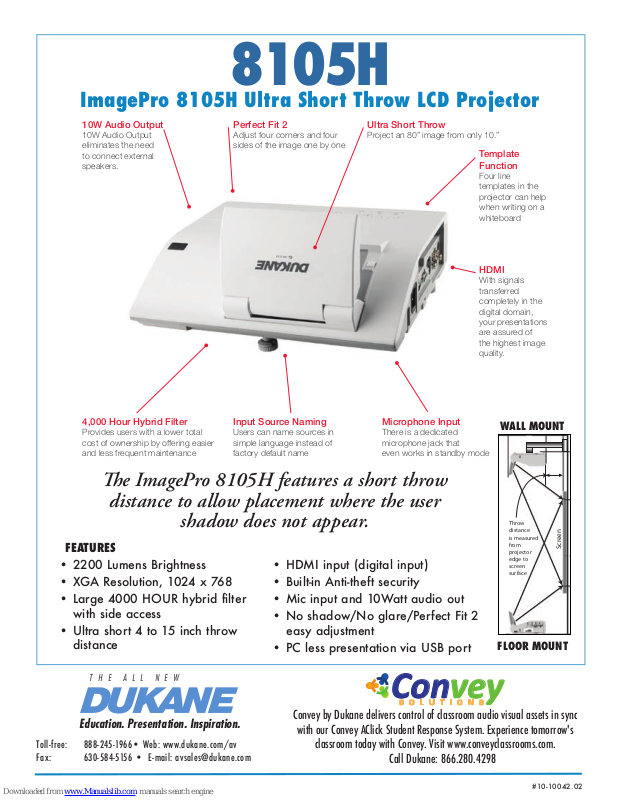

8105H
Education. Presentation. Inspiration.
T H E A L L N E W
S O L U T I O N S
Convey
Screen
Throw
distance
is measured
from
projector
edge to
screen
surface
10W Audio Output
10W Audio Output
eliminates the need
to connect external
speakers.
Perfect Fit 2
Adjust four corners and four
sides of the image one by one
Ultra Short Throw
Project an 80” image from only 10.”
Template
Function
Four line
templates in the
projector can help
when writing on a
whiteboard
HDMI
With signals
transferred
completely in the
digital domain,
your presentations
are assured of
the highest image
quality.
Input Source Naming
Users can name sources in
simple language instead of
factory default name
Microphone Input
There is a dedicated
microphone jack that
even works in standby mode
4,000 Hour Hybrid Filter
Provides users with a lower total
cost of ownership by offering easier
and less frequent maintenance
ImagePro 8105H Ultra Short Throw LCD Projector
e ImagePro 8105H features a short throw
distance to allow placement where the user
shadow does not appear.
FEATURES
• 2200 Lumens Brightness
• XGA Resolution, 1024 x 768
• Large 4000 HOUR hybrid filter
with side access
• Ultra short 4 to 15 inch throw
distance
WALL MOUNT
• HDMI input (digital input)
• Built-in Anti-theft security
• Mic input and 10Watt audio out
• No shadow/No glare/Perfect Fit 2
easy adjustment
• PC less presentation via USB port
FLOOR MOUNT
Convey by Dukane delivers control of classroom audio visual assets in sync
with our Convey AClick Student Response System. Experience tomorrow's
classroom today with Convey. Visit www.conveyclassrooms.com.
Call Dukane: 866.280.4298
#10-10042.02
Page 2
USB
PC Less Presentation
and Display Over USB
USB
Mouse
RJ45
HDMI
RGB
RGB and
Component
RS232
Monitor
Mic.
Audio Out
S-Video
Video
Audio In 2
Audio In 1
Audio in
3
IMAGEPRO 8105H
ULTRA SHORT THROW LCD PROJECTOR
FEATURES
• Ultra Short (4 to 15 inch)
throw distance
• XGA (1024 x 768)
• 2200 ANSI lumens
• Contrast of 2,000 to 1
• Large hybrid filter, 4000 hours
• Monitor Loopthrough
• Built-In Anti-theft security
• 10W audio out
• Wall, Ceiling or floor mount
• New easy wall arm mounting
• No shadow /No glare
• Perfect Fit 2 for easy setup
• Mic input and audio pass-through in standby mode
8105H aspect ratio 4:3
Screen
Diagonal
Inches Inches Inches Inches
60 48 3.8 11.1
70 56 6.3 12.5
80 64 8.9 13.9
90 72 11.4 15.2
100 80 13.9 16.9
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 888-245-1966
Fax: 630-584-5156
E-mail: [email protected]
Web: www.dukane.com/av
ImagePro is a registered trademark of Dukane Corporation
Specifications subject to change without notice.
#10-00042.02
Screen
Width
Throw
Distance
Back Panel
Connections
Vertical
Offset
Specifications 8105H
Image Element 0.63” polysilicon active-matrix
TFT x3
Brightness 2200 ANSI lumens
(1700 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 2000:1 active iris
Scanning Frequency fh 15 -106 kHz, fv 50-120 Hz
Lens Fixed
Lens Throw Ratio See table this page, under 0.3:1
Setup Controls Perfect Fit 2 adjustment
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, WXGA, UXGA
Compatibility MAC13” and MAC16”
Video Compatibility NTSC, NTSC4.43, PAL, SECAM,
PAL-M, PAL-N, HDTV (1080i/p, 720p,
576i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Closed Caption CC1, CC2, CC3, CC4
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 210W UHP
Lamp Life 3000 hours (typical) 5000 hours
(whisper mode)
Audio 1 speaker 10 watt
Throw Distance 4” to 15”
Screen Size, diagonal 60” to 100”
Inputs, Video (1) HDMI (HDCP compliant)
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
(1) Component, share with RGB
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (2) Stereo mini jack: for PC1/ PC2.
(1) RCA x 2 (for video)
(1) Microphone jack, mini 3.5mm
Outputs, Audio (1) Stereo mini jack, adjustable
Outputs, Monitor RGB, 15 pin D-sub
Control (1) RS-232, 9 pin D-sub
Ethernet (1) RJ-45 port
Remote mouse (1) USB Type B, control
P C l e s s o p e r a t i o n ( 1 ) U S B T y p e A , I m a g e i n p u t
Security Kensington lock slot & Security Bar
Fan Level
Operating Temperature 41-95 deg F
Power AC 100-120V, AC 220-240V
50/60 Hz, 310 watt (0.3 standby)
Size (WxHxD) 13.6" x 3.4" x 11.9"
Weight 8.6 lbs.
Carton (WxHxD) 19" X 9" X 17"
Shipping Weight 19 lbs.
Accessories Included Remote control, batteries, power
cord, RGB cable, and network
manuals
Safety UL/C-UL, FCC Class B
Optional Accessories Lamp 456-8104
Wall Mount; 8104HW-WALLARM,
Wall arm for images 70" to 100" diag.
Filter; UX37191
Five (5) year limited warranty on parts and labor in North America, lamp
90 day. (for other locations, local warranties apply). Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
33dB, ultra quiet; 28dB Whisper Mode
