USB
Mouse
PC
Control
RS232
Monitor
Out
Computer 1
RGB In
S-Video
Audio
Out
Audio
In

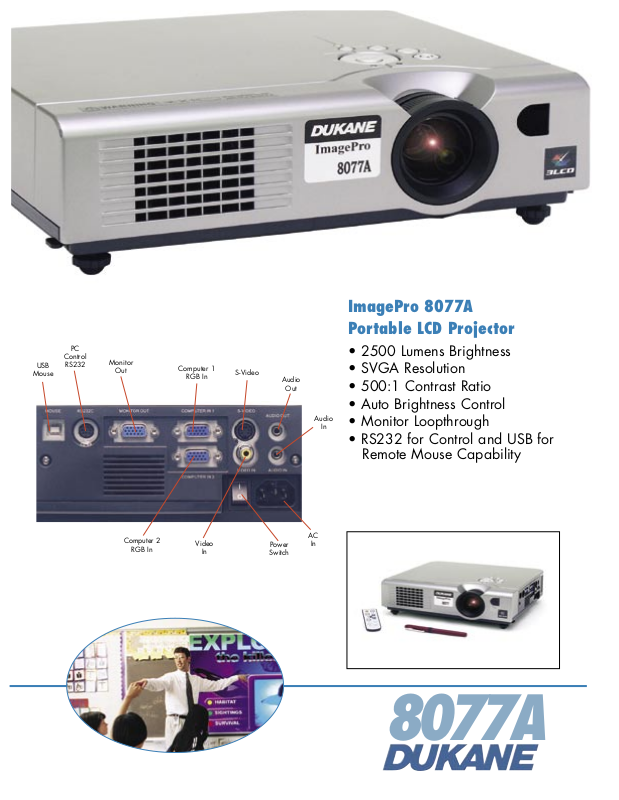

ImagePro 8077A
Portable LCD Projector
• 2500 Lumens Brightness
• SVGA Resolution
• 500:1 Contrast Ratio
• Auto Brightness Control
• Monitor Loopthrough
• RS232 for Control and USB for
Remote Mouse Capability
Computer 2
RGB In
Video
In
Power
Switch
AC
In
8077A
ImagePro 8077A
Super Bright LCD projector
The Dukane ImagePro 8077A is an outstanding value
projector for your classroom or conference room.
Control make this projector fast and easy to set
up. Other special features are 3D noise reduction and a new long life
dust prevention filter.
Key features:
• SVGA (800 x 600) Resolution
• 2500 ANSI Lumens of Brightness
• 500:1 Contrast Ratio
• Easy Carry, 6 lbs.
• Flexibility with 2 Computer and 2 Video inputs
• Auto Brightness Control
• Monitor Loopthrough
• RS232 for Control and USB for Remote Mouse Capability
• Two Year Warranty and One Year Peace of Mind Service
8077A Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 3.0 3.5
40 32 4.0 4.7
50 40 5.0 5.8
60 48 6.0 7.0
80 64 8.0 9.3
100 80 10.0 11.7
200 160 20.0 23.3
300 240 30.0 35.0
Throw Ratio (distance to width) 1.5 1.75
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
avsales@dukcorp.com e-mail
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#070033
Specifications 8077A
Image Element 0.63” polysilicon TFT x3, MLA
Brightness 2500 ANSI lumens
2000 (whisper mode)
Resolution 800 x 600 (H x V), SVGA
Contrast 500:1
Scanning Frequency fh 15-69 kHz, fv 43-85 Hz
Lens Manual zoom and focus (F=1.8 to 2.1),
1.2X, FL = 26.5 to 31.5 mm
Lens Throw Ratio 1.5 -1.75 :1 throw distance
to image width
Keystone Correction Digital, vertical +/-30 deg
Aspect Ratio 4:3, 16:9 selectable
Computer VGA, SVGA, XGA SXGA comperessed,
Compatibility MAC
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, SECAM,
HDTV 1080i, 720p, 480i/p
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 205W
Lamp Life 2000 hours (3000 in whisper mode)
Audio 2W x 1
Throw Distance 60” to 445”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Composite video, RCA x 1 (line
level)
(1) S-video, Min DIN 4-pin,
Inputs, Computer (2) RGB Signal: D-sub, 15 pin
Audio, Stereo mini-jack x 1
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control 9 pin D-sub Connector, RS232C during
operation
USB connector x 1
Security Kensington lock slot
Fan Level 37dB, (33dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC220-240V, 50/60
Hz, 250W (normal), 232W
(whisper), >5W (standby)
Size (WxHxD) 12” x 4” x 10.5”
Weight 6 lbs.
Carton Size 18” x 9” x 14”
Shipping Weight 16 lbs.
Accessories Included Remote control, battery, power cord,
VGA cable, User Manual, CD ROM,
and Soft Carry Case
Safety UL, cUL, FCC, CE, CB, CCC
Optional Accessories Lamp 456-8077A
Wireless Extender, LV3500W
Ceiling mount, universal; RPA-U,
Remote Control w/mouse function.
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
