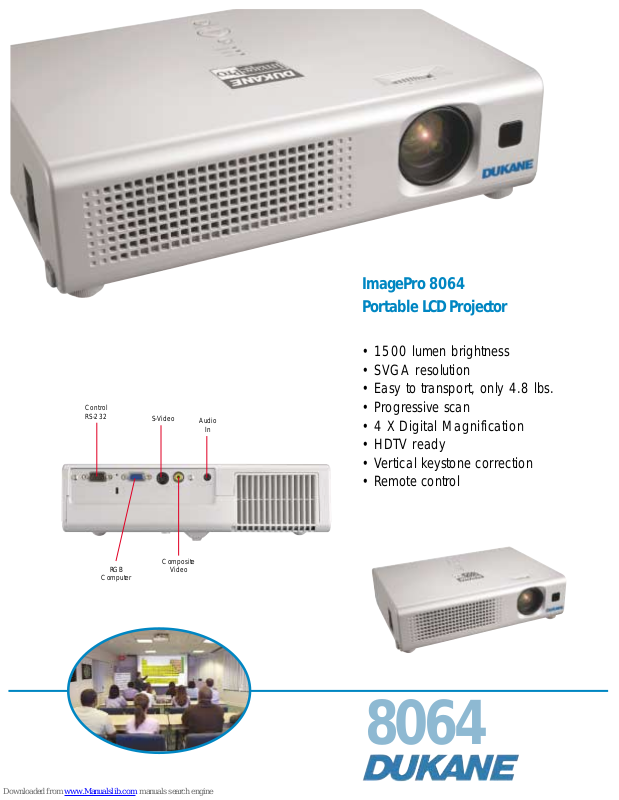

Page 1
8064
S-Video
RGB
Computer
Control
RS-232
Composite
Video
ImagePro 8064
Portable LCD Projector
• 1500 lumen brightness
• SVGA resolution
• Easy to transport, only 4.8 lbs.
• Progressive scan
• 4 X Digital Magnification
• HDTV ready
• Vertical keystone correction
• Remote control
Audio
In
Page 2
ImagePro 8064
Premium-quality LCD projector
Specifications 8064
Image Element 0.55” polysilicon active-matrix
TFT x3
Brightness 1500 ANSI lumens
(1100 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V)
Contrast 300:1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual focus (F1.65)
Lens Throw Ratio 1.8:1 throw distance
to image width
Keystone Correction Digital, ver tical +/-15 deg
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA, SXGA,
Compatibility Compressed PC and Mac
13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM
HDTV (1080i, 720p, 575i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 165W UHB
Lamp Life 2000 hours (typical)
Audio 1 speaker 1 watt
Throw Distance 60” to 300”
Screen Size, diagonal 40” to 200”
Inputs, Video (1) Composite video, RCA x 1
(1) S-video, Mini DIN 4-pin
Inputs, Computer (1) RGB, 15 pin D-sub
Inputs, Audio (1) Stereo mini jack
Outputs,Control RS-232, 9 pin D-sub
Security Kensington lock slot
Fan Level 38dB, ultra quiet
32dB in Whisper Mode
Operating Temperature 32-95 deg F
Power AC 100-120V, AC220-240V
50/60 Hz, 240 watt
Size (WxHxD) 11.2” x 2.9” x 7.9”
Weight 4.8 lbs.
Shipping Weight 15 lbs.
Carton Size 16” x 14” x 12”
Accessories Included Remote control, batteries, power
RGB cable, operators manual and
lens cap, strap, filter cover
Safety UL/C-UL, FCC Class B, CE, TUV
Optional Accessories Lamp 456-8064
Key features:
The Dukane ImagePro 8064 is an ultra-portable
projector that makes presentation setup fast and easy.
Powerful yet versatile LCD projector designed to open
new possibilities in multimedia projection.
This affordable LCD projector is ideal for classrooms
and conference rooms. The 8064 is sure to impress
with realistic colors and
1500 ANSI lumens
brightness.
• SVGA (800 x 600) resolution
• 1,500 ANSI lumens of brightness
• Vibrant rich colored images
• Easy carry 4.8 lbs.
• Fixed Zoom & Manual Focus
• Remote Control
• Custom image for your startup and blank screens
• Progressive scan
• 4x Digital Magnification
• HDTV Compatible
• "Silent Running" so you hear only your message
• Vertical keystone correction
• Three Year Warranty and One Year Peace of
Mind Service
Thr
ee (3) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 1 year
Peace-of-Mind Loaner Program.
3YR
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#11680-K-05
Throw Distance
Diagonal* Width*
40 32 57
60 48 87
80 64 116
100 80 145
120 96 174
150 120 218
200 160 291
Image Size 4:3
8064 Projection Table
Throw Ratio 1.8:1 (distance to width)
* Measured in Inches
