Composite Video
L-Audio-R (Video)
Input 3
Input 4
S-Video
Analog RGB 2
Input 1
Analog RGB 1
Input 2

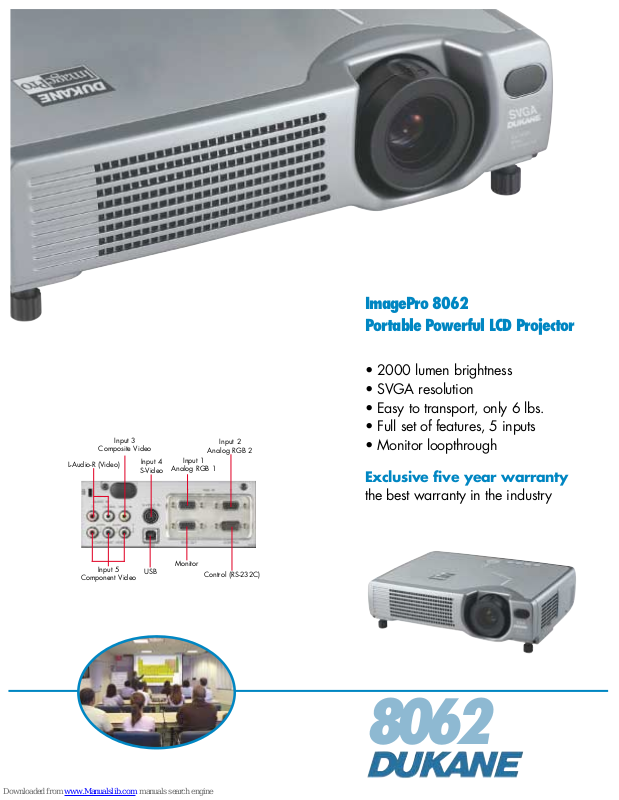

ImagePro 8062
Portable Powerful LCD Projector
• 2000 lumen brightness
• SVGA resolution
• Easy to transport, only 6 lbs.
• Full set of features, 5 inputs
• Monitor loopthrough
Exclusive five year warranty
the best warranty in the industry
Input 5
Component Video
USB
Monitor
Control (RS-232C)
8062
Page 2
ImagePro 8062
Diagonal Width Min Max
40 32 47 55
60 48 71 87
80 64 95 114
100 80 118 142
120 96 142 173
150 120 181 217
200 160 240 287
*Screen Size 4.3
*Throw Distance
Premium-quality LCD projector
A new way of thinking about projection
The Dukane ImagePro 8062 is a projector that can be
easily moved around while still providing higher image
brightness and features that make presentations easy. It
is simple to use, transport, and can be setup in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use
it as a portable or
mount it on the ceiling.
Key features:
• SVGA (800 x 600) resolution
• 2000 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 6 lbs.
• Flexibility with 2 computer and 3 video inputs
• Full function remote with mouse/cursor control
•“Custom Image” for your startup and blank screens
• Wide angle zoom lens permits closer placement to
the screen
• "Silent Running" so you hear only your message
• Vertical and horizontal keystone correction
• Five Year Warranty and Peace of Mind Service
8062 Projection Table
Throw ratio 1.47-1.79:1 (distance:width)
*All measurements in inches.
Specifications
LCD Type 0.7” polysilicon active-matrix
TFT x3
Brightness 2000 ANSI lumens
(1600 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V)
Contrast 400:1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual zoom (f1.7 – 1.9), 1.2X
Lens Throw Ratio 1:1.5 – 1.8:1 throw distance
to image width
Keystone Correction Digital, vertical & horizontal
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA,
Compatibility SXGA/Compressed PC and Mac
13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-PAL,
N-PAL, PAL60, SECAM
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHP
Lamp Life 2000 hours (typical)
4000 hours (whisper mode)
Audio 1 speaker 1x 1 watt
Throw Distance 47” to 280”
Screen Size 40” to 200”
Inputs, Video (1) Min DIN 4-pin, s-video
(1) Component, RCA x 3
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2
Inputs, Computer (2) Signal: D-sub, 15 pin
Outputs Monitor 15 pin, D-sub
Outputs,Control 15 pin, D-sub, RS-232, PS/2,
ADB, USB Mouse control
Security Kensington lock slot
Fan Level 38dB, ultra quiet
33dB in Whisper Mode
Power AC 100-120V, AC220-240V
50/60 Hz, 240 watt
Size (WxHxD) 11.6” x 3” x 9.1”
Weight 6 lbs.
Shipping Weight 15 lbs.
Carton Size 16” x 14” x 12”
Accessories Included Remote control, batteries, power
cord, Video/Audio cable, USB
mouse cable, RGB cable, and
operator’s manual, soft carry case.
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-233; rolling
briefcase; 185-406
Ceiling mount, universal: PJF-UNV-S
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11635-D-04.1
ImagePro is a registered trademark of Dukane Corporation
Five (5) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 24 month
Peace-of-Mind Loaner Program
.
