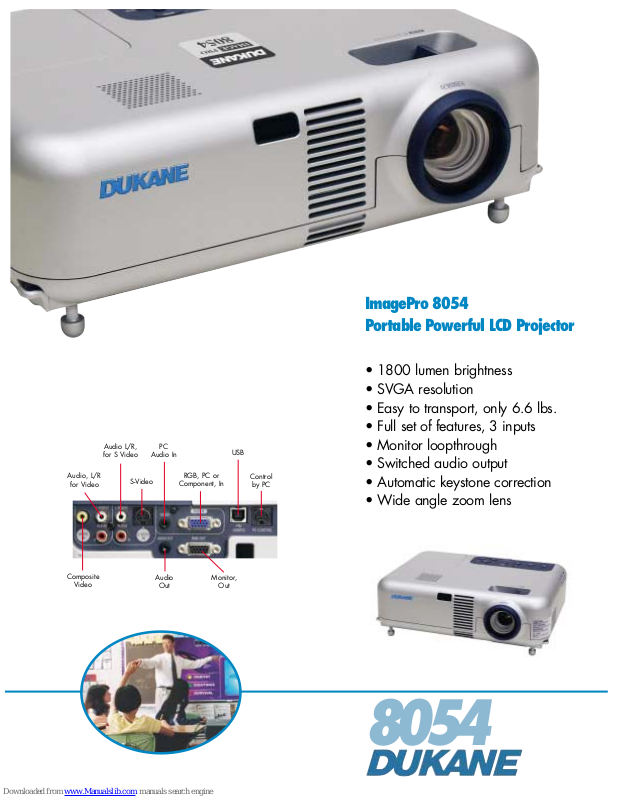

Page 1
ImagePro 8054
Portable Powerful LCD Projector
• 1800 lumen brightness
• SVGA resolution
• Easy to transport, only 6.6 lbs.
• Full set of features, 3 inputs
Audio, L/R
for Video
Composite
Video
Audio L/R,
for S Video
S-Video
PC
Audio In
Audio
Out
RGB, PC or
Component, In
Monitor,
Out
USB
Control
by PC
• Monitor loopthrough
• Switched audio output
• Automatic keystone correction
• Wide angle zoom lens
8054
Page 2
ImagePro 8054
Diagonal Width Min. Max. a*
Inches Inches Feet Feet Inches
40 32 3.9 4.7 2.3
60 48 5.9 7.1 3.5
100 80 10.0 12.0 5.8
120 96 12.0 14.4 7.0
150 120 15.1 18.1 8.7
210 168 21.1 25.3 12.2
300 240 30.2 36.3 17.4
a* = Distance Below Lens Center line.
Image Size 4:3
Throw Distance
Premium-quality LCD projector
A new way of thinking about projection.
The Dukane ImagePro 8054 is a projector that can be
easily moved around while still providing higher image
brightness and features that make presentations easy. It
is simple to use, transport, and can be setup in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use it as a
portable or mount it on the
ceiling.
Key features:
• SVGA (800 x 600) resolution
• 1800 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 6.6 lbs.
• Flexibility with 1 computer and 2 video inputs
• Full function remote with mouse/cursor control
• Audio output switches with selection of either video or
computer source
• Wide angle zoom lens permits closer placement to
the screen
• HDTV Compatible
• "Silent Running" so you hear only your message
• Automatic vertical keystone correction
• Two year warranty and One year
Peace -of- Mind service
8054 Image Size Distance Table
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 or 2486 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
ImagePro is a registered trademark of Dukane Corporation
#11630-D-04
Specifications
Image Element 0.7” polysilicon TFT x3, MLA
Brightness 1800 ANSI lumens
(1500 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V), SVGA
Contrast 400 to 1
Scanning Frequency fh 15-100 kHz, fv 50-120 Hz
Lens Manual zoom f21.6 to 25.9mm, 1.2X
Lens Throw Ratio 1.5 -1.8 to 1 throw distance
to image width
Keystone Correction Digital, vertical +/-30 deg, Automatic
Aspect Ratio 4:3, 16:9 compatible
Computer VGA, SVGA, XGA, SXGA,
Compatibility UXGA Compressed, Mac 13” & 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i,1080i/50 Hz, 720p,
575i, 480p
Component Video, Horizontal res, 800TV line
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 205 W, NSH,
(164W Whisper Mode)
Lamp Life 2000 hours (typical),
3000 (Whisper Mode)
Audio 1 speaker , 1 watt
Throw Distance 29” to 435”
Screen Size, diagonal 21” to 300”
Inputs, Video (1) Component, D-sub 15 pin, shared
(1) Min DIN 4-pin, S-video,
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2, for
C-video
(1) Audio, Stereo, RCA x 2, for
S-video
Inputs, Computer (1) Signal: D-sub, 15 pin, shared
Audio, Stereo mini jack for PC
Outputs, Monitor 15 pin, D-sub, RS-232
Outputs, Control PC control DIN 8 pin, RS-232
Audio out, Stereo mini jack
USB Type B, mouse control
Security Kensington slot
Fan Level 37dB standard, 32dB in Whisper Mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC 220-240V
50/60 Hz, 270 watt, Std. consumption
Size (WxHxD) 12.2” x 3.5” x9.1”
Weight 6.6 lbs.
Shipping Weight 12.6 lbs.
Carton Size 14.7” x 11” x 17.3”
Accessories Included Remote control, RGB cables, RCA
video/audio cable, power cord ,
USB cable, operator's manual, soft
carry case
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-8766
Rolling briefcase; 185-406,
Ceiling mount, universal PJF-UNV-S
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year
Peace-of-Mind Loaner Program
.
