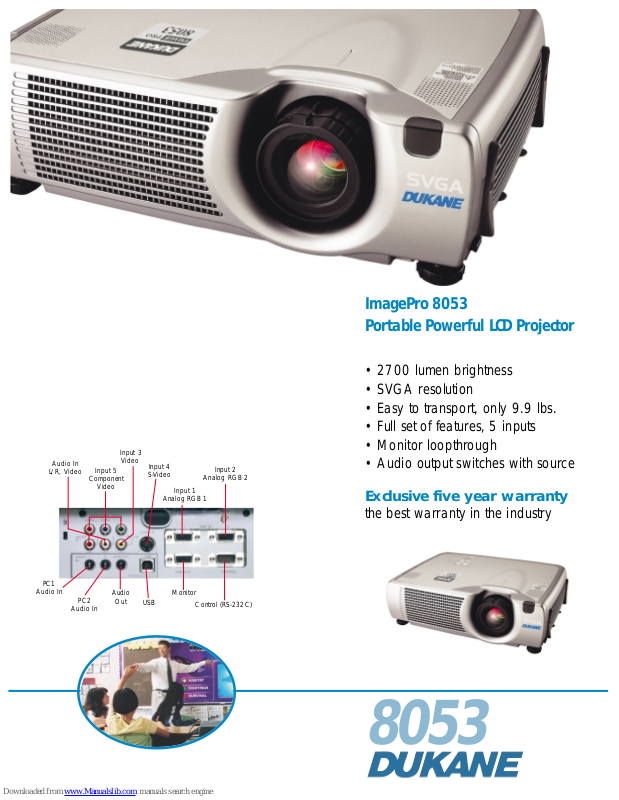

Page 1
ImagePro 8053
Portable Powerful LCD Projector
• 2700 lumen brightness
• SVGA resolution
• Easy to transport, only 9.9 lbs.
• Full set of features, 5 inputs
Audio In
L/R, Video
PC1
Audio In
Component
PC2
Audio In
Input 5
Video
Input 3
Video
Audio
Out
Input 4
S-Video
USB
Input 1
Analog RGB 1
Monitor
Control (RS-232C)
Input 2
Analog RGB 2
• Monitor loopthrough
• Audio output switches with source
Exclusive five year warranty
the best warranty in the industry
8053
Page 2
ImagePro 8053
Diagonal
Inches
Width
Inches
Min, Feet Max, Feet
40 32 5.2 6.8
60 48 7.8 10.2
80 64 10.6 13.7
100 80 13.3 17.1
120 96 16 20.5
150 120 20.1 25.7
200 160 26.9 34.2
Image Size 4:3
Throw Distance
Premium-quality LCD projector
A new way of thinking about projection
The Dukane ImagePro 8053 is a projector that can be
easily moved around while still providing higher image
brightness and features that make presentations easy. It
is simple to use, transport, and can be set up in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use
it as a portable or
mount it on the ceiling.
Key features:
• SVGA (800 x 600) resolution
• 2700 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 9.9 lbs.
• Flexibility with 2 computer and 3 video inputs
• Full function remote with mouse/cursor control and
laser pointer
• Audio output switches with selection of video or
computer source
•“Custom Image” for your startup and blank screens
• "Silent Running" so you hear only your message
• Vertical and horizontal keystone correction
• Five Year Warranty and Peace of Mind Service
• Picture in Picture and digital zoom
• Component video, HDTV ready
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11617-B-04
ImagePro is a registered trademark of Dukane Corporation
Specifications 8053
LCD Type 0.7” polysilicon active-matrix
TFT x3
Brightness 2700 ANSI lumens
(2160 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V)
Contrast 400:1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual zoom (f1.7 – 2.1), 1.3X
Lens Throw Ratio 1.98 – 2.56:1 throw distance
to image width
Keystone Correction Digital, vert. & horiz. (15/5deg)
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA
Compatibility SXGA/Compressed PC and Mac
13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-PAL,
N-PAL, PAL60, SECAM
Component Video 480i, 575i, 480p, 1080i, 720p
Image Control Freeze function, electronic
magnification, pan and Picture in
Mouse Control Using USB or PS/2
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 250W UHb
Lamp Life 2000 hours (typical)
Audio 2 speaker x 1 watt
Throw Distance 62” to 411”
Screen Size 40” to 200” diagonal
Inputs, Video (1) Component, RCA X 3
(1) Min DIN 4-pin, s-video
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2
Inputs, Computer (2) Signal: D-sub, 15 pin
(2) Audio, Stereo, mini jack
Output, Audio (1) Stereo, mini jack
Outputs Monitor 15 pin, D-sub
Outputs,Control 15 pin, D-sub, RS-232, PS/2, ADB,
USB connector, Mouse control
Security Kensington lock slot
Operating Temperature 0°- 35°c (32°- 95°F)
Fan Level 40dB, ultra quiet
36dB in Whisper Mode
Power AC 100-120V, AC220-240V
50/60 Hz, 410 watt
Size (WxHxD) 14.2” x 4.2” x 10.1”
Weight 9.9 lbs.
Shipping Weight 20 lbs.
Carton Size 14.5” x 12.5” x 18”
Accessories Included Remote control with laser pointer,
batteries, power cord, Video/Audio
cable, PS/2 mouse cable, RGB
cable, soft case, and operator’s
manual.
Safety UL/CUL, FCC Class B, CE, TLIV
Optional Accessories Lamp 456-226; rolling
briefcase; 185-406
.
ranty
5
YR
Five (5) year limited war
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
