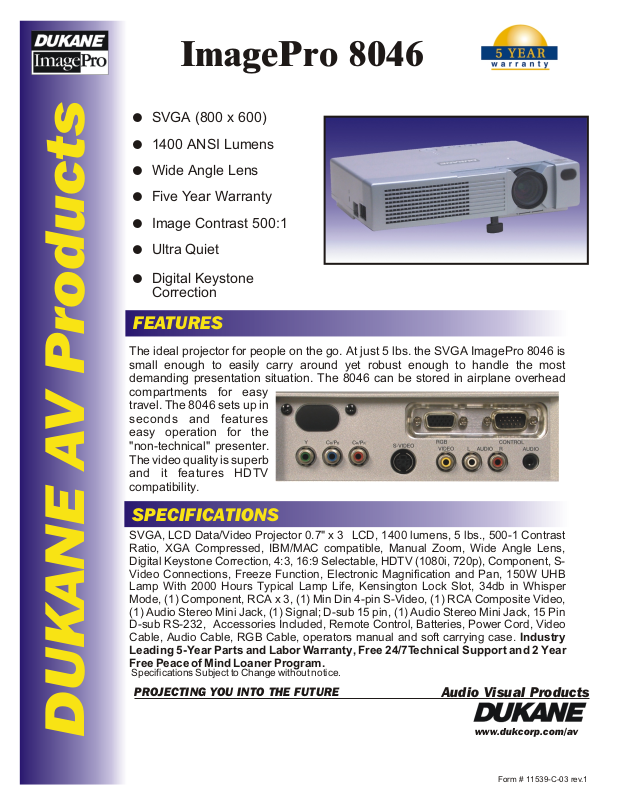

Dukane ImagePro 8046 User Manual
ImagePro 8046
! SVGA (800 x 600)
! 1400 ANSI Lumens
! Wide Angle Lens
! Five Year Warranty
! Image Contrast 500:1
! Ultra Quiet
! Digital Keystone
Correction
FEATURES
The ideal projector for people on the go. At just 5 lbs. the SVGA ImagePro 8046 is
small enough to easily carry around yet robust enough to handle the most
demanding presentation situation. The 8046 can be stored in airplane overhead
compartments for easy
travel. The 8046 sets up in
seconds and features
easy operation for the
"non-technical" presenter.
The video quality is superb
and it features HDTV
compatibility.
DUKANE AV Products
SPECIFICATIONS
SVGA, LCD Data/Video Projector 0.7" x 3 LCD, 1400 lumens, 5 lbs., 500-1 Contrast
Ratio, XGA Compressed, IBM/MAC compatible, Manual Zoom, Wide Angle Lens,
Digital Keystone Correction, 4:3, 16:9 Selectable, HDTV (1080i, 720p), Component, SVideo Connections, Freeze Function, Electronic Magnification and Pan, 150W UHB
Lamp With 2000 Hours Typical Lamp Life, Kensington Lock Slot, 34db in Whisper
Mode, (1) Component, RCA x 3, (1) Min Din 4-pin S-Video, (1) RCA Composite Video,
(1) Audio Stereo Mini Jack, (1) Signal; D-sub 15 pin, (1) Audio Stereo Mini Jack, 15 Pin
D-sub RS-232, Accessories Included, Remote Control, Batteries, Power Cord, Video
Cable, Audio Cable, RGB Cable, operators manual and soft carrying case. Industry
Leading 5-Year Parts and Labor Warranty, Free 24/7Technical Support and 2 Year
Free Peace of Mind Loaner Program.
Specifications Subject to Change without notice.
PROJECTING YOU INTO THE FUTURE
Audio Visual Products
www.dukcorp.com/av
Form # 11539-C-03 rev.1
ImagePro 8046ImagePro 8046
ImagePro 8046
ImagePro 8046ImagePro 8046
Data/Video ProjectorData/Video Projector
Data/Video Projector
Data/Video ProjectorData/Video Projector
Model 28A8046Model 28A8046
Model 28A8046
Model 28A8046Model 28A8046
Specifications (Specifications are subject to change without notice)
LCD Type 0.7” polysilicon active-
matrix TFT x 3
Brightness 1400 ANSI Lumens
(960 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V)
Contrast 200:1
Scanning Frequency fh 15-69 kHz, fv 50-85 Hz
Lens Manual Zoom (F2.0-2.3), 1.2X
Lens Throw Ratio 1:1 Image diagonal to throw
distance, Wide Angle.
Keystone Correction Digital Selectable
Aspect Ratio 4:3, 16:9, Selectable
Computer SVGA, VGA,
Compatibility XGA Compressed, Mac,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-
PAL, N-PAL, PAL60, Com
ponent SECAM, S-Video,
HDTV (1080i, 720p)
Image Control Freeze function, Electronic
Magnification and Pan
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHB
Lamp Life 2000 hours (typical)
Audio Speaker 1 x 1watt
Throw Distance 37” - 233”
Screen Size 40” - 200”
Inputs, Video (1) Component
(1) Min DIN 4-pin S-Video
(1) RCA composite Video
(1) Audio, Stereo mini jack
Inputs, Computer (1) Signal; D-sub 15 pin
(1) Audio, Stereo mini jack
Outputs, RS-232 15 pin control, D-sub
Security Kensington lock slot
Fan Level 36dB,ultra quiet.
32dB in whisper made
Power AC90-132 V / AC220-240V
50/60 Hz, 220 watt
Size
(WxHxD)
Weight 5 lbs
Shipping Weight 14 lbs.
Carton Size 15” x 13” x 10.5”
10.9" x 2.4" x 8.3"
FF
AST FAST F
F
AST F
FF
AST FAST F
AXAX
AX
AXAX
Performance and Portability
The Dukane ImagePro™ 8046 is the perfect tool for the
presenter on the go. At only 5 Lbs. the 8046 can be
easily transported and stored in airplane overhead
compartments. Brilliant image quality makes the 8046
ideal for displaying data images from a PC or MAC and
video from a VCR or DVD player. The 8046 sets up in
seconds and features easy operation for the “nontechnical” presenter. The video quality is superb and it is
HDTV compatible.
Featuring true 800 X 600 SVGA resolution (compressed
XGA resolution) and 1400 lumens of brightness the
Image Pro 8046 is engineered to reproduce data with
razor sharp accuracy and brilliant color imagery .
The 8046 gives the presenter the power to adapt to any
environment. Featuring a high performance zoom lens
with unique wide-angle capabilities the 8046 produces a
large image at a short throw distance. This permits close
to the screen operation in smaller rooms.
In addition, the 8046 has a super quiet fan that permits
meetings to occur close to and around the projector.
The Image Pro 8046 goes anywhere for powerful
effective presentations, Classroom training and professional meetings. Backed by Dukane’s legendary service
and warranty, the Image Pro 8046 of fers outstanding
performance, portability and value.
Accessories Included Remote control, Batteries,
Power cord (U.S., UK, Euro),
Video cable, Audio cable
(stereo mini) RGB cable,
operators manual and soft
carry case.
Safety UL/C-UL
Optional Accessories Lamps 456-224; Rolling
Briefcase; 185-406
Five (5) year Limited Warranty on Parts and Labor in
North America, lamp excluded (for other locations,local
warranties apply.) Includes Dukane’s FREE 24 month
Peace-of-Mind Loaner Program.
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485 or 2486
Fax (630) 584-5156
e-mail: avsales@dukane.com
Image Pro® is a registered trademark of
DUK DUK
ANEANE
DUK
ANE Corporation.
DUK DUK
ANEANE
Form # 11539-C-03 rev . 1
