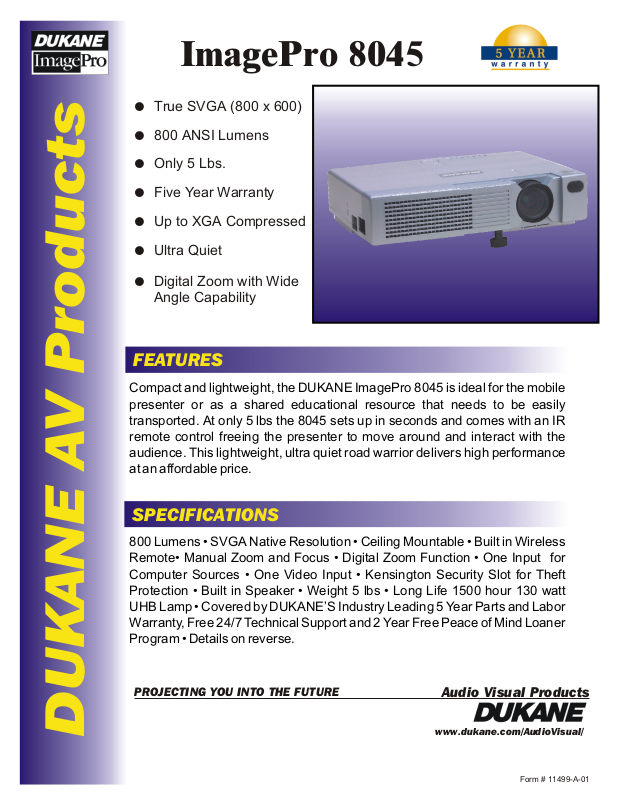

ImagePro 8045
! True SVGA (800 x 600)
! 800 ANSI Lumens
! Only 5 Lbs.
! Five Year Warranty
! Up to XGA Compressed
! Ultra Quiet
! Digital Zoom with Wide
Angle Capability
FEATURES
Compact and lightweight, the DUKANE ImagePro 8045 is ideal for the mobile
presenter or as a shared educational resource that needs to be easily
transported. At only 5 lbs the 8045 sets up in seconds and comes with an IR
remote control freeing the presenter to move around and interact with the
audience. This lightweight, ultra quiet road warrior delivers high performance
at an affordable price.
SPECIFICATIONS
800 Lumens • SVGA Native Resolution • Ceiling Mountable • Built in Wireless
Remote• Manual Zoom and Focus • Digital Zoom Function • One Input for
Computer Sources • One Video Input • Kensington Security Slot for Theft
Protection • Built in Speaker • Weight 5 lbs • Long Life 1500 hour 130 watt
UHB Lamp • Covered by DUKANE’S Industry Leading 5 Year Parts and Labor
Warranty, Free 24/7 Technical Support and 2 Year Free Peace of Mind Loaner
Program • Details on reverse.
DUKANE AV Products
PROJECTING YOU INTO THE FUTURE
Audio Visual Products
www.dukane.com/AudioVisual/
Form # 11499-A-01
ImagePro 8045ImagePro 8045
ImagePro 8045
ImagePro 8045ImagePro 8045
Data/Video ProjectorData/Video Projector
Data/Video Projector
Data/Video ProjectorData/Video Projector
Model 28A8045Model 28A8045
Model 28A8045
Model 28A8045Model 28A8045
Specifications (Specifications are subject to change without notice)
LCD Type 0.7” polysilicon active-
matrix TFT x 3
Brightness 800 ANSI Lumens
Resolution 800 x 600 pixels (H X V)
Contrast 200:1
Scanning Frequency fh 15-69 kHz, fv 50-85 Hz
Lens Manual Zoom (F2.0-2.3), 1.2X
Lens Throw Ratio 1:1 Image diagonal to throw
distance.
Keystone Correction Digital Selectable
Aspect Ratio 4:3, 16:9, Selectable
Computer SVGA, VGA,
Compatibility XGA Compressed, Mac,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-
PAL, N-PAL, PAL60,
SECAM, S-Video
Image Control Freeze function, Electronic
Magnification and Pan
Color Reproduction 24 bit (16.7 million)
Lamp 130W UHB
Lamp Life 1500 hours (typical)
Audio Speaker 1 x 1watt
Throw Distance 30” - 233”
Screen Size 40” - 200”
Inputs (1) Min DIN 4-pin S-Video
(1) RCA composite Video
(1) Signal; D-sub 15 pin
computer
(1) Audio, Stereo mini jack
Outputs 15 pin control, D-sub
Fan Level 34dB,ultra quiet.
FF
AST FAST F
F
AST F
FF
AST FAST F
AXAX
AX
AXAX
Performance and Portability
The Dukane Image Pro 8045 is the perfect tool for the
presenter on the go. At only 5 Lbs. the 8045 can be
easily transported and stored in airplane overhead
compartments. Brilliant image quality makes the 8045
ideal for displaying data images from a PC or MAC and
video from a VCR or DVD player. The 8045 sets up in
seconds and features easy operation for the “nontechnical” presenter. The video quality is superb!
Featuring true 800 X 600 SVGA resolution (compressed
XGA resolution) and 800 lumens of brightness the Image
Pro 8045 is engineered to reproduce data with razor
sharp accuracy and brilliant color imagery.
The 8045 gives the presenter the power to adapt to any
environment. Featuring a high performance zoom lens
with unique wide-angle capabilities the 8045 produces a
large image at a short throw distance.
Power AC90-132 V / AC220-240V
50/60 Hz, 200 watt
Size
(WxHxD)
Weight 5 lbs
Shipping Weight 14 lbs.
Carton Size 15” x 13” x 10.5”
Accessories Included Remote control, Batteries,
Safety UL/C-UL
Optional Accessories Lamps 456-214; Rolling
Five (5) year Limited Warranty on Parts and Labor in
North America, lamp excluded (for other locations,local
warranties apply.) Includes Dukane’s FREE 24 month
Peace-of-Mind Loaner Program.
11.4" x 3.0" x 8.3"
Power cord (U.S., UK, Euro),
Video cable, Audio cable
(stereo mini) MAC adaptor
RGB cable, operators manual
and soft carry case.
Briefcase; 128-406
In addition, the 8045 has a super quiet fan that permits
meetings to occur close to and around the projector.
The Image Pro 8045 goes anywhere for powerful
effective presentations, Classroom training and professional meetings. Backed by Dukanes’s legendary service
and warranty, the Image Pro 8045 offers outstanding
performance, portability and value.
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485 or 2486
Fax (630) 584-5156
e-mail: avsales@dukane.com
DUK DUK
Image Pro® is a registered trademark of
ANEANE
DUK
ANE Corporation.
DUK DUK
ANEANE
Form # 11499-L-00 1.0
