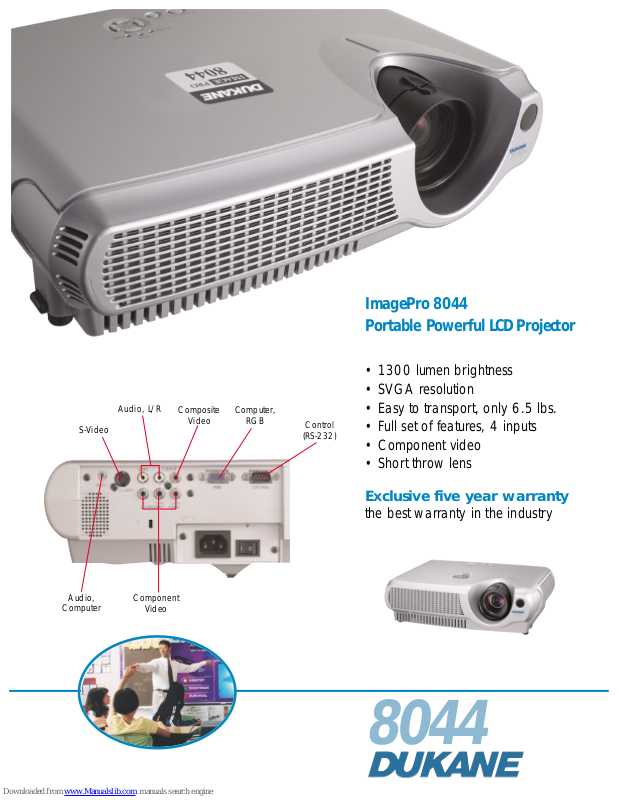

ImagePro 8044
Portable Powerful LCD Projector
• 1300 lumen brightness
• SVGA resolution
S-Video
Audio,
Computer
Audio, L/R
Component
Video
Composite
Video
Computer,
RGB
Control
(RS-232)
• Easy to transport, only 6.5 lbs.
• Full set of features, 4 inputs
• Component video
• Short throw lens
Exclusive five year warranty
the best warranty in the industry
8044
Page 2
ImagePro 8044
SSccrreeeenn SSiizzee 44..33
TThhrrooww DDiissttaannccee
Premium-quality LCD projector
A new way of thinking about projection
The Dukane ImagePro 8044 is a projector that can be
easily moved around while still providing higher image
brightness and features to make your class or presentation easy. It is simple to use, transport, and can be setup
in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use it as a portable or mount it on
the ceiling.
Key features:
• SVGA (800 x 600) resolution
• 1300 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 6.5 lbs.
• Compatible with all types of video including HDTV
•“Custom Image” for your startup and blank screens
• Wide angle zoom lens permits closer placement to
the screen
• "Silent Running" so you hear only your message
• RGB Component/Composite/S-video inputs
• Manual zoom and manual focus
• Vertical keystone correction
• 4:3, 16:9 and other modes
• Digital zoom and freeze functions
• Comes with soft case
• Five Year Warranty and Peace of Mind Service
8044 Projection throw distance.
Diagonal* Width* Min* Max*
40 32 47 56
60 48 71 85
80 64 95 114
100 80 119 143
120 96 143 171
150 120 179 215
200 160 240 287
Throw ratio: 1.5 -1.8:1 (distance:width)
*Measured in inches
Specifications
Image Element 0.55” polysilicon active-matrix
TFT x3
Brightness 1300 ANSI lumens
(1050 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V)
Contrast 400 to 1
Scanning Frequency fh 15-91 kHz, fv 50-120 Hz
Lens Manual zoom (f1.6 – 1.8), 1.2X
Lens Throw Ratio 1:1.5 – 1.8:1 throw distance
to image width
Keystone Correction Digital, vertical +/-15
Aspect Ratio 4:3, 16:9,15:9, 32:15 selectable
Computer SVGA, VGA, XGA, plus
Compatibility SXGA/UXGA Compressed,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL,PAL-M,
PAL-N, PAL60, SECAM,
S-video,
Component Video HDTV, 1080i, 720p, 625i, 480i
Image Control Freeze function, electronic
magnification and pan
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 130W UHB
Lamp Life 2000 hours (typical)
Audio 1 speaker , 1 watt
Throw Distance 47” to 280”
Screen Size, diagonal 40” to 200”
Inputs, Video Component, RCA x 3
s-video, Min DIN 4-pin,
composite video, RCA x 1
Audio, Stereo, RCA x 2
Inputs, Computer RGB Signal: D-sub, 15 pin
Audio, Stereo mini jack
Outputs,Control 9 pin, D-sub, RS-232
Security Kensington lock slot
Fan Level 32dB, ultra quiet
27dB in Whisper Mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 90-132V, AC220-240V
50/60 Hz, 220 watt
Size (WxHxD) 13.1” x 3.6” x 9.8”
Weight 6.5 lbs.
Shipping Weight 15.2 lbs.
Carton Size 17” x 14” x 13”
Accessories Included Remote control, batteries, power
cord, Computer cable,
operators manual and
soft carry case.
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-8044; rolling brief-
case; 185-406, Remote
control:HLD01894, remote Mouse
unit: RMU-101
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11613-B-04
ImagePro is a registered trademark of Dukane Corporation
Five (5) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
.
