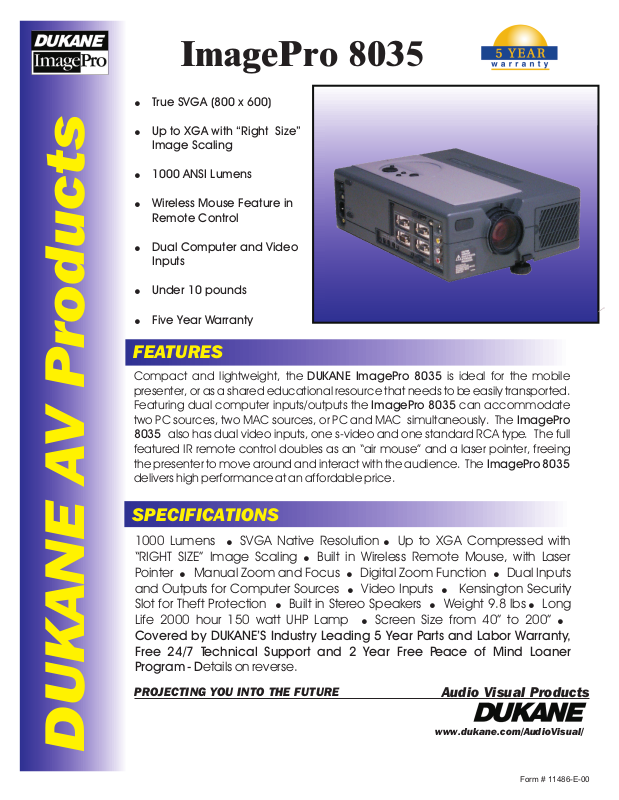

ImagePro 8035
l True SVGA (800 x 600)
l Up to XGA with “Right Size”
Image Scaling
l 1000 ANSI Lumens
l Wireless Mouse Feature in
Remote Control
l Dual Computer and Video
Inputs
l Under 10 pounds
l Five Year Warranty
FEATURES
Compact and lightweight, the DUKANE ImagePro 8035 is ideal for the mobile
presenter, or as a shared educational resource that needs to be easily transported.
Featuring dual computer inputs/outputs the ImagePro 8035 can accommodate
two PC sources, two MAC sources, or PC and MAC simultaneously. The ImagePro
8035 also has dual video inputs, one s-video and one standard RCA type. The full
featured IR remote control doubles as an “air mouse” and a laser pointer, freeing
the presenter to move around and interact with the audience. The ImagePro 8035
delivers high performance at an affordable price.
SPECIFICATIONS
1000 Lumens lSVGA Native Resolution lUp to XGA Compressed with
“RIGHT SIZE” Image Scaling lBuilt in Wireless Remote Mouse, with Laser
Pointer lManual Zoom and Focus lDigital Zoom Function lDual Inputs
and Outputs for Computer Sources lVideo Inputs l Kensington Security
Slot for Theft Protection lBuilt in Stereo Speakers lWeight 9.8 lbs lLong
Life 2000 hour 150 watt UHP Lamp lScreen Size from 40” to 200” l
Covered by DUKANE’S Industry Leading 5 Year Parts and Labor Warranty,
Free 24/7 Technical Support and 2 Year Free Peace of Mind Loaner
Program - Details on reverse.
DUKANE AV Products
PROJECTING YOU INTO THE FUTURE
Audio Visual Products
www.dukane.com/AudioVisual/
Form # 11486-E-00
ImagePro 8035ImagePro 8035
ImagePro 8035
ImagePro 8035ImagePro 8035
Data/Video ProjectorData/Video Projector
Data/Video Projector
Data/Video ProjectorData/Video Projector
Model 28A8035Model 28A8035
Model 28A8035
Model 28A8035Model 28A8035
Specifications (Specifications are subject to change without notice)
LCD T ype 0.9” x 3 panel Poly-Silicon
TFT liquid crystal display
Brightness 1000 Lumens
Contrast 200:1 Peak
Scanning Frequency fH 25-60 kHz, fV 56-85 Hz
Lens Manual Zoom 1:1.3
Keystone correction Full shift off axis
Aspect Ratio 4:3
Source Compatibility SVGA, VGA, Mac,
XGA Compressed
Resolution 800 x 600 (H x V)
Video Compatibility NTSC, PAL, SECAM
NTSC 4.3
Color Reproduction 16.7 million colors, 24 bit
Light Source 150 Watt UHP
Lamp Life 2000 hours (typical)
Audio Speakers 2 x 1watt
Throw Distance 5.3’ to 35’
Screen Size 40”~200” diagonal
Inputs (2)15 Pin VGA,(1)S-Video,
(1)Component Video,
(1)Audio for video & RGB
Outputs 15 Pin Monitor out, 1
audio stereo mini jack
Mouse and RS-232 1)D sub 15 pin (male)
Power 110 VAC 60 Hz, or 230
VAC 50 Hz, 230 Watts
Size
(WxHxD)
Weight 9.8 lbs (Unit weight)
Shipping Weight 20 lbs. (approx.)
Carton Size 18”x 18”x 12”
Accessories Included AC Power Cable,Operations
Safety UL and C-UL listed
Optional Accessories Soft Padded Shoulder case,
9.8" x 3.9" x 13"
excluding lens & feet
Manual, Wireless Infrared
Remote Control, 15 pin
SVGA/VGA Cable,MAC
Adaptor Audio cable,
Composite Video cable,
Serial PS2 mouse cable.
ATA Case w/Wheels, Ceiling
mount, Replacement lamp.
®®
®
®®
SVGA SVGA
SVGA
SVGA SVGA
1000 Lumens
PP
erformance and Verformance and V
P
erformance and V
PP
erformance and Verformance and V
The Dukane ImagePro 8035 is a user-friendly projector that is compatible with your VCR, camcorder,
or DVD player. It is also fully compatible with the
newest Intel Pentium and Apple Power PC’s. Offering true “Plug and Play” operation the ImagePro 8035
is at home in the conference room, classroom or on
the road. It sets up in minutes and delivers high brightness (1000 lumens) and detailed image quality.
Featuring true 800 x 600 SVGA and XGA compressed
resolution, the ImagePro 8035 is engineered to reproduce data with razor sharp accuracy and video
images with lifelike color and detail.
The ImagePro 8035 gives the presenter/educator the
power to adapt to any environment. Featuring a high
performance zoom lens system the ImagePro 8035
can produce images from 40” to an amazing 200”. It
also has a full feature wireless remote control with
full mouse control and a laser pointer.
The ImagePro 8035 goes anywhere for powerful, effective presentations, classroom training and professional meetings. Backed by Dukane’s legendary service and warranty, the ImagePro 8035 offers outstanding performance and value.
Audio Visual Products
aluealue
alue
aluealue
Five (5) year Limited Warranty on Parts and
Labor in North America, lamp excluded (for other
locations,local warranties apply.) Includes
Dukane’s FREE 24 month Peace-of-Mind
Loaner Program (Call for details and limitations).
Form No. 8035-E-00
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485 or 2486
Fax (630) 584-5156
e-mail: avsales@dukane.com
Image Pro® is a registered trademark of
DUK DUK
ANEANE
DUK
ANE Corporation.
