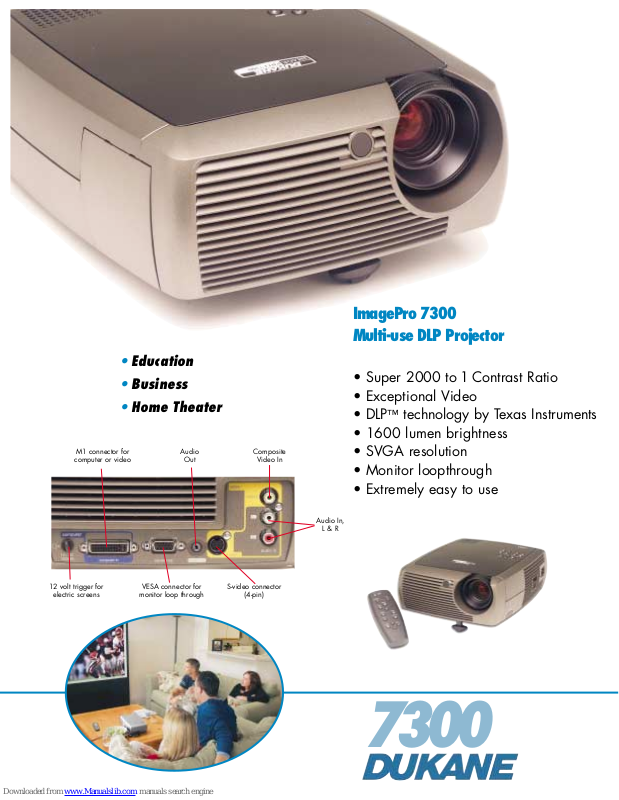

Page 1
• Education
• Business
• Home Theater
M1 connector for
computer or video
Audio
Out
Composite
Video In
Audio In,
L & R
ImagePro 7300
Multi-use DLP Projector
• Super 2000 to 1 Contrast Ratio
• Exceptional Video
• DLP
• 1600 lumen brightness
• SVGA resolution
• Monitor loopthrough
• Extremely easy to use
™ technology by Texas Instruments
12 volt trigger for
electric screens
VESA connector for
monitor loop through
S-video connector
(4-pin)
7300
Page 2
ImagePro 7300
Diagonal Width Min. Max.
Inches Inches Feet Feet
40 32 5.0 6.1
50 40 6.3 7.6
60 48 7.6 9.1
100 80 12.6 15.1
150 120 18.9 22.7
200 160 25.2 30.3
Image Size 4:3
Throw Distance
Multi-use DLP projector
Great Data and Super Video Images
The Dukane ImagePro 7300 is a DLP™ projector that
works for business, instruction, or in your home. With a
high contrast, 2000 to 1, and the latest digital video
processor, the image is simply amazing. Plus, it is easy
to use and transport at less than 7 lbs.
This revolutionary value projector has the image, connectivity, and features for
everyone. Use it as a portable
or mount it in the ceiling.
Key features:
• 1600 lumen brightness
• Vibrant color images
• 2000 to 1 contrast ratio
• Display in 4:3 or 16:9 aspect ratios
• Versatile with computer, and video inputs
• Simple setup and operation, color coded connections
• Compatible with all types of video including HDTV
• Component video input for the best images
• Extended 3000 hour lamp life
• Monitor output for use with a desktop computer’s monitor
• Full function IR remote with mouse/cursor control
• Zoom lens for flexible projector placement
• One year warranty and one year POM program
7300 Distance Table
Throw ratio: 1.89-2.27:1 (distance:width)
Image offset is 112.2%
Specifications
Image Element 0.55" DDR DMD
DLP by Texas Instruments
Brightness 1600 ANSI lumens
(1100 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V), SVGA
Contrast 2000 to 1
Scanning Frequency fh 31.5-80 kHz, fv 50-85 Hz
Lens Manual Zoom, 1.2X
Lens Throw Ratio 1.89-2.27:1 throw distance
to image width
Keystone Correction Digital, vertical +/-10 deg
Aspect Ratio 4:3, 16:9 selectable
Computer VGA, SVGA, XGA, and
Compatibility Mac 13” and Mac 16”
Video Compatibility NTSC, PAL, SECAM, DVI
HDTV (1080i, 720p, and 480p)
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using M1 to USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 200W SHP
Lamp Life 3000 hours
Audio 1 speaker, 2.5 watt
Throw Distance 60” to 388”
Screen Size, diagonal 32” to 260”
Inputs (1) M1-DA (computer &video
sources)
(1) S-video, Mini DIN 4-pin,
(1) Composite video, RCA x 1
(2) Audio, Stereo, RCA (L/R)
Outputs RGB, 15 pin, D-sub
(monitor loop through)
Audio out, Stereo mini jack
12V trigger for electric screens
Security Kensington lock slot
Fan Level 39 dB normal, 37dB in
Whisper Mode
Operating Temperature 41 to 104 deg. F (5-40 deg C)
Power AC 100-240V, 50/60 Hz
200 watt (typical), 250 watt (max)
Size (WxHxD) 9.8” x 4.2” x 12.9”
Weight 6.8 lbs.
Shipping Weight 13 lbs.
Carton Size 14.5” x 14” x 18.5”
Accessories Included Remote control, batteries, power
cord, M1 to VGA/USB-A cable,
composite video cable, user manual
Safety UL/CSA, FCC Class B, CE
Optional Accessories Lamp 456-7300
Rolling briefcase; 185-406,
Ceiling mount , universal; PJF-UNV-S
Softcase; 128-8755; Component to
M1 adapter, SP-M1-ADPT
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11642-H-04.1
ImagePro is a registered trademark of Dukane Corporation
Two (2) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
.
2
YR
