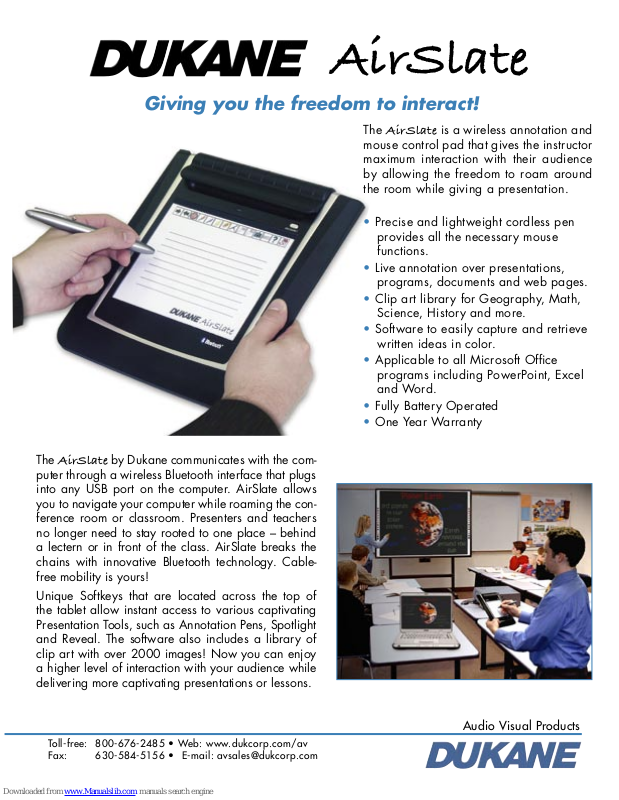

Page 1
AirSlate
Giving you the freedom to interact!
The AirSlate is a wireless annotation and
mouse control pad that gives the instructor
maximum interaction with their audience
by allowing the freedom to roam around
the room while giving a presentation.
• Precise and lightweight cordless pen
provides all the necessary mouse
functions.
• Live annotation over presentations,
programs, documents and web pages.
• Clip art library for Geography, Math,
Science, History and more.
• Software to easily capture and retrieve
written ideas in color.
• Applicable to all Microsoft Office
programs including PowerPoint, Excel
and Word.
• Fully Battery Operated
• One Year Warranty
The AirSlate by Dukane communicates with the computer through a wireless Bluetooth interface that plugs
into any USB port on the computer. AirSlate allows
you to navigate your computer while roaming the conference room or classroom. Presenters and teachers
no longer need to stay rooted to one place – behind
a lectern or in front of the class. AirSlate breaks the
chains with innovative Bluetooth technology. Cablefree mobility is yours!
Unique Softkeys that are located across the top of
the tablet allow instant access to various captivating
Presentation Tools, such as Annotation Pens, Spotlight
and Reveal. The software also includes a library of
clip art with over 2000 images! Now you can enjoy
a higher level of interaction with your audience while
delivering more captivating presentations or lessons.
Toll-free: 800-676-2485 • Web: www.dukcorp.com/av
Fax: 630-584-5156 • E-mail: [email protected]
Audio Visual Products
Page 2
Lightweight portable slate
Multimedia Pen
Drawing Navigation Area
Soft Keys for Quick Access
to Annotation, Image, &
Presentation Tools
Convenient Pen Holder
AirSlate Benefits
• Maximum interaction with students or audience because
the teacher/presenter is not required to remain at the front
of the room to conduct the lesson or presentation
• Great addition to any interactive whiteboard giving the
audience more options to be actively involved.
• Cost effective alternative to an interactive whiteboard
• Up to four AirSlates can be used with one computer
AirSlate Carton Contents:
AirSlate Bluetooth tablet
Cordless pressure-sensitive pen
Bluetooth dongle
Retractable USB cable
4 AA rechargeable NIMH batteries
Battery recharger
1 AAA rechargeable NIMH battery
Installation and driver CD-ROM, incuding Clip Art software
Bluetooth adapter driver for Windows 2000 and XP non
Service Pack 2
Minimum System Requirements:
Windows 2000, XP
Pentium 300 MHz (or equivalent) processor or higher
128MB of RAM
CD ROM drive
One free USB Port
Super VGA color monitor (800 x 600)
General Specifications
Communication Interface Bluetooth HID class (or USB V1.1)
Bluetooth Class 2.4G Class II (10M)
Active Area 6” x 4.5” (152.4 mm x 114.3 mm)
Resolution 500 lpi (20 lines per mm)
Max. Accuracy
(overall with pen) 0.01654” (.42 mm)
Pressure Level 512 levels
Report Rate 125 points/sec
Min. Reading Height 0.4” (8 mm)
Straight Line
Distortion Allowance + / - 0.0787” (2 mm)
Bluetooth Transmitter Range Up to 32’ (10 m) in open space
USB Type Low Speed HID
USB Connector Mini Connector
LED 1 Green / Red dual
Softkeys Special functions
Disconnect Button (1) Used for Bluetooth
disconnect from PC
Power Supply Tablet: 2AA (1.2V) batteries
Pen: 1AAA (1.5V) battery
Power Consumption Operation: < or = 180mA/3V
(via battery) Standby: < or = 100mA/3V
Suspend: < or = 20mA/3V
Weight 0.88 lbs. (0.4 kgs) (with
cable & batteries)
Dimensions 9.8” x 9.4” x 1.1”
Shipping Weight 3 lbs.
Shipping Dimensions 16” x 11” x 3.5”
(25 cm x 24 cm x 2.8 cm)
Warranty 1 year with product registration
Model # AS1
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: 630-584-5156
E-mail: [email protected]
Web: www.dukcorp.com/av
AirSlate is a registered trademark of Dukane Corporation
#11712- G-06
